Copies content of local objectRegistry to all processors. More...

#include <syncObjects.H>

Inheritance diagram for syncObjects:

Collaboration diagram for syncObjects:

Public Member Functions
	TypeName ("syncObjects")
	Runtime type information.

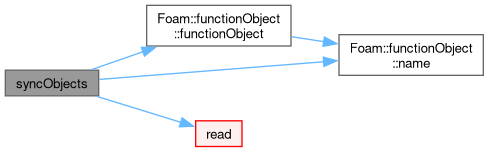

	syncObjects (const word &name, const Time &runTime, const dictionary &dict)
	Construct from name, Time and dictionary.
virtual	~syncObjects ()=default
	Destructor.
const objectRegistry &	obr () const
const fileName &	root () const

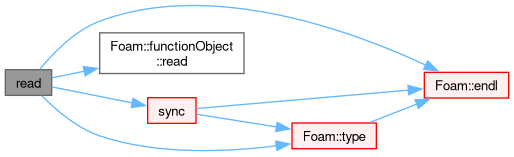

virtual bool	read (const dictionary &)
	Read the function-object dictionary.
virtual bool	execute ()
	Execute the function-object operations (no-op).
virtual bool	write ()
	Write the function-object results.
Public Member Functions inherited from functionObject
	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))
	functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)
	Construct from components.
autoPtr< functionObject >	clone () const
	Return clone.
virtual	~functionObject ()=default
	Destructor.
virtual const word &	type () const =0
	Runtime type information.
const word &	name () const noexcept
	Return the name of this functionObject.
bool	useNamePrefix () const noexcept
	Return the flag for adding a scoping name prefix.
bool	useNamePrefix (bool on) noexcept
	Modify the flag for adding a scoping name prefix.
virtual bool	execute (const label subIndex)
	Execute using the specified subIndex.
virtual bool	end ()
	Called when Time::run() determines that the time-loop exits.
virtual bool	adjustTimeStep ()
	Called at the end of Time::adjustDeltaT() if adjustTime is true.
virtual bool	filesModified () const
	Did any file get changed during execution?
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update for changes of mesh.
virtual void	movePoints (const polyMesh &mesh)
	Update for changes of mesh.

Protected Member Functions

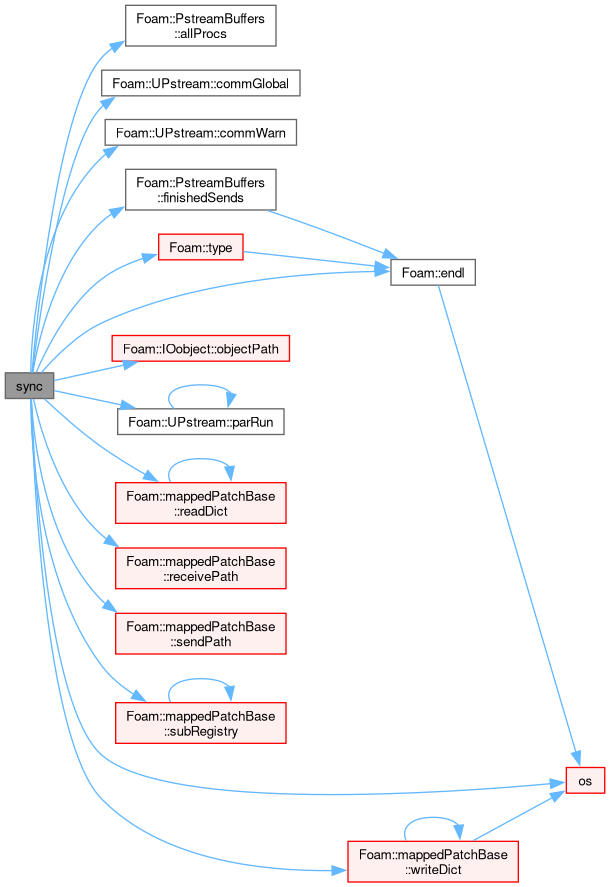

void	sync ()
	Do all: synchronise all IOFields and objectRegistry.
Protected Member Functions inherited from functionObject
word	scopedName (const word &name) const
	Return a scoped (prefixed) name.

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &runTime, const dictionary &dict)
	Select from dictionary, based on its "type" entry.
Public Attributes inherited from functionObject
bool	log
	Flag to write log into Info.
Static Public Attributes inherited from functionObject
static int	debug
	Flag to execute debug content.
static bool	postProcess
	Global post-processing mode switch.
static bool	defaultUseNamePrefix
	Global default for useNamePrefix.
static word	outputPrefix
	Directory prefix.

Detailed Description

Copies content of local objectRegistry to all processors.

Currently only supports IOFields. It is used to distribute IOFields from different processors/regions/worlds when doing loose coupling. To be used in combination with 'mapped' boundary conditions.

Usage

Minimal example by using system/controlDict.functions:

syncObjectsFO
{
    // Mandatory entries
    type            syncObjects;
    libs            (utilityFunctionObjects);
    ...

    // Optional entries
    // Where is data located relative to runTime. Given as a filename
    // with every '/' indicating a sub-objectRegistry w.r.t. runTime.
    // Local data is under <root>/send/processorXXX. After execution
    // (potentially remote) data will be under the corresponding
    // <root>/receive/processorYYY objectRegistry.
    root            <fileName>;  // "level0/level1/level2";

    // Inherited entries
    ...
}

where the entries mean:
