volRegion Class Reference
FunctionObjects » Field function objects

Volume (cell) region selection class. More...

#include <volRegion.H>

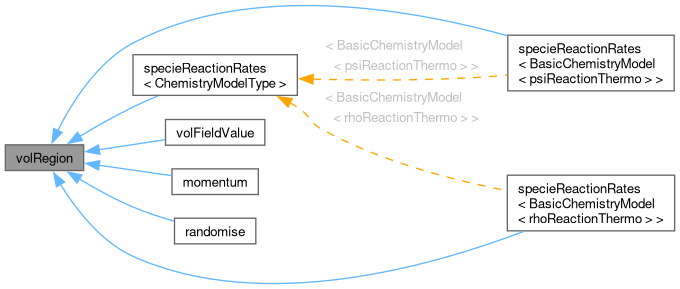

Inheritance diagram for volRegion:
Inheritance graph
[legend]
Collaboration diagram for volRegion:
Collaboration graph
[legend]

Public Types

enum  regionTypes : char { vrtAll = 0 , vrtCellSet , vrtCellZone }
 Region type enumeration. More...

Public Member Functions

 TypeName ("volRegion")
 Run-time type information.
 volRegion (const fvMesh &mesh, const dictionary &dict)
 Construct from fvMesh and dictionary.
virtual ~volRegion ()=default
 Destructor.
regionTypes regionType () const noexcept
 The region type.
const labelList & cellIDs () const
 Return the local list of cell IDs.
label nCells () const
 Return the total number of cells selected in the region.
scalar V () const
 Return total volume of the selected region.
bool update ()
 Update the cached values as required.
virtual bool read (const dictionary &dict)
 Read from dictionary.
virtual void updateMesh (const mapPolyMesh &)
 Update for changes of mesh.
virtual void movePoints (const polyMesh &)
 Update for mesh point-motion.

Static Public Attributes

static const Enum< regionTypes > regionTypeNames_
 Region type names.

Protected Member Functions

bool useAllCells () const noexcept
 Use all cells, not the cellIDs.
void writeFileHeader (const writeFile &wf, Ostream &file) const
 Output file header information.

Protected Attributes

regionTypes regionType_
 Region type.
wordRe regionName_
 Region name (cellSet, cellZone, ...).

Detailed Description

Volume (cell) region selection class.

The adjustments for mesh changes have been implemented with a lazy evaluation, to avoid unnecessary recalculation until the values are actually required. The update() method is used to ensure the cache values are up-to-date.

Examples of function object specification:

volRegion0
{
    .
    .
    regionType      cellZone;
    name            c0;
    .
    .
}

volRegionAll
{
    .
    .
    regionType      all;
    .
    .
}
Usage
Property Description Required Default
regionType Selection type: all/cellSet/cellZone no all
name Name of cellSet/cellZone if required conditional
See also
Foam::functionObject
Source files

Definition at line 111 of file volRegion.H.

Member Enumeration Documentation

◆ regionTypes

enum regionTypes : char

Region type enumeration.

Enumerator
vrtAll

All cells.

vrtCellSet

A cellSet.

vrtCellZone

A cellZone.

Definition at line 120 of file volRegion.H.

Constructor & Destructor Documentation

◆ volRegion()

volRegion ( const fvMesh & mesh,
const dictionary & dict )

Construct from fvMesh and dictionary.

Definition at line 142 of file volRegion.C.

References dict, mesh, Foam::name(), read(), regionName_, regionType_, regionTypeNames_, vrtAll, and Foam::Zero.

Referenced by momentum::momentum(), momentum::momentum(), randomise::randomise(), specieReactionRates< ChemistryModelType >::specieReactionRates(), TypeName(), volFieldValue::volFieldValue(), volFieldValue::volFieldValue(), and ~volRegion().

Here is the call graph for this function:

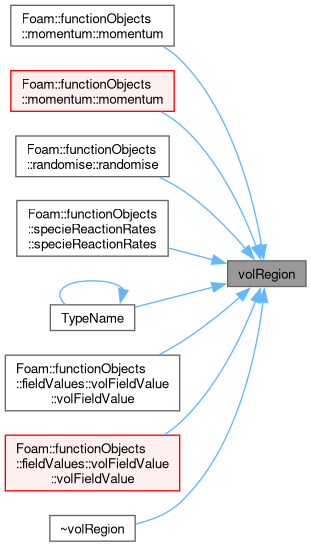

Here is the caller graph for this function:

◆ ~volRegion()

virtual ~volRegion ( )
virtualdefault

Destructor.

References cellIDs(), dict, movePoints(), nCells(), Foam::noexcept, read(), regionType(), update(), updateMesh(), V(), and volRegion().

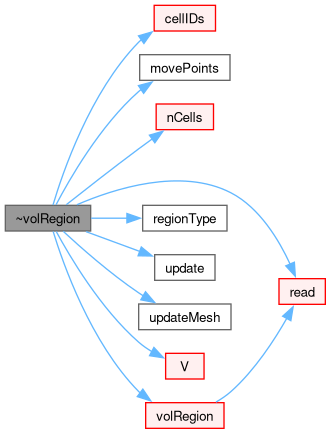

Here is the call graph for this function:

Member Function Documentation

◆ useAllCells()

bool useAllCells ( ) const
inlineprotectednoexcept

Use all cells, not the cellIDs.

Definition at line 24 of file volRegionI.H.

References Foam::noexcept, regionType_, and vrtAll.

Referenced by volFieldValue::filterField(), specieReactionRates< ChemistryModelType >::write(), momentum::writeFileHeader(), and momentum::writeValues().

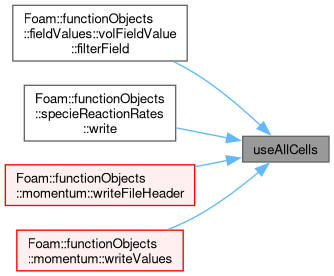

Here is the caller graph for this function:

◆ writeFileHeader()

void writeFileHeader ( const writeFile & wf,
Ostream & file ) const
protected

Output file header information.

Definition at line 126 of file volRegion.C.

References Foam::endl(), regionName_, regionType_, regionTypeNames_, Foam::setw(), writeFile::writeCommented(), and writeFile::writeHeaderValue().

Referenced by volFieldValue::writeFileHeader().

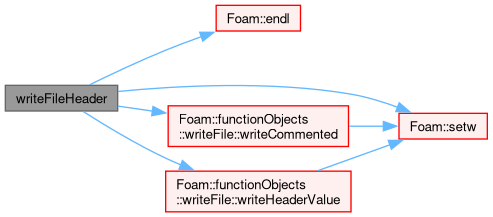

Here is the call graph for this function:
Here is the caller graph for this function:

◆ TypeName()

TypeName ( "volRegion" )

Run-time type information.

References dict, mesh, TypeName(), and volRegion().

Referenced by TypeName().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ regionType()

Foam::functionObjects::volRegion::regionTypes regionType ( ) const
inlinenoexcept

The region type.

Definition at line 31 of file volRegionI.H.

References Foam::noexcept, and regionType_.

Referenced by ~volRegion().

Here is the caller graph for this function:

◆ cellIDs()

const Foam::labelList & cellIDs ( ) const

Return the local list of cell IDs.

Empty or invalid for 'all'

Definition at line 203 of file volRegion.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::nl, List< label >::null(), regionType_, vrtCellSet, and vrtCellZone.

Referenced by volFieldValue::filterField(), specieReactionRates< ChemistryModelType >::write(), and ~volRegion().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ nCells()

Foam::label nCells ( ) const
inline

Return the total number of cells selected in the region.

Definition at line 37 of file volRegionI.H.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and Foam::nl.

Referenced by ~volRegion().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ V()

Foam::scalar V ( ) const
inline

Return total volume of the selected region.

Definition at line 52 of file volRegionI.H.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and Foam::nl.

Referenced by volFieldValue::getFieldValues(), volFieldValue::processValues(), volFieldValue::write(), specieReactionRates< ChemistryModelType >::write(), volFieldValue::writeAll(), volFieldValue::writeValues(), momentum::writeValues(), and ~volRegion().

Here is the call graph for this function:

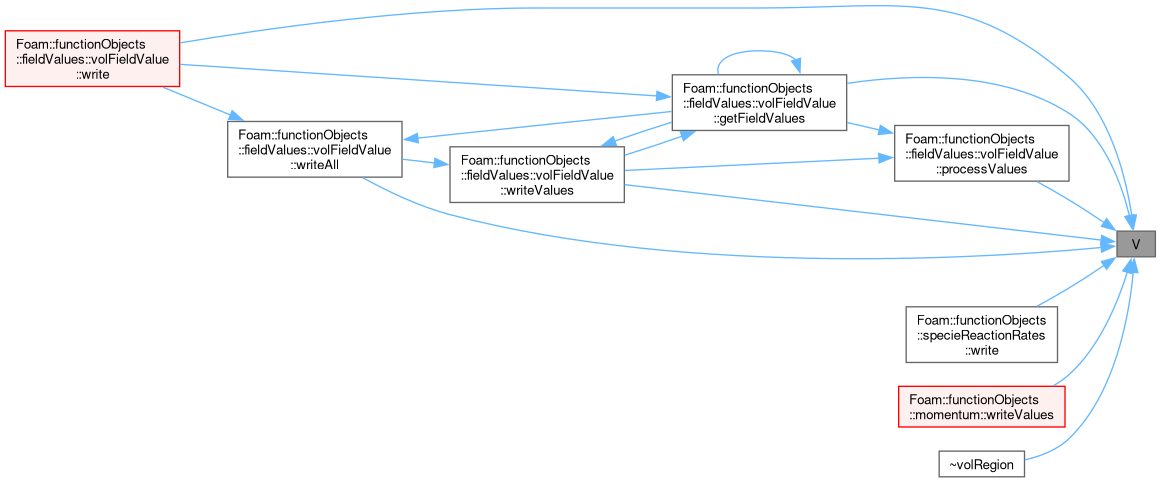

Here is the caller graph for this function:

◆ update()

bool update ( )

Update the cached values as required.

Returns
False if the values were already up to date

Definition at line 243 of file volRegion.C.

Referenced by randomise::calc(), volFieldValue::write(), specieReactionRates< ChemistryModelType >::write(), and ~volRegion().

Here is the caller graph for this function:

◆ read()

bool read ( const dictionary & dict)
virtual

Read from dictionary.

Reimplemented in volFieldValue, momentum, randomise, specieReactionRates< ChemistryModelType >, specieReactionRates< BasicChemistryModel< psiReactionThermo > >, and specieReactionRates< BasicChemistryModel< rhoReactionThermo > >.

Definition at line 171 of file volRegion.C.

References dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::flatOutput(), Foam::nl, regionName_, regionType_, regionTypeNames_, vrtAll, vrtCellSet, and vrtCellZone.

Referenced by momentum::read(), randomise::read(), volRegion(), and ~volRegion().

Here is the call graph for this function:

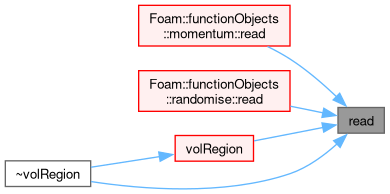

Here is the caller graph for this function:

◆ updateMesh()

void updateMesh ( const mapPolyMesh & )
virtual

Update for changes of mesh.

Reimplemented in momentum.

Definition at line 255 of file volRegion.C.

Referenced by momentum::updateMesh(), and ~volRegion().

Here is the caller graph for this function:

◆ movePoints()

void movePoints ( const polyMesh & )
virtual

Update for mesh point-motion.

Reimplemented in momentum.

Definition at line 261 of file volRegion.C.

Referenced by momentum::movePoints(), and ~volRegion().

Here is the caller graph for this function:

Member Data Documentation

◆ regionTypeNames_

const Foam::Enum< Foam::functionObjects::volRegion::regionTypes > regionTypeNames_
static

Region type names.

Definition at line 130 of file volRegion.H.

Referenced by momentum::read(), read(), volRegion(), momentum::writeFileHeader(), writeFileHeader(), volFieldValue::writeValues(), and momentum::writeValues().

◆ regionType_

regionTypes regionType_
protected

Region type.

Definition at line 183 of file volRegion.H.

Referenced by cellIDs(), momentum::read(), read(), regionType(), useAllCells(), volRegion(), momentum::writeFileHeader(), writeFileHeader(), volFieldValue::writeValues(), and momentum::writeValues().

◆ regionName_

wordRe regionName_
protected

Region name (cellSet, cellZone, ...).

Definition at line 188 of file volRegion.H.

Referenced by momentum::read(), read(), volRegion(), momentum::writeFileHeader(), writeFileHeader(), volFieldValue::writeValues(), and momentum::writeValues().

The documentation for this class was generated from the following files:
