Sends/receives parts of mesh+fvfields to neighbouring processors. Used in load balancing. More...

#include <fvMeshDistribute.H>

Public Member Functions
	ClassName ("fvMeshDistribute")
	fvMeshDistribute (fvMesh &mesh)
	Construct from mesh.
autoPtr< mapDistributePolyMesh >	distribute (const labelList &dist)
	Send cells to neighbours according to distribution.

Static Public Member Functions
static labelList	countCells (const labelList &)
	Helper function: count cells per processor in wanted distribution.
static void	printCoupleInfo (const primitiveMesh &, const labelList &, const labelList &, const labelList &, const labelList &)
	Print some info on coupling data.
template<class GeoField>
static void	printIntFieldInfo (const fvMesh &)
	Print some field info.
template<class GeoField>
static void	printFieldInfo (const fvMesh &)
	Print some field info.
static void	printMeshInfo (const polyMesh &)
	Print some info on mesh.
static tmp< surfaceScalarField >	generateTestField (const fvMesh &)
	Generate a test field on faces.
static void	testField (const surfaceScalarField &)
	Check whether field consistent with face orientation.

Detailed Description

Sends/receives parts of mesh+fvfields to neighbouring processors. Used in load balancing.

Input is per local cell the processor it should move to. Moves meshes and volFields/surfaceFields and returns map which can be used to distribute other.

Notes:

does not handle cyclics. Will probably handle separated proc patches.
if all cells move off processor also all its processor patches will get deleted so comms might be screwed up (since e.g. globalMeshData expects procPatches on all)
initial mesh has to have procPatches last and all normal patches common to all processors and in the same order. This is checked.

Source files

Definition at line 66 of file fvMeshDistribute.H.

Constructor & Destructor Documentation

◆ fvMeshDistribute()

fvMeshDistribute ( fvMesh & mesh )

explicit

Construct from mesh.

Definition at line 1841 of file fvMeshDistribute.C.

References mesh.

Member Function Documentation

◆ ClassName()

ClassName ( "fvMeshDistribute" )

References mesh.

◆ countCells()

Foam::labelList countCells ( const labelList & distribution )

static

Helper function: count cells per processor in wanted distribution.

Definition at line 1849 of file fvMeshDistribute.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, forAll, UPstream::nProcs(), and Foam::Zero.

Referenced by meshRefinement::balance(), and distribute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ distribute()

Foam::autoPtr< Foam::mapDistributePolyMesh > distribute ( const labelList & dist )

Send cells to neighbours according to distribution.

(for every cell the new proc)

Combine sourceProc, sourcePatch, sourceFace

Definition at line 1873 of file fvMeshDistribute.C.

References Foam::abort(), fvMeshAdder::add(), UPstream::allToAll(), fvMeshSubset::cellMap(), PstreamBuffers::clear(), countCells(), doLocalCode, PtrList< T >::emplace_set(), Foam::endl(), fvMeshSubset::faceFlipMap(), Foam::faceMap(), fvMeshSubset::faceMap(), Foam::FatalError, FatalErrorInFunction, PstreamBuffers::finishedSends(), Foam::flatOutput(), forAll, Foam::identity(), Foam::inplaceReorder(), meshes(), UPstream::myProcNo(), autoPtr< T >::New(), Foam::nl, UPstream::nProcs(), UPstream::parRun(), UPstream::parRun(), patches, fvMeshSubset::patchMap(), fvMeshSubset::pointMap(), Foam::Pout, printFieldInfo(), printIntFieldInfo(), printMeshInfo(), PstreamBuffers::recvDataCounts(), Foam::renumber(), List< T >::resize_nocopy(), PtrList< T >::set(), UPtrList< T >::set(), HashTable< T, Key, Hash >::size(), UPtrList< T >::size(), fvMeshSubset::subMesh(), List< T >::transfer(), FieldBase::typeName, and Foam::Zero.

Referenced by meshRefinement::balance().

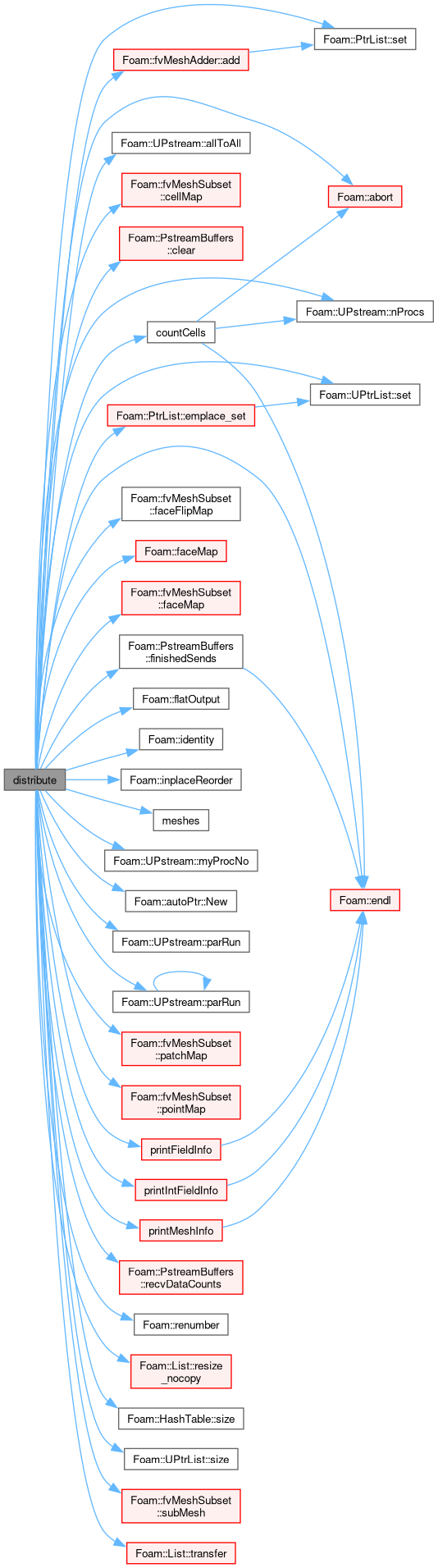

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printCoupleInfo()

void printCoupleInfo	(	const primitiveMesh &	mesh,
		const labelList &	sourceFace,
		const labelList &	sourceProc,
		const labelList &	sourcePatch,
		const labelList &	sourceNewNbrProc )
