Class containing mesh-to-mesh mapping information after a mesh distribution where we send parts of meshes (using subsetting) to other processors and receive and reconstruct mesh. More...

#include <mapDistributePolyMesh.H>

Inheritance diagram for mapDistributePolyMesh:

[legend]

Public Member Functions
	mapDistributePolyMesh ()
	Default construct - uses worldComm.
	mapDistributePolyMesh (const label comm)
	Default construct with specified communicator.
	mapDistributePolyMesh (const dictionary &dict, const label comm=UPstream::worldComm)
	Read construct from dictionary.
	mapDistributePolyMesh (const mapDistributePolyMesh &map)
	Copy construct.
	mapDistributePolyMesh (mapDistributePolyMesh &&map)
	Move construct.
	mapDistributePolyMesh (mapDistributePolyMesh &map, bool reuse)
	Copy/move construct.
	mapDistributePolyMesh (const polyMesh &mesh, const label nOldPoints, const label nOldFaces, const label nOldCells, labelList &&oldPatchStarts, labelList &&oldPatchNMeshPoints, labelListList &&subPointMap, labelListList &&subFaceMap, labelListList &&subCellMap, labelListList &&subPatchMap, labelListList &&constructPointMap, labelListList &&constructFaceMap, labelListList &&constructCellMap, labelListList &&constructPatchMap, const bool subFaceHasFlip=false, const bool constructFaceHasFlip=false)
	Construct from components. Note that mesh has to be changed already.
	mapDistributePolyMesh (const label nOldPoints, const label nOldFaces, const label nOldCells, labelList &&oldPatchStarts, labelList &&oldPatchNMeshPoints, mapDistribute &&pointMap, mapDistribute &&faceMap, mapDistribute &&cellMap, mapDistribute &&patchMap)
	Move construct from components.
	mapDistributePolyMesh (Istream &is)
	Construct from Istream.
label	nOldPoints () const noexcept
	Number of points in mesh before distribution.
label	nOldFaces () const noexcept
	Number of faces in mesh before distribution.
label	nOldCells () const noexcept
	Number of cells in mesh before distribution.
const labelList &	oldPatchSizes () const noexcept
	List of the old patch sizes.
const labelList &	oldPatchStarts () const noexcept
	List of the old patch start labels.
const labelList &	oldPatchNMeshPoints () const noexcept
	List of numbers of mesh points per old patch.
const mapDistribute &	pointMap () const noexcept
	Point distribute map.
const mapDistribute &	faceMap () const noexcept
	Face distribute map.
const mapDistribute &	cellMap () const noexcept
	Cell distribute map.
const mapDistribute &	patchMap () const noexcept
	Patch distribute map.
void	clear ()
	Reset to zero size, only retaining communicator(s).
void	transfer (mapDistributePolyMesh &map)
	Transfer the contents of the argument and annul the argument.
template<class T>
void	distributePointData (List< T > &values) const
	Distribute list of point data.
template<class T>
void	distributeFaceData (List< T > &values) const
	Distribute list of face data.
template<class T>
void	distributeCellData (List< T > &values) const
	Distribute list of cell data.
template<class T>
void	distributePatchData (List< T > &values) const
	Distribute list of patch data.

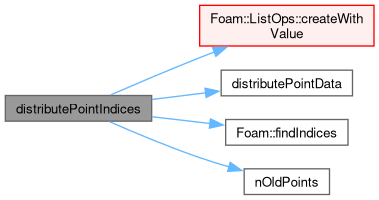

void	distributePointIndices (labelList &pointIDs) const
	Distribute list of point/face/cell/patch indices.
void	distributeFaceIndices (labelList &faceIDs) const

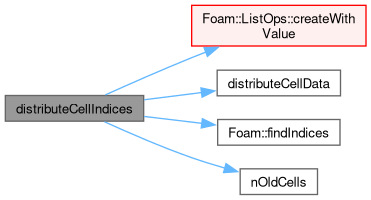

void	distributeCellIndices (labelList &cellIDs) const
void	distributePatchIndices (labelList &patchIDs) const
void	operator= (const mapDistributePolyMesh &map)
	Copy assignment.
void	operator= (mapDistributePolyMesh &&map)
	Move assignment.
InfoProxy< mapDistributePolyMesh >	info () const noexcept
	Return info proxy, used to print summary information to a stream.
void	readDict (const dictionary &dict)
	Read entries from dictionary format.
void	writeCellMapEntries (Ostream &os) const
	Write cellMap in dictionary format.
void	writeFaceMapEntries (Ostream &os) const
	Write faceMap in dictionary format.
void	writePointMapEntries (Ostream &os) const
	Write pointMap entries in dictionary format.
void	writePatchMapEntries (Ostream &os) const
	Write patchMap in dictionary format.

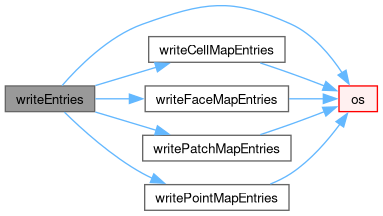

void	writeEntries (Ostream &os) const
	Write all map entries in dictionary format.
void	updateMesh (const mapPolyMesh &)
	No correction for topo change.

Friends
Istream &	operator>> (Istream &, mapDistributePolyMesh &)
	Read plain content (not dictionary) from Istream.
Ostream &	operator<< (Ostream &, const mapDistributePolyMesh &)
	Write plain content (not dictionary) to Ostream.

Detailed Description

Class containing mesh-to-mesh mapping information after a mesh distribution where we send parts of meshes (using subsetting) to other processors and receive and reconstruct mesh.

We store mapping from the bits-to-send to the complete starting mesh (subXXXMap) and from the received bits to their location in the new mesh (constructXXXMap).

Source files

Definition at line 65 of file mapDistributePolyMesh.H.

Constructor & Destructor Documentation

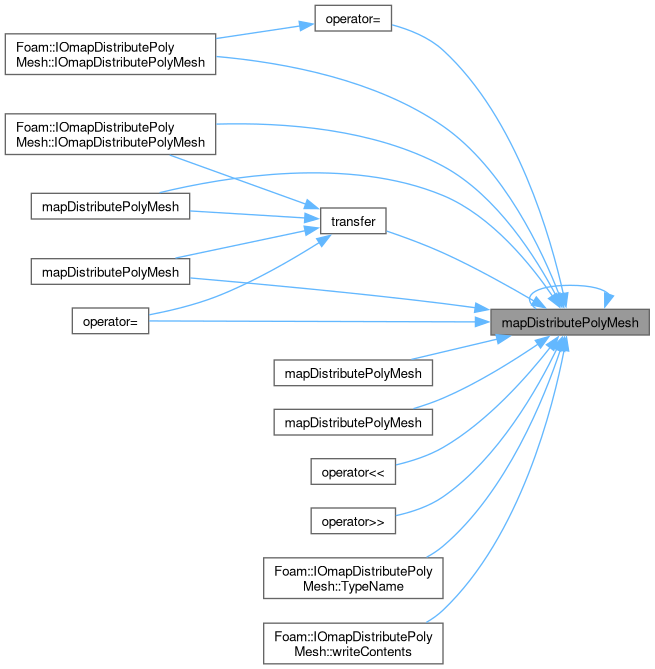

◆ mapDistributePolyMesh() [1/9]

mapDistributePolyMesh ( )

Default construct - uses worldComm.

Definition at line 57 of file mapDistributePolyMesh.C.

References mapDistributePolyMesh().

Referenced by IOmapDistributePolyMesh::IOmapDistributePolyMesh(), IOmapDistributePolyMesh::IOmapDistributePolyMesh(), mapDistributePolyMesh(), mapDistributePolyMesh(), mapDistributePolyMesh(), mapDistributePolyMesh(), mapDistributePolyMesh(), operator<<, operator=(), operator=(), operator>>, transfer(), IOmapDistributePolyMesh::TypeName(), and IOmapDistributePolyMesh::writeContents().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapDistributePolyMesh() [2/9]

mapDistributePolyMesh ( const label comm )

explicit

Default construct with specified communicator.

Definition at line 63 of file mapDistributePolyMesh.C.

◆ mapDistributePolyMesh() [3/9]

mapDistributePolyMesh	(	const dictionary &	dict,
		const label	comm = UPstream::worldComm )

explicit

Read construct from dictionary.

Definition at line 26 of file mapDistributePolyMeshIO.C.

References dict, mapDistributePolyMesh(), and readDict().

Here is the call graph for this function:

◆ mapDistributePolyMesh() [4/9]

mapDistributePolyMesh ( const mapDistributePolyMesh & map )

Copy construct.

Definition at line 78 of file mapDistributePolyMesh.C.

References mapDistributePolyMesh().

Here is the call graph for this function:

◆ mapDistributePolyMesh() [5/9]

mapDistributePolyMesh ( mapDistributePolyMesh && map )

Move construct.

Definition at line 89 of file mapDistributePolyMesh.C.

References mapDistributePolyMesh(), and transfer().

Here is the call graph for this function:

◆ mapDistributePolyMesh() [6/9]

mapDistributePolyMesh	(	mapDistributePolyMesh &	map,
		bool	reuse )

Copy/move construct.

Definition at line 100 of file mapDistributePolyMesh.C.

References mapDistributePolyMesh(), and transfer().

Here is the call graph for this function:

◆ mapDistributePolyMesh() [7/9]

mapDistributePolyMesh	(	const polyMesh &	mesh,
		const label	nOldPoints,
		const label	nOldFaces,
		const label	nOldCells,
		labelList &&	oldPatchStarts,
		labelList &&	oldPatchNMeshPoints,
		labelListList &&	subPointMap,
		labelListList &&	subFaceMap,
		labelListList &&	subCellMap,
		labelListList &&	subPatchMap,
		labelListList &&	constructPointMap,
		labelListList &&	constructFaceMap,
		labelListList &&	constructCellMap,
		labelListList &&	constructPatchMap,
		const bool	subFaceHasFlip = false,
		const bool	constructFaceHasFlip = false )

Construct from components. Note that mesh has to be changed already.

since uses mesh.nPoints etc as the new size.

Definition at line 119 of file mapDistributePolyMesh.C.

References mesh, nOldCells(), nOldFaces(), nOldPoints(), nPoints, oldPatchNMeshPoints(), and oldPatchStarts().

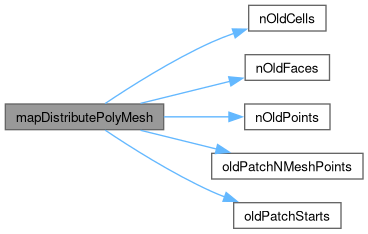

Here is the call graph for this function:

◆ mapDistributePolyMesh() [8/9]

mapDistributePolyMesh	(	const label	nOldPoints,
		const label	nOldFaces,
		const label	nOldCells,
		labelList &&	oldPatchStarts,
		labelList &&	oldPatchNMeshPoints,
		mapDistribute &&	pointMap,
		mapDistribute &&	faceMap,
		mapDistribute &&	cellMap,
		mapDistribute &&	patchMap )

Move construct from components.

Definition at line 183 of file mapDistributePolyMesh.C.

References cellMap(), faceMap(), nOldCells(), nOldFaces(), nOldPoints(), oldPatchNMeshPoints(), oldPatchStarts(), patchMap(), and pointMap().

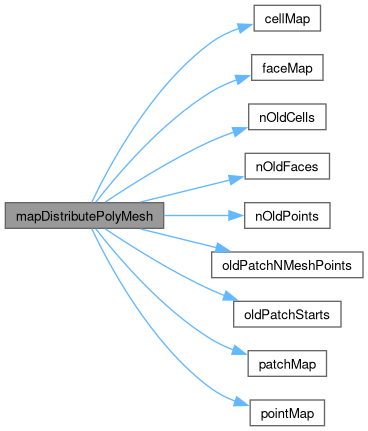

Here is the call graph for this function:

◆ mapDistributePolyMesh() [9/9]

mapDistributePolyMesh ( Istream & is )

explicit

Construct from Istream.

Definition at line 38 of file mapDistributePolyMeshIO.C.

Member Function Documentation

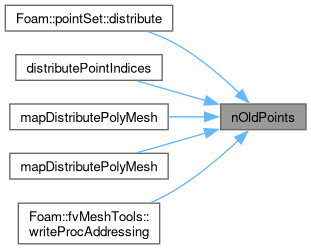

◆ nOldPoints()

label nOldPoints ( ) const

inlinenoexcept

Number of points in mesh before distribution.

Definition at line 229 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by pointSet::distribute(), distributePointIndices(), mapDistributePolyMesh(), mapDistributePolyMesh(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ nOldFaces()

label nOldFaces ( ) const

inlinenoexcept

Number of faces in mesh before distribution.

Definition at line 237 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by faceSet::distribute(), distributeFaceIndices(), mapDistributePolyMesh(), mapDistributePolyMesh(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ nOldCells()

label nOldCells ( ) const

inlinenoexcept

Number of cells in mesh before distribution.

Definition at line 245 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by cellSet::distribute(), distributeCellIndices(), mapDistributePolyMesh(), mapDistributePolyMesh(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ oldPatchSizes()

const labelList & oldPatchSizes ( ) const

inlinenoexcept

List of the old patch sizes.

Definition at line 253 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ oldPatchStarts()

const labelList & oldPatchStarts ( ) const

inlinenoexcept

List of the old patch start labels.

Definition at line 261 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by distributePatchIndices(), mapDistributePolyMesh(), and mapDistributePolyMesh().

Here is the caller graph for this function:

◆ oldPatchNMeshPoints()

const labelList & oldPatchNMeshPoints ( ) const

inlinenoexcept

List of numbers of mesh points per old patch.

Definition at line 269 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by mapDistributePolyMesh(), and mapDistributePolyMesh().

Here is the caller graph for this function:

◆ pointMap()

const mapDistribute & pointMap ( ) const

inlinenoexcept

Point distribute map.

Definition at line 277 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by hexRef8Data::distribute(), mapDistributePolyMesh(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ faceMap()

const mapDistribute & faceMap ( ) const

inlinenoexcept

Face distribute map.

Definition at line 285 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by mapDistributePolyMesh(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ cellMap()

const mapDistribute & cellMap ( ) const

inlinenoexcept

Cell distribute map.

Definition at line 293 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by hexRef8Data::distribute(), refinementHistory::distribute(), mapDistributePolyMesh(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ patchMap()

const mapDistribute & patchMap ( ) const

inlinenoexcept

Patch distribute map.

Definition at line 301 of file mapDistributePolyMesh.H.

References Foam::noexcept.

Referenced by mapDistributePolyMesh(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ clear()

void clear ( )

Reset to zero size, only retaining communicator(s).

Definition at line 216 of file mapDistributePolyMesh.C.

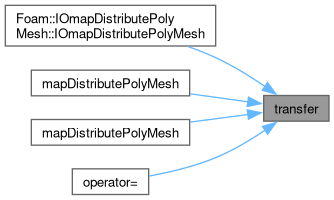

◆ transfer()

void transfer ( mapDistributePolyMesh & map )

Transfer the contents of the argument and annul the argument.

Definition at line 252 of file mapDistributePolyMesh.C.

References mapDistributePolyMesh(), and Foam::rhs().

Referenced by IOmapDistributePolyMesh::IOmapDistributePolyMesh(), mapDistributePolyMesh(), mapDistributePolyMesh(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

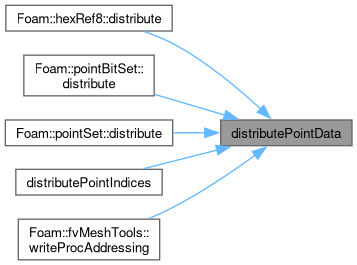

◆ distributePointData()

template<class T>

void distributePointData ( List< T > & values ) const

inline

Distribute list of point data.

Definition at line 326 of file mapDistributePolyMesh.H.

Referenced by hexRef8::distribute(), pointBitSet::distribute(), pointSet::distribute(), distributePointIndices(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

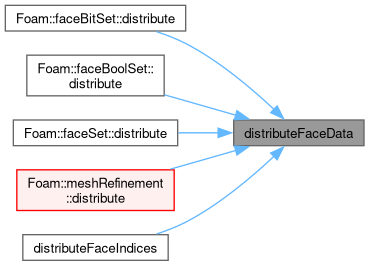

◆ distributeFaceData()

template<class T>

void distributeFaceData ( List< T > & values ) const

inline

Distribute list of face data.

Definition at line 335 of file mapDistributePolyMesh.H.

Referenced by faceBitSet::distribute(), faceBoolSet::distribute(), faceSet::distribute(), meshRefinement::distribute(), and distributeFaceIndices().

Here is the caller graph for this function:

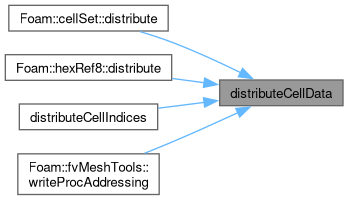

◆ distributeCellData()

template<class T>

void distributeCellData ( List< T > & values ) const

inline

Distribute list of cell data.

Definition at line 344 of file mapDistributePolyMesh.H.

Referenced by cellSet::distribute(), hexRef8::distribute(), distributeCellIndices(), and fvMeshTools::writeProcAddressing().

Here is the caller graph for this function:

◆ distributePatchData()

template<class T>

void distributePatchData ( List< T > & values ) const

inline

Distribute list of patch data.

Definition at line 353 of file mapDistributePolyMesh.H.

Referenced by distributePatchIndices().

Here is the caller graph for this function:

◆ distributePointIndices()

void distributePointIndices ( labelList & pointIDs ) const

Distribute list of point/face/cell/patch indices.

(Converts to boolList, distributes boolList and reconstructs)

Definition at line 277 of file mapDistributePolyMesh.C.

References Foam::ListOps::createWithValue(), distributePointData(), Foam::findIndices(), and nOldPoints().

Here is the call graph for this function:

◆ distributeFaceIndices()

void distributeFaceIndices ( labelList & faceIDs ) const

Definition at line 293 of file mapDistributePolyMesh.C.

References Foam::ListOps::createWithValue(), distributeFaceData(), Foam::findIndices(), and nOldFaces().

Here is the call graph for this function:

◆ distributeCellIndices()

void distributeCellIndices ( labelList & cellIDs ) const

Definition at line 309 of file mapDistributePolyMesh.C.

References Foam::ListOps::createWithValue(), distributeCellData(), Foam::findIndices(), and nOldCells().

Here is the call graph for this function:

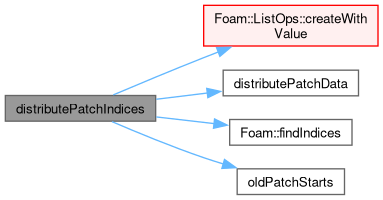

◆ distributePatchIndices()

void distributePatchIndices ( labelList & patchIDs ) const

Definition at line 325 of file mapDistributePolyMesh.C.

References Foam::ListOps::createWithValue(), distributePatchData(), Foam::findIndices(), and oldPatchStarts().

Here is the call graph for this function:

◆ operator=() [1/2]

void operator= ( const mapDistributePolyMesh & map )

Copy assignment.

Definition at line 349 of file mapDistributePolyMesh.C.

References mapDistributePolyMesh(), and Foam::rhs().

Referenced by IOmapDistributePolyMesh::IOmapDistributePolyMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [2/2]

void operator= ( mapDistributePolyMesh && map )

Move assignment.

Definition at line 370 of file mapDistributePolyMesh.C.

References mapDistributePolyMesh(), Foam::rhs(), and transfer().

Here is the call graph for this function:

◆ info()

InfoProxy< mapDistributePolyMesh > info ( ) const

inlinenoexcept

Return info proxy, used to print summary information to a stream.

Definition at line 391 of file mapDistributePolyMesh.H.

References Foam::noexcept.

◆ readDict()

void readDict ( const dictionary & dict )

Read entries from dictionary format.

Definition at line 46 of file mapDistributePolyMeshIO.C.

References dict, and dictionary::readEntry().

Referenced by mapDistributePolyMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeCellMapEntries()

void writeCellMapEntries ( Ostream & os ) const

Write cellMap in dictionary format.

Definition at line 84 of file mapDistributePolyMeshIO.C.

References os().

Referenced by writeEntries().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFaceMapEntries()

void writeFaceMapEntries ( Ostream & os ) const

Write faceMap in dictionary format.

Definition at line 93 of file mapDistributePolyMeshIO.C.

References os().

Referenced by writeEntries().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writePointMapEntries()

void writePointMapEntries ( Ostream & os ) const

Write pointMap entries in dictionary format.

Definition at line 102 of file mapDistributePolyMeshIO.C.

References os().

Referenced by writeEntries().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writePatchMapEntries()

void writePatchMapEntries ( Ostream & os ) const

Write patchMap in dictionary format.

Definition at line 111 of file mapDistributePolyMeshIO.C.

References os().

Referenced by writeEntries().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeEntries()

void writeEntries ( Ostream & os ) const

Write all map entries in dictionary format.

Definition at line 122 of file mapDistributePolyMeshIO.C.

References Foam::nl, os(), writeCellMapEntries(), writeFaceMapEntries(), writePatchMapEntries(), and writePointMapEntries().

Here is the call graph for this function:

◆ updateMesh()

void updateMesh ( const mapPolyMesh & )

inline

No correction for topo change.

Definition at line 444 of file mapDistributePolyMesh.H.

References NotImplemented.

◆ operator>>

Istream & operator>>	(	Istream &	,
		mapDistributePolyMesh &	)

friend

Read plain content (not dictionary) from Istream.

References mapDistributePolyMesh().

◆ operator<<

Ostream & operator<<	(	Ostream &	,
		const mapDistributePolyMesh &	)

friend

Write plain content (not dictionary) to Ostream.

References mapDistributePolyMesh().

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/polyMesh/mapPolyMesh/mapDistribute/mapDistributePolyMesh.H
src/OpenFOAM/meshes/polyMesh/mapPolyMesh/mapDistribute/mapDistributePolyMesh.C
src/OpenFOAM/meshes/polyMesh/mapPolyMesh/mapDistribute/mapDistributePolyMeshIO.C

Public Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ mapDistributePolyMesh() [1/9]

◆ mapDistributePolyMesh() [2/9]

◆ mapDistributePolyMesh() [3/9]

◆ mapDistributePolyMesh() [4/9]

◆ mapDistributePolyMesh() [5/9]

◆ mapDistributePolyMesh() [6/9]

◆ mapDistributePolyMesh() [7/9]

◆ mapDistributePolyMesh() [8/9]

◆ mapDistributePolyMesh() [9/9]

Member Function Documentation

◆ nOldPoints()

◆ nOldFaces()

◆ nOldCells()

◆ oldPatchSizes()

◆ oldPatchStarts()

◆ oldPatchNMeshPoints()

◆ pointMap()

◆ faceMap()

◆ cellMap()

◆ patchMap()

◆ clear()

◆ transfer()

◆ distributePointData()

◆ distributeFaceData()

◆ distributeCellData()

◆ distributePatchData()

◆ distributePointIndices()

◆ distributeFaceIndices()

◆ distributeCellIndices()

◆ distributePatchIndices()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ info()

◆ readDict()

◆ writeCellMapEntries()

◆ writeFaceMapEntries()

◆ writePointMapEntries()

◆ writePatchMapEntries()

◆ writeEntries()

◆ updateMesh()

Friends And Related Symbol Documentation

◆ operator>>

◆ operator<<
