fvPatchFieldBase Class Reference

Template invariant parts for fvPatchField. More...

#include <fvPatchField.H>

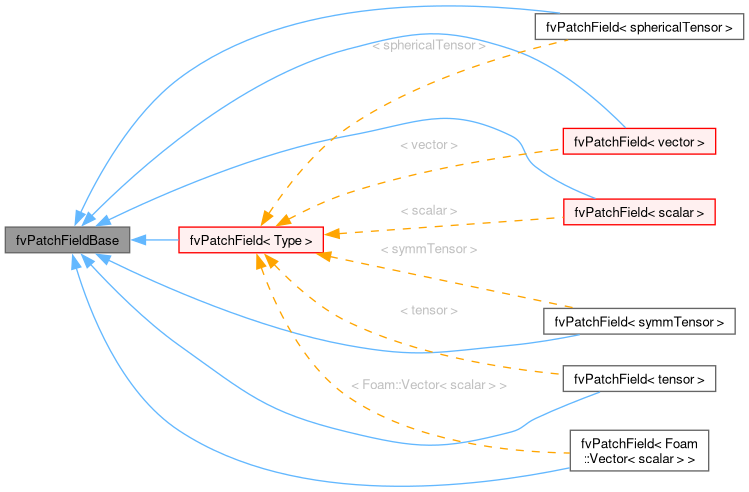

Inheritance diagram for fvPatchFieldBase:

Public Member Functions
	TypeName ("fvPatchField")
	Runtime type information.
	fvPatchFieldBase (const fvPatch &p)
	Construct from patch.
	fvPatchFieldBase (const fvPatch &p, const word &patchType)
	Construct from patch and patch type.
	fvPatchFieldBase (const fvPatch &p, const dictionary &dict)
	Construct from patch and dictionary.
	fvPatchFieldBase (const fvPatchFieldBase &rhs, const fvPatch &p)
	Copy construct with new patch.
	fvPatchFieldBase (const fvPatchFieldBase &rhs)
	Copy construct.
virtual	~fvPatchFieldBase ()=default
	Destructor.
virtual bool	assignable () const
	True if the value of the patch field is altered by assignment.
virtual bool	fixesValue () const
	True if the patch field fixes a value.
virtual bool	coupled () const
	True if the patch field is coupled.
const objectRegistry &	db () const
	The associated objectRegistry.
const fvPatch &	patch () const noexcept
	Return the patch.
const word &	patchType () const noexcept
	The optional patch type.
word &	patchType () noexcept
	The optional patch type.
virtual bool	constraintOverride () const
	True if the type does not correspond to the constraint type.
bool	updated () const noexcept
	True if the boundary condition has already been updated.
void	setUpdated (bool state) noexcept
	Set updated state.
bool	manipulatedMatrix () const noexcept
	True if the matrix has already been manipulated.
void	setManipulated (bool state) noexcept
	Set matrix manipulated state.
bool	useImplicit () const noexcept
	Use implicit formulation for coupled patches only.
bool	useImplicit (bool on) noexcept
	Set useImplicit on/off.
void	checkPatch (const fvPatchFieldBase &rhs) const
	Check that patches are identical.

Static Public Member Functions
static const word &	emptyType () noexcept
	The type name for empty patch fields.
static const word &	calculatedType () noexcept
	The type name for calculated patch fields.
static const word &	extrapolatedCalculatedType () noexcept
	The type name for extrapolatedCalculated patch fields combines zero-gradient and calculated.
static const word &	zeroGradientType () noexcept
	The type name for zeroGradient patch fields.
static const word &	zeroValueType () noexcept
	The type name for zeroValue patch fields.

Static Public Attributes
static int	disallowGenericPatchField
	Debug switch to disallow the use of generic fvPatchField.

Protected Member Functions
virtual void	readDict (const dictionary &dict)
	Read dictionary entries.

Detailed Description

Template invariant parts for fvPatchField.

Definition at line 77 of file fvPatchField.H.

Constructor & Destructor Documentation

fvPatchFieldBase() [1/5]

fvPatchFieldBase ( const fvPatch & p )

explicit

Construct from patch.

Definition at line 39 of file fvPatchFieldBase.C.

References p.

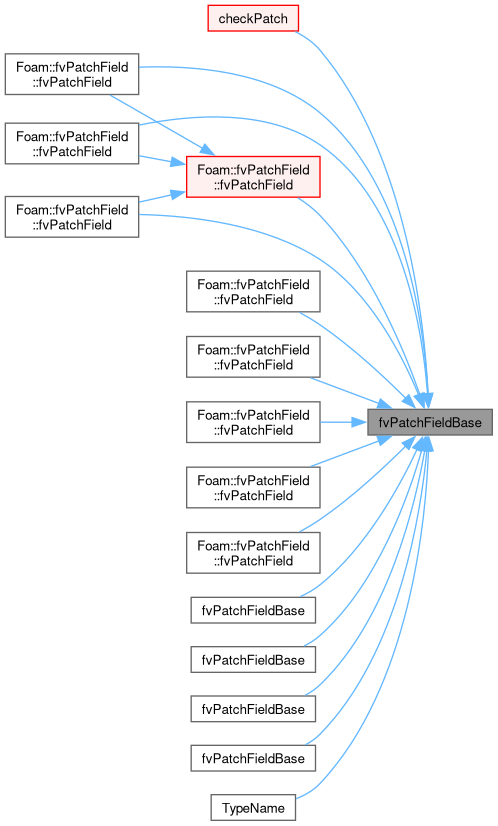

Referenced by checkPatch(), fvPatchField< Type >::fvPatchField(), fvPatchField< Type >::fvPatchField(), fvPatchField< Type >::fvPatchField(), fvPatchField< Type >::fvPatchField(), fvPatchField< Type >::fvPatchField(), fvPatchField< Type >::fvPatchField(), fvPatchField< Type >::fvPatchField(), fvPatchField< Type >::fvPatchField(), fvPatchField< Type >::fvPatchField(), fvPatchFieldBase(), fvPatchFieldBase(), fvPatchFieldBase(), fvPatchFieldBase(), and TypeName().

Here is the caller graph for this function:

fvPatchFieldBase() [2/5]

fvPatchFieldBase ( const fvPatch & p, const word & patchType )

explicit

Construct from patch and patch type.

Definition at line 49 of file fvPatchFieldBase.C.

References fvPatchFieldBase(), p, and patchType().

Here is the call graph for this function:

fvPatchFieldBase() [3/5]

fvPatchFieldBase	(	const fvPatch &	p,
		const dictionary &	dict )

Construct from patch and dictionary.

Definition at line 61 of file fvPatchFieldBase.C.

References dict, fvPatchFieldBase(), p, and readDict().

Here is the call graph for this function:

fvPatchFieldBase() [4/5]

fvPatchFieldBase	(	const fvPatchFieldBase &	rhs,
		const fvPatch &	p )

Copy construct with new patch.

Definition at line 73 of file fvPatchFieldBase.C.

References fvPatchFieldBase(), p, and Foam::rhs().

Here is the call graph for this function:

fvPatchFieldBase() [5/5]

fvPatchFieldBase

(

const fvPatchFieldBase &

rhs

)

Copy construct.

Definition at line 87 of file fvPatchFieldBase.C.

References fvPatchFieldBase(), and Foam::rhs().

Here is the call graph for this function:

~fvPatchFieldBase()

virtual ~fvPatchFieldBase ( )

virtualdefault

Destructor.

Member Function Documentation

readDict()

void readDict ( const dictionary & dict )

protectedvirtual

Read dictionary entries.

Useful when initially constructed without a dictionary

Definition at line 99 of file fvPatchFieldBase.C.

References dict, and keyType::LITERAL.

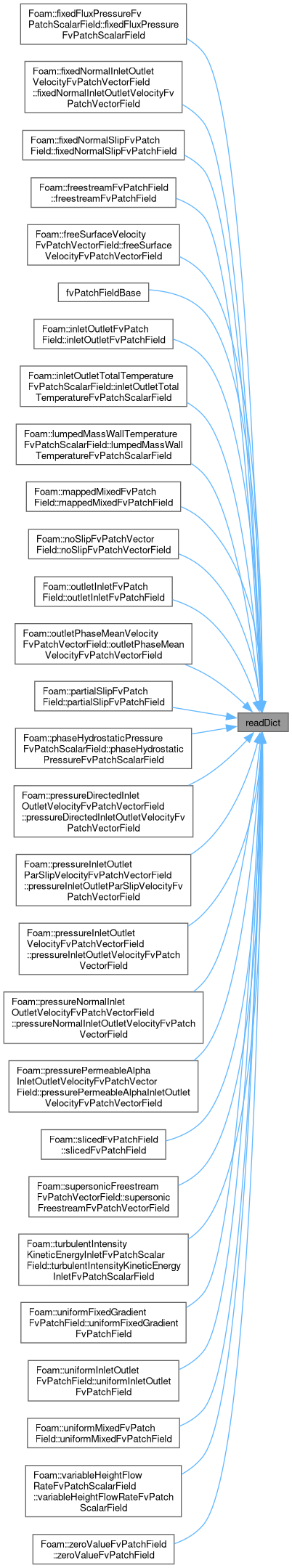

Referenced by fixedFluxPressureFvPatchScalarField::fixedFluxPressureFvPatchScalarField(), fixedNormalInletOutletVelocityFvPatchVectorField::fixedNormalInletOutletVelocityFvPatchVectorField(), fixedNormalSlipFvPatchField< Type >::fixedNormalSlipFvPatchField(), freestreamFvPatchField< Type >::freestreamFvPatchField(), freeSurfaceVelocityFvPatchVectorField::freeSurfaceVelocityFvPatchVectorField(), fvPatchFieldBase(), inletOutletFvPatchField< Type >::inletOutletFvPatchField(), inletOutletTotalTemperatureFvPatchScalarField::inletOutletTotalTemperatureFvPatchScalarField(), lumpedMassWallTemperatureFvPatchScalarField::lumpedMassWallTemperatureFvPatchScalarField(), mappedMixedFvPatchField< Type >::mappedMixedFvPatchField(), noSlipFvPatchVectorField::noSlipFvPatchVectorField(), outletInletFvPatchField< Type >::outletInletFvPatchField(), outletPhaseMeanVelocityFvPatchVectorField::outletPhaseMeanVelocityFvPatchVectorField(), partialSlipFvPatchField< Type >::partialSlipFvPatchField(), phaseHydrostaticPressureFvPatchScalarField::phaseHydrostaticPressureFvPatchScalarField(), pressureDirectedInletOutletVelocityFvPatchVectorField::pressureDirectedInletOutletVelocityFvPatchVectorField(), pressureInletOutletParSlipVelocityFvPatchVectorField::pressureInletOutletParSlipVelocityFvPatchVectorField(), pressureInletOutletVelocityFvPatchVectorField::pressureInletOutletVelocityFvPatchVectorField(), pressureNormalInletOutletVelocityFvPatchVectorField::pressureNormalInletOutletVelocityFvPatchVectorField(), pressurePermeableAlphaInletOutletVelocityFvPatchVectorField::pressurePermeableAlphaInletOutletVelocityFvPatchVectorField(), slicedFvPatchField< Type >::slicedFvPatchField(), supersonicFreestreamFvPatchVectorField::supersonicFreestreamFvPatchVectorField(), turbulentIntensityKineticEnergyInletFvPatchScalarField::turbulentIntensityKineticEnergyInletFvPatchScalarField(), uniformFixedGradientFvPatchField< Type >::uniformFixedGradientFvPatchField(), uniformInletOutletFvPatchField< Type >::uniformInletOutletFvPatchField(), uniformMixedFvPatchField< Type >::uniformMixedFvPatchField(), variableHeightFlowRateFvPatchScalarField::variableHeightFlowRateFvPatchScalarField(), and zeroValueFvPatchField< Type >::zeroValueFvPatchField().

Here is the caller graph for this function:

TypeName()

TypeName

(

"fvPatchField"

)

Runtime type information.

References dict, fvPatchFieldBase(), p, patchType(), and Foam::rhs().

Here is the call graph for this function:

emptyType()

const word & emptyType ( )

inlinestaticnoexcept

The type name for empty patch fields.

Definition at line 177 of file fvPatchField.H.

References Foam::fieldTypes::emptyType, and Foam::noexcept.

calculatedType()

const word & calculatedType ( )

inlinestaticnoexcept

The type name for calculated patch fields.

Definition at line 185 of file fvPatchField.H.

References Foam::fieldTypes::calculatedType, and Foam::noexcept.

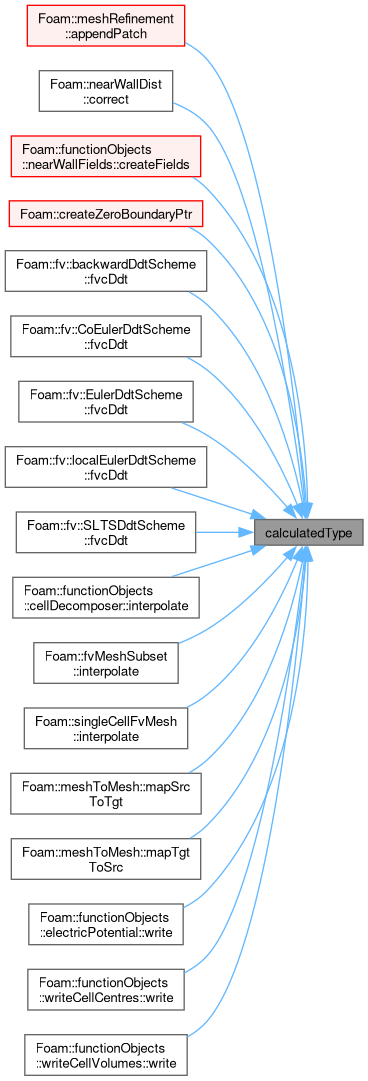

Referenced by meshRefinement::appendPatch(), nearWallDist::correct(), nearWallFields::createFields(), Foam::createZeroBoundaryPtr(), backwardDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), EulerDdtScheme< Type >::fvcDdt(), localEulerDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), cellDecomposer::interpolate(), fvMeshSubset::interpolate(), singleCellFvMesh::interpolate(), meshToMesh::mapSrcToTgt(), meshToMesh::mapTgtToSrc(), electricPotential::write(), writeCellCentres::write(), and writeCellVolumes::write().

Here is the caller graph for this function:

extrapolatedCalculatedType()

const word & extrapolatedCalculatedType ( )

inlinestaticnoexcept

The type name for extrapolatedCalculated patch fields combines zero-gradient and calculated.

Definition at line 194 of file fvPatchField.H.

References Foam::fieldTypes::extrapolatedCalculatedType, and Foam::noexcept.

Referenced by fvMatrix< Type >::A(), greyMeanAbsorptionEmission::aCont(), cellCoBlended< Type >::blendingFactor(), cellLimitedGrad< Type, Limiter >::calcGrad(), fourthGrad< Type >::calcGrad(), fusedGaussGrad< Type >::calcGrad(), fusedLeastSquaresGrad< Type >::calcGrad(), LeastSquaresGrad< Type, Stencil >::calcGrad(), leastSquaresGrad< Type >::calcGrad(), fusedGaussConvectionScheme< Type >::fvcDiv(), fusedGaussDivScheme< Type >::fvcDiv(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussGrad< Type >::gradf(), gaussGrad< Type >::gradf(), fvMatrix< Type >::H(), fvMatrix< scalar >::H(), fvMatrix< Type >::H1(), fvMatrix< scalar >::H1(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::injectors(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::pAmbient(), Foam::fvc::reconstruct(), Foam::fvc::reconstructMag(), constantFilmThermo::rho(), liquidFilmThermo::rho(), Foam::fvc::surfaceIntegrate(), Foam::fvc::surfaceSum(), StandardChemistryModel< ReactionThermo, ThermoType >::tc(), and laminar::Us().

Here is the caller graph for this function:

zeroGradientType()

const word & zeroGradientType ( )

inlinestaticnoexcept

The type name for zeroGradient patch fields.

Definition at line 202 of file fvPatchField.H.

References Foam::noexcept, and Foam::fieldTypes::zeroGradientType.

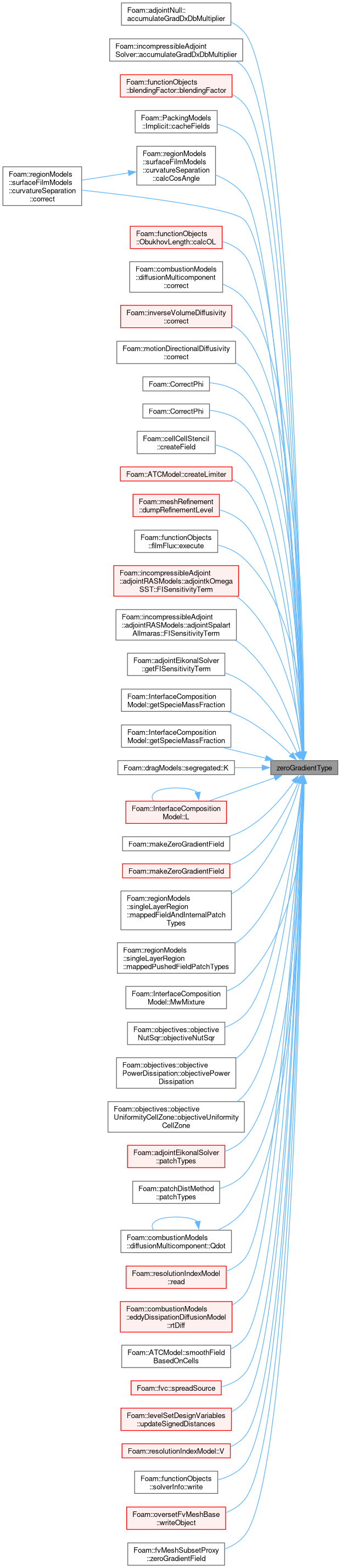

Referenced by adjointNull::accumulateGradDxDbMultiplier(), incompressibleAdjointSolver::accumulateGradDxDbMultiplier(), blendingFactor::blendingFactor(), Implicit< CloudType >::cacheFields(), curvatureSeparation::calcCosAngle(), ObukhovLength::calcOL(), diffusionMulticomponent< ReactionThermo, ThermoType >::correct(), inverseVolumeDiffusivity::correct(), motionDirectionalDiffusivity::correct(), curvatureSeparation::correct(), Foam::CorrectPhi(), Foam::CorrectPhi(), cellCellStencil::createField(), ATCModel::createLimiter(), meshRefinement::dumpRefinementLevel(), filmFlux::execute(), adjointkOmegaSST::FISensitivityTerm(), adjointSpalartAllmaras::FISensitivityTerm(), adjointEikonalSolver::getFISensitivityTerm(), InterfaceCompositionModel< Thermo, OtherThermo >::getSpecieMassFraction(), InterfaceCompositionModel< Thermo, OtherThermo >::getSpecieMassFraction(), segregated::K(), InterfaceCompositionModel< Thermo, OtherThermo >::L(), Foam::makeZeroGradientField(), Foam::makeZeroGradientField(), singleLayerRegion::mappedFieldAndInternalPatchTypes(), singleLayerRegion::mappedPushedFieldPatchTypes(), InterfaceCompositionModel< Thermo, OtherThermo >::MwMixture(), objectiveNutSqr::objectiveNutSqr(), objectivePowerDissipation::objectivePowerDissipation(), objectiveUniformityCellZone::objectiveUniformityCellZone(), adjointEikonalSolver::patchTypes(), patchDistMethod::patchTypes(), diffusionMulticomponent< ReactionThermo, ThermoType >::Qdot(), resolutionIndexModel::read(), eddyDissipationDiffusionModel< ReactionThermo, ThermoType >::rtDiff(), ATCModel::smoothFieldBasedOnCells(), Foam::fvc::spreadSource(), levelSetDesignVariables::updateSignedDistances(), resolutionIndexModel::V(), solverInfo::write(), oversetFvMeshBase::writeObject(), and fvMeshSubsetProxy::zeroGradientField().

Here is the caller graph for this function:

zeroValueType()

const word & zeroValueType ( )

inlinestaticnoexcept

The type name for zeroValue patch fields.

Definition at line 210 of file fvPatchField.H.

References Foam::noexcept, and Foam::fieldTypes::zeroValueType.

assignable()

virtual bool assignable ( ) const

inlinevirtual

True if the value of the patch field is altered by assignment.

Reimplemented in directionMixedFvPatchField< Type >, fixedNormalSlipFvPatchField< Type >, fixedValueFvPatchField< Type >, fixedValueFvPatchField< scalar >, inletOutletFvPatchField< Type >, mixedFvPatchField< Type >, mixedFvPatchField< scalar >, mixedFvPatchField< vector >, partialSlipFvPatchField< Type >, slicedFvPatchField< Type >, slipFvPatchField< Type >, transformFvPatchField< Type >, uniformInletOutletFvPatchField< Type >, and zeroValueFvPatchField< Type >.

Definition at line 223 of file fvPatchField.H.

fixesValue()

virtual bool fixesValue ( ) const

inlinevirtual

True if the patch field fixes a value.

Needed to check if a level has to be specified while solving Poissons equations.

Reimplemented in calculatedFvPatchField< Type >, cyclicACMIFvPatchField< Type >, directionMixedFvPatchField< Type >, fixedValueFvPatchField< Type >, fixedValueFvPatchField< scalar >, mixedFvPatchField< Type >, mixedFvPatchField< scalar >, mixedFvPatchField< vector >, slicedFvPatchField< Type >, and zeroValueFvPatchField< Type >.

Definition at line 234 of file fvPatchField.H.

Referenced by Foam::adjustPhi(), faceLimitedGrad< Type >::calcGrad(), faceMDLimitedGrad< Type >::calcGrad(), MultiComponentPhaseModel< BasePhaseModel, phaseThermo >::calculateVolumeFractions(), limitTemperature::correct(), Foam::MULES::limiter(), and Foam::MULES::limiterCorr().

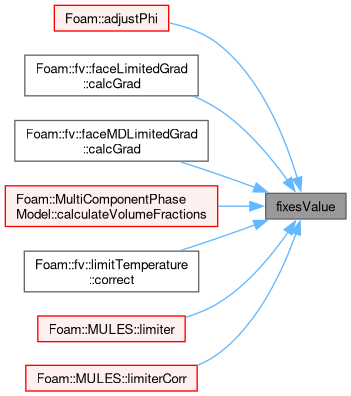

Here is the caller graph for this function:

coupled()

virtual bool coupled ( ) const

inlinevirtual

True if the patch field is coupled.

Reimplemented in calculatedProcessorFvPatchField< Type >, coupledFvPatchField< Type >, coupledFvPatchField< scalar >, coupledFvPatchField< vector >, cyclicACMIFvPatchField< Type >, cyclicAMIFvPatchField< Type >, cyclicAMIFvPatchField< scalar >, and processorFvPatchField< Type >.

Definition at line 242 of file fvPatchField.H.

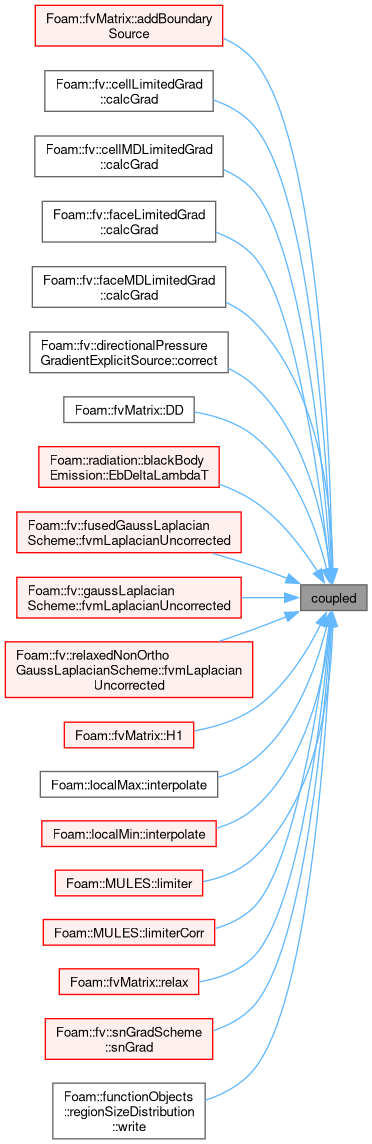

Referenced by fvMatrix< Type >::addBoundarySource(), cellLimitedGrad< Type, Limiter >::calcGrad(), cellMDLimitedGrad< Type >::calcGrad(), faceLimitedGrad< Type >::calcGrad(), faceMDLimitedGrad< Type >::calcGrad(), directionalPressureGradientExplicitSource::correct(), fvMatrix< Type >::DD(), blackBodyEmission::EbDeltaLambdaT(), fusedGaussLaplacianScheme< Type, GType >::fvmLaplacianUncorrected(), gaussLaplacianScheme< Type, GType >::fvmLaplacianUncorrected(), relaxedNonOrthoGaussLaplacianScheme< Type, GType >::fvmLaplacianUncorrected(), fvMatrix< Type >::H1(), localMax< Type >::interpolate(), localMin< Type >::interpolate(), Foam::MULES::limiter(), Foam::MULES::limiterCorr(), fvMatrix< Type >::relax(), snGradScheme< Type >::snGrad(), and regionSizeDistribution::write().

Here is the caller graph for this function:

db()

const Foam::objectRegistry & db

(

)

const

The associated objectRegistry.

Definition at line 106 of file fvPatchFieldBase.C.

References objectRegistry::thisDb().

Referenced by waveTransmissiveFvPatchField< Type >::advectionSpeed(), uniformInletOutletFvPatchField< Type >::autoMap(), atmEpsilonWallFunctionFvPatchScalarField::calculate(), atmOmegaWallFunctionFvPatchScalarField::calculate(), fanFvPatchField< Type >::fanFvPatchField(), fixedJumpFvPatchField< Type >::fixedJumpFvPatchField(), fixedMeanFvPatchField< Type >::fixedMeanFvPatchField(), fixedMeanOutletInletFvPatchField< Type >::fixedMeanOutletInletFvPatchField(), fixedProfileFvPatchField< Type >::fixedProfileFvPatchField(), codedMixedFvPatchField< Type >::libs(), basicThermo::lookupThermo(), kaqRWallFunctionFvPatchScalarField::manipulateMatrix(), outletMappedUniformInletFvPatchField< Type >::outletMappedUniformInletFvPatchField(), enthalpySorptionFvPatchScalarField::patchSource(), speciesSorptionFvPatchScalarField::patchSource(), porousBafflePressureFvPatchField::porousBafflePressureFvPatchField(), fixedJumpFvPatchField< Type >::relax(), uniformInletOutletFvPatchField< Type >::rmap(), swirlFanVelocityFvPatchField::swirlFanVelocityFvPatchField(), uniformInletOutletFvPatchField< Type >::uniformInletOutletFvPatchField(), uniformInletOutletFvPatchField< Type >::uniformInletOutletFvPatchField(), uniformJumpAMIFvPatchField< Type >::uniformJumpAMIFvPatchField(), uniformJumpFvPatchField< Type >::uniformJumpFvPatchField(), advectiveFvPatchField< Type >::updateCoeffs(), cellMotionFvPatchField< Type >::updateCoeffs(), epsilonWallFunctionFvPatchScalarField::updateCoeffs(), fixedMeanFvPatchField< Type >::updateCoeffs(), fixedMeanOutletInletFvPatchField< Type >::updateCoeffs(), kLowReWallFunctionFvPatchScalarField::updateCoeffs(), omegaWallFunctionFvPatchScalarField::updateCoeffs(), outletMappedUniformInletFvPatchField< Type >::updateCoeffs(), porousBafflePressureFvPatchField::updateCoeffs(), prghPermeableAlphaTotalPressureFvPatchScalarField::updateCoeffs(), speciesSorptionFvPatchScalarField::updateCoeffs(), timeVaryingMappedFixedValueFvPatchField< Type >::updateCoeffs(), totalFlowRateAdvectiveDiffusiveFvPatchScalarField::updateCoeffs(), turbulentDigitalFilterInletFvPatchField< Type >::updateCoeffs(), turbulentInletFvPatchField< Type >::updateCoeffs(), uniformFixedGradientFvPatchField< Type >::updateCoeffs(), uniformFixedValueFvPatchField< Type >::updateCoeffs(), uniformInletOutletFvPatchField< Type >::updateCoeffs(), uniformJumpAMIFvPatchField< Type >::updateCoeffs(), uniformMixedFvPatchField< Type >::updateCoeffs(), velocityFilmShellFvPatchVectorField::updateCoeffs(), vibrationShellFvPatchScalarField::updateCoeffs(), prghPermeableAlphaTotalPressureFvPatchScalarField::updateSnGrad(), epsilonWallFunctionFvPatchScalarField::updateWeightedCoeffs(), and omegaWallFunctionFvPatchScalarField::updateWeightedCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

patch()

const fvPatch & patch ( ) const

inlinenoexcept

Return the patch.

Definition at line 258 of file fvPatchField.H.

References Foam::noexcept.

Referenced by advectiveFvPatchField< Type >::advectionSpeed(), waveTransmissiveFvPatchField< Type >::advectionSpeed(), advectiveFvPatchField< Type >::advectiveFvPatchField(), atmEpsilonWallFunctionFvPatchScalarField::atmEpsilonWallFunctionFvPatchScalarField(), atmEpsilonWallFunctionFvPatchScalarField::atmEpsilonWallFunctionFvPatchScalarField(), atmEpsilonWallFunctionFvPatchScalarField::atmEpsilonWallFunctionFvPatchScalarField(), atmEpsilonWallFunctionFvPatchScalarField::atmEpsilonWallFunctionFvPatchScalarField(), atmOmegaWallFunctionFvPatchScalarField::atmOmegaWallFunctionFvPatchScalarField(), atmOmegaWallFunctionFvPatchScalarField::atmOmegaWallFunctionFvPatchScalarField(), atmOmegaWallFunctionFvPatchScalarField::atmOmegaWallFunctionFvPatchScalarField(), atmOmegaWallFunctionFvPatchScalarField::atmOmegaWallFunctionFvPatchScalarField(), fieldExtents::calcFieldExtents(), LeastSquaresGrad< Type, Stencil >::calcGrad(), atmEpsilonWallFunctionFvPatchScalarField::calculate(), atmOmegaWallFunctionFvPatchScalarField::calculate(), epsilonWallFunctionFvPatchScalarField::calculate(), omegaWallFunctionFvPatchScalarField::calculate(), epsilonWallFunctionFvPatchScalarField::calculateTurbulenceFields(), omegaWallFunctionFvPatchScalarField::calculateTurbulenceFields(), ReynoldsAnalogy::Cf(), extendedCellToFaceStencil::collectData(), reconstructedDistanceFunction::constructRDF(), contactAngleForce::correct(), coupledFvPatchField< Type >::coupledFvPatchField(), coupledFvPatchField< Type >::coupledFvPatchField(), cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), cyclicAMIFvPatchField< Type >::cyclicAMIFvPatchField(), cyclicFvPatchField< Type >::cyclicFvPatchField(), fvPatchField< scalar >::declareRunTimeSelectionTable(), codedMixedFvPatchField< Type >::description(), emptyFvPatchField< Type >::emptyFvPatchField(), epsilonWallFunctionFvPatchScalarField::epsilon(), basicSymmetryFvPatchField< Type >::evaluate(), coupledFvPatchField< Type >::evaluate(), directionMixedFvPatchField< Type >::evaluate(), fixedGradientFvPatchField< Type >::evaluate(), fixedNormalSlipFvPatchField< Type >::evaluate(), mixedFvPatchField< Type >::evaluate(), partialSlipFvPatchField< Type >::evaluate(), wedgeFvPatchField< Type >::evaluate(), exprFixedValueFvPatchField< Type >::exprFixedValueFvPatchField(), exprFixedValueFvPatchField< Type >::exprFixedValueFvPatchField(), exprFixedValueFvPatchField< Type >::exprFixedValueFvPatchField(), exprFixedValueFvPatchField< Type >::exprFixedValueFvPatchField(), exprMixedFvPatchField< Type >::exprMixedFvPatchField(), exprMixedFvPatchField< Type >::exprMixedFvPatchField(), exprMixedFvPatchField< Type >::exprMixedFvPatchField(), exprMixedFvPatchField< Type >::exprMixedFvPatchField(), fvPatchField< Type >::extrapolateInternal(), epsilonWallFunctionFvPatchScalarField::G(), omegaWallFunctionFvPatchScalarField::G(), genericFvPatchField< Type >::genericFvPatchField(), genericFvPatchField< Type >::genericFvPatchField(), calculatedFvPatchField< Type >::gradientBoundaryCoeffs(), coupledFvPatchField< Type >::gradientBoundaryCoeffs(), fixedValueFvPatchField< Type >::gradientBoundaryCoeffs(), genericFvPatchField< Type >::gradientBoundaryCoeffs(), mixedFvPatchField< Type >::gradientBoundaryCoeffs(), calculatedFvPatchField< Type >::gradientInternalCoeffs(), coupledFvPatchField< Type >::gradientInternalCoeffs(), coupledFvPatchField< Type >::gradientInternalCoeffs(), fixedValueFvPatchField< Type >::gradientInternalCoeffs(), genericFvPatchField< Type >::gradientInternalCoeffs(), mixedFvPatchField< Type >::gradientInternalCoeffs(), transformFvPatchField< Type >::gradientInternalCoeffs(), zeroValueFvPatchField< Type >::gradientInternalCoeffs(), cyclicACMIFvPatchField< Type >::initEvaluate(), processorFvPatchField< Type >::initEvaluate(), cyclicACMIFvPatchField< Type >::initInterfaceMatrixUpdate(), cyclicACMIFvPatchField< Type >::manipulateMatrix(), cyclicAMIFvPatchField< Type >::manipulateMatrix(), cyclicFvPatchField< Type >::manipulateMatrix(), epsilonWallFunctionFvPatchScalarField::manipulateMatrix(), fixedInternalValueFvPatchField< Type >::manipulateMatrix(), kaqRWallFunctionFvPatchScalarField::manipulateMatrix(), omegaWallFunctionFvPatchScalarField::manipulateMatrix(), waWallFunctionFvPatchScalarField::manipulateMatrix(), mappedFieldFvPatchField< Type >::mappedFieldFvPatchField(), mappedFieldFvPatchField< Type >::mappedFieldFvPatchField(), mappedFieldFvPatchField< Type >::mappedFieldFvPatchField(), mappedFieldFvPatchField< Type >::mappedFieldFvPatchField(), mappedFieldFvPatchField< Type >::mappedFieldFvPatchField(), mappedFieldFvPatchField< Type >::mappedFieldFvPatchField(), mappedFixedValueFvPatchField< Type >::mappedFixedValueFvPatchField(), mappedMixedFieldFvPatchField< Type >::mappedMixedFieldFvPatchField(), mappedMixedFieldFvPatchField< Type >::mappedMixedFieldFvPatchField(), mappedMixedFieldFvPatchField< Type >::mappedMixedFieldFvPatchField(), mappedMixedFieldFvPatchField< Type >::mappedMixedFieldFvPatchField(), mappedMixedFieldFvPatchField< Type >::mappedMixedFieldFvPatchField(), mappedMixedFvPatchField< Type >::mappedMixedFvPatchField(), meshToMesh::mapSrcToTgt(), meshToMesh::mapTgtToSrc(), fvPatchField< scalar >::NewCalculatedType(), omegaWallFunctionFvPatchScalarField::omega(), outletMappedUniformInletFvPatchField< Type >::outletMappedUniformInletFvPatchField(), outletMappedUniformInletFvPatchField< Type >::outletMappedUniformInletFvPatchField(), outletMappedUniformInletFvPatchField< Type >::outletMappedUniformInletFvPatchField(), outletMappedUniformInletFvPatchField< Type >::outletMappedUniformInletFvPatchField(), Foam::oversetAdjustPhi(), fvPatchField< Type >::patchInternalField(), fvPatchField< Type >::patchInternalField(), enthalpySorptionFvPatchScalarField::patchSource(), speciesSorptionFvPatchScalarField::patchSource(), prghPermeableAlphaTotalPressureFvPatchScalarField::prghPermeableAlphaTotalPressureFvPatchScalarField(), prghPermeableAlphaTotalPressureFvPatchScalarField::prghPermeableAlphaTotalPressureFvPatchScalarField(), prghPermeableAlphaTotalPressureFvPatchScalarField::prghPermeableAlphaTotalPressureFvPatchScalarField(), prghPermeableAlphaTotalPressureFvPatchScalarField::prghPermeableAlphaTotalPressureFvPatchScalarField(), processorCyclicFvPatchField< Type >::processorCyclicFvPatchField(), processorCyclicFvPatchField< Type >::processorCyclicFvPatchField(), processorCyclicFvPatchField< Type >::processorCyclicFvPatchField(), processorFvPatchField< Type >::processorFvPatchField(), processorFvPatchField< Type >::processorFvPatchField(), processorFvPatchField< Type >::processorFvPatchField(), fixedGradientFvPatchField< Type >::readGradientEntry(), mixedFvPatchField< Type >::readMixedEntries(), fvPatchField< Type >::readValueEntry(), codedFixedValueFvPatchField< Type >::redirectPatchField(), codedMixedFvPatchField< Type >::redirectPatchField(), scaledFixedValueFvPatchField< Type >::scaledFixedValueFvPatchField(), scaledFixedValueFvPatchField< Type >::scaledFixedValueFvPatchField(), scaledFixedValueFvPatchField< Type >::scaledFixedValueFvPatchField(), scaledFixedValueFvPatchField< Type >::scaledFixedValueFvPatchField(), slicedFvPatchField< Type >::slicedFvPatchField(), basicSymmetryFvPatchField< Type >::snGrad(), coupledFvPatchField< Type >::snGrad(), directionMixedFvPatchField< Type >::snGrad(), fixedNormalSlipFvPatchField< Type >::snGrad(), fvPatchField< Type >::snGrad(), mixedFvPatchField< Type >::snGrad(), partialSlipFvPatchField< Type >::snGrad(), symmetryPlaneFvPatchField< Type >::snGrad(), wedgeFvPatchField< Type >::snGrad(), basicSymmetryFvPatchField< Type >::snGradTransformDiag(), fixedNormalSlipFvPatchField< Type >::snGradTransformDiag(), partialSlipFvPatchField< Type >::snGradTransformDiag(), wedgeFvPatchField< Type >::snGradTransformDiag(), speciesSorptionFvPatchScalarField::speciesSorptionFvPatchScalarField(), speciesSorptionFvPatchScalarField::speciesSorptionFvPatchScalarField(), speciesSorptionFvPatchScalarField::speciesSorptionFvPatchScalarField(), speciesSorptionFvPatchScalarField::speciesSorptionFvPatchScalarField(), swirlFanVelocityFvPatchField::swirlFanVelocityFvPatchField(), symmetryFvPatchField< Type >::symmetryFvPatchField(), symmetryPlaneFvPatchField< Type >::symmetryPlaneFvPatchField(), timeVaryingMappedFixedValueFvPatchField< Type >::timeVaryingMappedFixedValueFvPatchField(), timeVaryingMappedFixedValueFvPatchField< Type >::timeVaryingMappedFixedValueFvPatchField(), timeVaryingMappedFixedValueFvPatchField< Type >::timeVaryingMappedFixedValueFvPatchField(), timeVaryingMappedFixedValueFvPatchField< Type >::timeVaryingMappedFixedValueFvPatchField(), turbulentDigitalFilterInletFvPatchField< Type >::turbulentDigitalFilterInletFvPatchField(), turbulentDigitalFilterInletFvPatchField< Type >::turbulentDigitalFilterInletFvPatchField(), turbulentDigitalFilterInletFvPatchField< Type >::turbulentDigitalFilterInletFvPatchField(), turbulentDigitalFilterInletFvPatchField< Type >::turbulentDigitalFilterInletFvPatchField(), uniformFixedGradientFvPatchField< Type >::uniformFixedGradientFvPatchField(), uniformFixedValueFvPatchField< Type >::uniformFixedValueFvPatchField(), uniformFixedValueFvPatchField< Type >::uniformFixedValueFvPatchField(), uniformFixedValueFvPatchField< Type >::uniformFixedValueFvPatchField(), uniformFixedValueFvPatchField< Type >::uniformFixedValueFvPatchField(), uniformMixedFvPatchField< Type >::uniformMixedFvPatchField(), uniformMixedFvPatchField< Type >::uniformMixedFvPatchField(), uniformMixedFvPatchField< Type >::uniformMixedFvPatchField(), uniformMixedFvPatchField< Type >::uniformMixedFvPatchField(), adjointOutletFluxFvPatchField< Type >::updateCoeffs(), advectiveFvPatchField< Type >::updateCoeffs(), cellMotionFvPatchField< Type >::updateCoeffs(), thermalShellFvPatchScalarField::updateCoeffs(), energyJumpAMIFvPatchScalarField::updateCoeffs(), energyJumpFvPatchScalarField::updateCoeffs(), enthalpySorptionFvPatchScalarField::updateCoeffs(), epsilonWallFunctionFvPatchScalarField::updateCoeffs(), fixedMeanFvPatchField< Type >::updateCoeffs(), fixedMeanOutletInletFvPatchField< Type >::updateCoeffs(), fixedProfileFvPatchField< Type >::updateCoeffs(), inletOutletFvPatchField< Type >::updateCoeffs(), kLowReWallFunctionFvPatchScalarField::updateCoeffs(), mappedFieldFvPatchField< Type >::updateCoeffs(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), mappedFixedPushedInternalValueFvPatchField< Type >::updateCoeffs(), mappedFixedValueFvPatchField< Type >::updateCoeffs(), mappedMixedFieldFvPatchField< Type >::updateCoeffs(), mappedMixedFvPatchField< Type >::updateCoeffs(), mappedVelocityFluxFixedValueFvPatchField::updateCoeffs(), omegaWallFunctionFvPatchScalarField::updateCoeffs(), outletInletFvPatchField< Type >::updateCoeffs(), outletMappedUniformInletFvPatchField< Type >::updateCoeffs(), porousBafflePressureFvPatchField::updateCoeffs(), speciesSorptionFvPatchScalarField::updateCoeffs(), totalFlowRateAdvectiveDiffusiveFvPatchScalarField::updateCoeffs(), uniformInletOutletFvPatchField< Type >::updateCoeffs(), velocityFilmShellFvPatchVectorField::updateCoeffs(), vibrationShellFvPatchScalarField::updateCoeffs(), waWallFunctionFvPatchScalarField::updateCoeffs(), cyclicACMIFvPatchField< Type >::updateInterfaceMatrix(), prghPermeableAlphaTotalPressureFvPatchScalarField::updateSnGrad(), epsilonWallFunctionFvPatchScalarField::updateWeightedCoeffs(), omegaWallFunctionFvPatchScalarField::updateWeightedCoeffs(), calculatedFvPatchField< Type >::valueBoundaryCoeffs(), fixedGradientFvPatchField< Type >::valueBoundaryCoeffs(), genericFvPatchField< Type >::valueBoundaryCoeffs(), mixedFvPatchField< Type >::valueBoundaryCoeffs(), transformFvPatchField< Type >::valueBoundaryCoeffs(), calculatedFvPatchField< Type >::valueInternalCoeffs(), genericFvPatchField< Type >::valueInternalCoeffs(), wedgeFvPatchField< Type >::wedgeFvPatchField(), regionSizeDistribution::write(), and zeroValueFvPatchField< Type >::zeroValueFvPatchField().

patchType() [1/2]

const word & patchType ( ) const

inlinenoexcept

The optional patch type.

Definition at line 266 of file fvPatchField.H.

References Foam::noexcept.

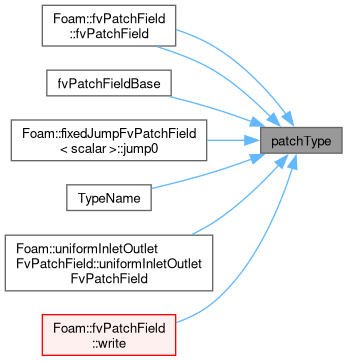

Referenced by fvPatchField< Type >::fvPatchField(), fvPatchField< scalar >::fvPatchField(), fvPatchFieldBase(), fixedJumpFvPatchField< scalar >::jump0(), TypeName(), uniformInletOutletFvPatchField< Type >::uniformInletOutletFvPatchField(), and fvPatchField< Type >::write().

Here is the caller graph for this function:

patchType() [2/2]

word & patchType ( )

inlinenoexcept

The optional patch type.

Definition at line 274 of file fvPatchField.H.

References Foam::noexcept.

constraintOverride()

virtual bool constraintOverride ( ) const

inlinevirtual

True if the type does not correspond to the constraint type.

Definition at line 282 of file fvPatchField.H.

References Foam::type().

Here is the call graph for this function:

updated()

bool updated ( ) const

inlinenoexcept

True if the boundary condition has already been updated.

Definition at line 293 of file fvPatchField.H.

References Foam::noexcept.

Referenced by basicSymmetryFvPatchField< Type >::evaluate(), coupledFvPatchField< Type >::evaluate(), cyclicACMIFvPatchField< Type >::evaluate(), cyclicAMIFvPatchField< Type >::evaluate(), directionMixedFvPatchField< Type >::evaluate(), extrapolatedCalculatedFvPatchField< Type >::evaluate(), fixedGradientFvPatchField< Type >::evaluate(), fixedNormalSlipFvPatchField< Type >::evaluate(), fvPatchField< Type >::evaluate(), mixedFvPatchField< Type >::evaluate(), partialSlipFvPatchField< Type >::evaluate(), symmetryPlaneFvPatchField< Type >::evaluate(), wedgeFvPatchField< Type >::evaluate(), zeroGradientFvPatchField< Type >::evaluate(), coupledFvPatchField< Type >::initEvaluate(), cyclicACMIFvPatchField< Type >::initEvaluate(), adjointOutletFluxFvPatchField< Type >::updateCoeffs(), advectiveFvPatchField< Type >::updateCoeffs(), cellMotionFvPatchField< Type >::updateCoeffs(), codedFixedValueFvPatchField< Type >::updateCoeffs(), codedMixedFvPatchField< Type >::updateCoeffs(), thermalShellFvPatchScalarField::updateCoeffs(), energyJumpAMIFvPatchScalarField::updateCoeffs(), energyJumpFvPatchScalarField::updateCoeffs(), enthalpySorptionFvPatchScalarField::updateCoeffs(), epsilonWallFunctionFvPatchScalarField::updateCoeffs(), exprFixedValueFvPatchField< Type >::updateCoeffs(), exprMixedFvPatchField< Type >::updateCoeffs(), fanFvPatchField< Type >::updateCoeffs(), fixedMeanFvPatchField< Type >::updateCoeffs(), fixedMeanOutletInletFvPatchField< Type >::updateCoeffs(), fixedProfileFvPatchField< Type >::updateCoeffs(), freestreamFvPatchField< Type >::updateCoeffs(), inletOutletFvPatchField< Type >::updateCoeffs(), kLowReWallFunctionFvPatchScalarField::updateCoeffs(), mappedFieldFvPatchField< Type >::updateCoeffs(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), mappedFixedPushedInternalValueFvPatchField< Type >::updateCoeffs(), mappedFixedValueFvPatchField< Type >::updateCoeffs(), mappedMixedFieldFvPatchField< Type >::updateCoeffs(), mappedMixedFvPatchField< Type >::updateCoeffs(), omegaWallFunctionFvPatchScalarField::updateCoeffs(), outletInletFvPatchField< Type >::updateCoeffs(), outletMappedUniformInletFvPatchField< Type >::updateCoeffs(), porousBafflePressureFvPatchField::updateCoeffs(), prghPermeableAlphaTotalPressureFvPatchScalarField::updateCoeffs(), scaledFixedValueFvPatchField< Type >::updateCoeffs(), speciesSorptionFvPatchScalarField::updateCoeffs(), swirlFanVelocityFvPatchField::updateCoeffs(), timeVaryingMappedFixedValueFvPatchField< Type >::updateCoeffs(), totalFlowRateAdvectiveDiffusiveFvPatchScalarField::updateCoeffs(), turbulentDigitalFilterInletFvPatchField< Type >::updateCoeffs(), turbulentInletFvPatchField< Type >::updateCoeffs(), uniformFixedGradientFvPatchField< Type >::updateCoeffs(), uniformFixedValueFvPatchField< Type >::updateCoeffs(), uniformInletOutletFvPatchField< Type >::updateCoeffs(), uniformJumpAMIFvPatchField< Type >::updateCoeffs(), uniformJumpFvPatchField< Type >::updateCoeffs(), uniformMixedFvPatchField< Type >::updateCoeffs(), velocityFilmShellFvPatchVectorField::updateCoeffs(), vibrationShellFvPatchScalarField::updateCoeffs(), waWallFunctionFvPatchScalarField::updateCoeffs(), prghPermeableAlphaTotalPressureFvPatchScalarField::updateSnGrad(), epsilonWallFunctionFvPatchScalarField::updateWeightedCoeffs(), fvPatchField< Type >::updateWeightedCoeffs(), omegaWallFunctionFvPatchScalarField::updateWeightedCoeffs(), and cyclicAMIFvPatchField< scalar >::write().

setUpdated()

void setUpdated ( bool state )

inlinenoexcept

Set updated state.

Definition at line 301 of file fvPatchField.H.

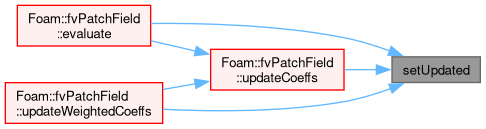

Referenced by fvPatchField< Type >::evaluate(), fvPatchField< Type >::updateCoeffs(), and fvPatchField< Type >::updateWeightedCoeffs().

Here is the caller graph for this function:

manipulatedMatrix()

bool manipulatedMatrix ( ) const

inlinenoexcept

True if the matrix has already been manipulated.

Definition at line 309 of file fvPatchField.H.

References Foam::noexcept.

Referenced by epsilonWallFunctionFvPatchScalarField::manipulateMatrix(), omegaWallFunctionFvPatchScalarField::manipulateMatrix(), and oversetFvPatchField< Type >::manipulateMatrix().

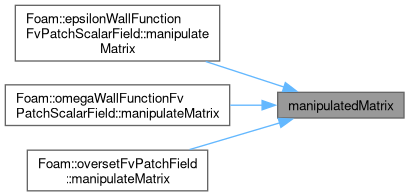

Here is the caller graph for this function:

setManipulated()

void setManipulated ( bool state )

inlinenoexcept

Set matrix manipulated state.

Definition at line 317 of file fvPatchField.H.

Referenced by fvPatchField< Type >::evaluate(), fvPatchField< Type >::manipulateMatrix(), fvPatchField< Type >::manipulateMatrix(), and fvPatchField< Type >::manipulateMatrix().

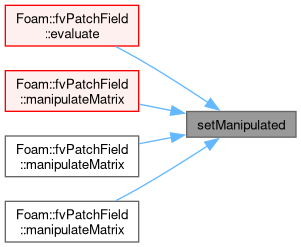

Here is the caller graph for this function:

useImplicit() [1/2]

bool useImplicit ( ) const

inlinenoexcept

Use implicit formulation for coupled patches only.

Definition at line 325 of file fvPatchField.H.

References Foam::noexcept.

Referenced by lduPrimitiveMeshAssembly::update(), and fvPatchField< Type >::write().

Here is the caller graph for this function:

useImplicit() [2/2]

bool useImplicit ( bool on )

inlinenoexcept

Set useImplicit on/off.

Returns

old value

Definition at line 335 of file fvPatchField.H.

checkPatch()

void checkPatch

(

const fvPatchFieldBase &

rhs

)

const

Check that patches are identical.

Definition at line 112 of file fvPatchFieldBase.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, fvPatchFieldBase(), and Foam::rhs().

Referenced by fvPatchField< Type >::check(), fvPatchField< Foam::Vector< scalar > >::extrapolateInternal(), fvPatchField< Type >::operator*=(), fvPatchField< Type >::operator+=(), fvPatchField< Type >::operator-=(), and fvPatchField< Type >::operator/=().

Here is the call graph for this function:

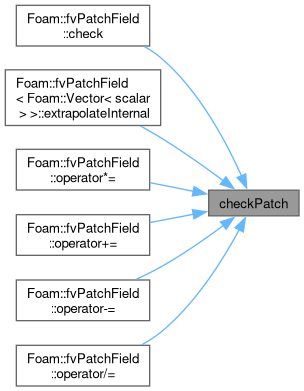

Here is the caller graph for this function:

Member Data Documentation

disallowGenericPatchField

int disallowGenericPatchField

static

Debug switch to disallow the use of generic fvPatchField.

Definition at line 130 of file fvPatchField.H.

Referenced by fvPatchField< Type >::New().

---

The documentation for this class was generated from the following files:

• src/finiteVolume/fields/fvPatchFields/fvPatchField/fvPatchField.H
• src/finiteVolume/fields/fvPatchFields/fvPatchField/fvPatchFieldBase.C
