Base for geometrical domain decomposition methods. More...

#include <geomDecomp.H>

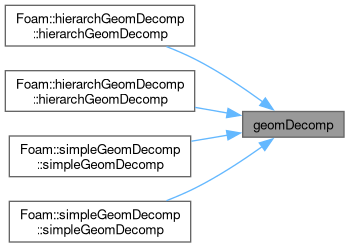

Inheritance diagram for geomDecomp:

[legend]

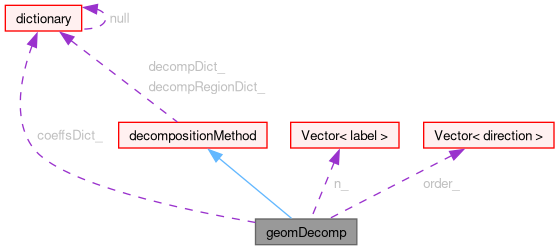

Collaboration diagram for geomDecomp:

[legend]

Public Member Functions
	geomDecomp (const Vector< label > &divisions)
	Construct with number of x/y/z division (no coefficients or constraints).
	geomDecomp (const word &derivedType, const dictionary &decompDict, int select=selectionType::DEFAULT)
	Construct for derived type name and decomposition dictionary.
	geomDecomp (const word &derivedType, const dictionary &decompDict, const word &regionName, int select=selectionType::DEFAULT)
	Construct for derived type name, decomposition dictionary and region name.
virtual bool	geometric () const
	Purely geometric methods.
virtual labelList	decompose (const pointField &points, const scalarField &pointWeights=scalarField::null()) const =0
	Return for every coordinate the wanted processor number.
Public Member Functions inherited from decompositionMethod
	decompositionMethod (const decompositionMethod &)=delete
	No copy construct.
void	operator= (const decompositionMethod &)=delete
	No copy assignment.
	TypeName ("decompositionMethod")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, decompositionMethod, dictionary,(const dictionary &decompDict, const word &regionName),(decompDict, regionName))
	decompositionMethod (const dictionary &decompDict, const word &regionName="")
	Construct given the decomposition dictionary, optionally region-specific.
virtual	~decompositionMethod ()=default
	Destructor.
label	nDomains () const noexcept
	Number of domains.
label	nDomains (const label n)
	Set number of domains. Return old value.
virtual bool	parallelAware () const =0
	Is method parallel aware?
virtual labelList	decompose (const polyMesh &mesh, const pointField &points, const scalarField &pointWeights=scalarField::null()) const =0
	Return for every coordinate the wanted processor number, using uniform or specified point weights.
virtual labelList	decompose (const polyMesh &mesh, const labelList &cellToRegion, const pointField &regionPoints, const scalarField &regionWeights=scalarField::null()) const
	Return for every coordinate the wanted processor number.
virtual labelList	decompose (const CompactListList< label > &globalCellCells, const pointField &cc, const scalarField &cWeights=scalarField::null()) const =0
	Return for every coordinate the wanted processor number.
virtual labelList	decompose (const labelListList &globalCellCells, const pointField &cc, const scalarField &cWeights=scalarField::null()) const =0
	Return for every coordinate the wanted processor number.
void	setConstraints (const polyMesh &mesh, boolList &blockedFace, PtrList< labelList > &specifiedProcessorFaces, labelList &specifiedProcessor, List< labelPair > &explicitConnections) const
	Helper: extract constraints:
void	applyConstraints (const polyMesh &mesh, const boolList &blockedFace, const PtrList< labelList > &specifiedProcessorFaces, const labelList &specifiedProcessor, const List< labelPair > &explicitConnections, labelList &finalDecomp) const
	Helper: apply constraints to a decomposition.
virtual labelList	decompose (const polyMesh &mesh, const scalarField &cellWeights, const boolList &blockedFace, const PtrList< labelList > &specifiedProcessorFaces, const labelList &specifiedProcessor, const List< labelPair > &explicitConnections) const
labelList	decompose (const polyMesh &mesh, const scalarField &cWeights) const
	Decompose a mesh.

Protected Member Functions
tmp< pointField >	adjustPoints (const pointField &) const
	Apply delta (jitter) or rotation to coordinates.
void	checkDecompositionDirections (const Vector< label > &) const
	Check that mesh directions are compatible with decomposition.
Protected Member Functions inherited from decompositionMethod
FOAM_NO_DANGLING_REFERENCE const dictionary &	findCoeffsDict (const word &coeffsName, int select=selectionType::DEFAULT) const
	Locate coeffsName dictionary or the fallback "coeffs" dictionary.
	decompositionMethod (const label numDomains)
	Construct with specified number of domains, no coefficients or constraints.

Protected Attributes
Vector< label >	n_
	The divisions.
Vector< direction >	order_
	Decomposition order in terms of components (optional).
const dictionary &	coeffsDict_
	Coefficients for all derived methods.
Protected Attributes inherited from decompositionMethod
const dictionary &	decompDict_
	Top-level decomposition dictionary (eg, decomposeParDict).
const dictionary &	decompRegionDict_
	Region-specific decomposition dictionary information.
label	nDomains_
	Number of domains for the decomposition.
PtrList< decompositionConstraint >	constraints_
	Optional constraints.

Additional Inherited Members
Static Public Member Functions inherited from decompositionMethod
static label	nDomains (const dictionary &decompDict, const word &regionName="")
	Return region-specific or top-level `numberOfSubdomains` entry.
static const dictionary &	optionalRegionDict (const dictionary &decompDict, const word &regionName)
	Return an optional region-specific dictionary from "regions" sub-dictionary, or dictionary::null on failure.
static autoPtr< decompositionMethod >	New (const dictionary &decompDict, const word &regionName="")
	Return a reference to the selected decomposition method, optionally region-specific.
static void	calcCellCells (const polyMesh &mesh, const labelList &agglom, const label nLocalCoarse, const bool parallel, CompactListList< label > &cellCells)
	Determine (local or global) cellCells from mesh agglomeration.
static void	calcCellCells (const polyMesh &mesh, const labelList &agglom, const label nLocalCoarse, const bool parallel, CompactListList< label > &cellCells, CompactListList< scalar > &cellCellWeights)
	Determine (local or global) cellCells and face weights from mesh agglomeration.
Protected Types inherited from decompositionMethod
enum	selectionType { DEFAULT = 0 , EXACT = 1 , MANDATORY = 2 , NULL_DICT = 4 }
	Selection type when handling the coefficients dictionary. More...
Static Protected Member Functions inherited from decompositionMethod
static FOAM_NO_DANGLING_REFERENCE const dictionary &	findCoeffsDict (const dictionary &dict, const word &coeffsName, int select=selectionType::DEFAULT)
	Locate coeffsName dictionary or the fallback "coeffs" dictionary within an enclosing dictionary.
