Refinement of (split) hexes using polyTopoChange. More...

#include <hexRef8.H>

Public Member Functions
	ClassName ("hexRef8")
	Runtime type information.
	hexRef8 (const polyMesh &mesh, const bool readHistory=true)
	Construct from mesh, read_if_present refinement data.
	hexRef8 (const polyMesh &mesh, const labelList &cellLevel, const labelList &pointLevel, const refinementHistory &history, const scalar level0Edge=-GREAT)
	Construct from mesh and un/refinement data and optional size of.
	hexRef8 (const polyMesh &mesh, const labelList &cellLevel, const labelList &pointLevel, const scalar level0Edge=-GREAT)
	Construct from mesh and refinement data and optional size of.
const polyMesh &	mesh () const
const labelIOList &	cellLevel () const
const labelIOList &	pointLevel () const
const refinementHistory &	history () const
scalar	level0EdgeLength () const
	Typical edge length between unrefined points.
label	faceLevel (const label facei) const
	Gets level such that the face has four points <= level.
labelList	consistentRefinement (const labelUList &cellLevel, const labelList &cellsToRefine, const bool maxSet) const
	Given valid mesh and current cell level and proposed.
labelList	consistentRefinement (const labelList &cellsToRefine, const bool maxSet) const
	Given valid mesh and current cell level and proposed.
labelList	consistentSlowRefinement (const label maxFaceDiff, const labelList &cellsToRefine, const labelList &facesToCheck, const label maxPointDiff, const labelList &pointsToCheck) const
	Like consistentRefinement but slower:
labelList	consistentSlowRefinement2 (const label maxFaceDiff, const labelList &cellsToRefine, const labelList &facesToCheck) const
	Like consistentSlowRefinement but uses different meshWave.
labelListList	setRefinement (const labelList &cells, polyTopoChange &)
	Insert refinement. All selected cells will be split into 8.
void	updateMesh (const mapPolyMesh &)
	Update local numbering for changed mesh.
void	storeData (const labelList &pointsToStore, const labelList &facesToStore, const labelList &cellsToStore)
	Signal points/face/cells for which to store data.
void	updateMesh (const mapPolyMesh &, const Map< label > &pointsToRestore, const Map< label > &facesToRestore, const Map< label > &cellsToRestore)
	Update local numbering + undo.
void	subset (const labelList &pointMap, const labelList &faceMap, const labelList &cellMap)
	Update local numbering for subsetted mesh.
void	distribute (const mapDistributePolyMesh &)
	Update local numbering for mesh redistribution.
void	checkMesh () const
	Debug: Check coupled mesh for correctness.
void	checkRefinementLevels (const label maxPointDiff, const labelList &pointsToCheck) const
	Debug: Check 2:1 consistency across faces.
const cellShapeList &	cellShapes () const
	Utility: get hexes as cell shapes.
labelList	getSplitPoints () const
	Return the points at the centre of top-level split cells.
labelList	consistentUnrefinement (const labelList &pointsToUnrefine, const bool maxSet) const
	Given proposed.
void	setUnrefinement (const labelList &splitPointLabels, polyTopoChange &)
	Remove some refinement. Needs to be supplied output of.
void	setInstance (const fileName &inst)
bool	write (const bool writeOnProc=true) const
	Force writing refinement+history to polyMesh directory.

Static Public Member Functions
static void	removeFiles (const polyMesh &)
	Helper: remove all relevant files from mesh instance.

Detailed Description

Refinement of (split) hexes using polyTopoChange.

Source files

Definition at line 62 of file hexRef8.H.

Constructor & Destructor Documentation

◆ hexRef8() [1/3]

hexRef8	(	const polyMesh &	mesh,
		const bool	readHistory = true )

explicit

Construct from mesh, read_if_present refinement data.

(from write below). If readHistory is true does read_if_present of refinement history. If false clears all history

Definition at line 1904 of file hexRef8.C.

References checkMesh(), checkRefinementLevels(), Foam::dimLength, if(), mesh(), nPoints, IOobjectOption::READ_IF_PRESENT, and Foam::Zero.

Here is the call graph for this function:

◆ hexRef8() [2/3]

hexRef8	(	const polyMesh &	mesh,
		const labelList &	cellLevel,
		const labelList &	pointLevel,
		const refinementHistory &	history,
		const scalar	level0Edge = -GREAT )

Construct from mesh and un/refinement data and optional size of.

starting cells

Definition at line 2017 of file hexRef8.C.

References cellLevel(), checkMesh(), checkRefinementLevels(), Foam::dimLength, history(), if(), mesh(), and pointLevel().

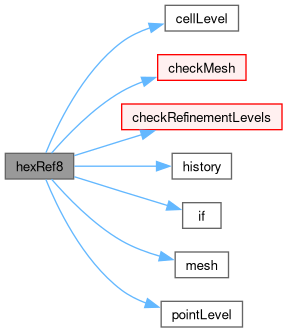

Here is the call graph for this function:

◆ hexRef8() [3/3]

hexRef8	(	const polyMesh &	mesh,
		const labelList &	cellLevel,
		const labelList &	pointLevel,
		const scalar	level0Edge = -GREAT )

Construct from mesh and refinement data and optional size of.

starting cells

Definition at line 2126 of file hexRef8.C.

References cellLevel(), checkMesh(), checkRefinementLevels(), Foam::dimLength, mesh(), and pointLevel().

Here is the call graph for this function:

Member Function Documentation

◆ ClassName()

ClassName ( "hexRef8" )

Runtime type information.

References cellLevel(), history(), mesh(), and pointLevel().

Here is the call graph for this function:

◆ mesh()

const polyMesh & mesh ( ) const

inline

Definition at line 476 of file hexRef8.H.

Referenced by ClassName(), hexRef8(), hexRef8(), hexRef8(), and removeFiles().

Here is the caller graph for this function:

◆ cellLevel()

const labelIOList & cellLevel ( ) const

inline

Definition at line 481 of file hexRef8.H.

Referenced by ClassName(), consistentRefinement(), hexRef8(), and hexRef8().

Here is the caller graph for this function:

◆ pointLevel()

const labelIOList & pointLevel ( ) const

inline

Definition at line 486 of file hexRef8.H.

Referenced by ClassName(), hexRef8(), and hexRef8().

Here is the caller graph for this function:

◆ history()

const refinementHistory & history ( ) const

inline

Definition at line 491 of file hexRef8.H.

Referenced by ClassName(), and hexRef8().

Here is the caller graph for this function:

◆ level0EdgeLength()

scalar level0EdgeLength ( ) const

inline

Typical edge length between unrefined points.

Definition at line 499 of file hexRef8.H.

Referenced by consistentSlowRefinement2().

Here is the caller graph for this function:

◆ faceLevel()

Foam::label faceLevel ( const label facei ) const

Gets level such that the face has four points <= level.

Definition at line 796 of file hexRef8.C.

References f().

Referenced by setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ consistentRefinement() [1/2]

Foam::labelList consistentRefinement	(	const labelUList &	cellLevel,
		const labelList &	cellsToRefine,
		const bool	maxSet ) const

Given valid mesh and current cell level and proposed.

cells to refine calculate any clashes (due to 2:1) and return ok list of cells to refine. Either adds cells to refine to set (maxSet = true) or removes cells to refine (maxSet = false)

Definition at line 2228 of file hexRef8.C.

References cellLevel(), Foam::endl(), Foam::Pout, and Foam::reduce().

Referenced by consistentRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ consistentRefinement() [2/2]

labelList consistentRefinement	(	const labelList &	cellsToRefine,
		const bool	maxSet ) const

inline

Given valid mesh and current cell level and proposed.

cells to refine calculate any clashes (due to 2:1) and return ok list of cells to refine. Either adds cells to refine to set (maxSet = true) or removes cells to refine (maxSet = false)

Definition at line 534 of file hexRef8.H.

References consistentRefinement().

Here is the call graph for this function:

◆ consistentSlowRefinement()

Foam::labelList consistentSlowRefinement	(	const label	maxFaceDiff,
		const labelList &	cellsToRefine,
		const labelList &	facesToCheck,
		const label	maxPointDiff,
		const labelList &	pointsToCheck ) const

Like consistentRefinement but slower:

specify number of cells between consecutive refinement levels (consistentRefinement equivalent to 1)
specify max level difference between point-connected cells. (-1 to disable) Note that with normal 2:1 limitation (maxFaceDiff=1) there can be 8:1 size difference across point connected cells so maxPointDiff allows you to make that less. cellsToRefine : cells we're thinking about refining. It will extend this set. All refinement levels will be at least maxFaceDiff layers thick. facesToCheck : additional faces where to implement the maxFaceDiff thickness (usually only boundary faces)

Definition at line 2284 of file hexRef8.C.

References Foam::abort(), allCellInfo(), allFaceInfo(), DynamicList< T, SizeMin >::append(), DynamicList< T, SizeMin >::clear(), refinementData::count(), DynamicList< T, SizeMin >::emplace_back(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::findIndices(), forAll, forAllConstIters, HashTable< T, Key, Hash >::insert(), FaceCellWave< Type, TrackingData >::iterate(), Foam::labelMin, Foam::mag(), Foam::max(), Foam::nl, Foam::Pout, FaceCellWaveBase::propagationTol(), DynamicList< T, SizeMin >::push_back(), Foam::reduce(), DynamicList< T, SizeMin >::setCapacity(), FaceCellWave< Type, TrackingData >::setFaceInfo(), DynamicList< T, SizeMin >::shrink(), HashTable< T, Key, Hash >::size(), UList< T >::size(), syncTools::swapBoundaryCellList(), syncTools::swapBoundaryFaceList(), syncTools::syncPointList(), refinementData::updateFace(), and Foam::Zero.

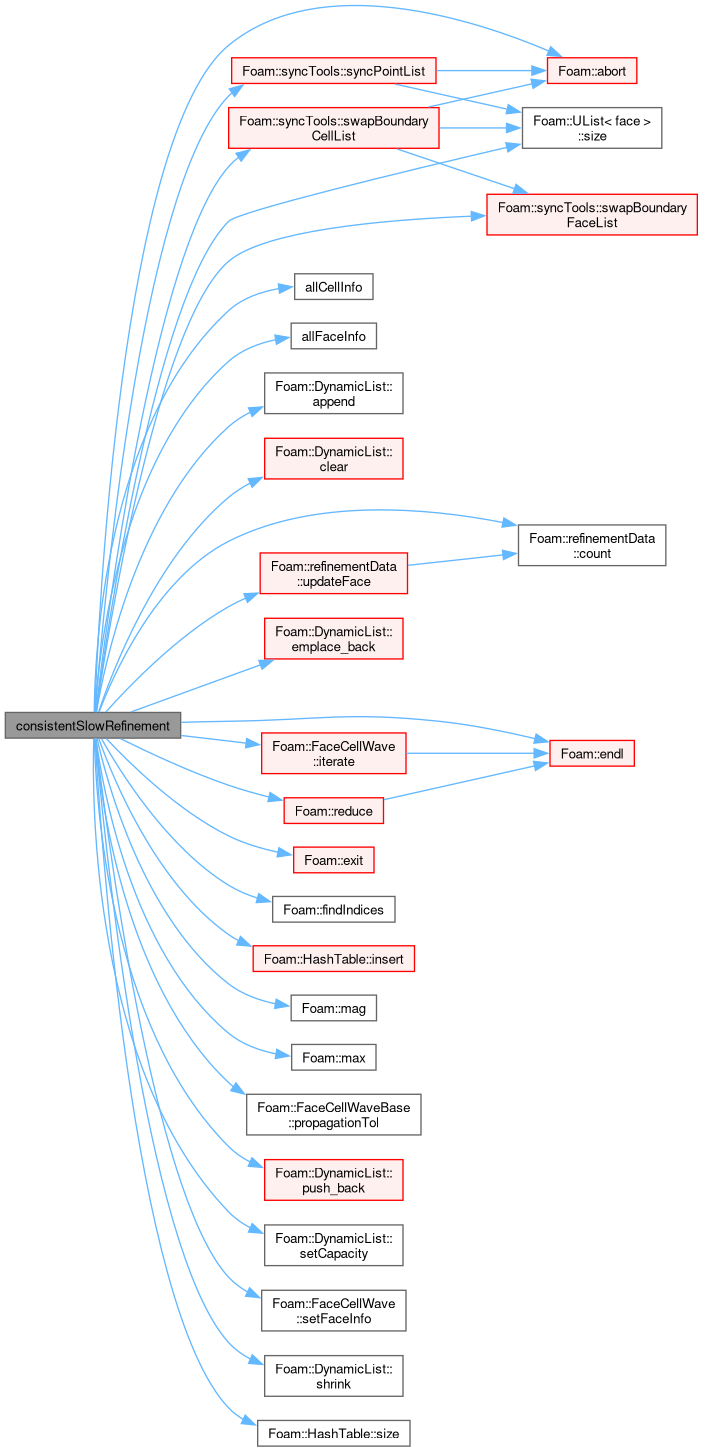

Here is the call graph for this function:

◆ consistentSlowRefinement2()

Foam::labelList consistentSlowRefinement2	(	const label	maxFaceDiff,
		const labelList &	cellsToRefine,
		const labelList &	facesToCheck ) const

Like consistentSlowRefinement but uses different meshWave.

(proper distance instead of toplogical count). No point checks yet.

noted: origin is different face (? or cell) between non-parallel

and parallel { const auto& cc = mesh_.cellCentres();

mkDir(mesh_.time().timePath()); OBJstream os(mesh_.time().timePath()/"origin_after_walk.obj"); forAll(allCellInfo, celli) { os.write(linePointRef(cc[celli], allCellInfo[celli].origin())); } }

Definition at line 2761 of file hexRef8.C.

References Foam::abort(), allCellInfo(), allFaceInfo(), DynamicList< T, SizeMin >::append(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::findIndices(), forAll, HashSet< Key, Hash >::insert(), Foam::labelMax, level0EdgeLength(), VectorSpace< Form, Cmpt, Ncmpts >::max, Foam::nl, IOobject::objectPath(), patches, Foam::Pout, pp(), FaceCellWaveBase::propagationTol(), Foam::reduce(), bitSet::set(), DynamicList< T, SizeMin >::shrink(), HashTable< T, Key, Hash >::size(), UList< T >::size(), syncTools::swapBoundaryFaceList(), bitSet::test(), and regIOobject::write().

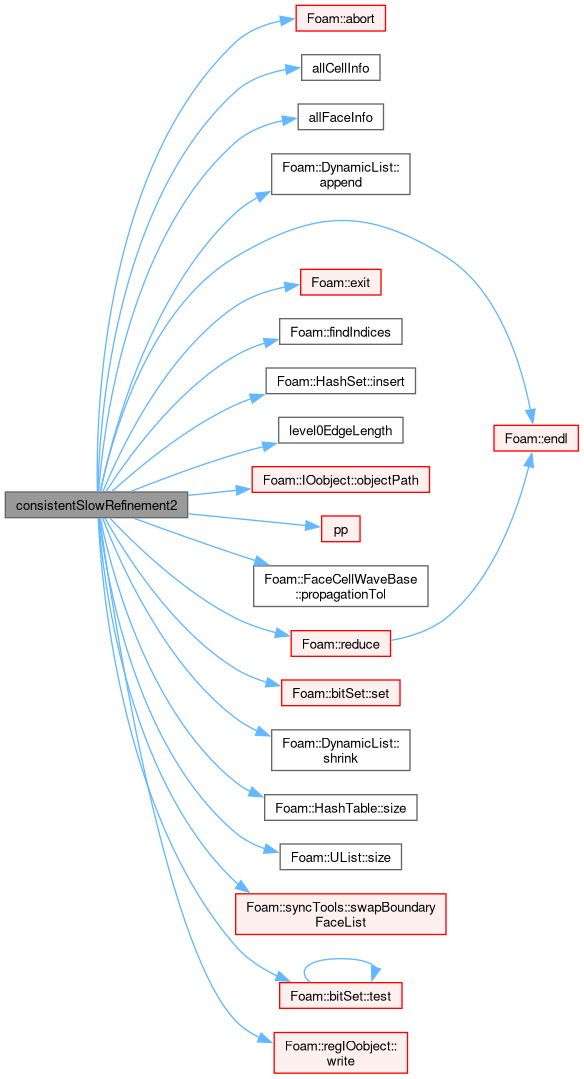

Here is the call graph for this function:

◆ setRefinement()

Foam::labelListList setRefinement	(	const labelList &	cells,
		polyTopoChange &	meshMod )

Insert refinement. All selected cells will be split into 8.

Returns per element in cells the 8 cells they were split into. Guarantees that the 0th element is the original cell label. Mapping: -split cells: 7 new ones get added from original -split faces: original gets modified; 3 new ones get added from original -added internal faces: added from original cell face(if that was internal) or created out-of-nothing (so will not get mapped!). Note: could make this inflate from point but that will allocate interpolation. -points added to split edge: added from edge start() -midpoints added: added from cellPoints[0].

Definition at line 3301 of file hexRef8.C.

References Foam::abort(), DynamicList< T, SizeMin >::append(), checkMesh(), List< T >::clear(), e, Foam::endl(), f(), faceLevel(), Foam::FatalError, FatalErrorInFunction, forAll, HashSet< Key, Hash >::insert(), Foam::labelMax, Foam::labelMin, Foam::max(), Foam::min(), OFstream::name(), Foam::nl, IOobject::objectPath(), Foam::Pout, bitSet::set(), polyTopoChange::setAction(), setInstance(), List< T >::setSize(), HashTable< T, Key, Hash >::size(), UList< T >::size(), syncTools::swapBoundaryFaceList(), syncTools::syncBoundaryFacePositions(), syncTools::syncEdgeList(), syncTools::syncEdgePositions(), syncTools::syncFaceList(), bitSet::test(), DynamicList< T, SizeMin >::transfer(), List< T >::transfer(), bitSet::unset(), regIOobject::write(), Foam::meshTools::writeOBJ(), and Foam::Zero.

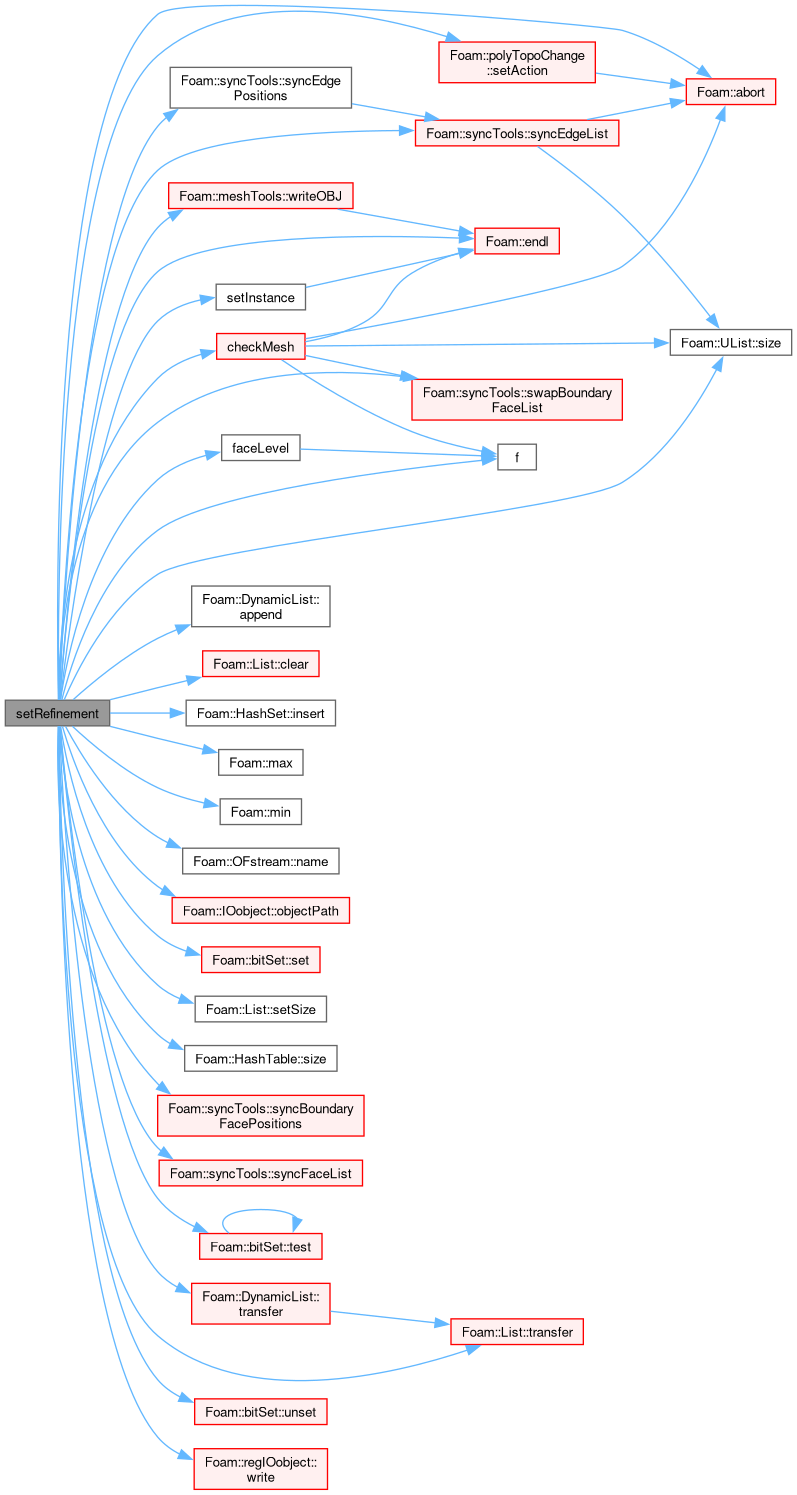

Here is the call graph for this function:

◆ updateMesh() [1/2]

void updateMesh ( const mapPolyMesh & map )

Update local numbering for changed mesh.

Definition at line 4343 of file hexRef8.C.

References updateMesh().

Referenced by updateMesh().

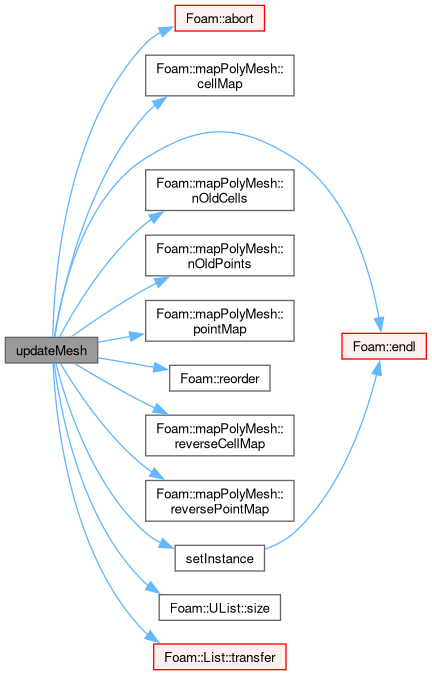

Here is the call graph for this function:

Here is the caller graph for this function:

◆ storeData()

void storeData	(	const labelList &	pointsToStore,
		const labelList &	facesToStore,
		const labelList &	cellsToStore )

Signal points/face/cells for which to store data.

Definition at line 4315 of file hexRef8.C.

References List< T >::clear(), forAll, and UList< T >::size().

Here is the call graph for this function:

◆ updateMesh() [2/2]

void updateMesh	(	const mapPolyMesh &	map,
		const Map< label > &	pointsToRestore,
		const Map< label > &	facesToRestore,
		const Map< label > &	cellsToRestore )

Update local numbering + undo.

Data to restore given as new pointlabel + stored pointlabel (i.e. what was in pointsToStore)

Definition at line 4354 of file hexRef8.C.

References Foam::abort(), mapPolyMesh::cellMap(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, forAll, forAllConstIters, newPointi, mapPolyMesh::nOldCells(), mapPolyMesh::nOldPoints(), mapPolyMesh::pointMap(), Foam::Pout, Foam::reorder(), mapPolyMesh::reverseCellMap(), mapPolyMesh::reversePointMap(), setInstance(), UList< T >::size(), and List< T >::transfer().

Here is the call graph for this function:

◆ subset()

void subset	(	const labelList &	pointMap,
		const labelList &	faceMap,
		const labelList &	cellMap )

Update local numbering for subsetted mesh.

Gets new-to-old maps. Not compatible with unrefinement.

Definition at line 4544 of file hexRef8.C.

References Foam::abort(), Foam::endl(), Foam::faceMap(), Foam::FatalError, FatalErrorInFunction, forAll, newPointi, Foam::nl, Foam::Pout, setInstance(), UList< T >::size(), and WarningInFunction.

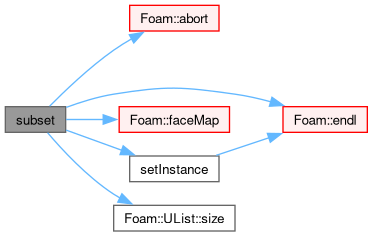

Here is the call graph for this function:

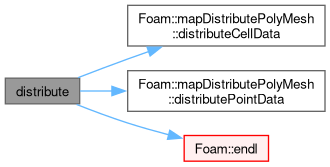

◆ distribute()

void distribute ( const mapDistributePolyMesh & map )

Update local numbering for mesh redistribution.

Definition at line 4628 of file hexRef8.C.

References mapDistributePolyMesh::distributeCellData(), mapDistributePolyMesh::distributePointData(), Foam::endl(), and Foam::Pout.

Here is the call graph for this function:

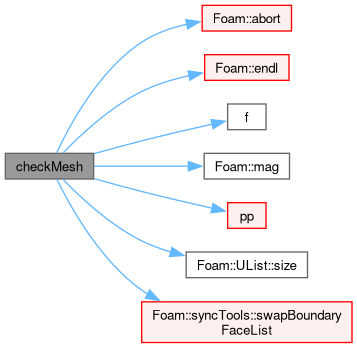

◆ checkMesh()

void checkMesh ( ) const

Debug: Check coupled mesh for correctness.

Definition at line 4656 of file hexRef8.C.

References Foam::abort(), e, Foam::endl(), f(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::mag(), patches, Foam::Pout, pp(), UList< T >::size(), and syncTools::swapBoundaryFaceList().

Referenced by hexRef8(), hexRef8(), hexRef8(), setRefinement(), and setUnrefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

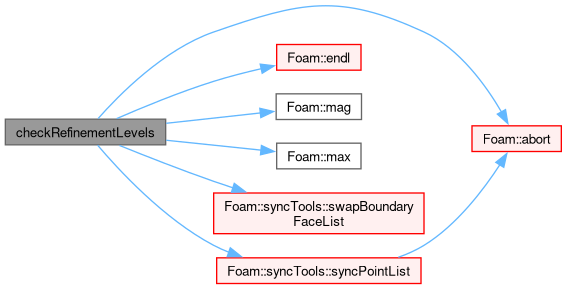

◆ checkRefinementLevels()

void checkRefinementLevels	(	const label	maxPointDiff,
		const labelList &	pointsToCheck ) const

Debug: Check 2:1 consistency across faces.

maxPointDiff==-1 : only check 2:1 across faces maxPointDiff!=-1 : check point-connected cells.

Gives problems after first splitting off inside mesher.

// Hanging points { // Any patches with points having only two edges.

boolList isHangingPoint(mesh_.nPoints(), false);

const polyBoundaryMesh& patches = mesh_.boundaryMesh();

forAll(patches, patchi) { const polyPatch& pp = patches[patchi];

const labelList& meshPoints = pp.meshPoints();

forAll(meshPoints, i) { label pointi = meshPoints[i];

const labelList& pEdges = mesh_.pointEdges()[pointi];

if (pEdges.size() == 2) { isHangingPoint[pointi] = true; } } }

syncTools::syncPointList ( mesh_, isHangingPoint, andEqOp<bool>(), // only if all decide it is hanging point true, // null false // no separation );

//OFstream str(mesh_.time().path()/"hangingPoints.obj");

label nHanging = 0;

forAll(isHangingPoint, pointi) { if (isHangingPoint[pointi]) { nHanging++;

Pout<< "Hanging boundary point " << pointi << " at " << mesh_.points()[pointi] << endl; //meshTools::writeOBJ(str, mesh_.points()[pointi]); } }

if (returnReduceOr(nHanging)) { FatalErrorInFunction << "Detected a point used by two edges only (hanging point)" << nl << "This is not allowed" << abort(FatalError); } }

Definition at line 4864 of file hexRef8.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::labelMax, Foam::labelMin, Foam::mag(), Foam::max(), Foam::nl, Foam::Pout, syncTools::swapBoundaryFaceList(), syncTools::syncPointList(), and Foam::Zero.

Referenced by getSplitPoints(), hexRef8(), hexRef8(), and hexRef8().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cellShapes()

const Foam::cellShapeList & cellShapes ( ) const

Utility: get hexes as cell shapes.

Definition at line 5120 of file hexRef8.C.

References Foam::endl(), forAll, Foam::nl, and Foam::Pout.

Here is the call graph for this function:

◆ getSplitPoints()

Foam::labelList getSplitPoints ( ) const

Return the points at the centre of top-level split cells.

that can be unsplit.

Definition at line 5180 of file hexRef8.C.

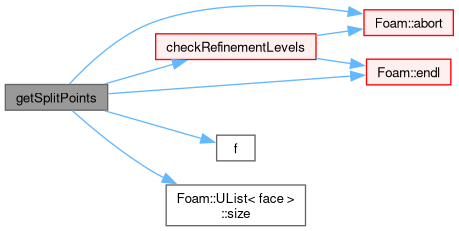

References Foam::abort(), checkRefinementLevels(), Foam::endl(), f(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::Pout, UList< T >::size(), and Foam::Zero.

Here is the call graph for this function:

◆ consistentUnrefinement()

Foam::labelList consistentUnrefinement	(	const labelList &	pointsToUnrefine,
		const bool	maxSet ) const

Given proposed.

splitPoints to unrefine according to calculate any clashes (due to 2:1) and return ok list of points to unrefine. Either adds points to refine to set (maxSet = true) or removes points to refine (maxSet = false)

Definition at line 5383 of file hexRef8.C.

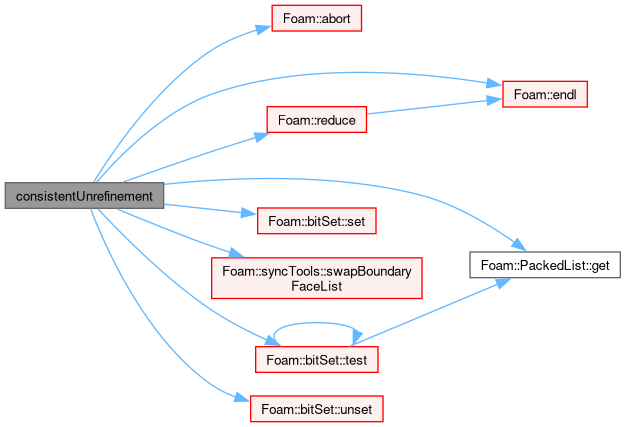

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, forAll, PackedList< Width >::get(), Foam::Pout, Foam::reduce(), bitSet::set(), syncTools::swapBoundaryFaceList(), bitSet::test(), and bitSet::unset().
