The movement driver that describes initial point locations, the current state of the points/rotations, and forwarding to the externalFileCoupler communication coordinator. More...

#include <lumpedPointMovement.H>

Inheritance diagram for lumpedPointMovement:

[legend]

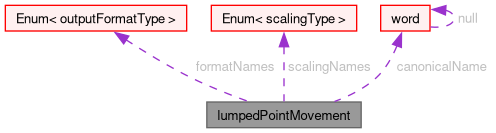

Collaboration diagram for lumpedPointMovement:

[legend]

Public Types
enum class	outputFormatType { PLAIN , DICTIONARY }
	Output format types. More...
enum	scalingType { LENGTH = 0 , FORCE , MOMENT }
	Output format types. More...

Public Member Functions
	lumpedPointMovement ()
	Default construct.
	lumpedPointMovement (const dictionary &dict, label ownerId=-1)
	Construct from dictionary, optionally with some owner information.
virtual	~lumpedPointMovement ()=default
	Destructor.
void	readDict (const dictionary &dict)
	Update settings from dictionary.
bool	empty () const
	If no number of lumped points (locations) were specified.
label	size () const
	The number of lumped points (number of locations).
label	ownerId () const
	An owner Id, if needed for bookkeeping purposes.
void	ownerId (label id)
	Change the owner id, if needed for bookkeeping purposes.
const externalFileCoupler &	coupler () const
	Communication control.
externalFileCoupler &	coupler ()
	Communication control.
bool	couplingPending (const label timeIndex) const
	Check if coupling is pending (according to the calcFrequency).
void	couplingCompleted (const label timeIndex) const
	Register that coupling is completed at this calcFrequency.
const lumpedPointState &	state0 () const
	The initial state (positions/rotations).
const lumpedPointState &	state () const
	The current state (positions/rotations).
const point &	origin () const
	The offset for lumped points, used on input.
void	scalePoints (lumpedPointState &state) const
	Scale the lumped points (on input).
scalar	relax () const
	The relaxation factor when changing states.
scalar &	relax ()
	The relaxation factor when changing states.
const word &	inputName () const
	The input (state) file name.
const word &	outputName () const
	The output (forces) file name.
const word &	logName () const
	The log file name.
lumpedPointState::inputFormatType	inputFormat () const
	The input (state) file format.
lumpedPointMovement::outputFormatType	outputFormat () const
	The output (forces) file format.
quaternion::eulerOrder	rotationOrder () const
	The Euler-angle rotation order.
bool	degrees () const
	Rotation angles in degrees.
bool	hasPatchControl (const label patchIndex) const
	Check if patch control exists for specified patch.
bool	hasPatchControl (const polyPatch &pp) const
	Check if patch control exists for specified patch.
bool	hasInterpolator (const pointPatch &fpatch) const
	Check if patch control exists for specified patch.
void	checkPatchControl (const polyPatch &pp) const
	Check if patch control exists for specified patch.
void	setPatchControl (const polyPatch &pp, const wordList &ctrlNames, const pointField &points0)
	Define pressure-zones mapping for faces in the specified patches.
void	setMapping (const polyMesh &mesh, const labelUList &patchIds, const pointField &points0)
	Define pressure-zones mapping for faces in the specified patches.
void	setInterpolator (const pointPatch &fpatch, const pointField &points0)
	Check if patch control exists for specified patch.
bool	hasMapping () const
	True if the pressure-zones mapping has already been performed.
bool	hasInterpolator (const label patchIndex) const
	Check if patch interpolator exists for specified patch.
List< scalar >	areas (const polyMesh &pmesh) const
	The areas for each pressure-zone.
bool	forcesAndMoments (const polyMesh &pmesh, List< vector > &forces, List< vector > &moments) const
	The forces and moments acting on each pressure-zone.
tmp< pointField >	pointsDisplacement (const pointPatch &fpatch, const pointField &points0) const
	Displace points according to the current state.
tmp< pointField >	pointsDisplacement (const lumpedPointState &state, const pointPatch &fpatch, const pointField &points0) const
	Displace points according to specified state.
tmp< pointField >	pointsPosition (const lumpedPointState &state, const pointPatch &fpatch, const pointField &points0) const
	The points absolute position according to specified state.
void	writeDict (Ostream &os) const
	Write axis, locations, division as a dictionary.
bool	writeData (Ostream &os, const UList< vector > &forces, const UList< vector > &moments, const outputFormatType fmt=outputFormatType::PLAIN, const Tuple2< scalar, scalar > *timesWritten=nullptr) const
	Write points, forces, moments. Only call from the master process.
bool	writeData (const UList< vector > &forces, const UList< vector > &moments=List< vector >(), const Tuple2< scalar, scalar > *timesWritten=nullptr) const
	Write points, forces, moments.
bool	readState ()
	Read state from file, applying relaxation as requested.
void	writeStateVTP (const lumpedPointState &state, const fileName &file) const
	Write state as VTK PolyData format.
void	writeStateVTP (const fileName &file) const
	Write state as VTK PolyData format.
void	writeForcesAndMomentsVTP (const fileName &file, const UList< vector > &forces, const UList< vector > &moments) const
	Write forces on points as VTK PolyData format.
void	writeZonesVTP (const fileName &file, const polyMesh &mesh, const pointField &points0) const
	Write pressure-zones geometry, write as VTK PolyData format.
void	writeVTP (const fileName &file, const polyMesh &mesh, const pointField &points0) const
	Write displaced geometry according to the current state,.
void	writeVTP (const fileName &file, const lumpedPointState &state, const polyMesh &mesh, const pointField &points0) const
	Write displaced geometry according to the specified state,.

Static Public Attributes
static const Enum< outputFormatType >	formatNames
	Names for the output format types.
static const Enum< scalingType >	scalingNames
	Names for the scaling types.
static int	debug
	Debug switch.
static const word	canonicalName
	The canonical name ("lumpedPointMovement") for the dictionary.

Detailed Description

The movement driver that describes initial point locations, the current state of the points/rotations, and forwarding to the externalFileCoupler communication coordinator.

The lumpedPointIOMovement class is simply a registered version of the same.

See externalFileCoupler for more information about some of the communication parameters and setup.

Dictionary parameters

Property	Description	Required	Default
`points`	Initial locations of lumped points	yes
`pointLabels`	The FEA ids for the points	no
`origin`	Shift offset when reading points	no	(0 0 0)
`rotationOrder`	The Euler rotation order	no	zxz
`degrees`	Input rotations in degrees	no	false
`relax`	Relaxation/scaling for updating positions	no	1
`controllers`	Motion controllers (dictionary)	yes
`forces`	Force settings (dictionary)	no
`communication`	Communication settings (dictionary)	yes

Parameters for communication dictionary

Property	Description	Required	Default
`inputName`	Name of positions input file	yes
`outputName`	Name of forces output file	yes
`logName`	Name of log file	no	movement.log
`inputFormat`	Input format: dictionary/plain	yes
`outputFormat`	Output format: dictionary/plain	yes
`scaleInput`	Input scaling parameter dictionary	no
`scaleOutput`	Output scaling parameter dictionary	no
`calcFrequency`	Calculation/coupling frequency	no	1

Parameters for optional communication/scaleInput dictionary

Property	Description	Required	Default
`length`	Scaling for input positions	no	1

Parameters for optional communication/scaleOutput dictionary

Property	Description	Required	Default
`length`	Scaling for output positions	no	1
`force`	Scaling for force	no	1
`moment`	Scaling for moment	no	1

Parameters for optional forces dictionary

Property	Description	Required	Default
`p`	Name of the pressure field	no	p
`pRef`	Reference pressure in Pa	no	0
`rhoRef`	Reference density for incompressible	no	1

Source files

Definition at line 265 of file lumpedPointMovement.H.

Member Enumeration Documentation

◆ outputFormatType

enum class outputFormatType

strong

Output format types.

Enumerator
PLAIN	"plain" is a simple ASCII format
DICTIONARY	"dictionary" is the OpenFOAM dictionary format

Definition at line 274 of file lumpedPointMovement.H.

◆ scalingType

enum scalingType

Output format types.

Enumerator
LENGTH	The "length" scaling.
FORCE	The "force" scaling.
MOMENT	The "moment" scaling.

Definition at line 283 of file lumpedPointMovement.H.

Constructor & Destructor Documentation

◆ lumpedPointMovement() [1/2]

lumpedPointMovement ( )

Default construct.

◆ lumpedPointMovement() [2/2]

lumpedPointMovement	(	const dictionary &	dict,
		label	ownerId = -1 )

explicit

Construct from dictionary, optionally with some owner information.

References dict, and ownerId().

Here is the call graph for this function:

◆ ~lumpedPointMovement()

virtual ~lumpedPointMovement ( )

virtualdefault

Destructor.

Member Function Documentation

◆ readDict()

void readDict ( const dictionary & dict )

Update settings from dictionary.

References dict.

Referenced by lumpedPointIOMovement::readData().

Here is the caller graph for this function:

◆ empty()

bool empty ( ) const

inline

If no number of lumped points (locations) were specified.

Definition at line 21 of file lumpedPointMovementI.H.

◆ size()

Foam::label size ( ) const

inline

The number of lumped points (number of locations).

Definition at line 27 of file lumpedPointMovementI.H.

◆ ownerId() [1/2]

Foam::label ownerId ( ) const

inline

An owner Id, if needed for bookkeeping purposes.

Definition at line 33 of file lumpedPointMovementI.H.

Referenced by lumpedPointIOMovement::lumpedPointIOMovement(), lumpedPointMovement(), lumpedPointIOMovement::New(), lumpedPointIOMovement::TypeNameNoDebug(), and lumpedPointDisplacementPointPatchVectorField::~lumpedPointDisplacementPointPatchVectorField().

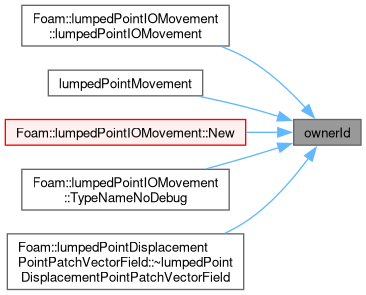

Here is the caller graph for this function:

◆ ownerId() [2/2]

void ownerId ( label id )

inline

Change the owner id, if needed for bookkeeping purposes.

Definition at line 39 of file lumpedPointMovementI.H.

◆ coupler() [1/2]

const Foam::externalFileCoupler & coupler ( ) const

inline

Communication control.

Definition at line 62 of file lumpedPointMovementI.H.

◆ coupler() [2/2]

Foam::externalFileCoupler & coupler ( )

inline

Communication control.

Definition at line 68 of file lumpedPointMovementI.H.

◆ couplingPending()

bool couplingPending ( const label timeIndex ) const

Check if coupling is pending (according to the calcFrequency).

References timeIndex.

◆ couplingCompleted()

void couplingCompleted ( const label timeIndex ) const

Register that coupling is completed at this calcFrequency.

References state(), and timeIndex.

Here is the call graph for this function:

◆ state0()

const Foam::lumpedPointState & state0 ( ) const

inline

The initial state (positions/rotations).

Definition at line 74 of file lumpedPointMovementI.H.

Referenced by degrees(), and rotationOrder().

Here is the caller graph for this function:

◆ state()

const Foam::lumpedPointState & state ( ) const

inline

The current state (positions/rotations).

Definition at line 80 of file lumpedPointMovementI.H.

Referenced by couplingCompleted(), pointsDisplacement(), pointsPosition(), readState(), scalePoints(), writeForcesAndMomentsVTP(), writeStateVTP(), writeStateVTP(), writeVTP(), and writeVTP().

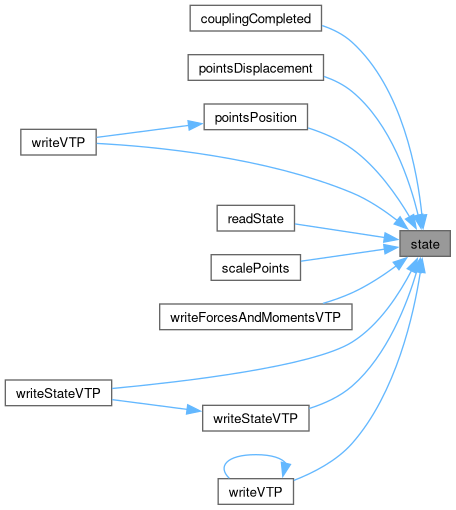

Here is the caller graph for this function:

◆ origin()

const Foam::point & origin ( ) const

inline

The offset for lumped points, used on input.

Definition at line 86 of file lumpedPointMovementI.H.

◆ scalePoints()

void scalePoints ( lumpedPointState & state ) const

inline

Scale the lumped points (on input).

Definition at line 92 of file lumpedPointMovementI.H.

References LENGTH, and state().

Here is the call graph for this function:

◆ relax() [1/2]

Foam::scalar relax ( ) const

inline

The relaxation factor when changing states.

Definition at line 101 of file lumpedPointMovementI.H.

◆ relax() [2/2]

Foam::scalar & relax ( )

inline

The relaxation factor when changing states.

Definition at line 107 of file lumpedPointMovementI.H.

◆ inputName()

const Foam::word & inputName ( ) const

inline

The input (state) file name.

Definition at line 113 of file lumpedPointMovementI.H.

◆ outputName()

const Foam::word & outputName ( ) const

inline

The output (forces) file name.

Definition at line 119 of file lumpedPointMovementI.H.

◆ logName()

const Foam::word & logName ( ) const

inline

The log file name.

Definition at line 125 of file lumpedPointMovementI.H.

◆ inputFormat()

Foam::lumpedPointState::inputFormatType inputFormat ( ) const

inline

The input (state) file format.

Definition at line 132 of file lumpedPointMovementI.H.

◆ outputFormat()

Foam::lumpedPointMovement::outputFormatType outputFormat ( ) const

inline

The output (forces) file format.

Definition at line 139 of file lumpedPointMovementI.H.

◆ rotationOrder()

Foam::quaternion::eulerOrder rotationOrder ( ) const

inline

The Euler-angle rotation order.

Definition at line 146 of file lumpedPointMovementI.H.

References state0().

Here is the call graph for this function:

◆ degrees()

bool degrees ( ) const

inline

Rotation angles in degrees.

Definition at line 152 of file lumpedPointMovementI.H.

References state0().

Here is the call graph for this function:

◆ hasPatchControl() [1/2]

bool hasPatchControl ( const label patchIndex ) const

inline

Check if patch control exists for specified patch.

Definition at line 46 of file lumpedPointMovementI.H.

◆ hasPatchControl() [2/2]

bool hasPatchControl ( const polyPatch & pp ) const

Check if patch control exists for specified patch.

References pp().

Here is the call graph for this function:

◆ hasInterpolator() [1/2]

bool hasInterpolator ( const pointPatch & fpatch ) const

Check if patch control exists for specified patch.

◆ checkPatchControl()

void checkPatchControl ( const polyPatch & pp ) const

Check if patch control exists for specified patch.

References pp().

Here is the call graph for this function:

◆ setPatchControl()

void setPatchControl	(	const polyPatch &	pp,
		const wordList &	ctrlNames,
		const pointField &	points0 )

Define pressure-zones mapping for faces in the specified patches.

The face centres are compared to the controller points,

Parameters

pp	The patch with a control
ctrlNames	The patch ids to be included in the mapping
points0	The initial mesh points, prior to movement

References points0(), and pp().

Referenced by lumpedPointDisplacementPointPatchVectorField::setPatchControls().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setMapping()

void setMapping	(	const polyMesh &	mesh,
		const labelUList &	patchIds,
		const pointField &	points0 )

Define pressure-zones mapping for faces in the specified patches.

The face centres are compared to the controller points,

Parameters

mesh	The volume mesh reference
patchIds	The patch ids to be included in the mapping
points0	The initial mesh points, prior to movement

References mesh, patchIds, and points0().

Here is the call graph for this function:

◆ setInterpolator()

void setInterpolator	(	const pointPatch &	fpatch,
		const pointField &	points0 )

Check if patch control exists for specified patch.

References points0().

Referenced by lumpedPointDisplacementPointPatchVectorField::setInterpolators().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hasMapping()

bool hasMapping ( ) const

inline

True if the pressure-zones mapping has already been performed.

Definition at line 158 of file lumpedPointMovementI.H.

◆ hasInterpolator() [2/2]

bool hasInterpolator ( const label patchIndex ) const

inline

Check if patch interpolator exists for specified patch.

Definition at line 53 of file lumpedPointMovementI.H.

◆ areas()

List< scalar > areas ( const polyMesh & pmesh ) const

The areas for each pressure-zone.

◆ forcesAndMoments()

bool forcesAndMoments	(	const polyMesh &	pmesh,
		List< vector > &	forces,
		List< vector > &	moments ) const

The forces and moments acting on each pressure-zone.

The zones must be previously defined via setMapping.

◆ pointsDisplacement() [1/2]

tmp< pointField > pointsDisplacement	(	const pointPatch &	fpatch,
		const pointField &	points0 ) const

Displace points according to the current state.

References points0().

Here is the call graph for this function:

◆ pointsDisplacement() [2/2]

tmp< pointField > pointsDisplacement	(	const lumpedPointState &	state,
		const pointPatch &	fpatch,
		const pointField &	points0 ) const

Displace points according to specified state.

References points0(), and state().

Here is the call graph for this function:

◆ pointsPosition()

tmp< pointField > pointsPosition	(	const lumpedPointState &	state,
		const pointPatch &	fpatch,
		const pointField &	points0 ) const

The points absolute position according to specified state.

References points0(), and state().

Referenced by writeVTP().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeDict()

void writeDict ( Ostream & os ) const

Write axis, locations, division as a dictionary.

References os().

Referenced by Foam::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeData() [1/2]

bool writeData	(	Ostream &	os,
		const UList< vector > &	forces,
		const UList< vector > &	moments,
		const outputFormatType	fmt = outputFormatType::PLAIN,
		const Tuple2< scalar, scalar > *	timesWritten = nullptr ) const

Write points, forces, moments. Only call from the master process.

References os(), and PLAIN.

Here is the call graph for this function:

◆ writeData() [2/2]

bool writeData	(	const UList< vector > &	forces,
		const UList< vector > &	moments = List< vector >(),
		const Tuple2< scalar, scalar > *	timesWritten = nullptr ) const
