mixedEnergyFvPatchScalarField Class Reference
Boundary conditions » Thermophysical

This boundary condition provides a mixed condition for internal energy. More...

#include <mixedEnergyFvPatchScalarField.H>

Inheritance diagram for mixedEnergyFvPatchScalarField:
Inheritance graph
[legend]
Collaboration diagram for mixedEnergyFvPatchScalarField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("mixedEnergy")
 Runtime type information.
 mixedEnergyFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 mixedEnergyFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 mixedEnergyFvPatchScalarField (const mixedEnergyFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given mixedEnergyFvPatchScalarField.
 mixedEnergyFvPatchScalarField (const mixedEnergyFvPatchScalarField &)
 Construct as copy.
 mixedEnergyFvPatchScalarField (const mixedEnergyFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > > clone () const
 Return a clone.
virtual tmp< fvPatchField< scalar > > clone (const DimensionedField< scalar, volMesh > &iF) const
 Clone with an internal field reference.
virtual bool fixesValue () const
 Allow manipulation of the boundary values.
virtual void updateCoeffs ()
 Update the coefficients associated with the patch field.
virtual void manipulateMatrix (fvMatrix< scalar > &m, const label iMatrix, const direction cmpt)
 Manipulate matrix.

Detailed Description

This boundary condition provides a mixed condition for internal energy.

See also
Foam::mixedFvPatchField
Source files

Definition at line 53 of file mixedEnergyFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ mixedEnergyFvPatchScalarField() [1/5]

mixedEnergyFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF )

Construct from patch and internal field.

Definition at line 32 of file mixedEnergyFvPatchScalarField.C.

References p, and Foam::Zero.

Referenced by mixedEnergyFvPatchScalarField(), mixedEnergyFvPatchScalarField(), mixedEnergyFvPatchScalarField(), and TypeName().

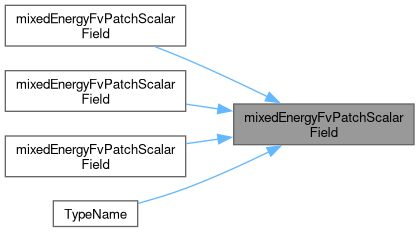

Here is the caller graph for this function:

◆ mixedEnergyFvPatchScalarField() [2/5]

mixedEnergyFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 61 of file mixedEnergyFvPatchScalarField.C.

References dict, and p.

◆ mixedEnergyFvPatchScalarField() [3/5]

mixedEnergyFvPatchScalarField ( const mixedEnergyFvPatchScalarField & ptf,
const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given mixedEnergyFvPatchScalarField.

onto a new patch

Definition at line 48 of file mixedEnergyFvPatchScalarField.C.

References mixedEnergyFvPatchScalarField(), and p.

Here is the call graph for this function:

◆ mixedEnergyFvPatchScalarField() [4/5]

mixedEnergyFvPatchScalarField ( const mixedEnergyFvPatchScalarField & tppsf)

Construct as copy.

Definition at line 73 of file mixedEnergyFvPatchScalarField.C.

References mixedEnergyFvPatchScalarField().

Here is the call graph for this function:

◆ mixedEnergyFvPatchScalarField() [5/5]

mixedEnergyFvPatchScalarField ( const mixedEnergyFvPatchScalarField & tppsf,
const DimensionedField< scalar, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 83 of file mixedEnergyFvPatchScalarField.C.

References mixedEnergyFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "mixedEnergy" )

Runtime type information.

References mixedEnergyFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 120 of file mixedEnergyFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 128 of file mixedEnergyFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ fixesValue()

virtual bool fixesValue ( ) const
inlinevirtual

Allow manipulation of the boundary values.

Definition at line 144 of file mixedEnergyFvPatchScalarField.H.

◆ updateCoeffs()

void updateCoeffs ( )
virtual

Update the coefficients associated with the patch field.

Definition at line 96 of file mixedEnergyFvPatchScalarField.C.

References basicThermo::lookupThermo(), and Foam::refCast().

Here is the call graph for this function:

◆ manipulateMatrix()

void manipulateMatrix ( fvMatrix< scalar > & m,
const label iMatrix,
const direction cmpt )
virtual

Manipulate matrix.

Definition at line 127 of file mixedEnergyFvPatchScalarField.C.

References lduMatrix::asymmetric(), lduPrimitiveMeshAssembly::cellBoundMap(), lduMatrix::diag(), lduPrimitiveMeshAssembly::faceBoundMap(), Foam::faceMap(), lduPrimitiveMeshAssembly::findNbrMeshId(), forAll, fvMatrix< Type >::internalCoeffs(), fvMatrix< Type >::lduMeshAssembly(), basicThermo::lookupThermo(), lduMatrix::lower(), lduPrimitiveMeshAssembly::patchLocalToGlobalMap(), Foam::refCast(), fvMatrix< Type >::source(), mixedFvPatchField< Type >::source(), and lduMatrix::upper().

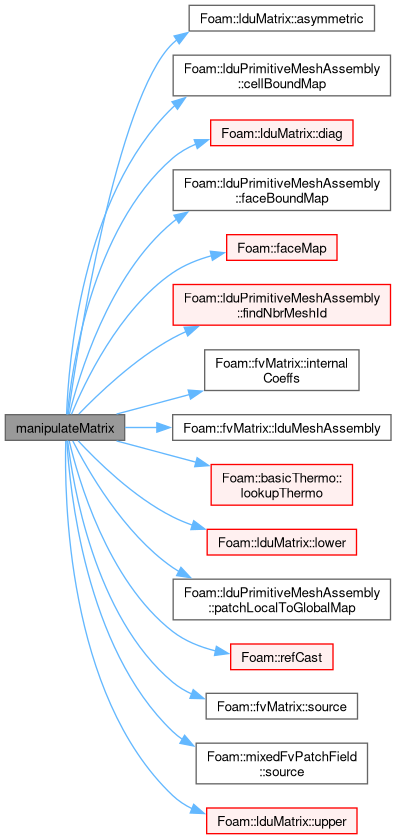

Here is the call graph for this function:
The documentation for this class was generated from the following files:
