Nearest-face Arbitrary Mesh Interface (AMI) method. More...

#include <nearestFaceAMI.H>

Inheritance diagram for nearestFaceAMI:

Collaboration diagram for nearestFaceAMI:

Classes
class	nearestEqOp
	Helper class for finding nearest. More...

Public Types
typedef Tuple2< pointIndexHit, scalar >	nearestAndDist

Public Member Functions

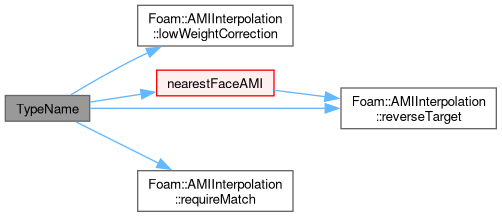

	TypeName ("nearestFaceAMI")
	Runtime type information.

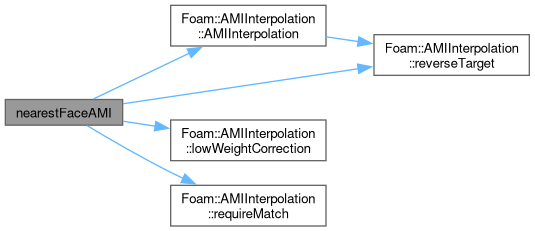

	nearestFaceAMI (const dictionary &dict, const bool reverseTarget=false)
	Construct from dictionary.
	nearestFaceAMI (const bool requireMatch=true, const bool reverseTarget=false, const scalar lowWeightCorrection=-1)
	Construct from components.
	nearestFaceAMI (const nearestFaceAMI &ami)
	Construct as copy.
virtual autoPtr< AMIInterpolation >	clone () const
	Construct and return a clone.
virtual	~nearestFaceAMI ()=default
	Destructor.

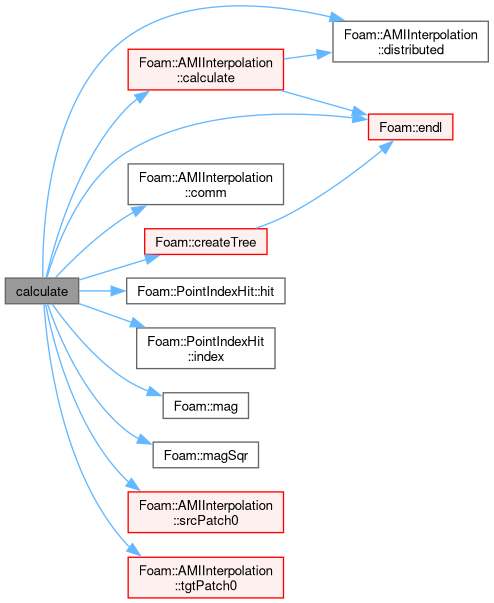

virtual bool	calculate (const primitivePatch &srcPatch, const primitivePatch &tgtPatch, const autoPtr< searchableSurface > &surfPtr=nullptr)
	Update addressing and weights.
virtual void	write (Ostream &os) const
	Write.
Public Member Functions inherited from AMIInterpolation
	TypeName ("AMIInterpolation")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, AMIInterpolation, dict,(const dictionary &dict, const bool reverseTarget),(dict, reverseTarget))
	Selection table for dictionary construction.
	declareRunTimeSelectionTable (autoPtr, AMIInterpolation, component,(const bool requireMatch, const bool reverseTarget, const scalar lowWeightCorrection),(requireMatch, reverseTarget, lowWeightCorrection))
	Selection table for component-wise construction.
	AMIInterpolation (const dictionary &dict, const bool reverseTarget=false)
	Construct from dictionary.
	AMIInterpolation (const bool requireMatch=true, const bool reverseTarget=false, const scalar lowWeightCorrection=-1)
	Construct from components.
	AMIInterpolation (const AMIInterpolation &fineAMI, const labelList &sourceRestrictAddressing, const labelList &neighbourRestrictAddressing)
	Construct from agglomeration of AMIInterpolation. Agglomeration passed in as new coarse size and addressing from fine from coarse.
	AMIInterpolation (const AMIInterpolation &ami)
	Construct as copy.
	AMIInterpolation (Istream &is)
	Construct from Istream.
virtual	~AMIInterpolation ()=default
	Destructor.
bool	upToDate () const noexcept
	Is up-to-date?
bool	upToDate (bool flag) noexcept
	Set as up-to-date, return the previous value.
const AMICache &	cache () const noexcept
	Return a reference to the AMI cache.
AMICache &	cache () noexcept
bool	distributed () const noexcept
	Distributed across processors (singlePatchProc == -1).
bool	requireMatch () const noexcept
	Return the requireMatch flag.
bool	setRequireMatch (bool flag) noexcept
	Set the require match flag, return the new value.
bool	mustMatchFaces () const
	Return true if requireMatch and but not lowWeightCorrection.
bool	reverseTarget () const noexcept
	Access to the reverseTarget flag.
scalar	lowWeightCorrection () const
	Threshold weight below which interpolation is deactivated.
bool	applyLowWeightCorrection () const
	Return true if employing a 'lowWeightCorrection'.
label	singlePatchProc () const noexcept
	The processor holding all faces (both sides), or -1 if distributed.
label	comm () const noexcept
	Communicator (local or otherwise) for parallel operations.
label	comm (label communicator) noexcept
	Set (non-local) communicator for parallel operations.
bool	cacheActive () const
	Return true if caching is active.
const List< scalar > &	srcMagSf () const
	Return const access to source patch face areas.
List< scalar > &	srcMagSf ()
	Return access to source patch face areas.
const labelListList &	srcAddress () const
	Return const access to source patch addressing.
labelListList &	srcAddress ()
	Return access to source patch addressing.
const scalarListList &	srcWeights () const
	Return const access to source patch weights.
scalarListList &	srcWeights ()
	Return access to source patch weights.
const scalarField &	srcWeightsSum () const
	Return const access to normalisation factor of source patch weights (i.e. the sum before normalisation).
scalarField &	srcWeightsSum ()
	Return access to normalisation factor of source patch weights (i.e. the sum before normalisation).
const pointListList &	srcCentroids () const
	Return const access to source patch face centroids.
pointListList &	srcCentroids ()
	Return access to source patch face centroids.
const mapDistribute &	srcMap () const
	Source map - valid only if singlePatchProc = -1 This gets source data into a form to be consumed by tgtAddress, tgtWeights.
const mapDistribute *	hasSrcMap () const noexcept
	Pointer to the source map (if distributed). Can be checked as a bool.
const List< scalar > &	tgtMagSf () const
	Return const access to target patch face areas.
List< scalar > &	tgtMagSf ()
	Return access to target patch face areas.
const labelListList &	tgtAddress () const
	Return const access to target patch addressing.
labelListList &	tgtAddress ()
	Return access to target patch addressing.
const scalarListList &	tgtWeights () const
	Return const access to target patch weights.
scalarListList &	tgtWeights ()
	Return access to target patch weights.
const scalarField &	tgtWeightsSum () const
	Return const access to normalisation factor of target patch weights (i.e. the sum before normalisation).
scalarField &	tgtWeightsSum ()
	Return access to normalisation factor of target patch weights (i.e. the sum before normalisation).
const mapDistribute &	tgtMap () const
	Target map - valid only if singlePatchProc=-1. This gets target data into a form to be consumed by srcAddress, srcWeights.
const mapDistribute *	hasTgtMap () const noexcept
	Pointer to the target map (if distributed). Can be checked as a bool.
void	reset (autoPtr< mapDistribute > &&srcToTgtMap, autoPtr< mapDistribute > &&tgtToSrcMap, labelListList &&srcAddress, scalarListList &&srcWeights, labelListList &&tgtAddress, scalarListList &&tgtWeights, const label singlePatchProc)
	Set the maps, addresses and weights from an external source.
void	append (const primitivePatch &srcPatch, const primitivePatch &tgtPatch)
	Append additional addressing and weights.
void	normaliseWeights (const bool conformal, const bool output)
	Normalise the weights.
template<class Type>
void	weightedSum (const bool toSource, const UList< Type > &fld, List< Type > &result, const UList< Type > &defaultValues) const
	Weighted sum of contributions (includes caching+interp) (for primitive types only).
template<class Type, class CombineOp, class InterpolateOp>
void	interpolate (const bool toSource, const UList< Type > &fld, const CombineOp &cop, const InterpolateOp &iop, List< Type > &result, const UList< Type > &defaultValues) const
	Weighted sum of (potentially distributed) contributions and apply caching+interpolation. Note: iop operates on single Type only.
template<class Type, class CombineOp>
void	interpolateToTarget (const UList< Type > &fld, const CombineOp &cop, List< Type > &result, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from source to target with supplied op to combine existing value with remote value and weight.
template<class Type, class CombineOp>
void	interpolateToSource (const UList< Type > &fld, const CombineOp &cop, List< Type > &result, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from target to source with supplied op to combine existing value with remote value and weight.
template<class Type, class CombineOp>
tmp< Field< Type > >	interpolateToSource (const Field< Type > &fld, const CombineOp &cop, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from target to source with supplied op.
template<class Type, class CombineOp>
tmp< Field< Type > >	interpolateToSource (const tmp< Field< Type > > &tFld, const CombineOp &cop, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from target tmp field to source with supplied op.
template<class Type, class CombineOp>
tmp< Field< Type > >	interpolateToTarget (const Field< Type > &fld, const CombineOp &cop, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from source to target with supplied op.
template<class Type, class CombineOp>
tmp< Field< Type > >	interpolateToTarget (const tmp< Field< Type > > &tFld, const CombineOp &cop, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from source tmp field to target with supplied op.
template<class Type>
tmp< Field< Type > >	interpolateToSource (const Field< Type > &fld, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from target to source.
template<class Type>
tmp< Field< Type > >	interpolateToSource (const tmp< Field< Type > > &tFld, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from target tmp field.
template<class Type>
tmp< Field< Type > >	interpolateToTarget (const Field< Type > &fld, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from source to target.
template<class Type>
tmp< Field< Type > >	interpolateToTarget (const tmp< Field< Type > > &tFld, const UList< Type > &defaultValues=UList< Type >::null()) const
	Interpolate from source tmp field.
label	srcPointFace (const primitivePatch &srcPatch, const primitivePatch &tgtPatch, const vector &n, const label tgtFacei, point &tgtPoint) const
	Return source patch face index of point on target patch face.
label	tgtPointFace (const primitivePatch &srcPatch, const primitivePatch &tgtPatch, const vector &n, const label srcFacei, point &srcPoint) const
	Return target patch face index of point on source patch face.
bool	restoreCache (const point &refPt)
	Restore AMI weights and addressing from the cache.
void	addToCache (const point &refPt)
	Add AMI weights and addressing to the cache.
bool	checkSymmetricWeights (const bool log) const
	Check if src addresses are present in tgt addresses and viceversa.
void	writeFaceConnectivity (const primitivePatch &srcPatch, const primitivePatch &tgtPatch, const labelListList &srcAddress) const
	Write face connectivity as OBJ file.
virtual bool	writeData (Ostream &os) const
	Write AMI raw.
bool &	upToDate () noexcept
	Non-const access to the up-to-date flag.
template<class Type, class CombineOp>
Foam::tmp< Foam::Field< Type > >	interpolateToSource (const Field< Type > &fld, const CombineOp &cop, const UList< Type > &defaultValues) const
template<class Type, class CombineOp>
Foam::tmp< Foam::Field< Type > >	interpolateToSource (const tmp< Field< Type > > &tFld, const CombineOp &cop, const UList< Type > &defaultValues) const
template<class Type, class CombineOp>
Foam::tmp< Foam::Field< Type > >	interpolateToTarget (const Field< Type > &fld, const CombineOp &cop, const UList< Type > &defaultValues) const
template<class Type, class CombineOp>
Foam::tmp< Foam::Field< Type > >	interpolateToTarget (const tmp< Field< Type > > &tFld, const CombineOp &cop, const UList< Type > &defaultValues) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolateToSource (const Field< Type > &fld, const UList< Type > &defaultValues) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolateToSource (const tmp< Field< Type > > &tFld, const UList< Type > &defaultValues) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolateToTarget (const Field< Type > &fld, const UList< Type > &defaultValues) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolateToTarget (const tmp< Field< Type > > &tFld, const UList< Type > &defaultValues) const

Additional Inherited Members
Static Public Member Functions inherited from AMIInterpolation
static autoPtr< AMIInterpolation >	New (const word &modelName, const dictionary &dict, const bool reverseTarget=false)
	Selector for dictionary.
static autoPtr< AMIInterpolation >	New (const word &modelName, const bool requireMatch=true, const bool reverseTarget=false, const scalar lowWeightCorrection=-1)
	Selector for components.
static void	agglomerate (const autoPtr< mapDistribute > &targetMap, const scalarList &fineSrcMagSf, const labelListList &fineSrcAddress, const scalarListList &fineSrcWeights, const labelList &sourceRestrictAddressing, const labelList &targetRestrictAddressing, scalarList &srcMagSf, labelListList &srcAddress, scalarListList &srcWeights, scalarField &srcWeightsSum, autoPtr< mapDistribute > &tgtMap, const label comm)
template<class Type, class CombineOp>
static void	weightedSum (const scalar lowWeightCorrection, const labelListList &allSlots, const scalarListList &allWeights, const scalarField &weightsSum, const UList< Type > &fld, const CombineOp &cop, List< Type > &result, const UList< Type > &defaultValues)
	Weighted sum of contributions. Note: cop operates on single Type only.
Static Public Attributes inherited from AMIInterpolation
static bool	cacheIntersections_ = false
	Flag to store face-to-face intersection triangles; default = false.
static int	useLocalComm_
	Control use of local communicator for AMI communication.
static scalar	cacheThetaTolerance_
	Tolerance used when caching the AMI to identify e.g. if the current rotation angle has already been captured.
Protected Types inherited from AMIInterpolation
typedef treeDataPrimitivePatch< primitivePatch >	treeType
	Local typedef to octree tree-type.
Protected Member Functions inherited from AMIInterpolation
void	operator= (const AMIInterpolation &)=delete
	No copy assignment.
autoPtr< indexedOctree< treeType > >	createTree (const primitivePatch &patch) const
	Reset the octree for the patch face search.
label	calcDistribution (const primitivePatch &srcPatch, const primitivePatch &tgtPatch, const label comm, autoPtr< UPstream::communicator > &geomComm) const
	Calculate if patches are on multiple processors. Allocates local communicator and returns -1 or processor containing all faces.
void	projectPointsToSurface (const searchableSurface &surf, pointField &pts) const
	Project points to surface.
const primitivePatch &	srcPatch0 () const
	Return the original src patch with optionally updated points.
const primitivePatch &	tgtPatch0 () const
	Return the original tgt patch with optionally updated points.
Static Protected Member Functions inherited from AMIInterpolation
static void	normaliseWeights (const scalarList &patchAreas, const word &patchName, const labelListList &addr, scalarListList &wght, scalarField &wghtSum, const bool conformal, const bool output, const scalar lowWeightTol, const label comm)
	Normalise the (area) weights - suppresses numerical error in weights calculation.
Protected Attributes inherited from AMIInterpolation
bool	requireMatch_
	Flag to indicate that the two patches must be matched/an overlap exists between them.
const bool	reverseTarget_
	Flag to indicate that the two patches are co-directional and that the orientation of the target patch should be reversed.
const scalar	lowWeightCorrection_
	Threshold weight below which interpolation is deactivated.
label	singlePatchProc_
	Index of processor that holds all of both sides. The value is -1 for distributed cases.
label	comm_
	Communicator to use for parallel operations.
autoPtr< UPstream::communicator >	geomComm_
	Communicator to use for geometry calculations. Not valid (-1) on processors that do not have faces.
scalarList	srcMagSf_
	Source face areas.
labelListList	srcAddress_
	Addresses of target faces per source face.
scalarListList	srcWeights_
	Weights of target faces per source face.
scalarField	srcWeightsSum_
	Sum of weights of target faces per source face.
pointListList	srcCentroids_
	Centroid of target faces per source face.
pointField	srcPatchPts_
	Source patch points if input points are manipulated, e.g. projected.
refPtr< primitivePatch >	tsrcPatch0_
	Source patch using manipulated input points.
autoPtr< mapDistribute >	srcMapPtr_
	Source map pointer - parallel running only.
scalarList	tgtMagSf_
	Target face areas.
labelListList	tgtAddress_
	Addresses of source faces per target face.
scalarListList	tgtWeights_
	Weights of source faces per target face.
scalarField	tgtWeightsSum_
	Sum of weights of source faces per target face.
pointListList	tgtCentroids_
	Centroid of source faces per target face.
pointField	tgtPatchPts_
	Target patch points if input points are manipulated, e.g. projected.
refPtr< primitivePatch >	ttgtPatch0_
	Target patch using manipulated input points.
autoPtr< mapDistribute >	tgtMapPtr_
	Target map pointer - parallel running only.
bool	upToDate_
	Up-to-date flag.
AMICache	cache_
	Cache.
