Encapsulation of data needed to search on PrimitivePatches. More...

#include <treeDataPrimitivePatch.H>

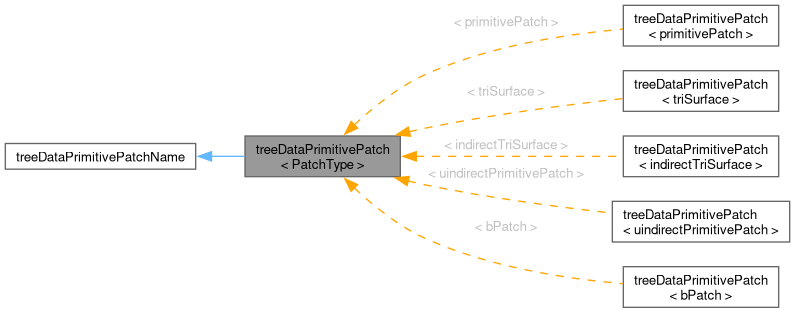

Inheritance diagram for treeDataPrimitivePatch< PatchType >:

[legend]

Collaboration diagram for treeDataPrimitivePatch< PatchType >:

Classes
class	findNearestOp
class	findIntersectOp
class	findAllIntersectOp
class	findSelfIntersectOp

Public Member Functions
	treeDataPrimitivePatch (const bool cacheBb, const PatchType &patch, const scalar planarTol)
	Construct from patch.
	treeDataPrimitivePatch (const PatchType &patch, const scalar planarTol)
	Construct from patch.
int	nDim () const noexcept
	Object dimension == 2 (face element).
treeBoundBox	bounds (const labelUList &indices) const
	Return bounding box for the specified face indices.
const PatchType &	patch () const noexcept
	The underlying patch.
bool	useSubset () const noexcept
	const labelList& faceLabels() const noexcept { labelList::null(); }
bool	empty () const
	Is the patch empty (no faces)?
label	size () const
	The patch size.
label	objectIndex (const label index) const noexcept
	Map from shape index to original (non-subset) face label.
const point &	centre (const label index) const
	Representative point (face centre) at shape index.
tmp< pointField >	centres () const
	Representative point cloud for contained shapes. One point per shape, corresponding to the face centres.
volumeType	getVolumeType (const indexedOctree< treeDataPrimitivePatch< PatchType > > &, const point &) const
	Get type (inside,outside,mixed,unknown) of point w.r.t. surface.
bool	overlaps (const label index, const treeBoundBox &searchBox) const
	Does shape at index overlap searchBox.
bool	overlaps (const label index, const point &centre, const scalar radiusSqr) const
	Does shape at index overlap sphere.
void	findNearest (const labelUList &indices, const point &sample, scalar &nearestDistSqr, label &nearestIndex, point &nearestPoint) const
	Calculates nearest (to sample) point in shape.
Foam::volumeType	getVolumeType (const indexedOctree< treeDataPrimitivePatch< triSurface > > &oc, const point &sample) const
volumeType	getVolumeType (const indexedOctree< treeDataPrimitivePatch< triSurface > > &oc, const point &sample) const
	Template specialisation of getVolumeType for treeDataTriSurface.

Static Public Member Functions
static treeBoundBoxList	boxes (const PatchType &patch)
	Calculate and return bounding boxes for each patch face.
static bool	findIntersection (const indexedOctree< treeDataPrimitivePatch< PatchType > > &tree, const label index, const point &start, const point &end, point &intersectionPoint)
	Helper: find intersection of line with shapes.

Detailed Description

template<class PatchType>
class Foam::treeDataPrimitivePatch< PatchType >

Encapsulation of data needed to search on PrimitivePatches.

Source files

Definition at line 59 of file treeDataPrimitivePatch.H.

Constructor & Destructor Documentation

◆ treeDataPrimitivePatch() [1/2]

template<class PatchType>

treeDataPrimitivePatch	(	const bool	cacheBb,
		const PatchType &	patch,
		const scalar	planarTol )

Construct from patch.

Definition at line 78 of file treeDataPrimitivePatch.C.

References patch(), and update().

Referenced by treeDataPrimitivePatch< PatchType >::findAllIntersectOp::findAllIntersectOp(), findIntersection(), treeDataPrimitivePatch< PatchType >::findIntersectOp::findIntersectOp(), treeDataPrimitivePatch< PatchType >::findNearestOp::findNearestOp(), treeDataPrimitivePatch< PatchType >::findSelfIntersectOp::findSelfIntersectOp(), getVolumeType(), and treeDataPrimitivePatch< PatchType >::findSelfIntersectOp::operator()().

Here is the call graph for this function:

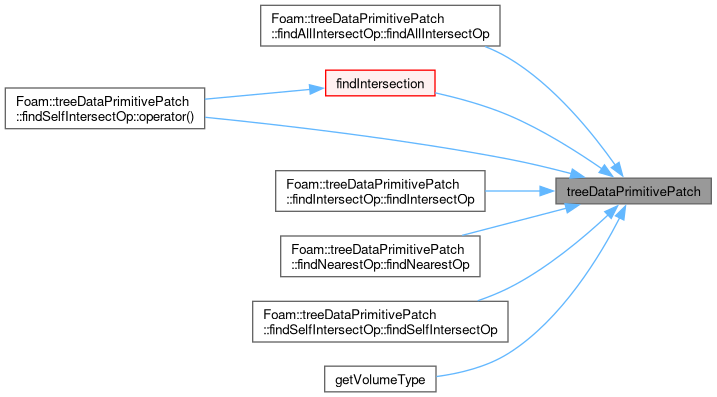

Here is the caller graph for this function:

◆ treeDataPrimitivePatch() [2/2]

template<class PatchType>

treeDataPrimitivePatch	(	const PatchType &	patch,
		const scalar	planarTol )

inline

Construct from patch.

Definition at line 238 of file treeDataPrimitivePatch.H.

Member Function Documentation

◆ boxes()

template<class PatchType>

Foam::treeBoundBoxList boxes ( const PatchType & patch )

static

Calculate and return bounding boxes for each patch face.

Definition at line 32 of file treeDataPrimitivePatch.C.

References UList< T >::begin(), f(), points, and pp().

Here is the call graph for this function:

◆ nDim()

template<class PatchType>

int nDim ( ) const

inlinenoexcept

Object dimension == 2 (face element).

Definition at line 257 of file treeDataPrimitivePatch.H.

◆ bounds()

template<class PatchType>

Foam::treeBoundBox bounds ( const labelUList & indices ) const

Return bounding box for the specified face indices.

Definition at line 142 of file treeDataPrimitivePatch.C.

◆ patch()

template<class PatchType>

const PatchType & patch ( ) const

inlinenoexcept

The underlying patch.

Definition at line 270 of file treeDataPrimitivePatch.H.

Referenced by findIntersection(), findNearestMaskedOp< PatchType >::operator()(), treeDataPrimitivePatch< PatchType >::findSelfIntersectOp::operator()(), and treeDataPrimitivePatch().

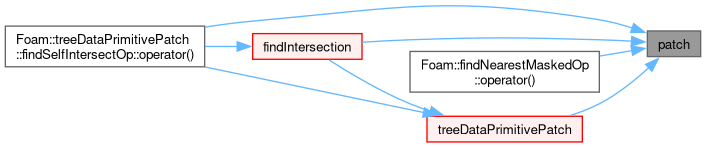

Here is the caller graph for this function:

◆ useSubset()

template<class PatchType>

bool useSubset ( ) const

inlinenoexcept

const labelList& faceLabels() const noexcept { labelList::null(); }

Use a subset of the patch

Definition at line 278 of file treeDataPrimitivePatch.H.

◆ empty()

template<class PatchType>

bool empty ( ) const

inline

Is the patch empty (no faces)?

Definition at line 283 of file treeDataPrimitivePatch.H.

◆ size()

template<class PatchType>

label size ( ) const

inline

The patch size.

Definition at line 288 of file treeDataPrimitivePatch.H.

◆ objectIndex()

template<class PatchType>

label objectIndex ( const label index ) const

inlinenoexcept

Map from shape index to original (non-subset) face label.

Definition at line 293 of file treeDataPrimitivePatch.H.

◆ centre()

template<class PatchType>

const point & centre ( const label index ) const

inline

Representative point (face centre) at shape index.

const typename PatchType::face_type& operator[](label index) const { return patch_[index]; }

Definition at line 302 of file treeDataPrimitivePatch.H.

Referenced by overlaps().

Here is the caller graph for this function:

◆ centres()

template<class PatchType>

tmp< pointField > centres ( ) const

inline

Representative point cloud for contained shapes. One point per shape, corresponding to the face centres.

Definition at line 311 of file treeDataPrimitivePatch.H.

◆ getVolumeType() [1/3]

template<class PatchType>

Foam::volumeType getVolumeType	(	const indexedOctree< treeDataPrimitivePatch< PatchType > > &	oc,
		const point &	sample ) const

Get type (inside,outside,mixed,unknown) of point w.r.t. surface.

Only makes sense for closed surfaces.

Definition at line 159 of file treeDataPrimitivePatch.C.

References treeDataPrimitivePatch().

Here is the call graph for this function:

◆ overlaps() [1/2]

template<class PatchType>

bool overlaps	(	const label	index,
		const treeBoundBox &	searchBox ) const

Does shape at index overlap searchBox.

Definition at line 388 of file treeDataPrimitivePatch.C.

References boundBox::containsAny(), f(), forAll, treeBoundBox::intersects(), treeBoundBox::overlaps(), and points.

Referenced by overlaps().

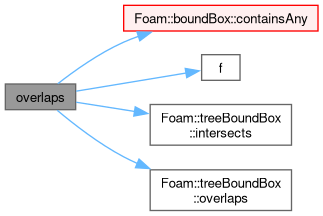

Here is the call graph for this function:

Here is the caller graph for this function:

◆ overlaps() [2/2]

template<class PatchType>

bool overlaps	(	const label	index,
		const point &	centre,
		const scalar	radiusSqr ) const

Does shape at index overlap sphere.

Definition at line 447 of file treeDataPrimitivePatch.C.

References centre(), PointHit< PointType >::distance(), f(), overlaps(), points, and Foam::sqr().

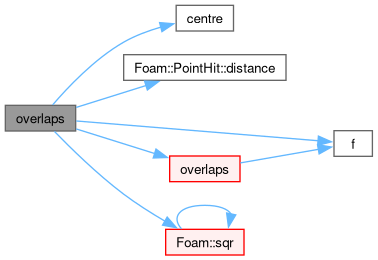

Here is the call graph for this function:

◆ findIntersection()

template<class PatchType>

bool findIntersection	(	const indexedOctree< treeDataPrimitivePatch< PatchType > > &	tree,
		const label	index,
		const point &	start,
		const point &	end,
		point &	intersectionPoint )

static

Helper: find intersection of line with shapes.

Definition at line 615 of file treeDataPrimitivePatch.C.

References PointHit< PointType >::distance(), f(), intersection::HALF_RAY, PointHit< PointType >::hit(), triangle< Point, PointRef >::intersection(), patch(), PointHit< PointType >::point(), points, treeBoundBox::posBits(), tree(), and treeDataPrimitivePatch().

Referenced by treeDataPrimitivePatch< PatchType >::findAllIntersectOp::operator()(), treeDataPrimitivePatch< PatchType >::findIntersectOp::operator()(), and treeDataPrimitivePatch< PatchType >::findSelfIntersectOp::operator()().

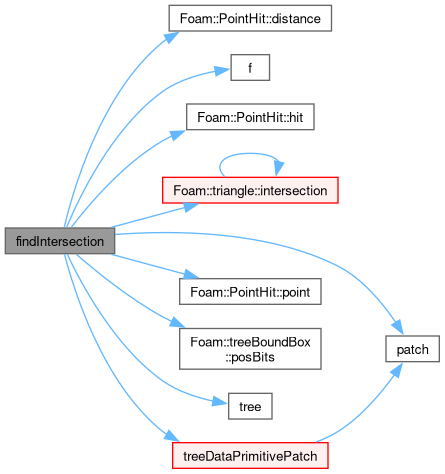

Here is the call graph for this function:

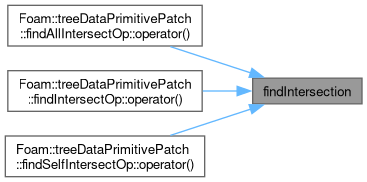

Here is the caller graph for this function:

◆ findNearest()

template<class PatchType>

void findNearest	(	const labelUList &	indices,
		const point &	sample,
		scalar &	nearestDistSqr,
		label &	nearestIndex,
		point &	nearestPoint ) const

Calculates nearest (to sample) point in shape.

Returns actual point and distance (squared)

Definition at line 484 of file treeDataPrimitivePatch.C.

References PointHit< PointType >::distance(), f(), PointHit< PointType >::point(), points, and Foam::sqr().

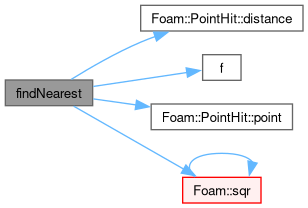

Here is the call graph for this function:

◆ getVolumeType() [2/3]

Foam::volumeType getVolumeType	(	const indexedOctree< treeDataPrimitivePatch< triSurface > > &	oc,
		const point &	sample ) const

Definition at line 28 of file treeDataTriSurface.C.

◆ getVolumeType() [3/3]

volumeType getVolumeType	(	const indexedOctree< treeDataPrimitivePatch< triSurface > > &	oc,
		const point &	sample ) const

Template specialisation of getVolumeType for treeDataTriSurface.

The documentation for this class was generated from the following files:

src/meshTools/indexedOctree/treeDataPrimitivePatch.H
src/meshTools/indexedOctree/treeDataPrimitivePatch.C
