This boundary condition provides a wall constraint on the turbulent viscosity (i.e. nut) based on velocity (i.e. U), for low- and high-Reynolds number applications. More...

#include <nutUTabulatedWallFunctionFvPatchScalarField.H>

Inheritance diagram for nutUTabulatedWallFunctionFvPatchScalarField:

[legend]

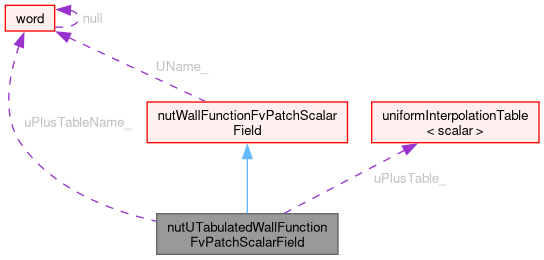

Collaboration diagram for nutUTabulatedWallFunctionFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("nutTabulatedWallFunction")
	Runtime type information.
	nutUTabulatedWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	nutUTabulatedWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	nutUTabulatedWallFunctionFvPatchScalarField (const nutUTabulatedWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given nutUTabulatedWallFunctionFvPatchScalarField onto a new patch.
	nutUTabulatedWallFunctionFvPatchScalarField (const nutUTabulatedWallFunctionFvPatchScalarField &)
	Construct as copy.
	nutUTabulatedWallFunctionFvPatchScalarField (const nutUTabulatedWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual tmp< scalarField >	yPlus () const
	Calculate and return the yPlus at the boundary.
virtual void	write (Ostream &os) const
	Write.
Public Member Functions inherited from nutWallFunctionFvPatchScalarField
	TypeName ("nutWallFunction")
	Runtime type information.
	nutWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	nutWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given nutWallFunctionFvPatchScalarField onto a new patch.
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &)
	Construct as copy.
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
const wallFunctionCoefficients &	wallCoeffs () const noexcept
	Return wallFunctionCoefficients.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.

Protected Member Functions
virtual tmp< scalarField >	calcNut () const
	Calculate the turbulent viscosity.
tmp< scalarField >	calcUPlus (const scalarField &Rey) const
	Calculate wall u+ from table.
void	writeLocalEntries (Ostream &) const
	Write local wall function variables.
Protected Member Functions inherited from nutWallFunctionFvPatchScalarField
virtual const volVectorField &	U (const turbulenceModel &turb) const
	Helper to return the velocity field either from the turbulence model (default) or the mesh database.
virtual void	checkType ()
	Check the type of the patch.
void	writeLocalEntries (Ostream &) const
	Write local wall function variables.

Protected Attributes
word	uPlusTableName_
	Name of u+ table.
uniformInterpolationTable< scalar >	uPlusTable_
	u+ table
Protected Attributes inherited from nutWallFunctionFvPatchScalarField
word	UName_
	Name of velocity field.
wallFunctionCoefficients	wallCoeffs_
	Wall-function coefficients.

Additional Inherited Members
Static Public Member Functions inherited from nutWallFunctionFvPatchScalarField
static const nutWallFunctionFvPatchScalarField &	nutw (const turbulenceModel &turbModel, const label patchi)
	Return the nut patchField for the given wall patch.

Detailed Description

This boundary condition provides a wall constraint on the turbulent viscosity (i.e. nut) based on velocity (i.e. U), for low- and high-Reynolds number applications.

As input, the user specifies a look-up table of u+ as a function of near-wall Reynolds number.

The table should be located in the $FOAM_CASE/constant directory.

Usage

Example of the boundary condition specification:

<patchName>
{
    // Mandatory entries
    type            nutTabulatedWallFunction;
    uPlusTable      myUPlusTable;

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: nutUTabulatedWallFunction	word	yes	-
`uPlusTable`	u+ as a function of Re table name	word	yes	-

The inherited entries are elaborated in:

Note

The tables are not registered since the same table object may be used for more than one patch.

Source files

Definition at line 105 of file nutUTabulatedWallFunctionFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ nutUTabulatedWallFunctionFvPatchScalarField() [1/5]

nutUTabulatedWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 93 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References mesh, nutWallFunctionFvPatchScalarField::nutWallFunctionFvPatchScalarField(), p, uPlusTable_, and uPlusTableName_.

Referenced by nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nutUTabulatedWallFunctionFvPatchScalarField() [2/5]

nutUTabulatedWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 133 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References dict, mesh, nutWallFunctionFvPatchScalarField::nutWallFunctionFvPatchScalarField(), p, uPlusTable_, and uPlusTableName_.

Here is the call graph for this function:

◆ nutUTabulatedWallFunctionFvPatchScalarField() [3/5]

nutUTabulatedWallFunctionFvPatchScalarField	(	const nutUTabulatedWallFunctionFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given nutUTabulatedWallFunctionFvPatchScalarField onto a new patch.

Definition at line 118 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References nutUTabulatedWallFunctionFvPatchScalarField(), nutWallFunctionFvPatchScalarField::nutWallFunctionFvPatchScalarField(), p, uPlusTable_, and uPlusTableName_.

Here is the call graph for this function:

◆ nutUTabulatedWallFunctionFvPatchScalarField() [4/5]

nutUTabulatedWallFunctionFvPatchScalarField ( const nutUTabulatedWallFunctionFvPatchScalarField & wfpsf )

Construct as copy.

Definition at line 159 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References nutUTabulatedWallFunctionFvPatchScalarField(), nutWallFunctionFvPatchScalarField::nutWallFunctionFvPatchScalarField(), uPlusTable_, and uPlusTableName_.

Here is the call graph for this function:

◆ nutUTabulatedWallFunctionFvPatchScalarField() [5/5]

nutUTabulatedWallFunctionFvPatchScalarField	(	const nutUTabulatedWallFunctionFvPatchScalarField &	wfpsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 171 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References nutUTabulatedWallFunctionFvPatchScalarField(), nutWallFunctionFvPatchScalarField::nutWallFunctionFvPatchScalarField(), uPlusTable_, and uPlusTableName_.

Here is the call graph for this function:

Member Function Documentation

◆ calcNut()

Foam::tmp< Foam::scalarField > calcNut ( ) const

protectedvirtual

Calculate the turbulent viscosity.

Implements nutWallFunctionFvPatchScalarField.

Definition at line 31 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References calcUPlus(), IOobject::groupName(), Foam::mag(), magUp, Foam::max(), fvPatchField< Type >::patchInternalField(), turbulenceModel::propertiesName, fvPatchField< Type >::snGrad(), Foam::sqr(), U, and y.

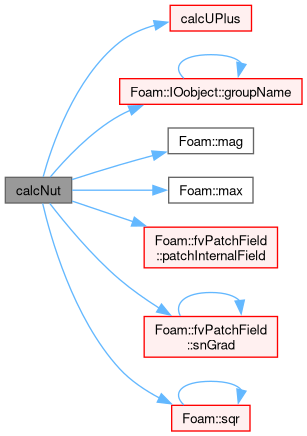

Here is the call graph for this function:

◆ calcUPlus()

Foam::tmp< Foam::scalarField > calcUPlus ( const scalarField & Rey ) const

protected

Calculate wall u+ from table.

Definition at line 65 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References forAll, tmp< T >::New(), Rey, uPlus, uPlusTable_, and Foam::Zero.

Referenced by calcNut(), and yPlus().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeLocalEntries()

void writeLocalEntries ( Ostream & os ) const

protected

Write local wall function variables.

Definition at line 82 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References os(), and uPlusTableName_.

Referenced by write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "nutTabulatedWallFunction" )

Runtime type information.

References nutUTabulatedWallFunctionFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 204 of file nutUTabulatedWallFunctionFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 212 of file nutUTabulatedWallFunctionFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ yPlus()

Foam::tmp< Foam::scalarField > yPlus ( ) const

virtual

Calculate and return the yPlus at the boundary.

Implements nutWallFunctionFvPatchScalarField.

Definition at line 187 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

References calcUPlus(), IOobject::groupName(), Foam::mag(), magUp, fvPatchField< Type >::patchInternalField(), turbulenceModel::propertiesName, Rey, U, and y.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from nutWallFunctionFvPatchScalarField.

Definition at line 214 of file nutUTabulatedWallFunctionFvPatchScalarField.C.

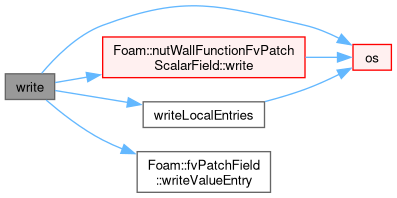

References os(), nutWallFunctionFvPatchScalarField::write(), writeLocalEntries(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

Member Data Documentation

◆ uPlusTableName_

word uPlusTableName_

protected

Name of u+ table.

Definition at line 116 of file nutUTabulatedWallFunctionFvPatchScalarField.H.

Referenced by nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), and writeLocalEntries().

◆ uPlusTable_

uniformInterpolationTable<scalar> uPlusTable_

protected

u+ table

Definition at line 121 of file nutUTabulatedWallFunctionFvPatchScalarField.H.

Referenced by calcUPlus(), nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), nutUTabulatedWallFunctionFvPatchScalarField(), and nutUTabulatedWallFunctionFvPatchScalarField().

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/derivedFvPatchFields/wallFunctions/nutWallFunctions/nutUTabulatedWallFunction/nutUTabulatedWallFunctionFvPatchScalarField.H
src/TurbulenceModels/turbulenceModels/derivedFvPatchFields/wallFunctions/nutWallFunctions/nutUTabulatedWallFunction/nutUTabulatedWallFunctionFvPatchScalarField.C
