This boundary condition provides a wall-function for the turbulent viscosity (i.e. nut) when using wall functions for rough walls, based on the turbulent kinetic energy (i.e. k). The condition manipulates the wall roughness parameter (i.e. E) to account for roughness effects. More...

#include <nutkRoughWallFunctionFvPatchScalarField.H>

Inheritance diagram for nutkRoughWallFunctionFvPatchScalarField:

[legend]

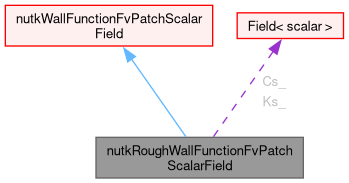

Collaboration diagram for nutkRoughWallFunctionFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("nutkRoughWallFunction")
	Runtime type information.
	nutkRoughWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	nutkRoughWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	nutkRoughWallFunctionFvPatchScalarField (const nutkRoughWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given nutkRoughWallFunctionFvPatchScalarField onto a new patch.
	nutkRoughWallFunctionFvPatchScalarField (const nutkRoughWallFunctionFvPatchScalarField &)
	Construct as copy.
	nutkRoughWallFunctionFvPatchScalarField (const nutkRoughWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
scalarField &	Ks ()
	Return Ks.
scalarField &	Cs ()
	Return Cs.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from nutkWallFunctionFvPatchScalarField
	TypeName ("nutkWallFunction")
	Runtime type information.
	nutkWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	nutkWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	nutkWallFunctionFvPatchScalarField (const nutkWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given nutkWallFunctionFvPatchScalarField onto a new patch.
	nutkWallFunctionFvPatchScalarField (const nutkWallFunctionFvPatchScalarField &)
	Construct as copy.
	nutkWallFunctionFvPatchScalarField (const nutkWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< scalarField >	yPlus () const
	Calculate and return the yPlus at the boundary.
Public Member Functions inherited from nutWallFunctionFvPatchScalarField
	TypeName ("nutWallFunction")
	Runtime type information.
	nutWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	nutWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given nutWallFunctionFvPatchScalarField onto a new patch.
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &)
	Construct as copy.
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
const wallFunctionCoefficients &	wallCoeffs () const noexcept
	Return wallFunctionCoefficients.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.

Protected Member Functions
virtual scalar	fnRough (const scalar KsPlus, const scalar Cs) const
	Compute the roughness function.
virtual tmp< scalarField >	calcNut () const
	Calculate the turbulent viscosity.
void	writeLocalEntries (Ostream &os) const
	Write local wall function variables.
Protected Member Functions inherited from nutkWallFunctionFvPatchScalarField
void	writeLocalEntries (Ostream &) const
	Write local wall function variables.
Protected Member Functions inherited from nutWallFunctionFvPatchScalarField
virtual const volVectorField &	U (const turbulenceModel &turb) const
	Helper to return the velocity field either from the turbulence model (default) or the mesh database.
virtual void	checkType ()
	Check the type of the patch.
void	writeLocalEntries (Ostream &) const
	Write local wall function variables.

Protected Attributes
scalarField	Ks_
	Roughness height.
scalarField	Cs_
	Roughness constant.
Protected Attributes inherited from nutWallFunctionFvPatchScalarField
word	UName_
	Name of velocity field.
wallFunctionCoefficients	wallCoeffs_
	Wall-function coefficients.

Additional Inherited Members
Static Public Member Functions inherited from nutWallFunctionFvPatchScalarField
static const nutWallFunctionFvPatchScalarField &	nutw (const turbulenceModel &turbModel, const label patchi)
	Return the nut patchField for the given wall patch.

Detailed Description

This boundary condition provides a wall-function for the turbulent viscosity (i.e. nut) when using wall functions for rough walls, based on the turbulent kinetic energy (i.e. k). The condition manipulates the wall roughness parameter (i.e. E) to account for roughness effects.

Parameter ranges:

roughness height (i.e. Ks)= sand-grain roughness (0 for smooth walls)
roughness constant (i.e. Cs) = 0.5-1.0

Usage

Example of the boundary condition specification:

<patchName>
{
    // Mandatory entries
    type            nutkRoughWallFunction;
    Ks              uniform 0;
    Cs              uniform 0.5;

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: nutkRoughWallFunction	word	yes	-
`Ks`	Sand-grain roughness height	scalarField	yes	-
`Cs`	Roughness constant	scalarField	yes	-

The inherited entries are elaborated in:

nutkWallFunctionFvPatchScalarField.H

Source files

Definition at line 108 of file nutkRoughWallFunctionFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ nutkRoughWallFunctionFvPatchScalarField() [1/5]

nutkRoughWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 135 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, Ks_, nutkWallFunctionFvPatchScalarField::nutkWallFunctionFvPatchScalarField(), p, and Foam::Zero.

Referenced by nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nutkRoughWallFunctionFvPatchScalarField() [2/5]

nutkRoughWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 163 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, dict, Ks_, nutkWallFunctionFvPatchScalarField::nutkWallFunctionFvPatchScalarField(), and p.

Here is the call graph for this function:

◆ nutkRoughWallFunctionFvPatchScalarField() [3/5]

nutkRoughWallFunctionFvPatchScalarField	(	const nutkRoughWallFunctionFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given nutkRoughWallFunctionFvPatchScalarField onto a new patch.

Definition at line 148 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, Ks_, nutkRoughWallFunctionFvPatchScalarField(), nutkWallFunctionFvPatchScalarField::nutkWallFunctionFvPatchScalarField(), and p.

Here is the call graph for this function:

◆ nutkRoughWallFunctionFvPatchScalarField() [4/5]

nutkRoughWallFunctionFvPatchScalarField ( const nutkRoughWallFunctionFvPatchScalarField & rwfpsf )

Construct as copy.

Definition at line 177 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, Ks_, nutkRoughWallFunctionFvPatchScalarField(), and nutkWallFunctionFvPatchScalarField::nutkWallFunctionFvPatchScalarField().

Here is the call graph for this function:

◆ nutkRoughWallFunctionFvPatchScalarField() [5/5]

nutkRoughWallFunctionFvPatchScalarField	(	const nutkRoughWallFunctionFvPatchScalarField &	rwfpsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 189 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, Ks_, nutkRoughWallFunctionFvPatchScalarField(), and nutkWallFunctionFvPatchScalarField::nutkWallFunctionFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ fnRough()

Foam::scalar fnRough	(	const scalar	KsPlus,
		const scalar	Cs ) const

protectedvirtual

Compute the roughness function.

Definition at line 30 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs(), Foam::log(), Foam::pow(), and Foam::sin().

Referenced by calcNut().

Here is the call graph for this function:

Here is the caller graph for this function:

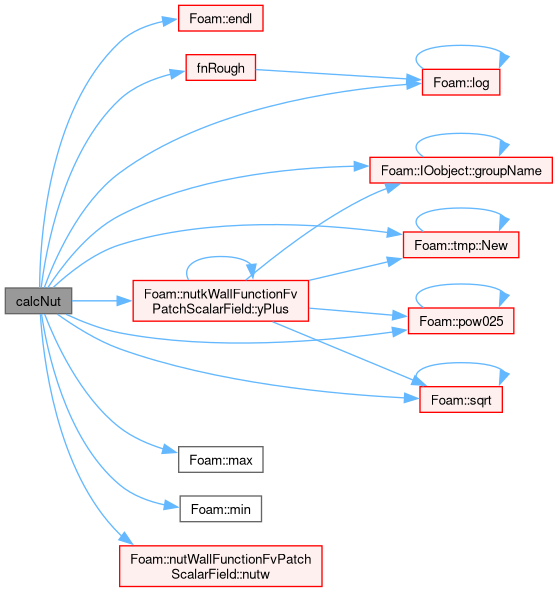

◆ calcNut()

Foam::tmp< Foam::scalarField > calcNut ( ) const

protectedvirtual

Calculate the turbulent viscosity.

Reimplemented from nutkWallFunctionFvPatchScalarField.

Definition at line 51 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, e, Foam::endl(), fnRough(), forAll, IOobject::groupName(), Foam::Info, k, Ks_, Foam::log(), Foam::max(), Foam::min(), tmp< T >::New(), nutWallFunctionFvPatchScalarField::nutw(), Foam::pow025(), turbulenceModel::propertiesName, Foam::sqrt(), nutWallFunctionFvPatchScalarField::wallCoeffs_, y, and nutkWallFunctionFvPatchScalarField::yPlus().

Here is the call graph for this function:

◆ writeLocalEntries()

void writeLocalEntries ( Ostream & os ) const

protected

Write local wall function variables.

Definition at line 123 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, Ks_, and os().

Referenced by write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "nutkRoughWallFunction" )

Runtime type information.

References nutkRoughWallFunctionFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Reimplemented from nutkWallFunctionFvPatchScalarField.

Definition at line 207 of file nutkRoughWallFunctionFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Reimplemented from nutkWallFunctionFvPatchScalarField.

Definition at line 215 of file nutkRoughWallFunctionFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ Ks()

scalarField & Ks ( )

inline

Return Ks.

Definition at line 231 of file nutkRoughWallFunctionFvPatchScalarField.H.

References Ks_.

◆ Cs()

scalarField & Cs ( )

inline

Return Cs.

Definition at line 239 of file nutkRoughWallFunctionFvPatchScalarField.H.

References Cs_.

Referenced by fnRough().

Here is the caller graph for this function:

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 204 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, and Ks_.

◆ rmap()

void rmap	(	const fvPatchScalarField &	ptf,
		const labelList &	addr )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 215 of file nutkRoughWallFunctionFvPatchScalarField.C.

References Cs_, Ks_, and Foam::refCast().

Here is the call graph for this function:

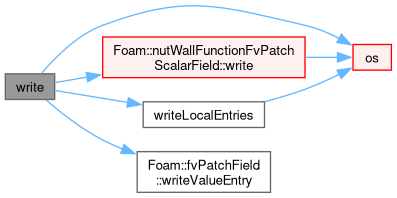

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from nutkWallFunctionFvPatchScalarField.

Definition at line 231 of file nutkRoughWallFunctionFvPatchScalarField.C.

References os(), nutWallFunctionFvPatchScalarField::write(), writeLocalEntries(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

Member Data Documentation

◆ Ks_

scalarField Ks_

protected

Roughness height.

Definition at line 119 of file nutkRoughWallFunctionFvPatchScalarField.H.

Referenced by autoMap(), calcNut(), Ks(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), rmap(), and writeLocalEntries().

◆ Cs_

scalarField Cs_

protected

Roughness constant.

Definition at line 124 of file nutkRoughWallFunctionFvPatchScalarField.H.

Referenced by autoMap(), calcNut(), Cs(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), nutkRoughWallFunctionFvPatchScalarField(), rmap(), and writeLocalEntries().

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/derivedFvPatchFields/wallFunctions/nutWallFunctions/nutkRoughWallFunction/nutkRoughWallFunctionFvPatchScalarField.H
src/TurbulenceModels/turbulenceModels/derivedFvPatchFields/wallFunctions/nutWallFunctions/nutkRoughWallFunction/nutkRoughWallFunctionFvPatchScalarField.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ nutkRoughWallFunctionFvPatchScalarField() [1/5]

◆ nutkRoughWallFunctionFvPatchScalarField() [2/5]

◆ nutkRoughWallFunctionFvPatchScalarField() [3/5]

◆ nutkRoughWallFunctionFvPatchScalarField() [4/5]

◆ nutkRoughWallFunctionFvPatchScalarField() [5/5]

Member Function Documentation

◆ fnRough()

◆ calcNut()

◆ writeLocalEntries()

◆ TypeName()

◆ clone() [1/2]

◆ clone() [2/2]

◆ Ks()

◆ Cs()

◆ autoMap()

◆ rmap()

◆ write()

Member Data Documentation

◆ Ks_

◆ Cs_
