Abstract base class for objective functions. No point in making this runTime selectable since its children will have different constructors. More...
#include <objective.H>
Public Member Functions | |
| TypeName ("objective") | |
| Runtime type information. | |
| declareRunTimeNewSelectionTable (autoPtr, objective, objective,(const fvMesh &mesh, const dictionary &dict, const word &adjointSolverName, const word &primalSolverName),(mesh, dict, adjointSolverName, primalSolverName)) | |

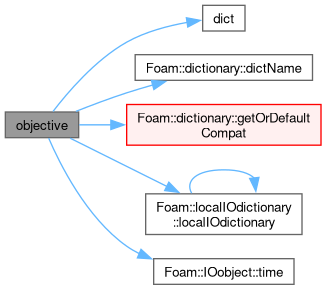

| objective (const fvMesh &mesh, const dictionary &dict, const word &adjointSolverName, const word &primalSolverName) | |
| Construct from components. | |
| virtual | ~objective ()=default |
| Destructor. | |
| virtual bool | readDict (const dictionary &dict) |
| virtual scalar | J ()=0 |
| Return the instantaneous objective function value. | |

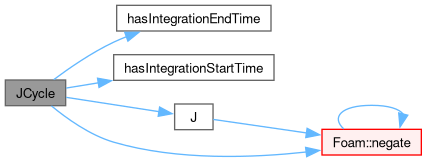

| virtual scalar | JCycle (bool negate=false) const |
| Return the objective function of the optimisation cycle. | |

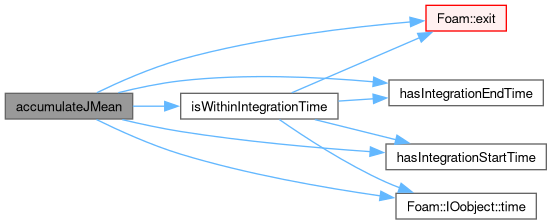

| virtual void | accumulateJMean (solverControl &solverControl) |
| Accumulate contribution for the mean objective value. | |
| virtual void | accumulateJMean () |
| Accumulate contribution for the mean objective value. | |

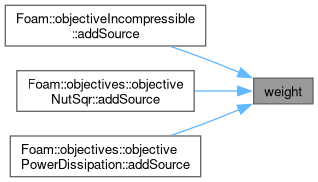

| virtual scalar | weight () const |
| Return the objective function weight. | |
| virtual bool | normalize () const |
| Is the objective normalized. | |

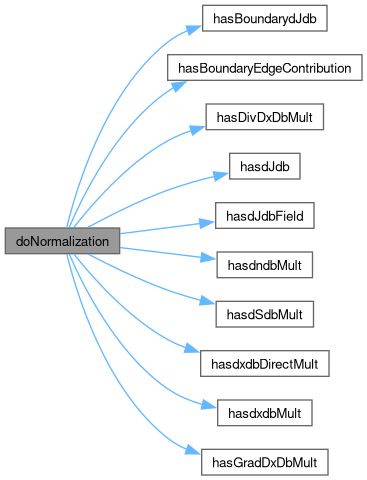

| virtual void | doNormalization () |
| Normalize all fields allocated by the objective. | |

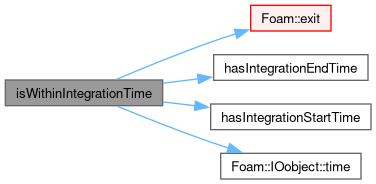

| virtual bool | isWithinIntegrationTime () const |
| Check whether this is an objective integration time. | |
| virtual void | incrementIntegrationTimes (const scalar timeSpan) |
| Increment integration times. | |
| const volScalarField & | dJdb () const |
| Contribution to field sensitivities. | |
| const scalarField & | dJdbField () const |
| Contribution to sensitivities with a random number of designVars. | |
| const fvPatchVectorField & | boundarydJdb (const label) const |
| Contribution to surface sensitivities for a specific patch. | |
| const fvPatchVectorField & | dSdbMultiplier (const label) const |
| Multiplier of delta(n dS)/delta b. | |
| const fvPatchVectorField & | dndbMultiplier (const label) const |
| Multiplier of delta(n dS)/delta b. | |
| const fvPatchVectorField & | dxdbMultiplier (const label) const |
| Multiplier of delta(x)/delta b. | |
| const fvPatchVectorField & | dxdbDirectMultiplier (const label) const |
| Multiplier of delta(x)/delta b. | |
| const vectorField & | boundaryEdgeMultiplier (const label patchI, const label edgeI) const |
| Multiplier located at patch boundary edges. | |
| const boundaryVectorField & | boundarydJdb () const |
| Contribution to surface sensitivities for all patches. | |
| const boundaryVectorField & | dSdbMultiplier () const |
| Multiplier of delta(n dS)/delta b for all patches. | |
| const boundaryVectorField & | dndbMultiplier () const |
| Multiplier of delta(n dS)/delta b for all patches. | |
| const boundaryVectorField & | dxdbMultiplier () const |
| Multiplier of delta(x)/delta b for all patches. | |
| const boundaryVectorField & | dxdbDirectMultiplier () const |
| Multiplier of delta(x)/delta b for all patches. | |
| const vectorField3 & | boundaryEdgeMultiplier () const |
| Multiplier located at patch boundary edges. | |
| const volScalarField & | divDxDbMultiplier () const |
| Multiplier of grad( delta(x)/delta b) for volume-based sensitivities. | |
| const volTensorField & | gradDxDbMultiplier () const |
| Multiplier of grad( delta(x)/delta b) for volume-based sensitivities. | |

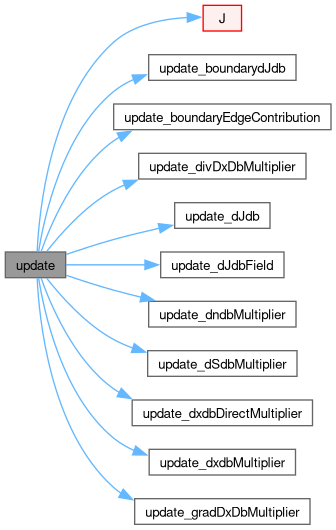

| virtual void | update ()=0 |
| Update objective function derivatives. | |

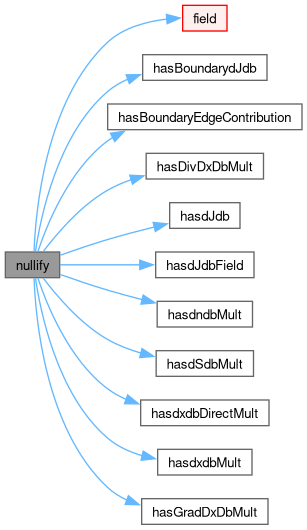

| virtual void | nullify () |
| Nullify adjoint contributions. | |

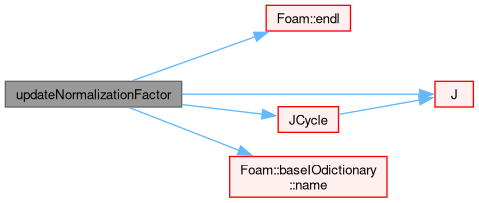

| virtual void | updateNormalizationFactor () |
| Update normalization factors, for objectives in which the factor is not known a priori. | |
| virtual void | update_dJdb () |
| virtual void | update_dJdbField () |
| virtual void | update_boundarydJdb () |
| Update objective function derivative term. | |
| virtual void | update_dSdbMultiplier () |
| Update d (normal dS) / db multiplier. Surface-based sensitivity term. | |
| virtual void | update_dndbMultiplier () |
| Update d (normal) / db multiplier. Surface-based sensitivity term. | |
| virtual void | update_dxdbMultiplier () |
| Update d (x) / db multiplier. Surface-based sensitivity term. | |
| virtual void | update_dxdbDirectMultiplier () |
| Update d (x) / db multiplier. Surface and volume-based sensitivity term. | |
| virtual void | update_boundaryEdgeContribution () |
| Update boundary edge contributions. | |
| virtual void | update_divDxDbMultiplier () |
| Update div( dx/db multiplier). Volume-based sensitivity term. | |
| virtual void | update_gradDxDbMultiplier () |
| Update grad( dx/db multiplier). Volume-based sensitivity term. | |
| virtual void | addSource (fvVectorMatrix &matrix) |
| Manipulate fvVectorMatrix through the objective. | |
| virtual void | addSource (fvScalarMatrix &matrix) |
| Manipulate fvVectorMatrix through the objective. | |

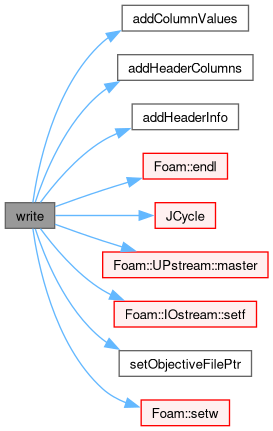

| virtual bool | write (const bool valid=true) const |
| Write objective function history. | |

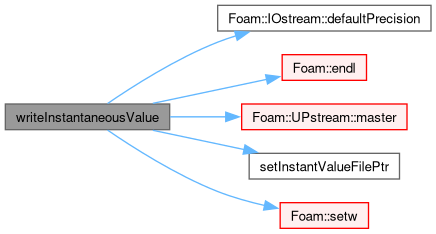

| virtual void | writeInstantaneousValue () const |
| Write objective function history at each primal solver iteration. | |
| virtual void | writeInstantaneousSeparator () const |
| Append a blank line after the end of optimisation cycle to the file holding the instantaneous objective values to facilitate plotting. | |

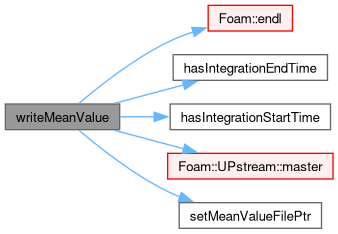

| virtual void | writeMeanValue () const |
| Write mean objective function history. | |
| virtual bool | writeData (Ostream &os) const |
| Write averaged objective for continuation. | |
| virtual void | addHeaderInfo () const |
| Write any information that needs to go the header of the file. | |
| virtual void | addHeaderColumns () const |
| Write headers for additional columns. | |
| virtual void | addColumnValues () const |
| Write information to additional columns. | |
| const word & | objectiveName () const |
| Return the objective name. | |
| bool | shouldWrite () const |
| Should the objective be written to file upon calling write()? | |
| void | setWrite (const bool shouldWrite) |
| Should the objective be written to file upon calling write()? | |
| bool | hasdJdb () const noexcept |
| bool | hasdJdbField () const noexcept |
| bool | hasBoundarydJdb () const noexcept |
| bool | hasdSdbMult () const noexcept |
| bool | hasdndbMult () const noexcept |
| bool | hasdxdbMult () const noexcept |
| bool | hasdxdbDirectMult () const noexcept |
| bool | hasBoundaryEdgeContribution () const noexcept |

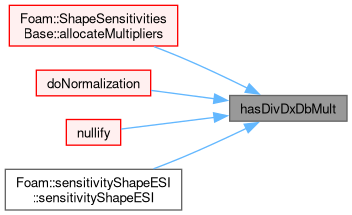

| bool | hasDivDxDbMult () const noexcept |
| bool | hasGradDxDbMult () const noexcept |

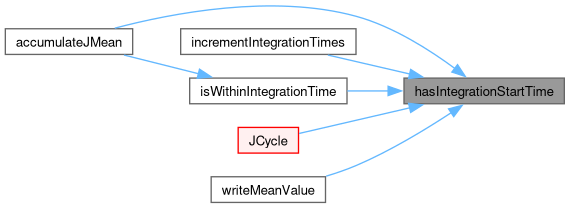

| bool | hasIntegrationStartTime () const noexcept |

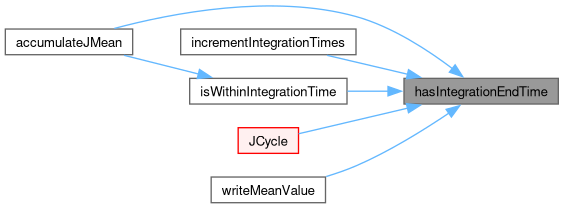

| bool | hasIntegrationEndTime () const noexcept |
| void | setComputed (const bool isComputed) noexcept |
| Set the computed status of the objective. | |
| const dictionary & | dict () const |
| Return objective dictionary. | |
| Public Member Functions inherited from localIOdictionary | |
| localIOdictionary (const IOobject &io, const dictionary *fallback=nullptr) | |
| Construct given an IOobject and optional fallback dictionary content. | |
| localIOdictionary (const IOobject &io, const dictionary &dict) | |
| Construct given an IOobject and fallback dictionary content. | |
| localIOdictionary (const IOobject &io, const word &wantedType, const dictionary *fallback=nullptr) | |
| Construct given an IOobject, wanted typeName and optional fallback dictionary content. | |
| localIOdictionary (const IOobject &io, Istream &is) | |
| Construct given an IOobject and Istream. | |
| virtual | ~localIOdictionary ()=default |
| Destructor. | |
| virtual bool | global () const |
| The object is not global. | |
| virtual fileName | filePath () const |
| Return complete path + object name if the file exists in the case otherwise null. | |
| Public Member Functions inherited from baseIOdictionary | |
| TypeName ("dictionary") | |
| Declare type-name, virtual type (with debug switch). | |
| baseIOdictionary (const baseIOdictionary &)=default | |
| Copy construct. | |
| baseIOdictionary (baseIOdictionary &&)=default | |
| Move construct. | |
| virtual | ~baseIOdictionary ()=default |
| Destructor. | |
| baseIOdictionary (const IOobject &io, const dictionary *fallback=nullptr) | |
| Construct given an IOobject and optional fallback dictionary content (ununsed). | |
| baseIOdictionary (const IOobject &io, const dictionary &dict) | |
| Construct given an IOobject and fallback dictionary content (ununsed). | |
| baseIOdictionary (const IOobject &io, Istream &is) | |
| Construct given an IOobject and Istream (ununsed). | |
| const word & | name () const |
| Name function is needed to disambiguate those inherited from regIOobject and dictionary. | |
| virtual bool | readData (Istream &) |
| The readData function required by regIOobject read operation. | |
| void | operator= (const baseIOdictionary &rhs) |
| Copy assignment of dictionary entries. | |
| void | operator= (baseIOdictionary &&rhs) |
| Move assignment of dictionary entries. | |
| void | operator= (const dictionary &rhs) |
| Copy assignment of dictionary entries. | |
| Public Member Functions inherited from regIOobject | |
| void | operator= (const regIOobject &)=delete |
| No copy assignment. | |
| TypeName ("regIOobject") | |
| Runtime type information. | |
| regIOobject (const IOobject &io, const bool isTimeObject=false) | |
| Construct from IOobject. The optional flag adds special handling if the object is the top-level regIOobject (eg, Time). | |
| regIOobject (const regIOobject &rio) | |
| Copy construct. | |
| regIOobject (const regIOobject &rio, bool registerCopy) | |
| Copy construct, transferring registry registration to the copy if registerCopy is true. | |
| regIOobject (const word &newName, const regIOobject &, bool registerCopy) | |
| Copy construct with new name, transferring registry registration to the copy if registerCopy is true. | |
| regIOobject (const IOobject &io, const regIOobject &rio) | |
| Copy construct with new IO parameters. | |
| virtual | ~regIOobject () |
| Destructor. | |
| bool | checkIn () |
| Add object to registry, if not already registered. | |
| bool | checkOut () |
| Remove object from registry, and remove all file watches. | |
| virtual void | addWatch () |
| Add file watch on object (if registered and READ_IF_MODIFIED). | |
| bool | registered () const noexcept |
| Query the registered state (ie, has been checked in). This is not necessarily the same as registerObject(), which is just a stated preference. | |
| bool | ownedByRegistry () const noexcept |
| Is this object owned by the registry? | |
| bool | store () |
| Register object with its registry and transfer ownership to the registry. | |
| void | release (const bool unregister=false) noexcept |
| Set object as not ownedByRegistry. | |
| label | eventNo () const noexcept |
| Event number at last update. | |
| label & | eventNo () noexcept |
| Event number at last update. | |
| bool | upToDate (const regIOobject &) const |
| Return true if up-to-date with respect to given object. | |
| bool | upToDate (const regIOobject &, const regIOobject &) const |
| Return true if up-to-date with respect to given objects. | |
| bool | upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const |
| Return true if up-to-date with respect to given objects. | |
| bool | upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const |
| Return true if up-to-date with respect to given objects. | |
| void | setUpToDate () |
| Set as up-to-date. | |
| virtual void | rename (const word &newName) |
| Rename. | |
| const dictionary * | findMetaData () const noexcept |
| Return pointer to meta-data or nullptr. | |
| dictionary & | getMetaData () noexcept |
| Get or create meta-data. | |
| void | removeMetaData () |
| Remove meta-data. | |
| virtual void | updateMetaData () |
| Update internal meta-data (eg, prior to writing). | |
| bool | headerOk () |
| Read and check header info. Does not check the headerClassName. | |
| Istream & | readStream (const word &, const bool readOnProc=true) |
| Return Istream and check object type against that given. | |
| void | close () |
| Close Istream. | |
| virtual bool | read () |
| Read object. | |
| virtual label | addWatch (const fileName &) |
| Add file watch for fileName on object if not yet watched. | |
| const labelList & | watchIndices () const noexcept |
| Read access to file-monitoring handles. | |
| labelList & | watchIndices () noexcept |
| Write access to file-monitoring handles. | |
| virtual bool | modified () const |
| Return true if the object's file (or files for objectRegistry) have been modified. (modified state is cached by Time). | |
| virtual bool | readIfModified () |
| Read object if modified (as set by call to modified). | |
| virtual bool | writeObject (IOstreamOption streamOpt, const bool writeOnProc) const |
| Write using stream options. | |
| void | operator= (const IOobject &io) |
| Copy assignment. | |
| virtual bool | writeObject (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp, const bool writeOnProc) const |
| Write using given format, version and compression. | |
| Public Member Functions inherited from IOobject | |
| TypeName ("IOobject") | |
| Declare type-name, virtual type (with debug switch). | |
| IOobject (const IOobject &)=default | |
| Copy construct. | |
| virtual | ~IOobject ()=default |
| Destructor. | |
| IOobject (const word &name, const fileName &instance, const objectRegistry ®istry, IOobjectOption ioOpt=IOobjectOption()) | |
| Construct from name, instance, registry, io options. | |
| IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry ®istry, IOobjectOption ioOpt=IOobjectOption()) | |
| Construct from name, instance, local, registry, io options. | |
| IOobject (const fileName &path, const objectRegistry ®istry, IOobjectOption ioOpt=IOobjectOption()) | |
| Construct from path, registry, io options. | |
| IOobject (const word &name, const fileName &instance, const objectRegistry ®istry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false) | |
| Construct from name, instance, registry, io options. | |
| IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry ®istry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false) | |
| Construct from name, instance, local, registry, io options. | |
| IOobject (const fileName &path, const objectRegistry ®istry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false) | |
| Construct from path, registry, io options. | |
| IOobject (const IOobject &io, const objectRegistry ®istry) | |
| Copy construct, resetting registry. | |
| IOobject (const IOobject &io, const word &name) | |
| Copy construct, resetting name. | |
| IOobject (const IOobject &io, const word &name, const fileName &local) | |
| Copy construct, resetting name and local component. | |
| IOobject (const IOobject &io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt) | |
| Copy construct, resetting read/write options. | |
| IOobject (const IOobject &io, IOobjectOption::registerOption regOpt) | |
| Copy construct, resetting register option. | |
| autoPtr< IOobject > | clone () const |
| Clone. | |
| autoPtr< IOobject > | clone (const objectRegistry ®istry) const |
| Clone resetting registry. | |
| const objectRegistry & | db () const noexcept |
| Return the local objectRegistry. | |
| const Time & | time () const noexcept |
| Return Time associated with the objectRegistry. | |
| const word & | name () const noexcept |
| Return the object name. | |
| const word & | headerClassName () const noexcept |
| Return name of the class name read from header. | |
| word & | headerClassName () noexcept |
| Modifiable access to the class name read from header. | |
| const string & | note () const noexcept |
| Return the optional note. | |
| string & | note () noexcept |
| Modifiable access to the optional note. | |
| unsigned | labelByteSize () const noexcept |
| The sizeof (label) in bytes, possibly read from the header. | |
| unsigned | scalarByteSize () const noexcept |
| The sizeof (scalar) in bytes, possibly read from the header. | |
| void | resetHeader (const word &newName=word::null) |
| Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file. | |
| bool | hasHeaderClass () const noexcept |
| True if headerClassName() is non-empty (after reading). | |
| bool | isHeaderClass (const word &expectedType) const |
| Check if headerClassName() equals the expected type. Always true if the expected type is empty. | |
| template<class Type> | |
| bool | isHeaderClass () const |
Check if headerClassName() equals Type::typeName Always true for a void type. | |
| word | group () const |
| Return group (extension part of name). | |
| word | member () const |
| Return member (name without the extension). | |
| const fileName & | rootPath () const noexcept |
| Return the Time::rootPath(). | |
| const fileName & | caseName () const noexcept |
| Return the Time::caseName(). | |
| const fileName & | globalCaseName () const noexcept |
| Return the Time::globalCaseName(). | |
| const fileName & | caseName (IOobjectOption::Layout) const noexcept |
| Return the Time::caseName() - normal or global. | |
| const fileName & | instance () const noexcept |
| Read access to instance path component. | |
| fileName & | instance () noexcept |
| Modifiable access to instance path component. | |
| scalar | instanceValue () const |
| Return the scalar value of the instance component (or 0), which often corresponds to a time index/value. | |
| const fileName & | local () const noexcept |
| Read access to local path component. | |
| fileName & | local () noexcept |
| Modifiable access to the local path component. | |
| fileName | path () const |
| The complete path for the object (with instance, local,...). | |
| fileName | globalPath () const |
| The complete global path for the object (with instance, local,...). | |
| fileName | path (IOobjectOption::Layout) const |
| The complete path (normal or global) for the object. | |
| fileName | path (const word &instance, const fileName &local=fileName::null) const |
| The complete path with alternative instance and local. | |
| fileName | globalPath (const word &instance, const fileName &local=fileName::null) const |
| The complete global path with alternative instance and local. | |
| fileName | path (IOobjectOption::Layout, const word &instance, const fileName &local=fileName::null) const |
| The complete path (normal or global) with alternative instance and local. | |
| fileName | objectPath () const |
| The complete path + object name. | |
| fileName | globalObjectPath () const |
| The complete global path + object name. | |
| fileName | objectPath (IOobjectOption::Layout) const |
| The complete path (normal or global) + object name. | |
| fileName | objectPath (IOobjectOption::Layout, const word &instance) const |
| The complete path (normal or global) + object name with alternative instance. | |
| fileName | objectPath (const word &instance) const |
| The complete path + object name with alternative instance. | |
| fileName | globalObjectPath (const word &instance) const |
| The complete global path + object name with alternative instance. | |
| fileName | objectRelPath () const |
| The object path relative to the case. | |
| fileName | localFilePath (const word &typeName, const bool search=true) const |
| Redirect to fileHandler filePath, searching locally. | |
| fileName | globalFilePath (const word &typeName, const bool search=true) const |
| Redirect to fileHandler filePath, searching up if in parallel. | |
| IOstreamOption | parseHeader (const dictionary &headerDict) |
| Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics. | |
| bool | readHeader (Istream &is) |
| Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics. | |
| bool | readHeader (dictionary &headerDict, Istream &is) |
| Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics. | |
| template<class Type> | |
| bool | typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true) |
Read header (respects is_globalIOobject trait) and check its info. A void type suppresses trait and type-name checks. | |
| template<class Type, bool Searching> | |
| bool | typeHeaderOk (const bool checkType=true, const bool verbose=true) |
Forwards to single-parameter version with the specified search type. A void type suppresses trait and type-name checks. | |
| template<class Type> | |
| fileName | typeFilePath (const bool search=true) const |
| Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait. | |
| template<class Type> | |
| void | warnNoRereading () const |
| Helper: warn that type does not support re-reading. | |
| bool | writeHeader (Ostream &os) const |
| Write header with current type(). | |
| bool | writeHeader (Ostream &os, const word &objectType) const |
| Write header with override of type. | |
| void | writeHeader (dictionary &dict, IOstreamOption streamOpt) const |
| Write header into a dictionary with current type() and given output format. | |
| void | writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const |
| Write header into a dictionary with override of type and given output format. | |
| bool | good () const noexcept |
| Did last readHeader() succeed? | |
| bool | bad () const noexcept |
| Did last readHeader() fail? | |
| InfoProxy< IOobject > | info () const noexcept |
| Return info proxy, for printing information to a stream. | |
| void | operator= (const IOobject &io) |
| Copy assignment, copies all values (except the registry). | |
| template<class Type> | |
| bool | isHeaderClassName () const |
| Same as isHeaderClass(). | |
| template<class StringType> | |
| Foam::word | groupName (StringType base, const word &group) |
| template<class Type> | |
| Foam::fileName | typeFilePath (const bool search) const |
| Public Member Functions inherited from IOobjectOption | |
| constexpr | IOobjectOption (readOption rOpt=readOption::NO_READ, writeOption wOpt=writeOption::NO_WRITE, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept |
| Default construct (NO_READ, NO_WRITE, REGISTER, non-global) or construct with specified options. | |
| constexpr | IOobjectOption (readOption rOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept |
| Construct NO_WRITE with specified read/register options. | |
| constexpr | IOobjectOption (writeOption wOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept |
| Construct NO_READ with specified write/register options. | |
| constexpr | IOobjectOption (registerOption registerObject, bool globalObject=false) noexcept |
| Construct (NO_READ, NO_WRITE) with specified register option. | |
| constexpr | IOobjectOption (readOption rOpt, writeOption wOpt, bool registerObject, bool globalObject=false) noexcept |
| Construct from components with specified register option as bool. | |
| constexpr | IOobjectOption (bool registerObject, bool globalObject=false) noexcept |
| Construct (NO_READ, NO_WRITE) with specified register option as bool. | |
| readOption | readOpt () const noexcept |
| Get the read option. | |
| readOption | readOpt (readOption opt) noexcept |
| Set the read option. | |
| writeOption | writeOpt () const noexcept |
| Get the write option. | |
| writeOption | writeOpt (writeOption opt) noexcept |
| Set the write option. | |
| bool | registerObject () const noexcept |
| Should objects created with this IOobject be registered? | |
| bool | registerObject (bool on) noexcept |
| Change registration preference. | |
| bool | globalObject () const noexcept |
| True if object is treated the same for all processors. | |
| bool | globalObject (bool on) noexcept |
| Change global-object status. | |
| bool | isAnyRead () const noexcept |
| True if any reading may be required (ie, != NO_READ). | |
| bool | isReadRequired () const noexcept |
| True if (MUST_READ | READ_MODIFIED) bits are set. | |
| bool | isReadOptional () const noexcept |
| True if (LAZY_READ) bits are set [same as READ_IF_PRESENT]. | |
| readOption & | readOpt () noexcept |
| Access to the read option. | |
| writeOption & | writeOpt () noexcept |
| Access to the write option. | |
| bool & | registerObject () noexcept |
| Access to the register object option. | |
| bool & | globalObject () noexcept |
| Access to the global object option. | |
| Public Member Functions inherited from dictionary | |
| ClassName ("dictionary") | |
| dictionary () | |
| Default construct, a top-level empty dictionary. | |
| dictionary (const fileName &name) | |
| Construct top-level empty dictionary with given name. | |
| dictionary (const fileName &name, const dictionary &parentDict, Istream &is, bool keepHeader=false) | |
| Construct given the entry name, parent dictionary and Istream, reading entries until EOF, optionally keeping the header. | |
| dictionary (Istream &is) | |
| Construct top-level dictionary from Istream (discards the header). Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character. | |
| dictionary (Istream &is, bool keepHeader) | |
| Construct top-level dictionary from Istream, reading entries until EOF, optionally keeping the header. | |
| dictionary (const dictionary &parentDict, const dictionary &dict) | |
| Copy construct given the parent dictionary. | |
| dictionary (const dictionary &dict) | |
| Copy construct top-level dictionary. | |
| dictionary (const dictionary *dict) | |
| Construct top-level dictionary as copy from pointer to dictionary. | |
| dictionary (const dictionary &parentDict, dictionary &&dict) | |
| Move construct for given parent dictionary. | |
| dictionary (dictionary &&dict) | |
| Move construct top-level dictionary. | |
| autoPtr< dictionary > | clone () const |
| Construct and return clone. | |
| virtual | ~dictionary () |
| Destructor. | |
| const fileName & | name () const noexcept |
| The dictionary name. | |
| fileName & | name () noexcept |
| The dictionary name for modification (use with caution). | |
| word | dictName () const |
| The local dictionary name (final part of scoped name). | |
| fileName | relativeName (const bool caseTag=false) const |
| The dictionary name relative to the case. | |
| bool | isNullDict () const noexcept |
| The dictionary is actually dictionary::null (root dictionary). | |
| const dictionary & | parent () const noexcept |
| Return the parent dictionary. | |
| const dictionary & | topDict () const |
| Return the top of the tree. | |
| label | startLineNumber () const |
| Return line number of first token in dictionary. | |
| label | endLineNumber () const |
| Return line number of last token in dictionary. | |
| SHA1Digest | digest () const |
| Return the SHA1 digest of the dictionary contents. | |
| tokenList | tokens () const |
| Return the dictionary as a list of tokens. | |
| const entry * | findEntry (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Find an entry (const access) with the given keyword. | |
| entry * | findEntry (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) |
| Find an entry (non-const access) with the given keyword. | |
| bool | found (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Find an entry (const access) with the given keyword. | |
| const entry * | findScoped (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Search for a scoped entry (const access) with the given keyword. | |
| const dictionary * | findDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a sub-dictionary pointer if present (and it is a dictionary) otherwise return nullptr. | |
| dictionary * | findDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) |
| Find and return a sub-dictionary pointer if present (and it is a dictionary) otherwise return nullptr. | |
| ITstream * | findStream (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return an entry stream if present (and it is a stream) otherwise return nullptr. | |
| const entry & | lookupEntry (const word &keyword, enum keyType::option matchOpt) const |
| Search for an entry (const access) with the given keyword. | |
| ITstream & | lookup (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return an entry data stream. FatalIOError if not found, or not a stream. | |
| template<class T> | |
| T | get (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a T. FatalIOError if not found, or if the number of tokens is incorrect. | |
| template<class T> | |
| T | getOrDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a T, or return the given default value. FatalIOError if it is found and the number of tokens is incorrect. | |
| template<class T> | |
| T | getOrAdd (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) |
| Find and return a T, or return the given default value and add it to dictionary. FatalIOError if it is found and the number of tokens is incorrect. | |
| template<class T> | |
| bool | readEntry (const word &keyword, T &val, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const |
| Find entry and assign to T val. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found. | |
| template<class T> | |
| bool | readIfPresent (const word &keyword, T &val, enum keyType::option matchOpt=keyType::REGEX) const |
| Find an entry if present, and assign to T val. FatalIOError if it is found and the number of tokens is incorrect. | |
| template<class T, class Predicate> | |
| T | getCheck (const word &keyword, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a T with additional checking FatalIOError if not found, or if the number of tokens is incorrect. | |
| template<class T, class Predicate> | |
| T | getCheckOrDefault (const word &keyword, const T &deflt, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a T, or return the given default value. FatalIOError if it is found and the number of tokens is incorrect. | |
| template<class T, class Predicate> | |
| T | getCheckOrAdd (const word &keyword, const T &deflt, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) |
| Find and return a T, or return the given default value and add it to dictionary. FatalIOError if it is found and the number of tokens is incorrect. | |
| template<class T, class Predicate> | |
| bool | readCheck (const word &keyword, T &val, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const |
| Find entry and assign to T val. FatalIOError if it is found and the number of tokens is incorrect, or it is mandatory and not found. | |
| template<class T, class Predicate> | |
| bool | readCheckIfPresent (const word &keyword, T &val, const Predicate &pred, enum keyType::option matchOpt=keyType::REGEX) const |
| Find an entry if present, and assign to T val. FatalIOError if it is found and the number of tokens is incorrect. | |
| const dictionary & | subDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a sub-dictionary. | |
| dictionary & | subDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) |
| Find and return a sub-dictionary for manipulation. | |
| dictionary & | subDictOrAdd (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) |
| Find and return a sub-dictionary for manipulation. | |
| dictionary | subOrEmptyDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX, const bool mandatory=false) const |
| Find and return a sub-dictionary as a copy, otherwise return an empty dictionary. | |
| const dictionary & | optionalSubDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a sub-dictionary, otherwise return this dictionary. | |
| wordList | toc () const |
| Return the table of contents. | |
| wordList | sortedToc () const |
| Return the sorted table of contents. | |
| template<class Compare> | |
| wordList | sortedToc (const Compare &comp) const |
| Return table of contents sorted using the specified comparator. | |
| List< keyType > | keys (bool patterns=false) const |
| Return the list of available keys or patterns. | |
| bool | substituteKeyword (const word &keyword, bool mergeEntry=false) |
| Substitute the given keyword (which is prefixed by '$'). | |
| bool | substituteScopedKeyword (const word &keyword, bool mergeEntry=false) |
| Substitute the given scoped keyword (which is prefixed by '$'). | |
| entry * | add (entry *entryPtr, bool mergeEntry=false) |
| Add a new entry. | |
| entry * | add (const entry &e, bool mergeEntry=false) |
| Add an entry. | |
| entry * | add (const keyType &k, const word &v, bool overwrite=false) |
| Add a word entry. | |
| entry * | add (const keyType &k, const string &v, bool overwrite=false) |
| Add a string entry. | |
| entry * | add (const keyType &k, const label v, bool overwrite=false) |
| Add a label entry. | |
| entry * | add (const keyType &k, const scalar v, bool overwrite=false) |
| Add a scalar entry. | |
| entry * | add (const keyType &k, const dictionary &d, bool mergeEntry=false) |
| Add a dictionary entry. | |
| template<class T> | |
| entry * | add (const keyType &k, const T &v, bool overwrite=false) |
| Add a T entry. | |
| entry * | set (entry *entryPtr) |
| Assign a new entry, overwriting any existing entry. | |
| entry * | set (const entry &e) |
| Assign a new entry, overwriting any existing entry. | |
| entry * | set (const keyType &k, const dictionary &v) |
| Assign a dictionary entry, overwriting any existing entry. | |
| entry * | set (const keyType &k, std::nullptr_t) |
| Assign an empty primitive entry, overwriting any existing entry. | |
| entry * | set (const keyType &k, const UList< token > &tokens) |
| Assign a primitive entry from a list of tokens, overwriting any existing entry. | |
| entry * | set (const keyType &k, List< token > &&tokens) |
| Assign a primitive entry from a list of tokens, overwriting any existing entry. | |
| template<class T> | |
| entry * | set (const keyType &k, const T &v) |
| Assign a T entry, overwriting any existing entry. | |
| bool | remove (const word &keyword) |
| Remove an entry specified by keyword. | |
| bool | changeKeyword (const keyType &oldKeyword, const keyType &newKeyword, bool overwrite=false) |
| Change the keyword for an entry,. | |
| bool | merge (const dictionary &dict) |
| Merge entries from the given dictionary. | |
| void | clear () |
| Clear the dictionary. | |
| void | transfer (dictionary &dict) |
| Transfer the contents of the argument and annul the argument. | |
| void | checkITstream (const ITstream &is, const word &keyword) const |
| Check after reading if the input token stream has unconsumed tokens remaining or if there were no tokens in the first place. | |
| bool | read (Istream &is) |
| Read dictionary from Istream (discards the header). Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character. | |
| bool | read (Istream &is, bool keepHeader) |
| Read dictionary from Istream (optionally keeping the header) Reads entries until EOF or when the first token is a '{' character, it will stop reading at the matching '}' character. | |
| void | writeEntry (Ostream &os) const |
| Write sub-dictionary with its dictName as its header. | |
| void | writeEntry (const keyType &keyword, Ostream &os) const |
| Write sub-dictionary with the keyword as its header. | |
| void | writeEntries (Ostream &os, const bool extraNewLine=false) const |
| Write dictionary entries. | |
| void | write (Ostream &os, const bool subDict=true) const |
| Write dictionary, normally with sub-dictionary formatting. | |
| const_searcher | csearch (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Search dictionary for given keyword. | |
| const_searcher | search (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Search dictionary for given keyword. | |
| searcher | search (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) |
| Search dictionary for given keyword. | |
| const_searcher | csearchScoped (const word &keyword, enum keyType::option matchOpt) const |
| Search using scoping. | |
| const_searcher | searchScoped (const word &keyword, enum keyType::option matchOpt) const |
| Search using dot or slash scoping. | |
| searcher | searchScoped (const word &keyword, enum keyType::option matchOpt) |
| Search using dot or slash scoping. | |
| const dictionary * | cfindScopedDict (const fileName &dictPath) const |
| Locate a sub-dictionary using slash-scoping. | |
| const dictionary * | findScopedDict (const fileName &dictPath) const |
| Locate a sub-dictionary using slash-scoping. | |
| dictionary * | findScopedDict (const fileName &dictPath) |
| Locate a sub-dictionary using slash-scoping. | |
| dictionary * | makeScopedDict (const fileName &dictPath) |
| Locate existing or create sub-dictionary using slash-scoping. | |
| const_searcher | csearchCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const |
| Search dictionary for given keyword and any compatibility names. | |
| const entry * | findCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt) const |
| Find and return an entry pointer if present, or return a nullptr, using any compatibility names if needed. | |
| bool | foundCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const |
| Search dictionary for given keyword and any compatibility names. | |
| const entry & | lookupEntryCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt) const |
| Find and return an entry if present, otherwise FatalIOError, using any compatibility names if needed. | |
| ITstream & | lookupCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return an entry data stream, using any compatibility names if needed. | |
| template<class T> | |
| T | getCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a T using any compatibility names if needed. FatalIOError if not found, or if there are excess tokens. | |
| template<class T> | |
| T | getOrDefaultCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const |
| Find and return a T, or return the given default value using any compatibility names if needed. | |
| template<class T> | |
| bool | readCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, T &val, enum keyType::option matchOpt=keyType::REGEX, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ) const |
| Find entry and assign to T val using any compatibility names if needed. FatalIOError if there are excess tokens. | |
| template<class T> | |
| bool | readIfPresentCompat (const word &keyword, std::initializer_list< std::pair< const char *, int > > compat, T &val, enum keyType::option matchOpt=keyType::REGEX) const |
| Find an entry if present, and assign to T val using any compatibility names if needed. FatalIOError if it is found and there are excess tokens. | |
| void | operator= (const dictionary &rhs) |
| Copy assignment. | |
| void | operator+= (const dictionary &rhs) |
| Include entries from the given dictionary. | |
| void | operator|= (const dictionary &rhs) |
| Conditionally include entries from the given dictionary. | |
| void | operator<<= (const dictionary &rhs) |
| Unconditionally include entries from the given dictionary. | |
| bool | getBool (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Same as get<bool>(const word&, keyType::option). | |
| label | getLabel (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Same as get<label>(const word&, keyType::option). | |
| scalar | getScalar (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Same as get<scalar>(const word&, keyType::option). | |
| string | getString (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Same as get<string>(const word&, keyType::option). | |
| word | getWord (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Same as get<word>(const word&, keyType::option). | |
| fileName | getFileName (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Same as get<fileName>(const word&, keyType::option). | |
| bool | isDict (const word &keyword, enum keyType::option matchOpt=keyType::REGEX) const |
| Check for existence of a sub-dictionary. Generally prefer findDict() for more flexibility. | |
| template<class T> | |
| T | lookupOrDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) const |
| Same as getOrDefault(). | |
| template<class T> | |
| T | lookupOrAddDefault (const word &keyword, const T &deflt, enum keyType::option matchOpt=keyType::REGEX) |
| Same as getOrAdd(). | |
| ITstream & | operator[] (const word &keyword) const |
| Deprecated(2018-07) - use lookup() method. | |
| bool | found (const word &keyword, bool recursive, bool patternMatch=true) const |
| Deprecated(2018-10). | |
| entry * | lookupEntryPtr (const word &keyword, bool recursive, bool patternMatch) |
| Deprecated(2018-10). | |
| const entry * | lookupEntryPtr (const word &keyword, bool recursive, bool patternMatch) const |
| Deprecated(2018-10). | |
| const entry * | lookupScopedEntryPtr (const word &keyword, bool recursive, bool patternMatch) const |
| Deprecated(2018-10). | |
| const dictionary * | subDictPtr (const word &keyword) const |
| Deprecated(2018-10). | |
| dictionary * | subDictPtr (const word &keyword) |
| Deprecated(2018-10) Find and return a sub-dictionary pointer if present. | |
| const entry & | lookupEntry (const word &keyword, bool recursive, bool patternMatch) const |
| Deprecated(2018-10). | |
| ITstream & | lookup (const word &keyword, bool recursive, bool patternMatch=true) const |
| Deprecated(2018-10). | |
| template<class T> | |
| T | lookupOrDefault (const word &keyword, const T &deflt, bool recursive, bool patternMatch=true) const |
| Deprecated(2018-10). | |
| template<class T> | |
| T | lookupOrAddDefault (const word &keyword, const T &deflt, bool recursive, bool patternMatch=true) |
| Deprecated(2018-10). | |
| template<class T> | |
| bool | readIfPresent (const word &keyword, T &val, bool recursive, bool patternMatch=true) const |
| Deprecated(2018-10). | |
| template<class T> | |
| T | lookupType (const word &keyword, bool recursive=false, bool patternMatch=true) const |
| Deprecated(2018-10) find and return a T. | |
| template<class Compare> | |
| Foam::wordList | sortedToc (const Compare &comp) const |
| template<class T> | |
| Foam::entry * | add (const keyType &k, const T &v, bool overwrite) |
| template<class T> | |
| Foam::entry * | set (const keyType &k, const T &v) |
| Public Member Functions inherited from ILList< DLListBase, T > | |
| ILList ()=default | |
| Default construct. | |
| ILList (T *item) | |
| Construct and add initial item pointer. | |
| ILList (Istream &is) | |
| Construct from Istream. | |
| ILList (const ILList< DLListBase, T > &lst) | |
| Copy construct using the 'clone()' method for each element. | |
| ILList (ILList< DLListBase, T > &&lst) | |
| Move construct. | |
| ILList (const ILList< DLListBase, T > &lst, const CloneArg &cloneArg) | |
| Copy constructor with additional argument for clone 'clone()'. | |
| ILList (Istream &is, const INew &inew) | |
| Construct from Istream using given Istream constructor class. | |
| ~ILList () | |
| Destructor. Calls clear(). | |
| void | clear () |
| Clear the contents of the list. | |
| void | pop_front (label n=1) |
| Remove first element(s) from the list (deletes pointers). | |
| bool | erase (T *item) |
| Remove the specified element from the list and delete it. | |
| void | transfer (ILList< DLListBase, T > &lst) |
| Transfer the contents of the argument into this List and annul the argument list. | |
| void | operator= (const ILList< DLListBase, T > &lst) |
| Copy assignment using the 'clone()' method for each element. | |
| void | operator= (ILList< DLListBase, T > &&lst) |
| Move assignment. | |
| Public Member Functions inherited from UILList< DLListBase, T > | |
| UILList ()=default | |
| Default construct. | |
| UILList (T *item) | |
| Construct and add initial item pointer. | |
| UILList (const UILList< DLListBase, T > &list) | |
| Construct as copy. | |
| T * | front () |
| The first entry in the list. | |
| const T * | front () const |
| The first entry in the list (const access). | |
| T * | back () |
| The last entry in the list. | |
| const T * | back () const |
| The last entry in the list (const access). | |
| T * | removeHead () |
| Remove and return head. | |
| T * | remove (T *item) |
| Remove and return element. | |
| T * | remove (iterator &iter) |
| Remove and return item specified by iterator. | |
| void | operator= (const UILList< DLListBase, T > &lst) |
| Copy assignment. | |
| bool | operator== (const UILList< DLListBase, T > &lst) const |
| Equality. True both lists are element-wise equal. | |
| bool | operator!= (const UILList< DLListBase, T > &lst) const |
| The opposite of the equality operation. Takes linear time. | |
| Ostream & | writeList (Ostream &os, const label shortLen=0) const |
| Write UILList with line-breaks when length exceeds shortLen. | |
| iterator | begin () |
| Iterator to first item in list with non-const access. | |
| const_iterator | cbegin () const |
| Iterator to first item in list with const access. | |
| reverse_iterator | rbegin () |
| Iterator to last item in list with non-const access. | |
| const_reverse_iterator | crbegin () const |
| Iterator to last item in list with const access. | |
| const_iterator | begin () const |
| Iterator to first item in list with const access. | |
| const_reverse_iterator | rbegin () const |
| Iterator to last item in list with const access. | |
| const iterator & | end () |
| End of list for forward iterators. | |
| const const_iterator & | cend () const |
| End of list for forward iterators. | |
| const reverse_iterator & | rend () |
| End of list for reverse iterators. | |
| const const_reverse_iterator & | crend () const |
| End of list for reverse iterators. | |
| const const_iterator & | end () const |
| End of list for forward iterators. | |
| const const_reverse_iterator & | rend () const |
| End of list for reverse iterators. | |
| T * | first () |
| The first entry in the list. | |
| const T * | first () const |
| The first entry in the list (const access). | |
| T * | last () |
| The last entry in the list. | |
| const T * | last () const |
| The last entry in the list (const access). | |
| Public Member Functions inherited from DLListBase | |
| DLListBase ()=default | |
| Default construct. | |
| DLListBase (const DLListBase &)=delete | |
| No copy construct. | |
| void | operator= (const DLListBase &)=delete |
| No copy assignment. | |
| ~DLListBase ()=default | |
| Destructor. | |
| bool | empty () const noexcept |
| True if the list is empty. | |
| label | size () const noexcept |
| The number of elements in list. | |
| link * | front () |
| Return first entry. | |
| const link * | front () const |
| Return const access to first entry. | |
| link * | back () |
| Return last entry. | |
| const link * | back () const |
| Return const access to last entry. | |
| void | push_front (link *item) |
| Add at front of list. | |
| void | push_back (link *item) |
| Add at back of list. | |
| bool | swapUp (link *item) |
| Swap this element with the one above unless it is at the top. | |
| bool | swapDown (link *item) |
| Swap this element with the one below unless it is at the bottom. | |
| link * | removeHead () |
| Remove and return first entry. | |
| link * | remove (link *item) |
| Remove and return element. | |
| link * | remove (iterator &iter) |
| Remove and return element specified by iterator. | |
| link * | replace (link *oldLink, link *newLink) |
| Replace oldLink with newLink and return element. | |
| link * | replace (iterator &oldIter, link *newitem) |
| Replace oldIter with newItem and return element. | |
| void | clear () |
| Clear the list. | |
| void | swap (DLListBase &lst) |
| Swap the contents of the list. | |
| void | transfer (DLListBase &lst) |
| Transfer the contents of the argument into this list and annul the argument list. | |
| iterator | begin () |
| Iterator to first item in list with non-const access. | |
| const_iterator | cbegin () const |
| Iterator to first item in list with const access. | |
| const_iterator | crbegin () const |
| Iterator to last item in list with const access. | |
| const iterator & | end () |
| End of list for iterators. | |
| const const_iterator & | cend () const |
| End of list for iterators. | |
| const const_iterator & | crend () const |
| End of list for reverse iterators. | |
| link * | first () |
| Return first entry. | |
| const link * | first () const |
| Return const access to first entry. | |
| link * | last () |
| Return last entry. | |
| const link * | last () const |
| Return const access to last entry. | |
| void | prepend (link *item) |
| Add at front of list. | |
| void | append (link *item) |
| Add at back of list. | |
Static Public Member Functions | |
| static autoPtr< objective > | New (const fvMesh &mesh, const dictionary &dict, const word &objectiveType, const word &adjointSolverName, const word &primalSolverName) |
| Return a reference to the selected turbulence model. | |
| Static Public Member Functions inherited from localIOdictionary | |
| static dictionary | readContents (const IOobject &io) |
| Read and return contents, testing for "dictionary" type. The IOobject will not be registered. | |
| static dictionary | readContents (const IOobject &io, const word &wantedType) |
| Read and return contents, testing for expected type. The IOobject will not be registered. | |
| Static Public Member Functions inherited from regIOobject | |
| template<class Type> | |
| static Type & | store (Type *p) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (std::unique_ptr< Type > &&ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (autoPtr< Type > &ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (autoPtr< Type > &&ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (refPtr< Type > &ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (refPtr< Type > &&ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (tmp< Type > &ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (tmp< Type > &&ptr) |
| Transfer pointer ownership to its registry. | |
| Static Public Member Functions inherited from IOobject | |
| static bool | bannerEnabled () noexcept |
| Status of output file banner. | |
| static bool | bannerEnabled (bool on) noexcept |
| Enable/disable output file banner. | |
| static bool | fileModificationChecking_masterOnly () noexcept |
| Test fileModificationChecking for master-only. | |
| static bool | fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name) |
| Split path into instance, local, name components. | |
| template<class StringType> | |
| static word | groupName (StringType base, const word &group) |
| Create dot-delimited name.group string. | |
| static word | group (const word &name) |
| Return group (extension part of name). | |
| static word | member (const word &name) |
| Return member (name without the extension). | |
| static word | scopedName (const std::string &scope, const word &name) |
| Create scope:name or scope_name string. | |
| static word | scopedName (const std::string &scope, const word &name1, const word &name2) |
| Create scope:name1:name2 or scope_name1_name2 string. | |
| static IOobject | selectIO (const IOobject &io, const fileName &altFile, const word &ioName="") |
| Return the IOobject, but also consider an alternative file name. | |
| static Ostream & | writeBanner (Ostream &os, const bool noSyntaxHint=false) |
| Write the standard OpenFOAM file/dictionary banner. | |
| static Ostream & | writeDivider (Ostream &os) |
| Write the standard file section divider. | |
| static Ostream & | writeEndDivider (Ostream &os) |
| Write the standard end file divider. | |
| Static Public Member Functions inherited from IOobjectOption | |
| static bool | isAnyRead (readOption opt) noexcept |
| True if any reading may be required (ie, != NO_READ). | |
| static bool | isReadRequired (readOption opt) noexcept |
| True if (MUST_READ | READ_MODIFIED) bits are set. | |
| static bool | isReadOptional (readOption opt) noexcept |
| True if (LAZY_READ) bits are set [same as READ_IF_PRESENT]. | |
| static readOption | lazierRead (readOption opt) noexcept |
| Downgrade readOption optional (LAZY_READ), leaves NO_READ intact. | |
| Static Public Member Functions inherited from dictionary | |
| static int | reportOptional () noexcept |
| Return the state of reporting optional (default) entries. | |
| static int | reportOptional (const int level) noexcept |
| Change the state of reporting optional (default) entries. | |
| static autoPtr< dictionary > | New (Istream &is) |
| Construct top-level dictionary on freestore from Istream. | |
Protected Member Functions | |
| void | setObjectiveFilePtr () const |
| Set the output file ptr. | |
| void | setInstantValueFilePtr () const |
| Set the output file ptr for the instantaneous value. | |
| void | setMeanValueFilePtr () const |
| Set the output file ptr for the mean value. | |
| Protected Member Functions inherited from regIOobject | |
| bool | readHeaderOk (const IOstreamOption::streamFormat fmt, const word &typeName) |
| Helper: check readOpt flags and read if necessary. | |
| Protected Member Functions inherited from IOobject | |
| void | setBad (const string &s) |
| Set the object state to bad. | |
| Protected Member Functions inherited from DLListBase | |
| template<class IteratorType> | |
| IteratorType | iterator_first () const |
| Return iterator to first item or end-iterator if list is empty. | |
| template<class IteratorType> | |
| IteratorType | iterator_last () const |
| Return iterator to last item or end-iterator if list is empty. | |
Protected Attributes | |
| const fvMesh & | mesh_ |
| dictionary | dict_ |
| const word | adjointSolverName_ |
| const word | primalSolverName_ |
| const word | objectiveName_ |
| bool | computeMeanFields_ |
| bool | nullified_ |
| bool | normalize_ |
| bool | shouldWrite_ |
| scalar | J_ |
| Objective function value and weight. | |
| scalar | JMean_ |
| Average objective value. | |
| scalar | weight_ |
| Objective weight. | |
| bool | computed_ |
| Whether the objective is computed or not. | |
| autoPtr< scalar > | normFactor_ |
| Normalization factor. | |
| autoPtr< scalar > | target_ |
| Target value, in case the objective is used as a constraint. | |
| autoPtr< scalar > | targetLeft_ |
| Target on the left hand-side of a double inequality, for double sided constraints. | |
| autoPtr< scalar > | integrationStartTimePtr_ |
| Objective integration start and end times (for unsteady flows). | |
| autoPtr< scalar > | integrationEndTimePtr_ |
| wordList | fieldNames_ |
| List of adjoint fields for which this objective will contribute sources to their equations. | |
| autoPtr< boundaryVectorField > | bdJdbPtr_ |
| Contribution to field sensitivity derivatives. | |
| autoPtr< boundaryVectorField > | bdSdbMultPtr_ |
| Term multiplying delta(n dS)/delta b. | |
| autoPtr< boundaryVectorField > | bdndbMultPtr_ |
| Term multiplying delta(n)/delta b. | |
| autoPtr< boundaryVectorField > | bdxdbMultPtr_ |
| Term multiplying delta(x)/delta b at the boundary. | |
| autoPtr< boundaryVectorField > | bdxdbDirectMultPtr_ |
| Term multiplying delta(x)/delta b at the boundary for objectives that directly depend on x, e.g. moment Needed in both FI and SI computations. | |
| autoPtr< vectorField3 > | bEdgeContribution_ |
| Contribution located in specific parts of a patch. Mainly intended for patch boundary edges contributions, e.g. NURBS surfaces G1 continuity. | |
| autoPtr< volScalarField > | divDxDbMultPtr_ |
| Multiplier of d(Volume)/db. | |
| autoPtr< volTensorField > | gradDxDbMultPtr_ |
| Emerging from volume objectives that include spatial derivatives. | |
| fileName | objFunctionFolder_ |
| Output file variables. | |
| autoPtr< OFstream > | objFunctionFilePtr_ |
| File to keep the objective values after the end of the primal solver. | |
| autoPtr< OFstream > | instantValueFilePtr_ |
| File to keep the objective values at each iteration of the primal solver. | |
| autoPtr< OFstream > | meanValueFilePtr_ |
| File to keep the average objective values after the end of the primal solver. | |
| unsigned int | width_ |
| Default width of entries when writing in the objective files. | |
Additional Inherited Members | |
| Public Types inherited from IOobject | |
| enum | objectState : char { GOOD , BAD } |
| Enumeration defining the valid states of an IOobject. More... | |
| enum | fileCheckTypes : char { timeStamp = 1 , timeStampMaster = 3 , inotify = 4 , inotifyMaster = 6 } |
| Enumeration defining the file checking options (time-stamp | inotify) | (all | masterOnly). More... | |
| Public Types inherited from IOobjectOption | |
| enum | readOption : unsigned char { NO_READ = 0 , MUST_READ = 0x1 , READ_MODIFIED = 0x3 , MUST_READ_IF_MODIFIED = 0x3 , LAZY_READ = 0x4 , READ_IF_PRESENT = 0x4 } |
| Enumeration defining read preferences. More... | |
| enum | writeOption : unsigned char { NO_WRITE = 0 , AUTO_WRITE = 0x10 } |
| Enumeration defining write preferences. More... | |
| enum | registerOption : unsigned char { NO_REGISTER = 0 , REGISTER = 1 , LEGACY_REGISTER = 2 } |
| Enumeration for use with registerObject(). Values map to bool (false/true). More... | |
| enum class | Layout : unsigned char { regular , global } |
| The layout of the case structure. More... | |
| Public Types inherited from dictionary | |
| typedef Searcher< true > | const_searcher |
| Searcher with const access. | |
| typedef Searcher< false > | searcher |
| Searcher with non-const access. | |
| Public Types inherited from UILList< DLListBase, T > | |
| typedef T | value_type |
| Type of values stored. | |
| typedef T * | pointer |
| Pointer for value_type. | |
| typedef const T * | const_pointer |
| Const pointer for value_type. | |
| typedef T & | reference |
| Reference for value_type. | |
| typedef const T & | const_reference |
| Const reference for value_type. | |
| typedef label | size_type |
| The type that can represent the container size. | |
| typedef label | difference_type |
| The difference between iterator objects. | |
| using | base_iterator |
| using | const_base_iterator |
| Public Attributes inherited from dictionary | |
| friend | const_searcher |
| Declare friendship with the searcher classes. | |
| friend | searcher |
| Static Public Attributes inherited from IOobject | |
| static const Enum< fileCheckTypes > | fileCheckTypesNames |
| Names for the fileCheckTypes. | |
| static char | scopeSeparator |
| Character for scoping object names (':' or '_'). | |
| static fileCheckTypes | fileModificationChecking |
| Type of file modification checking. | |
| static float | fileModificationSkew |
| Time skew (seconds) for file modification checks. | |
| static int | maxFileModificationPolls |
| Max number of times to poll for file modification changes. | |
| Static Public Attributes inherited from dictionary | |
| static int | writeOptionalEntries |
| Report optional keywords and values if not present in dictionary. | |
| static const dictionary | null |
| An empty dictionary, which is also the parent for all dictionaries. | |
| static refPtr< OSstream > | reportingOutput |
| Output location when reporting default values. | |
| Static Protected Member Functions inherited from IOobject | |
| static void | writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr) |
| Helper: write content for FoamFile IOobject header with optional meta information. | |
| static void | writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr) |
| Helper: write dictionary content for FoamFile header with optional meta information. | |
| Static Protected Member Functions inherited from DLListBase | |
| template<class IteratorType> | |
| static const IteratorType & | iterator_end () |
| Factory method to return an iterator end. | |
| template<class IteratorType> | |
| static const IteratorType & | iterator_rend () |
| Factory method to return an iterator reverse end. | |
| Static Protected Attributes inherited from regIOobject | |
| static bool | masterOnlyReading = false |
| To flag master-only reading of objects. | |
Abstract base class for objective functions. No point in making this runTime selectable since its children will have different constructors.
Definition at line 55 of file objective.H.
| objective | ( | const fvMesh & | mesh, |
| const dictionary & | dict, | ||
| const word & | adjointSolverName, | ||
| const word & | primalSolverName ) |
Construct from components.
Definition at line 99 of file objective.C.
References adjointSolverName_, IOobjectOption::AUTO_WRITE, computeMeanFields_, dict(), dict_, dictionary::dictName(), dictionary::getOrDefaultCompat(), localIOdictionary::localIOdictionary(), mesh, mesh_, normalize_, dictionary::null, nullified_, objectiveName_, primalSolverName_, IOobjectOption::READ_IF_PRESENT, IOobject::time(), and timeName.
|
virtualdefault |
|
protected |
Set the output file ptr.
Definition at line 56 of file objective.C.
References adjointSolverName_, objectiveName_, objFunctionFilePtr_, and objFunctionFolder_.
Referenced by write().
|
protected |
Set the output file ptr for the instantaneous value.
Definition at line 65 of file objective.C.
References adjointSolverName_, instantValueFilePtr_, objectiveName_, and objFunctionFolder_.
Referenced by writeInstantaneousValue().
|
protected |
Set the output file ptr for the mean value.
Definition at line 77 of file objective.C.
References adjointSolverName_, meanValueFilePtr_, objectiveName_, and objFunctionFolder_.
Referenced by writeMeanValue().
| TypeName | ( | "objective" | ) |
Runtime type information.
|
static |
Return a reference to the selected turbulence model.
Definition at line 220 of file objective.C.
References dict(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and mesh.
Referenced by objectiveManager::objectiveManager().
|
virtual |
|
pure virtual |
Return the instantaneous objective function value.
Implemented in objectiveGeometric, objectiveIncompressible, objectiveFlowRate, objectiveFlowRatePartition, objectiveForce, objectiveMoment, objectiveNutSqr, objectivePartialVolume, objectivePowerDissipation, objectivePtLosses, objectiveTopOSolidVolume, objectiveTopOVolume, objectiveUniformityCellZone, and objectiveUniformityPatch.
References Foam::negate().
Referenced by JCycle(), update(), and updateNormalizationFactor().
|
virtual |
Return the objective function of the optimisation cycle.
This corresponds to the mean value, if it exists, or the instantaneous value otherwise
Definition at line 264 of file objective.C.
References computeMeanFields_, hasIntegrationEndTime(), hasIntegrationStartTime(), J(), J_, JMean_, Foam::negate(), normalize_, normFactor_, target_, targetLeft_, and weight_.
Referenced by updateNormalizationFactor(), and write().
|
virtual |
Accumulate contribution for the mean objective value.
For steady-state runs
Definition at line 314 of file objective.C.
References solverControl::averageIter(), solverControl::doAverageIter(), J_, JMean_, and Foam::Zero.
|
virtual |
Accumulate contribution for the mean objective value.
For unsteady runs
Definition at line 331 of file objective.C.
References Foam::exit(), Foam::FatalError, FatalErrorInFunction, hasIntegrationEndTime(), hasIntegrationStartTime(), integrationStartTimePtr_, isWithinIntegrationTime(), J_, JMean_, mesh_, and IOobject::time().
|
virtual |
Return the objective function weight.
Definition at line 353 of file objective.C.
References weight_.
Referenced by objectiveIncompressible::addSource(), objectiveNutSqr::addSource(), and objectivePowerDissipation::addSource().
|
virtual |
|
virtual |
Normalize all fields allocated by the objective.
Reimplemented in objectiveIncompressible.
Definition at line 365 of file objective.C.
References bdJdbPtr_, bdndbMultPtr_, bdSdbMultPtr_, bdxdbDirectMultPtr_, bdxdbMultPtr_, bEdgeContribution_, divDxDbMultPtr_, gradDxDbMultPtr_, hasBoundarydJdb(), hasBoundaryEdgeContribution(), hasDivDxDbMult(), hasdJdb(), hasdJdbField(), hasdndbMult(), hasdSdbMult(), hasdxdbDirectMult(), hasdxdbMult(), hasGradDxDbMult(), normalize_, and normFactor_.
Referenced by objectiveIncompressible::doNormalization(), and objectiveGeometric::update().
|
virtual |
Check whether this is an objective integration time.
Definition at line 415 of file objective.C.
References Foam::exit(), Foam::FatalError, FatalErrorInFunction, hasIntegrationEndTime(), hasIntegrationStartTime(), integrationEndTimePtr_, integrationStartTimePtr_, mesh_, objectiveName_, and IOobject::time().
Referenced by accumulateJMean().
|
virtual |
Increment integration times.
Definition at line 437 of file objective.C.
References Foam::exit(), Foam::FatalError, FatalErrorInFunction, hasIntegrationEndTime(), hasIntegrationStartTime(), integrationEndTimePtr_, and integrationStartTimePtr_.
|
inline |
Contribution to field sensitivities.
Definition at line 44 of file objectiveI.H.
Referenced by objectivePowerDissipation::update_dJdb().
|
inline |
Contribution to sensitivities with a random number of designVars.
Definition at line 50 of file objectiveI.H.
|
inline |
Contribution to surface sensitivities for a specific patch.
Definition at line 57 of file objectiveI.H.
References bdJdbPtr_.
|
inline |
Multiplier of delta(n dS)/delta b.
Definition at line 64 of file objectiveI.H.
References bdSdbMultPtr_.
|
inline |
Multiplier of delta(n dS)/delta b.
Definition at line 71 of file objectiveI.H.
References bdndbMultPtr_.
|
inline |
Multiplier of delta(x)/delta b.
Definition at line 78 of file objectiveI.H.
References bdxdbMultPtr_.
|
inline |
Multiplier of delta(x)/delta b.
Definition at line 85 of file objectiveI.H.
References bdxdbDirectMultPtr_.
|
inline |
Multiplier located at patch boundary edges.
Definition at line 91 of file objectiveI.H.
References bdxdbDirectMultPtr_, bEdgeContribution_, Foam::exit(), Foam::FatalError, and FatalErrorInFunction.
|
inline |
Contribution to surface sensitivities for all patches.
Definition at line 107 of file objectiveI.H.
References bdJdbPtr_.
|
inline |
Multiplier of delta(n dS)/delta b for all patches.
Definition at line 113 of file objectiveI.H.
References bdSdbMultPtr_.
|
inline |
Multiplier of delta(n dS)/delta b for all patches.
Definition at line 119 of file objectiveI.H.
References bdndbMultPtr_.
|
inline |
Multiplier of delta(x)/delta b for all patches.
Definition at line 125 of file objectiveI.H.
References bdxdbMultPtr_.
|
inline |
Multiplier of delta(x)/delta b for all patches.
Definition at line 132 of file objectiveI.H.
References bdxdbDirectMultPtr_.
|
inline |
Multiplier located at patch boundary edges.
Definition at line 138 of file objectiveI.H.
References bdxdbDirectMultPtr_, bEdgeContribution_, Foam::endl(), Foam::exit(), Foam::FatalError, and FatalErrorInFunction.
|
inline |
Multiplier of grad( delta(x)/delta b) for volume-based sensitivities.
Definition at line 151 of file objectiveI.H.
References divDxDbMultPtr_.
|
inline |
Multiplier of grad( delta(x)/delta b) for volume-based sensitivities.
Definition at line 157 of file objectiveI.H.
References gradDxDbMultPtr_.
|
pure virtual |
Update objective function derivatives.
Implemented in objectiveGeometric, and objectiveIncompressible.
Definition at line 453 of file objective.C.
References J(), update_boundarydJdb(), update_boundaryEdgeContribution(), update_divDxDbMultiplier(), update_dJdb(), update_dJdbField(), update_dndbMultiplier(), update_dSdbMultiplier(), update_dxdbDirectMultiplier(), update_dxdbMultiplier(), and update_gradDxDbMultiplier().
Referenced by objectiveGeometric::update(), and objectiveIncompressible::update().
|
virtual |
Nullify adjoint contributions.
Reimplemented in objectiveIncompressible.
Definition at line 474 of file objective.C.
References bdJdbPtr_, bdndbMultPtr_, bdSdbMultPtr_, bdxdbDirectMultPtr_, bdxdbMultPtr_, bEdgeContribution_, divDxDbMultPtr_, field(), gradDxDbMultPtr_, hasBoundarydJdb(), hasBoundaryEdgeContribution(), hasDivDxDbMult(), hasdJdb(), hasdJdbField(), hasdndbMult(), hasdSdbMult(), hasdxdbDirectMult(), hasdxdbMult(), hasGradDxDbMult(), nullified_, and Foam::Zero.
Referenced by objectiveIncompressible::nullify().
|
virtual |
Update normalization factors, for objectives in which the factor is not known a priori.
Definition at line 300 of file objective.C.
References DebugInfo, Foam::endl(), J(), JCycle(), mesh_, baseIOdictionary::name(), normalize_, normFactor_, and weight_.
|
inlinevirtual |
Reimplemented in objectiveIncompressible, objectivePowerDissipation, objectiveTopOSolidVolume, and objectiveTopOVolume.
Definition at line 488 of file objective.H.
Referenced by update().
|
inlinevirtual |
Reimplemented in objectiveIncompressible.
Definition at line 491 of file objective.H.
Referenced by update().
|
inlinevirtual |
Update objective function derivative term.
Definition at line 497 of file objective.H.
Referenced by update().
|
inlinevirtual |
Update d (normal dS) / db multiplier. Surface-based sensitivity term.
Reimplemented in objectiveForce, objectiveMoment, and objectivePartialVolume.
Definition at line 503 of file objective.H.
Referenced by update().
|
inlinevirtual |
Update d (normal) / db multiplier. Surface-based sensitivity term.
Definition at line 509 of file objective.H.
Referenced by update().
|
inlinevirtual |
Update d (x) / db multiplier. Surface-based sensitivity term.
Reimplemented in objectiveForce, and objectiveMoment.
Definition at line 515 of file objective.H.
Referenced by update().
|
inlinevirtual |
Update d (x) / db multiplier. Surface and volume-based sensitivity term.
Reimplemented in objectiveMoment, and objectivePartialVolume.
Definition at line 522 of file objective.H.
Referenced by update().
|
inlinevirtual |
Update boundary edge contributions.
Definition at line 528 of file objective.H.
Referenced by update().
|
inlinevirtual |
Update div( dx/db multiplier). Volume-based sensitivity term.
Reimplemented in objectiveIncompressible, objectiveNutSqr, objectivePowerDissipation, and objectiveUniformityCellZone.
Definition at line 534 of file objective.H.
Referenced by update().
|
inlinevirtual |
Update grad( dx/db multiplier). Volume-based sensitivity term.
Reimplemented in objectiveIncompressible, and objectivePowerDissipation.
Definition at line 540 of file objective.H.
Referenced by update().
|
inlinevirtual |
Manipulate fvVectorMatrix through the objective.
Reimplemented in objectiveIncompressible.
Definition at line 547 of file objective.H.
|
inlinevirtual |
Manipulate fvVectorMatrix through the objective.
Reimplemented in objectiveIncompressible, objectiveNutSqr, and objectivePowerDissipation.
Definition at line 553 of file objective.H.
|
virtual |
Write objective function history.
Reimplemented from regIOobject.
Reimplemented in objectiveIncompressible.
Definition at line 527 of file objective.C.
References addColumnValues(), addHeaderColumns(), addHeaderInfo(), Foam::endl(), J_, JCycle(), UPstream::master(), mesh_, normalize_, normFactor_, objFunctionFilePtr_, IOstream::setf(), setObjectiveFilePtr(), Foam::setw(), target_, targetLeft_, and width_.
Referenced by objectiveIncompressible::write().
|
virtual |
Write objective function history at each primal solver iteration.
Definition at line 583 of file objective.C.
References IOstream::defaultPrecision(), Foam::endl(), instantValueFilePtr_, J_, UPstream::master(), mesh_, setInstantValueFilePtr(), Foam::setw(), and Foam::tab.
|
virtual |
Append a blank line after the end of optimisation cycle to the file holding the instantaneous objective values to facilitate plotting.
Definition at line 602 of file objective.C.
References Foam::endl(), instantValueFilePtr_, and UPstream::master().
|
virtual |
Write mean objective function history.
Definition at line 614 of file objective.C.
References computeMeanFields_, Foam::endl(), hasIntegrationEndTime(), hasIntegrationStartTime(), JMean_, UPstream::master(), meanValueFilePtr_, mesh_, setMeanValueFilePtr(), and Foam::tab.
|
virtual |
Write averaged objective for continuation.
Reimplemented from baseIOdictionary.
Reimplemented in objectivePartialVolume.
Definition at line 641 of file objective.C.
References JMean_, normFactor_, os(), and weight_.
Referenced by objectivePartialVolume::writeData().
|
virtual |
Write any information that needs to go the header of the file.
(e.g. targets, directions, etc)
Reimplemented in objectiveFlowRatePartition, and objectivePartialVolume.
Definition at line 653 of file objective.C.
Referenced by write().
|
virtual |
Write headers for additional columns.
Reimplemented in objectiveFlowRate, objectiveFlowRatePartition, objectivePtLosses, objectiveTopOSolidVolume, objectiveTopOVolume, objectiveUniformityCellZone, and objectiveUniformityPatch.
Definition at line 659 of file objective.C.
Referenced by write().
|
virtual |
Write information to additional columns.
Reimplemented in objectiveFlowRate, objectiveFlowRatePartition, objectivePtLosses, objectiveTopOSolidVolume, objectiveTopOVolume, objectiveUniformityCellZone, and objectiveUniformityPatch.
Definition at line 665 of file objective.C.
Referenced by write().
|
inline |
|
inline |
Should the objective be written to file upon calling write()?
Definition at line 32 of file objectiveI.H.
References shouldWrite_.
Referenced by setWrite().
|
inline |
Should the objective be written to file upon calling write()?
Definition at line 38 of file objectiveI.H.
References shouldWrite(), and shouldWrite_.
|
inlinenoexcept |
Definition at line 163 of file objectiveI.H.
References Foam::noexcept.
Referenced by doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 169 of file objectiveI.H.
References Foam::noexcept.
Referenced by doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 175 of file objectiveI.H.
References bdJdbPtr_, and Foam::noexcept.
Referenced by doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 181 of file objectiveI.H.
References bdSdbMultPtr_, and Foam::noexcept.
Referenced by ShapeSensitivitiesBase::allocateMultipliers(), doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 187 of file objectiveI.H.
References bdndbMultPtr_, and Foam::noexcept.
Referenced by ShapeSensitivitiesBase::allocateMultipliers(), doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 193 of file objectiveI.H.
References bdxdbMultPtr_, and Foam::noexcept.
Referenced by doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 199 of file objectiveI.H.
References bdxdbDirectMultPtr_, and Foam::noexcept.
Referenced by ShapeSensitivitiesBase::allocateMultipliers(), doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 205 of file objectiveI.H.
References bEdgeContribution_, and Foam::noexcept.
Referenced by doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 211 of file objectiveI.H.
References divDxDbMultPtr_, and Foam::noexcept.
Referenced by ShapeSensitivitiesBase::allocateMultipliers(), doNormalization(), nullify(), and sensitivityShapeESI::sensitivityShapeESI().
|
inlinenoexcept |
Definition at line 217 of file objectiveI.H.
References gradDxDbMultPtr_, and Foam::noexcept.
Referenced by doNormalization(), and nullify().
|
inlinenoexcept |
Definition at line 223 of file objectiveI.H.
References integrationStartTimePtr_, and Foam::noexcept.
Referenced by accumulateJMean(), incrementIntegrationTimes(), isWithinIntegrationTime(), JCycle(), and writeMeanValue().
|
inlinenoexcept |
Definition at line 229 of file objectiveI.H.
References integrationEndTimePtr_, and Foam::noexcept.
Referenced by accumulateJMean(), incrementIntegrationTimes(), isWithinIntegrationTime(), JCycle(), and writeMeanValue().
|
inlinenoexcept |
Set the computed status of the objective.
Definition at line 235 of file objectiveI.H.
References computed_.
| const dictionary & dict | ( | ) | const |
Return objective dictionary.
Definition at line 91 of file objective.C.
References dict_.
Referenced by declareRunTimeNewSelectionTable(), objectiveGeometric::declareRunTimeSelectionTable(), objectiveIncompressible::declareRunTimeSelectionTable(), New(), objectiveGeometric::New(), objectiveIncompressible::New(), objective(), objectiveFlowRate::objectiveFlowRate(), objectiveFlowRatePartition::objectiveFlowRatePartition(), objectiveForce::objectiveForce(), objectiveGeometric::objectiveGeometric(), objectiveIncompressible::objectiveIncompressible(), objectiveMoment::objectiveMoment(), objectiveNutSqr::objectiveNutSqr(), objectivePartialVolume::objectivePartialVolume(), objectivePowerDissipation::objectivePowerDissipation(), objectivePtLosses::objectivePtLosses(), objectiveTopOSolidVolume::objectiveTopOSolidVolume(), objectiveTopOVolume::objectiveTopOVolume(), objectiveUniformityCellZone::objectiveUniformityCellZone(), objectiveUniformityPatch::objectiveUniformityPatch(), readDict(), objectiveFlowRate::TypeName(), objectiveFlowRatePartition::TypeName(), objectiveForce::TypeName(), objectiveMoment::TypeName(), objectiveNutSqr::TypeName(), objectivePartialVolume::TypeName(), objectivePowerDissipation::TypeName(), objectivePtLosses::TypeName(), objectiveTopOSolidVolume::TypeName(), objectiveTopOVolume::TypeName(), objectiveUniformityCellZone::TypeName(), objectiveUniformityPatch::TypeName(), and ~objective().
|
protected |
Definition at line 63 of file objective.H.
Referenced by accumulateJMean(), objectiveTopOSolidVolume::addColumnValues(), objectiveTopOVolume::addColumnValues(), objectiveFlowRate::addHeaderColumns(), objectiveFlowRatePartition::addHeaderColumns(), objectivePtLosses::addHeaderColumns(), objectiveUniformityCellZone::addHeaderColumns(), objectiveUniformityPatch::addHeaderColumns(), objectiveFlowRatePartition::addHeaderInfo(), objectiveIncompressible::allocatedJdTurbulence(), objectiveIncompressible::checkCellZonesSize(), isWithinIntegrationTime(), objectiveForce::J(), objectiveMoment::J(), objectiveNutSqr::J(), objectivePartialVolume::J(), objectivePowerDissipation::J(), objectivePtLosses::J(), objectiveTopOSolidVolume::J(), objectiveTopOVolume::J(), objectiveUniformityCellZone::J(), objectiveUniformityPatch::J(), objective(), objectiveFlowRate::objectiveFlowRate(), objectiveFlowRatePartition::objectiveFlowRatePartition(), objectiveForce::objectiveForce(), objectiveMoment::objectiveMoment(), objectiveNutSqr::objectiveNutSqr(), objectivePartialVolume::objectivePartialVolume(), objectivePowerDissipation::objectivePowerDissipation(), objectivePtLosses::objectivePtLosses(), objectiveTopOSolidVolume::objectiveTopOSolidVolume(), objectiveTopOVolume::objectiveTopOVolume(), objectiveUniformityCellZone::objectiveUniformityCellZone(), objectiveUniformityPatch::objectiveUniformityPatch(), objectiveForce::update_boundarydJdGradU(), objectiveForce::update_boundarydJdnut(), objectiveMoment::update_boundarydJdnut(), objectiveMoment::update_boundarydJdp(), objectivePtLosses::update_boundarydJdp(), objectiveFlowRate::update_boundarydJdv(), objectiveFlowRatePartition::update_boundarydJdv(), objectivePtLosses::update_boundarydJdv(), objectiveUniformityPatch::update_boundarydJdv(), objectivePtLosses::update_boundarydJdvn(), objectiveUniformityPatch::update_boundarydJdvn(), objectivePtLosses::update_boundarydJdvt(), objectiveUniformityPatch::update_boundarydJdvt(), objectiveNutSqr::update_divDxDbMultiplier(), objectivePowerDissipation::update_divDxDbMultiplier(), objectiveUniformityCellZone::update_divDxDbMultiplier(), objectivePowerDissipation::update_dJdb(), objectiveTopOSolidVolume::update_dJdb(), objectiveTopOVolume::update_dJdb(), objectiveIncompressible::update_dJdTMvar(), objectiveNutSqr::update_dJdv(), objectivePowerDissipation::update_dJdv(), objectiveUniformityCellZone::update_dJdv(), objectiveMoment::update_dSdbMultiplier(), objectivePartialVolume::update_dSdbMultiplier(), objectiveMoment::update_dxdbDirectMultiplier(), objectivePartialVolume::update_dxdbDirectMultiplier(), objectiveForce::update_dxdbMultiplier(), objectiveMoment::update_dxdbMultiplier(), objectivePowerDissipation::update_gradDxDbMultiplier(), updateNormalizationFactor(), write(), writeInstantaneousValue(), and writeMeanValue().
|
protected |
Definition at line 64 of file objective.H.
Referenced by dict(), objective(), and readDict().
|
protected |
Definition at line 65 of file objective.H.
Referenced by objective(), objectivePowerDissipation::objectivePowerDissipation(), objectiveUniformityCellZone::objectiveUniformityCellZone(), setInstantValueFilePtr(), setMeanValueFilePtr(), setObjectiveFilePtr(), objectiveIncompressible::update_dJdTMvar(), objectiveNutSqr::update_dJdv(), and objectivePowerDissipation::update_dJdv().
|
protected |
Definition at line 66 of file objective.H.
Referenced by objectiveIncompressible::allocatedJdTurbulence(), and objective().
|
protected |
Definition at line 67 of file objective.H.
Referenced by isWithinIntegrationTime(), objective(), objectiveName(), objectiveNutSqr::objectiveNutSqr(), objectivePowerDissipation::objectivePowerDissipation(), objectiveUniformityCellZone::objectiveUniformityCellZone(), setInstantValueFilePtr(), setMeanValueFilePtr(), and setObjectiveFilePtr().
|
protected |
Definition at line 68 of file objective.H.
Referenced by JCycle(), objective(), objectiveIncompressible::objectiveIncompressible(), objectiveMoment::update_meanValues(), and writeMeanValue().
|
protected |
Definition at line 69 of file objective.H.
Referenced by nullify(), objectiveIncompressible::nullify(), and objective().
|
protected |
Definition at line 70 of file objective.H.
Referenced by doNormalization(), objectiveIncompressible::doNormalization(), JCycle(), normalize(), objective(), updateNormalizationFactor(), and write().
|
protected |
Definition at line 71 of file objective.H.
Referenced by setWrite(), and shouldWrite().
|
protected |
Objective function value and weight.
Definition at line 76 of file objective.H.
Referenced by accumulateJMean(), accumulateJMean(), objectiveFlowRate::J(), objectiveFlowRatePartition::J(), objectiveForce::J(), objectiveMoment::J(), objectiveNutSqr::J(), objectivePartialVolume::J(), objectivePowerDissipation::J(), objectivePtLosses::J(), objectiveTopOSolidVolume::J(), objectiveTopOVolume::J(), objectiveUniformityCellZone::J(), objectiveUniformityPatch::J(), JCycle(), write(), and writeInstantaneousValue().
|
protected |
Average objective value.
Definition at line 81 of file objective.H.
Referenced by accumulateJMean(), accumulateJMean(), JCycle(), writeData(), and writeMeanValue().
|
protected |
Objective weight.
Definition at line 86 of file objective.H.
Referenced by JCycle(), objectiveGeometric::objectiveGeometric(), updateNormalizationFactor(), weight(), and writeData().
|
protected |
Whether the objective is computed or not.
Some objective (e.g. geometric ones) might not change from one iteration of the primal solver to the next and might be expensive to evaluate. This can be used to compute them only once per optimisation cycle
Definition at line 96 of file objective.H.
Referenced by setComputed(), objectiveGeometric::update(), and objectiveIncompressible::update().
|
protected |
Normalization factor.
Definition at line 101 of file objective.H.
Referenced by doNormalization(), objectiveIncompressible::doNormalization(), JCycle(), updateNormalizationFactor(), write(), and writeData().
|
protected |
|
protected |
Target on the left hand-side of a double inequality, for double sided constraints.
Definition at line 116 of file objective.H.
|
protected |
Objective integration start and end times (for unsteady flows).
Definition at line 121 of file objective.H.
Referenced by accumulateJMean(), hasIntegrationStartTime(), incrementIntegrationTimes(), and isWithinIntegrationTime().
|
protected |
Definition at line 122 of file objective.H.
Referenced by hasIntegrationEndTime(), incrementIntegrationTimes(), and isWithinIntegrationTime().
|
protected |
List of adjoint fields for which this objective will contribute sources to their equations.
Only for volume-based objectives for the moment
Definition at line 130 of file objective.H.
Referenced by objectiveIncompressible::addSource(), objectiveNutSqr::addSource(), objectivePowerDissipation::addSource(), objectivePowerDissipation::objectivePowerDissipation(), objectiveUniformityCellZone::objectiveUniformityCellZone(), and objectiveNutSqr::update_dJdv().
|
protected |
Contribution to field sensitivity derivatives.
Topology optimisation or other variants with as many design variables as the mesh cells ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ */ autoPtr<volScalarField> dJdbPtr_;
/*!
Contribution to sensitivity derivatives with a random number of design variables (neither surface, nor volume based)
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ */ autoPtr<scalarField> dJdbFieldPtr_;
Contribution to surface sensitivity derivatives ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
/*!
Term from material derivative
Definition at line 156 of file objective.H.
Referenced by boundarydJdb(), boundarydJdb(), doNormalization(), hasBoundarydJdb(), and nullify().
|
protected |
Term multiplying delta(n dS)/delta b.
Definition at line 161 of file objective.H.
Referenced by doNormalization(), dSdbMultiplier(), dSdbMultiplier(), hasdSdbMult(), nullify(), objectiveForce::objectiveForce(), objectiveMoment::objectiveMoment(), objectiveForce::update_dSdbMultiplier(), objectiveMoment::update_dSdbMultiplier(), and objectivePartialVolume::update_dSdbMultiplier().
|
protected |
Term multiplying delta(n)/delta b.
Definition at line 166 of file objective.H.
Referenced by dndbMultiplier(), dndbMultiplier(), doNormalization(), hasdndbMult(), and nullify().
|
protected |
Term multiplying delta(x)/delta b at the boundary.
Definition at line 171 of file objective.H.
Referenced by doNormalization(), dxdbMultiplier(), dxdbMultiplier(), hasdxdbMult(), nullify(), objectiveForce::objectiveForce(), objectiveMoment::objectiveMoment(), objectiveForce::update_dxdbMultiplier(), and objectiveMoment::update_dxdbMultiplier().
|
protected |
Term multiplying delta(x)/delta b at the boundary for objectives that directly depend on x, e.g. moment Needed in both FI and SI computations.
Definition at line 178 of file objective.H.
Referenced by boundaryEdgeMultiplier(), boundaryEdgeMultiplier(), doNormalization(), dxdbDirectMultiplier(), dxdbDirectMultiplier(), hasdxdbDirectMult(), nullify(), objectiveMoment::objectiveMoment(), objectiveMoment::update_dxdbDirectMultiplier(), and objectivePartialVolume::update_dxdbDirectMultiplier().
|
protected |
Contribution located in specific parts of a patch. Mainly intended for patch boundary edges contributions, e.g. NURBS surfaces G1 continuity.
Definition at line 185 of file objective.H.
Referenced by boundaryEdgeMultiplier(), boundaryEdgeMultiplier(), doNormalization(), hasBoundaryEdgeContribution(), and nullify().
|
protected |
Multiplier of d(Volume)/db.
Definition at line 194 of file objective.H.
Referenced by divDxDbMultiplier(), doNormalization(), hasDivDxDbMult(), nullify(), objectiveNutSqr::objectiveNutSqr(), objectivePowerDissipation::objectivePowerDissipation(), objectiveUniformityCellZone::objectiveUniformityCellZone(), objectiveNutSqr::update_divDxDbMultiplier(), objectivePowerDissipation::update_divDxDbMultiplier(), and objectiveUniformityCellZone::update_divDxDbMultiplier().
|
protected |
Emerging from volume objectives that include spatial derivatives.
Definition at line 199 of file objective.H.
Referenced by doNormalization(), gradDxDbMultiplier(), hasGradDxDbMult(), nullify(), objectivePowerDissipation::objectivePowerDissipation(), and objectivePowerDissipation::update_gradDxDbMultiplier().
|
protected |
Output file variables.
Definition at line 204 of file objective.H.
Referenced by setInstantValueFilePtr(), setMeanValueFilePtr(), and setObjectiveFilePtr().
File to keep the objective values after the end of the primal solver.
Definition at line 209 of file objective.H.
Referenced by objectiveFlowRate::addColumnValues(), objectiveFlowRatePartition::addColumnValues(), objectivePtLosses::addColumnValues(), objectiveTopOSolidVolume::addColumnValues(), objectiveTopOVolume::addColumnValues(), objectiveUniformityCellZone::addColumnValues(), objectiveUniformityPatch::addColumnValues(), objectiveFlowRate::addHeaderColumns(), objectiveFlowRatePartition::addHeaderColumns(), objectivePtLosses::addHeaderColumns(), objectiveTopOSolidVolume::addHeaderColumns(), objectiveTopOVolume::addHeaderColumns(), objectiveUniformityCellZone::addHeaderColumns(), objectiveUniformityPatch::addHeaderColumns(), objectiveFlowRatePartition::addHeaderInfo(), objectivePartialVolume::addHeaderInfo(), setObjectiveFilePtr(), and write().
File to keep the objective values at each iteration of the primal solver.
Definition at line 215 of file objective.H.
Referenced by setInstantValueFilePtr(), writeInstantaneousSeparator(), and writeInstantaneousValue().
File to keep the average objective values after the end of the primal solver.
Definition at line 221 of file objective.H.
Referenced by setMeanValueFilePtr(), and writeMeanValue().
|
protected |
Default width of entries when writing in the objective files.
Definition at line 226 of file objective.H.
Referenced by objectiveFlowRate::addColumnValues(), objectiveFlowRatePartition::addColumnValues(), objectivePtLosses::addColumnValues(), objectiveTopOSolidVolume::addColumnValues(), objectiveTopOVolume::addColumnValues(), objectiveUniformityCellZone::addColumnValues(), objectiveUniformityPatch::addColumnValues(), objectiveFlowRate::addHeaderColumns(), objectiveFlowRatePartition::addHeaderColumns(), objectivePtLosses::addHeaderColumns(), objectiveTopOSolidVolume::addHeaderColumns(), objectiveTopOVolume::addHeaderColumns(), objectiveUniformityCellZone::addHeaderColumns(), objectiveUniformityPatch::addHeaderColumns(), objectiveFlowRatePartition::addHeaderInfo(), objectivePartialVolume::addHeaderInfo(), and write().
1.16.1
