Patch for indicating interpolated boundaries (in overset meshes). More...

#include <oversetFvPatch.H>

Inheritance diagram for oversetFvPatch:

[legend]

Collaboration diagram for oversetFvPatch:

[legend]

Public Member Functions
	TypeName (oversetPolyPatch::typeName_())
	Runtime type information.
	oversetFvPatch (const polyPatch &patch, const fvBoundaryMesh &bm)
	Construct from polyPatch.
const oversetPolyPatch &	oversetPatch () const
	Return local reference cast into the overset patch.
virtual const labelUList &	faceCells () const
	Return faceCell addressing.
virtual bool	master () const
	Am I the master interface.
virtual tmp< labelField >	interfaceInternalField (const labelUList &internalData) const
	Return the values of the given internal data adjacent to the interface as a field.
virtual tmp< labelField >	interfaceInternalField (const labelUList &internalData, const labelUList &faceCells) const
	Return the values of the given internal data adjacent to the interface as a field using faceCell mapping.
virtual void	initInternalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF) const
	Initialise transfer of internal field adjacent to the interface.
virtual void	initInternalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF, const labelUList &faceCells) const
	Initialise transfer of internal field adjacent to the interface using faceCells mapping.
virtual tmp< labelField >	internalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF) const
	Transfer and return internal field adjacent to the interface.
virtual tmp< labelField >	internalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF, const labelUList &nbrFaceCells) const
	Transfer and return internal field adjacent to the interface using nbrFaceCells mapping.
Public Member Functions inherited from fvPatch
virtual void	makeWeights (scalarField &) const
	Make patch weighting factors.
virtual void	makeDeltaCoeffs (scalarField &) const
	Correct patch deltaCoeffs.
virtual void	makeNonOrthoDeltaCoeffs (scalarField &) const
	Correct patch non-ortho deltaCoeffs.
virtual void	makeNonOrthoCorrVectors (vectorField &) const
	Correct patch non-ortho correction vectors.
virtual void	initMovePoints ()
	Initialise the patches for moving points.
virtual void	movePoints ()
	Correct patches after moving points.
	TypeName (polyPatch::typeName_())
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, fvPatch, polyPatch,(const polyPatch &patch, const fvBoundaryMesh &bm),(patch, bm))
	fvPatch (const polyPatch &, const fvBoundaryMesh &)
	Construct from polyPatch and fvBoundaryMesh.
virtual	~fvPatch ()
	Destructor.
const polyPatch &	patch () const noexcept
	Return the polyPatch.
virtual const word &	name () const
	Return name.
label	index () const noexcept
	The index of this patch in the boundary mesh.
label	start () const noexcept
	The patch start within the polyMesh face list.
label	offset () const noexcept
	The offset of this patch within the boundary face list.
virtual label	size () const
	Patch size is the number of faces, but can be overloaded.
virtual bool	coupled () const
	Return true if this patch is coupled.
const fvBoundaryMesh &	boundaryMesh () const noexcept
	Return boundaryMesh reference.
template<class T>
const List< T >::subList	patchSlice (const UList< T > &values) const
	This patch slice from the complete list, which has size mesh::nFaces(), using the virtual patch size.
template<class T>
const List< T >::subList	boundarySlice (const UList< T > &values) const
	This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the virtual patch size.
const vectorField &	Cf () const
	Return face centres.
tmp< vectorField >	Cn () const
	Return neighbour cell centres.
const vectorField &	Sf () const
	Return face area vectors, like the fvMesh::Sf() method.
const scalarField &	magSf () const
	Return face area magnitudes, like the fvMesh::magSf() method.
tmp< vectorField >	unitSf () const
	Return face unit normals, like the fvMesh::unitSf() method. Same as nf().
tmp< vectorField >	nf () const
	Return face unit normals, like the fvMesh::unitSf() method Same as unitSf().
virtual tmp< vectorField >	delta () const
	Return cell-centre to face-centre vector except for coupled patches for which the cell-centre to coupled-cell-centre vector is returned.
const scalarField &	weights () const
	Return patch weighting factors.
const scalarField &	deltaCoeffs () const
	Return the face - cell distance coefficient except for coupled patches for which the cell-centre to coupled-cell-centre distance coefficient is returned.
template<class Type>
void	patchInternalField (const UList< Type > &internalData, const labelUList &addressing, UList< Type > &pfld) const
	Extract internal field next to patch using specified addressing.
template<class Type>
void	patchInternalField (const UList< Type > &internalData, UList< Type > &pfld) const
	Extract internal field next to patch as patch field using faceCells() mapping.
template<class Type>
tmp< Field< Type > >	patchInternalField (const UList< Type > &internalData) const
	Return given internal field next to patch as patch field using faceCells() mapping.
template<class GeometricField, class AnyType = bool>
const GeometricField::Patch &	patchField (const GeometricField &gf) const
	Return the patch field of the GeometricField corresponding to this patch.
template<class GeometricField, class AnyType = bool>
const GeometricField::Patch &	lookupPatchField (const word &name) const
	Lookup the named field from the local registry and return the patch field corresponding to this patch.
template<class GeometricField>
const GeometricField::Patch *	cfindPatchField (const word &name) const
	Find the named field (if any) from the local registry and return the patch field corresponding to this patch.
template<class Type>
Foam::tmp< Foam::Field< Type > >	patchInternalField (const UList< Type > &internalData) const
Public Member Functions inherited from lduInterface
	TypeNameNoDebug ("lduInterface")
	Runtime type information.
	lduInterface () noexcept=default
	Default construct.
virtual	~lduInterface ()=default
	Destructor.
Public Member Functions inherited from oversetLduInterface
	TypeNameNoDebug ("oversetLduInterface")
	Runtime type information.
	oversetLduInterface () noexcept=default
	Default construct.
virtual	~oversetLduInterface ()=default
	Destructor.

Additional Inherited Members
Public Types inherited from fvPatch
typedef fvBoundaryMesh	BoundaryMesh
	The boundary type associated with the patch.
Static Public Member Functions inherited from fvPatch
static autoPtr< fvPatch >	New (const polyPatch &, const fvBoundaryMesh &)
	Return a pointer to a new patch created on freestore from polyPatch.
static const fvPatch &	lookupPatch (const polyPatch &p)
	Lookup the polyPatch index on corresponding fvMesh.
static bool	constraintType (const word &patchType)
	Return true if the given type is a constraint type.
static wordList	constraintTypes ()
	Return a list of all the constraint patch types.

Detailed Description

Patch for indicating interpolated boundaries (in overset meshes).

Source files

Definition at line 51 of file oversetFvPatch.H.

Constructor & Destructor Documentation

◆ oversetFvPatch()

oversetFvPatch	(	const polyPatch &	patch,
		const fvBoundaryMesh &	bm )

inline

Construct from polyPatch.

Definition at line 75 of file oversetFvPatch.H.

References fvPatch::fvBoundaryMesh, fvPatch::patch(), and Foam::refCast().

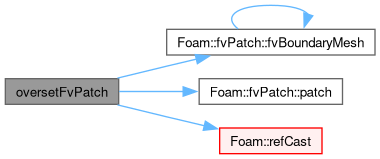

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( oversetPolyPatch::typeName_() )

Runtime type information.

◆ oversetPatch()

const oversetPolyPatch & oversetPatch ( ) const

inline

Return local reference cast into the overset patch.

Definition at line 89 of file oversetFvPatch.H.

◆ faceCells()

virtual const labelUList & faceCells ( ) const

inlinevirtual

Return faceCell addressing.

Reimplemented from fvPatch.

Definition at line 97 of file oversetFvPatch.H.

Referenced by initInternalFieldTransfer(), and interfaceInternalField().

Here is the caller graph for this function:

◆ master()

virtual bool master ( ) const

inlinevirtual

Am I the master interface.

Definition at line 105 of file oversetFvPatch.H.

Referenced by oversetFvPatchField< Type >::manipulateMatrix().

Here is the caller graph for this function:

◆ interfaceInternalField() [1/2]

Foam::tmp< Foam::labelField > interfaceInternalField ( const labelUList & internalData ) const

virtual

Return the values of the given internal data adjacent to the interface as a field.

Implements lduInterface.

Definition at line 39 of file oversetFvPatch.C.

References fvPatch::patchInternalField().

Here is the call graph for this function:

◆ interfaceInternalField() [2/2]

Foam::tmp< Foam::labelField > interfaceInternalField	(	const labelUList &	internalData,
		const labelUList &	faceCells ) const

virtual

Return the values of the given internal data adjacent to the interface as a field using faceCell mapping.

Implements lduInterface.

Definition at line 49 of file oversetFvPatch.C.

References faceCells(), tmp< T >::New(), fvPatch::patchInternalField(), and fvPatch::size().

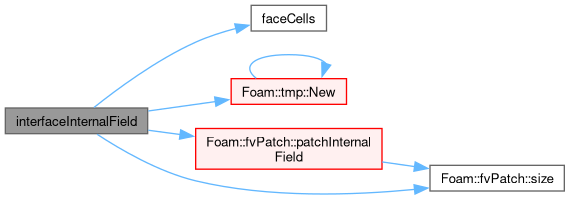

Here is the call graph for this function:

◆ initInternalFieldTransfer() [1/2]

void initInternalFieldTransfer	(	const Pstream::commsTypes	commsType,
		const labelUList &	iF ) const

virtual

Initialise transfer of internal field adjacent to the interface.

Reimplemented from lduInterface.

Definition at line 61 of file oversetFvPatch.C.

◆ initInternalFieldTransfer() [2/2]

void initInternalFieldTransfer	(	const Pstream::commsTypes	commsType,
		const labelUList &	iF,
		const labelUList &	faceCells ) const

virtual

Initialise transfer of internal field adjacent to the interface using faceCells mapping.

Reimplemented from lduInterface.

Definition at line 69 of file oversetFvPatch.C.

References faceCells().

Here is the call graph for this function:

◆ internalFieldTransfer() [1/2]

Foam::tmp< Foam::labelField > internalFieldTransfer	(	const Pstream::commsTypes	commsType,
		const labelUList &	iF ) const

virtual

Transfer and return internal field adjacent to the interface.

Implements lduInterface.

Definition at line 78 of file oversetFvPatch.C.

References tmp< T >::New().

Here is the call graph for this function:

◆ internalFieldTransfer() [2/2]

Foam::tmp< Foam::labelField > internalFieldTransfer	(	const Pstream::commsTypes	commsType,
		const labelUList &	iF,
		const labelUList &	nbrFaceCells ) const

virtual

Transfer and return internal field adjacent to the interface using nbrFaceCells mapping.

Definition at line 88 of file oversetFvPatch.C.

References tmp< T >::New(), and NotImplemented.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/overset/oversetPolyPatch/oversetFvPatch.H
src/overset/oversetPolyPatch/oversetFvPatch.C
