Processor patch boundary needs to be such that the ordering of points in the patch is the same on both sides. More...

#include <processorPointPatch.H>

Inheritance diagram for processorPointPatch:

[legend]

Collaboration diagram for processorPointPatch:

Public Member Functions
	TypeName (processorPolyPatch::typeName_())
	Runtime type information.
	processorPointPatch (const polyPatch &patch, const pointBoundaryMesh &bm)
	Construct from components.
	processorPointPatch (const processorPointPatch &patch, const pointBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const labelUList &reversePointMap)
	Construct given the original patch and a map.
virtual autoPtr< pointPatch >	clone (const pointBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const labelUList &reversePointMap) const
	Construct and return a subset clone, resetting the point list and boundary mesh.
virtual	~processorPointPatch ()=default
	Destructor.
virtual int	tag () const
	Return message tag to use for communication.
virtual label	comm () const
	Return communicator used for communication.
virtual const word &	constraintType () const
	Return the constraint type this pointPatch implements.
int	myProcNo () const noexcept
	Return processor number.
int	neighbProcNo () const noexcept
	Return neighbour processor number.
bool	owner () const
	Does the processor own the patch ?
bool	neighbour () const
	Is the processor the patch neighbour ?
const processorPolyPatch &	procPolyPatch () const noexcept
	Return the underlying processorPolyPatch.
const labelList &	reverseMeshPoints () const noexcept
	Return mesh points in the correct order for the receiving side.
Public Member Functions inherited from coupledFacePointPatch
	TypeName (coupledPolyPatch::typeName_())
	Runtime type information.
	coupledFacePointPatch (const polyPatch &patch, const pointBoundaryMesh &bm)
	Construct from components.
	coupledFacePointPatch (const coupledFacePointPatch &pp, const pointBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const labelUList &reversePointMap)
	Construct given the original patch and a map.
virtual	~coupledFacePointPatch ()=default
	Destructor.
Public Member Functions inherited from facePointPatch
	TypeName (polyPatch::typeName_())
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, facePointPatch, polyPatch,(const polyPatch &patch, const pointBoundaryMesh &bm),(patch, bm))
	facePointPatch (const polyPatch &p, const pointBoundaryMesh &pm)
	Construct from polyPatch and boundary mesh.
	facePointPatch (const facePointPatch &pp, const pointBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const labelUList &reversePointMap)
	Construct given the original patch and a map.
virtual	~facePointPatch ()=default
	Destructor.
virtual const polyPatch &	patch () const
	Return the polyPatch.
virtual const word &	name () const
	Return name.
virtual label	size () const
	Return size.
virtual label	index () const
	Return the index of this patch in the pointBoundaryMesh.
virtual bool	coupled () const
	Return true if this patch field is coupled.
virtual const labelList &	meshPoints () const
	Return mesh points.
virtual const pointField &	localPoints () const
	Return pointField of points in patch.
virtual const vectorField &	pointNormals () const
	Return point unit normals.
Public Member Functions inherited from pointPatch
	TypeName ("basePatch")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, pointPatch, dictionary,(const word &name, const dictionary &dict, const label index, const pointBoundaryMesh &bm, const word &patchType),(name, dict, index, bm, patchType))
	pointPatch (const word &name, const label index, const pointBoundaryMesh &bm, const word &physicalType, const wordList &inGroups)
	Construct from components.
	pointPatch (const word &name, const dictionary &dict, const label index, const pointBoundaryMesh &bm)
	Construct from dictionary.
	pointPatch (const pointPatch &pp, const pointBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const labelUList &reversePointMap)
	Construct given the original patch and a map.
virtual	~pointPatch ()=default
	Destructor.
const pointBoundaryMesh &	boundaryMesh () const
	Return boundaryMesh reference.
virtual void	applyConstraint (const label pointi, pointConstraint &) const
	Accumulate the effect of constraint direction of this patch.
virtual void	write (Ostream &) const
	Write the pointPatch data as a dictionary.
Public Member Functions inherited from patchIdentifier
	patchIdentifier (const patchIdentifier &)=default
	Copy construct.
	patchIdentifier (patchIdentifier &&)=default
	Move construct.
patchIdentifier &	operator= (const patchIdentifier &)=default
	Copy assignment.
patchIdentifier &	operator= (patchIdentifier &&)=default
	Move assignment.
virtual	~patchIdentifier ()=default
	Destructor.
	patchIdentifier ()
	Default construct: name="", index=0.
	patchIdentifier (const word &name, const label index)
	Construct from mandatory components.
	patchIdentifier (const word &name, const label index, const word &physicalType, const wordList &inGroups=wordList())
	Construct from components.
	patchIdentifier (const word &name, const dictionary &dict, const label index)
	Construct from dictionary.
	patchIdentifier (const patchIdentifier &ident, const label newIndex)
	Copy construct, resetting the index (if non-negative).
	patchIdentifier (patchIdentifier &&ident, const label newIndex)
	Move construct, resetting the index (if non-negative).
const word &	name () const noexcept
	The patch name.
word &	name () noexcept
	Modifiable patch name.
label	index () const noexcept
	The index of this patch in the boundaryMesh.
label &	index () noexcept
	Modifiable index of this patch in the boundaryMesh.
const word &	physicalType () const noexcept
	The (optional) physical type of the patch.
word &	physicalType () noexcept
	Modifiable (optional) physical type of the patch.
const wordList &	inGroups () const noexcept
	The (optional) groups that the patch belongs to.
wordList &	inGroups () noexcept
	Modifiable (optional) groups that the patch belongs to.
bool	inGroup (const word &name) const
	True if given name is in a group.
void	addGroup (const word &name)
	Add (unique) group for the patch.
void	removeGroup (const word &name)
	Remove group for the patch.
void	write (Ostream &os) const
	Write (physicalType, inGroups) dictionary entries (without surrounding braces).
Public Member Functions inherited from coupledPointPatch
	TypeName (coupledPolyPatch::typeName_())
	Runtime type information.
	coupledPointPatch (const pointBoundaryMesh &bm)
	Construct from components.
virtual	~coupledPointPatch ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from facePointPatch
static autoPtr< facePointPatch >	New (const polyPatch &, const pointBoundaryMesh &)
	Return a pointer to a new patch created on freestore from polyPatch.
Static Public Member Functions inherited from pointPatch
static autoPtr< pointPatch >	New (const word &name, const dictionary &dict, const label index, const pointBoundaryMesh &)
	Return a pointer to a new patch created on freestore. Returns null if not found.
Static Public Member Functions inherited from patchIdentifier
static word	defaultName (const label n=-1)
	Default patch name: "patch" or "patchN".
Protected Member Functions inherited from coupledFacePointPatch
	coupledFacePointPatch (const coupledFacePointPatch &)=delete
	No copy construct.
void	operator= (const coupledFacePointPatch &)=delete
	No copy assignment.
Protected Member Functions inherited from facePointPatch
	facePointPatch (const facePointPatch &)=delete
	No copy construct.
void	operator= (const facePointPatch &)=delete
	No copy assignment.
Protected Member Functions inherited from pointPatch
	pointPatch (const pointPatch &)=delete
	No copy construct.
void	operator= (const pointPatch &)=delete
	No copy assignment.
Protected Member Functions inherited from coupledPointPatch
	coupledPointPatch (const coupledPointPatch &)=delete
	No copy construct.
void	operator= (const coupledPointPatch &)=delete
	No copy assignment.
Protected Attributes inherited from facePointPatch
const polyPatch &	polyPatch_
	Reference to the underlying polyPatch.

Detailed Description

Processor patch boundary needs to be such that the ordering of points in the patch is the same on both sides.

Looking at the creation of the faces on both sides of the processor patch they need to be identical on both sides with the normals pointing in opposite directions. This is achieved by calling the reverseFace function in the decomposition. It is therefore possible to re-create the ordering of patch points on the neighbour side by reversing all the patch faces of the owner.

Source files

Definition at line 56 of file processorPointPatch.H.

Constructor & Destructor Documentation

◆ processorPointPatch() [1/2]

processorPointPatch	(	const polyPatch &	patch,
		const pointBoundaryMesh &	bm )

Construct from components.

Definition at line 102 of file processorPointPatch.C.

References coupledFacePointPatch::coupledFacePointPatch(), facePointPatch::patch(), and Foam::refCast().

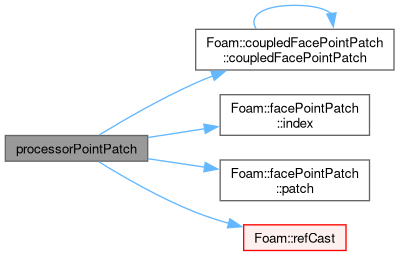

Here is the call graph for this function:

◆ processorPointPatch() [2/2]

processorPointPatch	(	const processorPointPatch &	patch,
		const pointBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const labelUList &	reversePointMap )

Construct given the original patch and a map.

Definition at line 113 of file processorPointPatch.C.

References coupledFacePointPatch::coupledFacePointPatch(), facePointPatch::index(), facePointPatch::patch(), and Foam::refCast().

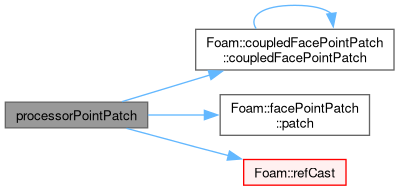

Here is the call graph for this function:

◆ ~processorPointPatch()

virtual ~processorPointPatch ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( processorPolyPatch::typeName_() )

Runtime type information.

References facePointPatch::index(), and facePointPatch::patch().

Here is the call graph for this function:

◆ clone()

virtual autoPtr< pointPatch > clone	(	const pointBoundaryMesh &	bm,
		const label	index,
		const labelUList &	mapAddressing,
		const labelUList &	reversePointMap ) const

inlinevirtual

Construct and return a subset clone, resetting the point list and boundary mesh.

Reimplemented from facePointPatch.

Reimplemented in processorCyclicPointPatch.

Definition at line 145 of file processorPointPatch.H.

References facePointPatch::index(), and autoPtr< T >::NewFrom().

Here is the call graph for this function:

◆ tag()

virtual int tag ( ) const

inlinevirtual

Return message tag to use for communication.

Reimplemented in processorCyclicPointPatch.

Definition at line 175 of file processorPointPatch.H.

◆ comm()

virtual label comm ( ) const

inlinevirtual

Return communicator used for communication.

Definition at line 183 of file processorPointPatch.H.

◆ constraintType()

virtual const word & constraintType ( ) const

inlinevirtual

Return the constraint type this pointPatch implements.

Reimplemented from pointPatch.

Definition at line 191 of file processorPointPatch.H.

References Foam::type().

Here is the call graph for this function:

◆ myProcNo()

int myProcNo ( ) const

inlinenoexcept

Return processor number.

Definition at line 199 of file processorPointPatch.H.

References Foam::noexcept.

◆ neighbProcNo()

int neighbProcNo ( ) const

inlinenoexcept

Return neighbour processor number.

Definition at line 207 of file processorPointPatch.H.

References Foam::noexcept.

◆ owner()

bool owner ( ) const

inline

Does the processor own the patch ?

Definition at line 215 of file processorPointPatch.H.

Referenced by neighbour().

Here is the caller graph for this function:

◆ neighbour()

bool neighbour ( ) const

inline

Is the processor the patch neighbour ?

Definition at line 223 of file processorPointPatch.H.

References owner().

Here is the call graph for this function:

◆ procPolyPatch()

const processorPolyPatch & procPolyPatch ( ) const

inlinenoexcept

Return the underlying processorPolyPatch.

Definition at line 231 of file processorPointPatch.H.

References Foam::noexcept.

◆ reverseMeshPoints()

const labelList & reverseMeshPoints ( ) const

inlinenoexcept

Return mesh points in the correct order for the receiving side.

Definition at line 239 of file processorPointPatch.H.

References Foam::noexcept.

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/pointMesh/pointPatches/constraint/processor/processorPointPatch.H
src/OpenFOAM/meshes/pointMesh/pointPatches/constraint/processor/processorPointPatch.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ processorPointPatch() [1/2]

◆ processorPointPatch() [2/2]

◆ ~processorPointPatch()

Member Function Documentation

◆ TypeName()

◆ clone()

◆ tag()

◆ comm()

◆ constraintType()

◆ myProcNo()

◆ neighbProcNo()

◆ owner()

◆ neighbour()

◆ procPolyPatch()

◆ reverseMeshPoints()
