Lookup type of boundary radiation properties. More...

#include <lookup.H>

Inheritance diagram for lookup:

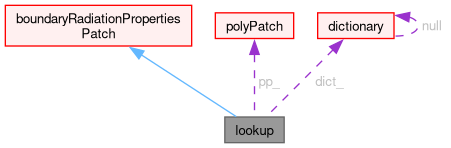

Collaboration diagram for lookup:

[legend]

Public Member Functions
	TypeName ("lookup")
	Runtime type information.
	lookup (const dictionary &dict, const polyPatch &pp)
	Construct from components.
virtual	~lookup ()=default
	Destructor.
virtual tmp< scalarField >	e (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return emissivity.
virtual scalar	e (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return emissivity on face.
virtual tmp< scalarField >	a (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return absorptivity on patch.
virtual scalar	a (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return absorptivity on face.
virtual tmp< scalarField >	t (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return transmissivity on patch (default: 0).
virtual scalar	t (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return transmissivity on face (default: 0).
virtual tmp< scalarField >	rSpec (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return specular reflectivity on patch.
virtual scalar	rSpec (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return specular reflectivity on face.
virtual tmp< scalarField >	rDiff (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return diffusive reflectivity on patch.
virtual scalar	rDiff (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return diffusive reflectivity on face.
virtual bool	isGrey () const
	Is Grey.
virtual label	nBands () const
	Number of bands.
Public Member Functions inherited from boundaryRadiationPropertiesPatch
	TypeName ("boundaryRadiationPropertiesPatch")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, boundaryRadiationPropertiesPatch, dictionary,(const dictionary &dict, const polyPatch &pp),(dict, pp))
	boundaryRadiationPropertiesPatch (const dictionary &, const polyPatch &)
	Construct from patch, internal field and dictionary.
virtual	~boundaryRadiationPropertiesPatch ()=default
	Destructor.
const wallAbsorptionEmissionModel &	absorptionEmission () const
	Return absorptionEmissionModel.
const wallTransmissivityModel &	transmissiveModel () const
	Return transmissivityModel.
virtual void	write (Ostream &) const
	Write.

Protected Attributes
const polyPatch &	pp_
	Reference to the polyPatch.
const dictionary	dict_
	Dictionary.
Protected Attributes inherited from boundaryRadiationPropertiesPatch
autoPtr< wallAbsorptionEmissionModel >	absorptionEmission_
	Absorption/emission model.
autoPtr< wallTransmissivityModel >	transmissivity_
	Transmissivity model.

Additional Inherited Members
Static Public Member Functions inherited from boundaryRadiationPropertiesPatch
static autoPtr< boundaryRadiationPropertiesPatch >	New (const dictionary &dict, const polyPatch &pp)
	Selector.

Detailed Description

Lookup type of boundary radiation properties.

Usage

    wallAbsorptionEmissionModel
    {
        type            lookup;
        absorptivity    0.1;
        emissivity      0.1;
        transmissivity  0;
    }

Definition at line 57 of file lookup.H.

Constructor & Destructor Documentation

◆ lookup()

lookup	(	const dictionary &	dict,
		const polyPatch &	pp )

Construct from components.

Definition at line 43 of file lookup.C.

References boundaryRadiationPropertiesPatch::boundaryRadiationPropertiesPatch(), dict, dict_, pp(), and pp_.

Here is the call graph for this function:

◆ ~lookup()

virtual ~lookup ( )

virtualdefault

Destructor.

References Foam::T().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "lookup" )

Runtime type information.

References dict, and pp().

Here is the call graph for this function:

◆ e() [1/2]

Foam::tmp< Foam::scalarField > e	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return emissivity.

Implements boundaryRadiationPropertiesPatch.

Definition at line 57 of file lookup.C.

References dict_, tmp< T >::New(), pp_, and Foam::T().

Here is the call graph for this function:

◆ e() [2/2]

Foam::scalar e	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return emissivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 72 of file lookup.C.

References dict_, and Foam::T().

Here is the call graph for this function:

◆ a() [1/2]

Foam::tmp< Foam::scalarField > a	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return absorptivity on patch.

Implements boundaryRadiationPropertiesPatch.

Definition at line 84 of file lookup.C.

References dict_, tmp< T >::New(), pp_, and Foam::T().

Here is the call graph for this function:

◆ a() [2/2]

Foam::scalar a	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return absorptivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 99 of file lookup.C.

References dict_, and Foam::T().

Here is the call graph for this function:

◆ t() [1/2]

Foam::tmp< Foam::scalarField > t	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return transmissivity on patch (default: 0).

Implements boundaryRadiationPropertiesPatch.

Definition at line 111 of file lookup.C.

References dict_, tmp< T >::New(), pp_, and Foam::T().

Here is the call graph for this function:

◆ t() [2/2]

Foam::scalar t	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return transmissivity on face (default: 0).

Implements boundaryRadiationPropertiesPatch.

Definition at line 126 of file lookup.C.

References dict_, and Foam::T().

Here is the call graph for this function:

◆ rSpec() [1/2]

Foam::tmp< Foam::scalarField > rSpec	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return specular reflectivity on patch.

Implements boundaryRadiationPropertiesPatch.

Definition at line 138 of file lookup.C.

References tmp< T >::New(), pp_, Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ rSpec() [2/2]

Foam::scalar rSpec	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return specular reflectivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 149 of file lookup.C.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ rDiff() [1/2]

Foam::tmp< Foam::scalarField > rDiff	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return diffusive reflectivity on patch.

Implements boundaryRadiationPropertiesPatch.

Definition at line 161 of file lookup.C.

References tmp< T >::New(), pp_, Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ rDiff() [2/2]

Foam::scalar rDiff	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return diffusive reflectivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 172 of file lookup.C.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ isGrey()

bool isGrey ( ) const

virtual

Is Grey.

Implements boundaryRadiationPropertiesPatch.

Definition at line 184 of file lookup.C.

◆ nBands()

Foam::label nBands ( ) const

virtual

Number of bands.

Implements boundaryRadiationPropertiesPatch.

Definition at line 190 of file lookup.C.

Member Data Documentation

◆ pp_

const polyPatch& pp_

protected

Reference to the polyPatch.

Definition at line 68 of file lookup.H.

Referenced by a(), e(), lookup(), rDiff(), rSpec(), and t().

◆ dict_

const dictionary dict_

protected

Dictionary.

Definition at line 73 of file lookup.H.

Referenced by a(), a(), e(), e(), lookup(), t(), and t().

The documentation for this class was generated from the following files:

src/thermophysicalModels/radiation/submodels/boundaryRadiationProperties/lookup/lookup.H
src/thermophysicalModels/radiation/submodels/boundaryRadiationProperties/lookup/lookup.C
