#include <boundaryRadiationPropertiesPatch.H>

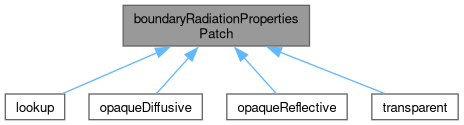

Inheritance diagram for boundaryRadiationPropertiesPatch:

[legend]

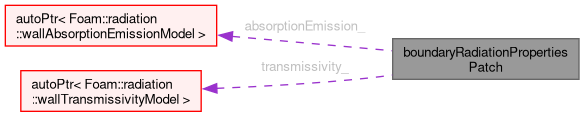

Collaboration diagram for boundaryRadiationPropertiesPatch:

[legend]

Public Member Functions
	TypeName ("boundaryRadiationPropertiesPatch")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, boundaryRadiationPropertiesPatch, dictionary,(const dictionary &dict, const polyPatch &pp),(dict, pp))
	boundaryRadiationPropertiesPatch (const dictionary &, const polyPatch &)
	Construct from patch, internal field and dictionary.
virtual	~boundaryRadiationPropertiesPatch ()=default
	Destructor.
const wallAbsorptionEmissionModel &	absorptionEmission () const
	Return absorptionEmissionModel.
const wallTransmissivityModel &	transmissiveModel () const
	Return transmissivityModel.
virtual tmp< scalarField >	e (const label bandI=0, const vectorField incomingDirection=nullptr, const scalarField T=nullptr) const =0
	Return emissivity on patch.
virtual scalar	e (const label faceI, const label bandI=0, const vector &dir=Zero, const scalar T=0) const =0
	Return emissivity on face.
virtual tmp< scalarField >	a (const label bandI=0, const vectorField incomingDirection=nullptr, const scalarField T=nullptr) const =0
	Return absorptivity on patch.
virtual scalar	a (const label faceI, const label bandI=0, const vector &dir=Zero, const scalar T=0) const =0
	Return absorptivity on face.
virtual tmp< scalarField >	t (const label bandI=0, const vectorField incomingDirection=nullptr, const scalarField T=nullptr) const =0
	Return transmissivity on patch.
virtual scalar	t (const label faceI, const label bandI=0, const vector &dir=Zero, const scalar T=0) const =0
	Return transmissivity on face.
virtual tmp< scalarField >	rSpec (const label bandI=0, const vectorField incomingDirection=nullptr, const scalarField T=nullptr) const =0
	Return specular reflectivity on patch.
virtual scalar	rSpec (const label faceI, const label bandI=0, const vector &dir=Zero, const scalar T=0) const =0
	Return specular reflectivity on face.
virtual tmp< scalarField >	rDiff (const label bandI=0, const vectorField incomingDirection=nullptr, const scalarField T=nullptr) const =0
	Return diffusive reflectivity on patch.
virtual scalar	rDiff (const label faceI, const label bandI=0, const vector &dir=Zero, const scalar T=0) const =0
	Return diffusive reflectivity on face.
virtual bool	isGrey () const =0
	Is Grey.
virtual label	nBands () const =0
	Number of bands.
virtual void	write (Ostream &) const
	Write.

Static Public Member Functions
static autoPtr< boundaryRadiationPropertiesPatch >	New (const dictionary &dict, const polyPatch &pp)
	Selector.

Protected Attributes
autoPtr< wallAbsorptionEmissionModel >	absorptionEmission_
	Absorption/emission model.
autoPtr< wallTransmissivityModel >	transmissivity_
	Transmissivity model.

Detailed Description

Definition at line 52 of file boundaryRadiationPropertiesPatch.H.

Constructor & Destructor Documentation

◆ boundaryRadiationPropertiesPatch()

boundaryRadiationPropertiesPatch	(	const dictionary &	dict,
		const polyPatch &	p )

Construct from patch, internal field and dictionary.

Definition at line 96 of file boundaryRadiationPropertiesPatch.C.

References absorptionEmission_, dict, p, and transmissivity_.

Referenced by declareRunTimeSelectionTable(), lookup::lookup(), opaqueDiffusive::opaqueDiffusive(), opaqueReflective::opaqueReflective(), and transparent::transparent().

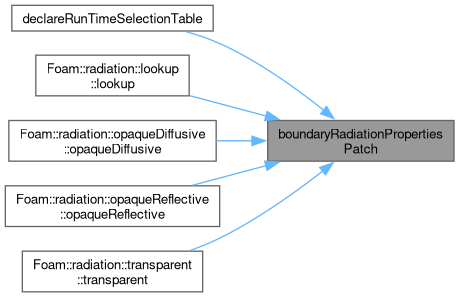

Here is the caller graph for this function:

◆ ~boundaryRadiationPropertiesPatch()

virtual ~boundaryRadiationPropertiesPatch ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "boundaryRadiationPropertiesPatch" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		boundaryRadiationPropertiesPatch	,
		dictionary	,
		(const dictionary &dict, const polyPatch &pp)	,
		(dict, pp)	)

References boundaryRadiationPropertiesPatch(), dict, and pp().

Here is the call graph for this function:

◆ New()

Foam::autoPtr< Foam::radiation::boundaryRadiationPropertiesPatch > New	(	const dictionary &	dict,
		const polyPatch &	pp )

static

Selector.

Definition at line 43 of file boundaryRadiationPropertiesPatch.C.

References dict, and pp().

Referenced by boundaryRadiationProperties::boundaryRadiationProperties().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ absorptionEmission()

const Foam::radiation::wallAbsorptionEmissionModel & absorptionEmission ( ) const

Return absorptionEmissionModel.

Definition at line 113 of file boundaryRadiationPropertiesPatch.C.

References absorptionEmission_.

◆ transmissiveModel()

const Foam::radiation::wallTransmissivityModel & transmissiveModel ( ) const

Return transmissivityModel.

Definition at line 120 of file boundaryRadiationPropertiesPatch.C.

References transmissivity_.

◆ e() [1/2]

virtual tmp< scalarField > e	(	const label	bandI = 0,
		const vectorField *	incomingDirection = nullptr,
		const scalarField *	T = nullptr ) const

pure virtual

Return emissivity on patch.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T().

Here is the call graph for this function:

◆ e() [2/2]

virtual scalar e	(	const label	faceI,
		const label	bandI = 0,
		const vector &	dir = Zero,
		const scalar	T = 0 ) const

pure virtual

Return emissivity on face.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ a() [1/2]

virtual tmp< scalarField > a	(	const label	bandI = 0,
		const vectorField *	incomingDirection = nullptr,
		const scalarField *	T = nullptr ) const

pure virtual

Return absorptivity on patch.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T().

Here is the call graph for this function:

◆ a() [2/2]

virtual scalar a	(	const label	faceI,
		const label	bandI = 0,
		const vector &	dir = Zero,
		const scalar	T = 0 ) const

pure virtual

Return absorptivity on face.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ t() [1/2]

virtual tmp< scalarField > t	(	const label	bandI = 0,
		const vectorField *	incomingDirection = nullptr,
		const scalarField *	T = nullptr ) const

pure virtual

Return transmissivity on patch.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T().

Here is the call graph for this function:

◆ t() [2/2]

virtual scalar t	(	const label	faceI,
		const label	bandI = 0,
		const vector &	dir = Zero,
		const scalar	T = 0 ) const

pure virtual

Return transmissivity on face.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ rSpec() [1/2]

virtual tmp< scalarField > rSpec	(	const label	bandI = 0,
		const vectorField *	incomingDirection = nullptr,
		const scalarField *	T = nullptr ) const

pure virtual

Return specular reflectivity on patch.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T().

Here is the call graph for this function:

◆ rSpec() [2/2]

virtual scalar rSpec	(	const label	faceI,
		const label	bandI = 0,
		const vector &	dir = Zero,
		const scalar	T = 0 ) const

pure virtual

Return specular reflectivity on face.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ rDiff() [1/2]

virtual tmp< scalarField > rDiff	(	const label	bandI = 0,
		const vectorField *	incomingDirection = nullptr,
		const scalarField *	T = nullptr ) const

pure virtual

Return diffusive reflectivity on patch.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T().

Here is the call graph for this function:

◆ rDiff() [2/2]

virtual scalar rDiff	(	const label	faceI,
		const label	bandI = 0,
		const vector &	dir = Zero,
		const scalar	T = 0 ) const

pure virtual

Return diffusive reflectivity on face.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ isGrey()

virtual bool isGrey ( ) const

pure virtual

Is Grey.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

◆ nBands()

virtual label nBands ( ) const

pure virtual

Number of bands.

Implemented in lookup, opaqueDiffusive, opaqueReflective, and transparent.

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 126 of file boundaryRadiationPropertiesPatch.C.

References NotImplemented, and os().

Here is the call graph for this function:

Member Data Documentation

◆ absorptionEmission_

autoPtr<wallAbsorptionEmissionModel> absorptionEmission_

protected

◆ transmissivity_

autoPtr<wallTransmissivityModel> transmissivity_

protected

Transmissivity model.

Definition at line 92 of file boundaryRadiationPropertiesPatch.H.

Referenced by boundaryRadiationPropertiesPatch(), and transmissiveModel().

The documentation for this class was generated from the following files:

src/thermophysicalModels/radiation/submodels/boundaryRadiationProperties/boundaryRadiationPropertiesPatch.H
src/thermophysicalModels/radiation/submodels/boundaryRadiationProperties/boundaryRadiationPropertiesPatch.C
