Radiation boundary model for opaque reflective walls. It requires to specify a wallAbsorptionEmissionModel and the reflected fraction in boundaryRadiationProperties file fd is the diffusive reflected fraction. 0 all the incoming flux is specularly reflected and 1 all is diffusive reflected. fd is used in the calculation of the specular reflection (rSpec) and the diffusive reflection (rDiff). Absorptivity and emissivity are independent of fd. More...

#include <opaqueReflective.H>

Inheritance diagram for opaqueReflective:

[legend]

Collaboration diagram for opaqueReflective:

[legend]

Public Member Functions
	TypeName ("opaqueReflective")
	Runtime type information.
	opaqueReflective (const dictionary &dict, const polyPatch &pp)
	Construct from components.
virtual	~opaqueReflective ()=default
	Destructor.
virtual tmp< scalarField >	e (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return emissivity.
virtual scalar	e (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return emissivity on face.
virtual tmp< scalarField >	a (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return absorptivity on patch.
virtual scalar	a (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return absorptivity on face.
virtual tmp< scalarField >	t (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return transmissivity on patch.
virtual scalar	t (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return transmissivity on face.
virtual tmp< scalarField >	rSpec (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return specular reflectivity on patch.
virtual scalar	rSpec (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return specular reflectivity on face.
virtual tmp< scalarField >	rDiff (const label bandI, const vectorField incomingDirection, const scalarField T) const
	Return diffusive reflectivity on patch.
virtual scalar	rDiff (const label faceI, const label bandI, const vector &dir, const scalar T) const
	Return diffusive reflectivity on face.
virtual bool	isGrey () const
	Is Grey.
virtual label	nBands () const
	Number of bands.
Public Member Functions inherited from boundaryRadiationPropertiesPatch
	TypeName ("boundaryRadiationPropertiesPatch")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, boundaryRadiationPropertiesPatch, dictionary,(const dictionary &dict, const polyPatch &pp),(dict, pp))
	boundaryRadiationPropertiesPatch (const dictionary &, const polyPatch &)
	Construct from patch, internal field and dictionary.
virtual	~boundaryRadiationPropertiesPatch ()=default
	Destructor.
const wallAbsorptionEmissionModel &	absorptionEmission () const
	Return absorptionEmissionModel.
const wallTransmissivityModel &	transmissiveModel () const
	Return transmissivityModel.
virtual void	write (Ostream &) const
	Write.

Protected Attributes
const polyPatch &	pp_
	Reference to the polyPatch.
const scalar	fd_
	Diffuse fraction.
Protected Attributes inherited from boundaryRadiationPropertiesPatch
autoPtr< wallAbsorptionEmissionModel >	absorptionEmission_
	Absorption/emission model.
autoPtr< wallTransmissivityModel >	transmissivity_
	Transmissivity model.

Additional Inherited Members
Static Public Member Functions inherited from boundaryRadiationPropertiesPatch
static autoPtr< boundaryRadiationPropertiesPatch >	New (const dictionary &dict, const polyPatch &pp)
	Selector.

Detailed Description

Radiation boundary model for opaque reflective walls. It requires to specify a wallAbsorptionEmissionModel and the reflected fraction in boundaryRadiationProperties file fd is the diffusive reflected fraction. 0 all the incoming flux is specularly reflected and 1 all is diffusive reflected. fd is used in the calculation of the specular reflection (rSpec) and the diffusive reflection (rDiff). Absorptivity and emissivity are independent of fd.

Usage

    type        opaqueReflective;

    fd          0.0;

    wallAbsorptionEmissionModel
    {
        type            multiBandAbsorption;
        absorptivity    (0.3 0.7);
        emissivity      (0.3 0.7);
    };

Definition at line 66 of file opaqueReflective.H.

Constructor & Destructor Documentation

◆ opaqueReflective()

opaqueReflective	(	const dictionary &	dict,
		const polyPatch &	pp )

Construct from components.

Definition at line 43 of file opaqueReflective.C.

References boundaryRadiationPropertiesPatch::absorptionEmission_, boundaryRadiationPropertiesPatch::boundaryRadiationPropertiesPatch(), dict, fd_, wallAbsorptionEmissionModel::New(), pp(), and pp_.

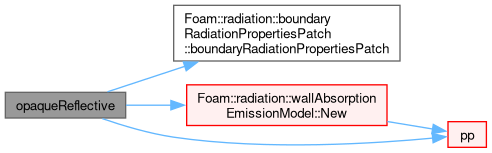

Here is the call graph for this function:

◆ ~opaqueReflective()

virtual ~opaqueReflective ( )

virtualdefault

Destructor.

References Foam::T().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "opaqueReflective" )

Runtime type information.

References dict, and pp().

Here is the call graph for this function:

◆ e() [1/2]

Foam::tmp< Foam::scalarField > e	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return emissivity.

Implements boundaryRadiationPropertiesPatch.

Definition at line 65 of file opaqueReflective.C.

References boundaryRadiationPropertiesPatch::absorptionEmission_, and Foam::T().

Here is the call graph for this function:

◆ e() [2/2]

Foam::scalar e	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return emissivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 76 of file opaqueReflective.C.

References boundaryRadiationPropertiesPatch::absorptionEmission_, and Foam::T().

Here is the call graph for this function:

◆ a() [1/2]

Foam::tmp< Foam::scalarField > a	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return absorptivity on patch.

Implements boundaryRadiationPropertiesPatch.

Definition at line 88 of file opaqueReflective.C.

References boundaryRadiationPropertiesPatch::absorptionEmission_, and Foam::T().

Referenced by rDiff(), rDiff(), rSpec(), and rSpec().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ a() [2/2]

Foam::scalar a	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return absorptivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 99 of file opaqueReflective.C.

References boundaryRadiationPropertiesPatch::absorptionEmission_, and Foam::T().

Here is the call graph for this function:

◆ t() [1/2]

Foam::tmp< Foam::scalarField > t	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return transmissivity on patch.

Implements boundaryRadiationPropertiesPatch.

Definition at line 111 of file opaqueReflective.C.

References tmp< T >::New(), pp_, Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ t() [2/2]

Foam::scalar t	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return transmissivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 122 of file opaqueReflective.C.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

◆ rSpec() [1/2]

Foam::tmp< Foam::scalarField > rSpec	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return specular reflectivity on patch.

Implements boundaryRadiationPropertiesPatch.

Definition at line 134 of file opaqueReflective.C.

References a(), fd_, and Foam::T().

Here is the call graph for this function:

◆ rSpec() [2/2]

Foam::scalar rSpec	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return specular reflectivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 145 of file opaqueReflective.C.

References a(), fd_, and Foam::T().

Here is the call graph for this function:

◆ rDiff() [1/2]

Foam::tmp< Foam::scalarField > rDiff	(	const label	bandI,
		const vectorField *	incomingDirection,
		const scalarField *	T ) const

virtual

Return diffusive reflectivity on patch.

Implements boundaryRadiationPropertiesPatch.

Definition at line 157 of file opaqueReflective.C.

References a(), fd_, and Foam::T().

Here is the call graph for this function:

◆ rDiff() [2/2]

Foam::scalar rDiff	(	const label	faceI,
		const label	bandI,
		const vector &	dir,
		const scalar	T ) const

virtual

Return diffusive reflectivity on face.

Implements boundaryRadiationPropertiesPatch.

Definition at line 168 of file opaqueReflective.C.

References a(), fd_, and Foam::T().

Here is the call graph for this function:

◆ isGrey()

bool isGrey ( ) const

virtual

Is Grey.

Implements boundaryRadiationPropertiesPatch.

Definition at line 180 of file opaqueReflective.C.

References boundaryRadiationPropertiesPatch::absorptionEmission_.

◆ nBands()

Foam::label nBands ( ) const

virtual

Number of bands.

Implements boundaryRadiationPropertiesPatch.

Definition at line 186 of file opaqueReflective.C.

References boundaryRadiationPropertiesPatch::absorptionEmission_.

Member Data Documentation

◆ pp_

const polyPatch& pp_

protected

Reference to the polyPatch.

Definition at line 78 of file opaqueReflective.H.

Referenced by opaqueReflective(), and t().

◆ fd_

const scalar fd_

protected

Diffuse fraction.

Definition at line 83 of file opaqueReflective.H.

Referenced by opaqueReflective(), rDiff(), rDiff(), rSpec(), and rSpec().

The documentation for this class was generated from the following files:

src/thermophysicalModels/radiation/submodels/boundaryRadiationProperties/opaqueReflective/opaqueReflective.H
src/thermophysicalModels/radiation/submodels/boundaryRadiationProperties/opaqueReflective/opaqueReflective.C
