Encapsulates queries for features. More...

#include <refinementFeatures.H>

Inheritance diagram for refinementFeatures:

Collaboration diagram for refinementFeatures:

Public Member Functions
	refinementFeatures (const objectRegistry &io, const PtrList< dictionary > &featDicts, const bool dryRun=false)
	Construct from description.
const labelListList &	levels () const
	Per featureEdgeMesh the list of level.
const List< scalarField > &	distances () const
	Per featureEdgeMesh the list of ranges.
scalar	maxDistance () const
	Highest distance of all features.
void	findNearestEdge (const pointField &samples, const scalarField &nearestDistSqr, labelList &nearFeature, List< pointIndexHit > &nearInfo, vectorField &nearNormal) const
	Find nearest point on nearest feature edge. Sets.
void	findNearestRegionEdge (const pointField &samples, const scalarField &nearestDistSqr, labelList &nearFeature, List< pointIndexHit > &nearInfo, vectorField &nearNormal) const
	Find nearest point on nearest region edge. Sets.
void	findNearestPoint (const pointField &samples, const scalarField &nearestDistSqr, labelList &nearFeature, List< pointIndexHit > &nearInfo) const
	Find nearest feature point. Sets.
void	findHigherLevel (const pointField &pt, const labelList &ptLevel, labelList &maxLevel) const
	Find shell level higher than ptLevel.

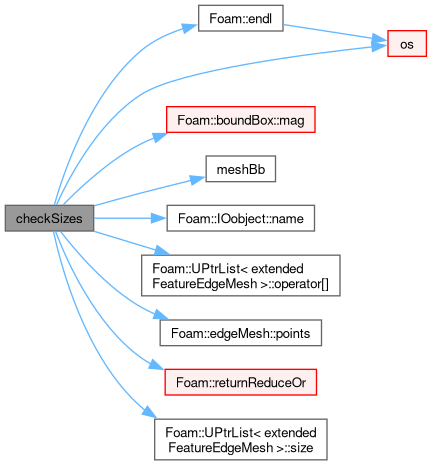

bool	checkSizes (const scalar maxRatio, const boundBox &meshBb, const bool report, Ostream &os) const
	Check sizes - return true if error and stream to os.
Public Member Functions inherited from PtrList< extendedFeatureEdgeMesh >
Foam::PtrList< extendedFeatureEdgeMesh >	clone (Args &&... args) const
constexpr	PtrList () noexcept
	Default construct.
	~PtrList ()
	Destructor. Frees all pointers.
const extendedFeatureEdgeMesh *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Clear the PtrList. Delete allocated entries and set size to zero.
void	free ()
	Free memory and nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Adjust size of PtrList.
void	resize_null (const label newLen)
	Set the addressed list to the given size, deleting all existing entries. Afterwards the list contains all `nullptr` entries.
extendedFeatureEdgeMesh &	emplace_back (Args &&... args)
	Construct and append an element to the end of the list, return reference to the new list element.
void	push_back (extendedFeatureEdgeMesh *ptr)
	Append an element to the end of the list.
extendedFeatureEdgeMesh &	emplace_set (const label i, Args &&... args)
	Construct and set a new element at given position, (discard old element at that location).
extendedFeatureEdgeMesh &	emplace (const label i, Args &&... args)
	Same as emplace_set().
extendedFeatureEdgeMesh &	try_emplace (const label i, Args &&... args)
	Like emplace_set() but will not overwrite an occupied (non-null) location.
autoPtr< extendedFeatureEdgeMesh >	release (const label i)
	Release ownership of the pointer at the given position.
void	transfer (PtrList< extendedFeatureEdgeMesh > &list)
	Transfer into this list and annul the argument list.
void	operator= (const UPtrList< extendedFeatureEdgeMesh > &list)
	Copy assignment.
void	setSize (const label n)
	Same as resize().
void	append (autoPtr< extendedFeatureEdgeMesh > &ptr)
	Move append an element to the end of the list.
Public Member Functions inherited from UPtrList< extendedFeatureEdgeMesh >
bool	empty () const noexcept
	True if the list is empty (ie, size() is zero).
label	size () const noexcept
	The number of entries in the list.
label	capacity () const noexcept
	Size of the underlying storage.
label	count_nonnull () const noexcept
	The number of non-nullptr entries in the list.
extendedFeatureEdgeMesh &	front ()
	Reference to the first element of the list.
extendedFeatureEdgeMesh &	back ()
	Reference to the last element of the list.
const extendedFeatureEdgeMesh *	test (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const extendedFeatureEdgeMesh *	get (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const extendedFeatureEdgeMesh *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Set list size to zero.
void	free ()
	Nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Change the size of the list. Any new entries are `nullptr`.
void	resize_null (const label newLen)
	Set the list to the given size and set all entries to `nullptr`.
label	squeezeNull ()
	Squeeze out nullptr entries in the list of pointers after which any null pointers will be at the end of the list.
void	push_back (extendedFeatureEdgeMesh *ptr)
	Append an element to the end of the list.
void	swap (UPtrList< extendedFeatureEdgeMesh > &list) noexcept
	Swap content.
void	transfer (UPtrList< extendedFeatureEdgeMesh > &list)
	Transfer contents into this list and annul the argument.
void	reorder (const labelUList &oldToNew, const bool check=false)
	Reorder elements. Reordering must be unique (ie, shuffle).
void	sortOrder (const labelUList &order, const bool check=false)
	Reorder elements according to new order mapping (newToOld). Reordering must be unique (ie, shuffle).
void	checkNonNull () const
	Check and raise FatalError if any nullptr exists in the list.
const extendedFeatureEdgeMesh &	at (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr.
const extendedFeatureEdgeMesh &	operator[] (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr. Same as at().
	FOAM_DEPRECATED_FOR (2022-09, "get(), set() or test() methods") const extendedFeatureEdgeMesh *operator()(const label i) const
	Deprecated(2022-09) - same as get().
void	operator= (const UPtrList< extendedFeatureEdgeMesh > &list)
	Copy assignment (shallow copies addresses).
Ostream &	printAddresses (Ostream &os) const
	Print pointer addresses to Ostream (debugging only).
Ostream &	writeList (Ostream &os, const bool trimNull=false) const
	Write UPtrList to Ostream, optionally ignoring null entries.
extendedFeatureEdgeMesh **	begin_ptr () noexcept
	Iterator to begin of raw pointers traversal (use with caution).
extendedFeatureEdgeMesh **	end_ptr () noexcept
	Iterator beyond end of raw pointers traversal (use with caution).
iterator	begin ()
	Return iterator to begin traversal of non-nullptr entries.
iterator	end () noexcept
	Return iterator beyond end of UPtrList traversal.
const_iterator	cbegin () const
	Return const_iterator to begin traversal of non-nullptr entries.
const_iterator	cend () const noexcept
	Return const_iterator beyond end of UPtrList traversal.
void	setSize (const label n)
	Alias for resize().
extendedFeatureEdgeMesh &	first ()
	Reference to the first element of the list.
extendedFeatureEdgeMesh &	last ()
	Return reference to the last element of the list.
void	append (extendedFeatureEdgeMesh *ptr)
	Append an element to the end of the list.
label	count () const noexcept
	The number of non-nullptr entries in the list.

Protected Member Functions
const PtrList< indexedOctree< treeDataEdge > > &	edgeTrees () const
const PtrList< indexedOctree< treeDataPoint > > &	pointTrees () const
const PtrList< indexedOctree< treeDataEdge > > &	regionEdgeTrees () const
Protected Member Functions inherited from PtrList< extendedFeatureEdgeMesh >
void	readIstream (Istream &is, const INew &inew)
	Read from Istream using Istream constructor class.
Protected Member Functions inherited from UPtrList< extendedFeatureEdgeMesh >
void	setAddressableSize (const label n) noexcept
	Adjust addressable size.
label	find_next (label pos) const
	The next non-null entry after the specified position.
	UPtrList (Detail::PtrListDetail< extendedFeatureEdgeMesh > &&ptrs) noexcept
	Low-level move construct.

Additional Inherited Members
Public Types inherited from UPtrList< extendedFeatureEdgeMesh >
typedef extendedFeatureEdgeMesh	value_type
	Type of values the list contains.
typedef extendedFeatureEdgeMesh &	reference
	A non-const reference to the value_type.
typedef const extendedFeatureEdgeMesh &	const_reference
	A const reference to the value_type.
Protected Attributes inherited from UPtrList< extendedFeatureEdgeMesh >
Detail::PtrListDetail< extendedFeatureEdgeMesh >	ptrs_
	The list of pointers.

Detailed Description

Encapsulates queries for features.

Source files

Definition at line 49 of file refinementFeatures.H.

Constructor & Destructor Documentation

◆ refinementFeatures()

refinementFeatures	(	const objectRegistry &	io,
		const PtrList< dictionary > &	featDicts,
		const bool	dryRun = false )

Construct from description.

Definition at line 458 of file refinementFeatures.C.

References forAll, io, PtrList< extendedFeatureEdgeMesh >::PtrList(), and UPtrList< extendedFeatureEdgeMesh >::size().

Here is the call graph for this function:

Member Function Documentation

◆ edgeTrees()

const PtrList< indexedOctree< treeDataEdge > > & edgeTrees ( ) const

inlineprotected

Definition at line 112 of file refinementFeatures.H.

References PtrList< extendedFeatureEdgeMesh >::PtrList().

Here is the call graph for this function:

◆ pointTrees()

const PtrList< indexedOctree< treeDataPoint > > & pointTrees ( ) const

inlineprotected

Definition at line 117 of file refinementFeatures.H.

References PtrList< extendedFeatureEdgeMesh >::PtrList().

Here is the call graph for this function:

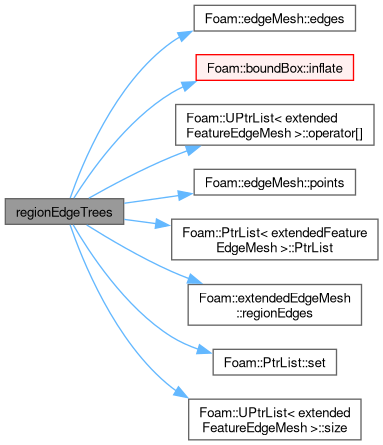

◆ regionEdgeTrees()

const Foam::PtrList< Foam::indexedOctree< Foam::treeDataEdge > > & regionEdgeTrees ( ) const

protected

Definition at line 410 of file refinementFeatures.C.

References e, edgeMesh::edges(), forAll, boundBox::inflate(), UPtrList< extendedFeatureEdgeMesh >::operator[](), edgeMesh::points(), points, PtrList< extendedFeatureEdgeMesh >::PtrList(), extendedEdgeMesh::regionEdges(), rndGen, PtrList< T >::set(), and UPtrList< extendedFeatureEdgeMesh >::size().

Referenced by findNearestRegionEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ levels()

const labelListList & levels ( ) const

inline

Per featureEdgeMesh the list of level.

Definition at line 147 of file refinementFeatures.H.

◆ distances()

const List< scalarField > & distances ( ) const

inline

Per featureEdgeMesh the list of ranges.

Definition at line 155 of file refinementFeatures.H.

◆ maxDistance()

Foam::scalar maxDistance ( ) const

Highest distance of all features.

Definition at line 858 of file refinementFeatures.C.

References forAll, and Foam::max().

Here is the call graph for this function:

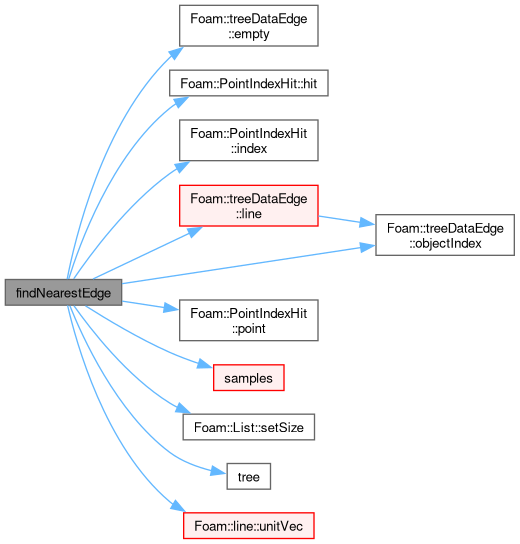

◆ findNearestEdge()

void findNearestEdge	(	const pointField &	samples,
		const scalarField &	nearestDistSqr,
		labelList &	nearFeature,
		List< pointIndexHit > &	nearInfo,
		vectorField &	nearNormal ) const

Find nearest point on nearest feature edge. Sets.

nearFeature: index of feature mesh
nearInfo : location on feature edge and edge index (note: not feature edge index but index into edges() directly)
nearNormal : local feature edge normal

Definition at line 625 of file refinementFeatures.C.

References treeDataEdge::empty(), forAll, PointIndexHit< PointType >::hit(), PointIndexHit< PointType >::index(), treeDataEdge::line(), treeDataEdge::objectIndex(), PointIndexHit< PointType >::point(), samples(), List< T >::setSize(), tree(), line< Point, PointRef >::unitVec(), and Foam::Zero.

Here is the call graph for this function:

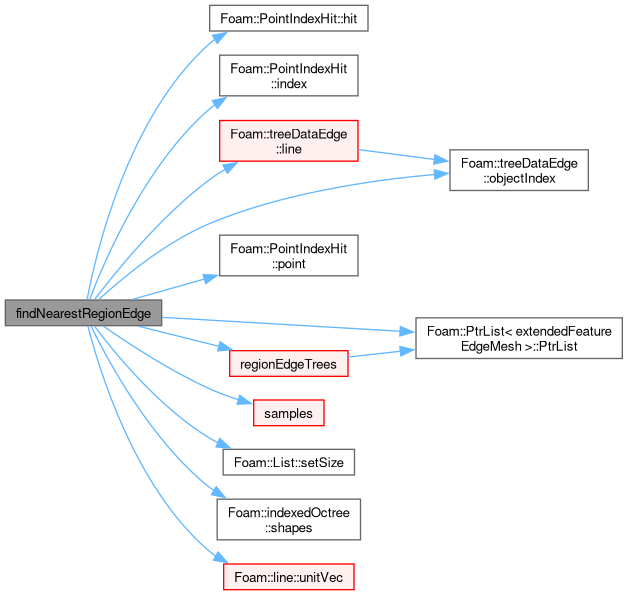

◆ findNearestRegionEdge()

void findNearestRegionEdge	(	const pointField &	samples,
		const scalarField &	nearestDistSqr,
		labelList &	nearFeature,
		List< pointIndexHit > &	nearInfo,
		vectorField &	nearNormal ) const

Find nearest point on nearest region edge. Sets.

nearFeature: index of feature mesh
nearInfo : location on feature edge and edge index (note: not feature edge index but index into edges() directly)
nearNormal : local feature edge normal

Definition at line 681 of file refinementFeatures.C.

References forAll, PointIndexHit< PointType >::hit(), PointIndexHit< PointType >::index(), treeDataEdge::line(), treeDataEdge::objectIndex(), PointIndexHit< PointType >::point(), PtrList< extendedFeatureEdgeMesh >::PtrList(), regionEdgeTrees(), samples(), List< T >::setSize(), indexedOctree< Type >::shapes(), line< Point, PointRef >::unitVec(), and Foam::Zero.

Here is the call graph for this function:

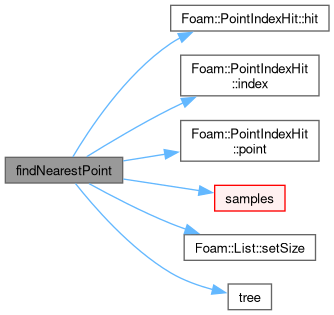

◆ findNearestPoint()

void findNearestPoint	(	const pointField &	samples,
		const scalarField &	nearestDistSqr,
		labelList &	nearFeature,
		List< pointIndexHit > &	nearInfo ) const

Find nearest feature point. Sets.

nearFeature: index of feature mesh
nearInfo : location on feature point and point index. (note: not index into shapes().pointLabels() but index into points() directly)

Definition at line 789 of file refinementFeatures.C.

References forAll, PointIndexHit< PointType >::hit(), PointIndexHit< PointType >::index(), PointIndexHit< PointType >::point(), samples(), List< T >::setSize(), and tree().

Here is the call graph for this function:

◆ findHigherLevel()

void findHigherLevel	(	const pointField &	pt,
		const labelList &	ptLevel,
		labelList &	maxLevel ) const

Find shell level higher than ptLevel.

Definition at line 841 of file refinementFeatures.C.

References forAll.

◆ checkSizes()

bool checkSizes	(	const scalar	maxRatio,
		const boundBox &	meshBb,
		const bool	report,
		Ostream &	os ) const

Check sizes - return true if error and stream to os.

Definition at line 555 of file refinementFeatures.C.

References Foam::endl(), forAll, boundBox::mag(), meshBb(), IOobject::name(), Foam::nl, UPtrList< extendedFeatureEdgeMesh >::operator[](), os(), edgeMesh::points(), Foam::returnReduceOr(), and UPtrList< extendedFeatureEdgeMesh >::size().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/mesh/snappyHexMesh/refinementFeatures/refinementFeatures.H
src/mesh/snappyHexMesh/refinementFeatures/refinementFeatures.C

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ refinementFeatures()

Member Function Documentation

◆ edgeTrees()

◆ pointTrees()

◆ regionEdgeTrees()

◆ levels()

◆ distances()

◆ maxDistance()

◆ findNearestEdge()

◆ findNearestRegionEdge()

◆ findNearestPoint()

◆ findHigherLevel()

◆ checkSizes()
