Immersed Boundary Method (IBM) for finite area (FA). Multiple IBM surfaces can be defined, each represented by a triangulated surface mesh. Boundary motion is supported via a solidBodyMotionFunction. More...

#include <regionFaIBM.H>

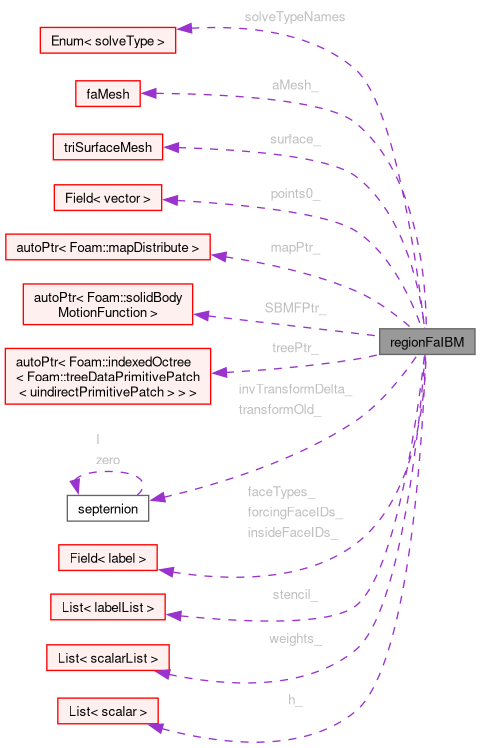

Collaboration diagram for regionFaIBM:

[legend]

Public Types
enum class	solveType { invDistance , direct }
	Solve type for stencil weights. More...

Public Member Functions
	TypeName ("IBM")
	Runtime type information.
	regionFaIBM (const Time &runTime, const faMesh &aMesh, const dictionary &dict)
	Construct from Time and dictionary.
virtual	~regionFaIBM ()=default
	Destructor.
void	updateMesh ()
	Update mesh.
bool	correct (const areaVectorField &Us, areaVectorField &Ustar)
	Correct the regionFaIBM model.
template<class Type>
void	zeroFilter (Type &fld) const
	Apply the zero filter to an area field.
void	addToMask (areaScalarField &mask) const
	Add to mask; Sets a value of 1 for participating faces.

Static Public Member Functions
static void	dumpStencil (const fileName &fname, const mapDistribute &mapDist, const labelListList &stencil, const pointField &centres)
	Dump the stencil to file.

Protected Types
typedef treeDataPrimitivePatch< uindirectPrimitivePatch >	treeType

Protected Member Functions
bool	moveBody ()
	Move the immersed boundary.
void	setFaceTypes ()
	Set the face types indicator field and derived info.
vector	setVelocityFromSurface (const pointIndexHit &hit) const
	Retrieve the velocity at a point on the moving surface.
void	setStencilAddressing (const pointField &forcingFaceCentres, const scalarField &forcingFaceAreas, pointField &mirrorPoints)
	Set the regionFaIBM stencil addressing.
void	setStencilWeights (const pointField &mirrorPoints)
	Set the regionFaIBM stencil weights.

Protected Attributes
const faMesh &	aMesh_
	Reference to the finite area mesh.
triSurfaceMesh	surface_
	regionFaIBM surface described by a triSurfaceMesh
const pointField	points0_
	Reference points for surface motion.
autoPtr< mapDistribute >	mapPtr_
	Parallel map to apply the regionFaIBM stencil.
autoPtr< solidBodyMotionFunction >	SBMFPtr_
	Surface motion as a function of time.
autoPtr< indexedOctree< treeType > >	treePtr_
	Octree for face search.
scalar	deltaT_
	Integration time step.
scalar	updateTimeOld_
	Time at last update.
septernion	transformOld_
	Last transformation.
septernion	invTransformDelta_
	Transformation to go to state at last step.
labelField	faceTypes_
	Face types indicator field.
labelField	forcingFaceIDs_
	Forcing faces.
labelField	insideFaceIDs_
	Inside faces.
solveType	solveType_
	Solve type.
scalar	rFactor_
	Stencil radius factor.
labelListList	stencil_
	Interpolation stencil.
scalarListList	weights_
	Interpolation weights.
scalarList	h_
	Distance weights used when calculating uStar.

Static Protected Attributes
static const Enum< solveType >	solveTypeNames
	Selection names for solveType.

Detailed Description

Immersed Boundary Method (IBM) for finite area (FA). Multiple IBM surfaces can be defined, each represented by a triangulated surface mesh. Boundary motion is supported via a solidBodyMotionFunction.

Usage: Example usage in constant/regionFaIBMPropeties

regionFaIBM1
{
    type            regionFaIBM;
    surface         <surfaceFileName>;

    solidBodyMotionFunction <motionType>
    // Additional motion type information...

    // Optional

    // Solve type for stencil weights; default = direct
    solveType       direct; // or invDistance

    // Stencil radius factor; default = 1.5
    rFactor         2.0;
}
regionFaIBM2
{
    ...
}

See also: Foam::solidBodyMotionFunction

Source files

Definition at line 91 of file regionFaIBM.H.

Member Typedef Documentation

◆ treeType

typedef treeDataPrimitivePatch<uindirectPrimitivePatch> treeType

protected

Definition at line 125 of file regionFaIBM.H.

Member Enumeration Documentation

◆ solveType

enum class solveType

strong

Solve type for stencil weights.

Enumerator
invDistance
direct

Definition at line 100 of file regionFaIBM.H.

Constructor & Destructor Documentation

◆ regionFaIBM()

regionFaIBM	(	const Time &	runTime,
		const faMesh &	aMesh,
		const dictionary &	dict )

Construct from Time and dictionary.

References dict, and runTime.

◆ ~regionFaIBM()

virtual ~regionFaIBM ( )

virtualdefault

Destructor.

Member Function Documentation

◆ dumpStencil()

void dumpStencil	(	const fileName &	fname,
		const mapDistribute &	mapDist,
		const labelListList &	stencil,
		const pointField &	centres )

static

Dump the stencil to file.

◆ moveBody()

bool moveBody ( )

protected

Move the immersed boundary.

◆ setFaceTypes()

void setFaceTypes ( )

protected

Set the face types indicator field and derived info.

◆ setVelocityFromSurface()

vector setVelocityFromSurface ( const pointIndexHit & hit ) const

protected

Retrieve the velocity at a point on the moving surface.

◆ setStencilAddressing()

void setStencilAddressing	(	const pointField &	forcingFaceCentres,
		const scalarField &	forcingFaceAreas,
		pointField &	mirrorPoints )

protected

Set the regionFaIBM stencil addressing.

◆ setStencilWeights()

void setStencilWeights ( const pointField & mirrorPoints )

protected

Set the regionFaIBM stencil weights.

◆ TypeName()

TypeName ( "IBM" )

Runtime type information.

◆ updateMesh()

void updateMesh ( )

Update mesh.

◆ correct()

bool correct	(	const areaVectorField &	Us,
		areaVectorField &	Ustar )

Correct the regionFaIBM model.

References Us.

◆ zeroFilter()

template<class Type>

void zeroFilter ( Type & fld ) const

Apply the zero filter to an area field.

References fld().

Here is the call graph for this function:

◆ addToMask()

void addToMask ( areaScalarField & mask ) const

Add to mask; Sets a value of 1 for participating faces.

Member Data Documentation

◆ solveTypeNames

const Enum<solveType> solveTypeNames

staticprotected

Selection names for solveType.

Definition at line 130 of file regionFaIBM.H.

◆ aMesh_

const faMesh& aMesh_

protected

Reference to the finite area mesh.

Definition at line 136 of file regionFaIBM.H.

◆ surface_

triSurfaceMesh surface_

protected

regionFaIBM surface described by a triSurfaceMesh

Note: this should be a closed surface since we perform point inside/outside tests

Definition at line 144 of file regionFaIBM.H.

◆ points0_

const pointField points0_

protected

Reference points for surface motion.

Definition at line 149 of file regionFaIBM.H.

◆ mapPtr_

autoPtr<mapDistribute> mapPtr_

protected

Parallel map to apply the regionFaIBM stencil.

Definition at line 154 of file regionFaIBM.H.

◆ SBMFPtr_

autoPtr<solidBodyMotionFunction> SBMFPtr_

protected

Surface motion as a function of time.

Definition at line 159 of file regionFaIBM.H.

◆ treePtr_

autoPtr<indexedOctree<treeType> > treePtr_

protected

Octree for face search.

Definition at line 164 of file regionFaIBM.H.

◆ deltaT_

scalar deltaT_

protected

Integration time step.

Definition at line 169 of file regionFaIBM.H.

◆ updateTimeOld_

scalar updateTimeOld_

protected

Time at last update.

Definition at line 174 of file regionFaIBM.H.

◆ transformOld_

septernion transformOld_

protected

Last transformation.

Definition at line 179 of file regionFaIBM.H.

◆ invTransformDelta_

septernion invTransformDelta_

protected

Transformation to go to state at last step.

Definition at line 184 of file regionFaIBM.H.

◆ faceTypes_

labelField faceTypes_

protected

Face types indicator field.

Definition at line 189 of file regionFaIBM.H.

◆ forcingFaceIDs_

labelField forcingFaceIDs_

protected

Forcing faces.

Definition at line 194 of file regionFaIBM.H.

◆ insideFaceIDs_

labelField insideFaceIDs_

protected

Inside faces.

Definition at line 199 of file regionFaIBM.H.

◆ solveType_

solveType solveType_

protected

Solve type.

Definition at line 204 of file regionFaIBM.H.

◆ rFactor_

scalar rFactor_

protected

Stencil radius factor.

Definition at line 209 of file regionFaIBM.H.

◆ stencil_

labelListList stencil_

protected

Interpolation stencil.

Definition at line 214 of file regionFaIBM.H.

◆ weights_

scalarListList weights_

protected

Interpolation weights.

Definition at line 219 of file regionFaIBM.H.

◆ h_

scalarList h_

protected

Distance weights used when calculating uStar.

Definition at line 224 of file regionFaIBM.H.

The documentation for this class was generated from the following file:

src/regionFaModels/liquidFilm/kinematicThinFilmIBM/regionFaIBM/regionFaIBM.H
