triSurfaceMesh Class Reference

IOoject and searching on triSurface. More...

#include <triSurfaceMesh.H>

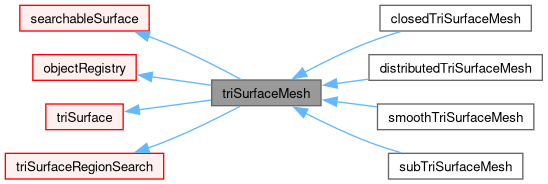

Inheritance diagram for triSurfaceMesh:

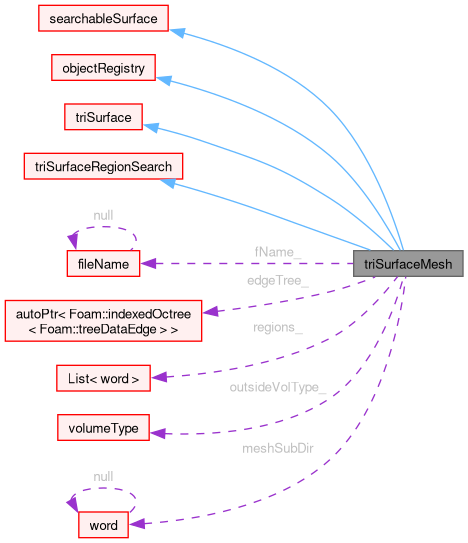

Collaboration diagram for triSurfaceMesh:

Public Types
enum	readAction { localOnly , localOrGlobal , masterOnly }
Public Types inherited from IOobject
enum	objectState : char { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...
enum	fileCheckTypes : char { timeStamp = 1 , timeStampMaster = 3 , inotify = 4 , inotifyMaster = 6 }
	Enumeration defining the file checking options (time-stamp | inotify) | (all | masterOnly). More...
Public Types inherited from IOobjectOption
enum	readOption : unsigned char {   NO_READ = 0 , MUST_READ = 0x1 , READ_MODIFIED = 0x3 , MUST_READ_IF_MODIFIED = 0x3 ,   LAZY_READ = 0x4 , READ_IF_PRESENT = 0x4 }
	Enumeration defining read preferences. More...
enum	writeOption : unsigned char { NO_WRITE = 0 , AUTO_WRITE = 0x10 }
	Enumeration defining write preferences. More...
enum	registerOption : unsigned char { NO_REGISTER = 0 , REGISTER = 1 , LEGACY_REGISTER = 2 }
	Enumeration for use with registerObject(). Values map to bool (false/true). More...
enum class	Layout : unsigned char { regular , global }
	The layout of the case structure. More...
Public Types inherited from HashTable< regIOobject * >
typedef HashTable< regIOobject *, word, Foam::Hash< word > >	this_type
	The template instance used for this HashTable.
using	node_type
	A table entry (node) that encapsulates the key/val tuple with an additional linked-list entry for hash collisions.
typedef word	key_type
	The second template parameter, type of keys used.
typedef regIOobject *	mapped_type
	The first template parameter, type of objects contained.
typedef regIOobject *	value_type
	Same as mapped_type for OpenFOAM HashTables.
typedef Foam::Hash< word >	hasher
	The third template parameter, the hash index method.
typedef regIOobject **	pointer
	Pointer type for storing into value_type objects.
typedef regIOobject *&	reference
	Reference to the stored value_type.
typedef const regIOobject **	const_pointer
	Const pointer type for the stored value_type.
typedef const regIOobject *&	const_reference
	Const reference to the stored value_type.
typedef label	difference_type
	The type to represent the difference between two iterators.
typedef label	size_type
	The type that can represent the size of a HashTable.
using	key_iterator
	Forward iterator returning the key.
using	const_key_iterator
	Forward const iterator returning the key.
Public Types inherited from triSurface
typedef bool	BoundaryMesh
	Placeholder only, but do not remove - it is needed for GeoMesh.
typedef labelledTri	face_type
	The face type (same as the underlying PrimitivePatch).
typedef point	point_type
	The point type (same as the underlying PrimitivePatch).
Public Types inherited from PrimitivePatch<::Foam::List< labelledTri >, pointField >
enum	surfaceTopo
	Enumeration defining the surface type. Used in check routines. More...
typedef std::remove_reference< ::Foam::List< labelledTri > >::type::value_type	face_type
	The face type.
typedef std::remove_reference< pointField >::type::value_type	point_type
	The point type.
typedef ::Foam::List< labelledTri >	FaceListType
	The face list type.
typedef pointField	PointFieldType
	The point field type.
typedef face_type	FaceType
	Deprecated(2020-03) prefer face_type typedef.
Public Types inherited from List< T >
typedef SubList< T >	subList
	Declare type of subList.
Public Types inherited from UList< T >
typedef T	value_type
	The value type the list contains.
typedef T *	pointer
	The pointer type for non-const access to value_type items.
typedef const T *	const_pointer
	The pointer type for const access to value_type items.
typedef T &	reference
	The type used for storing into value_type objects.
typedef const T &	const_reference
	The type used for reading from constant value_type objects.
typedef T *	iterator
	Random access iterator for traversing a UList.
typedef const T *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List = void
	Have unique tag.

Public Member Functions
	TypeName ("triSurfaceMesh")
	Runtime type information.

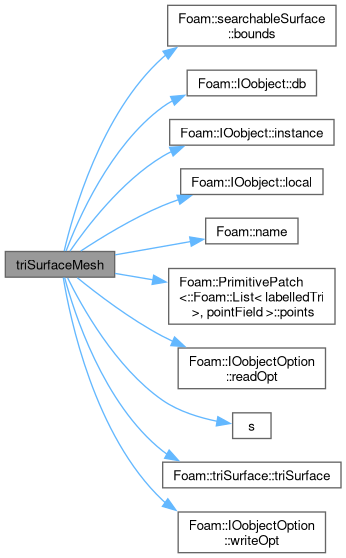

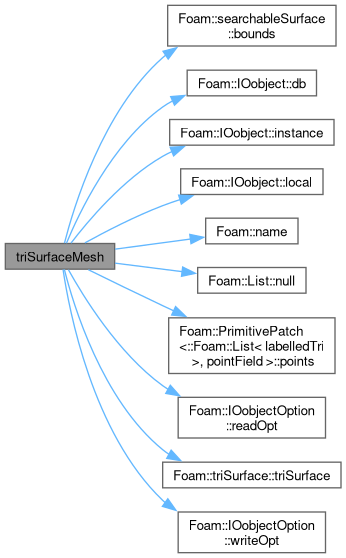

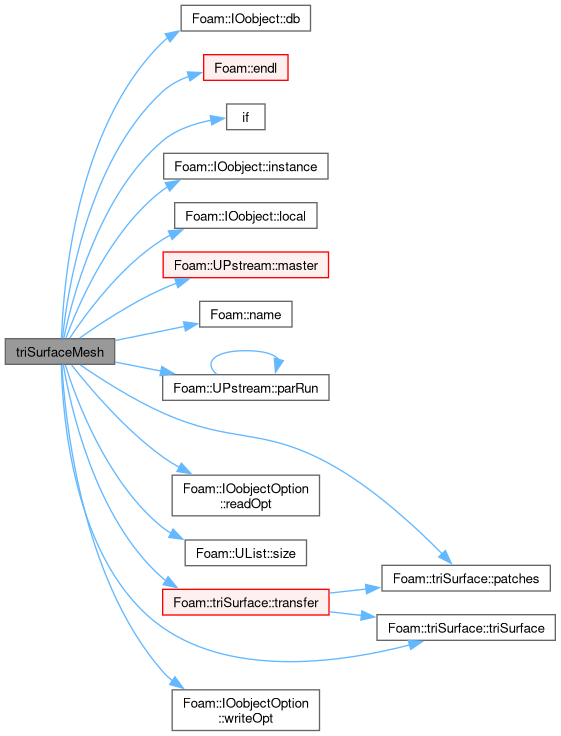

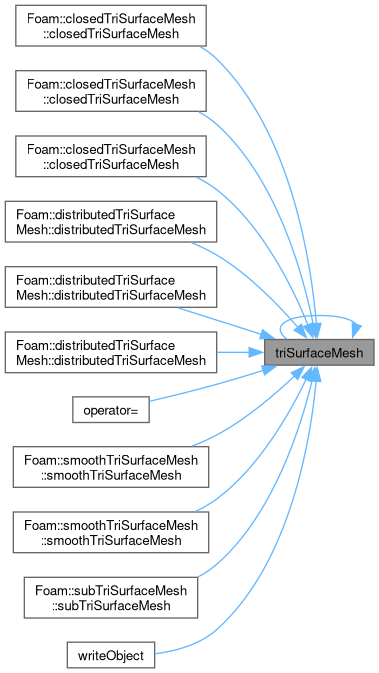

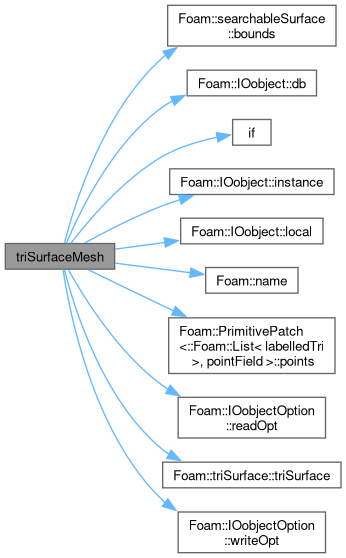

	triSurfaceMesh (const IOobject &, const triSurface &)
	Construct from triSurface.

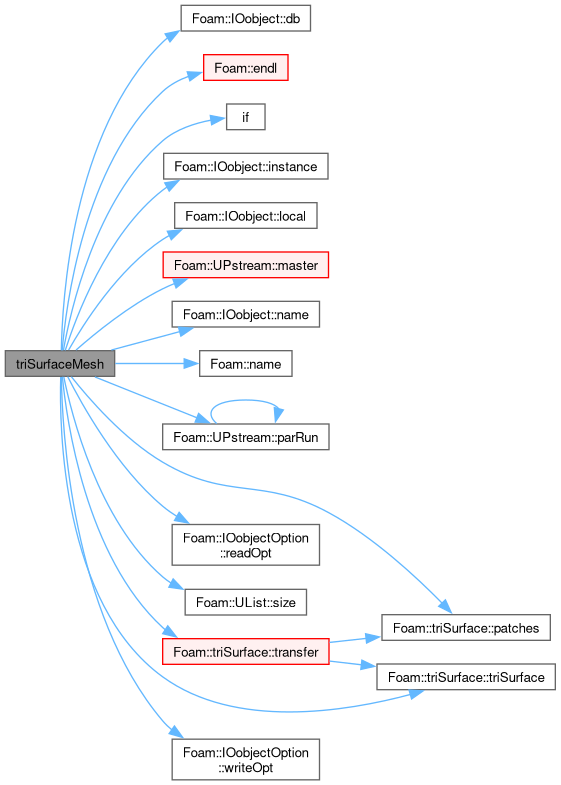

	triSurfaceMesh (const IOobject &io)
	Construct read.
	triSurfaceMesh (const IOobject &io, const dictionary &dict)
	Construct from IO and dictionary (used by searchableSurface).
	triSurfaceMesh (const IOobject &io, const readAction r)
	triSurfaceMesh (const IOobject &io, const dictionary &dict, const readAction r)
virtual	~triSurfaceMesh ()
	Destructor.
void	clearOut ()
	Clear storage.

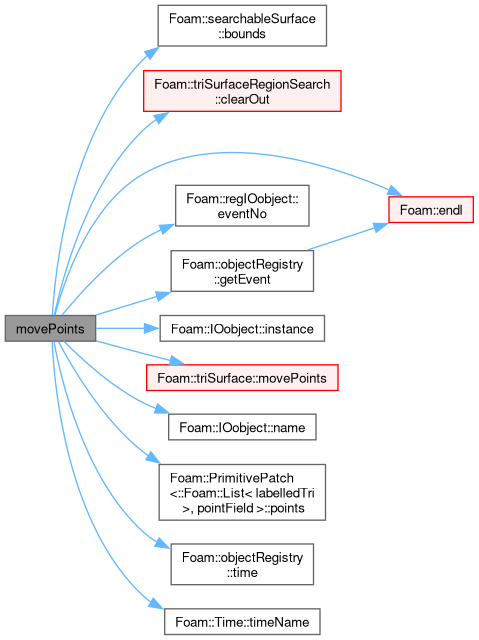

virtual void	movePoints (const pointField &)
	Move points.

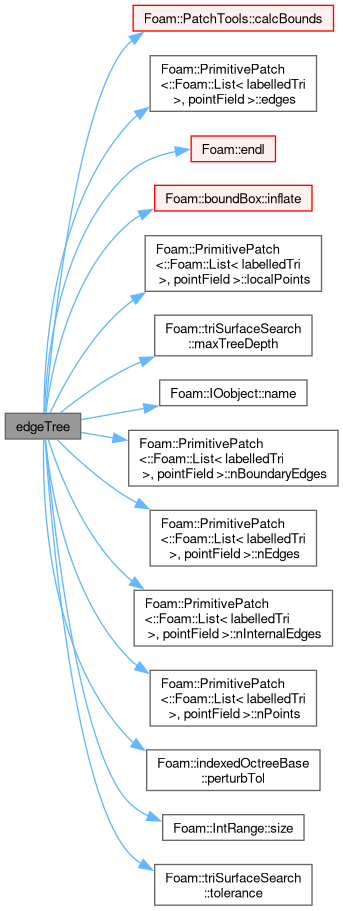

const indexedOctree< treeDataEdge > &	edgeTree () const
	Demand driven construction of octree for boundary edges.
virtual const wordList &	regions () const
	Names of regions.

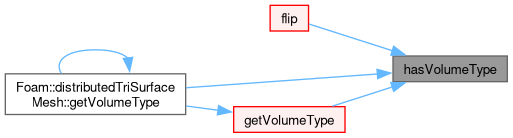

virtual bool	hasVolumeType () const
	Whether supports volume type (below) - i.e. whether is closed.

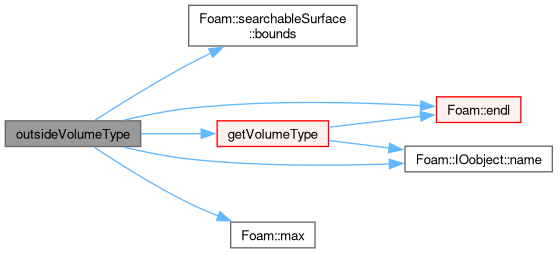

virtual volumeType	outsideVolumeType () const
	If surface is closed, what is type of points outside bounds.
virtual label	size () const
	Range of local indices that can be returned.
virtual void	flip ()
	Flip triangles, outsideVolumeType and all cached inside/outside.

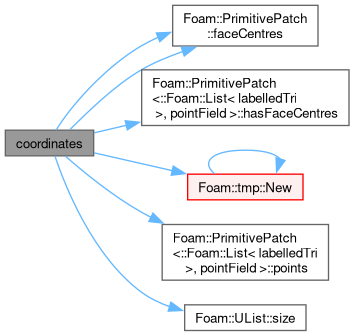

virtual tmp< pointField >	coordinates () const
	Get representative set of element coordinates.

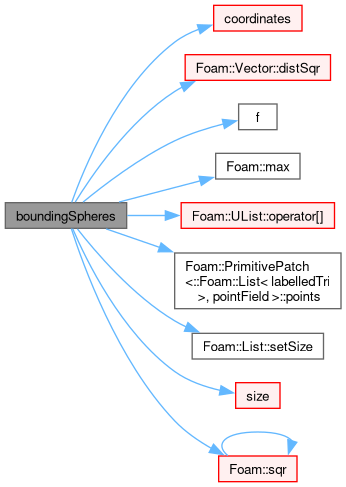

virtual void	boundingSpheres (pointField &centres, scalarField &radiusSqr) const
	Get bounding spheres (centre and radius squared). Any point.

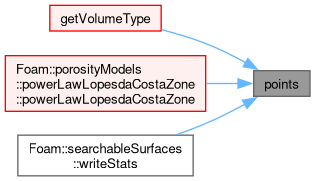

virtual tmp< pointField >	points () const
	Get the points that define the surface.
virtual bool	overlaps (const boundBox &bb) const
	Does any part of the surface overlap the supplied bound box?

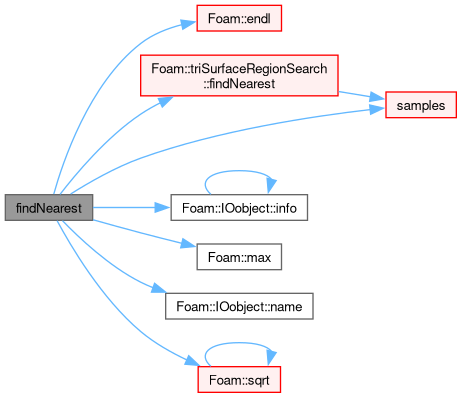

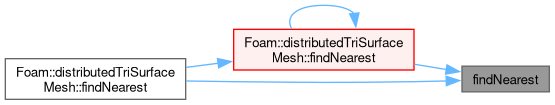

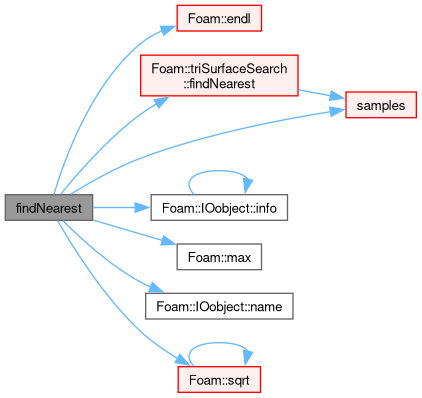

virtual void	findNearest (const pointField &sample, const scalarField &nearestDistSqr, List< pointIndexHit > &) const
virtual void	findNearest (const pointField &sample, const scalarField &nearestDistSqr, const labelList &regionIndices, List< pointIndexHit > &) const
	Find the nearest locations for the supplied points to a.
virtual void	findLine (const pointField &start, const pointField &end, List< pointIndexHit > &) const
	Find first intersection on segment from start to end.

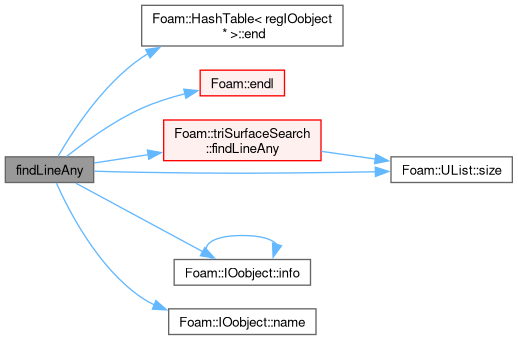

virtual void	findLineAny (const pointField &start, const pointField &end, List< pointIndexHit > &) const
	Return any intersection on segment from start to end.
virtual void	findLineAll (const pointField &start, const pointField &end, List< List< pointIndexHit > > &) const
	Get all intersections in order from start to end.
virtual void	getRegion (const List< pointIndexHit > &, labelList &region) const
	From a set of points and indices get the region.

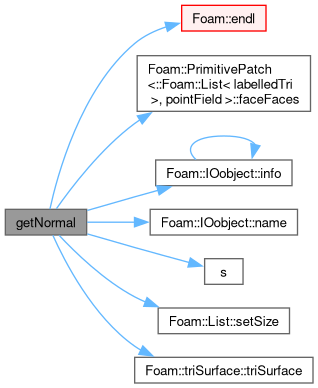

virtual void	getNormal (const List< pointIndexHit > &, vectorField &normal) const
	From a set of points and indices get the normal.

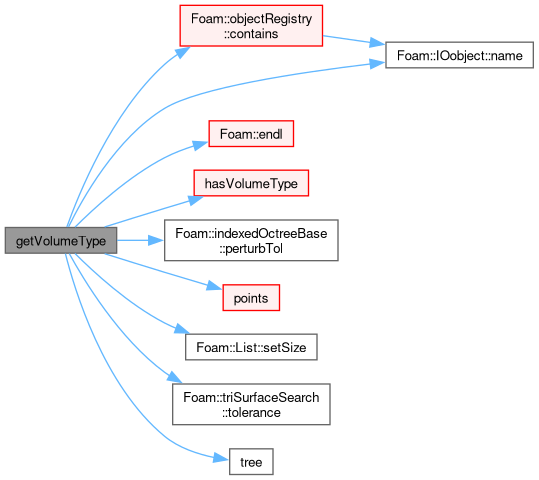

virtual void	getVolumeType (const pointField &points, List< volumeType > &volType) const
	Determine type (inside/outside/mixed) for point.

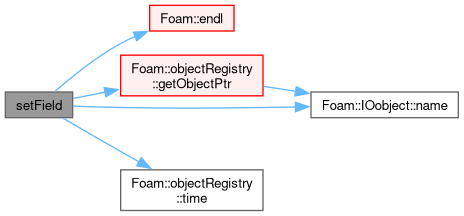

virtual void	setField (const labelList &values)
	WIP. Store element-wise field.

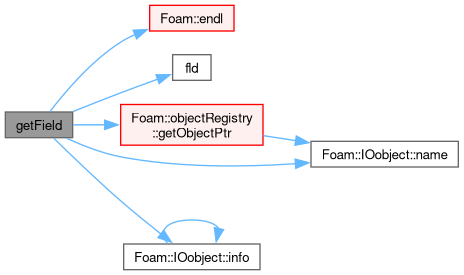

virtual void	getField (const List< pointIndexHit > &, labelList &) const
	WIP. From a set of hits (points and.
bool	writeData (Ostream &) const
	Pure virtual writeData function.

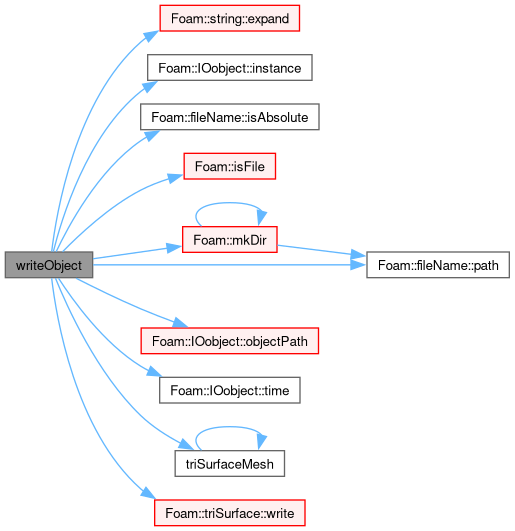

virtual bool	writeObject (IOstreamOption streamOpt, const bool writeOnProc) const
	Write using stream options.
virtual bool	global () const
	Is object global.
virtual fileName	filePath () const
	Return complete path + object name if the file exists.
Public Member Functions inherited from searchableSurface
	TypeName ("searchableSurface")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, searchableSurface, dict,(const IOobject &io, const dictionary &dict),(io, dict))
	searchableSurface (const IOobject &io)
virtual autoPtr< searchableSurface >	clone () const
	Clone.
virtual	~searchableSurface ()=default
	Destructor.
virtual const boundBox &	bounds () const
	Return const reference to boundBox.
virtual boundBox &	bounds ()
	Return non-const access to the boundBox to allow it to be set.
virtual label	globalSize () const
	Range of global indices that can be returned.
virtual void	findNearest (const pointField &sample, const scalarField &nearestDistSqr, List< pointIndexHit > &, vectorField &normal, labelList &region) const
	Find nearest, normal and region. Can be overridden with.
virtual void	distribute (const List< treeBoundBox > &, const bool keepNonLocal, autoPtr< mapDistribute > &faceMap, autoPtr< mapDistribute > &pointMap)
	Set bounds of surface. Bounds currently set as list of.
Public Member Functions inherited from regIOobject
void	operator= (const regIOobject &)=delete
	No copy assignment.
	TypeName ("regIOobject")
	Runtime type information.
	regIOobject (const IOobject &io, const bool isTimeObject=false)
	Construct from IOobject. The optional flag adds special handling if the object is the top-level regIOobject (eg, Time).
	regIOobject (const regIOobject &rio)
	Copy construct.
	regIOobject (const regIOobject &rio, bool registerCopy)
	Copy construct, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const word &newName, const regIOobject &, bool registerCopy)
	Copy construct with new name, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const IOobject &io, const regIOobject &rio)
	Copy construct with new IO parameters.
virtual	~regIOobject ()
	Destructor.
bool	checkIn ()
	Add object to registry, if not already registered.
bool	checkOut ()
	Remove object from registry, and remove all file watches.
virtual void	addWatch ()
	Add file watch on object (if registered and READ_IF_MODIFIED).
bool	registered () const noexcept
	Query the registered state (ie, has been checked in). This is not necessarily the same as registerObject(), which is just a stated preference.
bool	ownedByRegistry () const noexcept
	Is this object owned by the registry?
bool	store ()
	Register object with its registry and transfer ownership to the registry.
void	release (const bool unregister=false) noexcept
	Set object as not ownedByRegistry.
label	eventNo () const noexcept
	Event number at last update.
label &	eventNo () noexcept
	Event number at last update.
bool	upToDate (const regIOobject &) const
	Return true if up-to-date with respect to given object.
bool	upToDate (const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
void	setUpToDate ()
	Set as up-to-date.
const dictionary *	findMetaData () const noexcept
	Return pointer to meta-data or nullptr.
dictionary &	getMetaData () noexcept
	Get or create meta-data.
void	removeMetaData ()
	Remove meta-data.
virtual void	updateMetaData ()
	Update internal meta-data (eg, prior to writing).
bool	headerOk ()
	Read and check header info. Does not check the headerClassName.
Istream &	readStream (const word &, const bool readOnProc=true)
	Return Istream and check object type against that given.
void	close ()
	Close Istream.
virtual bool	readData (Istream &)
	Virtual readData function.
virtual bool	read ()
	Read object.
virtual label	addWatch (const fileName &)
	Add file watch for fileName on object if not yet watched.
const labelList &	watchIndices () const noexcept
	Read access to file-monitoring handles.
labelList &	watchIndices () noexcept
	Write access to file-monitoring handles.
virtual bool	write (const bool writeOnProc=true) const
	Write using setting from DB.
void	operator= (const IOobject &io)
	Copy assignment.
virtual bool	writeObject (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp, const bool writeOnProc) const
	Write using given format, version and compression.
Public Member Functions inherited from IOobject
	TypeName ("IOobject")
	Declare type-name, virtual type (with debug switch).
	IOobject (const IOobject &)=default
	Copy construct.
virtual	~IOobject ()=default
	Destructor.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from path, registry, io options.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from path, registry, io options.
	IOobject (const IOobject &io, const objectRegistry &registry)
	Copy construct, resetting registry.
	IOobject (const IOobject &io, const word &name)
	Copy construct, resetting name.
	IOobject (const IOobject &io, const word &name, const fileName &local)
	Copy construct, resetting name and local component.
	IOobject (const IOobject &io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt)
	Copy construct, resetting read/write options.
	IOobject (const IOobject &io, IOobjectOption::registerOption regOpt)
	Copy construct, resetting register option.
autoPtr< IOobject >	clone () const
	Clone.
autoPtr< IOobject >	clone (const objectRegistry &registry) const
	Clone resetting registry.
const objectRegistry &	db () const noexcept
	Return the local objectRegistry.
const Time &	time () const noexcept
	Return Time associated with the objectRegistry.
const word &	name () const noexcept
	Return the object name.
const word &	headerClassName () const noexcept
	Return name of the class name read from header.
word &	headerClassName () noexcept
	Modifiable access to the class name read from header.
const string &	note () const noexcept
	Return the optional note.
string &	note () noexcept
	Modifiable access to the optional note.
unsigned	labelByteSize () const noexcept
	The sizeof (label) in bytes, possibly read from the header.
unsigned	scalarByteSize () const noexcept
	The sizeof (scalar) in bytes, possibly read from the header.
void	resetHeader (const word &newName=word::null)
	Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file.
bool	hasHeaderClass () const noexcept
	True if headerClassName() is non-empty (after reading).
bool	isHeaderClass (const word &expectedType) const
	Check if headerClassName() equals the expected type. Always true if the expected type is empty.
template<class Type>
bool	isHeaderClass () const
	Check if headerClassName() equals Type::typeName Always true for a void type.
word	group () const
	Return group (extension part of name).
word	member () const
	Return member (name without the extension).
const fileName &	rootPath () const noexcept
	Return the Time::rootPath().
const fileName &	caseName () const noexcept
	Return the Time::caseName().
const fileName &	globalCaseName () const noexcept
	Return the Time::globalCaseName().
const fileName &	caseName (IOobjectOption::Layout) const noexcept
	Return the Time::caseName() - normal or global.
const fileName &	instance () const noexcept
	Read access to instance path component.
fileName &	instance () noexcept
	Modifiable access to instance path component.
scalar	instanceValue () const
	Return the scalar value of the instance component (or 0), which often corresponds to a time index/value.
const fileName &	local () const noexcept
	Read access to local path component.
fileName &	local () noexcept
	Modifiable access to the local path component.
fileName	path () const
	The complete path for the object (with instance, local,...).
fileName	globalPath () const
	The complete global path for the object (with instance, local,...).
fileName	path (IOobjectOption::Layout) const
	The complete path (normal or global) for the object.
fileName	path (const word &instance, const fileName &local=fileName::null) const
	The complete path with alternative instance and local.
fileName	globalPath (const word &instance, const fileName &local=fileName::null) const
	The complete global path with alternative instance and local.
fileName	path (IOobjectOption::Layout, const word &instance, const fileName &local=fileName::null) const
	The complete path (normal or global) with alternative instance and local.
fileName	objectPath () const
	The complete path + object name.
fileName	globalObjectPath () const
	The complete global path + object name.
fileName	objectPath (IOobjectOption::Layout) const
	The complete path (normal or global) + object name.
fileName	objectPath (IOobjectOption::Layout, const word &instance) const
	The complete path (normal or global) + object name with alternative instance.
fileName	objectPath (const word &instance) const
	The complete path + object name with alternative instance.
fileName	globalObjectPath (const word &instance) const
	The complete global path + object name with alternative instance.
fileName	objectRelPath () const
	The object path relative to the case.
fileName	localFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching locally.
fileName	globalFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching up if in parallel.
IOstreamOption	parseHeader (const dictionary &headerDict)
	Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics.
bool	readHeader (Istream &is)
	Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics.
bool	readHeader (dictionary &headerDict, Istream &is)
	Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics.
template<class Type>
bool	typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true)
	Read header (respects is_globalIOobject trait) and check its info. A void type suppresses trait and type-name checks.
template<class Type, bool Searching>
bool	typeHeaderOk (const bool checkType=true, const bool verbose=true)
	Forwards to single-parameter version with the specified search type. A void type suppresses trait and type-name checks.
template<class Type>
fileName	typeFilePath (const bool search=true) const
	Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait.
template<class Type>
void	warnNoRereading () const
	Helper: warn that type does not support re-reading.
bool	writeHeader (Ostream &os) const
	Write header with current type().
bool	writeHeader (Ostream &os, const word &objectType) const
	Write header with override of type.
void	writeHeader (dictionary &dict, IOstreamOption streamOpt) const
	Write header into a dictionary with current type() and given output format.
void	writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const
	Write header into a dictionary with override of type and given output format.
bool	good () const noexcept
	Did last readHeader() succeed?
bool	bad () const noexcept
	Did last readHeader() fail?
InfoProxy< IOobject >	info () const noexcept
	Return info proxy, for printing information to a stream.
void	operator= (const IOobject &io)
	Copy assignment, copies all values (except the registry).
template<class Type>
bool	isHeaderClassName () const
	Same as isHeaderClass().
template<class StringType>
Foam::word	groupName (StringType base, const word &group)
template<class Type>
Foam::fileName	typeFilePath (const bool search) const
Public Member Functions inherited from IOobjectOption
constexpr	IOobjectOption (readOption rOpt=readOption::NO_READ, writeOption wOpt=writeOption::NO_WRITE, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Default construct (NO_READ, NO_WRITE, REGISTER, non-global) or construct with specified options.
constexpr	IOobjectOption (readOption rOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_WRITE with specified read/register options.
constexpr	IOobjectOption (writeOption wOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_READ with specified write/register options.
constexpr	IOobjectOption (registerOption registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option.
constexpr	IOobjectOption (readOption rOpt, writeOption wOpt, bool registerObject, bool globalObject=false) noexcept
	Construct from components with specified register option as bool.
constexpr	IOobjectOption (bool registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option as bool.
readOption	readOpt () const noexcept
	Get the read option.
readOption	readOpt (readOption opt) noexcept
	Set the read option.
writeOption	writeOpt () const noexcept
	Get the write option.
writeOption	writeOpt (writeOption opt) noexcept
	Set the write option.
bool	registerObject () const noexcept
	Should objects created with this IOobject be registered?
bool	registerObject (bool on) noexcept
	Change registration preference.
bool	globalObject () const noexcept
	True if object is treated the same for all processors.
bool	globalObject (bool on) noexcept
	Change global-object status.
bool	isAnyRead () const noexcept
	True if any reading may be required (ie, != NO_READ).
bool	isReadRequired () const noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
bool	isReadOptional () const noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
readOption &	readOpt () noexcept
	Access to the read option.
writeOption &	writeOpt () noexcept
	Access to the write option.
bool &	registerObject () noexcept
	Access to the register object option.
bool &	globalObject () noexcept
	Access to the global object option.
Public Member Functions inherited from objectRegistry
	TypeName ("objectRegistry")
	Declare type name for this IOobject.
	objectRegistry (const Time &db, const label initialCapacity=128)
	Construct the time objectRegistry, with estimated table capacity (default: 128).
	objectRegistry (const IOobject &io, const label initialCapacity=128)
	Construct sub-registry given an IObject to describe the registry, with estimated table capacity (default: 128).
virtual	~objectRegistry ()
	Destructor, with checkOut() for all objects that are ownedByRegistry.
const objectRegistry &	thisDb () const noexcept
	Return the object registry.
const objectRegistry &	parent () const noexcept
	Return the parent objectRegistry.
const Time &	time () const noexcept
	Return time registry.
bool	isTimeDb () const noexcept
	True if the registry is Time.
virtual const fileName &	dbDir () const
	Local directory path of this objectRegistry relative to the time.
IOobject	newIOobject (const word &name, IOobjectOption ioOpt) const
	Create an IOobject at the current time instance (timeName) with the specified options.
IOobject	newIOobject (const word &name, IOobjectOption::readOption rOpt=IOobjectOption::NO_READ, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, IOobjectOption::registerOption regOpt=IOobjectOption::NO_REGISTER) const
	Create an IOobject at the current time instance (timeName).
HashTable< wordHashSet >	classes () const
	A summary hash of classes used and their associated object names.
template<class MatchPredicate>
HashTable< wordHashSet >	classes (const MatchPredicate &matchName) const
	A summary hash of classes used and their associated object names, restricted to objects that have a matching object name.
template<class Type, bool Strict = false>
UPtrList< const Type >	cobjects () const
	Return unsorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type, bool Strict = false>
UPtrList< Type >	objects ()
	Return unsorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type, class MatchPredicate>
UPtrList< const Type >	cobjects (const MatchPredicate &matchName) const
	Return unsorted list of objects with a class satisfying isA<Type> that also have a matching object name.
template<class Type, class MatchPredicate>
UPtrList< Type >	objects (const MatchPredicate &matchName)
	Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name.
template<class Type, bool Strict = false>
UPtrList< const Type >	csorted () const
	Return sorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type, bool Strict = false>
UPtrList< Type >	sorted ()
	Return sorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict).
UPtrList< const regIOobject >	csorted () const
	Return sorted list of objects.
UPtrList< regIOobject >	sorted ()
	Return sorted list of objects.
template<class Type, class MatchPredicate>
UPtrList< const Type >	csorted (const MatchPredicate &matchName) const
	Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name.
template<class Type, class MatchPredicate>
UPtrList< Type >	sorted (const MatchPredicate &matchName)
	Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name.
label	count (const char *clsName) const
	The number of objects of the given class name.
template<class MatchPredicate>
label	count (const MatchPredicate &matchClass) const
	The number of objects of the given class name.
template<class MatchPredicate1, class MatchPredicate2>
label	count (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
	The number of objects of the given class name.
template<class Type>
label	count (const bool strict=false) const
	The names of objects with a class satisfying isA<Type>.
template<class Type, class MatchPredicate>
label	count (const MatchPredicate &matchName) const
	The names of objects with a class satisfying isA<Type> that also have a matching object name.
wordList	names () const
	The unsorted names of all objects.
wordList	names (const char *clsName) const
	The unsorted names of objects with the given class name.
template<class MatchPredicate>
wordList	names (const MatchPredicate &matchClass) const
	The unsorted names of objects with a matching class name.
template<class MatchPredicate1, class MatchPredicate2>
wordList	names (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
	The unsorted names of objects with a matching class name that also have a matching object name.
template<class Type>
wordList	names () const
	The unsorted names of objects with a class satisfying isA<Type>.
template<class Type, class MatchPredicate>
wordList	names (const MatchPredicate &matchName) const
	The unsorted names of objects with a class satisfying isA<Type> that also have a matching object name.
wordList	sortedNames () const
	The sorted names of all objects.
wordList	sortedNames (const char *clsName) const
	The sorted names of objects with the given class name.
template<class MatchPredicate>
wordList	sortedNames (const MatchPredicate &matchClass) const
	The sorted names objects with a matching class name.
template<class MatchPredicate1, class MatchPredicate2>
wordList	sortedNames (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
	The sorted names of objects with a matching class name that also have a matching object name.
template<class Type>
wordList	sortedNames () const
	The sorted names of objects with a class satisfying isA<Type>.
template<class Type, class MatchPredicate>
wordList	sortedNames (const MatchPredicate &matchName) const
	The sorted names of objects with a class satisfying isA<Type> that also have a matching object name.
const objectRegistry &	subRegistry (const word &name, const bool forceCreate=false, const bool recursive=false) const
	Lookup and return a const sub-objectRegistry.
template<class Type, bool Strict = false>
HashTable< const Type * >	lookupClass () const
	Return all objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type, bool Strict = false>
HashTable< Type * >	lookupClass ()
	Return all objects with a class satisfying isA<Type> or isType<Type> (with Strict).
template<class Type>
HashTable< const Type * >	lookupClass (const bool strict) const
	Return all objects with a class satisfying isA<Type>.
template<class Type>
HashTable< Type * >	lookupClass (const bool strict)
	Return all objects with a class satisfying isA<Type>.
const regIOobject *	cfindIOobject (const word &name, const bool recursive=false) const
	Return const pointer to the regIOobject.
bool	contains (const word &name, const bool recursive=false) const
	Does the registry contain the regIOobject object (by name).
template<class Type>
bool	foundObject (const word &name, const bool recursive=false) const
	Contains the named Type?
template<class Type>
const Type *	cfindObject (const word &name, const bool recursive=false) const
	Return const pointer to the object of the given Type.
template<class Type>
const Type *	findObject (const word &name, const bool recursive=false) const
	Return const pointer to the object of the given Type.
template<class Type>
Type *	findObject (const word &name, const bool recursive=false)
	Return non-const pointer to the object of the given Type.
template<class Type>
Type *	getObjectPtr (const word &name, const bool recursive=false) const
	Return non-const pointer to the object of the given Type, using a const-cast to have it behave like a mutable.
template<class Type>
const Type &	lookupObject (const word &name, const bool recursive=false) const
	Lookup and return const reference to the object of the given Type. Fatal if not found or the wrong type.
template<class Type>
Type &	lookupObjectRef (const word &name, const bool recursive=false) const
	Lookup and return non-const reference to the object of the given Type. Fatal if not found or the wrong type.
label	getEvent () const
	Return new event number.
bool	checkIn (regIOobject *io) const
	Add a regIOobject to registry. A nullptr is ignored.
bool	checkIn (regIOobject &io) const
	Add a regIOobject to registry.
bool	checkOut (regIOobject *io) const
	Remove a regIOobject from registry and free memory if the object is ownedByRegistry. A nullptr is ignored.
bool	checkOut (regIOobject &io) const
	Remove a regIOobject from registry and free memory if the object is ownedByRegistry.
bool	checkOut (const word &key) const
	Remove a regIOobject by name from registry and free memory if the object is ownedByRegistry.
void	clear ()
	Clear all entries from the registry.
void	clearStorage ()
	Clear all entries from the registry and the table itself.
bool	erase (const iterator &iter)
	Erase an entry specified by the given iterator.
bool	erase (const word &key)
	Erase an entry specified by the given key.
label	erase (std::initializer_list< word > keys)
	Remove entries given by the listed keys.
label	erase (const UList< word > &keys)
	Remove entries given by the listed keys.
virtual void	rename (const word &newName)
	Rename.
bool	is_cacheTemporaryObject (const word &name) const
	True if given name is in the cacheTemporaryObjects set.
bool	is_cacheTemporaryObject (const regIOobject *io) const
	True if name of object is in the cacheTemporaryObjects set.
bool	is_cacheTemporaryObject (const regIOobject &io) const
	True if name of object is in the cacheTemporaryObjects set.
template<class Type>
bool	cacheTemporaryObject (Type &obj) const
	Cache the given object. Moves content and stores.
void	resetCacheTemporaryObject (const regIOobject *io) const
	Reset the cache state of the given object (nullptr is ignored).
void	resetCacheTemporaryObject (const regIOobject &io) const
	Reset the cache state of the given object in the cacheTemporaryObjects set.
bool	checkCacheTemporaryObjects () const
	Check that all objects specified in the cacheTemporaryObjects were also cached.
virtual bool	modified () const
	Return true if any of the object's files have been modified.
void	readModifiedObjects ()
	Read the objects that have been modified.
virtual bool	readIfModified ()
	Read object if modified.
bool	found (const word &name, bool recursive=false) const
	Same as contains().
template<class Type>
const Type *	lookupObjectPtr (const word &name, bool recursive=false) const
	Deprecated(2018-10) find object.
template<class Type>
Type *	lookupObjectRefPtr (const word &name, bool recursive=false) const
	Deprecated(2018-10) get object pointer, ignoring constness.
template<class Type>
UPtrList< const Type >	sorted () const
	Deprecated(2023-07) use csorted() method.
UPtrList< const regIOobject >	sorted () const
	Deprecated(2023-07) use csorted() method.
template<class Type, class MatchPredicate>
UPtrList< const Type >	sorted (const MatchPredicate &matchName) const
	Deprecated(2023-07) use csorted() method.
template<class MatchPredicate>
Foam::HashTable< Foam::wordHashSet >	classesImpl (const objectRegistry &list, const MatchPredicate &matchName)
template<class MatchPredicate1, class MatchPredicate2>
Foam::label	countImpl (const objectRegistry &list, const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName)
template<class Type, class MatchPredicate>
Foam::label	countTypeImpl (const objectRegistry &list, const MatchPredicate &matchName)
template<class MatchPredicate1, class MatchPredicate2>
Foam::wordList	namesImpl (const objectRegistry &list, const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName, const bool doSort)
template<class Type, class MatchPredicate>
Foam::wordList	namesTypeImpl (const objectRegistry &list, const MatchPredicate &matchName, const bool doSort)
template<class Type, class MatchPredicate>
Foam::UPtrList< Type >	objectsTypeImpl (const bool strict, const objectRegistry &list, const MatchPredicate &matchName, const bool doSort)
template<class Type>
Foam::HashTable< Type * >	lookupClassTypeImpl (const bool strict, const objectRegistry &list)
template<class MatchPredicate>
Foam::HashTable< Foam::wordHashSet >	classes (const MatchPredicate &matchName) const
template<class MatchPredicate>
Foam::label	count (const MatchPredicate &matchClass) const
template<class MatchPredicate1, class MatchPredicate2>
Foam::label	count (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
template<class Type, class MatchPredicate>
Foam::label	count (const MatchPredicate &matchName) const
template<class Type>
Foam::label	count (const bool strict) const
template<class Type, bool Strict>
Foam::UPtrList< const Type >	cobjects () const
template<class Type, bool Strict>
Foam::UPtrList< Type >	objects ()
template<class Type, bool Strict>
Foam::UPtrList< const Type >	csorted () const
template<class Type, bool Strict>
Foam::UPtrList< Type >	sorted ()
template<class Type, class MatchPredicate>
Foam::UPtrList< const Type >	cobjects (const MatchPredicate &matchName) const
template<class Type, class MatchPredicate>
Foam::UPtrList< Type >	objects (const MatchPredicate &matchName)
template<class Type, class MatchPredicate>
Foam::UPtrList< const Type >	csorted (const MatchPredicate &matchName) const
template<class Type, class MatchPredicate>
Foam::UPtrList< Type >	sorted (const MatchPredicate &matchName)
template<class MatchPredicate>
Foam::wordList	names (const MatchPredicate &matchClass) const
template<class MatchPredicate1, class MatchPredicate2>
Foam::wordList	names (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
template<class Type>
Foam::wordList	names () const
template<class Type, class MatchPredicate>
Foam::wordList	names (const MatchPredicate &matchName) const
template<class MatchPredicate>
Foam::wordList	sortedNames (const MatchPredicate &matchClass) const
template<class MatchPredicate1, class MatchPredicate2>
Foam::wordList	sortedNames (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const
template<class Type>
Foam::wordList	sortedNames () const
template<class Type, class MatchPredicate>
Foam::wordList	sortedNames (const MatchPredicate &matchName) const
template<class Type, bool Strict>
Foam::HashTable< const Type * >	lookupClass () const
template<class Type, bool Strict>
Foam::HashTable< Type * >	lookupClass ()
template<class Type>
Foam::HashTable< const Type * >	lookupClass (const bool strict) const
template<class Type>
Foam::HashTable< Type * >	lookupClass (const bool strict)
Public Member Functions inherited from HashTable< regIOobject * >
Foam::List< word >	sortedToc (const Compare &comp) const
Foam::List< word >	tocKeys (const UnaryPredicate &pred, const bool invert) const
Foam::List< word >	tocValues (const UnaryPredicate &pred, const bool invert) const
Foam::List< word >	tocEntries (const BinaryPredicate &pred, const bool invert) const
Foam::label	countKeys (const UnaryPredicate &pred, const bool invert) const
Foam::label	countValues (const UnaryPredicate &pred, const bool invert) const
Foam::label	countEntries (const BinaryPredicate &pred, const bool invert) const
Foam::label	erase (InputIter first, InputIter last)
Foam::label	erase (const FixedList< word, N > &keys)
Foam::label	erase (const HashTable< AnyType, word, AnyHash > &other)
Foam::label	retain (const HashTable< AnyType, word, AnyHash > &other)
Foam::label	filterKeys (const UnaryPredicate &pred, const bool pruning)
Foam::label	filterValues (const UnaryPredicate &pred, const bool pruning)
Foam::label	filterEntries (const BinaryPredicate &pred, const bool pruning)
constexpr	HashTable () noexcept
	Default construct: empty without allocation (capacity=0).
	~HashTable ()
	Destructor.
bool	empty () const noexcept
	True if the hash table is empty.
label	size () const noexcept
	The number of elements in table.
label	capacity () const noexcept
	The size of the underlying table (the number of buckets).
regIOobject *&	at (const word &key)
	Find and return a hashed entry. FatalError if it does not exist.
bool	contains (const word &key) const
	True if hashed key is contained (found) in table.
iterator	find (const word &key)
	Find and return an iterator set at the hashed entry.
const_iterator	cfind (const word &key) const
	Find and return an const_iterator set at the hashed entry.
const regIOobject *&	lookup (const word &key, const regIOobject *&deflt) const
	Return hashed entry if it exists, or return the given default.
List< word >	toc () const
	The table of contents (the keys) in unsorted order.
UPtrList< const node_type >	csorted () const
	Const access to the hash-table contents in sorted order (sorted by keys).
UPtrList< node_type >	sorted ()
	Non-const access to the hash-table contents in sorted order (sorted by keys).
bool	emplace (const word &key, Args &&... args)
	Emplace insert a new entry, not overwriting existing entries.
bool	emplace_set (const word &key, Args &&... args)
	Emplace set an entry, overwriting any existing entries.
bool	insert (const word &key, const regIOobject *&obj)
	Copy insert a new entry, not overwriting existing entries.
bool	set (const word &key, const regIOobject *&obj)
	Copy assign a new entry, overwriting existing entries.
void	clear ()
	Remove all entries from table.
void	clearStorage ()
	Remove all entries from table and the table itself.
void	setCapacity (label newCapacity)
	Change the hash table capacity (number of buckets).
void	resize (label newCapacity)
	Rehash the hash table with new number of buckets. Currently identical to setCapacity().
void	reserve (label numEntries)
	Reserve space for at least the specified number of elements (not the number of buckets) and regenerates the hash table.
void	swap (HashTable< regIOobject *, word, Foam::Hash< word > > &rhs) noexcept
	Swap contents into this table.
void	transfer (HashTable< regIOobject *, word, Foam::Hash< word > > &rhs)
	Transfer contents into this table.
void	merge (HashTable< regIOobject *, word, Foam::Hash< word > > &source)
	Attempts to extract entries from source parameter and insert them into this, does not overwrite existing entries. The source will contains any items that could not be merged.
regIOobject *&	operator[] (const word &key)
	Find and return a hashed entry. FatalError if it does not exist.
regIOobject *&	operator() (const word &key)
	Return existing entry or create a new entry.
void	operator= (const this_type &rhs)
	Copy assign.
bool	operator== (const this_type &rhs) const
	Equality. Tables are equal if all keys and values are equal, independent of order or underlying storage size.
bool	operator!= (const this_type &rhs) const
	The opposite of the equality operation.
this_type &	operator+= (const this_type &rhs)
	Add entries into this HashTable.
const_iterator_pair< const_key_iterator, this_type >	keys () const
	A const iterator begin/end pair for iterating over keys.
iterator	begin ()
	iterator set to the beginning of the HashTable
const_iterator	cbegin () const
	const_iterator set to the beginning of the HashTable
iterator	end () noexcept
	iterator to signal the end (for any HashTable)
constexpr const_iterator	cend () const noexcept
	const_iterator to signal the end (for any HashTable)
Ostream &	printInfo (Ostream &os) const
	Print information.
Ostream &	writeKeys (Ostream &os, const label shortLen=0) const
	Write unordered keys (list), with line-breaks when length exceeds shortLen.
bool	found (const word &key) const
	Same as contains().
Public Member Functions inherited from HashTableCore
	ClassName ("HashTable")
	Declare type-name (with debug switch).
constexpr	HashTableCore () noexcept=default
	Default construct.
Public Member Functions inherited from triSurface
	ClassName ("triSurface")
	Runtime type information.
	triSurface ()
	Default construct.
	triSurface (const triSurface &surf)
	Copy construct.
	triSurface (triSurface &&surf)
	Move construct.
	triSurface (const List< labelledTri > &triangles, const geometricSurfacePatchList &patches, const pointField &pts)
	Construct from triangles, patches, points.
	triSurface (List< labelledTri > &triangles, const geometricSurfacePatchList &patches, pointField &pts, const bool reuse)
	Construct from triangles, patches, points. Reuse storage.
	triSurface (const List< labelledTri > &triangles, const pointField &pts)
	Construct from triangles, points. Set patch names to default.
	triSurface (const triFaceList &triangles, const pointField &pts)
	Construct from triangles, points. Set region to 0 and default patchName.
	triSurface (const fileName &name, const scalar scaleFactor=-1)
	Construct from file name (uses extension to determine type).
	triSurface (const fileName &name, const word &fileType, const scalar scaleFactor=-1)
	Construct from file name with given format type.
	triSurface (Istream &is)
	Construct from Istream.
	triSurface (const Time &d)
	Construct from objectRegistry by reading an ".ftr" file.
	triSurface (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Read construct using IO to find the file location.
virtual	~triSurface ()
	Destructor.
void	clearOut ()
void	clearTopology ()
void	clearPatchMeshAddr ()
void	swap (triSurface &surf)
const geometricSurfacePatchList &	patches () const noexcept
geometricSurfacePatchList &	patches () noexcept
const List< labelledTri > &	surfFaces () const noexcept
	Return const access to the faces.
const labelListList &	sortedEdgeFaces () const
	Return edge-face addressing sorted (for edges with more than.
const labelList &	edgeOwner () const
	If 2 face neighbours: label of face where ordering of edge.
const vectorField &	Sf () const
	Face area vectors (normals).
const scalarField &	magSf () const
	Face area magnitudes.
const vectorField &	Cf () const
	Face centres.
List< surfZone >	sortedZones (labelList &faceMap) const
	Sort faces according to zoneIds.
void	triFaceFaces (List< face > &plainFaceList) const
	Create a list of faces from the triFaces.
virtual void	swapPoints (pointField &pts)
	Swap points. Similar to movePoints, but returns the old points.
virtual void	scalePoints (const scalar scaleFactor)
	Scale points. A non-positive factor is ignored.
void	checkTriangles (const bool verbose)
	Check/remove duplicate/degenerate triangles.
void	checkEdges (const bool verbose)
	Check triply (or more) connected edges.
void	cleanup (const bool verbose)
	Remove non-valid triangles.
void	compactPoints (labelList &pointMap=const_cast< labelList & >(labelList::null()))
	Remove unused points and renumber faces in local visit order.
void	markZone (const boolList &borderEdge, const label facei, const label currentZone, labelList &faceZone) const
	Fill faceZone with currentZone for every face reachable.
label	markZones (const boolList &borderEdge, labelList &faceZone) const
	(size and) fills faceZone with zone of face. Zone is area
template<class BoolListType>
void	subsetMeshMap (const BoolListType &include, labelList &pointMap, labelList &faceMap) const
	Create mappings for a sub-surface.
triSurface	subsetMesh (const UList< bool > &include, labelList &pointMap, labelList &faceMap) const
	Return a new surface subsetted on the selected faces.
triSurface	subsetMesh (const bitSet &include, labelList &pointMap, labelList &faceMap) const
	Return a new surface subsetted on the selected faces.
triSurface	subsetMesh (const UList< bool > &include) const
	Return a new surface subsetted on the selected faces.
triSurface	subsetMesh (const bitSet &include) const
	Return a new surface subsetted on the selected faces.
triSurface	subsetMesh (const wordRes &includeNames, const wordRes &excludeNames=wordRes()) const
	Return a new surface subsetted on the selected patch names.
void	swapFaces (List< labelledTri > &faceLst)
	Swap the list of faces being addressed.
void	transfer (triSurface &surf)
	Alter contents by transferring (triangles, points) components.
void	transfer (MeshedSurface< labelledTri > &surf)
	Alter contents by transferring (triangles, points) components.
void	write (Ostream &os) const
	Write to Ostream in simple OpenFOAM format.
void	write (const fileName &, const bool sortByRegion=false) const
	Generic write routine (uses extension to determine type).
void	write (const fileName &filename, const word &fileType, const bool sortByRegion=false) const
	Generic write routine for given format type.
void	write (const Time &d) const
	Write to database.
void	writeStats (Ostream &os) const
	Write some statistics.
void	operator= (const triSurface &surf)
	Copy assignment.
void	operator= (triSurface &&surf)
	Move assignment.
void	operator= (MeshedSurface< labelledTri > &&surf)
	Move assignment.
Public Member Functions inherited from PrimitivePatch<::Foam::List< labelledTri >, pointField >
	PrimitivePatch (const ::Foam::List< labelledTri > &faces, const pointField &points)
	Construct from components.
	PrimitivePatch (::Foam::List< labelledTri > &&faces, const pointField &points)
	Construct from components, transferring faces.
	PrimitivePatch (::Foam::List< labelledTri > &faces, pointField &points, const bool reuse)
	Construct from components, reuse storage.
	PrimitivePatch (const PrimitivePatch< ::Foam::List< labelledTri >, pointField > &pp)
	Copy construct.
virtual	~PrimitivePatch ()
	Destructor.
void	clearOut ()
void	clearGeom ()
void	clearTopology ()
void	clearPatchMeshAddr ()
void	swap (PrimitivePatch &)=delete
	Suppress direct swapping, since storage containers may be const.
const Field< point_type > &	points () const noexcept
	Return reference to global points.
label	nFaces () const noexcept
	Number of faces in the patch.
label	nPoints () const
	Number of points supporting patch faces.
label	nEdges () const
	Number of edges in patch.
const edgeList &	edges () const
	Return list of edges, address into LOCAL point list.
const edgeList::subList	internalEdges () const
	Return sub-list of internal edges, address into LOCAL point list.
const edgeList::subList	boundaryEdges () const
	Return sub-list of boundary edges, address into LOCAL point list.
label	nInternalEdges () const
	Number of internal edges.
label	nBoundaryEdges () const
	Number of boundary edges == (nEdges() - nInternalEdges()).
bool	isInternalEdge (const label edgei) const
	Is internal edge?
const labelList &	boundaryPoints () const
	Return list of boundary points, address into LOCAL point list.
const labelListList &	faceFaces () const
	Return face-face addressing.
const labelListList &	edgeFaces () const
	Return edge-face addressing.
const labelListList &	faceEdges () const
	Return face-edge addressing.
const labelListList &	pointEdges () const
	Return point-edge addressing.
const labelListList &	pointFaces () const
	Return point-face addressing.
const List< face_type > &	localFaces () const
	Return patch faces addressing into local point list.
labelList	boundaryFaces () const
	Extract list of local faces corresponding to the boundary edges.
labelList	uniqBoundaryFaces () const
	Extract sorted list of unique local faces associated with the boundary edges.
const labelList &	meshPoints () const
	Return labelList of mesh points in patch.
const Map< label > &	meshPointMap () const
	Mesh point map.
const Field< point_type > &	localPoints () const
	Return pointField of points in patch.
const labelList &	localPointOrder () const
	Return orders the local points for most efficient search.
label	whichPoint (const label gp) const
	Given a global point index, return the local point index.
edge	meshEdge (const label edgei) const
	From patch edge to global edge using meshPoints.
edge	meshEdge (const edge &e) const
	From patch edge to global edge using meshPoints.
label	findEdge (const edge &e) const
	Search for edge (local point labels) and return its index in the edge list or -1 if not found.
labelList	meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const
	Return labels of patch edges in the global edge list using cell addressing.
labelList	meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of patch edges into the global edge list using basic edge addressing.
label	meshEdge (const label edgei, const edgeList &allEdges, const labelListList &pointEdges) const
	Return label of the local patch edge into the global edge list using basic edge addressing.
labelList	meshEdges (const labelUList &edgeLabels, const edgeList &allEdges, const labelListList &pointEdges) const
	Return labels of specified patch edges into the global edge list using basic edge addressing.
const Field< point_type > &	faceCentres () const
	Return face centres for patch.
const Field< point_type > &	faceAreas () const
	Return face area vectors for patch.
const Field< scalar > &	magFaceAreas () const
	Return face area magnitudes for patch.
const Field< point_type > &	faceNormals () const
	Return face unit normals for patch.
const Field< point_type > &	pointNormals () const
	Return point normals for patch.
Pair< point_type >	box () const
	The enclosing (bounding) box for the patch points.
scalar	sphere (const label facei) const
	The enclosing (bounding) sphere radius^2 for specified face.
bool	hasFaceAreas () const
bool	hasFaceCentres () const
bool	hasFaceNormals () const
bool	hasPointNormals () const
bool	hasBoundaryPoints () const
bool	hasEdges () const
bool	hasFaceFaces () const
bool	hasEdgeFaces () const
bool	hasFaceEdges () const
bool	hasPointEdges () const
bool	hasPointFaces () const
bool	hasMeshPoints () const
bool	hasMeshPointMap () const
List< objectHit >	projectPoints (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
List< objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const
	Project vertices of patch onto another patch.
const labelListList &	edgeLoops () const
	Return list of closed loops of boundary vertices.
surfaceTopo	surfaceType (labelHashSet *badEdgesPtr=nullptr) const
	Calculate surface type formed by patch, optionally recording the indices of illegal edges.
bool	checkTopology (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Check surface formed by patch for manifoldness (see above).
bool	checkPointManifold (const bool report=false, labelHashSet *pointSetPtr=nullptr) const
	Checks primitivePatch for faces sharing point but not edge.
virtual void	movePoints (const Field< point_type > &)
	Correct patch after moving points.
void	operator= (const PrimitivePatch< ::Foam::List< labelledTri >, pointField > &rhs)
	Copy assign faces. Leave points alone (could be a reference).
void	operator= (PrimitivePatch< ::Foam::List< labelledTri >, pointField > &&rhs)
	Move assign faces. Leave points alone (could be a reference).
label	whichEdge (const edge &e) const
	Identical to findEdge.
Foam::List< Foam::objectHit >	projectPoints (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< ::Foam::List< labelledTri >, pointField >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Foam::List< Foam::objectHit >	projectFaceCentres (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< ::Foam::List< labelledTri >, pointField >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const
Public Member Functions inherited from PrimitivePatchBase
	ClassName ("PrimitivePatch")
	Runtime type information.
	PrimitivePatchBase ()=default
	Default construct.
Public Member Functions inherited from List< T >
constexpr	List () noexcept
	Default construct.
	List (const label len)
	Construct with given size.
	List (const label len, const T &val)
	Construct with given size and value for all elements.
	List (const label len, Foam::zero)
	Construct with given size initializing all elements to zero.
	List (Foam::one, const T &val)
	Construct with length=1, copying the value as the only content.
	List (Foam::one, T &&val)
	Construct with length=1, moving the value as the only content.
	List (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	List (const List< T > &list)
	Copy construct from list.
	List (const UList< T > &list)
	Copy construct contents from list.
	List (List< T > &list, bool reuse)
	Construct as copy or re-use as specified.
	List (const UList< T > &list, const labelUList &indices)
	Copy construct subset of list.
template<unsigned N>
	List (const UList< T > &list, const FixedList< label, N > &indices)
	Copy construct subset of list.
template<unsigned N>
	List (const FixedList< T, N > &list)
	Construct as copy of FixedList<T, N>.
	List (const UPtrList< T > &list)
	Construct as copy of UPtrList<T> content.
template<class Addr>
	List (const IndirectListBase< T, Addr > &list)
	Construct as copy of IndirectList contents.
	List (std::initializer_list< T > list)
	Construct from an initializer list.
	List (List< T > &&list) noexcept
	Move construct from List.
template<int SizeMin>
	List (DynamicList< T, SizeMin > &&list)
	Move construct from DynamicList.
	List (Istream &is)
	Construct from Istream.
autoPtr< List< T > >	clone () const
	Clone.
	~List ()
	Destructor.
void	clear ()
	Clear the list, i.e. set size to zero.
void	resize (const label len)
	Adjust allocated size of list.
void	resize (const label len, const T &val)
	Adjust allocated size of list and set val for new elements.
void	resize_copy (label count, const label len)
	Change allocated size of list, retaining the first count elements.
void	resize_fill (const label len, const T &val)
	Adjust allocated size of list and set val for all elements.
void	resize_nocopy (const label len)
	Adjust allocated size of list without necessarily.
void	transfer (List< T > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
template<int SizeMin>
void	transfer (DynamicList< T, SizeMin > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
T &	newElmt (const label i)
	Return subscript-checked element of UList and resizing the list if required.
template<class... Args>
T &	emplace_back (Args &&... args)
	Construct an element at the end of the list, return reference to the new list element.
void	push_back (const T &val)
	Append an element at the end of the list.
void	push_back (T &&val)
	Move append an element at the end of the list.
void	push_back (const UList< T > &list)
	Append a List to the end of this list.
template<class Addr>
void	push_back (const IndirectListBase< T, Addr > &list)
	Append IndirectList contents at the end of this list.
label	push_uniq (const T &val)
	Append an element if not already in the list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
void	operator= (const UList< T > &list)
	Assignment to UList operator. Takes linear time.
void	operator= (const List< T > &list)
	Assignment operator. Takes linear time.
template<class Addr>
void	operator= (const IndirectListBase< T, Addr > &list)
	Assignment from IndirectList. Takes linear time.
template<unsigned N>
void	operator= (const FixedList< T, N > &list)
	Copy assignment from FixedList.
void	operator= (std::initializer_list< T > list)
	Assignment to an initializer list.
void	operator= (const T &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
void	operator= (List< T > &&list)
	Move assignment. Takes constant time.
template<int SizeMin>
void	operator= (DynamicList< T, SizeMin > &&list)
	Move assignment. Takes constant time.
Istream &	readList (Istream &is)
	Read List from Istream, discarding contents of existing List.
void	shallowCopy (const UList< T > &)=delete
	No shallowCopy permitted.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	set (const label i, bool val=true)
	A bitSet::set() method for a list of bool.
void	append (const T &val)
	Append an element at the end of the list.
void	append (T &&val)
	Move append an element at the end of the list.
void	append (const UList< T > &list)
	Append a List to the end of this list.
template<class Addr>
void	append (const IndirectListBase< T, Addr > &list)
	Append IndirectList contents at the end of this list.
label	appendUniq (const T &val)
	Same as push_uniq().
void	setSize (label n)
	Alias for resize().
void	setSize (label n, const T &val)
	Alias for resize().
template<typename E>
	List (const Expression::ListExpression< E > &expr)
	Construct from value expression.
template<typename E>
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	resize (const label len)
Public Member Functions inherited from UList< T >
	UList (const UList< T > &) noexcept=default
	Copy construct, shallow copy.
	UList (UList< T > &&) noexcept=default
	Move construct, shallow copy.
UList< T > &	operator= (const UList< T > &)=delete
	No copy assignment (default: shallow copy).
UList< T > &	operator= (UList< T > &&) noexcept=default
	Move assignment, shallow copy.
constexpr	UList () noexcept
	Default construct, zero-sized and nullptr.
	UList (T *__restrict__ ptr, const label len) noexcept
	Construct from components.
	UList (SubList< T > &&) noexcept
	Move construct from a SubList, shallow copy.
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const T &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
T &	fcValue (const label i)
	Return forward circular value (ie, next value in the list).
const T &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
T &	rcValue (const label i)
	Return reverse circular value (ie, previous value in the list).
const T *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
T *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
T &	front ()
	Access first element of the list, position [0].
const T &	front () const
	Access first element of the list.
T &	back ()
	Access last element of the list, position [size()-1].
const T &	back () const
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const T &val) const
	True if the value is contained in the list.
bool	contains (const T &val, label pos, label len=-1) const
	Is the value contained in the list?
label	find (const T &val) const
	Find index of the first occurrence of the value.
label	find (const T &val, label pos, label len=-1) const
	Find index of the first occurrence of the value.
label	rfind (const T &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (T *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	shallowCopy (std::nullptr_t) noexcept
	Copy nullptr and zero size.
void	shallowCopy (const UList< T > &list) noexcept
	Copy the pointer and size held by the given UList.
void	deepCopy (const UList< T > &list)
	Copy elements of the given UList. Sizes must match!
template<class Addr>
void	deepCopy (const IndirectListBase< T, Addr > &list)
	Copy elements of the given indirect list. Sizes must match!
SubList< T >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
const SubList< T >	slice (const label pos, label len=-1) const
	Return SubList slice (const access) - no range checking.
SubList< T >	slice (const labelRange &range)
	Return SubList slice (non-const access) - with range checking.
const SubList< T >	slice (const labelRange &range) const
	Return SubList slice (const access) - with range checking.
T &	operator[] (const label i)
	Return element of UList.
const T &	operator[] (const label i) const
	Return element of constant UList.
	operator const Foam::List< T > & () const
	Allow cast to a const List<T>&.
void	operator= (const T &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
iterator	begin (const label i) noexcept
	Return iterator at offset i from begin, clamped to [0,size] range.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	begin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	end () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	cbegin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
const_iterator	begin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	rbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	rend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	size () const noexcept
	The number of elements in the container.
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< T > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< T > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< T > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< T > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< T > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< T > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< T > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
void	writeEntry (const word &keyword, Ostream &os) const
	Write the List as a dictionary entry with keyword.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	all () const
	True if all entries are 'true' or if the list is empty.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	any () const
	True if any entries are 'true'.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	none () const
	True if no entries are 'true'.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	test (const label i) const
	Test bool value at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	get (const label i) const
	Return bool value at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_bool_v<TypeT>>>
bool	unset (const label i)
	Unset the bool entry at specified position, always false for out-of-range access.
template<class TypeT = T, class = std::enable_if_t<stdFoam::is_char_v<TypeT>>>
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
T &	first ()
	Access first element of the list, position [0].
const T &	first () const
	Access first element of the list.
T &	last ()
	Access last element of the list, position [size()-1].
const T &	last () const
	Access last element of the list, position [size()-1].
bool	found (const T &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.
template<typename E>
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
Public Member Functions inherited from triSurfaceRegionSearch
	triSurfaceRegionSearch (const triSurface &)
	Construct from surface. Holds reference to surface!
	triSurfaceRegionSearch (const triSurface &, const dictionary &dict)
	Construct from surface and dictionary. Holds reference to surface!
	~triSurfaceRegionSearch ()
	Destructor.
void	clearOut ()
	Clear storage.
const PtrList< treeType > &	treeByRegion () const
	Demand driven construction of octree for each region.
void	findNearest (const pointField &samples, const scalarField &nearestDistSqr, const labelList &regionIndices, List< pointIndexHit > &info) const
	Find the nearest point on the surface out of the regions.
void	flip ()
	Flip orientation.
Public Member Functions inherited from triSurfaceSearch
	triSurfaceSearch (const triSurface &surface)
	Construct from surface. Holds reference to surface!
	triSurfaceSearch (const triSurface &surface, const dictionary &dict)
	Construct from surface and dictionary.
	triSurfaceSearch (const triSurface &surface, const scalar tolerance, const label maxTreeDepth=10)
	Construct from components.
	~triSurfaceSearch ()
	Destructor.
void	clearOut ()
	Clear storage.
const indexedOctree< treeDataTriSurface > &	tree () const
	Demand driven construction of the octree.
void	flip ()
	Flip orientation (if cached on octree).
const triSurface &	surface () const
	Return reference to the surface.
scalar	tolerance () const
	Return tolerance to use in searches.
label	maxTreeDepth () const
	Return max tree depth of octree.
boolList	calcInside (const pointField &searchPoints) const
	Calculate for each searchPoint inside/outside status.
void	findNearest (const pointField &samples, const scalarField &nearestDistSqr, List< pointIndexHit > &info) const
pointIndexHit	nearest (const point &pt, const vector &span) const
	Calculate nearest point on surface for single searchPoint. Returns.
void	findLine (const pointField &start, const pointField &end, List< pointIndexHit > &info) const
void	findLineAny (const pointField &start, const pointField &end, List< pointIndexHit > &info) const
void	findLineAll (const pointField &start, const pointField &end, List< List< pointIndexHit > > &info) const
	Calculate all intersections from start to end.

Static Public Attributes
static word	meshSubDir = "triSurface"
	Return the mesh sub-directory name (usually "triSurface").
Static Public Attributes inherited from IOobject
static const Enum< fileCheckTypes >	fileCheckTypesNames
	Names for the fileCheckTypes.
static char	scopeSeparator
	Character for scoping object names (':' or '_').
static fileCheckTypes	fileModificationChecking
	Type of file modification checking.
static float	fileModificationSkew
	Time skew (seconds) for file modification checks.
static int	maxFileModificationPolls
	Max number of times to poll for file modification changes.
Static Public Attributes inherited from HashTableCore
static constexpr int32_t	maxTableSize = (1 << (32-3))
	Maximum allowable internal table size (must be a power of two!).

Protected Member Functions
bool	isSurfaceClosed () const
	Check whether surface is closed without calculating any permanent.
	triSurfaceMesh (const triSurfaceMesh &)=delete
	No copy construct.
void	operator= (const triSurfaceMesh &)=delete
	No copy assignment.
Protected Member Functions inherited from regIOobject
bool	readHeaderOk (const IOstreamOption::streamFormat fmt, const word &typeName)
	Helper: check readOpt flags and read if necessary.
Protected Member Functions inherited from IOobject
void	setBad (const string &s)
	Set the object state to bad.
Protected Member Functions inherited from triSurface
pointField &	storedPoints ()
	Non-const access to global points.
List< labelledTri > &	storedFaces ()
	Non-const access to the faces.
Protected Member Functions inherited from UList< T >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const T &val)
	Assign all entries to the given value.
void	fill_uniform (Foam::zero)
	Assign all entries to zero.

Static Protected Member Functions
static bool	addFaceToEdge (const edge &, EdgeMap< label > &)
	Helper function for isSurfaceClosed.
static void	getNextIntersections (const indexedOctree< treeDataTriSurface > &octree, const point &start, const point &end, const vector &smallVec, DynamicList< pointIndexHit > &hits)
	Steps to next intersection. Adds smallVec and starts tracking.
Static Protected Member Functions inherited from IOobject
static void	writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr)
	Helper: write content for FoamFile IOobject header with optional meta information.
static void	writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr)
	Helper: write dictionary content for FoamFile header with optional meta information.

Protected Attributes
fileName	fName_
	Supplied fileName override.
scalar	minQuality_
	Optional min triangle quality. Triangles below this get.
autoPtr< indexedOctree< treeDataEdge > >	edgeTree_
	Search tree for boundary edges.
wordList	regions_
	Names of regions.
label	surfaceClosed_
	Is surface closed.
volumeType	outsideVolType_
	If surface is closed, what is type of outside points.

Additional Inherited Members
Static Public Member Functions inherited from searchableSurface
static autoPtr< searchableSurface >	New (const word &surfaceType, const IOobject &io, const dictionary &dict)
	Return a reference to the selected searchableSurface.
Static Public Member Functions inherited from regIOobject
template<class Type>
static Type &	store (Type *p)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (std::unique_ptr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &&ptr)
	Transfer pointer ownership to its registry.
Static Public Member Functions inherited from IOobject
static bool	bannerEnabled () noexcept
	Status of output file banner.
static bool	bannerEnabled (bool on) noexcept
	Enable/disable output file banner.
static bool	fileModificationChecking_masterOnly () noexcept
	Test fileModificationChecking for master-only.
static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)
	Split path into instance, local, name components.
template<class StringType>
static word	groupName (StringType base, const word &group)
	Create dot-delimited name.group string.
static word	group (const word &name)
	Return group (extension part of name).
static word	member (const word &name)
	Return member (name without the extension).
static word	scopedName (const std::string &scope, const word &name)
	Create scope:name or scope_name string.
static word	scopedName (const std::string &scope, const word &name1, const word &name2)
	Create scope:name1:name2 or scope_name1_name2 string.
static IOobject	selectIO (const IOobject &io, const fileName &altFile, const word &ioName="")
	Return the IOobject, but also consider an alternative file name.
static Ostream &	writeBanner (Ostream &os, const bool noSyntaxHint=false)
	Write the standard OpenFOAM file/dictionary banner.
static Ostream &	writeDivider (Ostream &os)
	Write the standard file section divider.
static Ostream &	writeEndDivider (Ostream &os)
	Write the standard end file divider.
Static Public Member Functions inherited from IOobjectOption
static bool	isAnyRead (readOption opt) noexcept
	True if any reading may be required (ie, != NO_READ).
static bool	isReadRequired (readOption opt) noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
static bool	isReadOptional (readOption opt) noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
static readOption	lazierRead (readOption opt) noexcept
	Downgrade readOption optional (LAZY_READ), leaves NO_READ intact.
Static Public Member Functions inherited from HashTableCore
static label	canonicalSize (const label size) noexcept
	Return a canonical (power-of-two) of the requested size.
Static Public Member Functions inherited from triSurface
static fileName	triSurfInstance (const Time &)
	Name of triSurface directory to use.
static wordHashSet	readTypes ()
	Known readable file-types, including via friends or proxies.
static wordHashSet	writeTypes ()
	Known writable file-types, including via friends or proxies.
static bool	canReadType (const word &fileType, bool verbose=false)
	Can we read this file format?
static bool	canWriteType (const word &fileType, bool verbose=false)
	Can we write this file format?
static bool	canRead (const fileName &name, bool verbose=false)
	Can we read this file format?
static fileName	relativeFilePath (const IOobject &io, const fileName &f, const bool isGlobal=true)
	Return fileName.
static fileName	checkFile (const IOobject &io, const bool isGlobal=true)
	Return fileName to load IOobject from.
static fileName	checkFile (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Return fileName to load IOobject from.
static fileName	findFile (const IOobject &io, const bool isGlobal=true)
	Use IOobject information to resolve file to load from, or empty if the file does not exist.
static fileName	findFile (const IOobject &io, const dictionary &dict, const bool isGlobal=true)
	Use IOobject information to resolve file to load from, or empty if the file does not exist.
static autoPtr< triSurface >	New (const fileName &name, const word &fileType)
	Read construct from filename with given file type.
static autoPtr< triSurface >	New (const fileName &name)
	Read construct from filename (file type implicit from extension).
Static Public Member Functions inherited from List< T >
static const List< T > &	null () noexcept
	Return a null List (reference to a nullObject). Behaves like an empty List.
Static Public Member Functions inherited from UList< T >
static const UList< T > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.
Static Protected Attributes inherited from regIOobject
static bool	masterOnlyReading = false
	To flag master-only reading of objects.

Detailed Description

IOoject and searching on triSurface.

Note: when constructing from dictionary has the following parameters:

• scale : scaling factor.
• tolerance : relative tolerance for doing intersections (see triangle::intersection)
• minQuality: discard triangles with low quality when getting normal

Dictionary parameters

Property	Description	Required	Default
type	triSurfaceMesh	selector
file	File name to locate the surface	no
fileType	The surface format (Eg, nastran)	no
scale	Scaling factor	no	0
minQuality	Quality criterion	no	-1

Source files

• triSurfaceMesh.H
• triSurfaceMesh.C

Definition at line 102 of file triSurfaceMesh.H.

Member Enumeration Documentation

readAction

enum readAction

Enumerator
localOnly
localOrGlobal
masterOnly

Definition at line 229 of file triSurfaceMesh.H.

Constructor & Destructor Documentation

triSurfaceMesh() [1/6]

triSurfaceMesh ( const triSurfaceMesh & )

protecteddelete

No copy construct.

References triSurfaceMesh().

Referenced by closedTriSurfaceMesh::closedTriSurfaceMesh(), closedTriSurfaceMesh::closedTriSurfaceMesh(), closedTriSurfaceMesh::closedTriSurfaceMesh(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), operator=(), smoothTriSurfaceMesh::smoothTriSurfaceMesh(), smoothTriSurfaceMesh::smoothTriSurfaceMesh(), subTriSurfaceMesh::subTriSurfaceMesh(), triSurfaceMesh(), and writeObject().

Here is the call graph for this function:

Here is the caller graph for this function:

triSurfaceMesh() [2/6]

triSurfaceMesh	(	const IOobject &	io,
		const triSurface &	s )

Construct from triSurface.

Definition at line 285 of file triSurfaceMesh.C.

References searchableSurface::bounds(), IOobject::db(), IOobject::instance(), io, IOobject::local(), minQuality_, Foam::name(), outsideVolType_, PrimitivePatch<::Foam::List< labelledTri >, pointField >::points(), IOobjectOption::readOpt(), s(), surfaceClosed_, triSurface::triSurface(), and IOobjectOption::writeOpt().

Here is the call graph for this function:

triSurfaceMesh() [3/6]

triSurfaceMesh

(

const IOobject &

io

)

Construct read.

Definition at line 311 of file triSurfaceMesh.C.

References searchableSurface::bounds(), IOobject::db(), IOobject::instance(), io, IOobject::local(), minQuality_, Foam::name(), List< T >::null(), outsideVolType_, PrimitivePatch<::Foam::List< labelledTri >, pointField >::points(), IOobjectOption::readOpt(), surfaceClosed_, triSurface::triSurface(), and IOobjectOption::writeOpt().

Here is the call graph for this function:

triSurfaceMesh() [4/6]

triSurfaceMesh	(	const IOobject &	io,
		const dictionary &	dict )

Construct from IO and dictionary (used by searchableSurface).

Dictionary may contain a 'scale' entry (eg, 0.001: mm -> m)

Definition at line 339 of file triSurfaceMesh.C.

References searchableSurface::bounds(), IOobject::db(), dict, fName_, if(), IOobject::instance(), io, keyType::LITERAL, IOobject::local(), minQuality_, Foam::name(), outsideVolType_, PrimitivePatch<::Foam::List< labelledTri >, pointField >::points(), IOobjectOption::readOpt(), surfaceClosed_, triSurface::triSurface(), and IOobjectOption::writeOpt().

Here is the call graph for this function:

triSurfaceMesh() [5/6]

triSurfaceMesh	(	const IOobject &	io,
		const readAction	r )

Definition at line 398 of file triSurfaceMesh.C.

References UPstream::broadcast, IOobject::db(), Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, if(), IOobject::instance(), io, IOobject::local(), UPstream::master(), masterOnly, minQuality_, Foam::name(), outsideVolType_, UPstream::parRun(), triSurface::patches(), Foam::Pout, IOobjectOption::readOpt(), UList< T >::size(), surfaceClosed_, triSurface::transfer(), triSurface::triSurface(), and IOobjectOption::writeOpt().

Here is the call graph for this function:

triSurfaceMesh() [6/6]

triSurfaceMesh	(	const IOobject &	io,
		const dictionary &	dict,
		const readAction	r )

Definition at line 500 of file triSurfaceMesh.C.

References UPstream::broadcast, IOobject::db(), dict, Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, if(), Foam::Info, IOobject::instance(), io, IOobject::local(), UPstream::master(), masterOnly, minQuality_, IOobject::name(), Foam::name(), outsideVolType_, UPstream::parRun(), triSurface::patches(), Foam::Pout, IOobjectOption::readOpt(), UList< T >::size(), surfaceClosed_, triSurface::transfer(), triSurface::triSurface(), and IOobjectOption::writeOpt().

Here is the call graph for this function:

~triSurfaceMesh()

~triSurfaceMesh ( )

virtual

Destructor.

Definition at line 649 of file triSurfaceMesh.C.

References clearOut().

Here is the call graph for this function:

Member Function Documentation

addFaceToEdge()

bool addFaceToEdge ( const edge & e, EdgeMap< label > & facesPerEdge )

staticprotected

Helper function for isSurfaceClosed.

Definition at line 43 of file triSurfaceMesh.C.

References edge::compare(), objectRegistry::count(), e, Foam::exit(), Foam::FatalError, FatalErrorInFunction, HashTable< T, Key, Hash >::find(), and HashTable< T, Key, Hash >::insert().

Referenced by isSurfaceClosed().

Here is the call graph for this function:

Here is the caller graph for this function:

isSurfaceClosed()

bool isSurfaceClosed ( ) const

protected

Check whether surface is closed without calculating any permanent.

addressing.

Return open?

return false;

Definition at line 92 of file triSurfaceMesh.C.

References addFaceToEdge(), Foam::endl(), f(), forAll, forAllConstIters, IOobject::name(), Foam::nl, PrimitivePatch<::Foam::List< labelledTri >, pointField >::points(), Foam::Pout, pts, UList< T >::size(), UList< T >::size(), triSurface::triSurface(), and WarningInFunction.

Referenced by hasVolumeType().

Here is the call graph for this function:

Here is the caller graph for this function:

getNextIntersections()

void getNextIntersections ( const indexedOctree< treeDataTriSurface > & octree, const point & start, const point & end, const vector & smallVec, DynamicList< pointIndexHit > & hits )

staticprotected

Steps to next intersection. Adds smallVec and starts tracking.

from there.

References HashTable< regIOobject * >::end().

Here is the call graph for this function:

operator=()

void operator= ( const triSurfaceMesh & )

protecteddelete

No copy assignment.

References triSurfaceMesh().

Here is the call graph for this function:

TypeName()

TypeName

(

"triSurfaceMesh"

)

Runtime type information.

clearOut()

void clearOut

(

)

Clear storage.

Definition at line 655 of file triSurfaceMesh.C.

References triSurface::clearOut(), triSurfaceRegionSearch::clearOut(), and edgeTree_.

Referenced by distributedTriSurfaceMesh::clearOut(), and ~triSurfaceMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

movePoints()

void movePoints ( const pointField & newPoints )

virtual

Move points.

Reimplemented from triSurface.

Definition at line 736 of file triSurfaceMesh.C.

References searchableSurface::bounds(), triSurfaceRegionSearch::clearOut(), edgeTree_, Foam::endl(), regIOobject::eventNo(), objectRegistry::getEvent(), IOobject::instance(), triSurface::movePoints(), IOobject::name(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::points(), Foam::Pout, objectRegistry::time(), and Time::timeName().

Here is the call graph for this function:

edgeTree()

const Foam::indexedOctree< Foam::treeDataEdge > & edgeTree

(

)

const

Demand driven construction of octree for boundary edges.

Definition at line 770 of file triSurfaceMesh.C.

References PatchTools::calcBounds(), e, PrimitivePatch<::Foam::List< labelledTri >, pointField >::edges(), edgeTree_, Foam::endl(), boundBox::inflate(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::localPoints(), triSurfaceSearch::maxTreeDepth(), IOobject::name(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::nBoundaryEdges(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::nEdges(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::nInternalEdges(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::nPoints(), indexedOctreeBase::perturbTol(), Foam::Pout, rndGen, IntRange< IntType >::size(), triSurfaceSearch::tolerance(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Here is the call graph for this function:

regions()

const Foam::wordList & regions ( ) const

virtual

Names of regions.

Implements searchableSurface.

Definition at line 845 of file triSurfaceMesh.C.

References forAll, IOobject::name(), patches, regions_, and size().

Here is the call graph for this function:

hasVolumeType()

bool hasVolumeType ( ) const

virtual

Whether supports volume type (below) - i.e. whether is closed.

Reimplemented from searchableSurface.

Reimplemented in closedTriSurfaceMesh.

Definition at line 859 of file triSurfaceMesh.C.

References isSurfaceClosed(), and surfaceClosed_.

Referenced by flip(), distributedTriSurfaceMesh::getVolumeType(), and getVolumeType().

Here is the call graph for this function:

Here is the caller graph for this function:

outsideVolumeType()

Foam::volumeType outsideVolumeType ( ) const

virtual

If surface is closed, what is type of points outside bounds.

Implements searchableSurface.

Definition at line 877 of file triSurfaceMesh.C.

References searchableSurface::bounds(), Foam::endl(), getVolumeType(), Foam::max(), IOobject::name(), volumeType::names, outsideVolType_, Foam::Pout, and volumeType::UNKNOWN.

Here is the call graph for this function:

size()

virtual label size ( ) const

inlinevirtual

Range of local indices that can be returned.

Implements searchableSurface.

Definition at line 291 of file triSurfaceMesh.H.

References UList< T >::size().

Referenced by boundingSpheres(), distributedTriSurfaceMesh::distribute(), distributedTriSurfaceMesh::getVolumeType(), and regions().

Here is the call graph for this function:

Here is the caller graph for this function:

flip()

void flip ( )

virtual

Flip triangles, outsideVolumeType and all cached inside/outside.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 912 of file triSurfaceMesh.C.

References Foam::endl(), triSurfaceRegionSearch::flip(), hasVolumeType(), volumeType::INSIDE, IOobject::name(), volumeType::names, volumeType::OUTSIDE, outsideVolType_, Foam::Pout, s(), and triSurface::triSurface().

Referenced by distributedTriSurfaceMesh::flip().

Here is the call graph for this function:

Here is the caller graph for this function:

coordinates()

Foam::tmp< Foam::pointField > coordinates ( ) const

virtual

Get representative set of element coordinates.

Usually the element centres (should be of length size()).

Implements searchableSurface.

Definition at line 666 of file triSurfaceMesh.C.

References PrimitivePatch< FaceList, PointField >::faceCentres(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::faceCentres(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::hasFaceCentres(), tmp< T >::New(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::points(), pts, and UList< T >::size().

Referenced by smoothTriSurfaceMesh::getNormal().

Here is the call graph for this function:

Here is the caller graph for this function:

boundingSpheres()

void boundingSpheres ( pointField & centres, scalarField & radiusSqr ) const

virtual

Get bounding spheres (centre and radius squared). Any point.

on surface is guaranteed to be inside.

Implements searchableSurface.

Definition at line 693 of file triSurfaceMesh.C.

References coordinates(), Vector< Cmpt >::distSqr(), f(), forAll, Foam::max(), UList< T >::operator[](), PrimitivePatch<::Foam::List< labelledTri >, pointField >::points(), pts, List< T >::setSize(), size(), and Foam::sqr().

Here is the call graph for this function:

points()

Foam::tmp< Foam::pointField > points ( ) const

virtual

Get the points that define the surface.

Implements searchableSurface.

Definition at line 720 of file triSurfaceMesh.C.

References PrimitivePatch<::Foam::List< labelledTri >, pointField >::points().

Referenced by getVolumeType(), powerLawLopesdaCostaZone::powerLawLopesdaCostaZone(), and searchableSurfaces::writeStats().

Here is the call graph for this function:

Here is the caller graph for this function:

overlaps()

bool overlaps ( const boundBox & bb ) const

virtual

Does any part of the surface overlap the supplied bound box?

Implements searchableSurface.

Definition at line 726 of file triSurfaceMesh.C.

References UList< T >::empty(), and tree().

Here is the call graph for this function:

findNearest() [1/2]

void findNearest ( const pointField & sample, const scalarField & nearestDistSqr, List< pointIndexHit > & info ) const

virtual

Implements searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 955 of file triSurfaceMesh.C.

References Foam::endl(), triSurfaceSearch::findNearest(), IOobject::info(), Foam::max(), IOobject::name(), Foam::Pout, samples(), Foam::sqrt(), and Foam::Zero.

Referenced by distributedTriSurfaceMesh::findNearest(), and distributedTriSurfaceMesh::findNearest().

Here is the call graph for this function:

Here is the caller graph for this function:

findNearest() [2/2]

void findNearest ( const pointField & samples, const scalarField & nearestDistSqr, const labelList & regionIndices, List< pointIndexHit > & info ) const

virtual

Find the nearest locations for the supplied points to a.

particular region in the searchable surface.

Reimplemented from searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 981 of file triSurfaceMesh.C.

References Foam::endl(), triSurfaceRegionSearch::findNearest(), IOobject::info(), Foam::max(), IOobject::name(), Foam::Pout, samples(), Foam::sqrt(), and Foam::Zero.

Here is the call graph for this function:

findLine()

void findLine ( const pointField & start, const pointField & end, List< pointIndexHit > &  ) const

virtual

Find first intersection on segment from start to end.

Note: searchableSurfacesQueries expects no intersection to be found if start==end. Is problem?

Implements searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 1014 of file triSurfaceMesh.C.

References HashTable< regIOobject * >::end(), Foam::endl(), triSurfaceSearch::findLine(), IOobject::info(), IOobject::name(), Foam::Pout, and UList< T >::size().

Referenced by distributedTriSurfaceMesh::findLine(), and powerLawLopesdaCostaZone::powerLawLopesdaCostaZone().

Here is the call graph for this function:

Here is the caller graph for this function:

findLineAny()

void findLineAny ( const pointField & start, const pointField & end, List< pointIndexHit > &  ) const

virtual

Return any intersection on segment from start to end.

Implements searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 1038 of file triSurfaceMesh.C.

References HashTable< regIOobject * >::end(), Foam::endl(), triSurfaceSearch::findLineAny(), IOobject::info(), IOobject::name(), Foam::Pout, and UList< T >::size().

Referenced by distributedTriSurfaceMesh::findLineAny().

Here is the call graph for this function:

Here is the caller graph for this function:

findLineAll()

void findLineAll ( const pointField & start, const pointField & end, List< List< pointIndexHit > > & info ) const

virtual

Get all intersections in order from start to end.

Implements searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 1062 of file triSurfaceMesh.C.

References HashTable< regIOobject * >::end(), Foam::endl(), triSurfaceSearch::findLineAll(), IOobject::info(), IOobject::name(), Foam::Pout, and UList< T >::size().

Referenced by distributedTriSurfaceMesh::findLineAll(), and triSurfaceTools::writeCloseness().

Here is the call graph for this function:

Here is the caller graph for this function:

getRegion()

void getRegion ( const List< pointIndexHit > & info, labelList & region ) const

virtual

From a set of points and indices get the region.

Implements searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 1086 of file triSurfaceMesh.C.

References Foam::endl(), forAll, IOobject::info(), IOobject::name(), UList< T >::operator[](), Foam::Pout, and List< T >::setSize().

Here is the call graph for this function:

getNormal()

void getNormal ( const List< pointIndexHit > & info, vectorField & normal ) const

virtual

From a set of points and indices get the normal.

Implements searchableSurface.

Reimplemented in distributedTriSurfaceMesh, and smoothTriSurfaceMesh.

Definition at line 1120 of file triSurfaceMesh.C.

References Foam::endl(), PrimitivePatch<::Foam::List< labelledTri >, pointField >::faceFaces(), forAll, IOobject::info(), minQuality_, IOobject::name(), Foam::Pout, pts, s(), List< T >::setSize(), triSurface::triSurface(), and Foam::Zero.

Referenced by distributedTriSurfaceMesh::getNormal().

Here is the call graph for this function:

Here is the caller graph for this function:

getVolumeType()

void getVolumeType ( const pointField & points, List< volumeType > & volType ) const

virtual

Determine type (inside/outside/mixed) for point.

Unknown if cannot be determined (e.g. non-manifold surface)

Implements searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 1277 of file triSurfaceMesh.C.

References objectRegistry::contains(), Foam::endl(), forAll, hasVolumeType(), IOobject::name(), outsideVolType_, indexedOctreeBase::perturbTol(), points(), Foam::Pout, List< T >::setSize(), triSurfaceSearch::tolerance(), tree(), and volumeType::UNKNOWN.

Referenced by distributedTriSurfaceMesh::getVolumeType(), and outsideVolumeType().

Here is the call graph for this function:

Here is the caller graph for this function:

setField()

void setField ( const labelList & values )

virtual

WIP. Store element-wise field.

Reimplemented from searchableSurface.

Definition at line 1205 of file triSurfaceMesh.C.

References IOobjectOption::AUTO_WRITE, Foam::dimless, Foam::endl(), objectRegistry::getObjectPtr(), meshSubDir, IOobject::name(), IOobjectOption::NO_READ, Foam::Pout, IOobjectOption::REGISTER, objectRegistry::time(), and timeName.

Here is the call graph for this function:

getField()

void getField ( const List< pointIndexHit > & info, labelList & values ) const

virtual

WIP. From a set of hits (points and.

indices) get the specified field. Misses do not get set.

Reimplemented from searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 1245 of file triSurfaceMesh.C.

References Foam::endl(), fld(), forAll, objectRegistry::getObjectPtr(), IOobject::info(), IOobject::name(), and Foam::Pout.

Referenced by distributedTriSurfaceMesh::getField().

Here is the call graph for this function:

Here is the caller graph for this function:

writeData()

bool writeData ( Ostream & ) const

inlinevirtual

Pure virtual writeData function.

Must be defined in derived types

Implements regIOobject.

Definition at line 413 of file triSurfaceMesh.H.

References NotImplemented.

writeObject()

bool writeObject ( IOstreamOption streamOpt, const bool writeOnProc ) const

virtual

Write using stream options.

Reimplemented from regIOobject.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 1332 of file triSurfaceMesh.C.

References string::expand(), fName_, IOobject::instance(), fileName::isAbsolute(), Foam::isFile(), Foam::mkDir(), IOobject::objectPath(), fileName::path(), runTime, IOobject::time(), triSurfaceMesh(), and triSurface::write().

Here is the call graph for this function:

global()

virtual bool global ( ) const

inlinevirtual

Is object global.

Reimplemented from searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 431 of file triSurfaceMesh.H.

filePath()

virtual fileName filePath ( ) const

inlinevirtual

Return complete path + object name if the file exists.

either in the case/processor or case otherwise null

Reimplemented from searchableSurface.

Reimplemented in distributedTriSurfaceMesh.

Definition at line 441 of file triSurfaceMesh.H.

References IOobject::globalFilePath(), and Foam::type().

Here is the call graph for this function:

Member Data Documentation

fName_

fileName fName_

protected

Supplied fileName override.

Definition at line 116 of file triSurfaceMesh.H.

Referenced by triSurfaceMesh(), and writeObject().

minQuality_

scalar minQuality_

protected

Optional min triangle quality. Triangles below this get.

ignored for normal calculation

Definition at line 123 of file triSurfaceMesh.H.

Referenced by getNormal(), triSurfaceMesh(), triSurfaceMesh(), triSurfaceMesh(), triSurfaceMesh(), and triSurfaceMesh().

edgeTree_

autoPtr<indexedOctree<treeDataEdge> > edgeTree_

mutableprotected

Search tree for boundary edges.

Definition at line 128 of file triSurfaceMesh.H.

Referenced by clearOut(), edgeTree(), and movePoints().

regions_

wordList regions_

mutableprotected

Names of regions.

Definition at line 133 of file triSurfaceMesh.H.

Referenced by regions().

surfaceClosed_

label surfaceClosed_

mutableprotected

Is surface closed.

Definition at line 138 of file triSurfaceMesh.H.

Referenced by distributedTriSurfaceMesh::findNearest(), distributedTriSurfaceMesh::findNearest(), hasVolumeType(), triSurfaceMesh(), triSurfaceMesh(), triSurfaceMesh(), triSurfaceMesh(), triSurfaceMesh(), and distributedTriSurfaceMesh::writeStats().

outsideVolType_

volumeType outsideVolType_

mutableprotected

If surface is closed, what is type of outside points.

Definition at line 143 of file triSurfaceMesh.H.

Referenced by distributedTriSurfaceMesh::distribute(), distributedTriSurfaceMesh::flip(), flip(), distributedTriSurfaceMesh::getVolumeType(), getVolumeType(), outsideVolumeType(), triSurfaceMesh(), triSurfaceMesh(), triSurfaceMesh(), triSurfaceMesh(), triSurfaceMesh(), and distributedTriSurfaceMesh::writeStats().

meshSubDir

Foam::word meshSubDir = "triSurface"

static

Return the mesh sub-directory name (usually "triSurface").

Definition at line 199 of file triSurfaceMesh.H.

Referenced by setField().

---

The documentation for this class was generated from the following files:

• src/meshTools/searchableSurfaces/triSurfaceMesh/triSurfaceMesh.H
• src/meshTools/searchableSurfaces/triSurfaceMesh/triSurfaceMesh.C
