Abstract base class for defining design variables for shape optimisation. More...

#include <shapeDesignVariables.H>

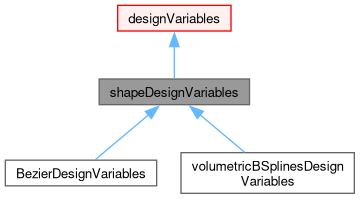

Inheritance diagram for shapeDesignVariables:

[legend]

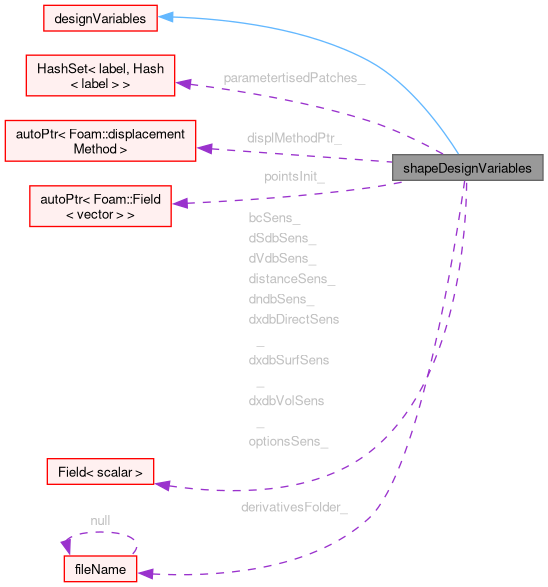

Collaboration diagram for shapeDesignVariables:

[legend]

Public Member Functions
	TypeName ("shape")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, shapeDesignVariables, dictionary,(fvMesh &mesh, const dictionary &dict),(mesh, dict))
	shapeDesignVariables (fvMesh &mesh, const dictionary &dict)
	Construct from components.
virtual	~shapeDesignVariables ()=default
	Destructor.
virtual bool	readDict (const dictionary &dict)
	Read dictionary if changed.
virtual void	update (scalarField &correction)=0
	Update design variables based on a given correction.
virtual void	storeDesignVariables ()
	Store design variables, as the starting point for line search.
virtual void	resetDesignVariables ()
	Reset to starting point of line search.
virtual scalar	computeEta (scalarField &correction)=0
	Compute eta if not set in the first step.
virtual bool	globalSum () const =0
	Whether to use global sum when computing matrix-vector products in update methods.
virtual void	moveMesh ()
	Move mesh based on displacementMethod.
const labelHashSet &	getPatches () const
	Patches affected by the parameterisation.
autoPtr< displacementMethod > &	returnDisplacementMethod ()
	Return displacementMethod.
virtual tmp< scalarField >	assembleSensitivities (adjointSensitivity &adjointSens)
	Add part of sensitivity derivatives related to geometry variations.
virtual void	writeSensitivities (const scalarField &sens, const adjointSensitivity &adjointSens)
	Write final sensitivity derivatives to files.
virtual tmp< vectorField >	dxdbVol (const label varID) const
	Get dxdb for all mesh points.
virtual tmp< vectorField >	dxdbFace (const label patchI, const label varID) const
	Get dxdb for a given design variable and patch.
virtual tmp< vectorField >	dndb (const label patchI, const label varID) const
	Get dndb for a given design variable and patch.
virtual tmp< vectorField >	dSdb (const label patchI, const label varID) const
	Get dSdb for a given design variable and patch.
virtual tmp< volVectorField >	dCdb (const label varID) const
	Get dCdb for a given design variable.
Public Member Functions inherited from designVariables
	TypeName ("designVariables")
	Runtime type information.
	declareRunTimeNewSelectionTable (autoPtr, designVariables, designVariables,(fvMesh &mesh, const dictionary &dict),(mesh, dict))
	designVariables (fvMesh &mesh, const dictionary &dict)
	Construct from dictionary.
	designVariables (fvMesh &mesh, const dictionary &dict, const label size)
	Construct from dictionary and size.
virtual	~designVariables ()=default
	Destructor.
virtual const scalarField &	getVars () const
	Get the design variables.
virtual scalarField &	getVars ()
	Get the design variables.
const labelList &	activeDesignVariables () const
	Return list of active design variables.
bool	isMaxInitChangeSet () const
	Check whether the max. initial change of the design variables has been set.
const autoPtr< scalar > &	getMaxInitChange ()
	Get maxInitChange.
void	setMaxInitChange (const scalar maxInitChange)
	Set maxInitChange.
virtual bool	resetEta () const
	Trigger the recomputation of eta by updateMethod.
const autoPtr< scalarField > &	lowerBounds () const
	Get min bounds for the design variables.
const autoPtr< scalarField > &	upperBounds () const
	Get max bounds for the design variables.
scalarField &	lowerBoundsRef ()
	Get min bounds for the design variables.
scalarField &	upperBoundsRef ()
	Get max bounds for the design variables.
virtual void	postProcessSens (scalarField &objectiveSens, PtrList< scalarField > &constraintSens, const wordList &adjointSolversNames, bool isMaster)
	Post process sensitivities if needed.
virtual void	evolveNumber ()
	For design variables with a dynamic character (i.e. changing number), perform the evolution.
virtual void	setInitialValues ()
	Set initial values of the design variables.
virtual void	addFvOptions (const PtrList< primalSolver > &primalSolver, const PtrList< adjointSolverManager > &adjointSolverManagers)
	Add fvOptions depending on the design variables.
virtual tmp< scalarField >	constraintValues ()
	Design variables might add constraints related to themselves (e.g. linear combinations of the design variables) Return the values and gradients of these constraints.
virtual PtrList< scalarField >	constraintDerivatives ()
virtual void	writeDesignVars ()
	Write useful quantities to files.
Public Member Functions inherited from Field< scalar >
constexpr	Field () noexcept
	Default construct.
	Field (const label len)
	Construct given size.
	Field (const label len, const scalar &val)
	Construct given size and initial value.
	Field (const label len, Foam::zero)
	Construct given size and initial values of zero.
	Field (Foam::one, const scalar &val)
	Construct with length=1, copying the value as the only content.
	Field (Foam::one, scalar &&val)
	Construct with length=1, moving the value as the only content.
	Field (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	Field (const Field< scalar > &fld)
	Copy construct.
	Field (const UList< scalar > &list)
	Copy construct from UList<Type>.
	Field (const IndirectListBase< scalar, Addr > &list)
	Copy construct from IndirectList.
	Field (Field< scalar > &&fld) noexcept
	Move construct from Field.
	Field (List< scalar > &&list) noexcept
	Move construct from List.
	Field (DynamicList< scalar, SizeMin > &&list)
	Move construct from DynamicList.
	Field (const UList< scalar > &mapF, const labelUList &mapAddressing)
	Construct by 1 to 1 mapping from the given field.
	Field (const tmp< Field< scalar > > &tmapF, const labelUList &mapAddressing)
	Construct by 1 to 1 mapping from the given tmp field.
	Field (const UList< scalar > &mapF, const labelListList &mapAddressing, const scalarListList &weights)
	Construct by interpolative mapping from the given field.
	Field (const tmp< Field< scalar > > &tmapF, const labelListList &mapAddressing, const scalarListList &weights)
	Construct by interpolative mapping from the given tmp field.
	Field (const UList< scalar > &mapF, const FieldMapper &map, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const UList< scalar > &mapF, const FieldMapper &map, const scalar &defaultValue, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const UList< scalar > &mapF, const FieldMapper &map, const UList< scalar > &defaultValues, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const tmp< Field< scalar > > &tmapF, const FieldMapper &map, const bool applyFlip=true)
	Construct by mapping from the given tmp field.
	Field (const tmp< Field< scalar > > &tmapF, const FieldMapper &map, const scalar &defaultValue, const bool applyFlip=true)
	Construct by mapping from the given tmp field. Uses supplied uniform value for unmapped items.
	Field (const tmp< Field< scalar > > &tmapF, const FieldMapper &map, const UList< scalar > &defaultValues, const bool applyFlip=true)
	Construct by mapping from the given tmp field. Uses supplied values for unmapped items.
	Field (Field< scalar > &fld, bool reuse)
	Copy construct or re-use as specified.
	Field (const tmp< Field< scalar > > &tfld)
	Copy or move construct from tmp.
	Field (Istream &is)
	Construct from Istream.
	Field (const entry &e, const label len)
	Construct from a dictionary (primitive) entry.
	Field (const word &key, const dictionary &dict, const label len, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ)
	Lookup of a primitive dictionary entry by (literal) name and assign its contents to this. The behaviour largely as described in assign():
tmp< Field< scalar > >	clone () const
	Clone.
void	assign (const entry &e, const label len)
	Assign from a primitive dictionary entry with the following behaviour:
bool	assign (const word &key, const dictionary &dict, const label len, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ)
	Lookup a primitive dictionary entry by (literal) name and assign its contents to this (behaviour as described above).
void	map (const UList< scalar > &mapF, const labelUList &mapAddressing)
	1 to 1 map from the given field
void	map (const tmp< Field< scalar > > &tmapF, const labelUList &mapAddressing)
	1 to 1 map from the given tmp field
void	map (const UList< scalar > &mapF, const labelListList &mapAddressing, const scalarListList &weights)
	Interpolative map from the given field.
void	map (const tmp< Field< scalar > > &tmapF, const labelListList &mapAddressing, const scalarListList &weights)
	Interpolative map from the given tmp field.
void	map (const UList< scalar > &mapF, const FieldMapper &map, const bool applyFlip=true)
	Map from the given field.
void	map (const tmp< Field< scalar > > &tmapF, const FieldMapper &map, const bool applyFlip=true)
	Map from the given tmp field.
void	autoMap (const FieldMapper &map, const bool applyFlip=true)
	Map from self.
void	rmap (const UList< scalar > &mapF, const labelUList &mapAddressing)
	1 to 1 reverse-map from the given field
void	rmap (const tmp< Field< scalar > > &tmapF, const labelUList &mapAddressing)
	1 to 1 reverse-map from the given tmp field
void	rmap (const UList< scalar > &mapF, const labelUList &mapAddressing, const UList< scalar > &weights)
	Interpolative reverse map from the given field.
void	rmap (const tmp< Field< scalar > > &tmapF, const labelUList &mapAddressing, const UList< scalar > &weights)
	Interpolative reverse map from the given tmp field.
void	negate ()
	Inplace negate this field (negative).
void	normalise ()
	Inplace normalise this field. Generally a no-op except for vector fields.
tmp< Field< cmptType > >	component (const direction) const
	Return a component field of the field.
void	replace (const direction, const UList< cmptType > &)
	Replace a component field of the field.
void	replace (const direction, const tmp< Field< cmptType > > &)
	Replace a component field of the field.
void	replace (const direction, const cmptType &)
	Replace a component field of the field.
void	clamp_min (const scalar &lower)
	Impose lower (floor) clamp on the field values (in-place).
void	clamp_min (const UList< scalar > &lower)
	Impose lower (floor) clamp on the field values (in-place).
void	clamp_max (const scalar &upper)
	Impose upper (ceiling) clamp on the field values (in-place).
void	clamp_max (const UList< scalar > &upper)
	Impose upper (ceiling) clamp on the field values (in-place).
void	clamp_range (const scalar &lower, const scalar &upper)
	Clamp field values (in-place) to the specified range.
void	clamp_range (const MinMax< scalar > &range)
	Clamp field values (in-place) to the specified range.
VSForm	block (const label start) const
tmp< Field< scalar > >	T () const
	Return the field transpose (only defined for second rank tensors).
void	writeEntry (const word &keyword, Ostream &os) const
	Write the field as a dictionary entry.
SubField< scalar >	slice (const label pos, label len=-1)
	Return SubField slice (non-const access) - no range checking.
const SubField< scalar >	slice (const label pos, label len=-1) const
	Return SubField slice (const access) - no range checking.
SubField< scalar >	slice (const labelRange &range)
	Return SubField slice (non-const access) - with range checking.
const SubField< scalar >	slice (const labelRange &range) const
	Return SubField slice (const access) - with range checking.
void	operator= (const Field< scalar > &)
	Copy assignment.
void	operator= (const tmp< Field< scalar > > &)
void	operator= (const UList< scalar > &rhs)
void	operator= (const SubField< scalar > &rhs)
void	operator= (const IndirectListBase< scalar, Addr > &rhs)
	Copy assign from IndirectList.
void	operator= (Field< scalar > &&rhs)
	Move assignment.
void	operator= (List< scalar > &&rhs)
void	operator= (DynamicList< scalar, SizeMin > &&rhs)
void	operator= (const scalar &val)
	Assign entries to the given value.
void	operator= (Foam::zero)
	Assign entries to zero.
void	operator= (const VectorSpace< Form, Cmpt, nCmpt > &)
void	operator+= (const UList< scalar > &)
void	operator+= (const tmp< Field< scalar > > &)
void	operator-= (const UList< scalar > &)
void	operator-= (const tmp< Field< scalar > > &)
void	operator*= (const UList< scalar > &)
void	operator*= (const tmp< Field< scalar > > &)
void	operator/= (const UList< scalar > &)
void	operator/= (const tmp< Field< scalar > > &)
void	operator+= (const scalar &)
void	operator-= (const scalar &)
void	operator*= (const scalar &)
void	operator/= (const scalar &)
	Field (const Expression::ListExpression< E > &expr)
	Construct from value expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	operator= (const tmp< Field > &rhs)
void	normalise ()
void	normalise ()
void	normalise ()
	Inplace normalise (float) vector field.
void	normalise ()
	Inplace normalise (double) vector field.
Public Member Functions inherited from FieldBase
constexpr	FieldBase () noexcept
	Default construct.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.
Public Member Functions inherited from List< scalar >
constexpr	List () noexcept
	Default construct.
	List (const label len)
	Construct with given size.
	List (const label len, const scalar &val)
	Construct with given size and value for all elements.
	List (const label len, Foam::zero)
	Construct with given size initializing all elements to zero.
	List (Foam::one, const scalar &val)
	Construct with length=1, copying the value as the only content.
	List (Foam::one, scalar &&val)
	Construct with length=1, moving the value as the only content.
	List (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	List (const List< scalar > &list)
	Copy construct from list.
	List (const UList< scalar > &list)
	Copy construct contents from list.
	List (List< scalar > &list, bool reuse)
	Construct as copy or re-use as specified.
	List (const UList< scalar > &list, const labelUList &indices)
	Copy construct subset of list.
	List (const UList< scalar > &list, const FixedList< label, N > &indices)
	Copy construct subset of list.
	List (const FixedList< scalar, N > &list)
	Construct as copy of FixedList<T, N>.
	List (const UPtrList< scalar > &list)
	Construct as copy of UPtrList<T> content.
	List (const IndirectListBase< scalar, Addr > &list)
	Construct as copy of IndirectList contents.
	List (std::initializer_list< scalar > list)
	Construct from an initializer list.
	List (List< scalar > &&list) noexcept
	Move construct from List.
	List (DynamicList< scalar, SizeMin > &&list)
	Move construct from DynamicList.
	List (Istream &is)
	Construct from Istream.
autoPtr< List< scalar > >	clone () const
	Clone.
	~List ()
	Destructor.
void	clear ()
	Clear the list, i.e. set size to zero.
void	resize (const label len)
	Adjust allocated size of list.
void	resize (const label len, const scalar &val)
	Adjust allocated size of list and set val for new elements.
void	resize_copy (label count, const label len)
	Change allocated size of list, retaining the first count elements.
void	resize_fill (const label len, const scalar &val)
	Adjust allocated size of list and set val for all elements.
void	resize_nocopy (const label len)
	Adjust allocated size of list without necessarily.
void	transfer (List< scalar > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
void	transfer (DynamicList< scalar, SizeMin > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
scalar &	newElmt (const label i)
	Return subscript-checked element of UList and resizing the list if required.
scalar &	emplace_back (Args &&... args)
	Construct an element at the end of the list, return reference to the new list element.
void	push_back (const scalar &val)
	Append an element at the end of the list.
void	push_back (scalar &&val)
	Move append an element at the end of the list.
void	push_back (const UList< scalar > &list)
	Append a List to the end of this list.
void	push_back (const IndirectListBase< scalar, Addr > &list)
	Append IndirectList contents at the end of this list.
label	push_uniq (const scalar &val)
	Append an element if not already in the list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
void	operator= (const UList< scalar > &list)
	Assignment to UList operator. Takes linear time.
void	operator= (const List< scalar > &list)
	Assignment operator. Takes linear time.
void	operator= (const IndirectListBase< scalar, Addr > &list)
	Assignment from IndirectList. Takes linear time.
void	operator= (const FixedList< scalar, N > &list)
	Copy assignment from FixedList.
void	operator= (std::initializer_list< scalar > list)
	Assignment to an initializer list.
void	operator= (const scalar &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
void	operator= (List< scalar > &&list)
	Move assignment. Takes constant time.
void	operator= (DynamicList< scalar, SizeMin > &&list)
	Move assignment. Takes constant time.
Istream &	readList (Istream &is)
	Read List from Istream, discarding contents of existing List.
void	shallowCopy (const UList< scalar > &)=delete
	No shallowCopy permitted.
bool	set (const label i, bool val=true)
	A bitSet::set() method for a list of bool.
void	append (const scalar &val)
	Append an element at the end of the list.
void	append (scalar &&val)
	Move append an element at the end of the list.
void	append (const UList< scalar > &list)
	Append a List to the end of this list.
void	append (const IndirectListBase< scalar, Addr > &list)
	Append IndirectList contents at the end of this list.
label	appendUniq (const scalar &val)
	Same as push_uniq().
void	setSize (label n)
	Alias for resize().
void	setSize (label n, const scalar &val)
	Alias for resize().
	List (const Expression::ListExpression< E > &expr)
	Construct from value expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	resize (const label len)
Public Member Functions inherited from UList< scalar >
	UList (const UList< scalar > &) noexcept=default
	Copy construct, shallow copy.
	UList (UList< scalar > &&) noexcept=default
	Move construct, shallow copy.
UList< scalar > &	operator= (const UList< scalar > &)=delete
	No copy assignment (default: shallow copy).
UList< scalar > &	operator= (UList< scalar > &&) noexcept=default
	Move assignment, shallow copy.
constexpr	UList () noexcept
	Default construct, zero-sized and nullptr.
	UList (scalar *__restrict__ ptr, const label len) noexcept
	Construct from components.
	UList (SubList< scalar > &&) noexcept
	Move construct from a SubList, shallow copy.
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const scalar &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
scalar &	fcValue (const label i)
	Return forward circular value (ie, next value in the list).
const scalar &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
scalar &	rcValue (const label i)
	Return reverse circular value (ie, previous value in the list).
const scalar *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
scalar *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
scalar &	front ()
	Access first element of the list, position [0].
const scalar &	front () const
	Access first element of the list.
scalar &	back ()
	Access last element of the list, position [size()-1].
const scalar &	back () const
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const scalar &val) const
	True if the value is contained in the list.
bool	contains (const scalar &val, label pos, label len=-1) const
	Is the value contained in the list?
label	find (const scalar &val) const
	Find index of the first occurrence of the value.
label	find (const scalar &val, label pos, label len=-1) const
	Find index of the first occurrence of the value.
label	rfind (const scalar &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (scalar *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	shallowCopy (std::nullptr_t) noexcept
	Copy nullptr and zero size.
void	shallowCopy (const UList< scalar > &list) noexcept
	Copy the pointer and size held by the given UList.
void	deepCopy (const UList< scalar > &list)
	Copy elements of the given UList. Sizes must match!
void	deepCopy (const IndirectListBase< scalar, Addr > &list)
	Copy elements of the given indirect list. Sizes must match!
SubList< scalar >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
const SubList< scalar >	slice (const label pos, label len=-1) const
	Return SubList slice (const access) - no range checking.
SubList< scalar >	slice (const labelRange &range)
	Return SubList slice (non-const access) - with range checking.
const SubList< scalar >	slice (const labelRange &range) const
	Return SubList slice (const access) - with range checking.
scalar &	operator[] (const label i)
	Return element of UList.
const scalar &	operator[] (const label i) const
	Return element of constant UList.
	operator const Foam::List< scalar > & () const
	Allow cast to a const List<T>&.
void	operator= (const scalar &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
iterator	begin (const label i) noexcept
	Return iterator at offset i from begin, clamped to [0,size] range.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	begin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	end () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	cbegin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
const_iterator	begin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	rbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	rend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	size () const noexcept
	The number of elements in the container.
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< scalar > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< scalar > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< scalar > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< scalar > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< scalar > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< scalar > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< scalar > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
void	writeEntry (const word &keyword, Ostream &os) const
	Write the List as a dictionary entry with keyword.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
bool	all () const
	True if all entries are 'true' or if the list is empty.
bool	any () const
	True if any entries are 'true'.
bool	none () const
	True if no entries are 'true'.
bool	test (const label i) const
	Test `bool` value at specified position, always false for out-of-range access.
bool	get (const label i) const
	Return `bool` value at specified position, always false for out-of-range access.
bool	unset (const label i)
	Unset the `bool` entry at specified position, always false for out-of-range access.
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
scalar &	first ()
	Access first element of the list, position [0].
const scalar &	first () const
	Access first element of the list.
scalar &	last ()
	Access last element of the list, position [size()-1].
const scalar &	last () const
	Access last element of the list, position [size()-1].
bool	found (const scalar &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
	operator const Foam::List< scalar > & () const
	Allow cast to a const List<T>&.

Static Public Member Functions
static autoPtr< shapeDesignVariables >	New (fvMesh &mesh, const dictionary &dict)
	Construct and return the selected shapeDesignVariables.
Static Public Member Functions inherited from designVariables
static autoPtr< designVariables >	New (fvMesh &mesh, const dictionary &dict)
	Return a reference to the selected design variables.
Static Public Member Functions inherited from Field< scalar >
static const Field< scalar > &	null () noexcept
	Return a null Field (reference to a nullObject). Behaves like an empty Field.
static autoPtr< Field< scalar > >	New (Istream &is)
	Return a pointer to a new Field created on freestore.
static tmp< Field< scalar > >	NewCalculatedType (const Field< Type2 > &f)
	Return a pointer to a new calculatedFvPatchFieldField created on freestore without setting patchField values.
Static Public Member Functions inherited from FieldBase
static void	warnLocalBoundaryConsistencyCompat (const dictionary &)
	Warn about keyword changes for local boundary consistency checks.
static int	localBoundaryConsistency () noexcept
	Get flag for local boundary consistency checks.
static int	localBoundaryConsistency (int val) noexcept
	Set flag for local boundary consistency checks.
Static Public Member Functions inherited from List< scalar >
static const List< scalar > &	null () noexcept
	Return a null List (reference to a nullObject). Behaves like an empty List.
Static Public Member Functions inherited from UList< scalar >
static const UList< scalar > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.

Protected Member Functions
virtual label	sensSize () const
	Size of the sensitivity derivatives.
virtual const labelList &	activeSensitivities () const
	Active variables for which to compute sensitivities.
virtual tmp< volVectorField >	solveMeshMovementEqn (const label patchI, const label varID) const
	Compute dxdb at the mesh cell centers by solving a Laplace PDE.
void	allocateSensFields ()
	Allocate the fields assosiated with the computation of sensitivities.
void	zeroSensFields ()
	Zero the fields assosiated with the computation of sensitivities.
Protected Member Functions inherited from designVariables
void	readBounds (autoPtr< scalar > lowerBoundPtr=nullptr, autoPtr< scalar > upperBoundPtr=nullptr)
	Read bounds for design variables, if present.
Protected Member Functions inherited from UList< scalar >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const scalar &val)
	Assign all entries to the given value.
void	fill_uniform (Foam::zero)
	Assign all entries to zero.

Protected Attributes
labelHashSet	parametertisedPatches_
	Patches to be moved by the design variables.
autoPtr< displacementMethod >	displMethodPtr_
	Mesh movement mechanism.
autoPtr< pointField >	pointsInit_
	Store old points. Useful for line search.
bool	writeEachMesh_
	Write the mesh points irrespective of whether this is a write time.
scalarField	dxdbVolSens_
	Flow related term.
scalarField	dxdbSurfSens_
	Flow related term.
scalarField	dSdbSens_
	Term depending on delta(n dS)/delta b.
scalarField	dndbSens_
	Term depending on delta(n)/delta b.
scalarField	dxdbDirectSens_
	Term depending on delta(x)/delta b for objectives that directly depend on x.
scalarField	dVdbSens_
	Term depending on delta(V)/delta b.
scalarField	distanceSens_
	Term depending on distance differentiation.
scalarField	optionsSens_
	Term depending on fvOptions.
scalarField	bcSens_
	Term depending on the differenation of boundary conditions.
fileName	derivativesFolder_
	Name of the sensitivity derivatives folder.
Protected Attributes inherited from designVariables
fvMesh &	mesh_
dictionary	dict_
labelList	activeDesignVariables_
	Which of the design variables will be updated.
autoPtr< scalarField >	oldDesignVariables_
	Copy of old design variables. Useful when performing line-search.
autoPtr< scalar >	maxInitChange_
	Maximum design variables' change in the first optimisation cycle.
autoPtr< scalarField >	lowerBounds_
	Lower bounds of the design variables.
autoPtr< scalarField >	upperBounds_
	Upper bounds of the design variables.

Additional Inherited Members
Public Types inherited from Field< scalar >
typedef pTraits< scalar >::cmptType	cmptType
	Component type.
typedef SubField< scalar >	subField
	Declare type of subField.
Public Types inherited from List< scalar >
typedef SubList< scalar >	subList
	Declare type of subList.
Public Types inherited from UList< scalar >
typedef scalar	value_type
	The value type the list contains.
typedef scalar *	pointer
	The pointer type for non-const access to value_type items.
typedef const scalar *	const_pointer
	The pointer type for const access to value_type items.
typedef scalar &	reference
	The type used for storing into value_type objects.
typedef const scalar &	const_reference
	The type used for reading from constant value_type objects.
typedef scalar *	iterator
	Random access iterator for traversing a UList.
typedef const scalar *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List
	Have unique tag.
Static Public Attributes inherited from FieldBase
static const char *const	typeName
	Typename for Field.
static bool	allowConstructFromLargerSize = false
	Permit read construct from a larger size.
static bool	unifiedGeometricField
	GeometricField with extra capacity for flattened boundary fields. Uses opt-switch "unifiedGeometricField".
static int	localBoundaryConsistency_
	Local boundary field consistency checks. Uses opt-switch "localBoundaryConsistency".
static scalar	localBoundaryTolerance_
	Tolerance for local boundary field consistency checks. Uses opt-switch "localBoundaryConsistency::tolerance".

Detailed Description

Abstract base class for defining design variables for shape optimisation.

Source files

Definition at line 49 of file shapeDesignVariables.H.

Constructor & Destructor Documentation

◆ shapeDesignVariables()

shapeDesignVariables	(	fvMesh &	mesh,
		const dictionary &	dict )

Construct from components.

Definition at line 152 of file shapeDesignVariables.C.

References bcSens_, derivativesFolder_, dict, displMethodPtr_, distanceSens_, dndbSens_, dSdbSens_, dVdbSens_, dxdbDirectSens_, dxdbSurfSens_, dxdbVolSens_, UList< scalar >::get(), mesh, designVariables::mesh_, Foam::mkDir(), Foam::name(), New(), optionsSens_, parametertisedPatches_, pointsInit_, and writeEachMesh_.

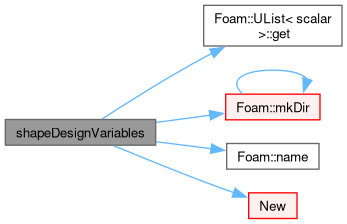

Here is the call graph for this function:

◆ ~shapeDesignVariables()

virtual ~shapeDesignVariables ( )

virtualdefault

Destructor.

References dict.

Member Function Documentation

◆ sensSize()

Foam::label sensSize ( ) const

protectedvirtual

Size of the sensitivity derivatives.

Might be different than this->size() in some cases

Reimplemented in volumetricBSplinesDesignVariables.

Definition at line 47 of file shapeDesignVariables.C.

References UList< scalar >::size().

Referenced by allocateSensFields(), and assembleSensitivities().

Here is the call graph for this function:

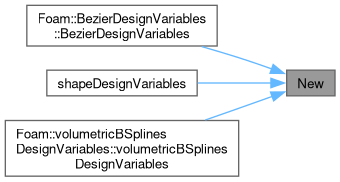

Here is the caller graph for this function:

◆ activeSensitivities()

const Foam::labelList & activeSensitivities ( ) const

protectedvirtual

Active variables for which to compute sensitivities.

Might be different than this->activeDesignVariables_ in some cases

Reimplemented in volumetricBSplinesDesignVariables.

Definition at line 53 of file shapeDesignVariables.C.

References designVariables::activeDesignVariables_.

Referenced by assembleSensitivities(), and writeSensitivities().

Here is the caller graph for this function:

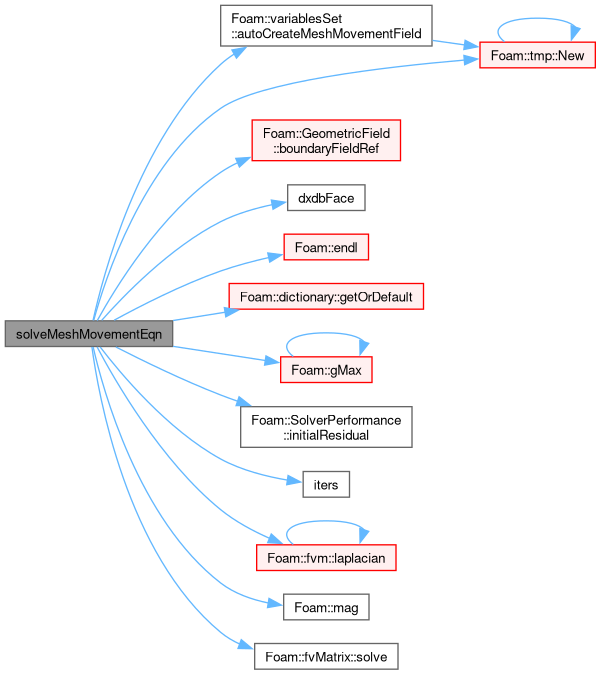

◆ solveMeshMovementEqn()

Foam::tmp< Foam::volVectorField > solveMeshMovementEqn	(	const label	patchI,
		const label	varID ) const

protectedvirtual

Compute dxdb at the mesh cell centers by solving a Laplace PDE.

Definition at line 60 of file shapeDesignVariables.C.

References variablesSet::autoCreateMeshMovementField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), DebugInfo, designVariables::dict_, Foam::dimLength, dxdbFace(), Foam::endl(), dictionary::getOrDefault(), Foam::gMax(), Foam::Info, SolverPerformance< Type >::initialResidual(), iters(), Foam::fvm::laplacian(), Foam::mag(), designVariables::mesh_, tmp< T >::New(), and fvMatrix< Type >::solve().

Referenced by BezierDesignVariables::dCdb().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ allocateSensFields()

void allocateSensFields ( )

protected

Allocate the fields assosiated with the computation of sensitivities.

Not allocated in the constructor since the size of the design variables is usually not known there

Definition at line 119 of file shapeDesignVariables.C.

References bcSens_, distanceSens_, dndbSens_, dSdbSens_, dVdbSens_, dxdbDirectSens_, dxdbSurfSens_, dxdbVolSens_, optionsSens_, sensSize(), and Foam::Zero.

Referenced by assembleSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ zeroSensFields()

void zeroSensFields ( )

protected

Zero the fields assosiated with the computation of sensitivities.

Definition at line 136 of file shapeDesignVariables.C.

References bcSens_, distanceSens_, dndbSens_, dSdbSens_, dVdbSens_, dxdbDirectSens_, dxdbSurfSens_, dxdbVolSens_, optionsSens_, and Foam::Zero.

Referenced by assembleSensitivities().

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "shape" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		shapeDesignVariables	,
		dictionary	,
		(fvMesh &mesh, const dictionary &dict)	,
		(mesh, dict)	)

References dict, and mesh.

◆ New()

Foam::autoPtr< Foam::shapeDesignVariables > New	(	fvMesh &	mesh,
		const dictionary &	dict )

static

Construct and return the selected shapeDesignVariables.

Definition at line 197 of file shapeDesignVariables.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInLookup, Foam::Info, and mesh.

Referenced by BezierDesignVariables::BezierDesignVariables(), shapeDesignVariables(), and volumetricBSplinesDesignVariables::volumetricBSplinesDesignVariables().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readDict()

bool readDict ( const dictionary & dict )

virtual

Read dictionary if changed.

Reimplemented from designVariables.

Definition at line 225 of file shapeDesignVariables.C.

References dict, displMethodPtr_, designVariables::mesh_, parametertisedPatches_, designVariables::readDict(), and writeEachMesh_.

Here is the call graph for this function:

◆ update()

virtual void update ( scalarField & correction )

pure virtual

Update design variables based on a given correction.

Translates the scalarField of corrections to a meaningful update of the design variables

Implements designVariables.

Implemented in BezierDesignVariables, and volumetricBSplinesDesignVariables.

References Foam::correction().

Here is the call graph for this function:

◆ storeDesignVariables()

void storeDesignVariables ( )

virtual

Store design variables, as the starting point for line search.

Reimplemented from designVariables.

Definition at line 243 of file shapeDesignVariables.C.

References designVariables::mesh_, pointsInit_, designVariables::storeDesignVariables(), and Foam::Zero.

Here is the call graph for this function:

◆ resetDesignVariables()

void resetDesignVariables ( )

virtual

Reset to starting point of line search.

Reimplemented from designVariables.

Reimplemented in volumetricBSplinesDesignVariables.

Definition at line 255 of file shapeDesignVariables.C.

References designVariables::mesh_, pointsInit_, and designVariables::resetDesignVariables().

Referenced by volumetricBSplinesDesignVariables::resetDesignVariables().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeEta()

virtual scalar computeEta ( scalarField & correction )

pure virtual

Compute eta if not set in the first step.

Implements designVariables.

Implemented in BezierDesignVariables, and volumetricBSplinesDesignVariables.

References Foam::correction().

Here is the call graph for this function:

◆ globalSum()

virtual bool globalSum ( ) const

pure virtual

Whether to use global sum when computing matrix-vector products in update methods.

Depends on whether the design variables are common for all processors (e.g. volumetric B-Splines control points) or distributed across them (e.g. topology optimisation)

Implements designVariables.

Implemented in BezierDesignVariables, and volumetricBSplinesDesignVariables.

◆ moveMesh()

void moveMesh ( )

virtual

Move mesh based on displacementMethod.

Definition at line 262 of file shapeDesignVariables.C.

References displMethodPtr_, Foam::endl(), Foam::Info, designVariables::mesh_, polyMesh::meshSubDir, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, points, and writeEachMesh_.

Referenced by BezierDesignVariables::update(), and volumetricBSplinesDesignVariables::update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getPatches()

const labelHashSet & getPatches ( ) const

inline

Patches affected by the parameterisation.

Definition at line 295 of file shapeDesignVariables.H.

References parametertisedPatches_.

◆ returnDisplacementMethod()

autoPtr< displacementMethod > & returnDisplacementMethod ( )

inline

Return displacementMethod.

Definition at line 303 of file shapeDesignVariables.H.

References displMethodPtr_.

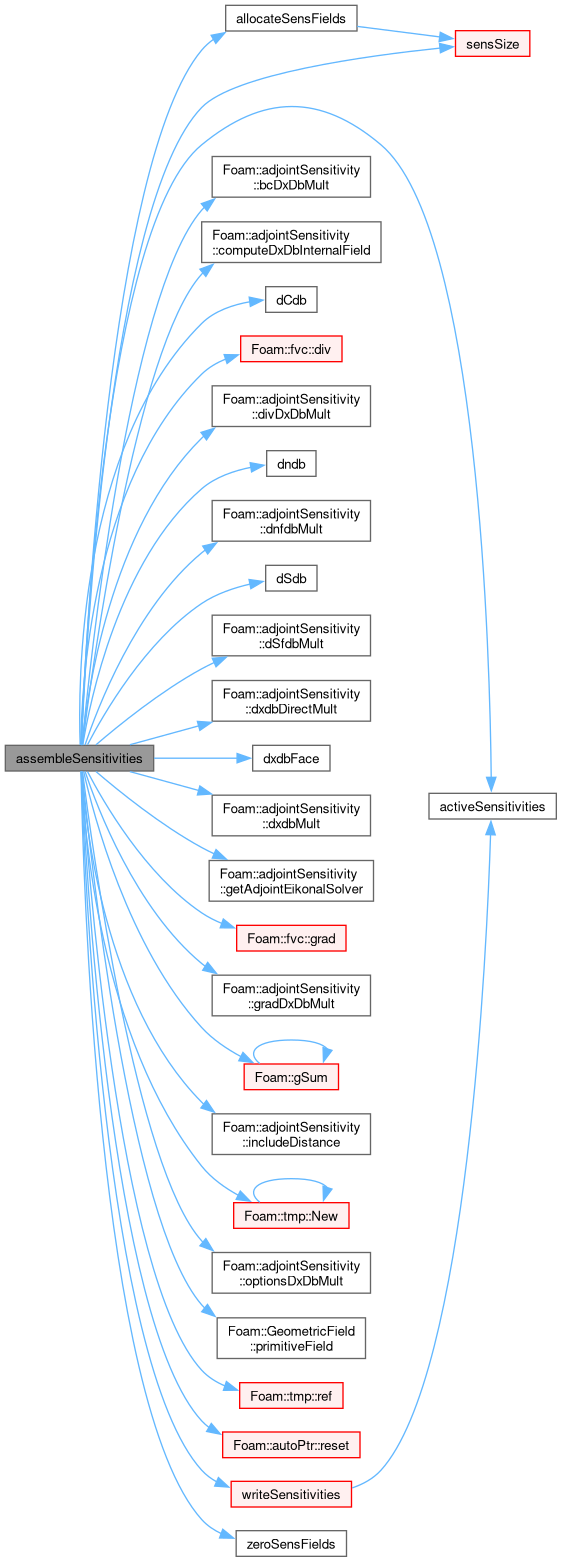

◆ assembleSensitivities()

Foam::tmp< Foam::scalarField > assembleSensitivities ( adjointSensitivity & adjointSens )

virtual

Add part of sensitivity derivatives related to geometry variations.

Implements designVariables.

Reimplemented in volumetricBSplinesDesignVariables.

Definition at line 293 of file shapeDesignVariables.C.

Referenced by volumetricBSplinesDesignVariables::assembleSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

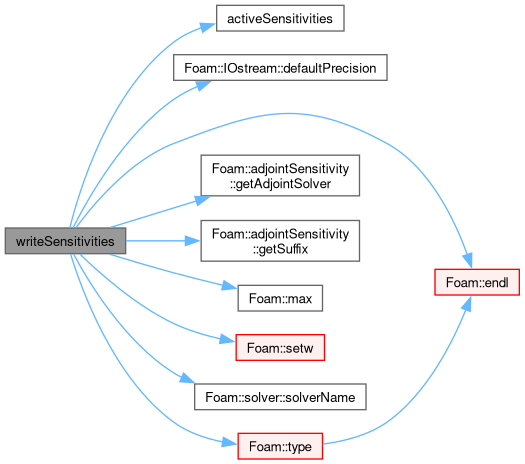

◆ writeSensitivities()

void writeSensitivities	(	const scalarField &	sens,
		const adjointSensitivity &	adjointSens )

virtual

Write final sensitivity derivatives to files.

Definition at line 406 of file shapeDesignVariables.C.

References activeSensitivities(), bcSens_, IOstream::defaultPrecision(), derivativesFolder_, distanceSens_, dndbSens_, dSdbSens_, dVdbSens_, dxdbDirectSens_, dxdbSurfSens_, dxdbVolSens_, Foam::endl(), adjointSensitivity::getAdjointSolver(), adjointSensitivity::getSuffix(), Foam::max(), designVariables::mesh_, name, optionsSens_, Foam::setw(), solver::solverName(), and Foam::type().

Referenced by assembleSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dxdbVol()

Foam::tmp< Foam::vectorField > dxdbVol ( const label varID ) const

virtual

Get dxdb for all mesh points.

Reimplemented in volumetricBSplinesDesignVariables.

Definition at line 452 of file shapeDesignVariables.C.

References tmp< T >::New().

Here is the call graph for this function:

◆ dxdbFace()

Foam::tmp< Foam::vectorField > dxdbFace	(	const label	patchI,
		const label	varID ) const

virtual

Get dxdb for a given design variable and patch.

Reimplemented in BezierDesignVariables, and volumetricBSplinesDesignVariables.

Definition at line 462 of file shapeDesignVariables.C.

References NotImplemented.

Referenced by assembleSensitivities(), and solveMeshMovementEqn().

Here is the caller graph for this function:

◆ dndb()

Foam::tmp< Foam::vectorField > dndb	(	const label	patchI,
		const label	varID ) const

virtual

Get dndb for a given design variable and patch.

Reimplemented in BezierDesignVariables, and volumetricBSplinesDesignVariables.

Definition at line 473 of file shapeDesignVariables.C.

References NotImplemented.

Referenced by assembleSensitivities().

Here is the caller graph for this function:

◆ dSdb()

Foam::tmp< Foam::vectorField > dSdb	(	const label	patchI,
		const label	varID ) const

virtual

Get dSdb for a given design variable and patch.

Reimplemented in BezierDesignVariables, and volumetricBSplinesDesignVariables.

Definition at line 484 of file shapeDesignVariables.C.

References NotImplemented.

Referenced by assembleSensitivities().

Here is the caller graph for this function:

◆ dCdb()

Foam::tmp< Foam::volVectorField > dCdb ( const label varID ) const

virtual

Get dCdb for a given design variable.

Used for FI-based sensitivities

Reimplemented in BezierDesignVariables, and volumetricBSplinesDesignVariables.

Definition at line 496 of file shapeDesignVariables.C.

References NotImplemented.

Referenced by assembleSensitivities().

Here is the caller graph for this function:

Member Data Documentation

◆ parametertisedPatches_

labelHashSet parametertisedPatches_

protected

Patches to be moved by the design variables.

Definition at line 60 of file shapeDesignVariables.H.

Referenced by assembleSensitivities(), BezierDesignVariables::dCdb(), getPatches(), readDict(), volumetricBSplinesDesignVariables::setDisplacement(), and shapeDesignVariables().

◆ displMethodPtr_

autoPtr<displacementMethod> displMethodPtr_

protected

Mesh movement mechanism.

Definition at line 65 of file shapeDesignVariables.H.

Referenced by volumetricBSplinesDesignVariables::dxdbVol(), moveMesh(), readDict(), returnDisplacementMethod(), volumetricBSplinesDesignVariables::setDisplacement(), shapeDesignVariables(), and BezierDesignVariables::update().

◆ pointsInit_

autoPtr<pointField> pointsInit_

protected

Store old points. Useful for line search.

Definition at line 70 of file shapeDesignVariables.H.

Referenced by resetDesignVariables(), shapeDesignVariables(), and storeDesignVariables().

◆ writeEachMesh_

bool writeEachMesh_

protected

Write the mesh points irrespective of whether this is a write time.

Definition at line 75 of file shapeDesignVariables.H.

Referenced by moveMesh(), readDict(), and shapeDesignVariables().

◆ dxdbVolSens_

scalarField dxdbVolSens_

protected

Flow related term.

Term including grad(dxdb) in the volume integrals of the FI formulation

Definition at line 85 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ dxdbSurfSens_

scalarField dxdbSurfSens_

protected

Flow related term.

Main term in the E-SI formulation. Is the surface intergral emerging after performing the Gauss-divergence theorem on the FI-based sensitivities

Definition at line 94 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ dSdbSens_

scalarField dSdbSens_

protected

Term depending on delta(n dS)/delta b.

Definition at line 99 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ dndbSens_

scalarField dndbSens_

protected

Term depending on delta(n)/delta b.

Definition at line 104 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ dxdbDirectSens_

scalarField dxdbDirectSens_

protected

Term depending on delta(x)/delta b for objectives that directly depend on x.

Definition at line 110 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ dVdbSens_

scalarField dVdbSens_

protected

Term depending on delta(V)/delta b.

Definition at line 115 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ distanceSens_

scalarField distanceSens_

protected

Term depending on distance differentiation.

Definition at line 120 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ optionsSens_

scalarField optionsSens_

protected

Term depending on fvOptions.

Definition at line 125 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ bcSens_

scalarField bcSens_

protected

Term depending on the differenation of boundary conditions.

Definition at line 130 of file shapeDesignVariables.H.

Referenced by allocateSensFields(), assembleSensitivities(), shapeDesignVariables(), writeSensitivities(), and zeroSensFields().

◆ derivativesFolder_

fileName derivativesFolder_

protected

Name of the sensitivity derivatives folder.

Definition at line 135 of file shapeDesignVariables.H.

Referenced by shapeDesignVariables(), and writeSensitivities().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/shape/shapeDesignVariables/shapeDesignVariables.H
src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/shape/shapeDesignVariables/shapeDesignVariables.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ shapeDesignVariables()

◆ ~shapeDesignVariables()

Member Function Documentation

◆ sensSize()

◆ activeSensitivities()

◆ solveMeshMovementEqn()

◆ allocateSensFields()

◆ zeroSensFields()

◆ TypeName()

◆ declareRunTimeSelectionTable()

◆ New()

◆ readDict()

◆ update()

◆ storeDesignVariables()

◆ resetDesignVariables()

◆ computeEta()

◆ globalSum()

◆ moveMesh()

◆ getPatches()

◆ returnDisplacementMethod()

◆ assembleSensitivities()

◆ writeSensitivities()

◆ dxdbVol()

◆ dxdbFace()

◆ dndb()

◆ dSdb()

◆ dCdb()

Member Data Documentation

◆ parametertisedPatches_

◆ displMethodPtr_

◆ pointsInit_

◆ writeEachMesh_

◆ dxdbVolSens_

◆ dxdbSurfSens_

◆ dSdbSens_

◆ dndbSens_

◆ dxdbDirectSens_

◆ dVdbSens_

◆ distanceSens_

◆ optionsSens_

◆ bcSens_

◆ derivativesFolder_
