#include <snappyRefineDriver.H>

Public Member Functions
	ClassName ("snappyRefineDriver")
	Runtime type information.
	snappyRefineDriver (meshRefinement &meshRefiner, decompositionMethod &decomposer, fvMeshDistribute &distributor, const labelUList &globalToMasterPatch, const labelUList &globalToSlavePatch, coordSetWriter &setFormatter, refPtr< surfaceWriter > &surfFormatter, const bool dryRun=false)
	Construct from components.
void	doRefine (const dictionary &refineDict, const refinementParameters &refineParams, const snapParameters &snapParams, const bool prepareForSnapping, const meshRefinement::FaceMergeType mergeType, const dictionary &motionDict)
	Do all the refinement.

Static Public Member Functions

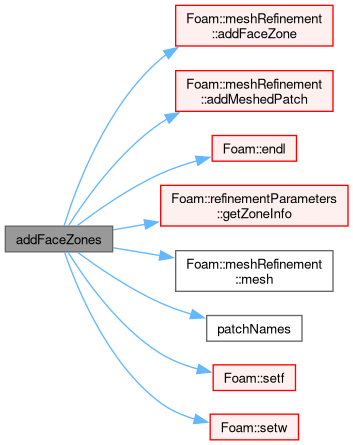

static void	addFaceZones (meshRefinement &meshRefiner, const refinementParameters &refineParams, const HashTable< Pair< word > > &faceZoneToPatches)
	Helper: add faceZones and patches.

Detailed Description

Source files

Definition at line 61 of file snappyRefineDriver.H.

Constructor & Destructor Documentation

◆ snappyRefineDriver()

snappyRefineDriver	(	meshRefinement &	meshRefiner,
		decompositionMethod &	decomposer,
		fvMeshDistribute &	distributor,
		const labelUList &	globalToMasterPatch,
		const labelUList &	globalToSlavePatch,
		coordSetWriter &	setFormatter,
		refPtr< surfaceWriter > &	surfFormatter,
		const bool	dryRun = false )

Construct from components.

Definition at line 57 of file snappyRefineDriver.C.

Member Function Documentation

◆ ClassName()

ClassName ( "snappyRefineDriver" )

Runtime type information.

◆ doRefine()

void doRefine	(	const dictionary &	refineDict,
		const refinementParameters &	refineParams,
		const snapParameters &	snapParams,
		const bool	prepareForSnapping,
		const meshRefinement::FaceMergeType	mergeType,
		const dictionary &	motionDict )

Do all the refinement.

Commented out for now since causes zoning errors (sigsegv) on

case with faceZones. TBD. // Refine any cells are point/edge connected to the boundary and have a // lower refinement level than the neighbouring cells boundaryRefinementInterfaceRefine ( refineParams, 10 // maxIter );

Definition at line 3469 of file snappyRefineDriver.C.

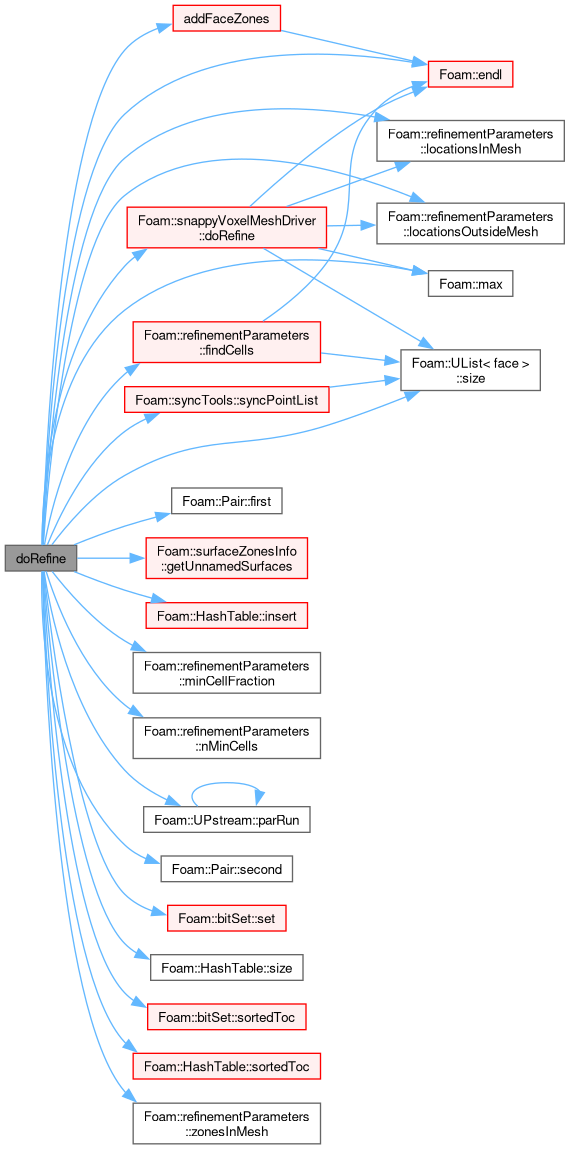

References addFaceZones(), addProfiling, meshRefinement::CASTELLATEDBUFFERLAYER, meshRefinement::CASTELLATEDBUFFERLAYER2, snappyVoxelMeshDriver::doRefine(), Foam::endl(), refinementParameters::findCells(), Pair< T >::first(), forAll, surfaceZonesInfo::getUnnamedSurfaces(), Foam::Info, HashTable< T, Key, Hash >::insert(), Foam::labelMax, refinementParameters::locationsInMesh(), refinementParameters::locationsOutsideMesh(), Foam::max(), mesh, refinementParameters::minCellFraction(), Foam::nl, refinementParameters::nMinCells(), UPstream::parRun(), patches, Pair< T >::second(), bitSet::set(), HashTable< T, Key, Hash >::size(), UList< T >::size(), bitSet::sortedToc(), HashTable< T, Key, Hash >::sortedToc(), syncTools::syncPointList(), and refinementParameters::zonesInMesh().
