A deep-copy description of an OpenFOAM volume mesh in data structures suitable for VTK UnstructuredGrid, including the possibility of decomposing polyhedral cells into primitive cell types. More...

#include <foamVtuCells.H>

Inheritance diagram for vtuCells:

[legend]

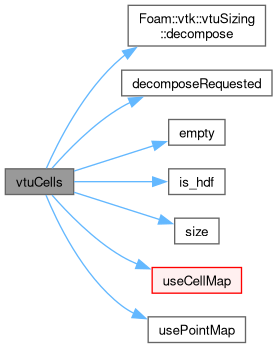

Collaboration diagram for vtuCells:

[legend]

Public Member Functions
	vtuCells (const vtuCells &)=delete
	No copy construct.
void	operator= (const vtuCells &)=delete
	No copy assignment.
	vtuCells (const enum contentType output=contentType::XML, const bool decompose=false)
	Default construct (XML format, no polyhedral decomposition).
	vtuCells (const polyMesh &mesh, const enum contentType output=contentType::XML, const bool decompose=false)
	Construct from components, create output information immediately.
	vtuCells (const vtk::outputOptions opts, const bool decompose=false)
	Construct from components.
	vtuCells (const polyMesh &mesh, const vtk::outputOptions opts, const bool decompose=false)
	Construct from components, create output information immediately.
enum contentType	content () const noexcept
	The output content type.
bool	decomposeRequested () const noexcept
	Query the polyhedral decompose requested flag.
bool	empty () const noexcept
	True if no cellTypes are populated.
label	size () const noexcept
	The size of populated cellTypes (the number of cells).
bool	useCellMap () const noexcept
	The cellMap is non-identity for a SUBSET_MESH or when there are decomposed cells.
bool	usePointMap () const noexcept
	The pointMap is available and non-identity [FUTURE USE].
bool	is_hdf () const noexcept
	Test for hdf content type.
void	clear ()
	Reset all sizes to zero.
void	reset (const polyMesh &mesh)
	Create the geometry using the previously requested output and decomposition types.
void	reset (const polyMesh &mesh, const labelUList &subsetCellsIds)
	Create the geometry for a mesh subset, using previously requested output and decomposition types.
void	reset (const polyMesh &mesh, const enum contentType output, const bool decompose)
	Respecify requested output and decomposition type prior to creating the geometry.
void	resetShapes (const UList< cellShape > &shapes)
	Reset sizing using primitive shapes only (ADVANCED USAGE).
void	renumberCells (const labelUList &mapping)
	Renumber cell ids to account for subset meshes.
void	renumberPoints (const labelUList &mapping)
	Renumber point ids to account for subset meshes.
void	addPointCellLabels (const labelUList &cellIds)
	Define which additional cell-centres are to be used (ADVANCED!).
const List< uint8_t > &	cellTypes () const noexcept
	The cell `"types"` (legacy: `"CELL_TYPES"`).
const labelList &	vertLabels () const noexcept
	The cell `"connectivity"` (legacy: `"CELLS"`).
const labelList &	vertOffsets () const noexcept
	The `"offsets"` into the connectivity list vertLabels().
const labelList &	faceLabels () const noexcept
	The polyhedral `"faces"` or `"FaceConnectivity"`.
const labelList &	faceOffsets () const noexcept
	The `"facesoffset"` or the `"FaceOffsets"`.
const labelList &	polyFaceIds () const
	Face ids per polyhedral cell (HDF only).
const labelList &	polyFaceOffsets () const noexcept
	Offsets into the polyhedral face ids (HDF only).
const labelList &	addPointCellLabels () const noexcept
	Additional point addressing (from added point to original cell).
const labelList &	cellMap () const noexcept
	The mesh cell ids for all cells (regular and decomposed).
const labelUList &	pointMap () const noexcept
	The mesh point ids [FUTURE USE].
refPtr< labelList >	vertLabels (label pointOffset) const
	The "connectivity" (legacy: "CELLS") adjusted by the specified (global) point offset.
refPtr< labelList >	vertOffsets (label beginOffset, bool syncPar=false) const
	Connectivity (vertices) offsets for each cell adjusted by the specified (global) cell offset.
refPtr< labelList >	faceLabels (label pointOffset) const
	The "faces" stream/connectivity (non-legacy only) adjusted by the specified (global) point offset.
refPtr< labelList >	faceOffsets (label beginOffset, bool syncPar=false) const
	The offsets into "faces" (non-legacy only) adjusted by the specified (global) face offset.
refPtr< labelList >	polyFaceIds (label beginOffset) const
	The "PolyhedronToFaces" ids (HDF only) adjusted by the specified (global) face offset.
refPtr< labelList >	polyFaceOffsets (label beginOffset, bool syncPar=false) const
	The "PolyhedronOffsets" (HDF only), which are the offsets into the polyhedral face ids, adjusted by the specified (global) cell offset.
template<class PointType = Foam::point>
tmp< Field< PointType > >	points (const polyMesh &mesh) const
	Return the mesh points, possibly with cell centres for addPointCellLabels().
Public Member Functions inherited from vtuSizing
	vtuSizing () noexcept
	Default construct.
	vtuSizing (const polyMesh &mesh)
	Construct sizing by analyzing the mesh.
	vtuSizing (const polyMesh &mesh, const bool decompose)
	Construct sizing by analyzing the mesh.
void	reset (const polyMesh &mesh, const bool decompose=false)
	Reset sizing by analyzing the mesh.
void	reset (const polyMesh &mesh, const labelUList &subsetCellsIds, const bool decompose=false)
	Reset sizing by analyzing a subset of the mesh.
void	resetShapes (const UList< cellShape > &shapes)
	Reset sizing using primitive shapes only (ADVANCED USAGE).
void	clear () noexcept
	Reset all sizes to zero.
bool	decompose () const noexcept
	Query the decompose flag (normally off).
bool	manifold () const noexcept
	Manifold mesh cells detected? Globally consistent quantity.
selectionModeType	selectionMode () const noexcept
	Query how the mesh cells have been selected or defined.
bool	hasPolyCells () const noexcept
	Has polyhedral cells?
label	nCells () const noexcept
	Number of cells for the mesh.
label	nPoints () const noexcept
	Number of points for the mesh.
label	nVertLabels () const noexcept
	Number of vertex labels for the mesh.
label	nFaceLabels () const noexcept
	Number of polyhedral face labels for the mesh, without any prefixing information.
label	nFaceLabels (contentType output) const
	Number of polyhedral face labels for the mesh with format-dependent prefixing information.
label	nCellsPoly () const noexcept
	Number of output polyhedral cells for the mesh.
label	nFacesPoly () const noexcept
	Number of (non-unique) faces used by polyhedral cells.
label	nVertPoly () const noexcept
	Number of vertex labels for polyhedral cells of the mesh.
label	nAddCells () const noexcept
	Number of additional (decomposed) cells for the mesh.
label	nAddPoints () const noexcept
	Number of additional (decomposed) points for the mesh.
label	nAddVerts () const noexcept
	Number of additional (decomposed) vertices for the mesh.
label	nFieldCells () const noexcept
	Number of field cells = nCells + nAddCells.
label	nFieldPoints () const noexcept
	Number of field points = nPoints + nAddPoints.
void	setNumPoints (label n) noexcept
	Alter number of mesh points (ADVANCED USAGE).
void	setNumAddPoints (label n) noexcept
	Alter number of additional (cell-centre) points (ADVANCED USAGE).
label	sizeOf (const enum contentType output, const enum slotType slot) const noexcept
	Return the required size for the storage slot.
template<vtuSizing::slotType slot>
label	sizeOf (contentType output) const noexcept
	Return the required size for the storage slot.
void	populateLegacy (const polyMesh &mesh, UList< uint8_t > &cellTypes, labelUList &connectivity, foamVtkMeshMaps &maps) const
	Populate lists for Legacy output.
void	populateXml (const polyMesh &mesh, UList< uint8_t > &cellTypes, labelUList &connectivity, labelUList &offsets, labelUList &faces, labelUList &facesOffsets, foamVtkMeshMaps &maps) const
	Populate lists for XML output.
void	populateHdf (const polyMesh &mesh, UList< uint8_t > &cellTypes, labelUList &connectivity, labelUList &offsets, labelUList &faces, labelUList &facesOffsets, labelUList &polyFaceIds, labelUList &polyFaceOffsets, foamVtkMeshMaps &maps) const
	Populate lists for HDF output.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< int > &connectivity, UList< int > &offsets, UList< int > &faces, UList< int > &facesOffsets, foamVtkMeshMaps &maps, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< int > &connectivity, UList< int > &offsets, UList< int > &faces, UList< int > &facesOffsets, labelUList &cellMap, labelUList &addPointsIds, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< long > &connectivity, UList< long > &offsets, UList< long > &faces, UList< long > &facesOffsets, foamVtkMeshMaps &maps, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< long > &connectivity, UList< long > &offsets, UList< long > &faces, UList< long > &facesOffsets, labelUList &cellMap, labelUList &addPointsIds, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< long long > &connectivity, UList< long long > &offsets, UList< long long > &faces, UList< long long > &facesOffsets, foamVtkMeshMaps &maps, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< long long > &connectivity, UList< long long > &offsets, UList< long long > &faces, UList< long long > &facesOffsets, labelUList &cellMap, labelUList &addPointsIds, const enum contentType output) const
	Populate lists for Internal VTK format.
void	info (Ostream &os) const
	Report some information.
bool	operator== (const vtuSizing &rhs) const
	Test equality.
bool	operator!= (const vtuSizing &rhs) const
	Test inequality.
label	sizeLegacy () const
	The calculated size for legacy storage.
label	sizeLegacy (slotType slot) const
	The calculated size for legacy storage of the specified slot.
label	sizeXml (slotType slot) const
	The calculated size for xml storage of the specified slot.
label	sizeInternal1 (slotType slot) const
	The calculated size for vtk-internal storage of the specified slot.
label	sizeInternal2 (slotType slot) const
	The calculated size for vtk-internal storage of the specified slot.

Additional Inherited Members
Public Types inherited from vtuSizing
enum class	contentType : unsigned char { LEGACY , XML , INTERNAL1 , INTERNAL2 , HDF }
	Types of content that the storage may represent. More...
enum class	slotType : unsigned char { CELLS , CELLS_OFFSETS , FACES , FACES_OFFSETS , POLY_FACEIDS , POLY_FACEIDS_OFFSETS }
	The possible storage 'slots' that can be used. More...
enum class	selectionModeType : unsigned char { FULL_MESH , SUBSET_MESH , SHAPE_MESH }
	How the mesh cells have been selected or defined. More...
Static Public Member Functions inherited from vtuSizing
static void	renumberVertLabels (labelUList &connectivity, const label pointOffset, const contentType output)
	Renumber vertex labels by (global) point offset.
static void	renumberFaceLabels (labelUList &faceLabels, const label pointOffset, const contentType output)
	Renumber faces stream labels by (global) point offset.
static void	renumberFaceOffsets (labelUList &faceOffsets, const label beginOffset, const contentType output)
	Renumber face offsets with a specified (global) begin offset.
static labelList	copyVertLabels (const labelUList &connectivity, const label pointOffset, const contentType output)
	Copy vertex labels with a (global) point offset.
static labelList	copyFaceLabels (const labelUList &faceLabels, const label pointOffset, const contentType output)
	Copy faces stream labels with a (global) point offset.
static labelList	copyFaceOffsets (const labelUList &faceOffsets, const label beginOffset, const contentType output)
	Copy face offsets with a specified (global) begin offset.
static void	renumberVertLabelsLegacy (labelUList &connectivity, const label pointOffset)
	Renumber vertex labels by (global) point offset - legacy format.
static void	renumberVertLabelsXml (labelUList &connectivity, const label pointOffset)
	Renumber vertex labels by (global) point offset - XML format.
static void	renumberFaceLabelsXml (labelUList &faceLabels, const label pointOffset)
	Renumber faces stream labels by (global) point offset - XML format.
static void	renumberFaceOffsetsXml (labelUList &faceOffsets, const label beginOffset)
	Renumber face offsets with a specified begin offset - XML format.
static labelList	copyVertLabelsLegacy (const labelUList &connectivity, const label pointOffset)
	Copy vertex labels with a (global) point offset - legacy format.
static labelList	copyVertLabelsXml (const labelUList &connectivity, const label pointOffset)
	Copy vertex labels with a (global) point offset - XML format.
static labelList	copyFaceLabelsXml (const labelUList &faceLabels, const label pointOffset)
	Copy faces stream labels with a (global) point offset - XML format.
static labelList	copyFaceOffsetsXml (const labelUList &faceOffsets, const label beginOffset)
	Copy face offsets with an offset from previous - XML format.
Protected Member Functions inherited from vtuSizing
void	populateShapesLegacy (const UList< cellShape > &shapes, UList< uint8_t > &cellTypes, labelUList &connectivity, foamVtkMeshMaps &maps) const
	Reset list for primitive shapes only (ADVANCED USAGE).
void	populateShapesXml (const UList< cellShape > &shapes, UList< uint8_t > &cellTypes, labelUList &connectivity, labelUList &offsets, labelUList &faces, labelUList &facesOffsets, foamVtkMeshMaps &maps) const
	Reset list for primitive shapes only (ADVANCED USAGE).
Static Protected Member Functions inherited from vtuSizing
static labelList	dummyFaceOffsets (const label numCells, const enum contentType output, label beginOffset=0)
	Return a list of dummy faceOffsets.

Detailed Description

A deep-copy description of an OpenFOAM volume mesh in data structures suitable for VTK UnstructuredGrid, including the possibility of decomposing polyhedral cells into primitive cell types.

Knowledge of the vtkUnstructuredGrid and the corresponding .vtu xml file-format aids in understanding this class. The class can be used for the VTK xml format, legacy format, as well as a VTK internal representation. The internal representation is somewhat related to the xml format, but not entirely.

See also: Foam::vtk::vtuSizing

Source files

Definition at line 73 of file foamVtuCells.H.

Constructor & Destructor Documentation

◆ vtuCells() [1/5]

vtuCells ( const vtuCells & )

delete

No copy construct.

References vtuCells().

Referenced by operator=(), and vtuCells().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vtuCells() [2/5]

vtuCells	(	const enum contentType	output = contentType::XML,
		const bool	decompose = false )

explicit

Default construct (XML format, no polyhedral decomposition).

References vtuSizing::decompose(), and vtuSizing::XML.

Here is the call graph for this function:

◆ vtuCells() [3/5]

vtuCells	(	const polyMesh &	mesh,
		const enum contentType	output = contentType::XML,
		const bool	decompose = false )

explicit

Construct from components, create output information immediately.

References vtuSizing::decompose(), mesh, and vtuSizing::XML.

Here is the call graph for this function:

◆ vtuCells() [4/5]

vtuCells	(	const vtk::outputOptions	opts,
		const bool	decompose = false )

explicit

Construct from components.

Optionally with polyhedral decomposition.

References vtuSizing::decompose().

Here is the call graph for this function:

◆ vtuCells() [5/5]

vtuCells	(	const polyMesh &	mesh,
		const vtk::outputOptions	opts,
		const bool	decompose = false )

Construct from components, create output information immediately.

References vtuSizing::decompose(), decomposeRequested(), empty(), is_hdf(), mesh, Foam::noexcept, size(), useCellMap(), and usePointMap().

Here is the call graph for this function:

Member Function Documentation

◆ operator=()

void operator= ( const vtuCells & )

delete

No copy assignment.

References vtuCells().

Here is the call graph for this function:

◆ content()

enum Foam::vtk::vtuCells::contentType content ( ) const

inlinenoexcept

The output content type.

Definition at line 26 of file foamVtuCellsI.H.

References Foam::noexcept.

◆ decomposeRequested()

bool decomposeRequested ( ) const

inlinenoexcept

Query the polyhedral decompose requested flag.

Definition at line 38 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by vtuCells().

Here is the caller graph for this function:

◆ empty()

bool empty ( ) const

inlinenoexcept

True if no cellTypes are populated.

Definition at line 44 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by vtuCells().

Here is the caller graph for this function:

◆ size()

Foam::label size ( ) const

inlinenoexcept

The size of populated cellTypes (the number of cells).

Definition at line 50 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by vtuCells().

Here is the caller graph for this function:

◆ useCellMap()

bool useCellMap ( ) const

inlinenoexcept

The cellMap is non-identity for a SUBSET_MESH or when there are decomposed cells.

Definition at line 105 of file foamVtuCellsI.H.

References vtuSizing::nAddCells(), Foam::noexcept, vtuSizing::selectionMode(), and vtuSizing::SUBSET_MESH.

Referenced by vtuCells().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ usePointMap()

bool usePointMap ( ) const

inlinenoexcept

The pointMap is available and non-identity [FUTURE USE].

Definition at line 122 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by vtuCells().

Here is the caller graph for this function:

◆ is_hdf()

bool is_hdf ( ) const

inlinenoexcept

Test for hdf content type.

Definition at line 32 of file foamVtuCellsI.H.

References vtuSizing::HDF, and Foam::noexcept.

Referenced by vtuCells().

Here is the caller graph for this function:

◆ clear()

void clear ( )

Reset all sizes to zero.

References clear().

Referenced by clear().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [1/3]

void reset ( const polyMesh & mesh )

Create the geometry using the previously requested output and decomposition types.

References mesh, and reset().

Referenced by isoSurfaceTopo::isoSurfaceTopo(), reset(), reset(), and reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [2/3]

void reset	(	const polyMesh &	mesh,
		const labelUList &	subsetCellsIds )

Create the geometry for a mesh subset, using previously requested output and decomposition types.

References mesh, and reset().

Here is the call graph for this function:

◆ reset() [3/3]

void reset	(	const polyMesh &	mesh,
		const enum contentType	output,
		const bool	decompose )

Respecify requested output and decomposition type prior to creating the geometry.

References vtuSizing::decompose(), mesh, and reset().

Here is the call graph for this function:

◆ resetShapes()

void resetShapes ( const UList< cellShape > & shapes )

Reset sizing using primitive shapes only (ADVANCED USAGE).

Effectively removes any polyhedrals!

References resetShapes().

Referenced by isoSurfaceTopo::isoSurfaceTopo(), and resetShapes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renumberCells()

void renumberCells ( const labelUList & mapping )

Renumber cell ids to account for subset meshes.

References renumberCells().

Referenced by renumberCells().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renumberPoints()

void renumberPoints ( const labelUList & mapping )

Renumber point ids to account for subset meshes.

References renumberPoints().

Referenced by renumberPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addPointCellLabels() [1/2]

void addPointCellLabels ( const labelUList & cellIds )

Define which additional cell-centres are to be used (ADVANCED!).

References addPointCellLabels(), cellTypes(), faceLabels(), faceOffsets(), Foam::noexcept, vertLabels(), and vertOffsets().

Referenced by addPointCellLabels(), isoSurfaceTopo::isoSurfaceTopo(), and polyFaceIds().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cellTypes()

const Foam::List< uint8_t > & cellTypes ( ) const

inlinenoexcept

The cell "types" (legacy: "CELL_TYPES").

Definition at line 57 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by addPointCellLabels().

Here is the caller graph for this function:

◆ vertLabels() [1/2]

const Foam::labelList & vertLabels ( ) const

inlinenoexcept

The cell "connectivity" (legacy: "CELLS").

Definition at line 64 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by addPointCellLabels(), and vertLabels().

Here is the caller graph for this function:

◆ vertOffsets() [1/2]

const Foam::labelList & vertOffsets ( ) const

inlinenoexcept

The "offsets" into the connectivity list vertLabels().

The content depends on the format:

XML : end offset
INTERNAL1 : begin location
INTERNAL2 : begin/end offsets
HDF : begin/end offsets

Definition at line 71 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by addPointCellLabels(), and vertOffsets().

Here is the caller graph for this function:

◆ faceLabels() [1/2]

const Foam::labelList & faceLabels ( ) const

inlinenoexcept

The polyhedral "faces" or "FaceConnectivity".

The content depends on the format:

XML / INTERNAL : a face stream with embedded sizing
HDF : the vertex list of polyhedral faces

Definition at line 78 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by addPointCellLabels(), and faceLabels().

Here is the caller graph for this function:

◆ faceOffsets() [1/2]

const Foam::labelList & faceOffsets ( ) const

inlinenoexcept

The "facesoffset" or the "FaceOffsets".

The content depends on the format:

XML : the per-cell end offset into faceLabels(),
INTERNAL : the per-cell begin offset into faceLabels(), with -1 for primitive types
HDF : the per-cell begin/end offset into faceLabels(), with an empty range for primitive types

Definition at line 85 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by addPointCellLabels(), and faceOffsets().

Here is the caller graph for this function:

◆ polyFaceIds() [1/2]

const labelList & polyFaceIds ( ) const

Face ids per polyhedral cell (HDF only).

Possibly demand-driven content

References addPointCellLabels(), cellMap(), Foam::noexcept, pointMap(), polyFaceIds(), and polyFaceOffsets().

Referenced by polyFaceIds(), and polyFaceIds().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ polyFaceOffsets() [1/2]

const Foam::labelList & polyFaceOffsets ( ) const

inlinenoexcept

Offsets into the polyhedral face ids (HDF only).

Definition at line 92 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by polyFaceIds(), and polyFaceOffsets().

Here is the caller graph for this function:

◆ addPointCellLabels() [2/2]

const Foam::labelList & addPointCellLabels ( ) const

inlinenoexcept

Additional point addressing (from added point to original cell).

Definition at line 99 of file foamVtuCellsI.H.

References Foam::noexcept.

◆ cellMap()

const Foam::labelList & cellMap ( ) const

inlinenoexcept

The mesh cell ids for all cells (regular and decomposed).

For a volume field these would be the cell ids to extract from the field.

Definition at line 116 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by polyFaceIds().

Here is the caller graph for this function:

◆ pointMap()

const Foam::labelUList & pointMap ( ) const

inlinenoexcept

The mesh point ids [FUTURE USE].

Definition at line 129 of file foamVtuCellsI.H.

References Foam::noexcept.

Referenced by polyFaceIds().

Here is the caller graph for this function:

◆ vertLabels() [2/2]

refPtr< labelList > vertLabels ( label pointOffset ) const

The "connectivity" (legacy: "CELLS") adjusted by the specified (global) point offset.

References vertLabels().

Here is the call graph for this function:

◆ vertOffsets() [2/2]

refPtr< labelList > vertOffsets	(	label	beginOffset,
		bool	syncPar = false ) const

Connectivity (vertices) offsets for each cell adjusted by the specified (global) cell offset.

Parameters

beginOffset	For formats with begin/end, can specify -1 for an automatic calculation (in parallel)
syncPar	For begin/end offsets for parallel concatenation

References vertOffsets().

Here is the call graph for this function:

◆ faceLabels() [2/2]

refPtr< labelList > faceLabels ( label pointOffset ) const

The "faces" stream/connectivity (non-legacy only) adjusted by the specified (global) point offset.

References faceLabels().

Here is the call graph for this function:

◆ faceOffsets() [2/2]

refPtr< labelList > faceOffsets	(	label	beginOffset,
		bool	syncPar = false ) const

The offsets into "faces" (non-legacy only) adjusted by the specified (global) face offset.

Returns a dummy set of offsets if there are no "faces"

Parameters

beginOffset	For formats with begin/end, can specify -1 for an automatic calculation (in parallel)
syncPar	For begin/end offsets for parallel concatenation

References faceOffsets().

Here is the call graph for this function:

◆ polyFaceIds() [2/2]

refPtr< labelList > polyFaceIds ( label beginOffset ) const

The "PolyhedronToFaces" ids (HDF only) adjusted by the specified (global) face offset.

References polyFaceIds().

Here is the call graph for this function:

◆ polyFaceOffsets() [2/2]

refPtr< labelList > polyFaceOffsets	(	label	beginOffset,
		bool	syncPar = false ) const

The "PolyhedronOffsets" (HDF only), which are the offsets into the polyhedral face ids, adjusted by the specified (global) cell offset.

Parameters

beginOffset	For formats with begin/end, can specify -1 for an automatic calculation (in parallel)
syncPar	For begin/end offsets for parallel concatenation

References polyFaceOffsets().

Here is the call graph for this function:

◆ points()

template<class PointType = Foam::point>

tmp< Field< PointType > > points ( const polyMesh & mesh ) const

Return the mesh points, possibly with cell centres for addPointCellLabels().

Note: not valid for a SHAPE_MESH

References mesh, and points().

Referenced by points().

Here is the call graph for this function:

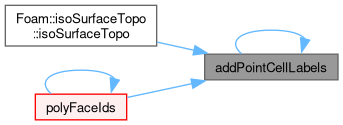

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/fileFormats/vtk/part/foamVtuCells.H
src/fileFormats/vtk/part/foamVtuCellsI.H

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ vtuCells() [1/5]

◆ vtuCells() [2/5]

◆ vtuCells() [3/5]

◆ vtuCells() [4/5]

◆ vtuCells() [5/5]

Member Function Documentation

◆ operator=()

◆ content()

◆ decomposeRequested()

◆ empty()

◆ size()

◆ useCellMap()

◆ usePointMap()

◆ is_hdf()

◆ clear()

◆ reset() [1/3]

◆ reset() [2/3]

◆ reset() [3/3]

◆ resetShapes()

◆ renumberCells()

◆ renumberPoints()

◆ addPointCellLabels() [1/2]

◆ cellTypes()

◆ vertLabels() [1/2]

◆ vertOffsets() [1/2]

◆ faceLabels() [1/2]

◆ faceOffsets() [1/2]

◆ polyFaceIds() [1/2]

◆ polyFaceOffsets() [1/2]

◆ addPointCellLabels() [2/2]

◆ cellMap()

◆ pointMap()

◆ vertLabels() [2/2]

◆ vertOffsets() [2/2]

◆ faceLabels() [2/2]

◆ faceOffsets() [2/2]

◆ polyFaceIds() [2/2]

◆ polyFaceOffsets() [2/2]

◆ points()
