Sizing descriptions and routines for transcribing an OpenFOAM volume mesh into a VTK unstructured grid, with possible decomposition of polyhedral cells into primitive cell types. More...

#include <foamVtuSizing.H>

Inheritance diagram for vtuSizing:

[legend]

Public Types
enum class	contentType : unsigned char { LEGACY , XML , INTERNAL1 , INTERNAL2 , HDF }
	Types of content that the storage may represent. More...
enum class	slotType : unsigned char { CELLS , CELLS_OFFSETS , FACES , FACES_OFFSETS , POLY_FACEIDS , POLY_FACEIDS_OFFSETS }
	The possible storage 'slots' that can be used. More...
enum class	selectionModeType : unsigned char { FULL_MESH , SUBSET_MESH , SHAPE_MESH }
	How the mesh cells have been selected or defined. More...

Public Member Functions
	vtuSizing () noexcept
	Default construct.
	vtuSizing (const polyMesh &mesh)
	Construct sizing by analyzing the mesh.
	vtuSizing (const polyMesh &mesh, const bool decompose)
	Construct sizing by analyzing the mesh.
void	reset (const polyMesh &mesh, const bool decompose=false)
	Reset sizing by analyzing the mesh.
void	reset (const polyMesh &mesh, const labelUList &subsetCellsIds, const bool decompose=false)
	Reset sizing by analyzing a subset of the mesh.
void	resetShapes (const UList< cellShape > &shapes)
	Reset sizing using primitive shapes only (ADVANCED USAGE).
void	clear () noexcept
	Reset all sizes to zero.
bool	decompose () const noexcept
	Query the decompose flag (normally off).
bool	manifold () const noexcept
	Manifold mesh cells detected? Globally consistent quantity.
selectionModeType	selectionMode () const noexcept
	Query how the mesh cells have been selected or defined.
bool	hasPolyCells () const noexcept
	Has polyhedral cells?
label	nCells () const noexcept
	Number of cells for the mesh.
label	nPoints () const noexcept
	Number of points for the mesh.
label	nVertLabels () const noexcept
	Number of vertex labels for the mesh.
label	nFaceLabels () const noexcept
	Number of polyhedral face labels for the mesh, without any prefixing information.
label	nFaceLabels (contentType output) const
	Number of polyhedral face labels for the mesh with format-dependent prefixing information.
label	nCellsPoly () const noexcept
	Number of output polyhedral cells for the mesh.
label	nFacesPoly () const noexcept
	Number of (non-unique) faces used by polyhedral cells.
label	nVertPoly () const noexcept
	Number of vertex labels for polyhedral cells of the mesh.
label	nAddCells () const noexcept
	Number of additional (decomposed) cells for the mesh.
label	nAddPoints () const noexcept
	Number of additional (decomposed) points for the mesh.
label	nAddVerts () const noexcept
	Number of additional (decomposed) vertices for the mesh.
label	nFieldCells () const noexcept
	Number of field cells = nCells + nAddCells.
label	nFieldPoints () const noexcept
	Number of field points = nPoints + nAddPoints.
void	setNumPoints (label n) noexcept
	Alter number of mesh points (ADVANCED USAGE).
void	setNumAddPoints (label n) noexcept
	Alter number of additional (cell-centre) points (ADVANCED USAGE).
label	sizeOf (const enum contentType output, const enum slotType slot) const noexcept
	Return the required size for the storage slot.
template<vtuSizing::slotType slot>
label	sizeOf (contentType output) const noexcept
	Return the required size for the storage slot.
void	populateLegacy (const polyMesh &mesh, UList< uint8_t > &cellTypes, labelUList &connectivity, foamVtkMeshMaps &maps) const
	Populate lists for Legacy output.
void	populateXml (const polyMesh &mesh, UList< uint8_t > &cellTypes, labelUList &connectivity, labelUList &offsets, labelUList &faces, labelUList &facesOffsets, foamVtkMeshMaps &maps) const
	Populate lists for XML output.
void	populateHdf (const polyMesh &mesh, UList< uint8_t > &cellTypes, labelUList &connectivity, labelUList &offsets, labelUList &faces, labelUList &facesOffsets, labelUList &polyFaceIds, labelUList &polyFaceOffsets, foamVtkMeshMaps &maps) const
	Populate lists for HDF output.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< int > &connectivity, UList< int > &offsets, UList< int > &faces, UList< int > &facesOffsets, foamVtkMeshMaps &maps, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< int > &connectivity, UList< int > &offsets, UList< int > &faces, UList< int > &facesOffsets, labelUList &cellMap, labelUList &addPointsIds, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< long > &connectivity, UList< long > &offsets, UList< long > &faces, UList< long > &facesOffsets, foamVtkMeshMaps &maps, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< long > &connectivity, UList< long > &offsets, UList< long > &faces, UList< long > &facesOffsets, labelUList &cellMap, labelUList &addPointsIds, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< long long > &connectivity, UList< long long > &offsets, UList< long long > &faces, UList< long long > &facesOffsets, foamVtkMeshMaps &maps, const enum contentType output) const
	Populate lists for Internal VTK format.
void	populateInternal (const polyMesh &mesh, UList< uint8_t > &cellTypes, UList< long long > &connectivity, UList< long long > &offsets, UList< long long > &faces, UList< long long > &facesOffsets, labelUList &cellMap, labelUList &addPointsIds, const enum contentType output) const
	Populate lists for Internal VTK format.
void	info (Ostream &os) const
	Report some information.
bool	operator== (const vtuSizing &rhs) const
	Test equality.
bool	operator!= (const vtuSizing &rhs) const
	Test inequality.
label	sizeLegacy () const
	The calculated size for legacy storage.
label	sizeLegacy (slotType slot) const
	The calculated size for legacy storage of the specified slot.
label	sizeXml (slotType slot) const
	The calculated size for xml storage of the specified slot.
label	sizeInternal1 (slotType slot) const
	The calculated size for vtk-internal storage of the specified slot.
label	sizeInternal2 (slotType slot) const
	The calculated size for vtk-internal storage of the specified slot.

Static Public Member Functions
static void	renumberVertLabels (labelUList &connectivity, const label pointOffset, const contentType output)
	Renumber vertex labels by (global) point offset.
static void	renumberFaceLabels (labelUList &faceLabels, const label pointOffset, const contentType output)
	Renumber faces stream labels by (global) point offset.
static void	renumberFaceOffsets (labelUList &faceOffsets, const label beginOffset, const contentType output)
	Renumber face offsets with a specified (global) begin offset.
static labelList	copyVertLabels (const labelUList &connectivity, const label pointOffset, const contentType output)
	Copy vertex labels with a (global) point offset.
static labelList	copyFaceLabels (const labelUList &faceLabels, const label pointOffset, const contentType output)
	Copy faces stream labels with a (global) point offset.
static labelList	copyFaceOffsets (const labelUList &faceOffsets, const label beginOffset, const contentType output)
	Copy face offsets with a specified (global) begin offset.
static void	renumberVertLabelsLegacy (labelUList &connectivity, const label pointOffset)
	Renumber vertex labels by (global) point offset - legacy format.
static void	renumberVertLabelsXml (labelUList &connectivity, const label pointOffset)
	Renumber vertex labels by (global) point offset - XML format.
static void	renumberFaceLabelsXml (labelUList &faceLabels, const label pointOffset)
	Renumber faces stream labels by (global) point offset - XML format.
static void	renumberFaceOffsetsXml (labelUList &faceOffsets, const label beginOffset)
	Renumber face offsets with a specified begin offset - XML format.
static labelList	copyVertLabelsLegacy (const labelUList &connectivity, const label pointOffset)
	Copy vertex labels with a (global) point offset - legacy format.
static labelList	copyVertLabelsXml (const labelUList &connectivity, const label pointOffset)
	Copy vertex labels with a (global) point offset - XML format.
static labelList	copyFaceLabelsXml (const labelUList &faceLabels, const label pointOffset)
	Copy faces stream labels with a (global) point offset - XML format.
static labelList	copyFaceOffsetsXml (const labelUList &faceOffsets, const label beginOffset)
	Copy face offsets with an offset from previous - XML format.

Protected Member Functions
void	populateShapesLegacy (const UList< cellShape > &shapes, UList< uint8_t > &cellTypes, labelUList &connectivity, foamVtkMeshMaps &maps) const
	Reset list for primitive shapes only (ADVANCED USAGE).
void	populateShapesXml (const UList< cellShape > &shapes, UList< uint8_t > &cellTypes, labelUList &connectivity, labelUList &offsets, labelUList &faces, labelUList &facesOffsets, foamVtkMeshMaps &maps) const
	Reset list for primitive shapes only (ADVANCED USAGE).

Static Protected Member Functions
static labelList	dummyFaceOffsets (const label numCells, const enum contentType output, label beginOffset=0)
	Return a list of dummy faceOffsets.

Detailed Description

Sizing descriptions and routines for transcribing an OpenFOAM volume mesh into a VTK unstructured grid, with possible decomposition of polyhedral cells into primitive cell types.

This class is intended to populate externally allocated arrays with content that is compatible with what VTK expects. This approach allows an improved separation of the OpenFOAM mesh description and the storage, and allows support of alternative storage containers (eg, std::vector, vtkDataArray). The ideal goal would be a zero-copy mechanism, but this does not work for several reasons:

OpenFOAM and VTK have different point ordering for prism
polyhedral decomposition
face-stream are required for VTK
VTK internal storage includes list size as part of the data
VTK includes storage may be a different base size (eg, long long) compared to the OpenFOAM label.

Data Entries (slots)

These are the storage entries normally associate with each output-type:

legacy output (vtk DataFile Version 2.0)
`types`	vtk cell type (1-255)
`cells`	nLabels and unique vertex labels used by the cell, or
	[nLabels nFaces, nFace0Pts, id0,id1,..., nFace1Pts, id0,...]

xml output
`types`	vtk cell type (1-255)
`connectivity`	unique vertex labels used by the cell
`offsets`	end offset for each of `connectivity`
`faces`	face stream for polyhedral cells
	[nFaces, nFace0Pts, id0,id1,..., nFace1Pts, id0,...]
`faceoffsets`	end offset for each of `faces`, with -1 for primitive cells

internal1 storage (VTK-8 and earlier)
`types`	vtk cell type (1-255)
`connectivity`	nLabels and unique vertex labels used by the cell
`location`	begin location for each of `connectivity`
`faces`	face stream for polyhedral cells
	[nFaces, nFace0Pts, id0,id1,..., nFace1Pts, id0,...]
`facelocation`	begin location for each of `faces`, with -1 for primitive cells

internal2 storage (with VTK_CELL_ARRAY_V2)
`types`	vtk cell type (1-255)
`connectivity`	unique vertex labels used by the cell
`offsets`	begin/end offsets for `connectivity`
`faces`	face stream for polyhedral cells
	[nFaces, nFace0Pts, id0,id1,..., nFace1Pts, id0,...]
`facelocation`	begin location for each of `faces`, with -1 for primitive cells

hdf storage (similar to internal2)
`Types`	vtk cell type (1-255)
`Connectivity`	unique vertex labels used by the cell
`Offsets`	begin/end offsets for `Connectivity`
`FaceConnectivity`	faces for polyhedral cells (their vertex labels)
	[id0,id1,...]
`FaceOffsets`	begin/end offsets for FaceConnectivity.
`PolyhedronToFaces`	face ids (faces are defined by FaceOffsets/FaceConnectivity)
`PolyhedronOffsets`	begin/end offsets for `PolyhedronToFaces`
	Has size nCells+1

The VTK storage concept for "connectivity" and "faces" somewhat resemble a CompactListList.

Note: It is possible to specify a global point offset (via the globalIndex) so that the cell point labels will use global numbering. There is no support for point renumbering with merged mesh points, since it likely more efficient to use VTK point-blanking to mark duplicate points instead of merging points ourselves.; The VTK_CELL_ARRAY_V2 define (from vtkCellArray.h) indicates if the new (internal2) new format is being used.

Source files

Definition at line 238 of file foamVtuSizing.H.

Member Enumeration Documentation

◆ contentType

enum class contentType : unsigned char

strong

Types of content that the storage may represent.

Enumerator
LEGACY	Legacy VTK content.
XML	XML (VTU) content.
INTERNAL1	Internal vtkUnstructuredGrid content (old).
INTERNAL2	Internal vtkUnstructuredGrid content, VTK_CELL_ARRAY_V2.
HDF	Similar to INTERNAL2, but with VTKHDF specifics.

Definition at line 247 of file foamVtuSizing.H.

◆ slotType

enum class slotType : unsigned char

strong

The possible storage 'slots' that can be used.

Enumerator
CELLS	Cell connectivity (ALL).
CELLS_OFFSETS	Cell connectivity offsets: end-offsets (XML), locations (INTERNAL1), begin/end offsets (INTERNAL2, HDF)
FACES	Polyhedral face-stream (XML, INTERNAL) or face vertices (HDF).
FACES_OFFSETS	Polyhedral faces offsets: end-offsets (XML), begin locations (INTERNAL), begin/end offsets (HDF)
POLY_FACEIDS	Polyhedral face lookup (HDF only).
POLY_FACEIDS_OFFSETS	Polyhedral face lookup offsets (HDF only): per-cell begin/end offsets (HDF) otherwise

Definition at line 259 of file foamVtuSizing.H.

◆ selectionModeType

enum class selectionModeType : unsigned char

strong

How the mesh cells have been selected or defined.

Enumerator
FULL_MESH	The entire mesh.
SUBSET_MESH	A mesh subset, using all mesh points.
SHAPE_MESH	A limited subset of primitive shapes.

Definition at line 283 of file foamVtuSizing.H.

Constructor & Destructor Documentation

◆ vtuSizing() [1/3]

vtuSizing ( )

noexcept

Default construct.

References Foam::noexcept.

Referenced by operator!=(), operator==(), vtuSizing(), and vtuSizing().

Here is the caller graph for this function:

◆ vtuSizing() [2/3]

vtuSizing ( const polyMesh & mesh )

explicit

Construct sizing by analyzing the mesh.

No polyhedral decomposition.

References mesh, and vtuSizing().

Here is the call graph for this function:

◆ vtuSizing() [3/3]

vtuSizing	(	const polyMesh &	mesh,
		const bool	decompose )

Construct sizing by analyzing the mesh.

Optionally with polyhedral decomposition.

References decompose(), mesh, and vtuSizing().

Here is the call graph for this function:

Member Function Documentation

◆ populateShapesLegacy()

void populateShapesLegacy	(	const UList< cellShape > &	shapes,
		UList< uint8_t > &	cellTypes,
		labelUList &	connectivity,
		foamVtkMeshMaps &	maps ) const

protected

Reset list for primitive shapes only (ADVANCED USAGE).

References cellTypes.

◆ populateShapesXml()

void populateShapesXml	(	const UList< cellShape > &	shapes,
		UList< uint8_t > &	cellTypes,
		labelUList &	connectivity,
		labelUList &	offsets,
		labelUList &	faces,
		labelUList &	facesOffsets,
		foamVtkMeshMaps &	maps ) const

protected

Reset list for primitive shapes only (ADVANCED USAGE).

References cellTypes.

◆ dummyFaceOffsets()

labelList dummyFaceOffsets	(	const label	numCells,
		const enum contentType	output,
		label	beginOffset = 0 )

staticprotected

Return a list of dummy faceOffsets.

◆ reset() [1/2]

void reset	(	const polyMesh &	mesh,
		const bool	decompose = false )

Reset sizing by analyzing the mesh.

Optionally with polyhedral decomposition.

References decompose(), mesh, and reset().

Referenced by reset(), and reset().

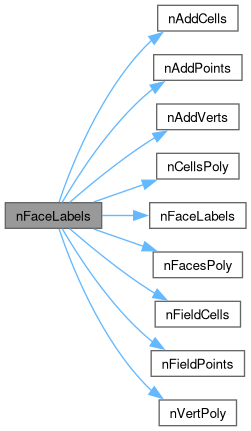

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [2/2]

void reset	(	const polyMesh &	mesh,
		const labelUList &	subsetCellsIds,
		const bool	decompose = false )

Reset sizing by analyzing a subset of the mesh.

A labelUList::null() selection corresponds to the entire mesh. Polyhedral decomposition is disabled for subsets.

References decompose(), mesh, and reset().

Here is the call graph for this function:

◆ resetShapes()

void resetShapes ( const UList< cellShape > & shapes )

Reset sizing using primitive shapes only (ADVANCED USAGE).

Effectively removes any polyhedrals!

References resetShapes().

Referenced by resetShapes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clear()

void clear ( )

noexcept

Reset all sizes to zero.

References clear(), decompose(), manifold(), Foam::noexcept, and selectionMode().

Referenced by clear().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ decompose()

bool decompose ( ) const

inlinenoexcept

Query the decompose flag (normally off).

Definition at line 25 of file foamVtuSizingI.H.

References Foam::noexcept.

Referenced by clear(), vtuCells::reset(), reset(), reset(), vtuCells::vtuCells(), vtuCells::vtuCells(), vtuCells::vtuCells(), vtuCells::vtuCells(), and vtuSizing().

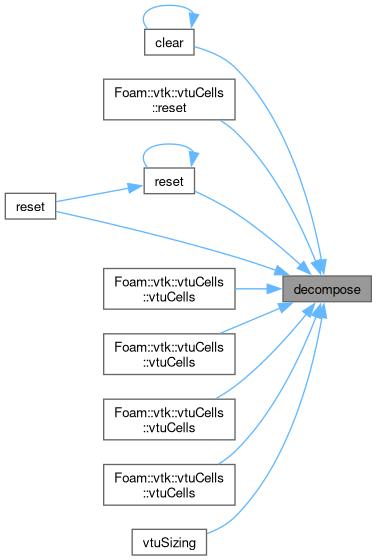

Here is the caller graph for this function:

◆ manifold()

bool manifold ( ) const

inlinenoexcept

Manifold mesh cells detected? Globally consistent quantity.

Definition at line 31 of file foamVtuSizingI.H.

References Foam::noexcept.

Referenced by clear().

Here is the caller graph for this function:

◆ selectionMode()

Foam::vtk::vtuSizing::selectionModeType selectionMode ( ) const

inlinenoexcept

Query how the mesh cells have been selected or defined.

Definition at line 38 of file foamVtuSizingI.H.

References Foam::noexcept.

Referenced by clear(), and vtuCells::useCellMap().

Here is the caller graph for this function:

◆ hasPolyCells()

bool hasPolyCells ( ) const

inlinenoexcept

Has polyhedral cells?

Definition at line 556 of file foamVtuSizing.H.

References hasPolyCells(), and Foam::noexcept.

Referenced by hasPolyCells().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nCells()

Foam::label nCells ( ) const

inlinenoexcept

Number of cells for the mesh.

Definition at line 44 of file foamVtuSizingI.H.

References Foam::noexcept.

◆ nPoints()

Foam::label nPoints ( ) const

inlinenoexcept

Number of points for the mesh.

Definition at line 50 of file foamVtuSizingI.H.

References Foam::noexcept.

◆ nVertLabels()

Foam::label nVertLabels ( ) const

inlinenoexcept

Number of vertex labels for the mesh.

Definition at line 56 of file foamVtuSizingI.H.

References Foam::noexcept.

◆ nFaceLabels() [1/2]

Foam::label nFaceLabels ( ) const

inlinenoexcept

Number of polyhedral face labels for the mesh, without any prefixing information.

Definition at line 62 of file foamVtuSizingI.H.

References Foam::noexcept.

Referenced by nFaceLabels().

Here is the caller graph for this function:

Alter number of mesh points (ADVANCED USAGE).

Definition at line 632 of file foamVtuSizing.H.

References n, Foam::noexcept, and setNumPoints().

Referenced by isoSurfaceTopo::isoSurfaceTopo(), and setNumPoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setNumAddPoints()

void setNumAddPoints ( label n )

inlinenoexcept

Alter number of additional (cell-centre) points (ADVANCED USAGE).

Definition at line 637 of file foamVtuSizing.H.

References n.

◆ sizeOf() [1/2]

label sizeOf	(	const enum contentType	output,
		const enum slotType	slot ) const

noexcept

Return the required size for the storage slot.

Referenced by vtuAdaptor::internal(), sizeInternal1(), sizeInternal2(), sizeLegacy(), sizeLegacy(), sizeOf(), and sizeXml().

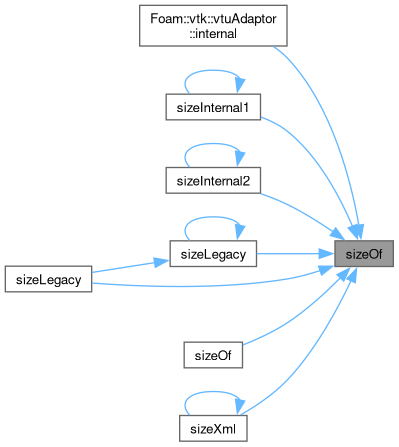

Here is the caller graph for this function:

◆ sizeOf() [2/2]

template<vtuSizing::slotType slot>

label sizeOf ( contentType output ) const

inlinenoexcept

Return the required size for the storage slot.

Definition at line 655 of file foamVtuSizing.H.

References sizeOf().

Here is the call graph for this function:

◆ populateLegacy()

void populateLegacy	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		labelUList &	connectivity,
		foamVtkMeshMaps &	maps ) const

Populate lists for Legacy output.

References cellTypes, and mesh.

◆ populateXml()

void populateXml	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		labelUList &	connectivity,
		labelUList &	offsets,
		labelUList &	faces,
		labelUList &	facesOffsets,
		foamVtkMeshMaps &	maps ) const

Populate lists for XML output.

References cellTypes, and mesh.

◆ populateHdf()

void populateHdf	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		labelUList &	connectivity,
		labelUList &	offsets,
		labelUList &	faces,
		labelUList &	facesOffsets,
		labelUList &	polyFaceIds,
		labelUList &	polyFaceOffsets,
		foamVtkMeshMaps &	maps ) const

Populate lists for HDF output.

References cellTypes, and mesh.

◆ populateInternal() [1/6]

void populateInternal	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		UList< int > &	connectivity,
		UList< int > &	offsets,
		UList< int > &	faces,
		UList< int > &	facesOffsets,
		foamVtkMeshMaps &	maps,
		const enum contentType	output ) const

Populate lists for Internal VTK format.

Referenced by vtuAdaptor::internal().

Here is the caller graph for this function:

◆ populateInternal() [2/6]

void populateInternal	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		UList< int > &	connectivity,
		UList< int > &	offsets,
		UList< int > &	faces,
		UList< int > &	facesOffsets,
		labelUList &	cellMap,
		labelUList &	addPointsIds,
		const enum contentType	output ) const

Populate lists for Internal VTK format.

◆ populateInternal() [3/6]

void populateInternal	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		UList< long > &	connectivity,
		UList< long > &	offsets,
		UList< long > &	faces,
		UList< long > &	facesOffsets,
		foamVtkMeshMaps &	maps,
		const enum contentType	output ) const

Populate lists for Internal VTK format.

◆ populateInternal() [4/6]

void populateInternal	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		UList< long > &	connectivity,
		UList< long > &	offsets,
		UList< long > &	faces,
		UList< long > &	facesOffsets,
		labelUList &	cellMap,
		labelUList &	addPointsIds,
		const enum contentType	output ) const

Populate lists for Internal VTK format.

◆ populateInternal() [5/6]

void populateInternal	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		UList< long long > &	connectivity,
		UList< long long > &	offsets,
		UList< long long > &	faces,
		UList< long long > &	facesOffsets,
		foamVtkMeshMaps &	maps,
		const enum contentType	output ) const

Populate lists for Internal VTK format.

◆ populateInternal() [6/6]

void populateInternal	(	const polyMesh &	mesh,
		UList< uint8_t > &	cellTypes,
		UList< long long > &	connectivity,
		UList< long long > &	offsets,
		UList< long long > &	faces,
		UList< long long > &	facesOffsets,
		labelUList &	cellMap,
		labelUList &	addPointsIds,
		const enum contentType	output ) const

Populate lists for Internal VTK format.

◆ renumberVertLabels()

void renumberVertLabels	(	labelUList &	connectivity,
		const label	pointOffset,
		const contentType	output )

static

Renumber vertex labels by (global) point offset.

Referenced by copyVertLabels(), renumberVertLabelsLegacy(), and renumberVertLabelsXml().

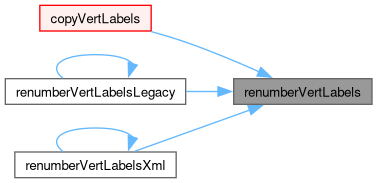

Here is the caller graph for this function:

◆ renumberFaceLabels()

void renumberFaceLabels	(	labelUList &	faceLabels,
		const label	pointOffset,
		const contentType	output )

static

Renumber faces stream labels by (global) point offset.

References faceLabels().

Referenced by copyFaceLabels(), and renumberFaceLabelsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renumberFaceOffsets()

void renumberFaceOffsets	(	labelUList &	faceOffsets,
		const label	beginOffset,
		const contentType	output )

static

Renumber face offsets with a specified (global) begin offset.

Referenced by copyFaceOffsets(), and renumberFaceOffsetsXml().

Here is the caller graph for this function:

◆ info()

void info ( Ostream & os ) const

Report some information.

References os().

Here is the call graph for this function:

◆ operator==()

bool operator== ( const vtuSizing & rhs ) const

Test equality.

References Foam::rhs(), and vtuSizing().

Here is the call graph for this function:

◆ operator!=()

bool operator!= ( const vtuSizing & rhs ) const

Test inequality.

References Foam::rhs(), and vtuSizing().

Here is the call graph for this function:

◆ copyVertLabels()

labelList copyVertLabels	(	const labelUList &	connectivity,
		const label	pointOffset,
		const contentType	output )

inlinestatic

Copy vertex labels with a (global) point offset.

Definition at line 805 of file foamVtuSizing.H.

References renumberVertLabels().

Referenced by copyVertLabelsLegacy(), and copyVertLabelsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ copyFaceLabels()

labelList copyFaceLabels	(	const labelUList &	faceLabels,
		const label	pointOffset,
		const contentType	output )

inlinestatic

Copy faces stream labels with a (global) point offset.

Definition at line 820 of file foamVtuSizing.H.

References faceLabels(), and renumberFaceLabels().

Referenced by copyFaceLabelsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ copyFaceOffsets()

labelList copyFaceOffsets	(	const labelUList &	faceOffsets,
		const label	beginOffset,
		const contentType	output )

inlinestatic

Copy face offsets with a specified (global) begin offset.

Definition at line 835 of file foamVtuSizing.H.

References renumberFaceOffsets().

Referenced by copyFaceOffsetsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renumberVertLabelsLegacy()

void renumberVertLabelsLegacy	(	labelUList &	connectivity,
		const label	pointOffset )

inlinestatic

Renumber vertex labels by (global) point offset - legacy format.

Definition at line 851 of file foamVtuSizing.H.

References LEGACY, renumberVertLabels(), and renumberVertLabelsLegacy().

Referenced by renumberVertLabelsLegacy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renumberVertLabelsXml()

void renumberVertLabelsXml	(	labelUList &	connectivity,
		const label	pointOffset )

inlinestatic

Renumber vertex labels by (global) point offset - XML format.

Definition at line 864 of file foamVtuSizing.H.

References renumberVertLabels(), renumberVertLabelsXml(), and XML.

Referenced by renumberVertLabelsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renumberFaceLabelsXml()

void renumberFaceLabelsXml	(	labelUList &	faceLabels,
		const label	pointOffset )

inlinestatic

Renumber faces stream labels by (global) point offset - XML format.

Definition at line 877 of file foamVtuSizing.H.

References faceLabels(), renumberFaceLabels(), renumberFaceLabelsXml(), and XML.

Referenced by renumberFaceLabelsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ renumberFaceOffsetsXml()

void renumberFaceOffsetsXml	(	labelUList &	faceOffsets,
		const label	beginOffset )

inlinestatic

Renumber face offsets with a specified begin offset - XML format.

Definition at line 890 of file foamVtuSizing.H.

References renumberFaceOffsets(), renumberFaceOffsetsXml(), and XML.

Referenced by renumberFaceOffsetsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ copyVertLabelsLegacy()

labelList copyVertLabelsLegacy	(	const labelUList &	connectivity,
		const label	pointOffset )

inlinestatic

Copy vertex labels with a (global) point offset - legacy format.

Definition at line 903 of file foamVtuSizing.H.

References copyVertLabels(), copyVertLabelsLegacy(), and LEGACY.

Referenced by copyVertLabelsLegacy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ copyVertLabelsXml()

labelList copyVertLabelsXml	(	const labelUList &	connectivity,
		const label	pointOffset )

inlinestatic

Copy vertex labels with a (global) point offset - XML format.

Definition at line 917 of file foamVtuSizing.H.

References copyVertLabels(), copyVertLabelsXml(), and XML.

Referenced by copyVertLabelsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ copyFaceLabelsXml()

labelList copyFaceLabelsXml	(	const labelUList &	faceLabels,
		const label	pointOffset )

inlinestatic

Copy faces stream labels with a (global) point offset - XML format.

Definition at line 931 of file foamVtuSizing.H.

References copyFaceLabels(), copyFaceLabelsXml(), faceLabels(), and XML.

Referenced by copyFaceLabelsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ copyFaceOffsetsXml()

labelList copyFaceOffsetsXml	(	const labelUList &	faceOffsets,
		const label	beginOffset )

inlinestatic

Copy face offsets with an offset from previous - XML format.

Definition at line 945 of file foamVtuSizing.H.

References copyFaceOffsets(), copyFaceOffsetsXml(), and XML.

Referenced by copyFaceOffsetsXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sizeLegacy() [1/2]

label sizeLegacy ( ) const

inline

The calculated size for legacy storage.

Definition at line 959 of file foamVtuSizing.H.

References CELLS, LEGACY, sizeLegacy(), and sizeOf().

Referenced by sizeLegacy(), and sizeLegacy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sizeLegacy() [2/2]

label sizeLegacy ( slotType slot ) const

inline

The calculated size for legacy storage of the specified slot.

Definition at line 968 of file foamVtuSizing.H.

References LEGACY, sizeLegacy(), and sizeOf().

Here is the call graph for this function:

◆ sizeXml()

label sizeXml ( slotType slot ) const

inline

The calculated size for xml storage of the specified slot.

Definition at line 977 of file foamVtuSizing.H.

References sizeOf(), sizeXml(), and XML.

Referenced by sizeXml().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sizeInternal1()

label sizeInternal1 ( slotType slot ) const

inline

The calculated size for vtk-internal storage of the specified slot.

Definition at line 986 of file foamVtuSizing.H.

References INTERNAL1, sizeInternal1(), and sizeOf().

Referenced by sizeInternal1().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sizeInternal2()

label sizeInternal2 ( slotType slot ) const

inline

The calculated size for vtk-internal storage of the specified slot.

Definition at line 995 of file foamVtuSizing.H.

References INTERNAL2, sizeInternal2(), and sizeOf().

Referenced by sizeInternal2().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/fileFormats/vtk/part/foamVtuSizing.H
src/fileFormats/vtk/part/foamVtuSizingI.H

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ contentType

◆ slotType

◆ selectionModeType

Constructor & Destructor Documentation

◆ vtuSizing() [1/3]

◆ vtuSizing() [2/3]

◆ vtuSizing() [3/3]

Member Function Documentation

◆ populateShapesLegacy()

◆ populateShapesXml()

◆ dummyFaceOffsets()

◆ reset() [1/2]

◆ reset() [2/2]

◆ resetShapes()

◆ clear()

◆ decompose()

◆ manifold()

◆ selectionMode()

◆ hasPolyCells()

◆ nCells()

◆ nPoints()

◆ nVertLabels()

◆ nFaceLabels() [1/2]

◆ nFaceLabels() [2/2]

◆ nCellsPoly()

◆ nFacesPoly()

◆ nVertPoly()

◆ nAddCells()

◆ nAddPoints()

◆ nAddVerts()

◆ nFieldCells()

◆ nFieldPoints()

◆ setNumPoints()

◆ setNumAddPoints()

◆ sizeOf() [1/2]

◆ sizeOf() [2/2]

◆ populateLegacy()

◆ populateXml()

◆ populateHdf()

◆ populateInternal() [1/6]

◆ populateInternal() [2/6]

◆ populateInternal() [3/6]

◆ populateInternal() [4/6]

◆ populateInternal() [5/6]

◆ populateInternal() [6/6]

◆ renumberVertLabels()

◆ renumberFaceLabels()

◆ renumberFaceOffsets()

◆ info()

◆ operator==()

◆ operator!=()

◆ copyVertLabels()

◆ copyFaceLabels()

◆ copyFaceOffsets()

◆ renumberVertLabelsLegacy()

◆ renumberVertLabelsXml()

◆ renumberFaceLabelsXml()

◆ renumberFaceOffsetsXml()

◆ copyVertLabelsLegacy()

◆ copyVertLabelsXml()

◆ copyFaceLabelsXml()

◆ copyFaceOffsetsXml()

◆ sizeLegacy() [1/2]

◆ sizeLegacy() [2/2]

◆ sizeXml()

◆ sizeInternal1()

◆ sizeInternal2()
