Primarily stores particle properties so that it can be injected at a later time. Note that this stores its own local position as opposed to the base particle class barycentric coordinates since the particle is not (usually) attached to a mesh, and instead used for post-processing. More...

#include <injectedParticle.H>

Inheritance diagram for injectedParticle:

[legend]

Collaboration diagram for injectedParticle:

[legend]

Classes
class	iNew
	Factory class to read-construct particles (for parallel transfer). More...

Public Member Functions
	TypeName ("injectedParticle")
	Runtime type information.

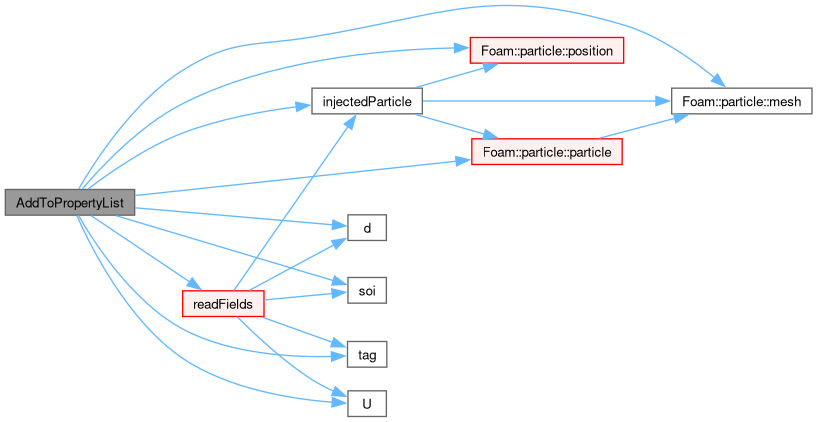

	AddToPropertyList (particle, " tag"+" soi"+" d"+" (Ux Uy Uz)";)
	String representation of properties.

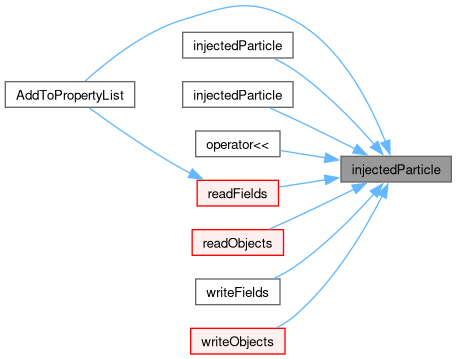

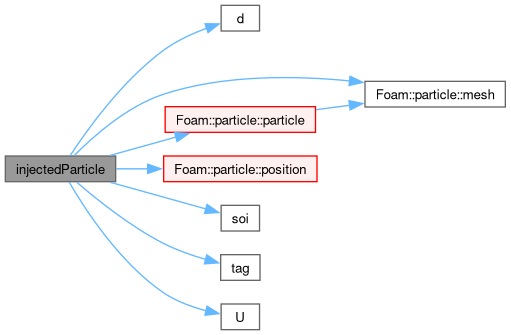

	injectedParticle (const polyMesh &mesh, const vector &position, const label celli=-1)
	Construct from a position and a cell.
	injectedParticle (const polyMesh &mesh, const vector &position, const label tag, const scalar soi, const scalar d, const vector &U, const bool doLocate=true)
	Construct from components.

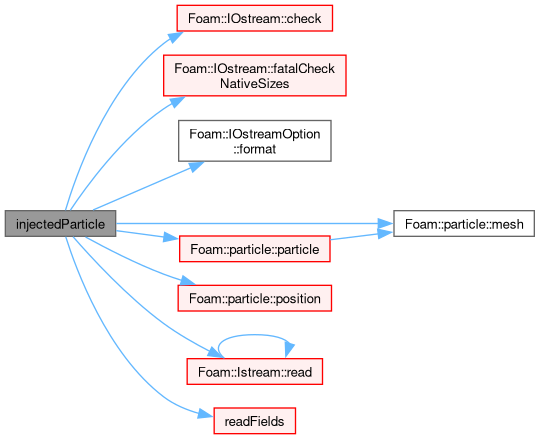

	injectedParticle (const polyMesh &mesh, Istream &is, bool readFields=true, bool newFormat=true)
	Construct from Istream.
	injectedParticle (const injectedParticle &p)
	Construct as a copy.

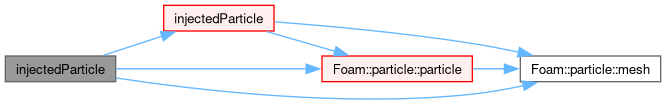

	injectedParticle (const injectedParticle &p, const polyMesh &mesh)
	Construct as a copy.
virtual autoPtr< particle >	clone () const
	Return a (basic particle) clone.
virtual autoPtr< particle >	clone (const polyMesh &mesh) const
	Construct and return a (basic particle) clone.

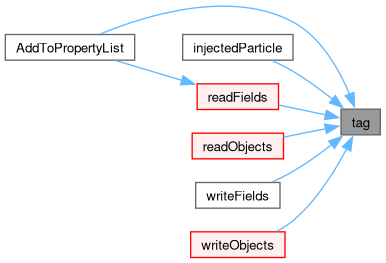

label	tag () const noexcept
	Return const access to the tag.

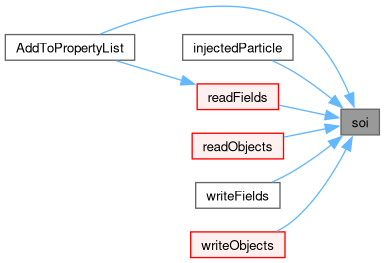

scalar	soi () const noexcept
	Return const access to the start of injection.
scalar	d () const noexcept
	Return const access to diameter.

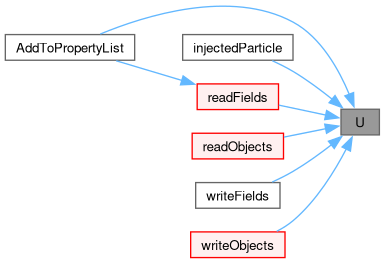

const vector &	U () const noexcept
	Return const access to velocity.
label &	tag () noexcept
	Return the tag.
scalar &	soi () noexcept
	Return the start of injection.
scalar &	d () noexcept
	Return access to diameter.
vector &	U () noexcept
	Return access to velocity.
void	writeProperties (Ostream &os, const wordRes &filters, const word &delim, const bool namesOnly) const
	Write individual parcel properties to stream.
virtual void	writePosition (Ostream &) const
	Write the particle position and cell.
Public Member Functions inherited from particle< Type >
	TypeName ("particle")
	Runtime type information.
	particle (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti)
	Construct from components.
	particle (const polyMesh &mesh, const vector &position, const label celli=-1)
	Construct from a position and a cell.
	particle (const polyMesh &mesh, const vector &position, const label celli, const label tetFacei, const label tetPti, const bool doLocate=true)
	Construct from position components.
	particle (const polyMesh &mesh, Istream &, const bool readFields=true, const bool newFormat=true, const bool doLocate=true)
	Construct from Istream.
	particle (const particle &p, const polyMesh &mesh)
	Construct as a copy with reference to a mesh.
	particle (const particle &p)
	Copy construct.
virtual	~particle ()=default
	Destructor.
label	getNewParticleID () const
	Get unique particle creation id.
const polyMesh &	mesh () const noexcept
	Return the mesh database.
const barycentric &	coordinates () const noexcept
	Return current particle coordinates.
label	cell () const noexcept
	Return current cell particle is in.
label &	cell () noexcept
	Return current cell particle is in for manipulation.
label	tetFace () const noexcept
	Return current tet face particle is in.
label &	tetFace () noexcept
	Return current tet face particle is in for manipulation.
label	tetPt () const noexcept
	Return current tet face particle is in.
label &	tetPt () noexcept
	Return current tet face particle is in for manipulation.
label	face () const noexcept
	Return current face particle is on otherwise -1.
label &	face () noexcept
	Return current face particle is on for manipulation.
scalar	stepFraction () const noexcept
	Return the fraction of time-step completed.
scalar &	stepFraction () noexcept
	Return the fraction of time-step completed.
label	origProc () const noexcept
	Return the originating processor ID.
label &	origProc () noexcept
	Return the originating processor ID.
label	origId () const noexcept
	Return the particle ID on the originating processor.
label &	origId () noexcept
	Return the particle ID on the originating processor.
Pair< scalar >	stepFractionSpan () const
	Return the step fraction change within the overall time-step.
scalar	currentTimeFraction () const
	Return the current fraction within the timestep. This differs.
tetIndices	currentTetIndices () const noexcept
	Return indices of the current tet that the particle occupies.
barycentricTensor	currentTetTransform () const
	Return the current tet transformation tensor.
vector	normal () const
	The (unit) normal of the tri on tetFacei_ for the current tet.
bool	onFace () const noexcept
	Is the particle on a face?
bool	onInternalFace () const noexcept
	Is the particle on an internal face?
bool	onBoundaryFace () const noexcept
	Is the particle on a boundary face?
label	patch () const
	Return the index of patch that the particle is on.
vector	position () const
	Return current particle position.
void	reset ()
	Reset particle data.
scalar	track (const vector &displacement, const scalar fraction)
	Track along the displacement for a given fraction of the overall.
scalar	trackToFace (const vector &displacement, const scalar fraction)
	As particle::track, but also stops on internal faces.
scalar	trackToTri (const vector &displacement, const scalar fraction, label &tetTriI)
	As particle::trackToFace, but also stops on tet triangles. On.
scalar	trackToStationaryTri (const vector &displacement, const scalar fraction, label &tetTriI)
	As particle::trackToTri, but for stationary meshes.
scalar	trackToMovingTri (const vector &displacement, const scalar fraction, label &tetTriI)
	As particle::trackToTri, but for moving meshes.
template<class TrackCloudType>
void	hitFace (const vector &direction, TrackCloudType &cloud, trackingData &td)
	Hit the current face. If the current face is internal than this.
template<class TrackCloudType>
void	trackToAndHitFace (const vector &direction, const scalar fraction, TrackCloudType &cloud, trackingData &td)
	Convenience function. Combines trackToFace and hitFace.
vector	deviationFromMeshCentre () const
	Get the displacement from the mesh centre. Used to correct the.
void	patchData (vector &n, vector &U) const
	Get the normal and velocity of the current patch location.
virtual void	transformProperties (const tensor &T)
	Transform the physical properties of the particle.
virtual void	transformProperties (const vector &separation)
	Transform the physical properties of the particle.
void	prepareForParallelTransfer ()
	Convert global addressing to the processor patch local equivalents.
void	correctAfterParallelTransfer (const label patchi, trackingData &td)
	Convert processor patch addressing to the global equivalents.
void	prepareForInteractionListReferral (const vectorTensorTransform &transform)
	Break the topology and store the particle position so that the.
void	correctAfterInteractionListReferral (const label celli)
	Correct the topology after referral. The particle may still be.
label	procTetPt (const polyMesh &procMesh, const label procCell, const label procTetFace) const
	Return the tet point appropriate for decomposition or reconstruction.
void	autoMap (const vector &position, const mapPolyMesh &mapper)
	Map after a topology change.
void	relocate (const point &position, const label celli=-1)
	Set the addressing based on the provided position.
void	writeProperties (Ostream &os, const wordRes &filters, const word &delim, const bool namesOnly) const
	Write individual particle properties to stream.
void	writeCoordinates (Ostream &os) const
	Write the particle barycentric coordinates and cell info.
Public Member Functions inherited from DLListBase::link
	link () noexcept=default
	Default construct.
bool	registered () const noexcept
	Node registered (linked) in a list?
void	deregister () noexcept
	Deregister the node (after removal).

Static Public Member Functions

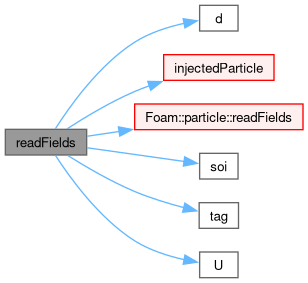

static void	readFields (Cloud< injectedParticle > &c)
	Read fields.

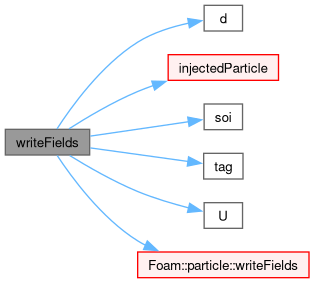

static void	writeFields (const Cloud< injectedParticle > &c)
	Write fields.

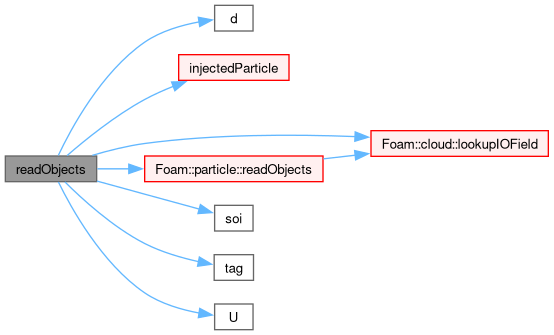

static void	readObjects (Cloud< injectedParticle > &c, const objectRegistry &obr)
	Read particle fields as objects from the obr registry.

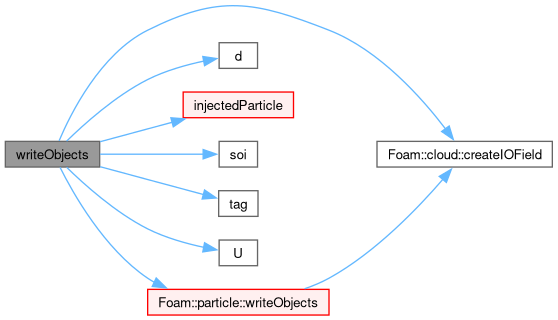

static void	writeObjects (const Cloud< injectedParticle > &c, objectRegistry &obr)
	Write particle fields as objects into the obr registry.
Static Public Member Functions inherited from particle< Type >
static string	propertyList ()
template<class Derived>
static autoPtr< particle >	Clone (const Derived &p)
	Clone a particle.
template<class Derived>
static autoPtr< particle >	Clone (const Derived &p, const polyMesh &mesh)
	Clone a particle with a mesh reference.
template<class Type>
static void	writePropertyName (Ostream &os, const word &name, const word &delim)
	Write the name representation to stream.
template<class Type>
static void	writeProperty (Ostream &os, const word &name, const Type &value, const bool nameOnly, const word &delim, const wordRes &filters=wordRes::null())
	Write a named particle property to stream, optionally filtered based on its name.
template<class Type>
static void	writeProperty (Ostream &os, const word &name, const Field< Type > &values, const bool nameOnly, const word &delim, const wordRes &filters=wordRes::null())
	Write a named particle property list to stream, optionally filtered based on its name.
template<class TrackCloudType>
static void	readFields (TrackCloudType &c)
	Read the fields associated with the owner cloud.
template<class TrackCloudType>
static void	writeFields (const TrackCloudType &c)
	Write the fields associated with the owner cloud.
template<class CloudType>
static void	readObjects (CloudType &c, const objectRegistry &obr)
	Read particle fields as objects from the obr registry.
template<class CloudType>
static void	writeObjects (const CloudType &c, objectRegistry &obr)
	Write particle fields as objects into the obr registry.

Static Public Attributes
static const std::size_t	sizeofFields
	Size in bytes of the fields.
Static Public Attributes inherited from particle< Type >
static string	propertyList_ = Foam::particle::propertyList()
	String representation of properties.
static label	particleCount_ = 0
	Cumulative particle counter - used to provide unique ID.
static bool	writeLagrangianCoordinates = true
	Write particle coordinates file (v1712 and later) Default is true.
static bool	writeLagrangianPositions
	Write particle positions file (v1706 format and earlier) Default is true (disable in etc/controlDict).

Protected Attributes
point	position_
	Position.
label	tag_
	Tag.
scalar	soi_
	Start of injection [s].
scalar	d_
	Diameter [m].
vector	U_
	Velocity [m/s].

Friends
Ostream &	operator<< (Ostream &, const injectedParticle &)

Additional Inherited Members
Public Attributes inherited from DLListBase::link
link *	prev_ = nullptr
	Pointer to prev entry in list.
link *	next_ = nullptr
	Pointer to next entry in list.
Protected Member Functions inherited from particle< Type >
void	readData (Istream &is, point &position, const bool readFields, const bool newFormat, const bool doLocate)
	Read particle from stream. Optionally (for old format) return.
template<class TrackCloudType>
bool	hitPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a patch.
template<class TrackCloudType>
void	hitWedgePatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a wedgePatch.
template<class TrackCloudType>
void	hitSymmetryPlanePatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a.
template<class TrackCloudType>
void	hitSymmetryPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a symmetryPatch.
template<class TrackCloudType>
void	hitCyclicPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a cyclicPatch.
template<class TrackCloudType>
void	hitCyclicAMIPatch (TrackCloudType &, trackingData &, const vector &)
	Overridable function to handle the particle hitting a cyclicAMIPatch.
template<class TrackCloudType>
void	hitCyclicACMIPatch (TrackCloudType &, trackingData &, const vector &)
	Overridable function to handle the particle hitting a.
template<class TrackCloudType>
void	hitProcessorPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a processorPatch.
template<class TrackCloudType>
void	hitWallPatch (TrackCloudType &, trackingData &)
	Overridable function to handle the particle hitting a wallPatch.
template<class TrackCloudType>
void	hitBoundaryFace (const vector &direction, TrackCloudType &cloud, trackingData &td)
	Dispatch function for boundary face interaction. Calls one of.

Detailed Description

Primarily stores particle properties so that it can be injected at a later time. Note that this stores its own local position as opposed to the base particle class barycentric coordinates since the particle is not (usually) attached to a mesh, and instead used for post-processing.

Source files

See also: Foam::functionObjects::extractEulerianParticles

Definition at line 58 of file injectedParticle.H.

Constructor & Destructor Documentation

◆ injectedParticle() [1/5]

injectedParticle	(	const polyMesh &	mesh,
		const vector &	position,
		const label	celli = -1 )

inline

Construct from a position and a cell.

Searches for the rest of the required topology. Other properties are zero initialised.

Definition at line 23 of file injectedParticleI.H.

References d_, particle< Type >::mesh(), particle< Type >::particle(), particle< Type >::position(), position_, soi_, tag_, U_, and Foam::Zero.

Referenced by AddToPropertyList(), injectedParticle(), injectedParticle(), operator<<, readFields(), readObjects(), writeFields(), and writeObjects().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ injectedParticle() [2/5]

injectedParticle	(	const polyMesh &	mesh,
		const vector &	position,
		const label	tag,
		const scalar	soi,
		const scalar	d,
		const vector &	U,
		const bool	doLocate = true )

inline

Construct from components.

Definition at line 39 of file injectedParticleI.H.

References d(), d_, particle< Type >::mesh(), particle< Type >::particle(), particle< Type >::position(), position_, soi(), soi_, tag(), tag_, U(), and U_.

Here is the call graph for this function:

◆ injectedParticle() [3/5]

injectedParticle	(	const polyMesh &	mesh,
		Istream &	is,
		bool	readFields = true,
		bool	newFormat = true )

Construct from Istream.

Definition at line 41 of file injectedParticleIO.C.

References IOstreamOption::ASCII, IOstream::check(), d_, IOstream::fatalCheckNativeSizes(), IOstreamOption::format(), FUNCTION_NAME, particle< Type >::mesh(), particle< Type >::particle(), particle< Type >::position(), position_, Istream::read(), readFields(), sizeofFields, soi_, tag_, U_, and Foam::Zero.

Here is the call graph for this function:

◆ injectedParticle() [4/5]

injectedParticle ( const injectedParticle & p )

Construct as a copy.

Definition at line 33 of file injectedParticle.C.

References d_, injectedParticle(), p, particle< Type >::particle(), position_, soi_, tag_, and U_.

Here is the call graph for this function:

◆ injectedParticle() [5/5]

injectedParticle	(	const injectedParticle &	p,
		const polyMesh &	mesh )

Construct as a copy.

Definition at line 44 of file injectedParticle.C.

References d_, injectedParticle(), particle< Type >::mesh(), p, particle< Type >::particle(), position_, soi_, tag_, and U_.

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "injectedParticle" )

Runtime type information.

◆ AddToPropertyList()

AddToPropertyList	(	particle	,
		" tag"+" soi"+" d"+" (Ux Uy Uz)";	)

String representation of properties.

References d(), injectedParticle(), particle< Type >::mesh(), p, particle< Type >::particle(), particle< Type >::position(), readFields(), soi(), tag(), and U().

Here is the call graph for this function:

◆ clone() [1/2]

virtual autoPtr< particle > clone ( ) const

inlinevirtual

Return a (basic particle) clone.

Reimplemented from particle< Type >.

Definition at line 174 of file injectedParticle.H.

References particle< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual autoPtr< particle > clone ( const polyMesh & mesh ) const

inlinevirtual

Construct and return a (basic particle) clone.

Definition at line 182 of file injectedParticle.H.

References particle< Type >::Clone(), and particle< Type >::mesh().

Here is the call graph for this function:

◆ tag() [1/2]

label tag ( ) const

inlinenoexcept

Return const access to the tag.

Definition at line 215 of file injectedParticle.H.

References Foam::noexcept, and tag_.

Referenced by AddToPropertyList(), injectedParticle(), readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ soi() [1/2]

scalar soi ( ) const

inlinenoexcept

Return const access to the start of injection.

Definition at line 220 of file injectedParticle.H.

References Foam::noexcept, and soi_.

Referenced by AddToPropertyList(), injectedParticle(), readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ d() [1/2]

scalar d ( ) const

inlinenoexcept

Return const access to diameter.

Definition at line 225 of file injectedParticle.H.

References d_, and Foam::noexcept.

Referenced by AddToPropertyList(), injectedParticle(), readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ U() [1/2]

const vector & U ( ) const

inlinenoexcept

Return const access to velocity.

Definition at line 230 of file injectedParticle.H.

References Foam::noexcept, and U_.

Referenced by AddToPropertyList(), injectedParticle(), readFields(), readObjects(), writeFields(), and writeObjects().

Here is the caller graph for this function:

◆ tag() [2/2]

label & tag ( )

inlinenoexcept

Return the tag.

Definition at line 238 of file injectedParticle.H.

References Foam::noexcept, and tag_.

◆ soi() [2/2]

scalar & soi ( )

inlinenoexcept

Return the start of injection.

Definition at line 243 of file injectedParticle.H.

References Foam::noexcept, and soi_.

◆ d() [2/2]

scalar & d ( )

inlinenoexcept

Return access to diameter.

Definition at line 248 of file injectedParticle.H.

References d_, and Foam::noexcept.

◆ U() [2/2]

vector & U ( )

inlinenoexcept

Return access to velocity.

Definition at line 253 of file injectedParticle.H.

References Foam::noexcept, and U_.

◆ readFields()

void readFields ( Cloud< injectedParticle > & c )

static

Read fields.

Definition at line 80 of file injectedParticleIO.C.

References d(), injectedParticle(), IOobjectOption::MUST_READ, p, particle< Type >::readFields(), soi(), tag(), U(), and U.

Referenced by AddToPropertyList(), injectedParticle(), and injectedParticleCloud::injectedParticleCloud().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeProperties()

void writeProperties	(	Ostream &	os,
		const wordRes &	filters,
		const word &	delim,
		const bool	namesOnly ) const

Write individual parcel properties to stream.

Definition at line 159 of file injectedParticleIO.C.

References d_, os(), soi_, tag_, U_, writeProp, and particle< Type >::writeProperties().

Here is the call graph for this function:

◆ writeFields()

void writeFields ( const Cloud< injectedParticle > & c )

static

Write fields.

Definition at line 116 of file injectedParticleIO.C.

References d(), injectedParticle(), IOobjectOption::NO_READ, p, soi(), tag(), U(), U, particle< Type >::writeFields(), particle< Type >::writeLagrangianCoordinates, and particle< Type >::writeLagrangianPositions.

Here is the call graph for this function:

◆ readObjects()

void readObjects	(	Cloud< injectedParticle > &	c,
		const objectRegistry &	obr )

static

Read particle fields as objects from the obr registry.

Definition at line 182 of file injectedParticleIO.C.

References d(), injectedParticle(), cloud::lookupIOField(), p, particle< Type >::readObjects(), soi(), tag(), and U().

Referenced by injectedParticleCloud::readObjects().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeObjects()

void writeObjects	(	const Cloud< injectedParticle > &	c,
		objectRegistry &	obr )

static

Write particle fields as objects into the obr registry.

Definition at line 211 of file injectedParticleIO.C.

References cloud::createIOField(), d(), injectedParticle(), p, soi(), tag(), U(), and particle< Type >::writeObjects().

Referenced by injectedParticleCloud::writeObjects().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writePosition()

void writePosition ( Ostream & os ) const

virtual

Write the particle position and cell.

Note: This uses the local particle position, and bypasses the barycentric description

Reimplemented from particle< Type >.

Definition at line 241 of file injectedParticleIO.C.

References IOstreamOption::ASCII, particle< Type >::cell(), FUNCTION_NAME, os(), p, particle< Type >::position(), position_, s(), and token::SPACE.

Here is the call graph for this function:

◆ operator<<

Ostream & operator<<	(	Ostream &	,
		const injectedParticle &	)

friend

References injectedParticle().

Member Data Documentation

◆ position_

point position_

protected

Position.

Definition at line 71 of file injectedParticle.H.

Referenced by injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), and writePosition().

◆ tag_

label tag_

protected

Tag.

Definition at line 76 of file injectedParticle.H.

Referenced by injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), tag(), tag(), and writeProperties().

◆ soi_

scalar soi_

protected

Start of injection [s].

Definition at line 81 of file injectedParticle.H.

Referenced by injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), soi(), soi(), and writeProperties().

◆ d_

scalar d_

protected

Diameter [m].

Definition at line 86 of file injectedParticle.H.

Referenced by d(), d(), injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), and writeProperties().

◆ U_

vector U_

protected

Velocity [m/s].

Definition at line 91 of file injectedParticle.H.

Referenced by injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), injectedParticle(), U(), U(), and writeProperties().

◆ sizeofFields

const std::size_t sizeofFields

static

Size in bytes of the fields.

Definition at line 101 of file injectedParticle.H.

Referenced by injectedParticle(), and Foam::operator<<().

The documentation for this class was generated from the following files:

src/lagrangian/basic/injectedParticle/injectedParticle.H
src/lagrangian/basic/injectedParticle/injectedParticle.C
src/lagrangian/basic/injectedParticle/injectedParticleI.H
src/lagrangian/basic/injectedParticle/injectedParticleIO.C

Classes

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ injectedParticle() [1/5]

◆ injectedParticle() [2/5]

◆ injectedParticle() [3/5]

◆ injectedParticle() [4/5]

◆ injectedParticle() [5/5]

Member Function Documentation

◆ TypeName()

◆ AddToPropertyList()

◆ clone() [1/2]

◆ clone() [2/2]

◆ tag() [1/2]

◆ soi() [1/2]

◆ d() [1/2]

◆ U() [1/2]

◆ tag() [2/2]

◆ soi() [2/2]

◆ d() [2/2]

◆ U() [2/2]

◆ readFields()

◆ writeProperties()

◆ writeFields()

◆ readObjects()

◆ writeObjects()

◆ writePosition()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ position_

◆ tag_

◆ soi_

◆ d_

◆ U_

◆ sizeofFields
