Base class for sampling fields at specified locations and writing to file. The locations are specified and determined in the derived class. The sampling is done using the specified point probeModel class. More...

#include <Probes.H>

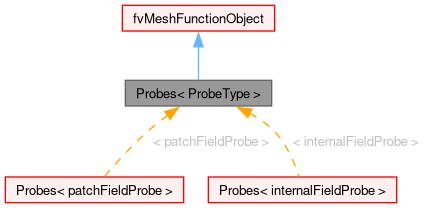

Inheritance diagram for Probes< ProbeType >:

[legend]

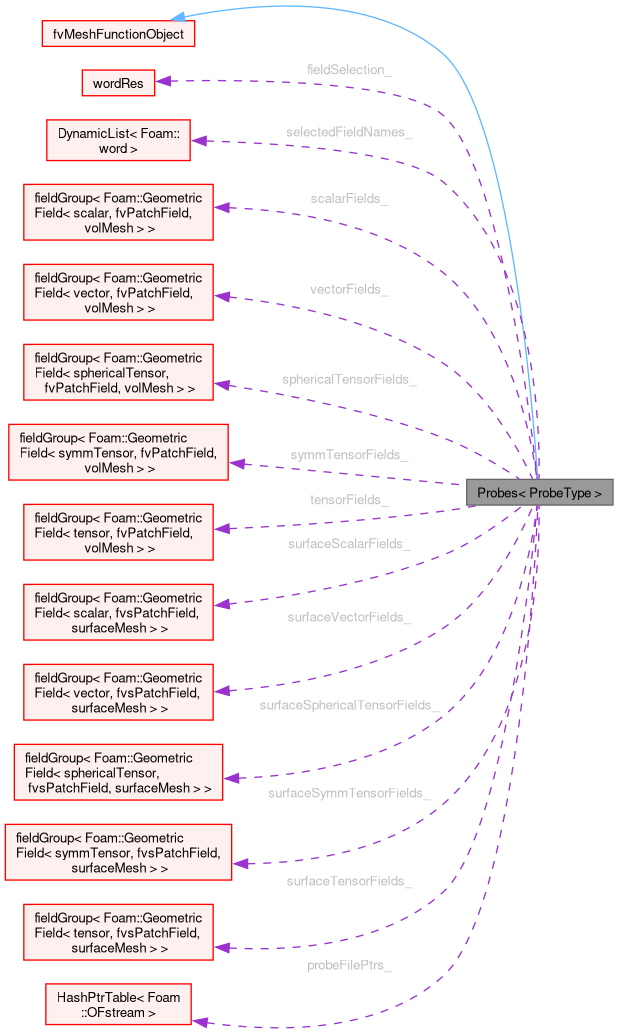

Collaboration diagram for Probes< ProbeType >:

[legend]

Classes
struct	fieldGroup
	Grouping of field names by GeometricField type. More...

Public Member Functions
	Probes (const word &name, const Time &runTime, const dictionary &dict, const bool loadFromFiles=false, const bool readFields=true)
	Construct from Time and dictionary.
virtual	~Probes ()=default
	Destructor.
bool	verbose (const bool on) noexcept
	Enable/disable verbose output.
virtual const wordRes &	fieldNames () const noexcept
	Return names of fields to probe.

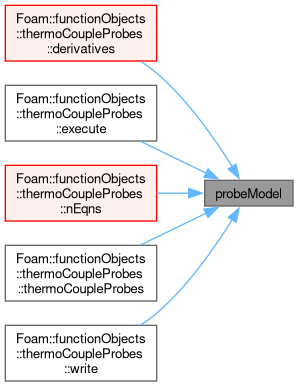

const ProbeType &	probeModel () const noexcept
	Return const reference to the point probeModel.
virtual bool	read (const dictionary &)
	Read the settings from the dictionary.
virtual bool	execute ()
	Sample and store result if the sampleOnExecute is enabled.
virtual bool	write ()
	Sample and write.
virtual void	readUpdate (const polyMesh::readUpdateState state)
	Update for changes of mesh due to readUpdate.
template<class GeoField>
Foam::tmp< GeoField >	getOrLoadField (const word &fieldName) const
Public Member Functions inherited from fvMeshFunctionObject
	TypeName ("fvMeshFunctionObject")
	Runtime type information.
	fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary.
	fvMeshFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from the region objectRegistry and dictionary.
virtual	~fvMeshFunctionObject ()=default
	Destructor.
Public Member Functions inherited from regionFunctionObject
	TypeName ("regionFunctionObject")
	Runtime type information.
	regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	Construct from Time and dictionary.
	regionFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
	Construct from the region objectRegistry and dictionary.
virtual	~regionFunctionObject ()=default
	Destructor.
template<class ObjectType>
const ObjectType *	lookupObjectPtr (const word &fieldName) const
	Deprecated(2018-10).
template<class ObjectType>
ObjectType *	lookupObjectRefPtr (const word &fieldName) const
	Deprecated(2018-10).
Public Member Functions inherited from stateFunctionObject
	stateFunctionObject (const word &name, const Time &runTime)
	Construct from components.
virtual	~stateFunctionObject ()=default
	Destructor.
dictionary &	propertyDict ()
	Return access to the property dictionary.
bool	foundProperty (const word &entryName) const
	Return true if the property exists.
void	clearTrigger ()
	Remove the trigger index from the properties.
label	getTrigger () const
	Get the current trigger index.
bool	setTrigger (const label triggeri)
	Set new trigger index.
bool	getDict (const word &entryName, dictionary &dict) const
	Set dictionary, return true if set.
bool	getObjectDict (const word &objectName, const word &entryName, dictionary &dict) const
	Set dictionary from named object, return true if set.
template<class Type>
Type	getProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property.
template<class Type>
bool	getProperty (const word &entryName, Type &value) const
	Set generic property, return true if set.
template<class Type>
void	setProperty (const word &entryName, const Type &value)
	Add generic property.
template<class Type>
Type	getObjectProperty (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from named object.
template<class Type>
bool	getObjectProperty (const word &objectName, const word &entryName, Type &value) const
	Set generic property from named object, return true if set.
template<class Type>
void	setObjectProperty (const word &objectName, const word &entryName, const Type &value)
	Add generic property from named object.
bool	getObjectResultDict (const word &objectName, dictionary &dict) const
template<class Type>
void	setResult (const word &entryName, const Type &value)
	Add result.
template<class Type>
void	setObjectResult (const word &objectName, const word &entryName, const Type &value)
	Add result from named object.
template<class Type>
Type	getResult (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve result.
template<class Type>
Type	getObjectResult (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve result from named object.
template<class Type>
bool	getObjectResult (const word &objectName, const word &entryName, Type &value) const
	Set result from named object, return true if set.
word	resultType (const word &entryName) const
	Retrieve the result type.
word	objectResultType (const word &objectName, const word &entryName) const
	Return the type of result.
wordList	objectResultEntries () const
	Retrieve the result entries.
wordList	objectResultEntries (const word &objectName) const
	Return result entries for named object.
void	writeResultEntries (Ostream &os) const
	Write the results entries for all objects to stream.
void	writeResultEntries (const word &objectName, Ostream &os) const
	Write the results entries for named object to stream.
void	writeAllResultEntries (Ostream &os) const
	Write the results entries for all objects to stream.
Public Member Functions inherited from timeFunctionObject
	timeFunctionObject (const word &name, const Time &runTime)
	Construct from Time.
virtual	~timeFunctionObject ()=default
	Destructor.
const Time &	time () const
	Return time database.
objectRegistry &	storedObjects ()
	Write access to the output objects ("functionObjectObjects") registered on Time.
const objectRegistry &	storedObjects () const
	Const access to the output objects ("functionObjectObjects") registered on Time.
Public Member Functions inherited from functionObject
	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))
	functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)
	Construct from components.
autoPtr< functionObject >	clone () const
	Return clone.
virtual	~functionObject ()=default
	Destructor.
virtual const word &	type () const =0
	Runtime type information.
const word &	name () const noexcept
	Return the name of this functionObject.
bool	useNamePrefix () const noexcept
	Return the flag for adding a scoping name prefix.
bool	useNamePrefix (bool on) noexcept
	Modify the flag for adding a scoping name prefix.
virtual bool	execute (const label subIndex)
	Execute using the specified subIndex.
virtual bool	end ()
	Called when Time::run() determines that the time-loop exits.
virtual bool	adjustTimeStep ()
	Called at the end of Time::adjustDeltaT() if adjustTime is true.
virtual bool	filesModified () const
	Did any file get changed during execution?
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update for changes of mesh.
virtual void	movePoints (const polyMesh &mesh)
	Update for changes of mesh.

Protected Types
enum	sampleActionType : unsigned { ACTION_NONE = 0 , ACTION_WRITE = 0x1 , ACTION_STORE = 0x2 , ACTION_ALL = 0xF }
	Local control for sampling actions. More...

Protected Member Functions

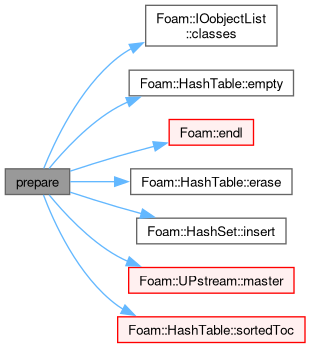

label	prepare (unsigned request)
	Classify field types, close/open file streams.
template<class GeoField>
tmp< GeoField >	getOrLoadField (const word &fieldName) const
	Get from registry or load from disk.
template<class Type>
void	storeResults (const word &fieldName, const Field< Type > &values)
	Store results: min/max/average/size.
Protected Member Functions inherited from fvMeshFunctionObject
	fvMeshFunctionObject (const fvMeshFunctionObject &)=delete
	No copy construct.
void	operator= (const fvMeshFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from regionFunctionObject
virtual const objectRegistry &	obr () const
	The region or sub-region registry being used.
template<class ObjectType>
bool	foundObject (const word &fieldName) const
	Find object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
const ObjectType *	cfindObject (const word &fieldName) const
	Return const pointer to the object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
const ObjectType *	findObject (const word &fieldName) const
	Return const pointer to the object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
ObjectType *	findObject (const word &fieldName)
	Return non-const pointer to the object of the given Type, (sub) objectRegistry.
template<class ObjectType>
ObjectType *	getObjectPtr (const word &fieldName) const
	Return non-const pointer to the object of the given Type, using a const-cast to have it behave like a mutable.
template<class ObjectType>
const ObjectType &	lookupObject (const word &fieldName) const
	Lookup and return object (eg, a field) from the (sub) objectRegistry.
template<class ObjectType>
ObjectType &	lookupObjectRef (const word &fieldName) const
	Lookup and return object (eg, a field) from the (sub) objectRegistry.
template<class ObjectType>
bool	store (word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)
	Store the field in the (sub) objectRegistry under the given name.
template<class ObjectType>
bool	storeInDb (const word &fieldName, const tmp< ObjectType > &tfield, const objectRegistry &obr)
	Store the field in an optional objectRegistry under the given name.
bool	writeObject (const word &fieldName)
	Write field if present in the (sub) objectRegistry.
bool	clearObject (const word &fieldName)
	Clear field from the (sub) objectRegistry if present.
void	clearObjects (const wordList &objNames)
	Clear fields from the (sub) objectRegistry if present.
	regionFunctionObject (const regionFunctionObject &)=delete
	No copy construct.
void	operator= (const regionFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from stateFunctionObject
const functionObjects::properties &	stateDict () const
	Return a const reference to the state dictionary.
functionObjects::properties &	stateDict ()
	Return non-const access to the state dictionary.
	stateFunctionObject (const stateFunctionObject &)=delete
	No copy construct.
void	operator= (const stateFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from timeFunctionObject
void	clearOutputObjects (const wordList &objNames)
	Remove specified items from "functionObjectObjects".
	timeFunctionObject (const timeFunctionObject &)=delete
	No copy construct.
void	operator= (const timeFunctionObject &)=delete
	No copy assignment.
Protected Member Functions inherited from functionObject
word	scopedName (const word &name) const
	Return a scoped (prefixed) name.

Protected Attributes
ProbeType	probeModel_
	The specified point probeModel.
bool	loadFromFiles_
	Load fields from files (not from objectRegistry).
bool	verbose_
	Output verbosity.
bool	onExecute_
	Perform sample actions on execute as well.
wordRes	fieldSelection_
	Requested names of fields to probe.
DynamicList< word >	selectedFieldNames_
	Current list of field names selected for sampling.
fieldGroup< volScalarField >	scalarFields_
	Categorized scalar/vector/tensor volume fields.
fieldGroup< volVectorField >	vectorFields_
fieldGroup< volSphericalTensorField >	sphericalTensorFields_
fieldGroup< volSymmTensorField >	symmTensorFields_
fieldGroup< volTensorField >	tensorFields_
fieldGroup< surfaceScalarField >	surfaceScalarFields_
	Categorized scalar/vector/tensor surface fields.
fieldGroup< surfaceVectorField >	surfaceVectorFields_
fieldGroup< surfaceSphericalTensorField >	surfaceSphericalTensorFields_
fieldGroup< surfaceSymmTensorField >	surfaceSymmTensorFields_
fieldGroup< surfaceTensorField >	surfaceTensorFields_
HashPtrTable< OFstream >	probeFilePtrs_
	Current open files (non-empty on master only).
Protected Attributes inherited from fvMeshFunctionObject
const fvMesh &	mesh_
	Reference to the fvMesh.
Protected Attributes inherited from regionFunctionObject
word	subRegistryName_
	Name for alternative object registry.
const objectRegistry &	obr_
	Reference to the region objectRegistry.
const objectRegistry *	obrPtr_
	Pointer to alternative (eg, sub-region) objectRegistry.
Protected Attributes inherited from timeFunctionObject
const Time &	time_
	Reference to the time database.

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &runTime, const dictionary &dict)
	Select from dictionary, based on its "type" entry.
Public Attributes inherited from functionObject
bool	log
	Flag to write log into Info.
Static Public Attributes inherited from functionObject
static int	debug
	Flag to execute debug content.
static bool	postProcess
	Global post-processing mode switch.
static bool	defaultUseNamePrefix
	Global default for useNamePrefix.
static word	outputPrefix
	Directory prefix.

Detailed Description

template<class ProbeType>
class Foam::Probes< ProbeType >

Base class for sampling fields at specified locations and writing to file. The locations are specified and determined in the derived class. The sampling is done using the specified point probeModel class.

Source files

Definition at line 58 of file Probes.H.

Member Enumeration Documentation

◆ sampleActionType

template<class ProbeType>

enum sampleActionType : unsigned

protected

Local control for sampling actions.

Enumerator
ACTION_NONE
ACTION_WRITE
ACTION_STORE
ACTION_ALL

Definition at line 86 of file Probes.H.

Constructor & Destructor Documentation

◆ Probes()

template<class ProbeType>

Probes	(	const word &	name,
		const Time &	runTime,
		const dictionary &	dict,
		const bool	loadFromFiles = false,
		const bool	readFields = true )

Construct from Time and dictionary.

Definition at line 361 of file Probes.C.

References dict, fieldSelection_, fvMeshFunctionObject::fvMeshFunctionObject(), loadFromFiles_, fvMeshFunctionObject::mesh_, Foam::name(), onExecute_, probeModel_, read(), Foam::readFields(), and runTime.

Here is the call graph for this function:

◆ ~Probes()

template<class ProbeType>

virtual ~Probes ( )

virtualdefault

Destructor.

Member Function Documentation

◆ prepare()

template<class ProbeType>

Foam::label prepare ( unsigned request )

protected

Classify field types, close/open file streams.

Returns: number of fields to sample

Definition at line 213 of file Probes.C.

References ACTION_WRITE, IOobjectList::classes(), DebugInfo, doLocalCode, HashTable< T, Key, Hash >::empty(), Foam::endl(), HashTable< T, Key, Hash >::erase(), fieldSelection_, forAllIters, HashSet< Key, Hash >::insert(), loadFromFiles_, UPstream::master(), fvMeshFunctionObject::mesh_, Foam::nl, probeFilePtrs_, probeModel_, scalarFields_, HashTable< T, Key, Hash >::sortedToc(), sphericalTensorFields_, surfaceScalarFields_, surfaceSphericalTensorFields_, surfaceSymmTensorFields_, surfaceTensorFields_, surfaceVectorFields_, symmTensorFields_, tensorFields_, and vectorFields_.

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getOrLoadField() [1/2]

template<class ProbeType>

template<class GeoField>

tmp< GeoField > getOrLoadField ( const word & fieldName ) const

protected

Get from registry or load from disk.

◆ storeResults()

template<class ProbeType>

template<class Type>

void storeResults	(	const word &	fieldName,
		const Field< Type > &	values )

protected

Store results: min/max/average/size.

Definition at line 334 of file Probes.C.

References Foam::average(), Foam::Info, limits, name, Foam::nl, stateFunctionObject::setResult(), and verbose_.

Here is the call graph for this function:

◆ verbose()

template<class ProbeType>

bool verbose ( const bool on )

noexcept

Enable/disable verbose output.

Returns: old value

Definition at line 386 of file Probes.C.

References verbose_.

◆ fieldNames()

template<class ProbeType>

virtual const wordRes & fieldNames ( ) const

inlinevirtualnoexcept

Return names of fields to probe.

Definition at line 242 of file Probes.H.

◆ probeModel()

template<class ProbeType>

const ProbeType & probeModel ( ) const

inlinenoexcept

Return const reference to the point probeModel.

Definition at line 250 of file Probes.H.

◆ read()

template<class ProbeType>

bool read ( const dictionary & dict )

virtual

Read the settings from the dictionary.

Reimplemented from regionFunctionObject.

Reimplemented in thermoCoupleProbes, patchProbes, and probes.

Definition at line 395 of file Probes.C.

References ACTION_NONE, dict, fieldSelection_, onExecute_, prepare(), and verbose_.

Referenced by Probes(), patchProbes::read(), and probes::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ execute()

template<class ProbeType>

bool execute ( )

virtual

Sample and store result if the sampleOnExecute is enabled.

Implements functionObject.

Reimplemented in thermoCoupleProbes.

Definition at line 431 of file Probes.C.

References ACTION_ALL, ACTION_WRITE, and onExecute_.

◆ write()

template<class ProbeType>

bool write ( )

virtual

Sample and write.

Implements functionObject.

Reimplemented in thermoCoupleProbes.

Definition at line 443 of file Probes.C.

References ACTION_ALL.

◆ readUpdate()

template<class ProbeType>

virtual void readUpdate ( const polyMesh::readUpdateState state )

inlinevirtual

Update for changes of mesh due to readUpdate.

Definition at line 270 of file Probes.H.

◆ getOrLoadField() [2/2]

template<class ProbeType>

template<class GeoField>

Foam::tmp< GeoField > getOrLoadField ( const word & fieldName ) const

Definition at line 300 of file Probes.C.

Member Data Documentation

◆ probeModel_

template<class ProbeType>

ProbeType probeModel_

protected

The specified point probeModel.

Definition at line 69 of file Probes.H.

Referenced by prepare(), and Probes().

◆ loadFromFiles_

template<class ProbeType>

bool loadFromFiles_

protected

Load fields from files (not from objectRegistry).

Definition at line 100 of file Probes.H.

Referenced by prepare(), and Probes().

◆ verbose_

template<class ProbeType>

bool verbose_

protected

Output verbosity.

Definition at line 105 of file Probes.H.

Referenced by read(), storeResults(), and verbose().

◆ onExecute_

template<class ProbeType>

bool onExecute_

protected

Perform sample actions on execute as well.

Definition at line 110 of file Probes.H.

Referenced by execute(), Probes(), and read().

◆ fieldSelection_

template<class ProbeType>

wordRes fieldSelection_

protected

Requested names of fields to probe.

Definition at line 115 of file Probes.H.

Referenced by prepare(), Probes(), and read().

◆ selectedFieldNames_

template<class ProbeType>

DynamicList<word> selectedFieldNames_

protected

Current list of field names selected for sampling.

Definition at line 123 of file Probes.H.

◆ scalarFields_

template<class ProbeType>

fieldGroup<volScalarField> scalarFields_

protected

Categorized scalar/vector/tensor volume fields.

Definition at line 128 of file Probes.H.

Referenced by prepare().

◆ vectorFields_

template<class ProbeType>

fieldGroup<volVectorField> vectorFields_

protected

Definition at line 129 of file Probes.H.

Referenced by prepare().

◆ sphericalTensorFields_

template<class ProbeType>

fieldGroup<volSphericalTensorField> sphericalTensorFields_

protected

Definition at line 130 of file Probes.H.

Referenced by prepare().

◆ symmTensorFields_

template<class ProbeType>

fieldGroup<volSymmTensorField> symmTensorFields_

protected

Definition at line 131 of file Probes.H.

Referenced by prepare().

◆ tensorFields_

template<class ProbeType>

fieldGroup<volTensorField> tensorFields_

protected

Definition at line 132 of file Probes.H.

Referenced by prepare().

◆ surfaceScalarFields_

template<class ProbeType>

fieldGroup<surfaceScalarField> surfaceScalarFields_

protected

Categorized scalar/vector/tensor surface fields.

Definition at line 137 of file Probes.H.

Referenced by prepare().

◆ surfaceVectorFields_

template<class ProbeType>

fieldGroup<surfaceVectorField> surfaceVectorFields_

protected

Definition at line 138 of file Probes.H.

Referenced by prepare().

◆ surfaceSphericalTensorFields_

template<class ProbeType>

fieldGroup<surfaceSphericalTensorField> surfaceSphericalTensorFields_

protected

Definition at line 139 of file Probes.H.

Referenced by prepare().

◆ surfaceSymmTensorFields_

template<class ProbeType>

fieldGroup<surfaceSymmTensorField> surfaceSymmTensorFields_

protected

Definition at line 140 of file Probes.H.

Referenced by prepare().

◆ surfaceTensorFields_

template<class ProbeType>

fieldGroup<surfaceTensorField> surfaceTensorFields_

protected

Definition at line 141 of file Probes.H.

Referenced by prepare().

◆ probeFilePtrs_

template<class ProbeType>

HashPtrTable<OFstream> probeFilePtrs_

protected

Current open files (non-empty on master only).

Definition at line 146 of file Probes.H.

Referenced by prepare().

The documentation for this class was generated from the following files:

src/sampling/probes/Probes/Probes.H
src/sampling/probes/Probes/Probes.C

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ sampleActionType

Constructor & Destructor Documentation

◆ Probes()

◆ ~Probes()

Member Function Documentation

◆ prepare()

◆ getOrLoadField() [1/2]

◆ storeResults()

◆ verbose()

◆ fieldNames()

◆ probeModel()

◆ read()

◆ execute()

◆ write()

◆ readUpdate()

◆ getOrLoadField() [2/2]

Member Data Documentation

◆ probeModel_

◆ loadFromFiles_

◆ verbose_

◆ onExecute_

◆ fieldSelection_

◆ selectedFieldNames_

◆ scalarFields_

◆ vectorFields_

◆ sphericalTensorFields_

◆ symmTensorFields_

◆ tensorFields_

◆ surfaceScalarFields_

◆ surfaceVectorFields_

◆ surfaceSphericalTensorFields_

◆ surfaceSymmTensorFields_

◆ surfaceTensorFields_

◆ probeFilePtrs_
