Base class for input inter-processor communications stream (ie, parallel streams). Not to be used directly, thus contructors are protected. More...

#include <UIPstream.H>

Inheritance diagram for UIPstreamBase:

[legend]

Collaboration diagram for UIPstreamBase:

[legend]

Public Member Functions
virtual	~UIPstreamBase ()
	Destructor. Optionally clears external receive buffer.
virtual std::ios_base::fmtflags	flags () const override
	Return current stream flags. Dummy for parallel stream, returns 0.
virtual std::ios_base::fmtflags	flags (std::ios_base::fmtflags) override
	Set stream flags, return old stream flags. Dummy for parallel stream, returns 0.
label	remaining () const noexcept
	The number of characters remaining in the get buffer.

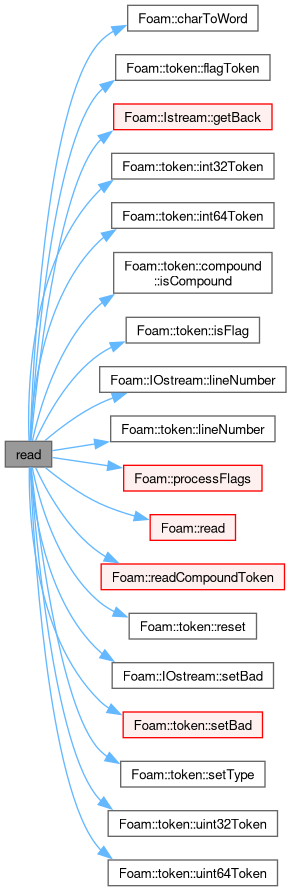

virtual Istream &	read (token &) override
	Return next token from stream.
virtual Istream &	read (char &c) override
	Read a character.
virtual Istream &	read (word &str) override
	Read a word.
virtual Istream &	read (string &str) override
	Read a string (including enclosing double-quotes).
virtual Istream &	read (int32_t &val) override
	Read int32_t.
virtual Istream &	read (int64_t &val) override
	Read int64_t.
virtual Istream &	read (uint32_t &val) override
	Read uint32_t.
virtual Istream &	read (uint64_t &val) override
	Read uint64_t.
virtual Istream &	read (float &val) override
	Read a float.
virtual Istream &	read (double &val) override
	Read a double.
virtual Istream &	read (char *data, std::streamsize count) override
	Read binary block with 8-byte alignment. Reading into a null pointer behaves like a forward seek of count characters.
virtual Istream &	readRaw (char *data, std::streamsize count) override
	Low-level raw binary read. Reading into a null pointer behaves like a forward seek of count characters.
virtual bool	beginRawRead () override
	Start of low-level raw binary read.
virtual bool	endRawRead () override
	End of low-level raw binary read.

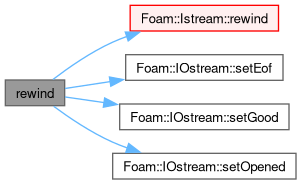

virtual void	rewind () override
	Rewind the receive stream position so that it may be read again.
void	print (Ostream &os) const override
	Print stream description to Ostream.
Public Member Functions inherited from UPstream
	ClassName ("UPstream")
	Declare name of the class and its debug switch.
	UPstream (const commsTypes commsType) noexcept
	Construct for given communication type.
commsTypes	commsType () const noexcept
	Get the communications type of the stream.
commsTypes	commsType (const commsTypes ct) noexcept
	Set the communications type of the stream.
Public Member Functions inherited from Istream
	Istream (const Istream &)=default
	Copy construct.
virtual	~Istream ()=default
	Destructor.
	Istream (IOstreamOption streamOpt=IOstreamOption())
	Default construct (ASCII, uncompressed), construct with specified stream option.
	Istream (IOstreamOption::streamFormat fmt, IOstreamOption::compressionType cmp=IOstreamOption::UNCOMPRESSED)
	Construct with format (uncompressed).
const token &	peekBack () const noexcept
	Examine putback token without removing it.
void	putBackClear ()
	Drop the putback token.
void	putBack (const token &tok)
	Put back a token (copy). Only a single put back is permitted.
void	putBack (token &&tok)
	Put back a token (move). Only a single put back is permitted.
bool	getBack (token &tok)
	Retrieve the put-back token if there is one.
bool	readBegin (const char *funcName)
	Begin read of data chunk, starts with '('.
bool	readEnd (const char *funcName)
	End read of data chunk, ends with ')'.
char	readBeginList (const char *funcName)
	Begin read of list data, starts with '(' or '{'.
char	readEndList (const char *funcName)
	End read of list data, ends with ')' or '}'.
Istream &	operator() () const
	Return a non-const reference to const Istream.
Public Member Functions inherited from IOstream
	IOstream (const IOstream &)=default
	Copy construct.
virtual	~IOstream ()=default
	Destructor.
	IOstream (IOstreamOption streamOpt=IOstreamOption())
	Default construct (ASCII, uncompressed), construct with specified stream option.
	IOstream (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp=IOstreamOption::UNCOMPRESSED)
	Construct with format, version (compression).
virtual const fileName &	name () const
	The name of the stream.
fileName	relativeName () const
	Return the name of the stream relative to the current case.
virtual bool	check (const char *operation) const
	Check IOstream status for given operation.
bool	fatalCheck (const char *operation) const
	Check IOstream status for given operation.
bool	opened () const noexcept
	True if stream has been opened.
bool	closed () const noexcept
	True if stream is closed.
bool	good () const noexcept
	True if next operation might succeed.
bool	eof () const noexcept
	True if end of input seen.
bool	fail () const noexcept
	True if next operation will fail.
bool	bad () const noexcept
	True if stream is corrupted.
	operator bool () const noexcept
	True if the stream has not failed.
bool	operator! () const noexcept
	True if the stream has failed.
unsigned	labelByteSize () const noexcept
	The sizeof (label) in bytes associated with the stream.
unsigned	scalarByteSize () const noexcept
	The sizeof (scalar) in bytes associated with the stream.
void	setLabelByteSize (unsigned nbytes) noexcept
	Set the sizeof (label) in bytes associated with the stream.
void	setScalarByteSize (unsigned nbytes) noexcept
	Set the sizeof (scalar) in bytes associated with the stream.
template<class T, class = std::enable_if_t<std::is_integral_v<T>>>
bool	checkLabelSize () const noexcept
	Test if the label byte-size associated with the stream is the same as the given type.
template<class T, class = std::enable_if_t<std::is_floating_point_v<T>>>
bool	checkScalarSize () const noexcept
	Test if the scalar byte-size associated with the stream is the same as the given type.
bool	checkNativeSizes () const noexcept
	Test if the label/scalar byte-size associated with the stream are the native label/scalar sizes.
bool	fatalCheckNativeSizes (const char *operation) const
	Assert that the label/scalar byte-size associated with the stream are the native label/scalar sizes.
label	lineNumber () const noexcept
	Const access to the current stream line number.
label &	lineNumber () noexcept
	Non-const access to the current stream line number.
label	lineNumber (const label num) noexcept
	Set the stream line number.
void	setEof () noexcept
	Set stream state as reached 'eof'.
void	setFail () noexcept
	Set stream state as 'failed'.
void	setBad () noexcept
	Set stream state to be 'bad'.
std::ios_base::fmtflags	setf (std::ios_base::fmtflags f)
	Set stream flag(s), return old stream flags.
std::ios_base::fmtflags	setf (const std::ios_base::fmtflags f, const std::ios_base::fmtflags mask)
	Set stream flag(s) with mask, return old stream flags.
std::ios_base::fmtflags	unsetf (std::ios_base::fmtflags f)
	Unset stream flags, return old stream flags.
void	print (Ostream &os, const int streamState) const
	Print information about the stream state bits.
InfoProxy< IOstream >	info () const noexcept
	Return info proxy, used to print IOstream information to a stream.
Public Member Functions inherited from IOstreamOption
constexpr	IOstreamOption (streamFormat fmt=streamFormat::ASCII, compressionType comp=compressionType::UNCOMPRESSED) noexcept
	Default construct (ASCII, UNCOMPRESSED, currentVersion) or construct with format, compression.
constexpr	IOstreamOption (streamFormat fmt, compressionType comp, versionNumber ver) noexcept
	Construct from components (format, compression, version).
constexpr	IOstreamOption (streamFormat fmt, versionNumber ver, compressionType comp=compressionType::UNCOMPRESSED) noexcept
	Construct from components (format, version, compression).
	IOstreamOption (const IOstreamOption &opt, streamFormat fmt) noexcept
	Copy construct with change of format.
streamFormat	format () const noexcept
	Get the current stream format.
streamFormat	format (const streamFormat fmt) noexcept
	Set the stream format.
streamFormat	format (const word &formatName)
	Set the stream format from string value.
compressionType	compression () const noexcept
	Get the stream compression.
compressionType	compression (const compressionType comp) noexcept
	Set the stream compression.
compressionType	compression (const word &compName)
	Set the stream compression from string value.
versionNumber	version () const noexcept
	Get the stream version.
versionNumber	version (const versionNumber ver) noexcept
	Set the stream version.
versionNumber	version (const token &tok)
	Set the stream version from token.

Protected Member Functions

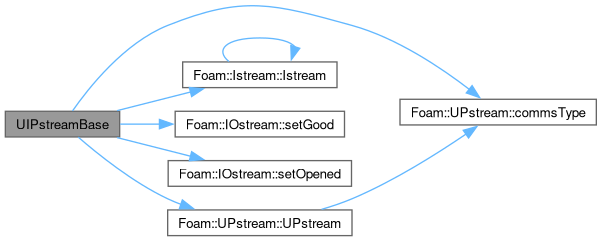

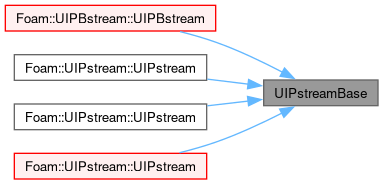

	UIPstreamBase (const UPstream::commsTypes commsType, const int fromProcNo, DynamicList< char > &receiveBuf, label &receiveBufPosition, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, const bool clearAtEnd=false, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY)
	Construct given process index to read from using the given attached receive buffer, optional communication characteristics and IO format.

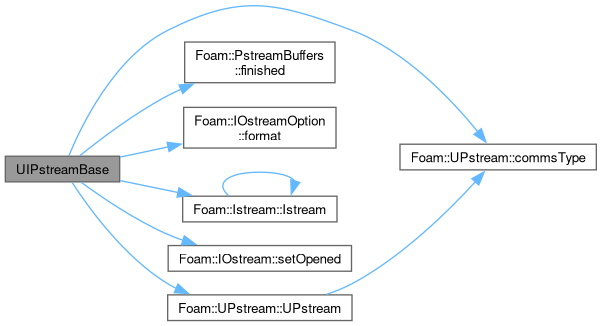

	UIPstreamBase (const int fromProcNo, PstreamBuffers &buffers)
	Construct given buffers.
	UIPstreamBase (const DynamicList< char > &receiveBuf, IOstreamOption::streamFormat fmt)
	Construct for an externally obtained buffer.
Protected Member Functions inherited from Istream
bool	hasPutback () const noexcept
	True if putback token is in use.
Protected Member Functions inherited from IOstream
void	setOpened () noexcept
	Set stream opened.
void	setClosed () noexcept
	Set stream closed.
void	setState (std::ios_base::iostate state) noexcept
	Set stream state.
void	setGood () noexcept
	Set stream state to be good.

Protected Attributes
const int	fromProcNo_
	Source rank for the data.
const int	tag_
	Message tag for communication.
const int	comm_
	The communicator index.
label	messageSize_
	The message size, read on bufferIPCrecv or set directly.
label	storedRecvBufPos_
	Receive position in buffer data, if ony If there is no external location for recvBufPos_.
const bool	clearAtEnd_
	Clear the receive buffer on termination (in the destructor).
DynamicList< char > &	recvBuf_
	Reference to the receive buffer data.
label &	recvBufPos_
	Reference to the receive position in buffer data.
Protected Attributes inherited from IOstream
std::ios_base::iostate	ioState_
	Mirror of internal stream io state.
streamAccess	openClosed_
	The stream open/closed state.
unsigned char	sizeofLabel_
	The sizeof (label), possibly read from the header.
unsigned char	sizeofScalar_
	The sizeof (scalar), possibly read from the header.
label	lineNumber_
	The file line.

Additional Inherited Members
Public Types inherited from UPstream
enum class	commsTypes : char { buffered , scheduled , nonBlocking , blocking = buffered }
	Communications types. More...
enum class	sendModes : char { normal , sync }
	Different MPI-send modes (ignored for commsTypes::buffered). More...
enum class	dataTypes : char { Basic_begin , type_byte = Basic_begin , type_int16 , type_int32 , type_int64 , type_uint16 , type_uint32 , type_uint64 , type_float , type_double , type_long_double , Basic_end , User_begin = Basic_end , type_3float = User_begin , type_3double , type_6float , type_6double , type_9float , type_9double , invalid , User_end = invalid , DataTypes_end = invalid }
	Mapping of some fundamental and aggregate types to MPI data types. More...
enum class	opCodes : char { Basic_begin , op_min = Basic_begin , op_max , op_sum , op_prod , op_bool_and , op_bool_or , op_bool_xor , op_bit_and , op_bit_or , op_bit_xor , Basic_end , Extra_begin = Basic_end , op_replace = Extra_begin , op_no_op , invalid , Extra_end = invalid , OpCodes_end = invalid }
	Mapping of some MPI op codes. More...
enum class	topoControls : int { broadcast = 1 , reduce = 2 , gather = 4 , combine = 16 , mapGather = 32 , gatherList = 64 }
	Some bit masks corresponding to topology controls. More...
typedef IntRange< int >	rangeType
	Int ranges are used for MPI ranks (processes).
Public Types inherited from IOstream
enum	streamAccess : char { CLOSED = 0 , OPENED }
	Enumeration for stream open/closed state. More...
Public Types inherited from IOstreamOption
enum	streamFormat : char { ASCII = 0 , BINARY , COHERENT , UNKNOWN_FORMAT }
	Data format (ascii \| binary \| coherent). More...
enum	compressionType : char { UNCOMPRESSED = 0 , COMPRESSED }
	Compression treatment (UNCOMPRESSED \| COMPRESSED). More...
enum	appendType : char { NO_APPEND = 0 , APPEND_APP , APPEND_ATE , NON_APPEND = NO_APPEND , APPEND = APPEND_APP }
	File appending (NO_APPEND \| APPEND_APP \| APPEND_ATE). More...
enum	atomicType : char { NON_ATOMIC = 0 , ATOMIC }
	Atomic operations (output). More...
enum class	floatFormat : unsigned { general = unsigned(0) , fixed = unsigned(std::ios_base::fixed) , scientific = unsigned(std::ios_base::scientific) }
	Float formats (eg, time directory name formats). More...
Static Public Member Functions inherited from UPstream
static bool	usingTopoControl (UPstream::topoControls ctrl) noexcept
	Test for selection of given topology-aware routine.
static constexpr int	commGlobal () noexcept
	Communicator for all ranks, irrespective of any local worlds.
static constexpr int	commSelf () noexcept
	Communicator within the current rank only.
static int	commConstWorld () noexcept
	Communicator for all ranks (respecting any local worlds).
static label	commWorld () noexcept
	Communicator for all ranks (respecting any local worlds).
static label	commWorld (const label communicator) noexcept
	Set world communicator. Negative values are a no-op.
static label	commWarn (const label communicator) noexcept
	Alter communicator debugging setting. Warns for use of any communicator differing from specified. Negative values disable.
static label	nComms () noexcept
	Number of currently defined communicators.
static void	printCommTree (int communicator, bool linear=false)
	Debugging: print the communication tree.
static int	commInterNode () noexcept
	Communicator between nodes/hosts (respects any local worlds).
static int	commLocalNode () noexcept
	Communicator within the node/host (respects any local worlds).
static bool	hasNodeCommunicators () noexcept
	Both inter-node and local-node communicators have been created.
static bool	usingNodeComms (const int communicator)
	True if node topology-aware routines have been enabled, it is running in parallel, the starting point is the world-communicator and it is not an odd corner case (ie, all processes on one node, all processes on different nodes).
static label	newCommunicator (const label parent, const labelRange &subRanks, const bool withComponents=true)
	Create new communicator with sub-ranks on the parent communicator.
static label	newCommunicator (const label parent, const labelUList &subRanks, const bool withComponents=true)
	Create new communicator with sub-ranks on the parent communicator.
static label	dupCommunicator (const label parent)
	Duplicate the parent communicator.
static label	splitCommunicator (const label parent, const int colour, const bool two_step=true)
	Allocate a new communicator by splitting the parent communicator on the given colour.
static void	freeCommunicator (const label communicator, const bool withComponents=true)
	Free a previously allocated communicator.
static int	baseProcNo (label comm, int procID)
	Return physical processor number (i.e. processor number in worldComm) given communicator and processor.
static label	procNo (const label comm, const int baseProcID)
	Return processor number in communicator (given physical processor number) (= reverse of baseProcNo).
static label	procNo (const label comm, const label currentComm, const int currentProcID)
	Return processor number in communicator (given processor number and communicator).
static void	addValidParOptions (HashTable< string > &validParOptions)
	Add the valid option this type of communications library adds/requires on the command line.
static bool	init (int &argc, char **&argv, const bool needsThread)
	Initialisation function called from main.
static bool	initNull ()
	Special purpose initialisation function.
static void	barrier (const int communicator, UPstream::Request *req=nullptr)
	Impose a synchronisation barrier (optionally non-blocking).
static void	send_done (const int toProcNo, const int communicator, const int tag=UPstream::msgType()+1970)
	Impose a point-to-point synchronisation barrier by sending a zero-byte "done" message to given rank.
static int	wait_done (const int fromProcNo, const int communicator, const int tag=UPstream::msgType()+1970)
	Impose a point-to-point synchronisation barrier by receiving a zero-byte "done" message from given rank.
static std::pair< int, int64_t >	probeMessage (const UPstream::commsTypes commsType, const int fromProcNo, const int tag=UPstream::msgType(), const int communicator=worldComm)
	Probe for an incoming message.
static void	printNodeCommsControl (Ostream &os)
	Report the node-communication settings.
static void	printTopoControl (Ostream &os)
	Report the topology routines settings.
static label	nRequests () noexcept
	Number of outstanding requests (on the internal list of requests).
static void	resetRequests (const label n)
	Truncate outstanding requests to given length, which is expected to be in the range [0 to nRequests()].
static void	addRequest (UPstream::Request &req)
	Transfer the (wrapped) MPI request to the internal global list and invalidate the parameter (ignores null requests).
static void	cancelRequest (const label i)
	Non-blocking comms: cancel and free outstanding request. Corresponds to MPI_Cancel() + MPI_Request_free().
static void	cancelRequest (UPstream::Request &req)
	Non-blocking comms: cancel and free outstanding request. Corresponds to MPI_Cancel() + MPI_Request_free().
static void	cancelRequests (UList< UPstream::Request > &requests)
	Non-blocking comms: cancel and free outstanding requests. Corresponds to MPI_Cancel() + MPI_Request_free().
static void	removeRequests (label pos, label len=-1)
	Non-blocking comms: cancel/free outstanding requests (from position onwards) and remove from internal list of requests. Corresponds to MPI_Cancel() + MPI_Request_free().
static void	freeRequest (UPstream::Request &req)
	Non-blocking comms: free outstanding request. Corresponds to MPI_Request_free().
static void	freeRequests (UList< UPstream::Request > &requests)
	Non-blocking comms: free outstanding requests. Corresponds to MPI_Request_free().
static void	waitRequests (label pos, label len=-1)
	Wait until all requests (from position onwards) have finished. Corresponds to MPI_Waitall().
static void	waitRequests (UList< UPstream::Request > &requests)
	Wait until all requests have finished. Corresponds to MPI_Waitall().
static bool	waitAnyRequest (label pos, label len=-1)
	Wait until any request (from position onwards) has finished. Corresponds to MPI_Waitany().
static bool	waitSomeRequests (label pos, label len=-1, DynamicList< int > *indices=nullptr)
	Wait until some requests (from position onwards) have finished. Corresponds to MPI_Waitsome().
static bool	waitSomeRequests (UList< UPstream::Request > &requests, DynamicList< int > *indices=nullptr)
	Wait until some requests have finished. Corresponds to MPI_Waitsome().
static int	waitAnyRequest (UList< UPstream::Request > &requests)
	Wait until any request has finished and return its index. Corresponds to MPI_Waitany().
static void	waitRequest (const label i)
	Wait until request i has finished. Corresponds to MPI_Wait().
static void	waitRequest (UPstream::Request &req)
	Wait until specified request has finished. Corresponds to MPI_Wait().
static bool	activeRequest (const label i)
	Is request `i` active (!= MPI_REQUEST_NULL)?
static bool	activeRequest (const UPstream::Request &req)
	Is request active (!= MPI_REQUEST_NULL)?
static bool	finishedRequest (const label i)
	Non-blocking comms: has request i finished? Corresponds to MPI_Test().
static bool	finishedRequest (UPstream::Request &req)
	Non-blocking comms: has request finished? Corresponds to MPI_Test().
static bool	finishedRequests (label pos, label len=-1)
	Non-blocking comms: have all requests (from position onwards) finished? Corresponds to MPI_Testall().
static bool	finishedRequests (UList< UPstream::Request > &requests)
	Non-blocking comms: have all requests finished? Corresponds to MPI_Testall().
static bool	finishedRequestPair (label &req0, label &req1)
	Non-blocking comms: have both requests finished? Corresponds to pair of MPI_Test().
static void	waitRequestPair (label &req0, label &req1)
	Non-blocking comms: wait for both requests to finish. Corresponds to pair of MPI_Wait().
static bool	parRun (const bool on) noexcept
	Set as parallel run on/off.
static bool &	parRun () noexcept
	Test if this a parallel run.
static bool	haveThreads () noexcept
	Have support for threads.
static constexpr int	masterNo () noexcept
	Relative rank for the master process - is always 0.
static label	nProcs (const label communicator=worldComm)
	Number of ranks in parallel run (for given communicator). It is 1 for serial run.
static int	myProcNo (const label communicator=worldComm)
	Rank of this process in the communicator (starting from masterNo()). Negative if the process is not a rank in the communicator.
static bool	master (const label communicator=worldComm)
	True if process corresponds to the master rank in the communicator.
static bool	is_rank (const label communicator=worldComm)
	True if process corresponds to any rank (master or sub-rank) in the given communicator.
static bool	is_subrank (const label communicator=worldComm)
	True if process corresponds to a sub-rank in the given communicator.
static bool	is_parallel (const label communicator=worldComm)
	True if parallel algorithm or exchange is required.
static int	numNodes () noexcept
	The number of shared/host nodes in the (const) world communicator.
static label	parent (int communicator)
	The parent communicator.
static List< int > &	procID (int communicator)
	The list of ranks within a given communicator.
static bool	sameProcs (int communicator1, int communicator2)
	Test for communicator equality.
template<typename T1, typename = std::void_t <std::enable_if_t<std::is_integral_v<T1>>>>
static bool	sameProcs (int communicator, const UList< T1 > &procs)
	Test equality of communicator procs with the given list of ranks. Includes a guard for the communicator index.
template<typename T1, typename T2, typename = std::void_t < std::enable_if_t<std::is_integral_v<T1>>, std::enable_if_t<std::is_integral_v<T2>> >>
static bool	sameProcs (const UList< T1 > &procs1, const UList< T2 > &procs2)
	Test the equality of two lists of ranks.
static const wordList &	allWorlds () noexcept
	All worlds.
static const labelList &	worldIDs () noexcept
	The indices into allWorlds for all processes.
static label	myWorldID ()
	My worldID.
static const word &	myWorld ()
	My world.
static rangeType	allProcs (const label communicator=worldComm)
	Range of process indices for all processes.
static rangeType	subProcs (const label communicator=worldComm)
	Range of process indices for sub-processes.
static const List< int > &	interNode_offsets ()
	Processor offsets corresponding to the inter-node communicator.
static const rangeType &	localNode_parentProcs ()
	The range (start/size) of the commLocalNode ranks in terms of the (const) world communicator processors.
static const commsStructList &	linearCommunication (int communicator)
	Linear communication schedule (special case) for given communicator.
static const commsStructList &	treeCommunication (int communicator)
	Tree communication schedule (standard case) for given communicator.
static const commsStructList &	whichCommunication (const int communicator, bool linear=false)
	Communication schedule for all-to-master (proc 0) as linear/tree/none with switching based on UPstream::nProcsSimpleSum, the is_parallel() state and the optional `linear` parameter.
static int &	msgType () noexcept
	Message tag of standard messages.
static int	msgType (int val) noexcept
	Set the message tag for standard messages.
static int	incrMsgType (int val=1) noexcept
	Increment the message tag for standard messages.
static void	shutdown (int errNo=0)
	Shutdown (finalize) MPI as required.
static void	abort (int errNo=1)
	Call MPI_Abort with no other checks or cleanup.
static void	exit (int errNo=1)
	Shutdown (finalize) MPI as required and exit program with errNo.
static void	allToAll (const UList< int32_t > &sendData, UList< int32_t > &recvData, const int communicator=UPstream::worldComm)
	Exchange `int32_t` data with all ranks in communicator.
static void	allToAllConsensus (const UList< int32_t > &sendData, UList< int32_t > &recvData, const int tag, const int communicator=UPstream::worldComm)
	Exchange non-zero `int32_t` data between ranks [NBX].
static void	allToAllConsensus (const Map< int32_t > &sendData, Map< int32_t > &recvData, const int tag, const int communicator=UPstream::worldComm)
	Exchange `int32_t` data between ranks [NBX].
static Map< int32_t >	allToAllConsensus (const Map< int32_t > &sendData, const int tag, const int communicator=UPstream::worldComm)
	Exchange `int32_t` data between ranks [NBX].
static void	allToAll (const UList< int64_t > &sendData, UList< int64_t > &recvData, const int communicator=UPstream::worldComm)
	Exchange `int64_t` data with all ranks in communicator.
static void	allToAllConsensus (const UList< int64_t > &sendData, UList< int64_t > &recvData, const int tag, const int communicator=UPstream::worldComm)
	Exchange non-zero `int64_t` data between ranks [NBX].
static void	allToAllConsensus (const Map< int64_t > &sendData, Map< int64_t > &recvData, const int tag, const int communicator=UPstream::worldComm)
	Exchange `int64_t` data between ranks [NBX].
static Map< int64_t >	allToAllConsensus (const Map< int64_t > &sendData, const int tag, const int communicator=UPstream::worldComm)
	Exchange `int64_t` data between ranks [NBX].
template<class Type>
static void	mpiGather (const Type sendData, Type recvData, int count, const int communicator=UPstream::worldComm)
	Receive identically-sized (contiguous) data from all ranks.
template<class Type>
static void	mpiScatter (const Type sendData, Type recvData, int count, const int communicator=UPstream::worldComm)
	Send identically-sized (contiguous) data to all ranks.
template<class Type>
static void	mpiAllGather (Type *allData, int count, const int communicator=UPstream::worldComm)
	Gather/scatter identically-sized data.
template<class Type>
static void	mpiGatherv (const Type sendData, int sendCount, Type recvData, const UList< int > &recvCounts, const UList< int > &recvOffsets, const int communicator=UPstream::worldComm)
	Receive variable length data from all ranks.
template<class Type>
static void	mpiScatterv (const Type sendData, const UList< int > &sendCounts, const UList< int > &sendOffsets, Type recvData, int recvCount, const int communicator=UPstream::worldComm)
	Send variable length data to all ranks.
template<class T>
static List< T >	allGatherValues (const T &localValue, const int communicator=UPstream::worldComm)
	Allgather individual values into list locations.
template<class T>
static List< T >	listGatherValues (const T &localValue, const int communicator=UPstream::worldComm)
	Gather individual values into list locations.
template<class T>
static T	listScatterValues (const UList< T > &allValues, const int communicator=UPstream::worldComm)
	Scatter individual values from list locations.
template<class Type>
static bool	broadcast (Type *buffer, std::streamsize count, const int communicator, const int root=UPstream::masterNo())
	Broadcast buffer contents (contiguous types) to all ranks (default: from rank=0). The sizes must match on all processes.
template<class Type, unsigned N>
static bool	broadcast (FixedList< Type, N > &list, const int communicator, const int root=UPstream::masterNo())
	Broadcast fixed-list content (contiguous types) to all ranks (default: from rank=0). The sizes must match on all processes.
template<class T>
static void	mpiReduce (T values[], int count, const UPstream::opCodes opCodeId, const int communicator)
	MPI_Reduce (blocking) for known operators.
template<UPstream::opCodes opCode, class T>
static void	mpiReduce (T values[], int count, const int communicator)
	MPI_Reduce (blocking) for known operators.
template<class T>
static void	mpiAllReduce (T values[], int count, const UPstream::opCodes opCodeId, const int communicator)
	MPI_Allreduce (blocking) for known operators.
template<UPstream::opCodes opCode, class T>
static void	mpiAllReduce (T values[], int count, const int communicator)
	MPI_Allreduce (blocking) for known operators.
template<class T>
static void	mpiAllReduce (T values[], int count, const UPstream::opCodes opCodeId, const int communicator, UPstream::Request &req)
	MPI_Iallreduce (non-blocking) for known operators.
template<UPstream::opCodes opCode, class T>
static void	mpiAllReduce (T values[], int count, const int communicator, UPstream::Request &req)
	MPI_Iallreduce (non-blocking) for known operators.
template<Foam::UPstream::opCodes opCode, class T>
static void	mpiScan (T values[], int count, const int communicator, const bool exclusive=false)
	Inclusive/exclusive scan (in-place).
template<Foam::UPstream::opCodes opCode, class T>
static T	mpiScan (const T &localValue, const int communicator, const bool exclusive=false)
	Inclusive/exclusive scan returning the result. In exclusive mode, the degenerate value on rank=0 has no meaning but is treated like non-exclusive mode (ie, original values).
template<class T>
static void	mpiScan_min (T values[], int count, const int communicator, const bool exclusive=false)
	Inclusive/exclusive `min` scan (in-place).
template<class T>
static void	mpiExscan_min (T values[], int count, const int communicator)
	Exclusive `min` scan (in-place).
template<class T>
static T	mpiScan_min (const T &value, const int communicator, const bool exclusive=false)
	Inclusive/exclusive `min` scan returning result.
template<class T>
static T	mpiExscan_min (const T &value, const int communicator)
	Exclusive `min` scan returning result.
template<class T>
static void	mpiScan_max (T values[], int count, const int communicator, const bool exclusive=false)
	Inclusive/exclusive `max` scan (in-place).
template<class T>
static void	mpiExscan_max (T values[], int count, const int communicator)
	Exclusive `max` scan (in-place).
template<class T>
static T	mpiScan_max (const T &value, const int communicator, const bool exclusive=false)
	Inclusive/exclusive `max` scan returning result.
template<class T>
static T	mpiExscan_max (const T &value, const int communicator)
	Exclusive `max` scan returning result.
template<class T>
static void	mpiScan_sum (T values[], int count, const int communicator, const bool exclusive=false)
	Inclusive/exclusive `sum` scan (in-place).
template<class T>
static void	mpiExscan_sum (T values[], int count, const int communicator)
	Exclusive `sum` scan (in-place).
template<class T>
static T	mpiScan_sum (const T &value, const int communicator, const bool exclusive=false)
	Inclusive/exclusive `sum` scan returning result.
template<class T>
static T	mpiExscan_sum (const T &value, const int communicator)
	Exclusive `sum` scan returning result.
static void	reduceAnd (bool &value, const int communicator=worldComm)
	Logical (and) reduction (MPI_AllReduce).
static void	reduceOr (bool &value, const int communicator=worldComm)
	Logical (or) reduction (MPI_AllReduce).
static int	find_first (bool condition, int communicator)
	Locate the first rank for which the `condition` is true, or -1 if no ranks satisfy the condition.
static int	find_last (bool condition, int communicator)
	Locate the last rank for which the `condition` is true, or -1 if no ranks satisfy the condition.
static label	allocateCommunicator (const label parent, const labelRange &subRanks, const bool withComponents=true)
static label	allocateCommunicator (const label parent, const labelUList &subRanks, const bool withComponents=true)
static label	commInterHost () noexcept
	Communicator between nodes (respects any local worlds).
static label	commIntraHost () noexcept
	Communicator within the node (respects any local worlds).
static void	waitRequests ()
	Wait for all requests to finish.
template<class Type>
static void	gather (const Type send, int count, Type recv, const UList< int > &counts, const UList< int > &offsets, const int comm=UPstream::worldComm)
template<class Type>
static void	scatter (const Type send, const UList< int > &counts, const UList< int > &offsets, Type recv, int count, const int comm=UPstream::worldComm)
Static Public Member Functions inherited from IOstream
static unsigned int	defaultPrecision () noexcept
	Return the default precision.
static unsigned int	defaultPrecision (unsigned int prec) noexcept
	Reset the default precision.
static unsigned int	minPrecision (unsigned int prec) noexcept
	Set the minimum default precision.
Static Public Member Functions inherited from IOstreamOption
static floatFormat	floatFormatEnum (const word &fmtName, const floatFormat deflt=floatFormat::general)
	Lookup floatFormat enum corresponding to the string (general \| fixed \| scientific).
static floatFormat	floatFormatEnum (const word &key, const dictionary &dict, const floatFormat deflt=floatFormat::general)
	getOrDefault floatFormat from dictionary, warn only on bad enumeration.
static streamFormat	formatEnum (const word &fmtName, const streamFormat deflt=streamFormat::ASCII)
	Lookup streamFormat enum corresponding to the string (ascii \| binary).
static streamFormat	formatEnum (const word &key, const dictionary &dict, const streamFormat deflt=streamFormat::ASCII)
	getOrDefault streamFormat from dictionary, warn only on bad enumeration.
static compressionType	compressionEnum (const word &compName, const compressionType deflt=compressionType::UNCOMPRESSED)
	The compression enum corresponding to the string.
static compressionType	compressionEnum (const word &key, const dictionary &dict, const compressionType deflt=compressionType::UNCOMPRESSED)
	getOrDefault compressionType from dictionary, warn only on bad enumeration.
Static Public Attributes inherited from UPstream
static const Enum< commsTypes >	commsTypeNames
	Enumerated names for the communication types.
static int	nodeCommsControl_
	Use of host/node topology-aware routines.
static int	nodeCommsMin_
	Minimum number of nodes before topology-aware routines are enabled.
static int	topologyControl_
	Selection of topology-aware routines as a bitmask combination of the topoControls enumerations.
static bool	floatTransfer
	Should compact transfer be used in which floats replace doubles reducing the bandwidth requirement at the expense of some loss in accuracy.
static int	nProcsSimpleSum
	Number of processors to change from linear to tree communication.
static int	nProcsNonblockingExchange
	Number of processors to change to nonBlocking consensual exchange (NBX). Ignored for zero or negative values.
static int	nPollProcInterfaces
	Number of polling cycles in processor updates.
static commsTypes	defaultCommsType
	Default commsType.
static int	maxCommsSize
	Optional maximum message size (bytes).
static int	tuning_NBX_
	Tuning parameters for non-blocking exchange (NBX).
static const int	mpiBufferSize
	MPI buffer-size (bytes).
static label	worldComm
	Communicator for all ranks. May differ from commGlobal() if local worlds are in use.
static label	warnComm
	Debugging: warn for use of any communicator differing from warnComm.
Static Public Attributes inherited from IOstream
static unsigned int	precision_
	Default precision.
Static Public Attributes inherited from IOstreamOption
static const Enum< floatFormat >	floatFormatNames
	Names for float formats (general, fixed, scientific).
static const Enum< streamFormat >	formatNames
	Stream format names (ascii, binary).
static const versionNumber	currentVersion
	The current version number (2.0).
Static Protected Member Functions inherited from UPstream
static bool	mpi_broadcast (void *buf, std::streamsize count, const UPstream::dataTypes dataTypeId, const int communicator, const int root=0)
	Broadcast buffer contents to all ranks (default: from rank=0). The sizes must match on all processes.
static void	mpi_reduce (void values, int count, const UPstream::dataTypes dataTypeId, const UPstream::opCodes opCodeId, const int communicator, UPstream::Request req=nullptr)
	In-place reduction of `values` with result on rank 0.
static void	mpi_allreduce (void values, int count, const UPstream::dataTypes dataTypeId, const UPstream::opCodes opCodeId, const int communicator, UPstream::Request req=nullptr)
	In-place reduction of `values` with same result on all ranks.
static void	mpi_scan_reduce (void *values, int count, const UPstream::dataTypes dataTypeId, const UPstream::opCodes opCodeId, const int communicator, const bool exclusive)
	In-place scan/exscan reduction of `values`.
static bool	mpi_send (const UPstream::commsTypes commsType, const void buf, std::streamsize count, const UPstream::dataTypes dataTypeId, const int toProcNo, const int tag, const int communicator, UPstream::Request req=nullptr, const UPstream::sendModes sendMode=UPstream::sendModes::normal)
	Send buffer contents of specified data type to given processor.
static std::streamsize	mpi_receive (const UPstream::commsTypes commsType, void buf, std::streamsize count, const UPstream::dataTypes dataTypeId, const int fromProcNo, const int tag, const int communicator, UPstream::Request req=nullptr)
	Receive buffer contents of specified data type from given processor.
static void	mpi_gather (const void sendData, void recvData, int count, const UPstream::dataTypes dataTypeId, const int communicator, UPstream::Request *req=nullptr)
	Receive identically-sized (contiguous) data from all ranks, placing the result on rank 0.
static void	mpi_scatter (const void sendData, void recvData, int count, const UPstream::dataTypes dataTypeId, const int communicator, UPstream::Request *req=nullptr)
	Send identically-sized (contiguous) data from rank 0 to all other ranks.
static void	mpi_allgather (void allData, int count, const UPstream::dataTypes dataTypeId, const int communicator, UPstream::Request req=nullptr)
	Gather/scatter identically-sized data.
static void	mpi_gatherv (const void sendData, int sendCount, void recvData, const UList< int > &recvCounts, const UList< int > &recvOffsets, const UPstream::dataTypes dataTypeId, const int communicator)
	Receive variable length data from all ranks, placing the result on rank 0. (caution: known to scale poorly).
static void	mpi_scatterv (const void sendData, const UList< int > &sendCounts, const UList< int > &sendOffsets, void recvData, int recvCount, const UPstream::dataTypes dataTypeId, const int communicator)
	Send variable length data from rank 0 to all ranks. (caution: known to scale poorly).
Static Protected Attributes inherited from IOstream
static fileName	staticName_
	Name for any generic stream - normally treat as readonly.

Detailed Description

Base class for input inter-processor communications stream (ie, parallel streams). Not to be used directly, thus contructors are protected.

Source files

Definition at line 55 of file UIPstream.H.

Constructor & Destructor Documentation

◆ UIPstreamBase() [1/3]

UIPstreamBase	(	const UPstream::commsTypes	commsType,
		const int	fromProcNo,
		DynamicList< char > &	receiveBuf,
		label &	receiveBufPosition,
		const int	tag = UPstream::msgType(),
		const int	communicator = UPstream::worldComm,
		const bool	clearAtEnd = false,
		IOstreamOption::streamFormat	fmt = IOstreamOption::BINARY )

protected

Construct given process index to read from using the given attached receive buffer, optional communication characteristics and IO format.

Definition at line 156 of file UIPstreamBase.C.

References clearAtEnd_, comm_, UPstream::commsType(), fromProcNo_, Istream::Istream(), messageSize_, recvBuf_, recvBufPos_, IOstream::setGood(), IOstream::setOpened(), storedRecvBufPos_, tag_, and UPstream::UPstream().

Referenced by UIPBstream::UIPBstream(), UIPstream::UIPstream(), UIPstream::UIPstream(), and UIPstream::UIPstream().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UIPstreamBase() [2/3]

UIPstreamBase	(	const int	fromProcNo,
		PstreamBuffers &	buffers )

protected

Construct given buffers.

Definition at line 184 of file UIPstreamBase.C.

References clearAtEnd_, comm_, UPstream::commsType(), PstreamBuffers::finished(), IOstreamOption::format(), fromProcNo_, Istream::Istream(), messageSize_, recvBuf_, recvBufPos_, UPstream::scheduled, IOstream::setOpened(), storedRecvBufPos_, tag_, and UPstream::UPstream().

Here is the call graph for this function:

◆ UIPstreamBase() [3/3]

UIPstreamBase	(	const DynamicList< char > &	receiveBuf,
		IOstreamOption::streamFormat	fmt )

protected

Construct for an externally obtained buffer.

The parameter is allowed to be const (since reading will not affect it), but must reference a concrete variable.

Definition at line 219 of file UIPstreamBase.C.

◆ ~UIPstreamBase()

~UIPstreamBase ( )

virtual

Destructor. Optionally clears external receive buffer.

Definition at line 247 of file UIPstreamBase.C.

Member Function Documentation

◆ flags() [1/2]

virtual std::ios_base::fmtflags flags ( ) const

inlineoverridevirtual

Return current stream flags. Dummy for parallel stream, returns 0.

Implements IOstream.

Definition at line 190 of file UIPstream.H.

◆ flags() [2/2]

virtual std::ios_base::fmtflags flags ( std::ios_base::fmtflags )

inlineoverridevirtual

Set stream flags, return old stream flags. Dummy for parallel stream, returns 0.

Implements IOstream.

Definition at line 199 of file UIPstream.H.

◆ remaining()

Foam::label remaining ( ) const

noexcept

The number of characters remaining in the get buffer.

//- The current get position (tellg) in the buffer label pos() const;

Foam::label Foam::UIPstreamBase::pos() const { return recvBufPos_; }

Definition at line 600 of file UIPstreamBase.C.

References messageSize_, Foam::noexcept, recvBuf_, and recvBufPos_.

◆ read() [1/11]

Foam::Istream & read ( token & t )

overridevirtual

Return next token from stream.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 266 of file UIPstreamBase.C.

References token::ASSIGN, token::BEGIN_BLOCK, token::BEGIN_LIST, token::BEGIN_SQR, token::CHAR_DATA, Foam::charToWord(), token::COLON, token::COMMA, token::DIRECTIVE, token::DIVIDE, token::DOUBLE, token::END_BLOCK, token::END_LIST, token::END_SQR, token::END_STATEMENT, token::EXPRESSION, token::FLAG, token::flagToken(), token::FLOAT, Istream::getBack(), token::int32Token(), token::int64Token(), token::INTEGER_32, token::INTEGER_64, token::compound::isCompound(), token::isFlag(), IOstream::lineNumber(), token::lineNumber(), token::MINUS, token::MULTIPLY, token::PLUS, Foam::processFlags(), Foam::read(), Foam::readCompoundToken(), token::reset(), IOstream::setBad(), token::setBad(), token::setType(), token::STRING, token::uint32Token(), token::uint64Token(), token::UNSIGNED_INTEGER_32, token::UNSIGNED_INTEGER_64, token::VARIABLE, token::VERBATIM, and token::WORD.

Referenced by UIPstream::~UIPstream().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read() [2/11]

Foam::Istream & read ( char & c )

overridevirtual

Read a character.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 483 of file UIPstreamBase.C.

References recvBuf_, and recvBufPos_.

◆ read() [3/11]

Foam::Istream & read ( word & str )

overridevirtual

Read a word.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 492 of file UIPstreamBase.C.

◆ read() [4/11]

Foam::Istream & read ( string & )

overridevirtual

Read a string (including enclosing double-quotes).

Implements Istream.

Reimplemented in UIPstream.

Definition at line 498 of file UIPstreamBase.C.

◆ read() [5/11]

Foam::Istream & read ( int32_t & val )

overridevirtual

Read int32_t.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 504 of file UIPstreamBase.C.

◆ read() [6/11]

Foam::Istream & read ( int64_t & val )

overridevirtual

Read int64_t.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 511 of file UIPstreamBase.C.

◆ read() [7/11]

Foam::Istream & read ( uint32_t & val )

overridevirtual

Read uint32_t.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 518 of file UIPstreamBase.C.

◆ read() [8/11]

Foam::Istream & read ( uint64_t & val )

overridevirtual

Read uint64_t.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 525 of file UIPstreamBase.C.

◆ read() [9/11]

Foam::Istream & read ( float & val )

overridevirtual

Read a float.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 532 of file UIPstreamBase.C.

◆ read() [10/11]

Foam::Istream & read ( double & val )

overridevirtual

Read a double.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 539 of file UIPstreamBase.C.

◆ read() [11/11]

Foam::Istream & read	(	char *	data,
		std::streamsize	count )

overridevirtual

Read binary block with 8-byte alignment. Reading into a null pointer behaves like a forward seek of count characters.

Implements Istream.

Reimplemented in UIPstream.

Definition at line 546 of file UIPstreamBase.C.

References beginRawRead(), endRawRead(), and readRaw().

Here is the call graph for this function:

◆ readRaw()

Foam::Istream & readRaw	(	char *	data,
		std::streamsize	count )

overridevirtual

Low-level raw binary read. Reading into a null pointer behaves like a forward seek of count characters.

Implements Istream.

Definition at line 561 of file UIPstreamBase.C.

Referenced by read().

Here is the caller graph for this function:

◆ beginRawRead()

bool beginRawRead ( )

overridevirtual

Start of low-level raw binary read.

Implements Istream.

Definition at line 572 of file UIPstreamBase.C.

References Foam::abort(), IOstreamOption::BINARY, Foam::FatalError, FatalErrorInFunction, and format().

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ endRawRead()

virtual bool endRawRead ( )

inlineoverridevirtual

End of low-level raw binary read.

Implements Istream.

Definition at line 282 of file UIPstream.H.

References endRawRead().

Referenced by endRawRead(), and read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rewind()

void rewind ( )

overridevirtual

Rewind the receive stream position so that it may be read again.

Implements Istream.

Definition at line 613 of file UIPstreamBase.C.

References messageSize_, recvBuf_, recvBufPos_, Istream::rewind(), IOstream::setEof(), IOstream::setGood(), and IOstream::setOpened().

Here is the call graph for this function:

◆ print()

void print ( Ostream & os ) const

overridevirtual

Print stream description to Ostream.

Reimplemented from IOstream.

Definition at line 627 of file UIPstreamBase.C.

References comm_, Foam::endl(), fromProcNo_, os(), and tag_.

Here is the call graph for this function:

Member Data Documentation

◆ fromProcNo_

const int fromProcNo_

protected

Source rank for the data.

Definition at line 99 of file UIPstream.H.

Referenced by print(), UIPstream::read(), UIPstream::read(), UIPstream::UIPstream(), UIPstreamBase(), and UIPstreamBase().

◆ tag_

const int tag_

protected

Message tag for communication.

Definition at line 104 of file UIPstream.H.

Referenced by print(), UIPstream::read(), UIPstream::read(), UIPstream::UIPstream(), UIPstreamBase(), and UIPstreamBase().

◆ comm_

const int comm_

protected

The communicator index.

Definition at line 109 of file UIPstream.H.

Referenced by print(), UIPstream::read(), UIPstream::UIPstream(), UIPstreamBase(), and UIPstreamBase().

◆ messageSize_

label messageSize_

protected

The message size, read on bufferIPCrecv or set directly.

Definition at line 114 of file UIPstream.H.

Referenced by UIPstream::read(), UIPstream::read(), remaining(), rewind(), UIPstream::UIPstream(), UIPstreamBase(), and UIPstreamBase().

◆ storedRecvBufPos_

label storedRecvBufPos_

protected

Receive position in buffer data, if ony If there is no external location for recvBufPos_.

Definition at line 120 of file UIPstream.H.

Referenced by IPBstream::IPBstream(), IPstream::IPstream(), UIPstream::read(), UIPstream::read(), UIPstreamBase(), and UIPstreamBase().

◆ clearAtEnd_

const bool clearAtEnd_

protected

Clear the receive buffer on termination (in the destructor).

Definition at line 125 of file UIPstream.H.

Referenced by UIPstream::read(), UIPstream::read(), UIPstreamBase(), and UIPstreamBase().

◆ recvBuf_

DynamicList<char>& recvBuf_

protected

Reference to the receive buffer data.

Definition at line 130 of file UIPstream.H.

Referenced by UIPstream::read(), UIPstream::read(), read(), remaining(), rewind(), UIPstream::UIPstream(), UIPstreamBase(), and UIPstreamBase().

◆ recvBufPos_

label& recvBufPos_

protected

Reference to the receive position in buffer data.

Definition at line 135 of file UIPstream.H.

Referenced by UIPstream::read(), read(), remaining(), rewind(), UIPstreamBase(), and UIPstreamBase().

The documentation for this class was generated from the following files:

src/OpenFOAM/db/IOstreams/Pstreams/UIPstream.H
src/OpenFOAM/db/IOstreams/Pstreams/UIPstreamBase.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ UIPstreamBase() [1/3]

◆ UIPstreamBase() [2/3]

◆ UIPstreamBase() [3/3]

◆ ~UIPstreamBase()

Member Function Documentation

◆ flags() [1/2]

◆ flags() [2/2]

◆ remaining()

◆ read() [1/11]

◆ read() [2/11]

◆ read() [3/11]

◆ read() [4/11]

◆ read() [5/11]

◆ read() [6/11]

◆ read() [7/11]

◆ read() [8/11]

◆ read() [9/11]

◆ read() [10/11]

◆ read() [11/11]

◆ readRaw()

◆ beginRawRead()

◆ endRawRead()

◆ rewind()

◆ print()

Member Data Documentation

◆ fromProcNo_

◆ tag_

◆ comm_

◆ messageSize_

◆ storedRecvBufPos_

◆ clearAtEnd_

◆ recvBuf_

◆ recvBufPos_
