This boundary condition provides a wall constraint on the kinematic turbulent thermal conductivity (i.e. alphat) for atmospheric boundary layer modelling. It assumes a logarithmic distribution of the potential temperature within the first cell. More...

#include <atmAlphatkWallFunctionFvPatchScalarField.H>

Inheritance diagram for atmAlphatkWallFunctionFvPatchScalarField:

[legend]

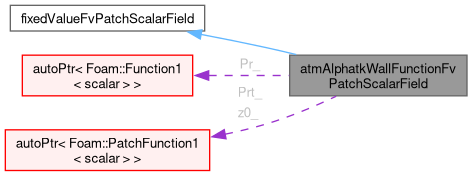

Collaboration diagram for atmAlphatkWallFunctionFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("atmAlphatkWallFunction")
	Runtime type information.
	atmAlphatkWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	atmAlphatkWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	atmAlphatkWallFunctionFvPatchScalarField (const atmAlphatkWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given atmAlphatkWallFunctionFvPatchScalarField onto a new patch.
	atmAlphatkWallFunctionFvPatchScalarField (const atmAlphatkWallFunctionFvPatchScalarField &)
	Construct as copy.
	atmAlphatkWallFunctionFvPatchScalarField (const atmAlphatkWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	write (Ostream &) const
	Write.

Protected Member Functions
virtual void	checkType ()
	Check the type of the patch.
void	writeLocalEntries (Ostream &) const
	Write local wall function variables.

Protected Attributes
const scalar	Cmu_
	Empirical model constant.
const scalar	kappa_
	von Kármán constant
autoPtr< Function1< scalar > >	Pr_
	Molecular Prandtl number.
autoPtr< PatchFunction1< scalar > >	Prt_
	Turbulent Prandtl number field.
autoPtr< PatchFunction1< scalar > >	z0_
	Surface roughness length [m].

Static Protected Attributes
static scalar	tolerance_ = 0.01
	Solution parameters.
static label	maxIters_ = 10

Detailed Description

This boundary condition provides a wall constraint on the kinematic turbulent thermal conductivity (i.e. alphat) for atmospheric boundary layer modelling. It assumes a logarithmic distribution of the potential temperature within the first cell.

Required fields:

  alphat    | Kinematic turbulent thermal conductivity    [m2/s]

Usage

Example of the boundary condition specification:

<patchName>
{
    // Mandatory entries
    type            atmAlphatkWallFunction;
    Pr              <Function1<scalar>>;
    Prt             <PatchFunction1<scalar>>;
    z0              <PatchFunction1<scalar>>;

    // Optional entries
    Cmu             <scalar>;
    kappa           <scalar>;

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`type`	Type name: atmAlphatkWallFunction	word	yes	-
`Pr`	Molecular Prandtl number	Function1<scalar>	yes	-
`Prt`	Turbulent Prandtl number	PatchFunction1<scalar>	yes	-
`z0`	Surface roughness length [m]	PatchFunction1<scalar>	yes	-
`Cmu`	Empirical model constant	scalar	no	0.09
`kappa`	von Kármán constant	scalar	no	0.41

The inherited entries are elaborated in:

Source files

Definition at line 140 of file atmAlphatkWallFunctionFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ atmAlphatkWallFunctionFvPatchScalarField() [1/5]

atmAlphatkWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 80 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References checkType(), Cmu_, kappa_, p, Pr_, Prt_, and z0_.

Referenced by atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), and TypeName().

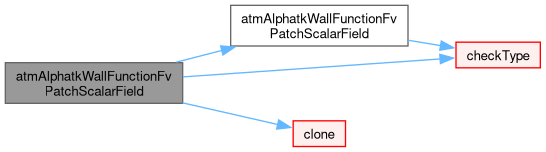

Here is the call graph for this function:

Here is the caller graph for this function:

◆ atmAlphatkWallFunctionFvPatchScalarField() [2/5]

atmAlphatkWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 118 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References checkType(), Cmu_, dict, kappa_, Foam::New(), p, Pr_, Prt_, and z0_.

Here is the call graph for this function:

◆ atmAlphatkWallFunctionFvPatchScalarField() [3/5]

atmAlphatkWallFunctionFvPatchScalarField	(	const atmAlphatkWallFunctionFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given atmAlphatkWallFunctionFvPatchScalarField onto a new patch.

Definition at line 98 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References atmAlphatkWallFunctionFvPatchScalarField(), checkType(), clone(), Cmu_, kappa_, p, Pr_, Prt_, and z0_.

Here is the call graph for this function:

◆ atmAlphatkWallFunctionFvPatchScalarField() [4/5]

atmAlphatkWallFunctionFvPatchScalarField ( const atmAlphatkWallFunctionFvPatchScalarField & wfpsf )

Construct as copy.

Definition at line 153 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References atmAlphatkWallFunctionFvPatchScalarField(), checkType(), clone(), Cmu_, kappa_, Pr_, Prt_, and z0_.

Here is the call graph for this function:

◆ atmAlphatkWallFunctionFvPatchScalarField() [5/5]

atmAlphatkWallFunctionFvPatchScalarField	(	const atmAlphatkWallFunctionFvPatchScalarField &	wfpsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 170 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References atmAlphatkWallFunctionFvPatchScalarField(), checkType(), clone(), Cmu_, kappa_, Pr_, Prt_, and z0_.

Here is the call graph for this function:

Member Function Documentation

◆ checkType()

void checkType ( )

protectedvirtual

Check the type of the patch.

Definition at line 41 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, Foam::isA(), and Foam::nl.

Referenced by atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), and atmAlphatkWallFunctionFvPatchScalarField().

Here is the call graph for this function:

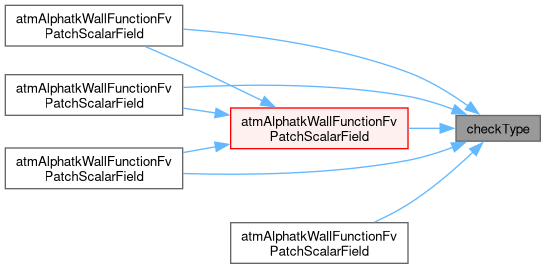

Here is the caller graph for this function:

◆ writeLocalEntries()

void writeLocalEntries ( Ostream & os ) const

protected

Write local wall function variables.

Definition at line 55 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References Cmu_, kappa_, os(), Pr_, Prt_, and z0_.

Referenced by write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "atmAlphatkWallFunction" )

Runtime type information.

References atmAlphatkWallFunctionFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 257 of file atmAlphatkWallFunctionFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Referenced by atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), and atmAlphatkWallFunctionFvPatchScalarField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 265 of file atmAlphatkWallFunctionFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 190 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References Cmu_, e, Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, IOobject::groupName(), k, kappa_, Foam::log(), Foam::max(), Foam::pow025(), Pr(), Pr_, turbulenceModel::propertiesName, Prt(), Prt_, Foam::sqrt(), fvPatchField< Type >::updateCoeffs(), y, and z0_.

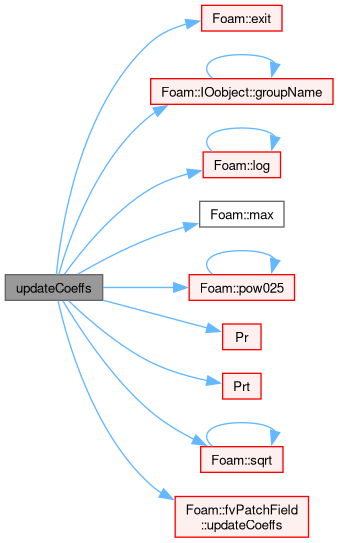

Here is the call graph for this function:

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 273 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References Prt_, and z0_.

◆ rmap()

void rmap	(	const fvPatchScalarField &	ptf,
		const labelList &	addr )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 291 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References Prt_, Foam::refCast(), and z0_.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 313 of file atmAlphatkWallFunctionFvPatchScalarField.C.

References os(), fvPatchField< Type >::write(), writeLocalEntries(), and fvPatchField< Type >::writeValueEntry().

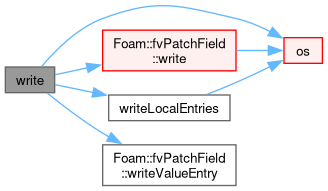

Here is the call graph for this function:

Member Data Documentation

◆ Cmu_

const scalar Cmu_

protected

Empirical model constant.

Definition at line 151 of file atmAlphatkWallFunctionFvPatchScalarField.H.

Referenced by atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), updateCoeffs(), and writeLocalEntries().

◆ kappa_

const scalar kappa_

protected

von Kármán constant

Definition at line 156 of file atmAlphatkWallFunctionFvPatchScalarField.H.

Referenced by atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), updateCoeffs(), and writeLocalEntries().

◆ Pr_

autoPtr<Function1<scalar> > Pr_

protected

Molecular Prandtl number.

Definition at line 161 of file atmAlphatkWallFunctionFvPatchScalarField.H.

Referenced by atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), updateCoeffs(), and writeLocalEntries().

◆ Prt_

autoPtr<PatchFunction1<scalar> > Prt_

protected

Turbulent Prandtl number field.

Definition at line 166 of file atmAlphatkWallFunctionFvPatchScalarField.H.

Referenced by atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), autoMap(), rmap(), updateCoeffs(), and writeLocalEntries().

◆ z0_

autoPtr<PatchFunction1<scalar> > z0_

protected

Surface roughness length [m].

Definition at line 171 of file atmAlphatkWallFunctionFvPatchScalarField.H.

Referenced by atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), atmAlphatkWallFunctionFvPatchScalarField(), autoMap(), rmap(), updateCoeffs(), and writeLocalEntries().

◆ tolerance_

scalar tolerance_ = 0.01

staticprotected

Solution parameters.

Definition at line 178 of file atmAlphatkWallFunctionFvPatchScalarField.H.

◆ maxIters_

label maxIters_ = 10

staticprotected

Definition at line 179 of file atmAlphatkWallFunctionFvPatchScalarField.H.

The documentation for this class was generated from the following files:

src/atmosphericModels/derivedFvPatchFields/wallFunctions/atmAlphatkWallFunction/atmAlphatkWallFunctionFvPatchScalarField.H
src/atmosphericModels/derivedFvPatchFields/wallFunctions/atmAlphatkWallFunction/atmAlphatkWallFunctionFvPatchScalarField.C
