Base class for bin models to handle general bin characteristics. More...

#include <binModel.H>

Inheritance diagram for binModel:

[legend]

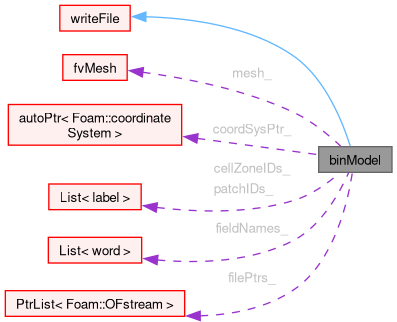

Collaboration diagram for binModel:

[legend]

Public Member Functions
	TypeName ("binModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, binModel, dictionary,(const dictionary &dict, const fvMesh &mesh, const word &outputPrefix),(dict, mesh, outputPrefix))
	binModel (const dictionary &dict, const fvMesh &mesh, const word &outputPrefix)
	Construct from components.
	binModel (const binModel &)=delete
	No copy construct.
void	operator= (const binModel &)=delete
	No copy assignment.
virtual	~binModel ()=default
	Destructor.

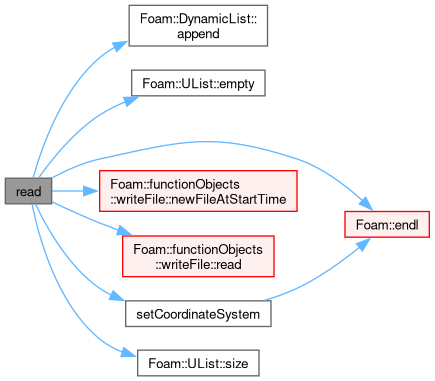

virtual bool	read (const dictionary &dict)
	Read the function-object dictionary.
label	nBin () const noexcept
	Return the total number of bins.
virtual void	initialise ()=0
	Initialise bin properties.
virtual void	apply ()=0
	Apply bins.
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update for changes of mesh.
virtual void	movePoints (const polyMesh &mesh)
	Update for changes of mesh.
template<>
bool	decomposePatchValues (List< List< vector > > &data, const label bini, const vector &v, const vector &n) const
template<>
bool	decomposePatchValues (List< List< vector > > &data, const label bini, const vector &v, const vector &n) const
template<class Type>
Foam::string	writeComponents (const word &stem) const
Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName.
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName and read options from dictionary.
	writeFile (const writeFile &wf)
	Construct copy.
virtual	~writeFile ()=default
	Destructor.
virtual const string &	setExt (const string &ext)
	Set extension.
virtual OFstream &	file ()
	Return access to the file (if only 1).
virtual bool	writeToFile () const
	Flag to allow writing to file.
virtual bool	canWriteToFile () const
	Flag to allow writing to the file.
virtual bool	canResetFile () const
	Flag to allow resetting the file.
virtual bool	canWriteHeader () const
	Flag to allow writing the header.
virtual label	charWidth () const
	Return width of character stream output.
virtual void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream.
virtual void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream.
virtual void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream.
virtual void	writeCurrentTime (Ostream &os) const
	Write the current time to stream.
virtual void	writeBreak (Ostream &os) const
	Write a break marker to the stream.
template<class Type>
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair.
template<class Type>
void	writeValue (Ostream &os, const Type &val) const
	Write a given value to stream with the space delimiter.

Static Public Member Functions
static autoPtr< binModel >	New (const dictionary &dict, const fvMesh &mesh, const word &outputPrefix)
	Return a reference to the selected bin model.

Protected Member Functions
void	setCoordinateSystem (const dictionary &dict, const word &e3Name=word::null, const word &e1Name=word::null)
	Set the co-ordinate system from dictionary and axes names.
template<class Type>
bool	decomposePatchValues (List< List< Type > > &data, const label bini, const Type &v, const vector &n) const
	Helper function to decompose patch values into normal and tangential components.
template<class Type>
string	writeComponents (const word &stem) const
	Helper function to construct a string description for a given type.
template<class Type>
void	writeBinnedData (List< List< Type > > &data, Ostream &os) const
	Write binned data to stream.
Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const
	Initialise the output stream for writing.
fileName	baseFileDir () const
	Return the base directory for output.
fileName	baseTimeDir () const
	Return the base directory for the current time value.
fileName	filePath (const fileName &fName) const
	Return the full path for the supplied file name.
virtual autoPtr< OFstream >	newFile (const fileName &fName) const
	Return autoPtr to a new file using file name.
virtual autoPtr< OFstream >	newFileAtTime (const word &name, scalar timeValue) const
	Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	newFileAtStartTime (const word &name) const
	Return autoPtr to a new file using the simulation start time.
virtual void	resetFile (const word &name)
	Reset internal file pointer to new file with new name.
Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset.
void	operator= (const writeFile &)=delete
	No copy assignment.
virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const
	Deprecated(2022-09) Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	createFile (const word &name) const
	Deprecated(2022-09) Return autoPtr to a new file using the simulation start time.

Protected Attributes
const fvMesh &	mesh_
	Reference to the mesh.
bool	decomposePatchValues_
	Decompose patch values into normal and tangential components.
bool	cumulative_
	Flag to accumulate bin data with increasing distance in binning direction.
autoPtr< coordinateSystem >	coordSysPtr_
	Local coordinate system of bins.
label	nBin_
	Total number of bins.
labelList	patchIDs_
	Indices of operand patches.
wordList	fieldNames_
	Names of operand fields.
labelList	cellZoneIDs_
	Indices of operand cell zones.
PtrList< OFstream >	filePtrs_
	List of file pointers; 1 file per field.
Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry.
const fileName	prefix_
	Prefix.
word	fileName_
	Name of file.
autoPtr< OFstream >	filePtr_
	File pointer.
label	writePrecision_
	Write precision.
bool	writeToFile_
	Flag to enable/disable writing to file.
bool	updateHeader_
	Flag to update the header, e.g. on mesh changes. Default is true.
bool	writtenHeader_
	Flag to identify whether the header has been written.
bool	useUserTime_
	Flag to use the specified user time, e.g. CA deg instead of seconds. Default = true.
scalar	startTime_
	Start time value.
string	ext_
	File extension; default = .dat.

Additional Inherited Members
Static Public Attributes inherited from writeFile
static label	addChars = 8
	Additional characters for writing.

Detailed Description

Base class for bin models to handle general bin characteristics.

Source files

Definition at line 57 of file binModel.H.

Constructor & Destructor Documentation

◆ binModel() [1/2]

binModel	(	const dictionary &	dict,
		const fvMesh &	mesh,
		const word &	outputPrefix )

Construct from components.

Definition at line 107 of file binModel.C.

References coordSysPtr_, cumulative_, decomposePatchValues_, dict, mesh, mesh_, nBin_, and writeFile::writeFile().

Referenced by binModel(), declareRunTimeSelectionTable(), operator=(), singleDirectionUniformBin::singleDirectionUniformBin(), and uniformBin::uniformBin().

Here is the call graph for this function:

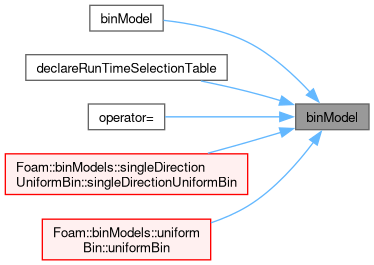

Here is the caller graph for this function:

◆ binModel() [2/2]

binModel ( const binModel & )

delete

No copy construct.

References binModel().

Here is the call graph for this function:

◆ ~binModel()

virtual ~binModel ( )

virtualdefault

Destructor.

References dict.

Member Function Documentation

◆ setCoordinateSystem()

void setCoordinateSystem	(	const dictionary &	dict,
		const word &	e3Name = word::null,
		const word &	e1Name = word::null )

protected

Set the co-ordinate system from dictionary and axes names.

Definition at line 66 of file binModel.C.

References coordSysPtr_, dict, Foam::endl(), Foam::Info, Foam::nl, and Foam::Zero.

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ decomposePatchValues() [1/3]

template<class Type>

bool decomposePatchValues	(	List< List< Type > > &	data,
		const label	bini,
		const Type &	v,
		const vector &	n ) const

protected

Helper function to decompose patch values into normal and tangential components.

Definition at line 24 of file binModelTemplates.C.

References decomposePatchValues_, and n.

Referenced by singleDirectionUniformBin::processField(), and uniformBin::processField().

Here is the caller graph for this function:

◆ writeComponents() [1/2]

template<class Type>

string writeComponents ( const word & stem ) const

protected

Helper function to construct a string description for a given type.

References os().

Referenced by singleDirectionUniformBin::writeFileHeader(), and uniformBin::writeFileHeader().

Here is the call graph for this function:

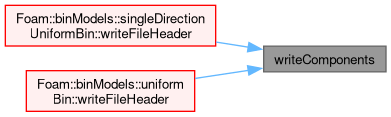

Here is the caller graph for this function:

◆ writeBinnedData()

template<class Type>

void writeBinnedData	(	List< List< Type > > &	data,
		Ostream &	os ) const

protected

Write binned data to stream.

Definition at line 55 of file binModelTemplates.C.

References cumulative_, Foam::endl(), nBin_, os(), writeFile::writeCurrentTime(), writeFile::writeValue(), and Foam::Zero.

Referenced by singleDirectionUniformBin::processField(), and uniformBin::processField().

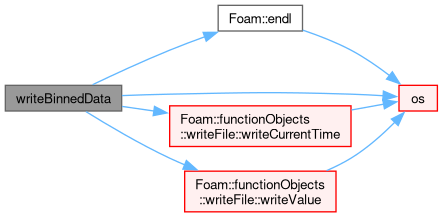

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "binModel" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		binModel	,
		dictionary	,
		(const dictionary &dict, const fvMesh &mesh, const word &outputPrefix)	,
		(dict, mesh, outputPrefix)	)
