Calculates binned data in multiple segments according to a specified Cartesian or cylindrical coordinate system. More...

#include <uniformBin.H>

Inheritance diagram for uniformBin:

[legend]

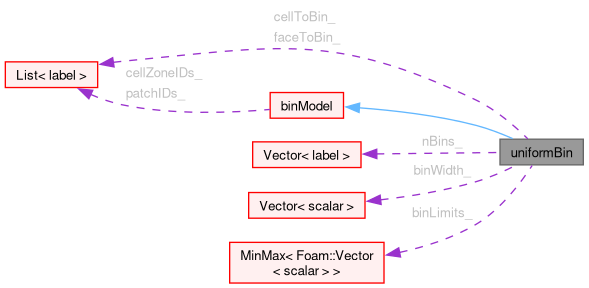

Collaboration diagram for uniformBin:

[legend]

Public Member Functions
	TypeName ("uniformBin")
	Runtime type information.
	uniformBin (const dictionary &dict, const fvMesh &mesh, const word &outputPrefix)
	Construct from components.
	uniformBin (const uniformBin &)=delete
	No copy construct.
void	operator= (const uniformBin &)=delete
	No copy assignment.
virtual	~uniformBin ()=default
	Destructor.
virtual bool	read (const dictionary &dict)
	Read the function-object dictionary.
virtual void	apply ()
	Apply bins.
virtual void	updateMesh (const mapPolyMesh &mpm)
	Update for changes of mesh.
virtual void	movePoints (const polyMesh &mesh)
	Update for changes of mesh.
Public Member Functions inherited from binModel
	TypeName ("binModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, binModel, dictionary,(const dictionary &dict, const fvMesh &mesh, const word &outputPrefix),(dict, mesh, outputPrefix))
	binModel (const dictionary &dict, const fvMesh &mesh, const word &outputPrefix)
	Construct from components.
	binModel (const binModel &)=delete
	No copy construct.
void	operator= (const binModel &)=delete
	No copy assignment.
virtual	~binModel ()=default
	Destructor.
label	nBin () const noexcept
	Return the total number of bins.
template<>
bool	decomposePatchValues (List< List< vector > > &data, const label bini, const vector &v, const vector &n) const
template<>
bool	decomposePatchValues (List< List< vector > > &data, const label bini, const vector &v, const vector &n) const
template<class Type>
Foam::string	writeComponents (const word &stem) const
Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName.
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName and read options from dictionary.
	writeFile (const writeFile &wf)
	Construct copy.
virtual	~writeFile ()=default
	Destructor.
virtual const string &	setExt (const string &ext)
	Set extension.
virtual OFstream &	file ()
	Return access to the file (if only 1).
virtual bool	writeToFile () const
	Flag to allow writing to file.
virtual bool	canWriteToFile () const
	Flag to allow writing to the file.
virtual bool	canResetFile () const
	Flag to allow resetting the file.
virtual bool	canWriteHeader () const
	Flag to allow writing the header.
virtual label	charWidth () const
	Return width of character stream output.
virtual void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream.
virtual void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream.
virtual void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream.
virtual void	writeCurrentTime (Ostream &os) const
	Write the current time to stream.
virtual void	writeBreak (Ostream &os) const
	Write a break marker to the stream.
template<class Type>
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair.
template<class Type>
void	writeValue (Ostream &os, const Type &val) const
	Write a given value to stream with the space delimiter.

Protected Member Functions
template<class Type>
void	writeFileHeader (OFstream &os) const
	Write header for an binned-data file.
virtual void	initialise ()
	Initialise bin properties.
virtual labelList	binAddr (const vectorField &d) const
	Return list of bin indices corresponding to positions given by d.
virtual void	setBinsAddressing ()
	Set/cache the bin addressing.
template<class Type>
bool	processField (const label fieldi)
	Apply the binning to field fieldi.
Protected Member Functions inherited from binModel
void	setCoordinateSystem (const dictionary &dict, const word &e3Name=word::null, const word &e1Name=word::null)
	Set the co-ordinate system from dictionary and axes names.
template<class Type>
bool	decomposePatchValues (List< List< Type > > &data, const label bini, const Type &v, const vector &n) const
	Helper function to decompose patch values into normal and tangential components.
template<class Type>
string	writeComponents (const word &stem) const
	Helper function to construct a string description for a given type.
template<class Type>
void	writeBinnedData (List< List< Type > > &data, Ostream &os) const
	Write binned data to stream.
Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const
	Initialise the output stream for writing.
fileName	baseFileDir () const
	Return the base directory for output.
fileName	baseTimeDir () const
	Return the base directory for the current time value.
fileName	filePath (const fileName &fName) const
	Return the full path for the supplied file name.
virtual autoPtr< OFstream >	newFile (const fileName &fName) const
	Return autoPtr to a new file using file name.
virtual autoPtr< OFstream >	newFileAtTime (const word &name, scalar timeValue) const
	Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	newFileAtStartTime (const word &name) const
	Return autoPtr to a new file using the simulation start time.
virtual void	resetFile (const word &name)
	Reset internal file pointer to new file with new name.
Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset.
void	operator= (const writeFile &)=delete
	No copy assignment.
virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const
	Deprecated(2022-09) Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	createFile (const word &name) const
	Deprecated(2022-09) Return autoPtr to a new file using the simulation start time.

Protected Attributes
Vector< label >	nBins_
	Numbers of bins in binning directions.
vector	binWidth_
	Equidistant bin widths in binning directions.
MinMax< vector >	binLimits_
	The geometric min/max bounds for the bins.
labelList	faceToBin_
	Face index to bin index addressing.
labelList	cellToBin_
	Cell index to bin index addressing.
Protected Attributes inherited from binModel
const fvMesh &	mesh_
	Reference to the mesh.
bool	decomposePatchValues_
	Decompose patch values into normal and tangential components.
bool	cumulative_
	Flag to accumulate bin data with increasing distance in binning direction.
autoPtr< coordinateSystem >	coordSysPtr_
	Local coordinate system of bins.
label	nBin_
	Total number of bins.
labelList	patchIDs_
	Indices of operand patches.
wordList	fieldNames_
	Names of operand fields.
labelList	cellZoneIDs_
	Indices of operand cell zones.
PtrList< OFstream >	filePtrs_
	List of file pointers; 1 file per field.
Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry.
const fileName	prefix_
	Prefix.
word	fileName_
	Name of file.
autoPtr< OFstream >	filePtr_
	File pointer.
label	writePrecision_
	Write precision.
bool	writeToFile_
	Flag to enable/disable writing to file.
bool	updateHeader_
	Flag to update the header, e.g. on mesh changes. Default is true.
bool	writtenHeader_
	Flag to identify whether the header has been written.
bool	useUserTime_
	Flag to use the specified user time, e.g. CA deg instead of seconds. Default = true.
scalar	startTime_
	Start time value.
string	ext_
	File extension; default = .dat.

Additional Inherited Members
Static Public Member Functions inherited from binModel
static autoPtr< binModel >	New (const dictionary &dict, const fvMesh &mesh, const word &outputPrefix)
	Return a reference to the selected bin model.
Static Public Attributes inherited from writeFile
static label	addChars = 8
	Additional characters for writing.

Detailed Description

Calculates binned data in multiple segments according to a specified Cartesian or cylindrical coordinate system.

Usage

Minimal example by using system/controlDict.functions:

binFieldFO
{
    // Other binField entries
    ...

    // Mandatory entries
    binModel          uniformBin;

    binData
    {
        // Mandatory entries
        nBin          <Vector<label>>;

        // Optional entries
        cumulative    <bool>;
        minMax
        {
            e1        (<scalar> <scalar>); // (min max);
            e2        (<scalar> <scalar>);
            e3        (<scalar> <scalar>);
        }
    }
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`binModel`	Type name: uniformBin	word	yes	-
`binData`	Entries of the chosen bin model	dict	yes	-
`nBin`	Numbers of bins in specified directions	Vector<label>	yes	-
`cumulative`	Flag to bin data accumulated with increasing distance in binning direction	bool	no	false
`minMax`	Min-max bounds in binning directions with respect to the coordinateSystem's origin	dict	no	-

Note

The order of bin numbering is (e1, e2, e3), where the first varies the fastest. For example, for a cylindrical bin with

$ nBin = (radial, azimuth, height) = (2, 4, 2) $

, the bin indices may look like as follows - note the counterclockwise increments:

                       |-------------------|
                       | 12 |         | 14 |
                            | 11 | 13 |
                            | 9  | 15 |
                       | 10 |         | 16 |
                       |-------------------|
                      /    /         /    /
                     /    /         /    /
                    |-------------------|
                    | 4  |         | 6  |
                         | 3  | 5  |
                         | 1  | 7  |
                    | 2  |         | 8  |
                    |-------------------|

Source files

Definition at line 157 of file uniformBin.H.

Constructor & Destructor Documentation

◆ uniformBin() [1/2]

uniformBin	(	const dictionary &	dict,
		const fvMesh &	mesh,
		const word &	outputPrefix )

Construct from components.

Definition at line 212 of file uniformBin.C.

References binLimits_, binModel::binModel(), binWidth_, dict, mesh, nBins_, read(), and Foam::Zero.

Referenced by operator=(), and uniformBin().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ uniformBin() [2/2]

uniformBin ( const uniformBin & )

delete

No copy construct.

References uniformBin().

Here is the call graph for this function:

◆ ~uniformBin()

virtual ~uniformBin ( )

virtualdefault

Destructor.

References dict, and mesh.

Member Function Documentation

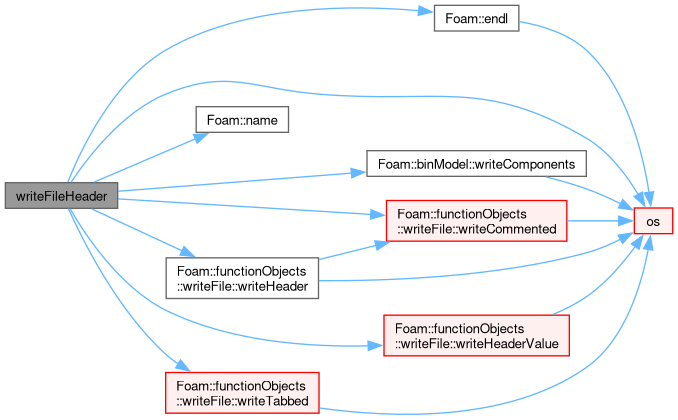

◆ writeFileHeader()

template<class Type>

void writeFileHeader ( OFstream & os ) const

protected

Write header for an binned-data file.

Definition at line 24 of file uniformBinTemplates.C.

References binLimits_, binWidth_, binModel::coordSysPtr_, binModel::decomposePatchValues_, Foam::endl(), Foam::name(), binModel::nBin_, nBins_, VectorSpace< Form, Cmpt, Ncmpts >::nComponents, Foam::nl, os(), R, Foam::tab, writeFile::writeCommented(), binModel::writeComponents(), writeFile::writeHeader(), writeFile::writeHeaderValue(), and writeFile::writeTabbed().

Referenced by processField().

Here is the call graph for this function:

Here is the caller graph for this function:

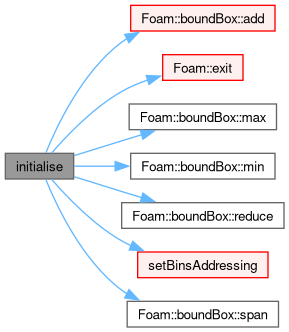

◆ initialise()

void initialise ( )

protectedvirtual

Initialise bin properties.

Compute bin widths in binning directions

Implements binModel.

Definition at line 37 of file uniformBin.C.

References boundBox::add(), binLimits_, binWidth_, binModel::cellZoneIDs_, binModel::coordSysPtr_, e, Foam::exit(), Foam::FatalError, FatalErrorInFunction, limits, boundBox::max(), binModel::mesh_, boundBox::min(), nBins_, VectorSpace< Form, Cmpt, Ncmpts >::nComponents, Foam::nl, binModel::patchIDs_, pbm, pts, boundBox::reduce(), setBinsAddressing(), and boundBox::span().

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ binAddr()

Foam::labelList binAddr ( const vectorField & d ) const

protectedvirtual

Return list of bin indices corresponding to positions given by d.

Definition at line 128 of file uniformBin.C.

References binLimits_, binWidth_, forAll, Foam::max(), Foam::min(), n, nBins_, VectorSpace< Form, Cmpt, Ncmpts >::nComponents, UList< T >::size(), and Foam::Zero.

Referenced by setBinsAddressing().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setBinsAddressing()

void setBinsAddressing ( )

protectedvirtual

Set/cache the bin addressing.

Definition at line 176 of file uniformBin.C.

References binAddr(), cellToBin_, binModel::cellZoneIDs_, binModel::coordSysPtr_, faceToBin_, forAll, binModel::mesh_, binModel::patchIDs_, and pp().

Referenced by initialise(), and movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

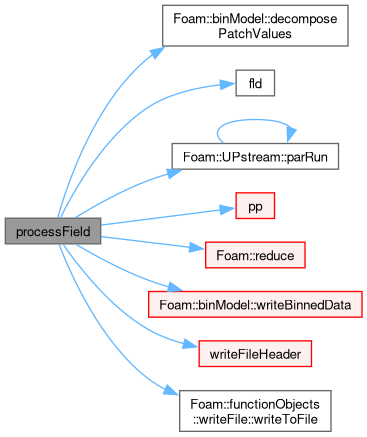

◆ processField()

template<class Type>

bool processField ( const label fieldi )

protected

Apply the binning to field fieldi.

Definition at line 81 of file uniformBinTemplates.C.

References cellToBin_, binModel::cellZoneIDs_, binModel::decomposePatchValues(), binModel::decomposePatchValues_, faceToBin_, binModel::fieldNames_, binModel::filePtrs_, fld(), forAll, binModel::mesh_, binModel::nBin_, UPstream::parRun(), binModel::patchIDs_, pp(), Foam::reduce(), binModel::writeBinnedData(), writeFileHeader(), writeFile::writeToFile(), writeFile::writtenHeader_, and Foam::Zero.

Referenced by apply().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "uniformBin" )

Runtime type information.

References dict, and mesh.

◆ operator=()

void operator= ( const uniformBin & )

delete

No copy assignment.

References uniformBin().

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read the function-object dictionary.

Reimplemented from binModel.

Definition at line 230 of file uniformBin.C.

References binLimits_, binModel::cumulative_, binModel::decomposePatchValues_, dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, dictionary::findDict(), dictionary::get(), dictionary::getOrDefault(), Foam::Info, initialise(), n, Foam::name(), binModel::nBin_, nBins_, VectorSpace< Form, Cmpt, Ncmpts >::nComponents, Foam::nl, range, and binModel::read().

Referenced by uniformBin().

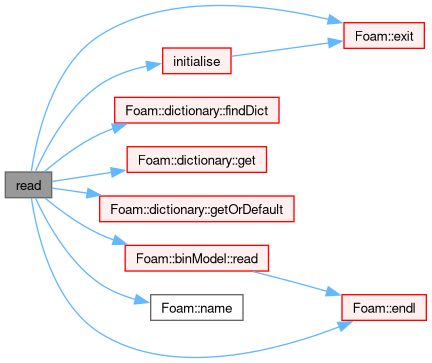

Here is the call graph for this function:

Here is the caller graph for this function:

◆ apply()

void apply ( )

virtual

Apply bins.

Implements binModel.

Definition at line 297 of file uniformBin.C.

References Foam::endl(), binModel::fieldNames_, forAll, processField(), WarningInFunction, and writeFile::writtenHeader_.

Here is the call graph for this function:

◆ updateMesh()

void updateMesh ( const mapPolyMesh & mpm )

virtual

Update for changes of mesh.

Reimplemented from binModel.

Definition at line 321 of file uniformBin.C.

◆ movePoints()

void movePoints ( const polyMesh & mesh )

virtual

Update for changes of mesh.

Reimplemented from binModel.

Definition at line 325 of file uniformBin.C.

References mesh, and setBinsAddressing().

Here is the call graph for this function:

Member Data Documentation

◆ nBins_

Vector<label> nBins_

protected

Numbers of bins in binning directions.

Definition at line 168 of file uniformBin.H.

Referenced by binAddr(), initialise(), read(), uniformBin(), and writeFileHeader().

◆ binWidth_

vector binWidth_

protected

Equidistant bin widths in binning directions.

Definition at line 173 of file uniformBin.H.

Referenced by binAddr(), initialise(), uniformBin(), and writeFileHeader().

◆ binLimits_

MinMax<vector> binLimits_

protected

The geometric min/max bounds for the bins.

Definition at line 178 of file uniformBin.H.

Referenced by binAddr(), initialise(), read(), uniformBin(), and writeFileHeader().

◆ faceToBin_

labelList faceToBin_

protected

Face index to bin index addressing.

Definition at line 183 of file uniformBin.H.

Referenced by processField(), and setBinsAddressing().

◆ cellToBin_

labelList cellToBin_

protected

Cell index to bin index addressing.

Definition at line 188 of file uniformBin.H.

Referenced by processField(), and setBinsAddressing().

The documentation for this class was generated from the following files:

src/functionObjects/field/binField/binModels/uniformBin/uniformBin.H
src/functionObjects/field/binField/binModels/uniformBin/uniformBin.C
src/functionObjects/field/binField/binModels/uniformBin/uniformBinTemplates.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ uniformBin() [1/2]

◆ uniformBin() [2/2]

◆ ~uniformBin()

Member Function Documentation

◆ writeFileHeader()

◆ initialise()

◆ binAddr()

◆ setBinsAddressing()

◆ processField()

◆ TypeName()

◆ operator=()

◆ read()

◆ apply()

◆ updateMesh()

◆ movePoints()

Member Data Documentation

◆ nBins_

◆ binWidth_

◆ binLimits_

◆ faceToBin_

◆ cellToBin_
