Reads CCM files as written by PROSTAR/STARCCM. More...

#include <ccmReader.H>

Inheritance diagram for reader:

[legend]

Collaboration diagram for reader:

[legend]

Classes
class	options

Public Member Functions
FOAM_DLL_EXPORT	reader (const fileName &file, const reader::options &opts)
	Open a file for reading.
FOAM_DLL_EXPORT	~reader ()
	Destructor (closes file).
FOAM_DLL_EXPORT const reader::options &	option () const
	Reference to the reader options.
FOAM_DLL_EXPORT autoPtr< polyMesh >	mesh (const objectRegistry &registry, const fileName &remappingDictName=fileName::null)
	Construct the polyMesh from the read geometry.
FOAM_DLL_EXPORT bool	hasGeometry ()
	Return true if file has geometry associated with it.
FOAM_DLL_EXPORT bool	hasSolution ()
	Return true if file has solutions associated with it.
FOAM_DLL_EXPORT bool	remapMeshInfo (const objectRegistry &registry, const fileName &remappingDictName=fileName::null)
	Remap cellTable and boundaryRegion according to dictionary.
FOAM_DLL_EXPORT void	writeMesh (const polyMesh &mesh, IOstreamOption streamOpt=IOstreamOption(IOstreamOption::BINARY)) const
	Write the polyMesh.
FOAM_DLL_EXPORT void	writeAux (const objectRegistry &registry) const
	Write cellTable, boundaryRegion and interface information.
FOAM_DLL_EXPORT bool	readGeometry (const scalar scaleFactor=1.0)
	Detect and read geometry if possible.
FOAM_DLL_EXPORT void	printInfo () const
	Print general information about the mesh.
FOAM_DLL_EXPORT void	clearGeom ()
	Clear out some information after obtaining a polyMesh.
const labelList &	origCellId () const noexcept
	Map to original cell Id.
const labelList &	origFaceId () const noexcept
	Map to original face Id.
const interfaceDefinitions &	interfaceDefinitionsInfo () const noexcept
	Return interface definitions map.
const boundaryRegion &	boundaryTableInfo () const noexcept
	Return boundaryRegion table.
const cellTable &	cellTableInfo () const noexcept
	Return cell table.
Map< word >	fluids () const
	Return a list of names corresponding to fluids.
Map< word >	solids () const
	Return a list of names corresponding to solids.
const solutionTable &	solutions ()
	Return table of available solutions.
const fieldTable &	fields ()
	Return table of available fields.
const fieldTable &	lagrangian ()
	Return table of available lagrangian fields.
FOAM_DLL_EXPORT tmp< scalarField >	readField (const word &solutionName, const word &fieldName, const bool wallData=false)
	Read solution and field combination.
Public Member Functions inherited from base
	base (const base &)=delete
	No copy construct.
void	operator= (const base &)=delete
	No copy assignment.
	base ()
	Default construct. Initializes the global-state.
	~base ()
	Destructor: close file.
bool	close ()
	Explicitly close the file and terminate ccmio access.

Static Public Member Functions
static FOAM_DLL_EXPORT void	warnDuplicates (const word &context, const wordList &lst)
	Warn about repeated name.

Additional Inherited Members
Protected Types inherited from STARCDCore
enum	fileHeader { HEADER_CEL , HEADER_VRT , HEADER_BND }
	Enumeration defining the file headers. More...
enum	fileExt { CEL_FILE , VRT_FILE , BND_FILE , INP_FILE }
	Enumeration defining the file extensions. More...
enum	matlType { starcdFluidType = 1 , starcdSolidType = 2 , starcdBaffleType = 3 , starcdShellType = 4 , starcdLineType = 5 , starcdPointType = 6 }
	Basic material type for STARCD/PROSTAR files. More...
enum	shapeType { starcdPoint = 1 , starcdLine = 2 , starcdShell = 3 , starcdHex = 11 , starcdPrism = 12 , starcdTet = 13 , starcdPyr = 14 , starcdPoly = 255 }
	Shape-Type for STARCD/PROSTAR files. More...
Protected Member Functions inherited from base
bool	assertNoError (const char *msg) const
	check global state for errors and die as required
bool	assertNoError (const std::string &msg) const
	check global state for errors and die as required
Protected Member Functions inherited from STARCDCore
	STARCDCore ()=default
	Construct null.
Static Protected Member Functions inherited from base
static bool	assertNoError (int err, const char *msg)
	Die with msg if there is an error.
static bool	assertNoError (int err, const std::string &msg)
	Die with msg if there is an error.
Static Protected Member Functions inherited from STARCDCore
static bool	readHeader (IFstream &is, const enum fileHeader header)
	Read header and check signature PROSTAR_(CELL\|VERTEX\|BOUNDARY).
static void	writeHeader (Ostream &os, const enum fileHeader header)
	Write header for fileType (CELL\|VERTEX\|BOUNDARY).
static fileName	starFileName (const fileName &baseName, const enum fileExt ext)
	Resolve base file-name for the given file-type.
static void	removeFiles (const fileName &baseName)
	Remove existing PROSTAR files for the given base file-name.
static label	readPoints (IFstream &is, List< point > &points, List< label > &ids)
	Read points from a (.vrt) file, return the max prostar id used.
static void	writePoints (Ostream &os, const UList< point > &points, const scalar scaleFactor=1.0)
	Write header and points to (.vrt) file, optionally with scaling.
Protected Attributes inherited from base
std::unique_ptr< ccmGlobalState >	globalState_
	Maintain overall global states (error, root-node).
Static Protected Attributes inherited from STARCDCore
static const Map< FixedList< int, 6 > >	starToFoamFaceAddr
	Face addressing from PROSTAR faces to OpenFOAM faces.
static const Map< FixedList< int, 6 > >	foamToStarFaceAddr
	Face addressing from OpenFOAM faces to PROSTAR faces.
static const char *const	defaultBoundaryName
	The name for default (unassigned) boundaries.
static const char *const	defaultSolidBoundaryName
	The name we have chosen for default (unassigned) solid boundaries.

Detailed Description

Reads CCM files as written by PROSTAR/STARCCM.

arbitrary polyhedral meshs
writes interfaces (baffles) to constant/polymesh/interfaces
experimental handling of monitoring (internal) boundaries
does not handle cyclics. Use createPatch to recreate these
does patch names only if they are in the problem description
reads cell and face solution data
reads Lagrangian data

The Default_Boundary_Region (region 0) is a special region that serves two purposes:

it contains all wall and baffle boundaries that have not otherwise been assigned.
it holds the outer bounds of flow domains (fluid/porous/solid)

The CCM node Meshes/FaceBasedTopology/Cells/Interfaces holds the mapping of the corresponding mesh faces, which can be used to merge these internal boundaries.

If solid cells exist, there are three possible courses of action:

Remove all solid cells for subsequent flow calculations. This is the default.
Treat solid cells like fluid cells, but convert the corresponding Default_Boundary_Region to Default_Boundary_Solid for easier identification. This treatment is useful for visualization purposes.
Move solid cells to a separate mesh region. This would be useful for conjugate heat transfer, but is not implemented.

Files

The constant/remapping file is an IOdictionary that is READ_IF_PRESENT and can be used to remap certain information. eg,

    // rename/combine cellTable entries
    //   newName ( listOldNames );
    cellTable
    {
        fluid ( inletRegion outletRegion );
        cat1  ( CAT1 "cat1_(Back|Front|Gamma)" );
    }

    // rename boundary regions
    //   newName oldName;
    boundaryRegion
    {
        inlet_4  inlet_1;
        inlet_5  inlet_2;
        inlet_6  inlet_3;
    }

The constant/boundaryRegion file is an IOMap<dictionary> that is written. It contains the boundary type and names. eg,

    (
        0
        {
            BoundaryType    wall;
            Label           Default_Boundary_Region;
        }
        1
        {
            BoundaryType    inlet;
            Label           inlet_1;
        }
        ...

        4
        {
            BoundaryType    pressure;
            Label           outlet;
        }
    )

The constant/cellTable file is an IOMap<dictionary> that is written. It contains the cellTable information. eg,

    (
        1
        {
            Label           inletRegion;
            MaterialType    fluid;
            MaterialId      1;
        }
        2
        {
            Label           cat1;
            MaterialType    fluid;
            MaterialId      1;
            PorosityId      1;
        }
        3
        {
            Label           outletRegion;
            MaterialType    fluid;
            MaterialId      1;
        }
    )

Note

this class is still under development

any/all of the class names and members may change

Source files

Definition at line 179 of file ccmReader.H.

Constructor & Destructor Documentation

◆ reader()

reader	(	const fileName &	file,
		const reader::options &	opts )

Open a file for reading.

Definition at line 643 of file ccmReader.C.

References base::assertNoError(), base::base(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, base::globalState_, Foam::isFile(), and option().

Here is the call graph for this function:

◆ ~reader()

~reader ( )

Destructor (closes file).

Definition at line 685 of file ccmReader.C.

References base::close().

Here is the call graph for this function:

Member Function Documentation

◆ warnDuplicates()

void warnDuplicates	(	const word &	context,
		const wordList &	lst )

static

Warn about repeated name.

Definition at line 63 of file ccmReaderAux.C.

References Foam::endl(), HashTable< T, Key, Hash >::find(), forAllConstIters, Foam::Info, HashTable< T, Key, Hash >::insert(), Foam::nl, and UList< T >::size().

Referenced by mesh().

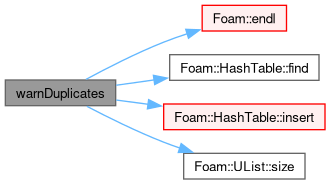

Here is the call graph for this function:

Here is the caller graph for this function:

◆ option()

const Foam::ccm::reader::options & option ( ) const

Reference to the reader options.

Definition at line 693 of file ccmReader.C.

Referenced by reader(), and readField().

Here is the caller graph for this function:

◆ mesh()

Foam::autoPtr< Foam::polyMesh > mesh	(	const objectRegistry &	registry,
		const fileName &	remappingDictName = fileName::null )

Construct the polyMesh from the read geometry.

provide optional remapping dictionary

Definition at line 2608 of file ccmReaderMesh.C.

References IOobjectOption::AUTO_WRITE, clearGeom(), polyMesh::defaultRegion, mesh(), meshPtr, autoPtr< T >::New(), IOobjectOption::NO_READ, readGeometry(), remapMeshInfo(), and warnDuplicates().

Referenced by mesh(), and writeMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hasGeometry()

bool hasGeometry ( )

Return true if file has geometry associated with it.

Definition at line 557 of file ccmReader.C.

◆ hasSolution()

bool hasSolution ( )

Return true if file has solutions associated with it.

Definition at line 564 of file ccmReader.C.

◆ remapMeshInfo()

bool remapMeshInfo	(	const objectRegistry &	registry,
		const fileName &	remappingDictName = fileName::null )

Remap cellTable and boundaryRegion according to dictionary.

Definition at line 585 of file ccmReader.C.

References dictionary, DLListBase::empty(), dictionary::findDict(), IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, and IOobjectOption::READ_IF_PRESENT.

Referenced by mesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeMesh()

void writeMesh	(	const polyMesh &	mesh,
		IOstreamOption	streamOpt = IOstreamOption(IOstreamOption::BINARY) ) const

Write the polyMesh.

Definition at line 571 of file ccmReader.C.

References Foam::endl(), Foam::Info, mesh(), and writeAux().

Here is the call graph for this function:

◆ writeAux()

void writeAux ( const objectRegistry & registry ) const

Write cellTable, boundaryRegion and interface information.

Definition at line 175 of file ccmReaderAux.C.

References IOstreamOption::ASCII, and IOstreamOption::BINARY.

Referenced by writeMesh().

Here is the caller graph for this function:

◆ readGeometry()

bool readGeometry ( const scalar scaleFactor = 1.0 )

Detect and read geometry if possible.

Definition at line 528 of file ccmReader.C.

Referenced by mesh().

Here is the caller graph for this function:

◆ printInfo()

void printInfo ( ) const

Print general information about the mesh.

Definition at line 515 of file ccmReader.C.

References Foam::endl(), Foam::Info, and Foam::nl.

Here is the call graph for this function:

◆ clearGeom()

void clearGeom ( )

Clear out some information after obtaining a polyMesh.

Definition at line 2588 of file ccmReaderMesh.C.

Referenced by mesh().

Here is the caller graph for this function:

◆ origCellId()

const labelList & origCellId ( ) const

inlinenoexcept

Map to original cell Id.

Definition at line 671 of file ccmReader.H.

References Foam::noexcept.

◆ origFaceId()

const labelList & origFaceId ( ) const

inlinenoexcept

Map to original face Id.

Definition at line 679 of file ccmReader.H.

References Foam::noexcept.

◆ interfaceDefinitionsInfo()

const interfaceDefinitions & interfaceDefinitionsInfo ( ) const

inlinenoexcept

Return interface definitions map.

Definition at line 687 of file ccmReader.H.

References Foam::noexcept.

◆ boundaryTableInfo()

const boundaryRegion & boundaryTableInfo ( ) const

inlinenoexcept

Return boundaryRegion table.

Definition at line 695 of file ccmReader.H.

References Foam::noexcept.

◆ cellTableInfo()

const cellTable & cellTableInfo ( ) const

inlinenoexcept

Return cell table.

Definition at line 703 of file ccmReader.H.

References Foam::noexcept.

◆ fluids()

Map< word > fluids ( ) const

inline

Return a list of names corresponding to fluids.

Definition at line 711 of file ccmReader.H.

◆ solids()

Map< word > solids ( ) const

inline

Return a list of names corresponding to solids.

Definition at line 719 of file ccmReader.H.

◆ solutions()

const solutionTable & solutions ( )

inline

Return table of available solutions.

Definition at line 727 of file ccmReader.H.

◆ fields()

const fieldTable & fields ( )

inline

Return table of available fields.

Definition at line 736 of file ccmReader.H.

◆ lagrangian()

const fieldTable & lagrangian ( )

inline

Return table of available lagrangian fields.

Definition at line 745 of file ccmReader.H.

◆ readField()

Foam::tmp< Foam::scalarField > readField	(	const word &	solutionName,
		const word &	fieldName,
		const bool	wallData = false )

Read solution and field combination.

Definition at line 352 of file ccmReaderSolution.C.

References base::assertNoError(), cellId, UList< T >::data(), forAll, base::globalState_, n, tmp< T >::New(), option(), and List< T >::setSize().

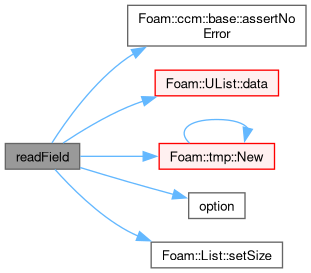

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/conversion/ccm/reader/ccmReader.H
src/conversion/ccm/reader/ccmReader.C
src/conversion/ccm/reader/ccmReaderAux.C
src/conversion/ccm/reader/ccmReaderMesh.C
src/conversion/ccm/reader/ccmReaderSolution.C

Classes

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ reader()

◆ ~reader()

Member Function Documentation

◆ warnDuplicates()

◆ option()

◆ mesh()

◆ hasGeometry()

◆ hasSolution()

◆ remapMeshInfo()

◆ writeMesh()

◆ writeAux()

◆ readGeometry()

◆ printInfo()

◆ clearGeom()

◆ origCellId()

◆ origFaceId()

◆ interfaceDefinitionsInfo()

◆ boundaryTableInfo()

◆ cellTableInfo()

◆ fluids()

◆ solids()

◆ solutions()

◆ fields()

◆ lagrangian()

◆ readField()
