constantAlphaContactAngleFvPatchScalarField Class Reference

A constant alphaContactAngle scalar boundary condition. More...

#include <constantAlphaContactAngleFvPatchScalarField.H>

Inheritance diagram for constantAlphaContactAngleFvPatchScalarField:
Inheritance graph
[legend]
Collaboration diagram for constantAlphaContactAngleFvPatchScalarField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("constantAlphaContactAngle")
 Runtime type information.
 constantAlphaContactAngleFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 constantAlphaContactAngleFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 constantAlphaContactAngleFvPatchScalarField (const constantAlphaContactAngleFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given.
 constantAlphaContactAngleFvPatchScalarField (const constantAlphaContactAngleFvPatchScalarField &)
 Construct as copy.
 constantAlphaContactAngleFvPatchScalarField (const constantAlphaContactAngleFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > > clone () const
 Return a clone.
virtual tmp< fvPatchField< scalar > > clone (const DimensionedField< scalar, volMesh > &iF) const
 Clone with an internal field reference.
virtual tmp< scalarField > theta (const fvPatchVectorField &Up, const fvsPatchVectorField &nHat) const
 Return the equilibrium contact-angle.
virtual void write (Ostream &) const
 Write.
Public Member Functions inherited from alphaContactAngleTwoPhaseFvPatchScalarField
 alphaContactAngleTwoPhaseFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 alphaContactAngleTwoPhaseFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping onto a new patch.
 alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &)
 Construct as copy.
 alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual void evaluate (const Pstream::commsTypes commsType=Pstream::commsTypes::buffered)
 Evaluate the patch field.

Additional Inherited Members

Public Types inherited from alphaContactAngleTwoPhaseFvPatchScalarField
enum  limitControls { lcNone , lcGradient , lcZeroGradient , lcAlpha }
 Alpha limit options. More...
Public Attributes inherited from alphaContactAngleTwoPhaseFvPatchScalarField
limitControls limit_
Static Public Attributes inherited from alphaContactAngleTwoPhaseFvPatchScalarField
static const Enum< limitControls > limitControlNames_

Detailed Description

A constant alphaContactAngle scalar boundary condition.

See also
Foam::alphaContactAngleTwoPhaseFvPatchScalarField Foam::temperatureDependentAlphaContactAngleFvPatchScalarField
Source files

Definition at line 51 of file constantAlphaContactAngleFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ constantAlphaContactAngleFvPatchScalarField() [1/5]

constantAlphaContactAngleFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF )

Construct from patch and internal field.

Definition at line 29 of file constantAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), and p.

Referenced by constantAlphaContactAngleFvPatchScalarField(), constantAlphaContactAngleFvPatchScalarField(), constantAlphaContactAngleFvPatchScalarField(), and TypeName().

Here is the call graph for this function:

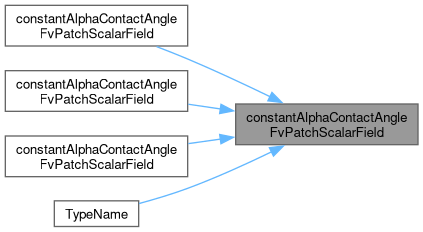

Here is the caller graph for this function:

◆ constantAlphaContactAngleFvPatchScalarField() [2/5]

constantAlphaContactAngleFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 41 of file constantAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), dict, alphaContactAngleTwoPhaseFvPatchScalarField::evaluate(), and p.

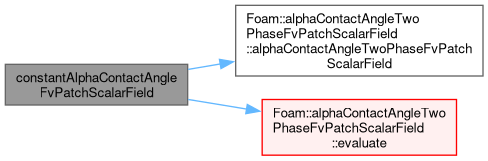

Here is the call graph for this function:

◆ constantAlphaContactAngleFvPatchScalarField() [3/5]

constantAlphaContactAngleFvPatchScalarField ( const constantAlphaContactAngleFvPatchScalarField & gcpsf,
const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given.

constantAlphaContactAngleFvPatchScalarField onto a new patch

Definition at line 56 of file constantAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), constantAlphaContactAngleFvPatchScalarField(), and p.

Here is the call graph for this function:

◆ constantAlphaContactAngleFvPatchScalarField() [4/5]

constantAlphaContactAngleFvPatchScalarField ( const constantAlphaContactAngleFvPatchScalarField & gcpsf)

Construct as copy.

Definition at line 70 of file constantAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), and constantAlphaContactAngleFvPatchScalarField().

Here is the call graph for this function:

◆ constantAlphaContactAngleFvPatchScalarField() [5/5]

constantAlphaContactAngleFvPatchScalarField ( const constantAlphaContactAngleFvPatchScalarField & gcpsf,
const DimensionedField< scalar, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 81 of file constantAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), and constantAlphaContactAngleFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "constantAlphaContactAngle" )

Runtime type information.

References constantAlphaContactAngleFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 126 of file constantAlphaContactAngleFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 134 of file constantAlphaContactAngleFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ theta()

Foam::tmp< Foam::scalarField > theta ( const fvPatchVectorField & Up,
const fvsPatchVectorField & nHat ) const
virtual

Return the equilibrium contact-angle.

Implements alphaContactAngleTwoPhaseFvPatchScalarField.

Definition at line 96 of file constantAlphaContactAngleFvPatchScalarField.C.

References tmp< T >::New().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Reimplemented from alphaContactAngleTwoPhaseFvPatchScalarField.

Definition at line 106 of file constantAlphaContactAngleFvPatchScalarField.C.

References os(), alphaContactAngleTwoPhaseFvPatchScalarField::write(), and fvPatchField< Type >::writeValueEntry().

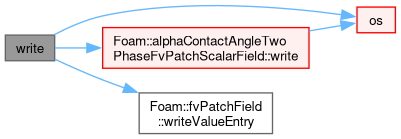

Here is the call graph for this function:
The documentation for this class was generated from the following files:
