Abstract base class for two-phase alphaContactAngle boundary conditions. More...

#include <alphaContactAngleTwoPhaseFvPatchScalarField.H>

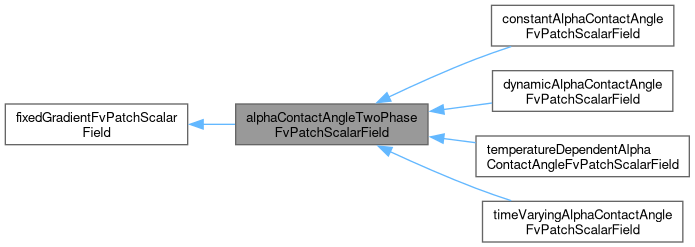

Inheritance diagram for alphaContactAngleTwoPhaseFvPatchScalarField:

[legend]

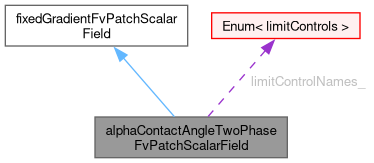

Collaboration diagram for alphaContactAngleTwoPhaseFvPatchScalarField:

[legend]

Public Types
enum	limitControls { lcNone , lcGradient , lcZeroGradient , lcAlpha }
	Alpha limit options. More...

Public Member Functions
	alphaContactAngleTwoPhaseFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	alphaContactAngleTwoPhaseFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping onto a new patch.
	alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &)
	Construct as copy.
	alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< scalarField >	theta (const fvPatchVectorField &Up, const fvsPatchVectorField &nHat) const =0
	Return the contact angle.
virtual void	evaluate (const Pstream::commsTypes commsType=Pstream::commsTypes::buffered)
	Evaluate the patch field.
virtual void	write (Ostream &os) const
	Write.

Public Attributes
limitControls	limit_

Static Public Attributes
static const Enum< limitControls >	limitControlNames_

Detailed Description

Abstract base class for two-phase alphaContactAngle boundary conditions.

Derived classes must implement the theta() function which returns the wall contact angle field.

The essential entry "limit" controls the gradient of alpha1 on the wall:

none - Calculate the gradient from the contact-angle without limiter
gradient - Limit the wall-gradient such that alpha1 remains bounded on the wall
alpha - Bound the calculated alpha1 on the wall
zeroGradient - Set the gradient of alpha1 to 0 on the wall, i.e. reproduce previous behaviour, the pressure BCs can be left as before.

Note that if any of the first three options are used the boundary condition on p_rgh must set to guarantee that the flux is corrected to be zero at the wall e.g.:

<patchName>
{
    type            alphaContactAngle;
    limit           none;
}

Source files

Definition at line 74 of file alphaContactAngleTwoPhaseFvPatchScalarField.H.

Member Enumeration Documentation

◆ limitControls

enum limitControls

Alpha limit options.

Enumerator
lcNone
lcGradient
lcZeroGradient
lcAlpha

Definition at line 85 of file alphaContactAngleTwoPhaseFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ alphaContactAngleTwoPhaseFvPatchScalarField() [1/5]

alphaContactAngleTwoPhaseFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 43 of file alphaContactAngleTwoPhaseFvPatchScalarField.C.

References lcZeroGradient, limit_, and p.

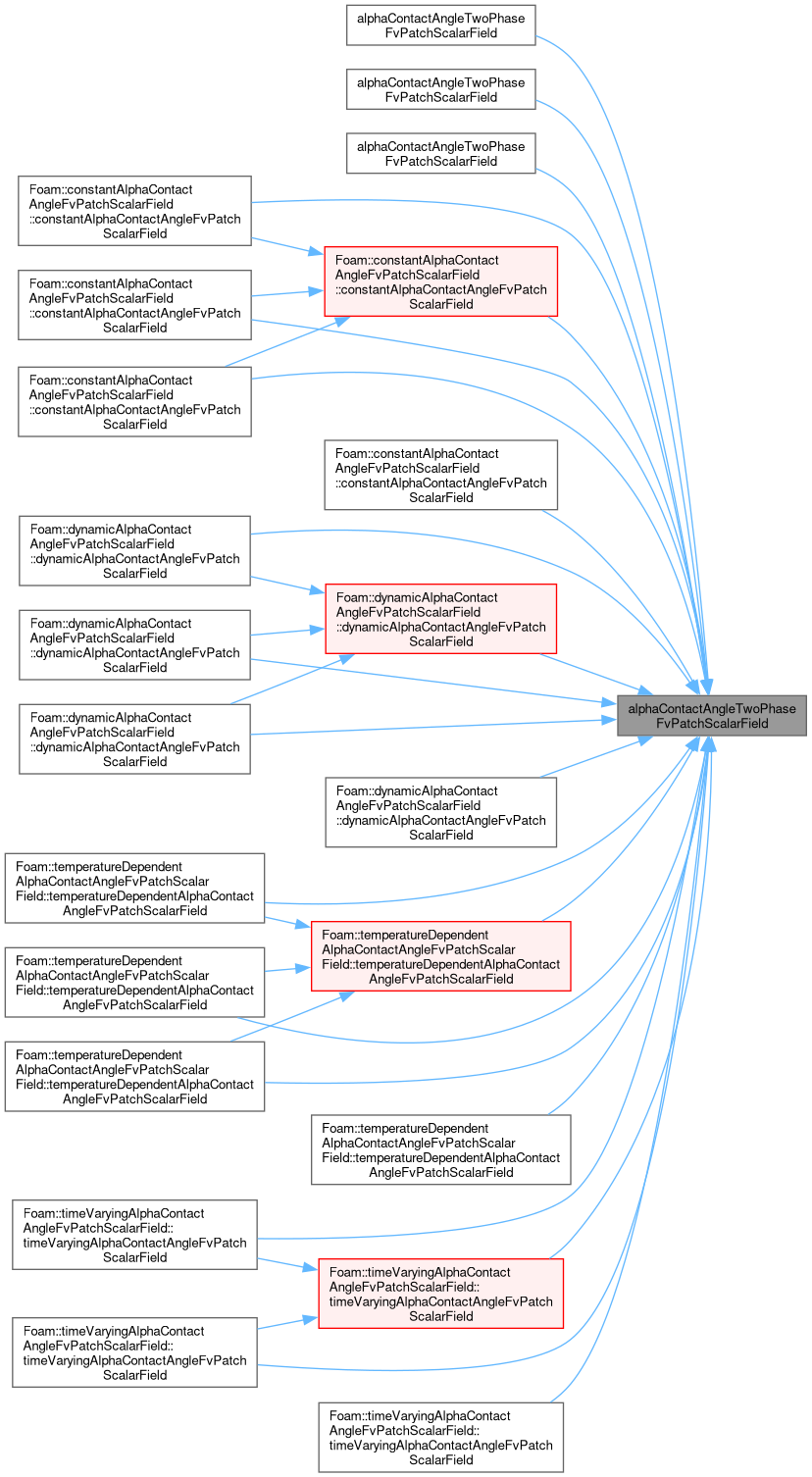

Here is the caller graph for this function:

◆ alphaContactAngleTwoPhaseFvPatchScalarField() [2/5]

alphaContactAngleTwoPhaseFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 55 of file alphaContactAngleTwoPhaseFvPatchScalarField.C.

References dict, limit_, limitControlNames_, p, and Foam::Zero.

◆ alphaContactAngleTwoPhaseFvPatchScalarField() [3/5]

alphaContactAngleTwoPhaseFvPatchScalarField	(	const alphaContactAngleTwoPhaseFvPatchScalarField &	acpsf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping onto a new patch.

Definition at line 80 of file alphaContactAngleTwoPhaseFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField(), limit_, and p.

Here is the call graph for this function:

◆ alphaContactAngleTwoPhaseFvPatchScalarField() [4/5]

alphaContactAngleTwoPhaseFvPatchScalarField ( const alphaContactAngleTwoPhaseFvPatchScalarField & acpsf )

Construct as copy.

Definition at line 94 of file alphaContactAngleTwoPhaseFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField(), and limit_.

Here is the call graph for this function:

◆ alphaContactAngleTwoPhaseFvPatchScalarField() [5/5]

alphaContactAngleTwoPhaseFvPatchScalarField	(	const alphaContactAngleTwoPhaseFvPatchScalarField &	acpsf,
		const DimensionedField< scalar, volMesh > &	iF )
