Cyclic patch for Arbitrarily Coupled Mesh Interface (ACMI). More...

#include <cyclicACMIFvPatch.H>

Inheritance diagram for cyclicACMIFvPatch:

[legend]

Collaboration diagram for cyclicACMIFvPatch:

[legend]

Public Member Functions
	TypeName (cyclicACMIPolyPatch::typeName_())
	Runtime type information.
	cyclicACMIFvPatch (const polyPatch &patch, const fvBoundaryMesh &bm)
	Construct from polyPatch.
const cyclicACMIPolyPatch &	cyclicACMIPatch () const
	Return local reference cast into the cyclic patch.
virtual label	neighbPatchID () const
	Return neighbour.
virtual bool	owner () const
virtual const cyclicACMIFvPatch &	neighbPatch () const
	Return neighbour fvPatch.
virtual label	nonOverlapPatchID () const
	Return neighbour.
virtual const fvPatch &	nonOverlapPatch () const
	Return non-overlapping fvPatch.
virtual const AMIPatchToPatchInterpolation &	AMI () const
	Return a reference to the AMI interpolator.
virtual bool	parallel () const
	Are the cyclic planes parallel.
virtual const tensorField &	forwardT () const
	Return face transformation tensor.
virtual const tensorField &	reverseT () const
	Return neighbour-cell transformation tensor.

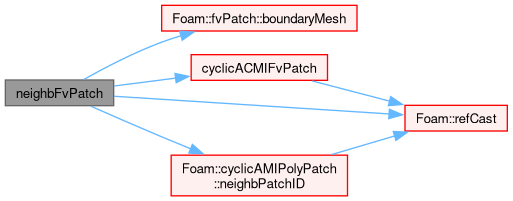

const cyclicACMIFvPatch &	neighbFvPatch () const
virtual bool	coupled () const
	Return true if this patch is coupled.
virtual tmp< vectorField >	delta () const
	Return delta (P to N) vectors across coupled patch.
template<class Type>
tmp< Field< Type > >	interpolate (const Field< Type > &fld) const
	Interpolate (make sure to have uptodate areas).
template<class Type>
tmp< Field< Type > >	interpolate (const tmp< Field< Type > > &tfld) const
	Interpolate (make sure to have up-to-date areas).
template<class Type>
void	initInterpolate (const Field< Type > &fld, labelRange &sendRequests, labelRange &recvRequests, PtrList< List< Type > > &sendBuffers, PtrList< List< Type > > &recvBuffers, labelRange &sendRequests1, labelRange &recvRequests1, PtrList< List< Type > > &sendBuffers1, PtrList< List< Type > > &recvBuffers1) const
template<class Type>
tmp< Field< Type > >	interpolate (const Field< Type > &localFld, const labelRange &requests, const PtrList< List< Type > > &recvBuffers, const labelRange &requests1, const PtrList< List< Type > > &recvBuffers1) const

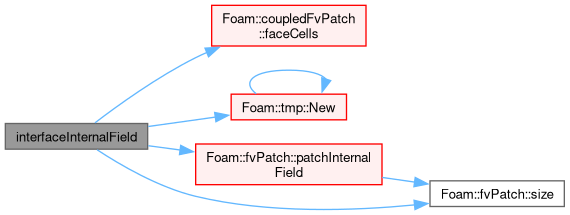

virtual tmp< labelField >	interfaceInternalField (const labelUList &internalData) const
	Return the values of the given internal data adjacent to the interface as a field.
virtual tmp< labelField >	interfaceInternalField (const labelUList &internalData, const labelUList &faceCells) const
	Return the values of the given internal data adjacent to the interface as a field using a mapping faceCell.
virtual tmp< labelField >	internalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &internalData) const
	Return neighbour field.
Public Member Functions inherited from coupledFvPatch
	TypeNameNoDebug (coupledPolyPatch::typeName_())
	Runtime type information.
	coupledFvPatch (const polyPatch &patch, const fvBoundaryMesh &bm)
	Construct from polyPatch.
virtual	~coupledFvPatch ()=default
	Destructor.
virtual const labelUList &	faceCells () const
	Return faceCell addressing.
virtual void	initInternalFieldTransfer (const Pstream::commsTypes commsType, labelUList &iF) const
	Initialise neighbour field transfer.
virtual void	initInternalFieldTransfer (const Pstream::commsTypes commsType, labelUList &iF, const labelUList &faceCell) const
	Initialise neighbour field transfer using faceCells map.
virtual void	initInternalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF) const
	Inherit initInternalFieldTransfer from lduInterface.
virtual void	initInternalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF, const labelUList &faceCells) const
	Inherit initInternalFieldTransfer from lduInterface.
Public Member Functions inherited from lduInterface
	TypeNameNoDebug ("lduInterface")
	Runtime type information.
	lduInterface () noexcept=default
	Default construct.
virtual	~lduInterface ()=default
	Destructor.
Public Member Functions inherited from fvPatch
virtual void	makeDeltaCoeffs (scalarField &) const
	Correct patch deltaCoeffs.
virtual void	makeNonOrthoDeltaCoeffs (scalarField &) const
	Correct patch non-ortho deltaCoeffs.
virtual void	makeNonOrthoCorrVectors (vectorField &) const
	Correct patch non-ortho correction vectors.
virtual void	initMovePoints ()
	Initialise the patches for moving points.
	TypeName (polyPatch::typeName_())
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, fvPatch, polyPatch,(const polyPatch &patch, const fvBoundaryMesh &bm),(patch, bm))
	fvPatch (const polyPatch &, const fvBoundaryMesh &)
	Construct from polyPatch and fvBoundaryMesh.
virtual	~fvPatch ()
	Destructor.
const polyPatch &	patch () const noexcept
	Return the polyPatch.
virtual const word &	name () const
	Return name.
label	index () const noexcept
	The index of this patch in the boundary mesh.
label	start () const noexcept
	The patch start within the polyMesh face list.
label	offset () const noexcept
	The offset of this patch within the boundary face list.
virtual label	size () const
	Patch size is the number of faces, but can be overloaded.
const fvBoundaryMesh &	boundaryMesh () const noexcept
	Return boundaryMesh reference.
template<class T>
const List< T >::subList	patchSlice (const UList< T > &values) const
	This patch slice from the complete list, which has size mesh::nFaces(), using the virtual patch size.
template<class T>
const List< T >::subList	boundarySlice (const UList< T > &values) const
	This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the virtual patch size.
const vectorField &	Cf () const
	Return face centres.
tmp< vectorField >	Cn () const
	Return neighbour cell centres.
const vectorField &	Sf () const
	Return face area vectors, like the fvMesh::Sf() method.
const scalarField &	magSf () const
	Return face area magnitudes, like the fvMesh::magSf() method.
tmp< vectorField >	unitSf () const
	Return face unit normals, like the fvMesh::unitSf() method. Same as nf().
tmp< vectorField >	nf () const
	Return face unit normals, like the fvMesh::unitSf() method Same as unitSf().
const scalarField &	weights () const
	Return patch weighting factors.
const scalarField &	deltaCoeffs () const
	Return the face - cell distance coefficient except for coupled patches for which the cell-centre to coupled-cell-centre distance coefficient is returned.
template<class Type>
void	patchInternalField (const UList< Type > &internalData, const labelUList &addressing, UList< Type > &pfld) const
	Extract internal field next to patch using specified addressing.
template<class Type>
void	patchInternalField (const UList< Type > &internalData, UList< Type > &pfld) const
	Extract internal field next to patch as patch field using faceCells() mapping.
template<class Type>
tmp< Field< Type > >	patchInternalField (const UList< Type > &internalData) const
	Return given internal field next to patch as patch field using faceCells() mapping.
template<class GeometricField, class AnyType = bool>
const GeometricField::Patch &	patchField (const GeometricField &gf) const
	Return the patch field of the GeometricField corresponding to this patch.
template<class GeometricField, class AnyType = bool>
const GeometricField::Patch &	lookupPatchField (const word &name) const
	Lookup the named field from the local registry and return the patch field corresponding to this patch.
template<class GeometricField>
const GeometricField::Patch *	cfindPatchField (const word &name) const
	Find the named field (if any) from the local registry and return the patch field corresponding to this patch.
template<class Type>
Foam::tmp< Foam::Field< Type > >	patchInternalField (const UList< Type > &internalData) const
Public Member Functions inherited from cyclicACMILduInterface
	TypeNameNoDebug ("cyclicACMILduInterface")
	Runtime type information.
	cyclicACMILduInterface () noexcept=default
	Default construct.
virtual	~cyclicACMILduInterface ()=default
	Destructor.
Public Member Functions inherited from cyclicAMILduInterface
	TypeNameNoDebug ("cyclicAMILduInterface")
	Runtime type information.
	cyclicAMILduInterface () noexcept=default
	Default construct.
virtual	~cyclicAMILduInterface ()=default
	Destructor.

Protected Member Functions
virtual bool	updateAreas () const
	Update the AMI and patch areas. Return true if anything updated.
void	resetPatchAreas (const fvPatch &fvp) const
	Helper function to reset the FV patch areas from the primitive patch.
void	makeWeights (scalarField &) const
	Make patch weighting factors.
virtual void	movePoints ()
	Correct patches after moving points.

Additional Inherited Members
Public Types inherited from fvPatch
typedef fvBoundaryMesh	BoundaryMesh
	The boundary type associated with the patch.
Static Public Member Functions inherited from fvPatch
static autoPtr< fvPatch >	New (const polyPatch &, const fvBoundaryMesh &)
	Return a pointer to a new patch created on freestore from polyPatch.
static const fvPatch &	lookupPatch (const polyPatch &p)
	Lookup the polyPatch index on corresponding fvMesh.
static bool	constraintType (const word &patchType)
	Return true if the given type is a constraint type.
static wordList	constraintTypes ()
	Return a list of all the constraint patch types.

Detailed Description

Cyclic patch for Arbitrarily Coupled Mesh Interface (ACMI).

Source files

Definition at line 50 of file cyclicACMIFvPatch.H.

Constructor & Destructor Documentation

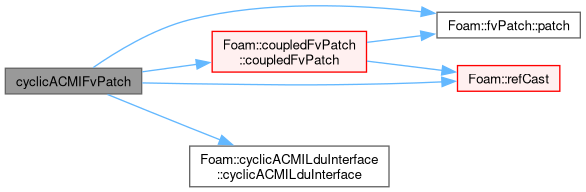

◆ cyclicACMIFvPatch()

cyclicACMIFvPatch	(	const polyPatch &	patch,
		const fvBoundaryMesh &	bm )

Construct from polyPatch.

Definition at line 135 of file cyclicACMIFvPatch.C.

References coupledFvPatch::coupledFvPatch(), cyclicACMILduInterface::cyclicACMILduInterface(), Foam::dimTime, mesh, fvPatch::patch(), and Foam::refCast().

Referenced by delta(), makeWeights(), movePoints(), neighbFvPatch(), neighbPatch(), and updateAreas().

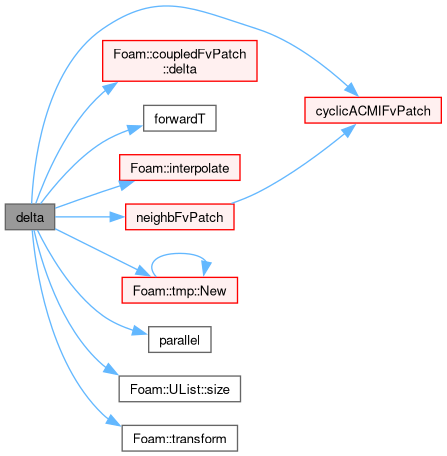

Here is the call graph for this function:

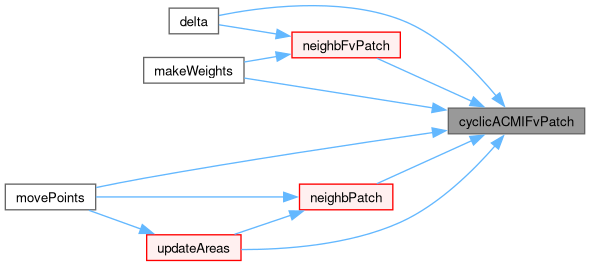

Here is the caller graph for this function:

Member Function Documentation

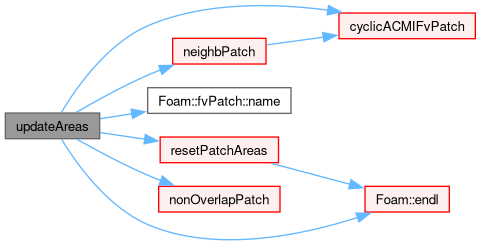

◆ updateAreas()

bool updateAreas ( ) const

protectedvirtual

Update the AMI and patch areas. Return true if anything updated.

Definition at line 39 of file cyclicACMIFvPatch.C.

References cyclicACMIFvPatch(), Foam::endl(), fvPatch::name(), neighbPatch(), nonOverlapPatch(), Foam::Pout, and resetPatchAreas().

Referenced by initInterpolate(), interpolate(), and movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

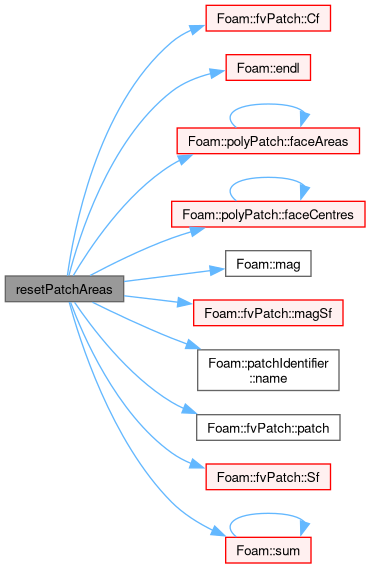

◆ resetPatchAreas()

void resetPatchAreas ( const fvPatch & fvp ) const

protected

Helper function to reset the FV patch areas from the primitive patch.

Definition at line 76 of file cyclicACMIFvPatch.C.

References fvPatch::Cf(), DebugPout, Foam::endl(), polyPatch::faceAreas(), polyPatch::faceCentres(), Foam::mag(), fvPatch::magSf(), patchIdentifier::name(), fvPatch::patch(), fvPatch::Sf(), and Foam::sum().

Referenced by updateAreas().

Here is the call graph for this function:

Here is the caller graph for this function:

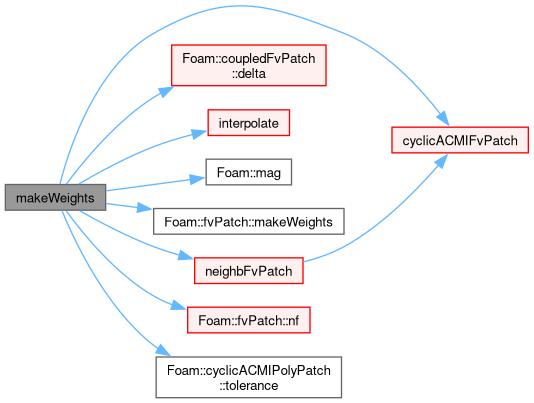

◆ makeWeights()

void makeWeights ( scalarField & w ) const

protectedvirtual

Make patch weighting factors.

Implements coupledFvPatch.

Definition at line 87 of file cyclicACMIFvPatch.C.

References coupled, cyclicACMIFvPatch(), coupledFvPatch::delta(), forAll, interpolate(), Foam::mag(), fvPatch::makeWeights(), neighbFvPatch(), fvPatch::nf(), and cyclicACMIPolyPatch::tolerance().

Here is the call graph for this function:

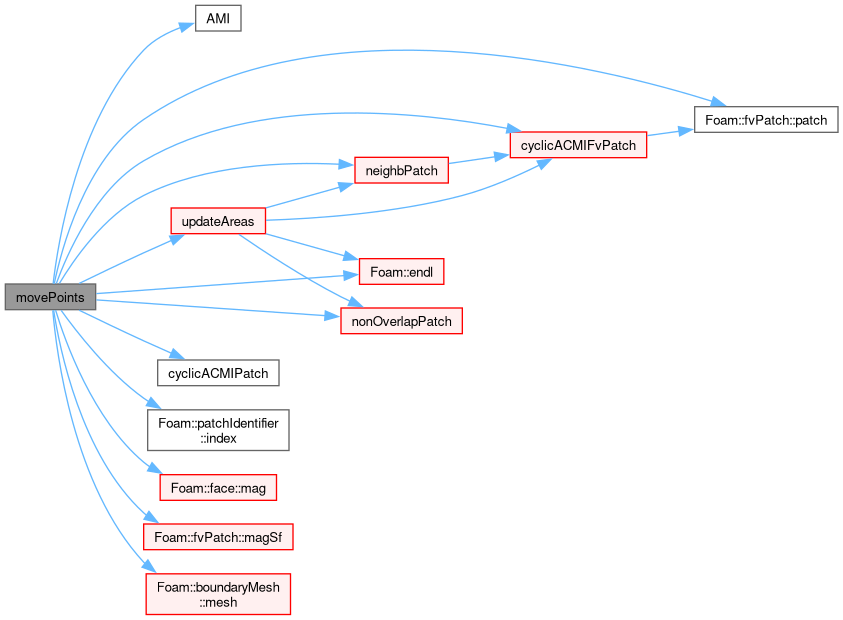

◆ movePoints()

void movePoints ( )

protectedvirtual

Correct patches after moving points.

Reimplemented from fvPatch.

Definition at line 307 of file cyclicACMIFvPatch.C.

References AMI(), cyclicACMIFvPatch(), cyclicACMIPatch(), Foam::endl(), forAll, patchIdentifier::index(), face::mag(), fvPatch::magSf(), boundaryMesh::mesh(), mesh, name, neighbPatch(), nonOverlapPatch(), fvPatch::patch(), points, Foam::Pout, and updateAreas().

Here is the call graph for this function:

◆ TypeName()

TypeName ( cyclicACMIPolyPatch::typeName_() )

Runtime type information.

References fvPatch::patch().

Here is the call graph for this function:

◆ cyclicACMIPatch()

const cyclicACMIPolyPatch & cyclicACMIPatch ( ) const

inline

Return local reference cast into the cyclic patch.

Definition at line 123 of file cyclicACMIFvPatch.H.

Referenced by movePoints().

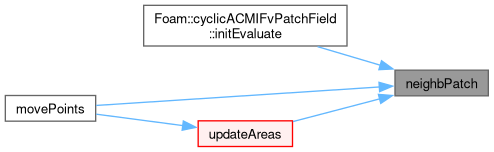

Here is the caller graph for this function:

◆ neighbPatchID()

virtual label neighbPatchID ( ) const

inlinevirtual

Return neighbour.

Implements cyclicAMILduInterface.

Definition at line 131 of file cyclicACMIFvPatch.H.

◆ owner()

virtual bool owner ( ) const

inlinevirtual

Implements cyclicAMILduInterface.

Definition at line 136 of file cyclicACMIFvPatch.H.

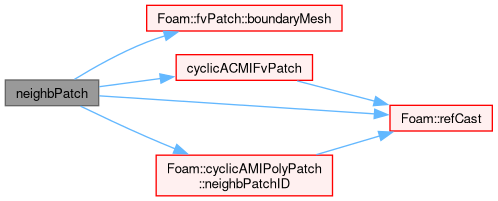

◆ neighbPatch()

virtual const cyclicACMIFvPatch & neighbPatch ( ) const

inlinevirtual

Return neighbour fvPatch.

Implements cyclicAMILduInterface.

Definition at line 144 of file cyclicACMIFvPatch.H.

References fvPatch::boundaryMesh(), cyclicACMIFvPatch(), cyclicAMIPolyPatch::neighbPatchID(), and Foam::refCast().

Referenced by cyclicACMIFvPatchField< Type >::initEvaluate(), movePoints(), and updateAreas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nonOverlapPatchID()

virtual label nonOverlapPatchID ( ) const

inlinevirtual

Return neighbour.

Definition at line 155 of file cyclicACMIFvPatch.H.

Referenced by nonOverlapPatch().

Here is the caller graph for this function:

◆ nonOverlapPatch()

virtual const fvPatch & nonOverlapPatch ( ) const

inlinevirtual

Return non-overlapping fvPatch.

Definition at line 163 of file cyclicACMIFvPatch.H.

References fvPatch::boundaryMesh(), and nonOverlapPatchID().

Referenced by movePoints(), and updateAreas().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AMI()

virtual const AMIPatchToPatchInterpolation & AMI ( ) const

inlinevirtual

Return a reference to the AMI interpolator.

Implements cyclicAMILduInterface.

Definition at line 171 of file cyclicACMIFvPatch.H.

Referenced by movePoints().

Here is the caller graph for this function:

◆ parallel()

virtual bool parallel ( ) const

inlinevirtual

Are the cyclic planes parallel.

Implements coupledFvPatch.

Definition at line 179 of file cyclicACMIFvPatch.H.

Referenced by delta().

Here is the caller graph for this function:

◆ forwardT()

virtual const tensorField & forwardT ( ) const

inlinevirtual

Return face transformation tensor.

Implements coupledFvPatch.

Definition at line 187 of file cyclicACMIFvPatch.H.

Referenced by delta().

Here is the caller graph for this function:

◆ reverseT()

virtual const tensorField & reverseT ( ) const

inlinevirtual

Return neighbour-cell transformation tensor.

Implements coupledFvPatch.

Definition at line 195 of file cyclicACMIFvPatch.H.

◆ neighbFvPatch()

const cyclicACMIFvPatch & neighbFvPatch ( ) const

inline

Definition at line 200 of file cyclicACMIFvPatch.H.

References fvPatch::boundaryMesh(), cyclicACMIFvPatch(), cyclicAMIPolyPatch::neighbPatchID(), and Foam::refCast().

Referenced by coupled(), delta(), internalFieldTransfer(), and makeWeights().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ coupled()

bool coupled ( ) const

virtual

Return true if this patch is coupled.

This is equivalent to coupledPolyPatch::coupled() if parallel running or both sides present, false otherwise

Reimplemented from coupledFvPatch.

Definition at line 226 of file cyclicACMIFvPatch.C.

References neighbFvPatch(), UPstream::parRun(), and fvPatch::size().

Here is the call graph for this function:

◆ delta()

Foam::tmp< Foam::vectorField > delta ( ) const

virtual

Return delta (P to N) vectors across coupled patch.

Implements coupledFvPatch.

Definition at line 232 of file cyclicACMIFvPatch.C.

References coupled, cyclicACMIFvPatch(), coupledFvPatch::delta(), forAll, forwardT(), Foam::interpolate(), neighbFvPatch(), tmp< T >::New(), parallel(), UList< T >::size(), and Foam::transform().

Here is the call graph for this function:

◆ interpolate() [1/3]

template<class Type>

tmp< Field< Type > > interpolate ( const Field< Type > & fld ) const

inline

Interpolate (make sure to have uptodate areas).

Definition at line 225 of file cyclicACMIFvPatch.H.

References fld(), and updateAreas().

Referenced by interpolate(), and makeWeights().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolate() [2/3]

template<class Type>

tmp< Field< Type > > interpolate ( const tmp< Field< Type > > & tfld ) const

inline

Interpolate (make sure to have up-to-date areas).

Definition at line 244 of file cyclicACMIFvPatch.H.

References interpolate().

Here is the call graph for this function:

◆ initInterpolate()

template<class Type>

void initInterpolate	(	const Field< Type > &	fld,
		labelRange &	sendRequests,
		labelRange &	recvRequests,
		PtrList< List< Type > > &	sendBuffers,
		PtrList< List< Type > > &	recvBuffers,
		labelRange &	sendRequests1,
		labelRange &	recvRequests1,
		PtrList< List< Type > > &	sendBuffers1,
		PtrList< List< Type > > &	recvBuffers1 ) const

inline

Definition at line 255 of file cyclicACMIFvPatch.H.

References fld(), and updateAreas().

Here is the call graph for this function:

◆ interpolate() [3/3]

template<class Type>

tmp< Field< Type > > interpolate	(	const Field< Type > &	localFld,
		const labelRange &	requests,
		const PtrList< List< Type > > &	recvBuffers,
		const labelRange &	requests1,
		const PtrList< List< Type > > &	recvBuffers1 ) const

inline

Definition at line 288 of file cyclicACMIFvPatch.H.

◆ interfaceInternalField() [1/2]

Foam::tmp< Foam::labelField > interfaceInternalField ( const labelUList & internalData ) const

virtual

Return the values of the given internal data adjacent to the interface as a field.

Implements coupledFvPatch.

Definition at line 276 of file cyclicACMIFvPatch.C.

References fvPatch::patchInternalField().

Here is the call graph for this function:

◆ interfaceInternalField() [2/2]

Foam::tmp< Foam::labelField > interfaceInternalField	(	const labelUList &	internalData,
		const labelUList &	faceCells ) const

virtual

Return the values of the given internal data adjacent to the interface as a field using a mapping faceCell.

Implements coupledFvPatch.

Definition at line 285 of file cyclicACMIFvPatch.C.

References coupledFvPatch::faceCells(), tmp< T >::New(), fvPatch::patchInternalField(), and fvPatch::size().

Here is the call graph for this function:

◆ internalFieldTransfer()

Foam::tmp< Foam::labelField > internalFieldTransfer	(	const Pstream::commsTypes	commsType,
		const labelUList &	internalData ) const

virtual

Return neighbour field.

Implements coupledFvPatch.

Definition at line 297 of file cyclicACMIFvPatch.C.

References neighbFvPatch().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteVolume/fvMesh/fvPatches/constraint/cyclicACMI/cyclicACMIFvPatch.H
src/finiteVolume/fvMesh/fvPatches/constraint/cyclicACMI/cyclicACMIFvPatch.C

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ cyclicACMIFvPatch()

Member Function Documentation

◆ updateAreas()

◆ resetPatchAreas()

◆ makeWeights()

◆ movePoints()

◆ TypeName()

◆ cyclicACMIPatch()

◆ neighbPatchID()

◆ owner()

◆ neighbPatch()

◆ nonOverlapPatchID()

◆ nonOverlapPatch()

◆ AMI()

◆ parallel()

◆ forwardT()

◆ reverseT()

◆ neighbFvPatch()

◆ coupled()

◆ delta()

◆ interpolate() [1/3]

◆ interpolate() [2/3]

◆ initInterpolate()

◆ interpolate() [3/3]

◆ interfaceInternalField() [1/2]

◆ interfaceInternalField() [2/2]

◆ internalFieldTransfer()
