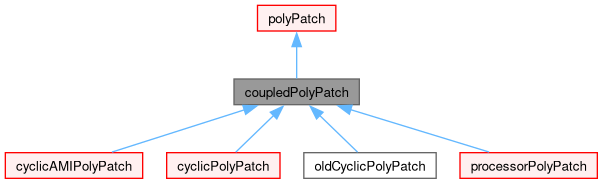

The coupledPolyPatch is an abstract base class for patches that couple regions of the computational domain e.g. cyclic and processor-processor links. More...
#include <coupledPolyPatch.H>
Public Types | |
| enum | transformType { UNKNOWN , ROTATIONAL , TRANSLATIONAL , COINCIDENTFULLMATCH , NOORDERING } |
| Public Types inherited from PrimitivePatch< SubList< face >, const pointField & > | |
| enum | surfaceTopo |
| Enumeration defining the surface type. Used in check routines. More... | |
| typedef std::remove_reference< SubList< face > >::type::value_type | face_type |
| The face type. | |
| typedef std::remove_reference< const pointField & >::type::value_type | point_type |
| The point type. | |
| typedef SubList< face > | FaceListType |
| The face list type. | |
| typedef const pointField & | PointFieldType |
| The point field type. | |
| typedef face_type | FaceType |
| Deprecated(2020-03) prefer face_type typedef. | |
| Public Types inherited from UList< face > | |
| typedef face | value_type |
| The value type the list contains. | |
| typedef face * | pointer |
| The pointer type for non-const access to value_type items. | |
| typedef const face * | const_pointer |
| The pointer type for const access to value_type items. | |
| typedef face & | reference |
| The type used for storing into value_type objects. | |
| typedef const face & | const_reference |
| The type used for reading from constant value_type objects. | |
| typedef face * | iterator |
| Random access iterator for traversing a UList. | |
| typedef const face * | const_iterator |
| Random access iterator for traversing a UList. | |
| typedef label | size_type |
| The type to represent the size of a UList. | |
| typedef label | difference_type |
| The difference between iterator objects. | |
| typedef std::reverse_iterator< iterator > | reverse_iterator |
| Reverse iterator (non-const access). | |
| typedef std::reverse_iterator< const_iterator > | const_reverse_iterator |
| Reverse iterator (const access). | |
| using | is_List |
| Have unique tag. | |
Public Member Functions | |

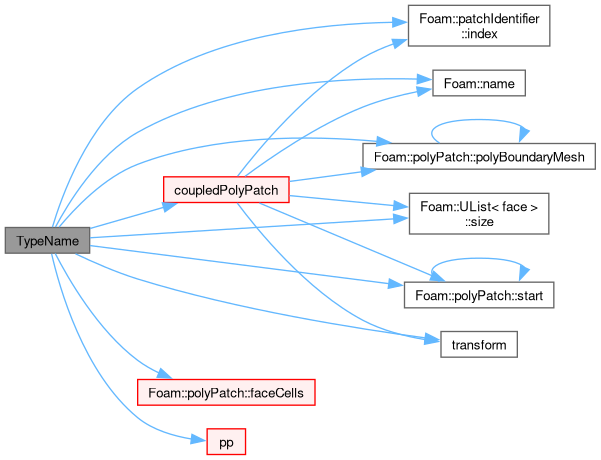

| TypeName ("coupled") | |
| Runtime type information. | |

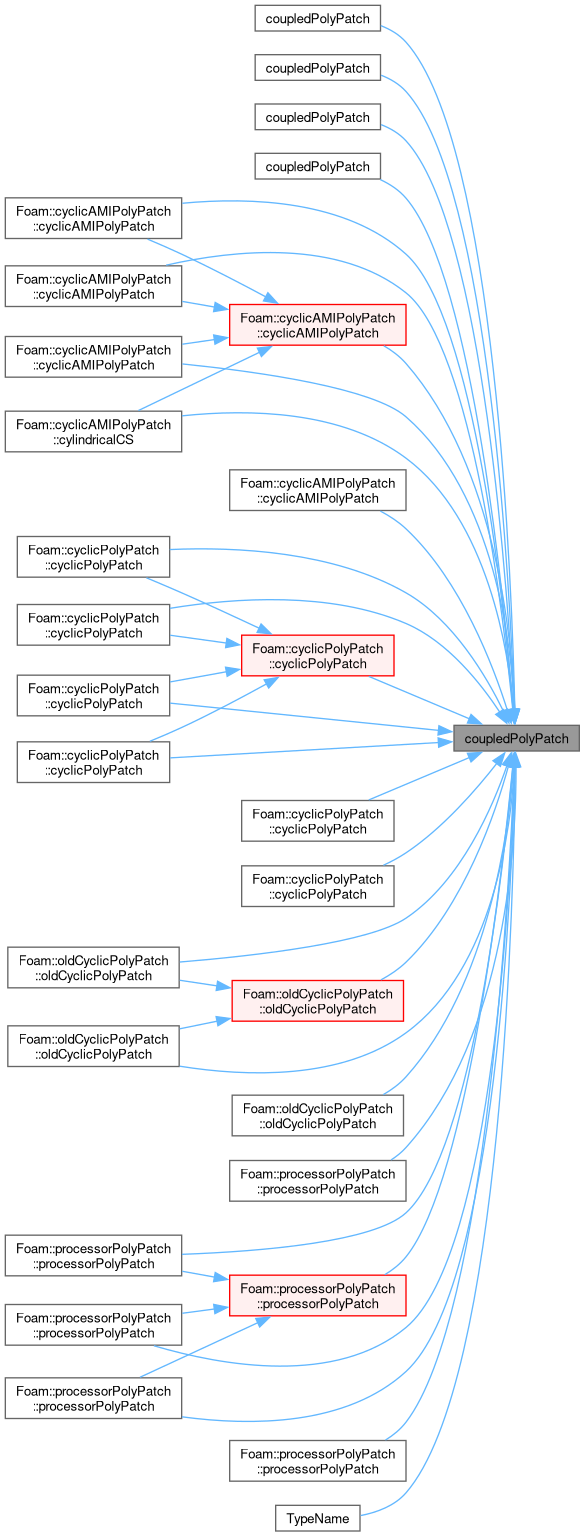

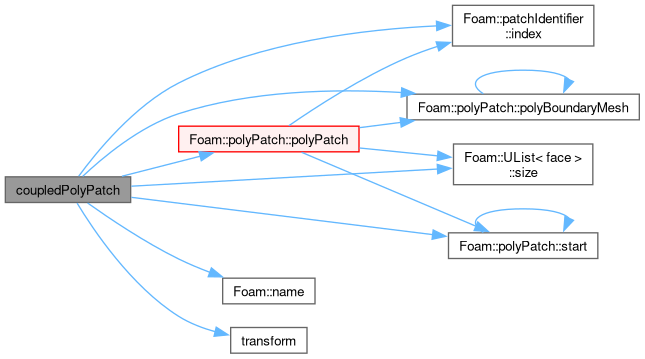

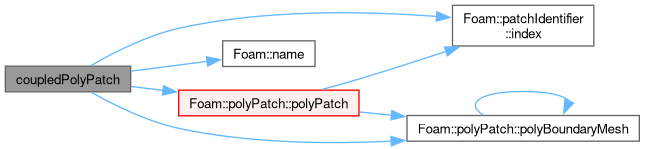

| coupledPolyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType, const transformType transform) | |
| Construct from components. | |
| coupledPolyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType) | |
| Construct from dictionary. | |
| coupledPolyPatch (const coupledPolyPatch &, const polyBoundaryMesh &bm) | |
| Copy construct, resetting the boundary mesh. | |

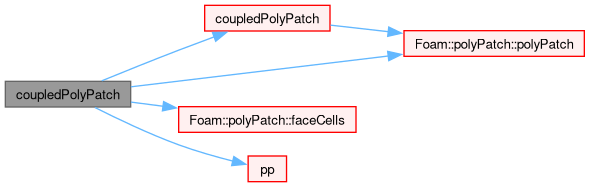

| coupledPolyPatch (const coupledPolyPatch &, const labelList &faceCells) | |
| Copy construct, resetting the faceCells. | |

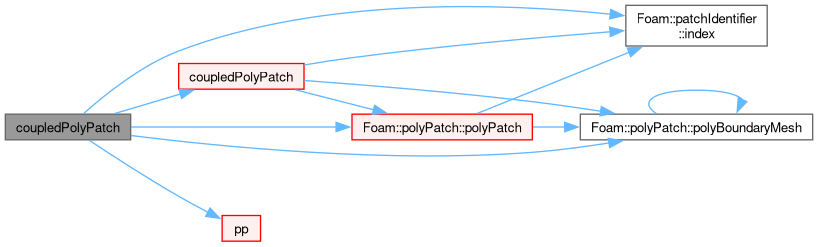

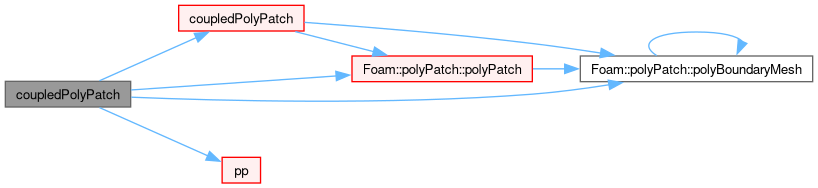

| coupledPolyPatch (const coupledPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) | |
| Construct given the original patch and resetting the face list and boundary mesh information. | |
| coupledPolyPatch (const coupledPolyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) | |
| Construct given the original patch and a map. | |
| virtual | ~coupledPolyPatch () |
| Destructor. | |
| virtual bool | coupled () const |
| Return true because this patch is coupled. | |

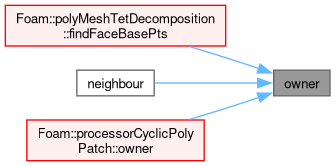

| virtual bool | owner () const =0 |
| Does this side own the patch ? | |
| virtual bool | neighbour () const |
| Does the coupled side own the patch ? | |
| virtual label | referPatchID () const |
| The referring patchID (eg, for cyclics). | |

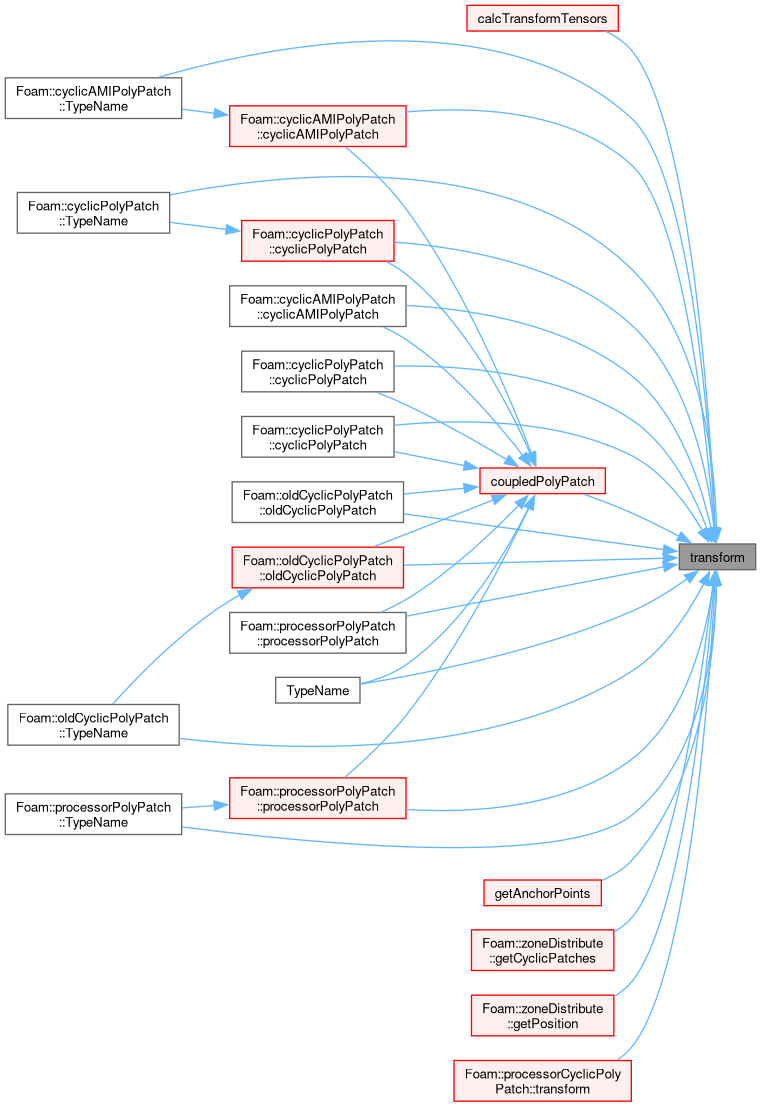

| virtual transformType | transform () const |
| Type of transform. | |
| virtual transformType & | transform () |
| Type of transform. | |

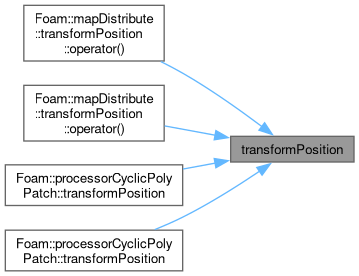

| virtual void | transformPosition (pointField &) const =0 |
| Transform a patch-based position from other side to this side. | |
| virtual void | transformPosition (point &, const label facei) const =0 |
| Transform a patch-based position from other side to this side. | |

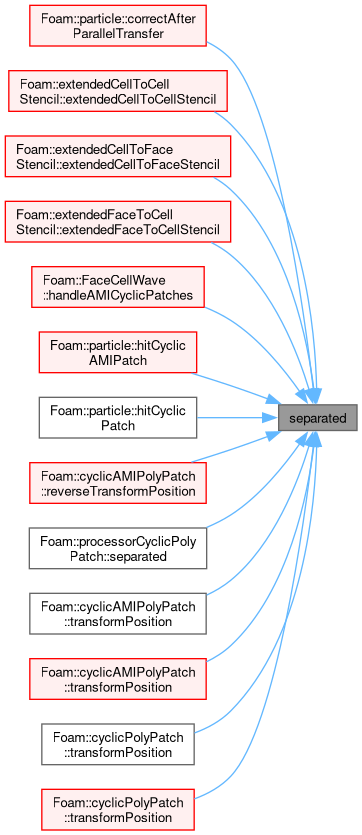

| virtual bool | separated () const |
| Are the planes separated. | |

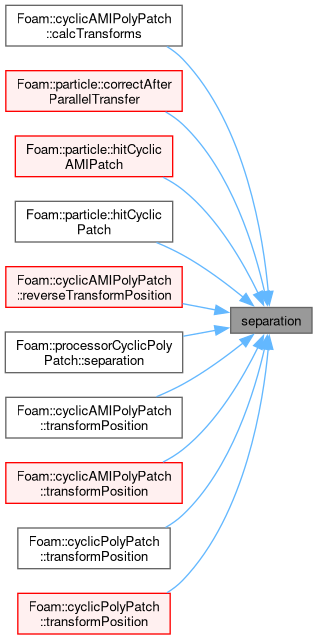

| virtual const vectorField & | separation () const |
| If the planes are separated the separation vector. | |

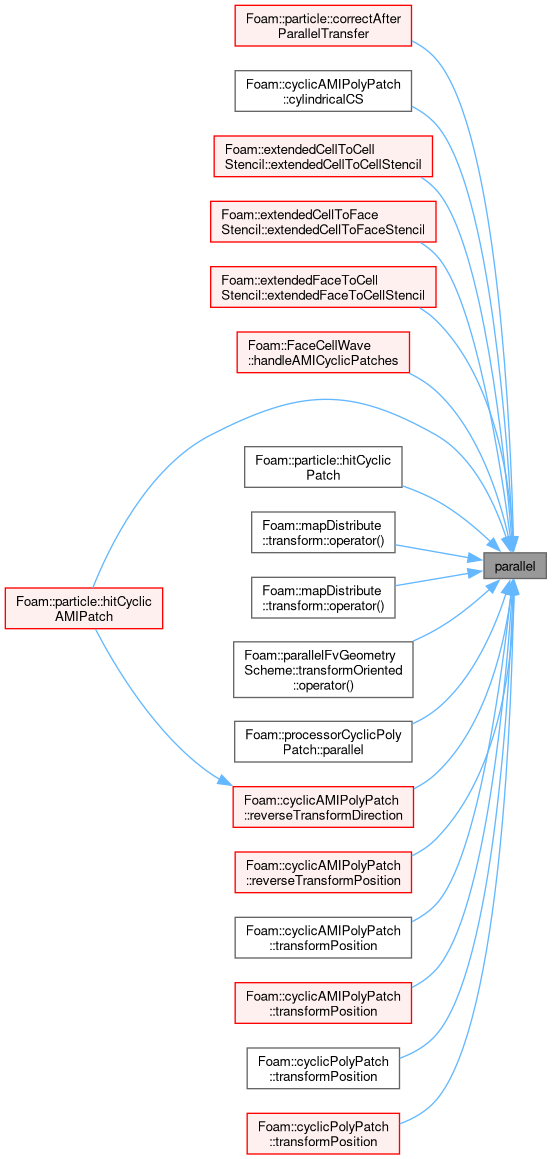

| virtual bool | parallel () const |
| Are the cyclic planes parallel. | |

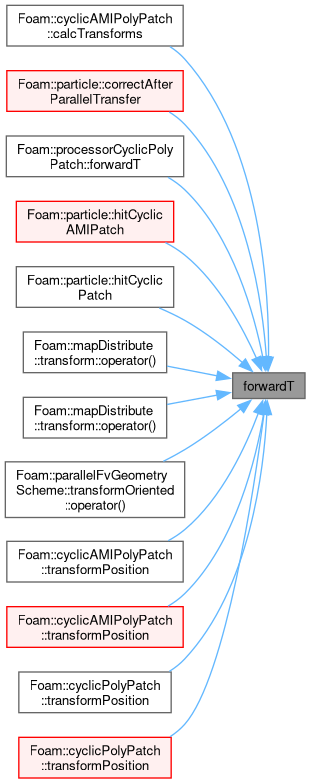

| virtual const tensorField & | forwardT () const |
| Return face transformation tensor. | |

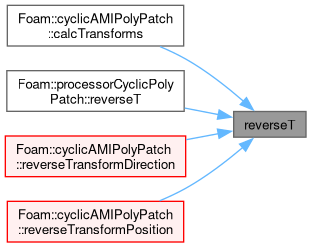

| virtual const tensorField & | reverseT () const |
| Return neighbour-cell transformation tensor. | |
| virtual const boolList & | collocated () const |
| Are faces collocated. Either size 0,1 or length of patch. | |
| scalar | matchTolerance () const |
| virtual void | calcGeometry (const primitivePatch &referPatch, const pointField &thisCtrs, const vectorField &thisAreas, const pointField &thisCc, const pointField &nbrCtrs, const vectorField &nbrAreas, const pointField &nbrCc)=0 |
| Calculate the patch geometry. | |
| virtual void | initOrder (PstreamBuffers &, const primitivePatch &) const =0 |
| Initialize ordering for primitivePatch. Does not. | |

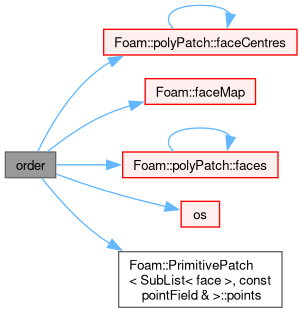

| virtual bool | order (PstreamBuffers &, const primitivePatch &, labelList &faceMap, labelList &rotation) const =0 |
| Return new ordering for primitivePatch. | |
| virtual void | write (Ostream &os) const |
| Write the polyPatch data as a dictionary. | |
| Public Member Functions inherited from polyPatch | |
| TypeName ("patch") | |
| Runtime type information. | |
| declareRunTimeSelectionTable (autoPtr, polyPatch, word,(const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, size, start, index, bm, patchType)) | |
| declareRunTimeSelectionTable (autoPtr, polyPatch, dictionary,(const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType),(name, dict, index, bm, patchType)) | |
| polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &patchType) | |
| Construct from components. | |
| polyPatch (const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm, const word &physicalType, const wordList &inGroups) | |
| Construct from components. | |
| polyPatch (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm, const word &patchType) | |
| Construct from dictionary. | |
| polyPatch (const polyPatch &, const polyBoundaryMesh &) | |
| Copy construct, resetting the boundary mesh. | |
| polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) | |
| Construct given the original patch and resetting the face list and boundary mesh information. | |
| polyPatch (const polyPatch &pp, const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) | |
| Construct given the original patch and a map. | |
| polyPatch (const polyPatch &p) | |
| Copy construct. | |
| polyPatch (const polyPatch &p, const labelList &faceCells) | |
| Copy construct, setting faceCells. | |
| virtual autoPtr< polyPatch > | clone (const labelList &faceCells) const |
| Construct and return a clone, setting faceCells. | |
| virtual autoPtr< polyPatch > | clone (const polyBoundaryMesh &bm) const |
| Construct and return a clone, resetting the boundary mesh. | |
| virtual autoPtr< polyPatch > | clone (const polyBoundaryMesh &bm, const label index, const label newSize, const label newStart) const |
| Construct and return a clone, resetting the face list and boundary mesh. | |
| virtual autoPtr< polyPatch > | clone (const polyBoundaryMesh &bm, const label index, const labelUList &mapAddressing, const label newStart) const |
| Construct and return a clone, resetting the face list and boundary mesh. | |
| virtual | ~polyPatch () |
| Destructor. | |
| virtual void | newInternalProcFaces (label &, label &) const |
| Return number of new internal of this polyPatch faces. | |
| virtual const labelUList & | nbrCells () const |
| Return nbrCells. | |
| virtual label | neighbPolyPatchID () const |
| Return nbr patchID. | |
| virtual refPtr< labelListList > | mapCollocatedFaces () const |
| Return mapped collocated faces. | |
| virtual bool | masterImplicit () const |
| Return implicit master. | |
| virtual word | neighbRegionID () const |
| Return neighbour region name. | |
| label | offset () const noexcept |
| The offset where this patch starts in the boundary face list. | |
| label | start () const noexcept |
| Return start label of this patch in the polyMesh face list. | |
| labelRange | range () const |
| Return start/size range of this patch. | |
| const polyBoundaryMesh & | boundaryMesh () const noexcept |
| Return boundaryMesh reference. | |
| template<class T> | |
| const UIndirectList< T > | patchInternalList (const UList< T > &internalValues) const |
| Extract face cell data. | |
| template<class T> | |
| const List< T >::subList | patchSlice (const UList< T > &values) const |
| This patch slice from the complete list, which has size mesh::nFaces(), using the number of patch faces. | |
| template<class T> | |
| const Field< T >::subField | patchSlice (const Field< T > &values) const |
| Slice Field to patch, using the number of patch faces. | |
| template<class T> | |
| const List< T >::subList | boundarySlice (const UList< T > &values) const |
| This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the number of patch faces. | |
| const faceList::subList | faces () const |
| Return mesh faces for the patch. | |
| const labelList::subList | faceOwner () const |
| Return face owner for the patch. | |
| const vectorField::subField | faceCentres () const |
| Return face centres. | |
| const vectorField::subField | faceAreas () const |
| Return face normals. | |
| tmp< vectorField > | faceCellCentres () const |
| Return face cell centres. | |
| tmp< scalarField > | areaFraction (const pointField &points) const |
| Calculate the area fraction as the ratio of the stored face area and the area given by the face points. | |
| tmp< scalarField > | areaFraction () const |
| Return the cached area fraction. Usually only set for the non-overlap patches on ACMI. | |
| void | areaFraction (const scalar fraction) |
| Set uniform cached area fraction. | |
| void | areaFraction (const tmp< scalarField > &fraction) |
| Set cached area fraction (non-uniform). | |
| const labelUList & | faceCells () const |
| Return face-cell addressing. | |
| const labelList & | meshEdges () const |
| Return global edge index for local edges. | |
| virtual void | clearAddressing () |
| Clear addressing. | |
| label | whichFace (const label facei) const noexcept |
| Return label of face in patch from global face label. | |
| virtual bool | changeTopology () const |
| For dynamic mesh cases - return true if this patch will change the topology. | |
| virtual bool | setTopology (polyTopoChange &) |
| Collect topology changes in a polyTopoChange object. | |
| void | operator= (const polyPatch &p) |
| Copy assignment. | |
| Public Member Functions inherited from patchIdentifier | |
| patchIdentifier (const patchIdentifier &)=default | |
| Copy construct. | |
| patchIdentifier (patchIdentifier &&)=default | |
| Move construct. | |
| patchIdentifier & | operator= (const patchIdentifier &)=default |
| Copy assignment. | |
| patchIdentifier & | operator= (patchIdentifier &&)=default |
| Move assignment. | |
| virtual | ~patchIdentifier ()=default |
| Destructor. | |
| patchIdentifier () | |
| Default construct: name="", index=0. | |
| patchIdentifier (const word &name, const label index) | |
| Construct from mandatory components. | |
| patchIdentifier (const word &name, const label index, const word &physicalType, const wordList &inGroups=wordList()) | |
| Construct from components. | |
| patchIdentifier (const word &name, const dictionary &dict, const label index) | |
| Construct from dictionary. | |
| patchIdentifier (const patchIdentifier &ident, const label newIndex) | |
| Copy construct, resetting the index (if non-negative). | |
| patchIdentifier (patchIdentifier &&ident, const label newIndex) | |
| Move construct, resetting the index (if non-negative). | |
| const word & | name () const noexcept |
| The patch name. | |
| word & | name () noexcept |
| Modifiable patch name. | |
| label | index () const noexcept |
| The index of this patch in the boundaryMesh. | |
| label & | index () noexcept |
| Modifiable index of this patch in the boundaryMesh. | |
| const word & | physicalType () const noexcept |
| The (optional) physical type of the patch. | |
| word & | physicalType () noexcept |
| Modifiable (optional) physical type of the patch. | |
| const wordList & | inGroups () const noexcept |
| The (optional) groups that the patch belongs to. | |
| wordList & | inGroups () noexcept |
| Modifiable (optional) groups that the patch belongs to. | |
| bool | inGroup (const word &name) const |
| True if given name is in a group. | |
| void | addGroup (const word &name) |
| Add (unique) group for the patch. | |
| void | removeGroup (const word &name) |
| Remove group for the patch. | |
| void | write (Ostream &os) const |
| Write (physicalType, inGroups) dictionary entries (without surrounding braces). | |
| Public Member Functions inherited from PrimitivePatch< SubList< face >, const pointField & > | |
| PrimitivePatch (const SubList< face > &faces, const const pointField &&points) | |
| Construct from components. | |
| PrimitivePatch (SubList< face > &&faces, const const pointField &&points) | |
| Construct from components, transferring faces. | |
| PrimitivePatch (SubList< face > &faces, const pointField &&points, const bool reuse) | |
| Construct from components, reuse storage. | |
| PrimitivePatch (const PrimitivePatch< SubList< face >, const pointField & > &pp) | |
| Copy construct. | |
| virtual | ~PrimitivePatch () |
| Destructor. | |
| void | clearOut () |
| void | clearGeom () |
| void | clearTopology () |
| void | clearPatchMeshAddr () |
| void | swap (PrimitivePatch &)=delete |
| Suppress direct swapping, since storage containers may be const. | |
| const Field< point_type > & | points () const noexcept |
| Return reference to global points. | |
| label | nFaces () const noexcept |
| Number of faces in the patch. | |
| label | nPoints () const |
| Number of points supporting patch faces. | |
| label | nEdges () const |
| Number of edges in patch. | |
| const edgeList & | edges () const |
| Return list of edges, address into LOCAL point list. | |
| const edgeList::subList | internalEdges () const |
| Return sub-list of internal edges, address into LOCAL point list. | |
| const edgeList::subList | boundaryEdges () const |
| Return sub-list of boundary edges, address into LOCAL point list. | |
| label | nInternalEdges () const |
| Number of internal edges. | |
| label | nBoundaryEdges () const |
| Number of boundary edges == (nEdges() - nInternalEdges()). | |
| bool | isInternalEdge (const label edgei) const |
| Is internal edge? | |
| const labelList & | boundaryPoints () const |
| Return list of boundary points, address into LOCAL point list. | |
| const labelListList & | faceFaces () const |
| Return face-face addressing. | |
| const labelListList & | edgeFaces () const |
| Return edge-face addressing. | |
| const labelListList & | faceEdges () const |
| Return face-edge addressing. | |
| const labelListList & | pointEdges () const |
| Return point-edge addressing. | |
| const labelListList & | pointFaces () const |
| Return point-face addressing. | |
| const List< face_type > & | localFaces () const |
| Return patch faces addressing into local point list. | |
| labelList | boundaryFaces () const |
| Extract list of local faces corresponding to the boundary edges. | |
| labelList | uniqBoundaryFaces () const |
| Extract sorted list of unique local faces associated with the boundary edges. | |
| const labelList & | meshPoints () const |
| Return labelList of mesh points in patch. | |
| const Map< label > & | meshPointMap () const |
| Mesh point map. | |
| const Field< point_type > & | localPoints () const |
| Return pointField of points in patch. | |
| const labelList & | localPointOrder () const |
| Return orders the local points for most efficient search. | |
| label | whichPoint (const label gp) const |
| Given a global point index, return the local point index. | |
| edge | meshEdge (const label edgei) const |
| From patch edge to global edge using meshPoints. | |
| edge | meshEdge (const edge &e) const |
| From patch edge to global edge using meshPoints. | |
| label | findEdge (const edge &e) const |
| Search for edge (local point labels) and return its index in the edge list or -1 if not found. | |
| labelList | meshEdges (const edgeList &allEdges, const labelListList &cellEdges, const labelList &faceCells) const |
| Return labels of patch edges in the global edge list using cell addressing. | |
| labelList | meshEdges (const edgeList &allEdges, const labelListList &pointEdges) const |
| Return labels of patch edges into the global edge list using basic edge addressing. | |
| label | meshEdge (const label edgei, const edgeList &allEdges, const labelListList &pointEdges) const |
| Return label of the local patch edge into the global edge list using basic edge addressing. | |
| labelList | meshEdges (const labelUList &edgeLabels, const edgeList &allEdges, const labelListList &pointEdges) const |
| Return labels of specified patch edges into the global edge list using basic edge addressing. | |
| const Field< point_type > & | faceCentres () const |
| Return face centres for patch. | |
| const Field< point_type > & | faceAreas () const |
| Return face area vectors for patch. | |
| const Field< scalar > & | magFaceAreas () const |
| Return face area magnitudes for patch. | |
| const Field< point_type > & | faceNormals () const |
| Return face unit normals for patch. | |
| const Field< point_type > & | pointNormals () const |
| Return point normals for patch. | |
| Pair< point_type > | box () const |
| The enclosing (bounding) box for the patch points. | |
| scalar | sphere (const label facei) const |
| The enclosing (bounding) sphere radius^2 for specified face. | |
| bool | hasFaceAreas () const |
| bool | hasFaceCentres () const |
| bool | hasFaceNormals () const |
| bool | hasPointNormals () const |
| bool | hasBoundaryPoints () const |
| bool | hasEdges () const |
| bool | hasFaceFaces () const |
| bool | hasEdgeFaces () const |
| bool | hasFaceEdges () const |
| bool | hasPointEdges () const |
| bool | hasPointFaces () const |
| bool | hasMeshPoints () const |
| bool | hasMeshPointMap () const |
| List< objectHit > | projectPoints (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const |
| Project vertices of patch onto another patch. | |
| List< objectHit > | projectFaceCentres (const ToPatch &targetPatch, const Field< point_type > &projectionDirection, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction=intersection::VECTOR) const |
| Project vertices of patch onto another patch. | |
| const labelListList & | edgeLoops () const |
| Return list of closed loops of boundary vertices. | |
| surfaceTopo | surfaceType (labelHashSet *badEdgesPtr=nullptr) const |
| Calculate surface type formed by patch, optionally recording the indices of illegal edges. | |
| bool | checkTopology (const bool report=false, labelHashSet *pointSetPtr=nullptr) const |
| Check surface formed by patch for manifoldness (see above). | |
| bool | checkPointManifold (const bool report=false, labelHashSet *pointSetPtr=nullptr) const |
| Checks primitivePatch for faces sharing point but not edge. | |
| void | operator= (const PrimitivePatch< SubList< face >, const pointField & > &rhs) |
| Copy assign faces. Leave points alone (could be a reference). | |
| void | operator= (PrimitivePatch< SubList< face >, const pointField & > &&rhs) |
| Move assign faces. Leave points alone (could be a reference). | |
| label | whichEdge (const edge &e) const |
| Identical to findEdge. | |
| Foam::List< Foam::objectHit > | projectPoints (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< SubList< face >, const pointField & >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const |
| Foam::List< Foam::objectHit > | projectFaceCentres (const ToPatch &targetPatch, const Field< typename Foam::PrimitivePatch< SubList< face >, const pointField & >::point_type > &projectionDirection, const intersection::algorithm alg, const intersection::direction dir) const |
| Public Member Functions inherited from PrimitivePatchBase | |
| ClassName ("PrimitivePatch") | |
| Runtime type information. | |
| PrimitivePatchBase ()=default | |
| Default construct. | |
| Public Member Functions inherited from SubList< face > | |
| SubList () noexcept=default | |
| Default construct, zero-sized and nullptr. | |
| SubList (const SubList< face > &) noexcept=default | |
| Copy construct, shallow copy. | |
| SubList (const UList< face > &list) noexcept | |
| Construct from UList, the entire size. | |
| SubList (const FixedList< face, N > &list) noexcept | |
| Construct from FixedList, the entire size. | |
| SubList (const UList< face > &list, const label len) | |
| Construct from UList and sub-list size, start at 0. | |
| SubList (const UList< face > &list, const label len, const label start) | |
| Construct from UList, sub-list size and start index. | |
| SubList (const UList< face > &list, const labelRange &range) | |
| Construct from UList and a (start,size) range. | |
| SubList (const labelRange &range, const UList< face > &list) | |
| Construct from UList and a (start,size) range, but bypassing run-time range checking. | |
| UList< face > & | reset (std::nullptr_t) noexcept |
| Reset to zero-sized and nullptr. | |
| UList< face > & | reset (const UList< face > &list) noexcept |
| Reset to use entire UList. | |
| UList< face > & | reset (const UList< face > &list, const label len) |
| Reset to use UList with sub-list size, start at 0. | |
| UList< face > & | reset (const UList< face > &list, const label len, const label start) |
| Reset to use UList with sub-list size and start index. | |
| UList< face > & | reset (const UList< face > &list, const labelRange &range) |
| Reset to use UList with a (start,size) range. | |
| UList< face > & | reset (const labelRange &range, const UList< face > &list) |
| Reset to use UList with a (start,size) range, but bypassing run-time range checking. | |
| operator const Foam::List< face > & () const | |
| Allow cast to a const List<T>&. | |
| void | operator= (const SubList< face > &list) |
| Copy assign entries (deep copy) from given sub-list. Sizes must match! | |
| void | operator= (const UList< face > &list) |
| Copy assign entries (deep copy) from given list. Sizes must match! | |
| void | operator= (const IndirectListBase< face, Addr > &list) |
| Copy assign entries from given indirect list. Sizes must match! | |
| void | operator= (const face &val) |
| Assign all entries to the given value. | |
| void | operator= (Foam::zero) |
| Assign all entries to zero. | |
| operator const Foam::List< face > & () const | |
| Allow cast to a const List<T>&. | |
| Public Member Functions inherited from UList< face > | |
| UList (const UList< face > &) noexcept=default | |
| Copy construct, shallow copy. | |
| UList (UList< face > &&) noexcept=default | |
| Move construct, shallow copy. | |
| UList< face > & | operator= (const UList< face > &)=delete |
| No copy assignment (default: shallow copy). | |
| UList< face > & | operator= (UList< face > &&) noexcept=default |
| Move assignment, shallow copy. | |
| constexpr | UList () noexcept |
| Default construct, zero-sized and nullptr. | |
| UList (face *__restrict__ ptr, const label len) noexcept | |
| Construct from components. | |
| UList (SubList< face > &&) noexcept | |
| Move construct from a SubList, shallow copy. | |
| label | fcIndex (const label i) const noexcept |
| The forward circular index. The next index in the list which returns to the first at the end of the list. | |
| label | rcIndex (const label i) const noexcept |
| The reverse circular index. The previous index in the list which returns to the last at the beginning of the list. | |
| const face & | fcValue (const label i) const |
| Return forward circular value (ie, next value in the list). | |
| face & | fcValue (const label i) |
| Return forward circular value (ie, next value in the list). | |
| const face & | rcValue (const label i) const |
| Return reverse circular value (ie, previous value in the list). | |
| face & | rcValue (const label i) |
| Return reverse circular value (ie, previous value in the list). | |
| const face * | cdata () const noexcept |
| Return pointer to the underlying array serving as data storage. | |
| face * | data () noexcept |
| Return pointer to the underlying array serving as data storage. | |
| const char * | cdata_bytes () const noexcept |
| Return pointer to the underlying array serving as data storage,. | |
| char * | data_bytes () noexcept |
| Return pointer to the underlying array serving as data storage,. | |
| face & | front () |
| Access first element of the list, position [0]. | |
| const face & | front () const |
| Access first element of the list. | |
| face & | back () |
| Access last element of the list, position [size()-1]. | |
| const face & | back () const |
| Access last element of the list, position [size()-1]. | |
| std::streamsize | size_bytes () const noexcept |
| Number of contiguous bytes for the List data. | |
| std::streamsize | byteSize () const |
| Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous. | |
| void | checkStart (const label start) const |
| Check start is within valid range [0,size). | |
| void | checkSize (const label size) const |
| Check size is within valid range [0,size]. | |
| void | checkRange (const label start, const label len) const |
| Check that start and length define a valid range. | |
| void | checkIndex (const label i) const |
| Check index is within valid range [0,size). | |
| bool | uniform () const |
| True if all entries have identical values, and list is non-empty. | |
| bool | contains (const face &val) const |
| True if the value is contained in the list. | |
| bool | contains (const face &val, label pos, label len=-1) const |
| Is the value contained in the list? | |
| label | find (const face &val) const |
| Find index of the first occurrence of the value. | |
| label | find (const face &val, label pos, label len=-1) const |
| Find index of the first occurrence of the value. | |
| label | rfind (const face &val, label pos=-1) const |
| Find index of the last occurrence of the value. | |
| void | moveFirst (const label i) |
| Move element to the first position. | |
| void | moveLast (const label i) |
| Move element to the last position. | |
| void | swapFirst (const label i) |
| Swap element with the first element. Fatal on an empty list. | |
| void | swapLast (const label i) |
| Swap element with the last element. Fatal on an empty list. | |
| void | shallowCopy (face *__restrict__ ptr, const label len) noexcept |
| Copy the pointer and size. | |
| void | shallowCopy (std::nullptr_t) noexcept |
| Copy nullptr and zero size. | |
| void | shallowCopy (const UList< face > &list) noexcept |
| Copy the pointer and size held by the given UList. | |
| void | deepCopy (const UList< face > &list) |
| Copy elements of the given UList. Sizes must match! | |
| void | deepCopy (const IndirectListBase< face, Addr > &list) |
| Copy elements of the given indirect list. Sizes must match! | |
| SubList< face > | slice (const label pos, label len=-1) |
| Return SubList slice (non-const access) - no range checking. | |
| const SubList< face > | slice (const label pos, label len=-1) const |
| Return SubList slice (const access) - no range checking. | |
| SubList< face > | slice (const labelRange &range) |
| Return SubList slice (non-const access) - with range checking. | |
| const SubList< face > | slice (const labelRange &range) const |
| Return SubList slice (const access) - with range checking. | |
| face & | operator[] (const label i) |
| Return element of UList. | |
| const face & | operator[] (const label i) const |
| Return element of constant UList. | |
| operator const Foam::List< face > & () const | |
| Allow cast to a const List<T>&. | |
| void | operator= (const face &val) |
| Assignment of all entries to the given value. | |
| void | operator= (Foam::zero) |
| Assignment of all entries to zero. | |
| iterator | begin () noexcept |
| Return an iterator to begin traversing the UList. | |
| iterator | end () noexcept |
| Return an iterator to end traversing the UList. | |
| iterator | begin (const label i) noexcept |
| Return iterator at offset i from begin, clamped to [0,size] range. | |
| const_iterator | cbegin () const noexcept |
| Return const_iterator to begin traversing the constant UList. | |
| const_iterator | cend () const noexcept |
| Return const_iterator to end traversing the constant UList. | |
| const_iterator | begin () const noexcept |
| Return const_iterator to begin traversing the constant UList. | |
| const_iterator | end () const noexcept |
| Return const_iterator to end traversing the constant UList. | |
| const_iterator | cbegin (const label i) const noexcept |
| Return const_iterator at offset i from begin, clamped to [0,size] range. | |
| const_iterator | begin (const label i) const noexcept |
| Return const_iterator at offset i from begin, clamped to [0,size] range. | |
| reverse_iterator | rbegin () |
| Return reverse_iterator to begin reverse traversing the UList. | |
| reverse_iterator | rend () |
| Return reverse_iterator to end reverse traversing the UList. | |
| const_reverse_iterator | crbegin () const |
| Return const_reverse_iterator to begin reverse traversing the UList. | |
| const_reverse_iterator | crend () const |
| Return const_reverse_iterator to end reverse traversing the UList. | |
| const_reverse_iterator | rbegin () const |
| Return const_reverse_iterator to begin reverse traversing the UList. | |
| const_reverse_iterator | rend () const |
| Return const_reverse_iterator to end reverse traversing the UList. | |
| bool | empty () const noexcept |
| True if List is empty (ie, size() is zero). | |
| label | size () const noexcept |
| The number of elements in the container. | |
| label | capacity () const noexcept |
| Size of the underlying storage. | |
| void | swap (UList< face > &list) noexcept |
| Swap content with another UList of the same type in constant time. | |
| bool | operator== (const UList< face > &list) const |
| Equality operation on ULists of the same type. | |
| bool | operator!= (const UList< face > &list) const |
| The opposite of the equality operation. Takes linear time. | |
| bool | operator< (const UList< face > &list) const |
| Compare two ULists lexicographically. Takes linear time. | |
| bool | operator> (const UList< face > &list) const |
| Compare two ULists lexicographically. Takes linear time. | |
| bool | operator<= (const UList< face > &list) const |
| Return true if !(a > b). Takes linear time. | |
| bool | operator>= (const UList< face > &list) const |
| Return true if !(a < b). Takes linear time. | |
| Istream & | readList (Istream &is) |
| Read List contents from Istream. | |
| void | writeEntry (const word &keyword, Ostream &os) const |
| Write the List as a dictionary entry with keyword. | |
| Ostream & | writeList (Ostream &os, const label shortLen=0) const |
| Write List, with line-breaks in ASCII when length exceeds shortLen. | |
| bool | all () const |
| True if all entries are 'true' or if the list is empty. | |
| bool | any () const |
| True if any entries are 'true'. | |
| bool | none () const |
| True if no entries are 'true'. | |
| bool | test (const label i) const |
Test bool value at specified position, always false for out-of-range access. | |
| bool | get (const label i) const |
Return bool value at specified position, always false for out-of-range access. | |
| bool | unset (const label i) |
Unset the bool entry at specified position, always false for out-of-range access. | |
| std::string_view | view () const |
| Return a string_view of the charList. Content is non-modifiable. | |
| face & | first () |
| Access first element of the list, position [0]. | |
| const face & | first () const |
| Access first element of the list. | |
| face & | last () |
| Access last element of the list, position [size()-1]. | |
| const face & | last () const |
| Access last element of the list, position [size()-1]. | |
| bool | found (const face &val, label pos=0) const |
| Same as contains(). | |
| auto | expr () const |
| Wrap value as expression. | |
| void | operator= (const Expression::ListExpression< E > &expr) |
| Assign values from expression. | |
| operator const Foam::List< face > & () const | |
| Allow cast to a const List<T>&. | |
Static Public Member Functions | |

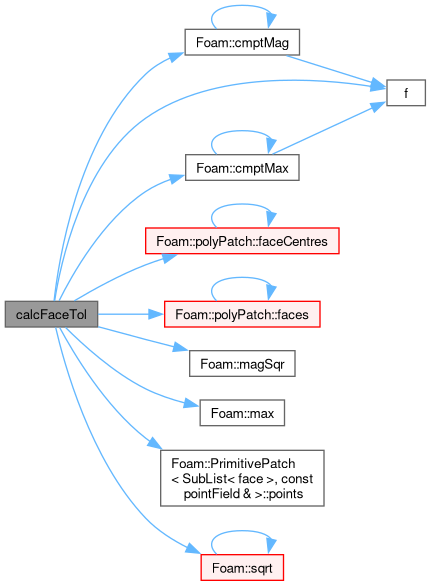

| static scalarField | calcFaceTol (const UList< face > &faces, const pointField &points, const pointField &faceCentres) |
| Calculate typical tolerance per face. Is currently max distance. | |
| Static Public Member Functions inherited from polyPatch | |
| static autoPtr< polyPatch > | New (const word &patchType, const word &name, const label size, const label start, const label index, const polyBoundaryMesh &bm) |
| Return pointer to a new patch created on freestore from components. | |
| static autoPtr< polyPatch > | New (const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm) |
| Return pointer to a new patch created on freestore from dictionary. | |
| static autoPtr< polyPatch > | New (const word &patchType, const word &name, const dictionary &dict, const label index, const polyBoundaryMesh &bm) |
| Return pointer to a new patch created on freestore from dictionary. | |
| static bool | constraintType (const word &patchType) |
| Return true if the given type is a constraint type. | |
| static wordList | constraintTypes () |
| Return a list of all the constraint patch types. | |
| Static Public Member Functions inherited from patchIdentifier | |
| static word | defaultName (const label n=-1) |
| Default patch name: "patch" or "patchN". | |
| Static Public Member Functions inherited from SubList< face > | |
| static const SubList< face > & | null () noexcept |
| Return a null SubList (reference to a nullObject). Behaves like an empty SubList. | |
| Static Public Member Functions inherited from UList< face > | |
| static const UList< face > & | null () noexcept |
| Return a null UList (reference to a nullObject). Behaves like an empty UList. | |
| static constexpr label | max_size () noexcept |
| The size of the largest possible UList. | |
Static Public Attributes | |
| static const Enum< transformType > | transformTypeNames |
| Static Public Attributes inherited from polyPatch | |
| static int | disallowGenericPolyPatch |
| Debug switch to disallow the use of genericPolyPatch. | |
Protected Member Functions | |

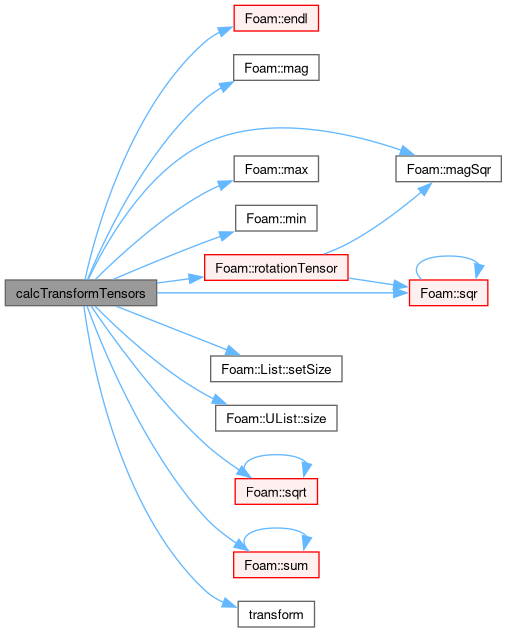

| void | calcTransformTensors (const vectorField &Cf, const vectorField &Cr, const vectorField &nf, const vectorField &nr, const scalarField &smallDist, const scalar absTol, const transformType=UNKNOWN) const |
| Calculate the transformation tensors. | |
| virtual void | initGeometry (PstreamBuffers &)=0 |
| Initialise the calculation of the patch geometry. | |
| virtual void | calcGeometry (PstreamBuffers &)=0 |
| Calculate the patch geometry. | |
| virtual void | initMovePoints (PstreamBuffers &, const pointField &)=0 |
| Initialise the patches for moving points. | |
| virtual void | movePoints (PstreamBuffers &, const pointField &)=0 |
| Correct patches after moving points. | |
| virtual void | initUpdateMesh (PstreamBuffers &)=0 |
| Initialise the update of the patch topology. | |
| virtual void | updateMesh (PstreamBuffers &)=0 |
| Update of the patch topology. | |
| Protected Member Functions inherited from polyPatch | |
| virtual void | clearGeom () |
| Clear geometry. | |
| virtual void | movePoints (const Field< point_type > &) |
| Inherit movePoints from primitivePatch. | |
| Protected Member Functions inherited from UList< face > | |
| void | setAddressableSize (const label n) noexcept |
| Set addressed size to be inconsistent with allocated storage. | |
| void | size (const label n) |
| Older name for setAddressableSize. | |
| void | writeEntry (Ostream &os) const |
| Write the UList with its compound type. | |
| labelRange | validateRange (const labelRange &requestedRange) const |
| Return a validated (start,size) subset range, which means that it always addresses a valid section of the list. | |
| void | fill_uniform (const face &val) |
| Assign all entries to the given value. | |
| void | fill_uniform (Foam::zero) |
| Assign all entries to zero. | |
Static Protected Member Functions | |

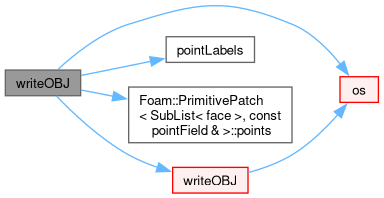

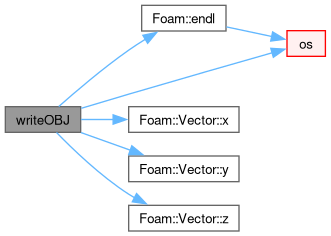

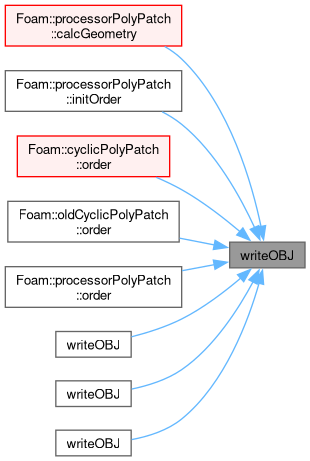

| static void | writeOBJ (Ostream &os, const point &pt) |
| Write point in OBJ format. | |

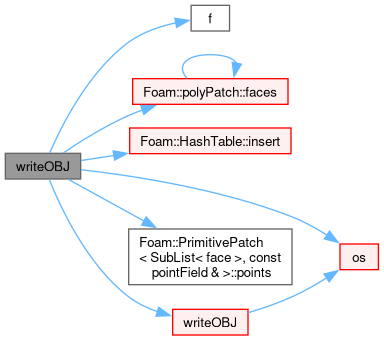

| static void | writeOBJ (Ostream &, const pointField &, const labelList &) |
| Write selected points in OBJ format. | |
| static void | writeOBJ (const fileName &, const UList< face > &, const pointField &) |
| Write patch. | |
| static void | writeOBJ (Ostream &os, const point &p0, const point &p1, label &vertI) |
| Write edge in OBJ format. | |
| static pointField | getAnchorPoints (const UList< face > &, const pointField &, const transformType) |
| Get a unique anchor point for all faces. | |
| static label | getRotation (const pointField &points, const face &f, const point &anchor, const scalar tol) |
| Get the number of vertices face f needs to be rotated such that. | |
The coupledPolyPatch is an abstract base class for patches that couple regions of the computational domain e.g. cyclic and processor-processor links.
Definition at line 50 of file coupledPolyPatch.H.
| enum transformType |
| Enumerator | |
|---|---|
| UNKNOWN | |
| ROTATIONAL | |
| TRANSLATIONAL | |
| COINCIDENTFULLMATCH | |
| NOORDERING | |
Definition at line 56 of file coupledPolyPatch.H.
| coupledPolyPatch | ( | const word & | name, |
| const label | size, | ||
| const label | start, | ||
| const label | index, | ||
| const polyBoundaryMesh & | bm, | ||
| const word & | patchType, | ||
| const transformType | transform ) |
Construct from components.
Definition at line 468 of file coupledPolyPatch.C.
References patchIdentifier::index(), Foam::name(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), UList< face >::size(), polyPatch::start(), and transform().
Referenced by coupledPolyPatch(), coupledPolyPatch(), coupledPolyPatch(), coupledPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicAMIPolyPatch::cylindricalCS(), oldCyclicPolyPatch::oldCyclicPolyPatch(), oldCyclicPolyPatch::oldCyclicPolyPatch(), oldCyclicPolyPatch::oldCyclicPolyPatch(), oldCyclicPolyPatch::oldCyclicPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), and TypeName().
| coupledPolyPatch | ( | const word & | name, |
| const dictionary & | dict, | ||
| const label | index, | ||
| const polyBoundaryMesh & | bm, | ||
| const word & | patchType ) |
Construct from dictionary.
Definition at line 485 of file coupledPolyPatch.C.
References dict, patchIdentifier::index(), Foam::name(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), transformTypeNames, and UNKNOWN.
| coupledPolyPatch | ( | const coupledPolyPatch & | pp, |
| const polyBoundaryMesh & | bm ) |
Copy construct, resetting the boundary mesh.
Definition at line 508 of file coupledPolyPatch.C.
References coupledPolyPatch(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), and pp().
| coupledPolyPatch | ( | const coupledPolyPatch & | pp, |
| const labelList & | faceCells ) |
Copy construct, resetting the faceCells.
Definition at line 520 of file coupledPolyPatch.C.
References coupledPolyPatch(), polyPatch::faceCells(), polyPatch::polyPatch(), and pp().
| coupledPolyPatch | ( | const coupledPolyPatch & | pp, |
| const polyBoundaryMesh & | bm, | ||
| const label | index, | ||
| const label | newSize, | ||
| const label | newStart ) |
Construct given the original patch and resetting the face list and boundary mesh information.
Definition at line 532 of file coupledPolyPatch.C.
References coupledPolyPatch(), patchIdentifier::index(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), and pp().
| coupledPolyPatch | ( | const coupledPolyPatch & | pp, |
| const polyBoundaryMesh & | bm, | ||
| const label | index, | ||
| const labelUList & | mapAddressing, | ||
| const label | newStart ) |
Construct given the original patch and a map.
Definition at line 547 of file coupledPolyPatch.C.
References coupledPolyPatch(), patchIdentifier::index(), polyPatch::polyBoundaryMesh, polyPatch::polyPatch(), and pp().
|
virtual |
Destructor.
Definition at line 564 of file coupledPolyPatch.C.
|
protected |
Calculate the transformation tensors.
smallDist : matching distance per face absTol : absolute error in normal if transformType = unknown it first tries rotational, then translational transform
Definition at line 287 of file coupledPolyPatch.C.
References COINCIDENTFULLMATCH, Foam::endl(), forAll, Foam::mag(), Foam::magSqr(), Foam::max(), Foam::min(), name, Foam::nl, Foam::Pout, ROTATIONAL, Foam::rotationTensor(), List< T >::setSize(), UList< T >::size(), Foam::sqr(), Foam::sqrt(), Foam::sum(), transform(), transformTypeNames, and TRANSLATIONAL.
Referenced by processorPolyPatch::calcGeometry().
|
protectedpure virtual |
Initialise the calculation of the patch geometry.
Reimplemented from polyPatch.
Implemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
|
protectedpure virtual |
Calculate the patch geometry.
Reimplemented from polyPatch.
Implemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
|
protectedpure virtual |
Initialise the patches for moving points.
Reimplemented from polyPatch.
Implemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
|
protectedpure virtual |
Correct patches after moving points.
Reimplemented from polyPatch.
Implemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
|
protectedpure virtual |
Initialise the update of the patch topology.
Reimplemented from polyPatch.
Implemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
|
protectedpure virtual |
Update of the patch topology.
Reimplemented from polyPatch.
Implemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
References f(), os(), p0, and PrimitivePatch< SubList< face >, const pointField & >::points().
Write point in OBJ format.
Definition at line 53 of file coupledPolyPatch.C.
References Foam::endl(), os(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().
Referenced by processorPolyPatch::calcGeometry(), processorPolyPatch::initOrder(), cyclicPolyPatch::order(), oldCyclicPolyPatch::order(), processorPolyPatch::order(), writeOBJ(), writeOBJ(), and writeOBJ().
|
staticprotected |
Write selected points in OBJ format.
Definition at line 59 of file coupledPolyPatch.C.
References os(), pointLabels(), PrimitivePatch< SubList< face >, const pointField & >::points(), and writeOBJ().
|
staticprotected |
Write patch.
Definition at line 91 of file coupledPolyPatch.C.
References f(), polyPatch::faces(), forAll, HashTable< T, Key, Hash >::insert(), Foam::nl, os(), PrimitivePatch< SubList< face >, const pointField & >::points(), and writeOBJ().
Write edge in OBJ format.
Definition at line 73 of file coupledPolyPatch.C.
References Foam::nl, os(), p0, and writeOBJ().
|
staticprotected |

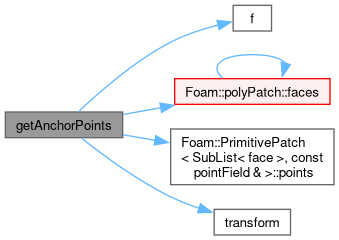

Get a unique anchor point for all faces.
Definition at line 125 of file coupledPolyPatch.C.
References COINCIDENTFULLMATCH, f(), polyPatch::faces(), forAll, PrimitivePatch< SubList< face >, const pointField & >::points(), and transform().
Referenced by processorPolyPatch::initOrder(), and processorPolyPatch::order().
|
staticprotected |

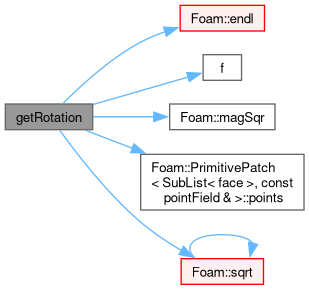

Get the number of vertices face f needs to be rotated such that.
its f[0] point aligns with given anchor (within tol).
Definition at line 233 of file coupledPolyPatch.C.
References Foam::endl(), f(), forAll, Foam::magSqr(), Foam::nl, PrimitivePatch< SubList< face >, const pointField & >::points(), Foam::sqrt(), and WarningInFunction.
Referenced by cyclicPolyPatch::order(), and processorPolyPatch::order().
| TypeName | ( | "coupled" | ) |
Runtime type information.
References coupledPolyPatch(), dict, polyPatch::faceCells(), patchIdentifier::index(), Foam::name(), polyPatch::polyBoundaryMesh, pp(), UList< face >::size(), polyPatch::start(), and transform().
|
inlinevirtual |
Return true because this patch is coupled.
Reimplemented from polyPatch.
Reimplemented in cyclicAMIPolyPatch, and processorPolyPatch.
Definition at line 303 of file coupledPolyPatch.H.
|
pure virtual |
Does this side own the patch ?
Implemented in cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
Referenced by polyMeshTetDecomposition::findFaceBasePts(), neighbour(), and processorCyclicPolyPatch::owner().
|
inlinevirtual |
Does the coupled side own the patch ?
Reimplemented in cyclicPolyPatch, and processorPolyPatch.
Definition at line 316 of file coupledPolyPatch.H.
References owner().
|
inlinevirtual |
The referring patchID (eg, for cyclics).
Reimplemented in processorCyclicPolyPatch.
Definition at line 324 of file coupledPolyPatch.H.
|
inlinevirtual |
Type of transform.
Reimplemented in processorCyclicPolyPatch.
Definition at line 332 of file coupledPolyPatch.H.
Referenced by calcTransformTensors(), coupledPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicAMIPolyPatch::cyclicAMIPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), cyclicPolyPatch::cyclicPolyPatch(), getAnchorPoints(), zoneDistribute::getCyclicPatches(), zoneDistribute::getPosition(), oldCyclicPolyPatch::oldCyclicPolyPatch(), oldCyclicPolyPatch::oldCyclicPolyPatch(), processorPolyPatch::processorPolyPatch(), processorPolyPatch::processorPolyPatch(), processorCyclicPolyPatch::transform(), TypeName(), cyclicAMIPolyPatch::TypeName(), cyclicPolyPatch::TypeName(), oldCyclicPolyPatch::TypeName(), and processorPolyPatch::TypeName().
|
inlinevirtual |
Type of transform.
This is currently only for use when collapsing generated meshes that can have zero area faces.
Reimplemented in processorCyclicPolyPatch.
Definition at line 343 of file coupledPolyPatch.H.
|
pure virtual |
Transform a patch-based position from other side to this side.
Implemented in cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
Referenced by mapDistribute::transformPosition::operator()(), mapDistribute::transformPosition::operator()(), processorCyclicPolyPatch::transformPosition(), and processorCyclicPolyPatch::transformPosition().
|
pure virtual |
Transform a patch-based position from other side to this side.
Implemented in cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
|
inlinevirtual |
Are the planes separated.
Reimplemented in processorCyclicPolyPatch.
Definition at line 361 of file coupledPolyPatch.H.
Referenced by particle< Type >::correctAfterParallelTransfer(), extendedCellToCellStencil::extendedCellToCellStencil(), extendedCellToFaceStencil::extendedCellToFaceStencil(), extendedFaceToCellStencil::extendedFaceToCellStencil(), FaceCellWave< Type, TrackingData >::handleAMICyclicPatches(), particle< Type >::hitCyclicAMIPatch(), particle< Type >::hitCyclicPatch(), cyclicAMIPolyPatch::reverseTransformPosition(), processorCyclicPolyPatch::separated(), cyclicAMIPolyPatch::transformPosition(), cyclicAMIPolyPatch::transformPosition(), cyclicPolyPatch::transformPosition(), and cyclicPolyPatch::transformPosition().
|
inlinevirtual |
If the planes are separated the separation vector.
Reimplemented in processorCyclicPolyPatch.
Definition at line 369 of file coupledPolyPatch.H.
Referenced by cyclicAMIPolyPatch::calcTransforms(), particle< Type >::correctAfterParallelTransfer(), particle< Type >::hitCyclicAMIPatch(), particle< Type >::hitCyclicPatch(), cyclicAMIPolyPatch::reverseTransformPosition(), processorCyclicPolyPatch::separation(), cyclicAMIPolyPatch::transformPosition(), cyclicAMIPolyPatch::transformPosition(), cyclicPolyPatch::transformPosition(), and cyclicPolyPatch::transformPosition().
|
inlinevirtual |
Are the cyclic planes parallel.
Reimplemented in processorCyclicPolyPatch.
Definition at line 377 of file coupledPolyPatch.H.
Referenced by particle< Type >::correctAfterParallelTransfer(), cyclicAMIPolyPatch::cylindricalCS(), extendedCellToCellStencil::extendedCellToCellStencil(), extendedCellToFaceStencil::extendedCellToFaceStencil(), extendedFaceToCellStencil::extendedFaceToCellStencil(), FaceCellWave< Type, TrackingData >::handleAMICyclicPatches(), particle< Type >::hitCyclicAMIPatch(), particle< Type >::hitCyclicPatch(), mapDistribute::transform::operator()(), mapDistribute::transform::operator()(), parallelFvGeometryScheme::transformOriented::operator()(), processorCyclicPolyPatch::parallel(), cyclicAMIPolyPatch::reverseTransformDirection(), cyclicAMIPolyPatch::reverseTransformPosition(), cyclicAMIPolyPatch::transformPosition(), cyclicAMIPolyPatch::transformPosition(), cyclicPolyPatch::transformPosition(), and cyclicPolyPatch::transformPosition().
|
inlinevirtual |
Return face transformation tensor.
Reimplemented in processorCyclicPolyPatch.
Definition at line 385 of file coupledPolyPatch.H.
Referenced by cyclicAMIPolyPatch::calcTransforms(), particle< Type >::correctAfterParallelTransfer(), processorCyclicPolyPatch::forwardT(), particle< Type >::hitCyclicAMIPatch(), particle< Type >::hitCyclicPatch(), mapDistribute::transform::operator()(), mapDistribute::transform::operator()(), parallelFvGeometryScheme::transformOriented::operator()(), cyclicAMIPolyPatch::transformPosition(), cyclicAMIPolyPatch::transformPosition(), cyclicPolyPatch::transformPosition(), and cyclicPolyPatch::transformPosition().
|
inlinevirtual |
Return neighbour-cell transformation tensor.
Reimplemented in processorCyclicPolyPatch.
Definition at line 393 of file coupledPolyPatch.H.
Referenced by cyclicAMIPolyPatch::calcTransforms(), processorCyclicPolyPatch::reverseT(), cyclicAMIPolyPatch::reverseTransformDirection(), and cyclicAMIPolyPatch::reverseTransformPosition().
|
inlinevirtual |
Are faces collocated. Either size 0,1 or length of patch.
Reimplemented in processorCyclicPolyPatch.
Definition at line 401 of file coupledPolyPatch.H.
Referenced by cyclicAMIPolyPatch::calcTransforms(), and processorCyclicPolyPatch::collocated().
|
inline |
Definition at line 406 of file coupledPolyPatch.H.
Referenced by processorPolyPatch::calcGeometry(), and processorPolyPatch::order().
|
pure virtual |
Calculate the patch geometry.
Implemented in cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
|
pure virtual |
Initialize ordering for primitivePatch. Does not.
refer to *this (except for name() and type() etc.)
Reimplemented from polyPatch.
Implemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
|
pure virtual |
Return new ordering for primitivePatch.
Ordering is -faceMap: for every face index of the new face -rotation:for every new face the clockwise shift of the original face. Return false if nothing changes (faceMap is identity, rotation is 0), true otherwise.
Reimplemented from polyPatch.
Implemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
References polyPatch::faceCentres(), Foam::faceMap(), polyPatch::faces(), os(), and PrimitivePatch< SubList< face >, const pointField & >::points().
|
static |
Calculate typical tolerance per face. Is currently max distance.
from face centre to any of the face vertices.
Definition at line 193 of file coupledPolyPatch.C.
References Foam::cmptMag(), Foam::cmptMax(), f(), polyPatch::faceCentres(), polyPatch::faces(), forAll, Foam::magSqr(), Foam::max(), PrimitivePatch< SubList< face >, const pointField & >::points(), and Foam::sqrt().
Referenced by processorPolyPatch::calcGeometry(), and processorPolyPatch::order().
|
virtual |
Write the polyPatch data as a dictionary.
Reimplemented from polyPatch.
Reimplemented in cyclicACMIPolyPatch, cyclicAMIPolyPatch, cyclicPeriodicAMIPolyPatch, cyclicPolyPatch, oldCyclicPolyPatch, processorCyclicPolyPatch, and processorPolyPatch.
Definition at line 570 of file coupledPolyPatch.C.
References os(), transformTypeNames, and polyPatch::write().
Referenced by cyclicAMIPolyPatch::write(), cyclicPolyPatch::write(), and processorPolyPatch::write().
|
static |
Definition at line 66 of file coupledPolyPatch.H.
Referenced by calcTransformTensors(), coupledPolyPatch(), and write().
1.16.1
