dynamicAlphaContactAngleFvPatchScalarField Class Reference

A dynamic alphaContactAngle scalar boundary condition (alphaContactAngleTwoPhaseFvPatchScalarField). More...

#include <dynamicAlphaContactAngleFvPatchScalarField.H>

Inheritance diagram for dynamicAlphaContactAngleFvPatchScalarField:
Inheritance graph
[legend]
Collaboration diagram for dynamicAlphaContactAngleFvPatchScalarField:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("dynamicAlphaContactAngle")
 Runtime type information.
 dynamicAlphaContactAngleFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 dynamicAlphaContactAngleFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 dynamicAlphaContactAngleFvPatchScalarField (const dynamicAlphaContactAngleFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping given.
 dynamicAlphaContactAngleFvPatchScalarField (const dynamicAlphaContactAngleFvPatchScalarField &)
 Construct as copy.
 dynamicAlphaContactAngleFvPatchScalarField (const dynamicAlphaContactAngleFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > > clone () const
 Return a clone.
virtual tmp< fvPatchField< scalar > > clone (const DimensionedField< scalar, volMesh > &iF) const
 Clone with an internal field reference.
virtual tmp< scalarField > theta (const fvPatchVectorField &Up, const fvsPatchVectorField &nHat) const
 Evaluate and return dynamic contact-angle.
virtual void write (Ostream &) const
 Write.
Public Member Functions inherited from alphaContactAngleTwoPhaseFvPatchScalarField
 alphaContactAngleTwoPhaseFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
 Construct from patch and internal field.
 alphaContactAngleTwoPhaseFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
 Construct from patch, internal field and dictionary.
 alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
 Construct by mapping onto a new patch.
 alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &)
 Construct as copy.
 alphaContactAngleTwoPhaseFvPatchScalarField (const alphaContactAngleTwoPhaseFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
 Construct as copy setting internal field reference.
virtual void evaluate (const Pstream::commsTypes commsType=Pstream::commsTypes::buffered)
 Evaluate the patch field.

Additional Inherited Members

Public Types inherited from alphaContactAngleTwoPhaseFvPatchScalarField
enum  limitControls { lcNone , lcGradient , lcZeroGradient , lcAlpha }
 Alpha limit options. More...
Public Attributes inherited from alphaContactAngleTwoPhaseFvPatchScalarField
limitControls limit_
Static Public Attributes inherited from alphaContactAngleTwoPhaseFvPatchScalarField
static const Enum< limitControls > limitControlNames_

Detailed Description

A dynamic alphaContactAngle scalar boundary condition (alphaContactAngleTwoPhaseFvPatchScalarField).

Source files

Definition at line 48 of file dynamicAlphaContactAngleFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ dynamicAlphaContactAngleFvPatchScalarField() [1/5]

dynamicAlphaContactAngleFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF )

Construct from patch and internal field.

Definition at line 29 of file dynamicAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), and p.

Referenced by dynamicAlphaContactAngleFvPatchScalarField(), dynamicAlphaContactAngleFvPatchScalarField(), dynamicAlphaContactAngleFvPatchScalarField(), and TypeName().

Here is the call graph for this function:

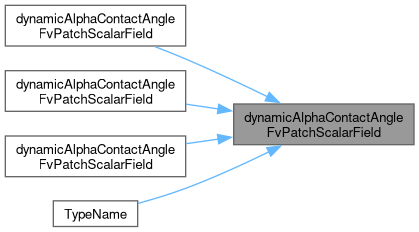

Here is the caller graph for this function:

◆ dynamicAlphaContactAngleFvPatchScalarField() [2/5]

dynamicAlphaContactAngleFvPatchScalarField ( const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const dictionary & dict )

Construct from patch, internal field and dictionary.

Definition at line 61 of file dynamicAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), dict, alphaContactAngleTwoPhaseFvPatchScalarField::evaluate(), and p.

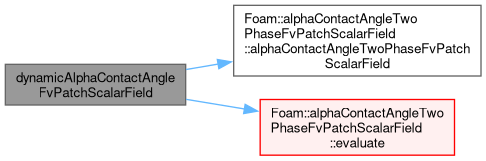

Here is the call graph for this function:

◆ dynamicAlphaContactAngleFvPatchScalarField() [3/5]

dynamicAlphaContactAngleFvPatchScalarField ( const dynamicAlphaContactAngleFvPatchScalarField & gcpsf,
const fvPatch & p,
const DimensionedField< scalar, volMesh > & iF,
const fvPatchFieldMapper & mapper )

Construct by mapping given.

dynamicAlphaContactAngleFvPatchScalarField onto a new patch

Definition at line 44 of file dynamicAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), dynamicAlphaContactAngleFvPatchScalarField(), and p.

Here is the call graph for this function:

◆ dynamicAlphaContactAngleFvPatchScalarField() [4/5]

dynamicAlphaContactAngleFvPatchScalarField ( const dynamicAlphaContactAngleFvPatchScalarField & gcpsf)

Construct as copy.

Definition at line 79 of file dynamicAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), and dynamicAlphaContactAngleFvPatchScalarField().

Here is the call graph for this function:

◆ dynamicAlphaContactAngleFvPatchScalarField() [5/5]

dynamicAlphaContactAngleFvPatchScalarField ( const dynamicAlphaContactAngleFvPatchScalarField & gcpsf,
const DimensionedField< scalar, volMesh > & iF )

Construct as copy setting internal field reference.

Definition at line 93 of file dynamicAlphaContactAngleFvPatchScalarField.C.

References alphaContactAngleTwoPhaseFvPatchScalarField::alphaContactAngleTwoPhaseFvPatchScalarField(), and dynamicAlphaContactAngleFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "dynamicAlphaContactAngle" )

Runtime type information.

References dynamicAlphaContactAngleFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const
inlinevirtual

Return a clone.

Definition at line 138 of file dynamicAlphaContactAngleFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF) const
inlinevirtual

Clone with an internal field reference.

Definition at line 146 of file dynamicAlphaContactAngleFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ theta()

Foam::tmp< Foam::scalarField > theta ( const fvPatchVectorField & Up,
const fvsPatchVectorField & nHat ) const
virtual

Evaluate and return dynamic contact-angle.

Implements alphaContactAngleTwoPhaseFvPatchScalarField.

Definition at line 111 of file dynamicAlphaContactAngleFvPatchScalarField.C.

References Foam::mag(), tmp< T >::New(), fvPatchField< Type >::patchInternalField(), and Foam::tanh().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Reimplemented from alphaContactAngleTwoPhaseFvPatchScalarField.

Definition at line 142 of file dynamicAlphaContactAngleFvPatchScalarField.C.

References os(), alphaContactAngleTwoPhaseFvPatchScalarField::write(), and fvPatchField< Type >::writeValueEntry().

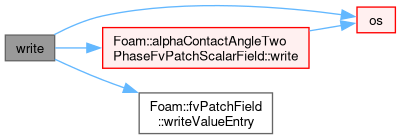

Here is the call graph for this function:
The documentation for this class was generated from the following files:
