Read PROSTAR vrt/cel/bnd files. The protected data in meshReader are filled. More...

#include <STARCDMeshReader.H>

Inheritance diagram for STARCDMeshReader:

[legend]

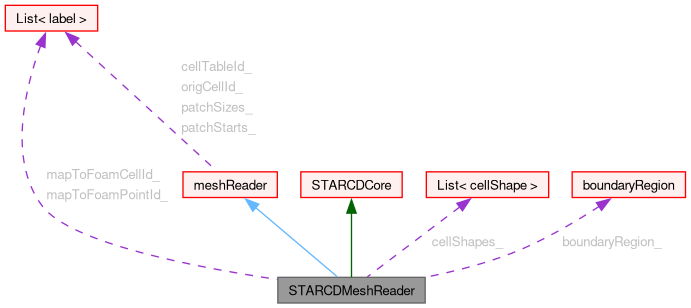

Collaboration diagram for STARCDMeshReader:

[legend]

Public Member Functions
	STARCDMeshReader (const fileName &prefix, const objectRegistry &registry, const scalar scaleFactor=1.0, const bool keepSolids=false)
	Construct from case name.
virtual	~STARCDMeshReader ()=default
	Destructor.
Public Member Functions inherited from meshReader
	meshReader (const fileName &, const scalar scaling=1.0)
	Construct from fileName.
virtual	~meshReader ()=default
	Destructor.
virtual autoPtr< polyMesh >	mesh (const objectRegistry &)
	Create and return polyMesh.
void	writeAux (const objectRegistry &) const
	Write auxiliary information.
void	writeMesh (const polyMesh &, IOstreamOption streamOpt=IOstreamOption(IOstreamOption::BINARY)) const
	Write mesh.

Protected Member Functions

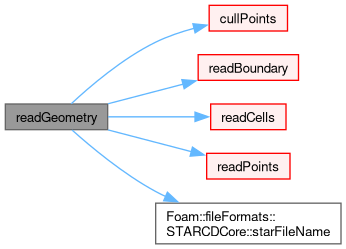

virtual bool	readGeometry (const scalar scaleFactor=1.0)
	Read the mesh from the file(s).

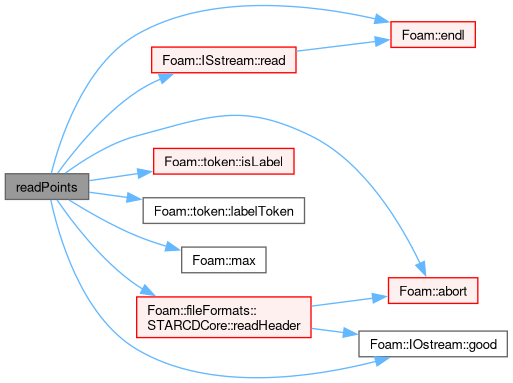

label	readPoints (const fileName &, const scalar scaleFactor)
	Read points from file, return the max prostar id used.

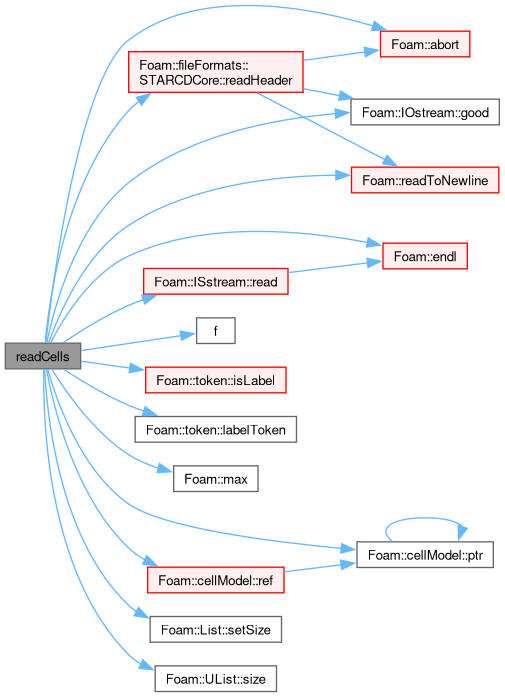

virtual void	readCells (const fileName &)
	Read cell connectivities from file.
void	cullPoints ()
	Remove unused points.

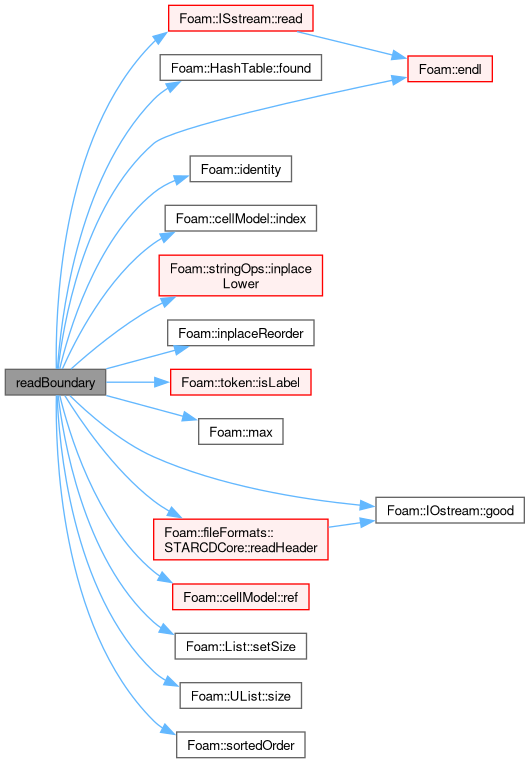

void	readBoundary (const fileName &)
	Read boundary (cell/face) definitions.
void	readAux (const objectRegistry &)
	Read auxiliary data from constant/{boundaryRegion,cellTable}.
Protected Member Functions inherited from STARCDCore
	STARCDCore ()=default
	Construct null.

Protected Attributes
cellShapeList	cellShapes_
	Cell shapes.
labelList	mapToFoamPointId_
	Point labels (imported Point numbering not necessarily contiguous).
labelList	mapToFoamCellId_
	Cell labels (imported Cell numbering not necessarily contiguous).
boundaryRegion	boundaryRegion_
	Boundary region data.
Protected Attributes inherited from meshReader
fileName	geometryFile_
	Referenced filename.
scalar	scaleFactor_
	Geometry scaling.
pointField	points_
	Points supporting the mesh.
labelList	origCellId_
	Lookup original Cell number for a given cell.
List< List< cellFaceIdentifier > >	boundaryIds_
	Identify boundary faces by cells and their faces.
wordList	patchTypes_
	Boundary patch types.
wordList	patchNames_
	Boundary patch names.
wordList	patchPhysicalTypes_
	Boundary patch physical types.
labelList	patchStarts_
	Polyhedral mesh boundary patch start indices and dimensions.
labelList	patchSizes_
label	nInternalFaces_
	Number of internal faces for polyMesh.
faceList	meshFaces_
	Global face list for polyMesh.
faceListList	cellFaces_
	List of faces for every cell.
faceList	baffleFaces_
	List of each baffle face.
labelList	cellTableId_
	Cell table id for each cell.
cellTable	cellTable_
	Cell table persistent data saved as a dictionary.

Additional Inherited Members
Static Public Member Functions inherited from meshReader
static void	warnDuplicates (const word &context, const wordList &)
	Warn about repeated names.
Protected Types inherited from STARCDCore
enum	fileHeader { HEADER_CEL , HEADER_VRT , HEADER_BND }
	Enumeration defining the file headers. More...
enum	fileExt { CEL_FILE , VRT_FILE , BND_FILE , INP_FILE }
	Enumeration defining the file extensions. More...
enum	matlType { starcdFluidType = 1 , starcdSolidType = 2 , starcdBaffleType = 3 , starcdShellType = 4 , starcdLineType = 5 , starcdPointType = 6 }
	Basic material type for STARCD/PROSTAR files. More...
enum	shapeType { starcdPoint = 1 , starcdLine = 2 , starcdShell = 3 , starcdHex = 11 , starcdPrism = 12 , starcdTet = 13 , starcdPyr = 14 , starcdPoly = 255 }
	Shape-Type for STARCD/PROSTAR files. More...
Static Protected Member Functions inherited from STARCDCore
static bool	readHeader (IFstream &is, const enum fileHeader header)
	Read header and check signature PROSTAR_(CELL\|VERTEX\|BOUNDARY).
static void	writeHeader (Ostream &os, const enum fileHeader header)
	Write header for fileType (CELL\|VERTEX\|BOUNDARY).
static fileName	starFileName (const fileName &baseName, const enum fileExt ext)
	Resolve base file-name for the given file-type.
static void	removeFiles (const fileName &baseName)
	Remove existing PROSTAR files for the given base file-name.
static label	readPoints (IFstream &is, List< point > &points, List< label > &ids)
	Read points from a (.vrt) file, return the max prostar id used.
static void	writePoints (Ostream &os, const UList< point > &points, const scalar scaleFactor=1.0)
	Write header and points to (.vrt) file, optionally with scaling.
Static Protected Attributes inherited from STARCDCore
static const Map< FixedList< int, 6 > >	starToFoamFaceAddr
	Face addressing from PROSTAR faces to OpenFOAM faces.
static const Map< FixedList< int, 6 > >	foamToStarFaceAddr
	Face addressing from OpenFOAM faces to PROSTAR faces.
static const char *const	defaultBoundaryName
	The name for default (unassigned) boundaries.
static const char *const	defaultSolidBoundaryName
	The name we have chosen for default (unassigned) solid boundaries.
