scalarTransport Class Reference
FunctionObjects » Solver function objects

Computes the transport equation for a passive scalar in single-phase or two-phase flow, considering both incompressible and compressible cases: More...

#include <scalarTransport.H>

Inheritance diagram for scalarTransport:
Inheritance graph
[legend]
Collaboration diagram for scalarTransport:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("scalarTransport")
 Runtime type information.

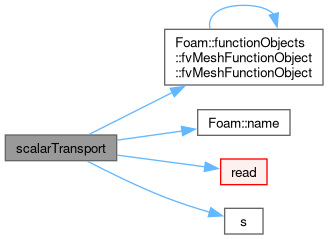

 scalarTransport (const word &name, const Time &runTime, const dictionary &dict)
 Construct from name, Time and dictionary.
virtual ~scalarTransport ()=default
 Destructor.
virtual bool read (const dictionary &)
 Read the function-object dictionary.

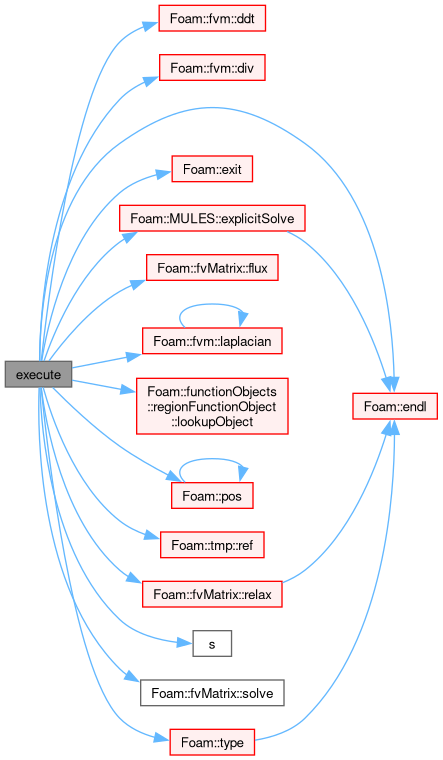

virtual bool execute ()
 Execute the function-object operations.
virtual bool write ()
 Write the function object output.
Public Member Functions inherited from fvMeshFunctionObject
 TypeName ("fvMeshFunctionObject")
 Runtime type information.
 fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
 Construct from Time and dictionary.
 fvMeshFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
 Construct from the region objectRegistry and dictionary.
virtual ~fvMeshFunctionObject ()=default
 Destructor.
Public Member Functions inherited from regionFunctionObject
 TypeName ("regionFunctionObject")
 Runtime type information.
 regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
 Construct from Time and dictionary.
 regionFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
 Construct from the region objectRegistry and dictionary.
virtual ~regionFunctionObject ()=default
 Destructor.
template<class ObjectType>
const ObjectType * lookupObjectPtr (const word &fieldName) const
 Deprecated(2018-10).
template<class ObjectType>
ObjectType * lookupObjectRefPtr (const word &fieldName) const
 Deprecated(2018-10).
Public Member Functions inherited from stateFunctionObject
 stateFunctionObject (const word &name, const Time &runTime)
 Construct from components.
virtual ~stateFunctionObject ()=default
 Destructor.
dictionary & propertyDict ()
 Return access to the property dictionary.
bool foundProperty (const word &entryName) const
 Return true if the property exists.
void clearTrigger ()
 Remove the trigger index from the properties.
label getTrigger () const
 Get the current trigger index.
bool setTrigger (const label triggeri)
 Set new trigger index.
bool getDict (const word &entryName, dictionary &dict) const
 Set dictionary, return true if set.
bool getObjectDict (const word &objectName, const word &entryName, dictionary &dict) const
 Set dictionary from named object, return true if set.
template<class Type>
Type getProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
 Retrieve generic property.
template<class Type>
bool getProperty (const word &entryName, Type &value) const
 Set generic property, return true if set.
template<class Type>
void setProperty (const word &entryName, const Type &value)
 Add generic property.
template<class Type>
Type getObjectProperty (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const
 Retrieve generic property from named object.
template<class Type>
bool getObjectProperty (const word &objectName, const word &entryName, Type &value) const
 Set generic property from named object, return true if set.
template<class Type>
void setObjectProperty (const word &objectName, const word &entryName, const Type &value)
 Add generic property from named object.
bool getObjectResultDict (const word &objectName, dictionary &dict) const
template<class Type>
void setResult (const word &entryName, const Type &value)
 Add result.
template<class Type>
void setObjectResult (const word &objectName, const word &entryName, const Type &value)
 Add result from named object.
template<class Type>
Type getResult (const word &entryName, const Type &defaultValue=Type(Zero)) const
 Retrieve result.
template<class Type>
Type getObjectResult (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const
 Retrieve result from named object.
template<class Type>
bool getObjectResult (const word &objectName, const word &entryName, Type &value) const
 Set result from named object, return true if set.
word resultType (const word &entryName) const
 Retrieve the result type.
word objectResultType (const word &objectName, const word &entryName) const
 Return the type of result.
wordList objectResultEntries () const
 Retrieve the result entries.
wordList objectResultEntries (const word &objectName) const
 Return result entries for named object.
void writeResultEntries (Ostream &os) const
 Write the results entries for all objects to stream.
void writeResultEntries (const word &objectName, Ostream &os) const
 Write the results entries for named object to stream.
void writeAllResultEntries (Ostream &os) const
 Write the results entries for all objects to stream.
Public Member Functions inherited from timeFunctionObject
 timeFunctionObject (const word &name, const Time &runTime)
 Construct from Time.
virtual ~timeFunctionObject ()=default
 Destructor.
const Time & time () const
 Return time database.
objectRegistry & storedObjects ()
 Write access to the output objects ("functionObjectObjects") registered on Time.
const objectRegistry & storedObjects () const
 Const access to the output objects ("functionObjectObjects") registered on Time.
Public Member Functions inherited from functionObject
 declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))
 functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)
 Construct from components.
autoPtr< functionObject > clone () const
 Return clone.
virtual ~functionObject ()=default
 Destructor.
virtual const word & type () const =0
 Runtime type information.
const word & name () const noexcept
 Return the name of this functionObject.
bool useNamePrefix () const noexcept
 Return the flag for adding a scoping name prefix.
bool useNamePrefix (bool on) noexcept
 Modify the flag for adding a scoping name prefix.
virtual bool execute (const label subIndex)
 Execute using the specified subIndex.
virtual bool end ()
 Called when Time::run() determines that the time-loop exits.
virtual bool adjustTimeStep ()
 Called at the end of Time::adjustDeltaT() if adjustTime is true.
virtual bool filesModified () const
 Did any file get changed during execution?
virtual void updateMesh (const mapPolyMesh &mpm)
 Update for changes of mesh.
virtual void movePoints (const polyMesh &mesh)
 Update for changes of mesh.

Additional Inherited Members

Static Public Member Functions inherited from functionObject
static autoPtr< functionObject > New (const word &name, const Time &runTime, const dictionary &dict)
 Select from dictionary, based on its "type" entry.
Public Attributes inherited from functionObject
bool log
 Flag to write log into Info.
Static Public Attributes inherited from functionObject
static int debug
 Flag to execute debug content.
static bool postProcess
 Global post-processing mode switch.
static bool defaultUseNamePrefix
 Global default for useNamePrefix.
static word outputPrefix
 Directory prefix.
Protected Member Functions inherited from fvMeshFunctionObject
 fvMeshFunctionObject (const fvMeshFunctionObject &)=delete
 No copy construct.
void operator= (const fvMeshFunctionObject &)=delete
 No copy assignment.
Protected Member Functions inherited from regionFunctionObject
virtual const objectRegistry & obr () const
 The region or sub-region registry being used.
template<class ObjectType>
bool foundObject (const word &fieldName) const
 Find object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
const ObjectType * cfindObject (const word &fieldName) const
 Return const pointer to the object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
const ObjectType * findObject (const word &fieldName) const
 Return const pointer to the object (eg, a field) in the (sub) objectRegistry.
template<class ObjectType>
ObjectType * findObject (const word &fieldName)
 Return non-const pointer to the object of the given Type, (sub) objectRegistry.
template<class ObjectType>
ObjectType * getObjectPtr (const word &fieldName) const
 Return non-const pointer to the object of the given Type, using a const-cast to have it behave like a mutable.
template<class ObjectType>
const ObjectType & lookupObject (const word &fieldName) const
 Lookup and return object (eg, a field) from the (sub) objectRegistry.
template<class ObjectType>
ObjectType & lookupObjectRef (const word &fieldName) const
 Lookup and return object (eg, a field) from the (sub) objectRegistry.
template<class ObjectType>
bool store (word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)
 Store the field in the (sub) objectRegistry under the given name.
template<class ObjectType>
bool storeInDb (const word &fieldName, const tmp< ObjectType > &tfield, const objectRegistry &obr)
 Store the field in an optional objectRegistry under the given name.
bool writeObject (const word &fieldName)
 Write field if present in the (sub) objectRegistry.
bool clearObject (const word &fieldName)
 Clear field from the (sub) objectRegistry if present.
void clearObjects (const wordList &objNames)
 Clear fields from the (sub) objectRegistry if present.
 regionFunctionObject (const regionFunctionObject &)=delete
 No copy construct.
void operator= (const regionFunctionObject &)=delete
 No copy assignment.
Protected Member Functions inherited from stateFunctionObject
const functionObjects::properties & stateDict () const
 Return a const reference to the state dictionary.
functionObjects::properties & stateDict ()
 Return non-const access to the state dictionary.
 stateFunctionObject (const stateFunctionObject &)=delete
 No copy construct.
void operator= (const stateFunctionObject &)=delete
 No copy assignment.
Protected Member Functions inherited from timeFunctionObject
void clearOutputObjects (const wordList &objNames)
 Remove specified items from "functionObjectObjects".
 timeFunctionObject (const timeFunctionObject &)=delete
 No copy construct.
void operator= (const timeFunctionObject &)=delete
 No copy assignment.
Protected Member Functions inherited from functionObject
word scopedName (const word &name) const
 Return a scoped (prefixed) name.
Protected Attributes inherited from fvMeshFunctionObject
const fvMesh & mesh_
 Reference to the fvMesh.
Protected Attributes inherited from regionFunctionObject
word subRegistryName_
 Name for alternative object registry.
const objectRegistry & obr_
 Reference to the region objectRegistry.
const objectRegistry * obrPtr_
 Pointer to alternative (eg, sub-region) objectRegistry.
Protected Attributes inherited from timeFunctionObject
const Time & time_
 Reference to the time database.

Detailed Description

Computes the transport equation for a passive scalar in single-phase or two-phase flow, considering both incompressible and compressible cases:

\‍[ \frac{\partial \rho \, T}{\partial t} + \nabla \cdot \left( \phi_\alpha \, T \right) - \nabla \cdot (D_T \, \nabla T) = \alpha \, S_T \‍]

where:

$ T $=Passive scalar field
$ \rho $=(Generic) Fluid density which is unity when not specified
$ \phi_\alpha $=(Generic) Flux field
$ \alpha $=Phase fraction which is unity for single-phase flows
$ D_T $=Diffusivity representing the diffusive transport of T
$ S_T $=Passive-scalar field source term
Usage
Minimal example in system/controlDict.functions:
scalarTransportFO
{
    // Mandatory entries
    type            scalarTransport;
    libs            (solverFunctionObjects);

    // Optional entries
    field           <word>;
    phi             <word>;
    rho             <word>;
    nut             <word>;
    phase           <word>;
    phasePhiCompressed  <word>;
    schemesField    <word>;
    bounded01       <bool>;
    D               <scalar>;
    alphaD          <scalar>;
    alphaDt         <scalar>;
    tolerance       <scalar>;
    nCorr           <int>;
    resetOnStartUp  <bool>;
    fvOptions       <dict>;

    // Inherited entries
    ...
}

where:
<table class="OFTable">
<tr>
    <th align="center"><b>      Property  </b></th>
    <th align="center"><b> Description                         </b></th>
    <th align="center"><b> Type </b></th>
    <th align="center"><b> Reqd </b></th>
    <th align="center"><b> Deflt</b></th>
</tr>
<tr>
    <td>\c       type      </td>
    <td> Type name: scalarTransport          </td>
    <td> word </td>
    <td> yes  </td>
    <td> -</td>
</tr>
<tr>
    <td>\c       libs      </td>
    <td> Library name: solverFunctionObjects </td>
    <td> word </td>
    <td> yes  </td>
    <td> -</td>
</tr>
<tr>
    <td>\c       field     </td>
    <td> Name of the passive-scalar field    </td>
    <td> word </td>
    <td> no   </td>
    <td> s</td>
</tr>
<tr>
    <td>\c       phi       </td>
    <td> Name of flux field                  </td>
    <td> word </td>
    <td> no   </td>
    <td> phi</td>
</tr>
<tr>
    <td>\c       rho       </td>
    <td> Name of density field               </td>
    <td> word </td>
    <td> no   </td>
    <td> rho</td>
</tr>
<tr>
    <td>\c       nut       </td>
    <td> Name of the turbulence viscosity    </td>
    <td> word </td>
    <td> no   </td>
    <td> none</td>
</tr>
<tr>
    <td>\c       phase     </td>
    <td> Name of the phase                   </td>
    <td> word </td>
    <td> no   </td>
    <td> none</td>
</tr>
<tr>
    <td>\c       phasePhiCompressed </td>
    <td> Name of compressed VOF flux </td>
    <td> word </td>
    <td> no </td>
    <td> alphaPhiUn</td>
</tr>
<tr>
    <td>\c       schemesField </td>
    <td> Name of field to specify schemes </td>
    <td> word  </td>
    <td> no </td>
    <td> field</td>
</tr>
<tr>
    <td>\c       bounded01 </td>
    <td> Bounds scalar between 0-1 for multiphase  </td>
    <td> bool </td>
    <td> no </td>
    <td> true</td>
</tr>
<tr>
    <td>\c       D         </td>
    <td> Diffusion coefficient               </td>
    <td> scalar </td>
    <td> no </td>
    <td> -</td>
</tr>
<tr>
    <td>\c       alphaD    </td>
    <td> Laminar diffusivity coefficient     </td>
    <td> scalar </td>
    <td> no </td>
    <td> 1</td>
</tr>
<tr>
    <td>\c       alphaDt   </td>
    <td> Turbulent diffusivity coefficient   </td>
    <td> scalar </td>
    <td> no </td>
    <td> 1</td>
</tr>
<tr>
    <td>\c       tolerance </td>
    <td> Outer-loop initial-residual tolerance </td>
    <td> scalar </td>
    <td> no </td>
    <td> 1</td>
</tr>
<tr>
    <td>\c       nCorr     </td>
    <td> Number of outer-loop correctors     </td>
    <td> int    </td>
    <td> no </td>
    <td> 0</td>
</tr>
<tr>
    <td>\c       resetOnStartUp </td>
    <td> Flag to reset field to zero on start-up </td>
    <td> bool </td>
    <td> no </td>
    <td> no</td>
</tr>
<tr>
    <td>\c       fvOptions </td>
    <td> List of finite-volume options       </td>
    <td> dict   </td>
    <td> no </td>
    <td> -</td>
</tr>
</table>

    The inherited entries are elaborated in:
      - \link functionObject.H \endlink
      - \link fvOption.H \endlink

    An example of function object specification to solve a residence time
    in a two-phase flow:
    \verbatim
    scalarTransport1
    {
        // Mandatory entries
        type            scalarTransport;
        libs            (solverFunctionObjects);

        // Optional entries
        field           s;
        bounded01       false;
        phase           alpha.water;
        tolerance       1e-5;
        resetOnStartUp  false;
        fvOptions
        {
            unitySource
            {
                type            scalarSemiImplicitSource;
                enabled         true;

                selectionMode   all;
                volumeMode      specific;

                sources
                {
                    s           (1 0);
                }
            }
        }

        // Inherited entries
        enabled         true;
        writeControl    writeTime;
        writeInterval   1;
    }
Note
  • To use the same numerical schemes as another field, set the schemesField entry.
  • The diffusivity can be set manually using the D entry, obtained from the turbulence model or specified as `nut`.
  • Alternatively, if a turbulence model is available, turbulent diffusivity can be constructed from the laminar and turbulent viscosities using the optional diffusivity coefficients alphaD and alphaDt (which default to 1):

\‍[ D = \alpha_D \, \nu + \alpha_{Dt} \, \nu_t \‍]

Source files

Definition at line 313 of file scalarTransport.H.

Constructor & Destructor Documentation

◆ scalarTransport()

scalarTransport ( const word & name,
const Time & runTime,
const dictionary & dict )

Construct from name, Time and dictionary.

Definition at line 155 of file scalarTransport.C.

References dict, fvMeshFunctionObject::fvMeshFunctionObject(), fvMeshFunctionObject::mesh_, Foam::name(), read(), runTime, s(), and Foam::Zero.

Here is the call graph for this function:

◆ ~scalarTransport()

virtual ~scalarTransport ( )
virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "scalarTransport" )

Runtime type information.

References dict, Foam::name(), and runTime.

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict)
virtual

Read the function-object dictionary.

Reimplemented from regionFunctionObject.

Definition at line 198 of file scalarTransport.C.

References dict, and functionObject::read().

Referenced by scalarTransport().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ execute()

bool execute ( )
virtual

Execute the function-object operations.

Implements functionObject.

Definition at line 230 of file scalarTransport.C.

References alpha, D, Foam::fvm::ddt(), Foam::dimLength, Foam::dimMass, Foam::dimTime, Foam::dimVolume, Foam::fvm::div(), Foam::endl(), Foam::exit(), Foam::MULES::explicitSolve(), Foam::FatalError, FatalErrorInFunction, fvMatrix< Type >::flux(), Foam::fvm::laplacian(), Log, regionFunctionObject::lookupObject(), fvMeshFunctionObject::mesh_, name, Foam::nl, phi, Foam::pos(), tmp< T >::ref(), fvMatrix< Type >::relax(), rho, s(), fvMatrix< Type >::solve(), Foam::tab, and Foam::type().

Here is the call graph for this function:

◆ write()

bool write ( )
virtual

Write the function object output.

The volScalarField is registered and written automatically

Implements functionObject.

Definition at line 372 of file scalarTransport.C.

References Foam::endl(), Log, name, Foam::nl, s(), Foam::tab, and Foam::type().

Here is the call graph for this function:
The documentation for this class was generated from the following files:
