hexRef8Data Class Reference

Various for reading/decomposing/reconstructing/distributing refinement data. More...

#include <hexRef8Data.H>

Public Member Functions
	hexRef8Data (const hexRef8Data &)=delete
	No copy construct.
void	operator= (const hexRef8Data &)=delete
	No copy assignment.
	hexRef8Data (const IOobject &io)
	Construct from IOobject, reading if MUST_READ or LAZY_READ. Use sync() if used in redistributing to different number of ranks.
	hexRef8Data (const IOobject &io, const hexRef8Data &, const labelUList &cellMap, const labelUList &pointMap)
	Construct as subset.
	hexRef8Data (const IOobject &io, const UPtrList< const labelList > &cellMaps, const UPtrList< const labelList > &pointMaps, const UPtrList< const hexRef8Data > &)
	Construct from multiple hexRef8Data.
	~hexRef8Data ()
	Destructor.
void	sync (const IOobject &io)
	Parallel synchronise. This enforces valid objects on all processors (even if they don't have a mesh). Used by redistributePar.
void	updateMesh (const mapPolyMesh &)
	Update local numbering for changed mesh.
void	distribute (const mapDistributePolyMesh &)
	In-place distribute.
bool	write () const
	Write.

Detailed Description

Various for reading/decomposing/reconstructing/distributing refinement data.

Source files

• hexRef8Data.H
• hexRef8Data.C

Definition at line 56 of file hexRef8Data.H.

Constructor & Destructor Documentation

hexRef8Data() [1/4]

hexRef8Data ( const hexRef8Data & )

delete

No copy construct.

References hexRef8Data().

Referenced by hexRef8Data(), hexRef8Data(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

hexRef8Data() [2/4]

hexRef8Data ( const IOobject & io )

explicit

Construct from IOobject, reading if MUST_READ or LAZY_READ. Use sync() if used in redistributing to different number of ranks.

Definition at line 34 of file hexRef8Data.C.

References Foam::endl(), Foam::Info, io, IOobjectOption::LAZY_READ, IOobjectOption::MUST_READ, IOobject::name(), Foam::returnReduceOr(), and IOobject::typeHeaderOk().

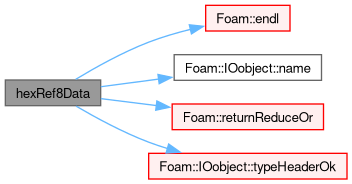

Here is the call graph for this function:

hexRef8Data() [3/4]

hexRef8Data	(	const IOobject &	io,
		const hexRef8Data &	data,
		const labelUList &	cellMap,
		const labelUList &	pointMap )

Construct as subset.

Definition at line 93 of file hexRef8Data.C.

References hexRef8Data(), and io.

Here is the call graph for this function:

hexRef8Data() [4/4]

hexRef8Data	(	const IOobject &	io,
		const UPtrList< const labelList > &	cellMaps,
		const UPtrList< const labelList > &	pointMaps,
		const UPtrList< const hexRef8Data > &	procDatas )

Construct from multiple hexRef8Data.

Definition at line 145 of file hexRef8Data.C.

References forAll, io, mesh, name, primitiveMesh::reset(), UPtrList< T >::set(), and UPtrList< T >::size().

Here is the call graph for this function:

~hexRef8Data()

~hexRef8Data

(

)

Destructor.

Definition at line 233 of file hexRef8Data.C.

Member Function Documentation

operator=()

void operator= ( const hexRef8Data & )

delete

No copy assignment.

References hexRef8Data(), and io.

Here is the call graph for this function:

sync()

void sync

(

const IOobject &

io

)

Parallel synchronise. This enforces valid objects on all processors (even if they don't have a mesh). Used by redistributePar.

Definition at line 239 of file hexRef8Data.C.

References UPstream::broadcast, Foam::dimLength, io, UPstream::master(), mesh, IOobjectOption::NO_READ, IOobjectOption::readOpt(), Foam::returnReduceOr(), and Foam::Zero.

Here is the call graph for this function:

updateMesh()

void updateMesh

(

const mapPolyMesh &

map

)

Update local numbering for changed mesh.

Definition at line 308 of file hexRef8Data.C.

References mapPolyMesh::cellMap(), polyMesh::facesInstance(), forAll, mapPolyMesh::mesh(), newPointi, mapPolyMesh::nOldCells(), mapPolyMesh::nOldPoints(), mapPolyMesh::pointMap(), UList< T >::size(), and List< T >::transfer().

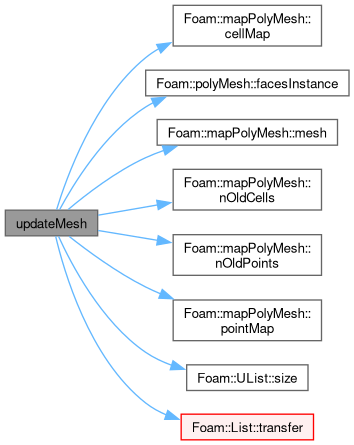

Here is the call graph for this function:

distribute()

void distribute

(

const mapDistributePolyMesh &

map

)

In-place distribute.

Definition at line 379 of file hexRef8Data.C.

References mapDistributePolyMesh::cellMap(), mapDistribute::distribute(), and mapDistributePolyMesh::pointMap().

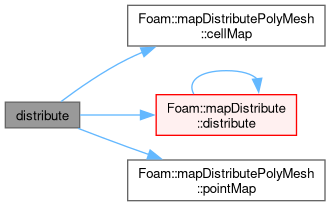

Here is the call graph for this function:

write()

bool write

(

)

const

Write.

Definition at line 399 of file hexRef8Data.C.

---

The documentation for this class was generated from the following files:

• src/dynamicMesh/polyTopoChange/polyTopoChange/hexRef8/hexRef8Data.H
• src/dynamicMesh/polyTopoChange/polyTopoChange/hexRef8/hexRef8Data.C
