Functionality for sampling fields using mappedPatchBase. Every call to mappedField() returns a sampled field, optionally scaled to maintain an area-weighted average. More...

#include <mappedPatchFieldBase.H>

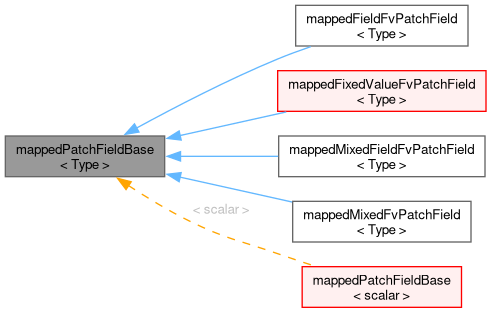

Inheritance diagram for mappedPatchFieldBase< Type >:

[legend]

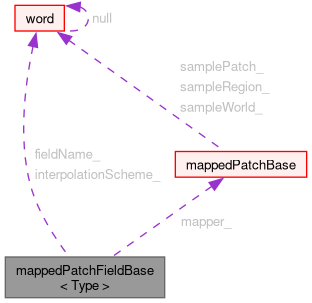

Collaboration diagram for mappedPatchFieldBase< Type >:

[legend]

Public Member Functions
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< Type > &patchField, const word &fieldName, const bool setAverage, const Type average, const word &interpolationScheme)
	Construct from components.
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< Type > &patchField, const dictionary &dict)
	Construct from dictionary.
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< Type > &patchField, const dictionary &dict, const Field< Type > &fld)
	Construct from dictionary and initial field value.
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< Type > &patchField)
	Construct empty.
	mappedPatchFieldBase (const mappedPatchFieldBase< Type > &mapper)
	Construct copy.
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< Type > &patchField, const mappedPatchFieldBase< Type > &base)
	Construct copy, resetting patch and field.
virtual	~mappedPatchFieldBase ()=default
	Destructor.
template<class T>
const GeometricField< T, fvPatchField, volMesh > &	sampleField (const word &fieldName) const
	Field to sample. Either on my or nbr mesh.
const GeometricField< Type, fvPatchField, volMesh > &	sampleField () const
	Field to sample. Either on my or nbr mesh.
virtual tmp< Field< Type > >	mappedField () const
	Map sampleField onto *this patch.
virtual tmp< Field< Type > >	mappedInternalField () const
	Map internal of sampleField onto *this patch.
virtual tmp< scalarField >	mappedWeightField () const
	Map optional weightField onto *this patch. Default is deltaCoeffs.

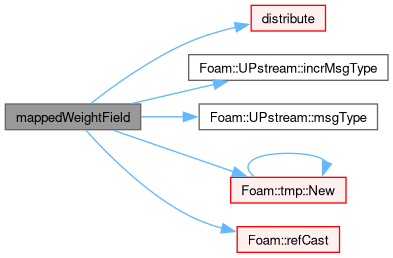

virtual void	mappedWeightField (const word &weightFieldName, tmp< scalarField > &thisWeights, tmp< scalarField > &nbrWeights) const
	Map optional weightField (given by name) onto *this patch.
virtual void	write (Ostream &os) const
	Write.
template<class T>
void	distribute (const word &fieldName, Field< T > &newValues) const
	Wrapper for mapDistribute::distribute that knows about dabase mapping.
template<class Type2>
const Foam::GeometricField< Type2, Foam::fvPatchField, Foam::volMesh > &	sampleField (const word &fieldName) const

Static Public Member Functions

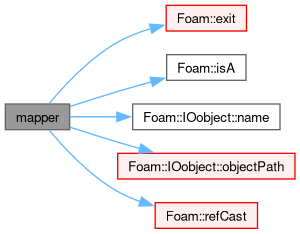

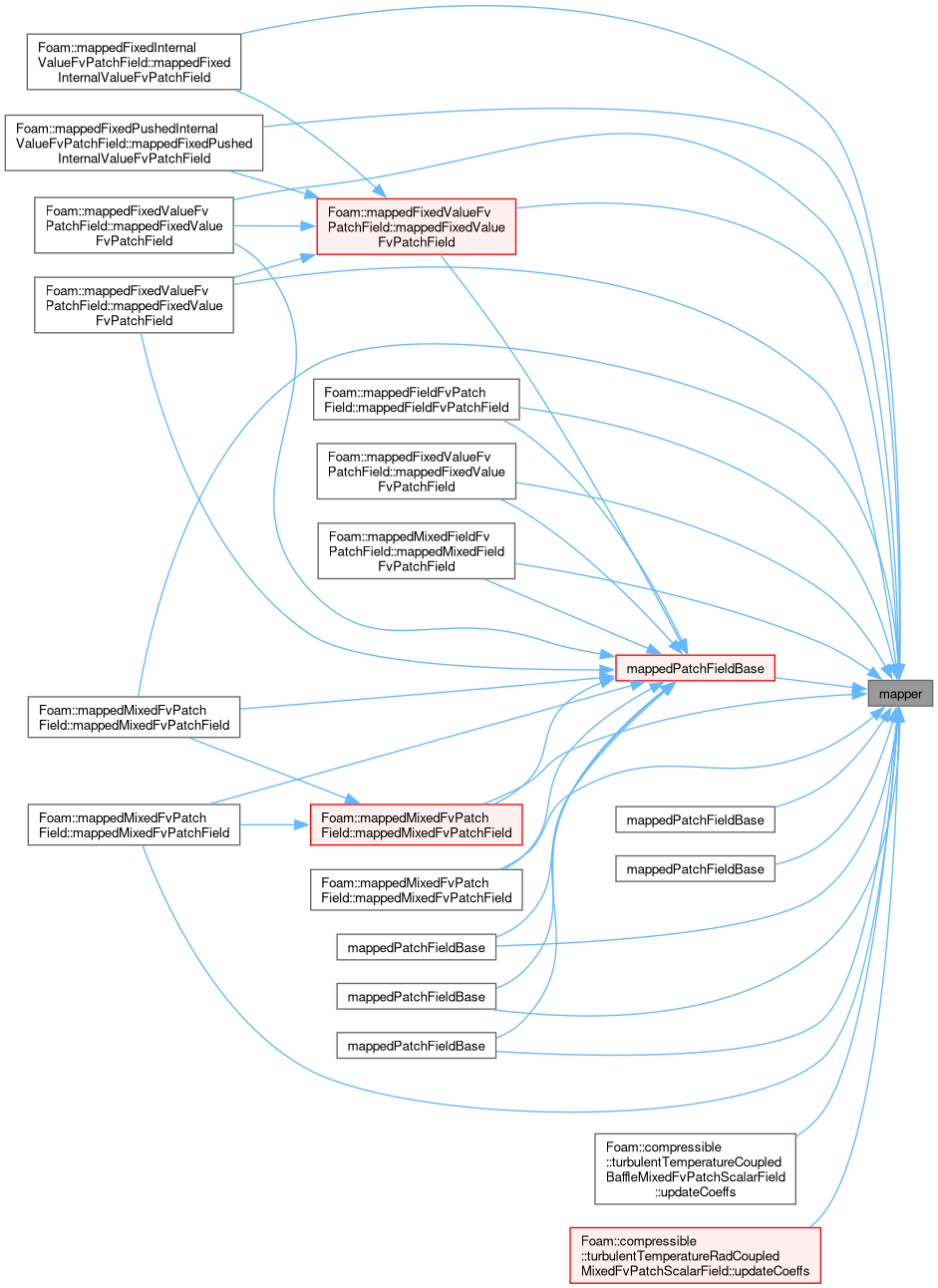

static const mappedPatchBase &	mapper (const fvPatch &p, const DimensionedField< Type, volMesh > &iF)
	Check that patch is of correct type.

Protected Member Functions
template<class T>
void	initRetrieveField (const objectRegistry &obr, const word &region, const word &patch, const labelListList &map, const word &fieldName, const Field< T > &fld) const
	Construct field from registered elements.
template<class T>
bool	storeAndRetrieveField (const word &fieldName, const label myComm, const labelListList &subMap, const label constructSize, const labelListList &constructMap, const labelListList &address, const scalarListList &weights, Field< T > &fld) const
	Helper : storeField and retrieveField and interpolate. Leaves fld.
template<class T>
void	initRetrieveField (const word &fieldName, const Field< T > &fld) const
	Initialise field to retrieve (e.g. when value read from dictionary).
template<class T>
void	storeField (const objectRegistry &obr, const word &region, const word &patch, const label myComm, const labelListList &procToMap, const word &fieldName, const Field< T > &fld) const
	Store elements of field onto (sub) registry.
template<class T>
bool	retrieveField (const bool allowUnset, const objectRegistry &obr, const word &region, const word &patch, const label myComm, const labelListList &procToMap, const word &fieldName, Field< T > &fld) const
	Construct field from registered elements.

Protected Attributes
const mappedPatchBase &	mapper_
	Mapping engine.
const fvPatchField< Type > &	patchField_
	Underlying patch field.
word	fieldName_
	Name of field to sample.
const bool	setAverage_
	If true adjust the mapped field to maintain average value average_.
const Type	average_
	Average value the mapped field is adjusted to maintain if setAverage_ is set true.
word	interpolationScheme_
	Interpolation scheme to use for nearestcell mode.

Detailed Description

template<class Type>
class Foam::mappedPatchFieldBase< Type >

Functionality for sampling fields using mappedPatchBase. Every call to mappedField() returns a sampled field, optionally scaled to maintain an area-weighted average.

Example usage:

{
    field               T;          // default is same as fvPatchField
    setAverage          false;
    average             1.0;        // only if setAverage=true
    interpolationScheme cellPoint;  // default is cell
}

Property	Description	Required	Default
`field`	name of field to be mapped	no	this field name
`setAverage`	use average value	no	false
`average`	average value to apply if `setAverage` = yes	partly
`interpolationScheme`	interpolation scheme	partly	cell

Source files

Definition at line 101 of file mappedPatchFieldBase.H.

Constructor & Destructor Documentation

◆ mappedPatchFieldBase() [1/6]

template<class Type>

mappedPatchFieldBase	(	const mappedPatchBase &	mapper,
		const fvPatchField< Type > &	patchField,
		const word &	fieldName,
		const bool	setAverage,
		const Type	average,
		const word &	interpolationScheme )

Construct from components.

Definition at line 313 of file mappedPatchFieldBase.C.

References Foam::average(), and mapper().

Here is the call graph for this function:

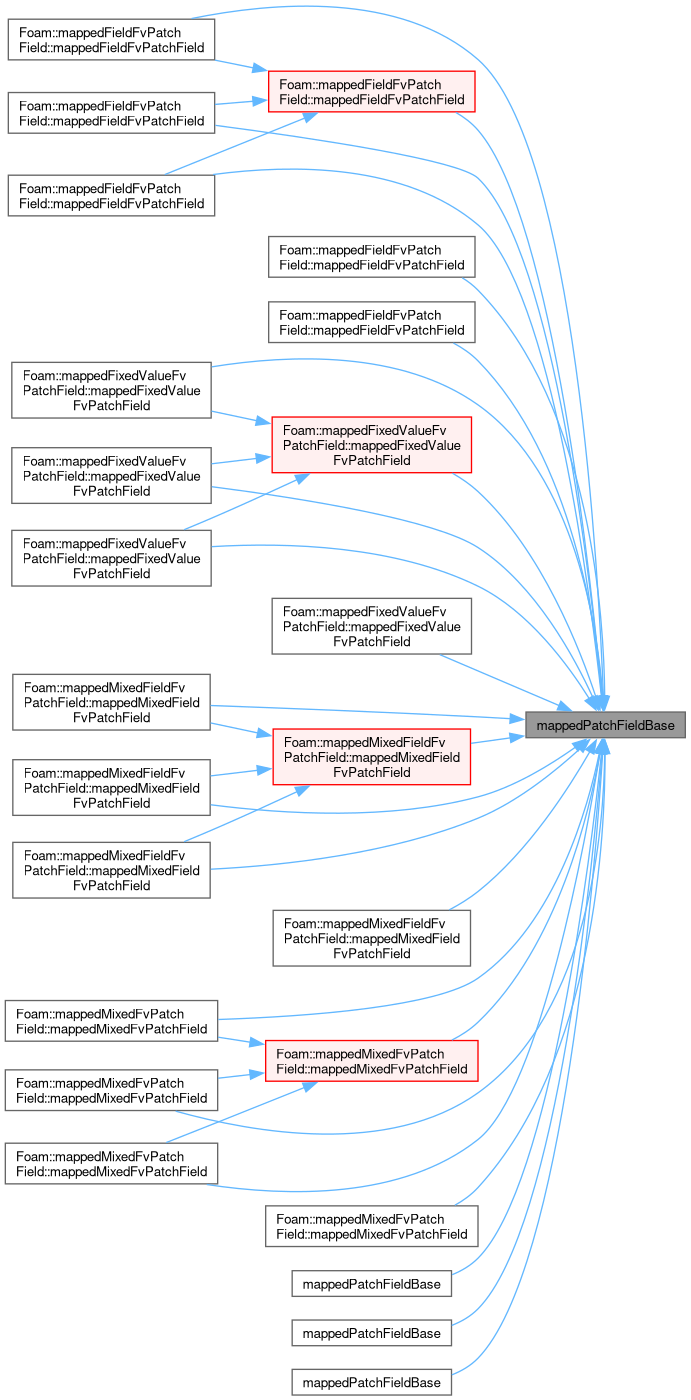

Here is the caller graph for this function:

◆ mappedPatchFieldBase() [2/6]

template<class Type>

mappedPatchFieldBase	(	const mappedPatchBase &	mapper,
		const fvPatchField< Type > &	patchField,
		const dictionary &	dict )

Construct from dictionary.

Definition at line 333 of file mappedPatchFieldBase.C.

References dict, fieldName_, mapper(), mapper_, and patchField_.

Here is the call graph for this function:

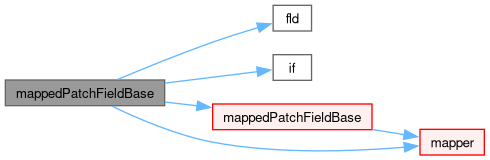

◆ mappedPatchFieldBase() [3/6]

template<class Type>

mappedPatchFieldBase	(	const mappedPatchBase &	mapper,
		const fvPatchField< Type > &	patchField,
		const dictionary &	dict,
		const Field< Type > &	fld )

Construct from dictionary and initial field value.

(for when running in database mode)

Definition at line 389 of file mappedPatchFieldBase.C.

References dict, fld(), if(), mappedPatchFieldBase(), mapper(), mapper_, and mappedPatchBase::NEARESTPATCHFACEAMI.

Here is the call graph for this function:

◆ mappedPatchFieldBase() [4/6]

template<class Type>

mappedPatchFieldBase	(	const mappedPatchBase &	mapper,
		const fvPatchField< Type > &	patchField )

Construct empty.

Definition at line 427 of file mappedPatchFieldBase.C.

References average_, fieldName_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, interpolationScheme_, mapper(), mapper_, Foam::name(), patchField_, setAverage_, and Foam::Zero.

Here is the call graph for this function:

◆ mappedPatchFieldBase() [5/6]

template<class Type>

mappedPatchFieldBase ( const mappedPatchFieldBase< Type > & mapper )

explicit

Construct copy.

Definition at line 443 of file mappedPatchFieldBase.C.

References average_, fieldName_, interpolationScheme_, mappedPatchFieldBase(), mapper(), mapper_, patchField_, and setAverage_.

Here is the call graph for this function:

◆ mappedPatchFieldBase() [6/6]

template<class Type>

mappedPatchFieldBase	(	const mappedPatchBase &	mapper,
		const fvPatchField< Type > &	patchField,
		const mappedPatchFieldBase< Type > &	base )

Construct copy, resetting patch and field.

Definition at line 458 of file mappedPatchFieldBase.C.

References average_, fieldName_, interpolationScheme_, mappedPatchFieldBase(), mapper(), mapper_, patchField_, and setAverage_.

Here is the call graph for this function:

◆ ~mappedPatchFieldBase()

template<class Type>

virtual ~mappedPatchFieldBase ( )

virtualdefault

Destructor.

Member Function Documentation

◆ initRetrieveField() [1/2]

template<class Type>

template<class T>

void initRetrieveField	(	const objectRegistry &	obr,
		const word &	region,
		const word &	patch,
		const labelListList &	map,
		const word &	fieldName,
		const Field< T > &	fld ) const

protected

Construct field from registered elements.

Definition at line 193 of file mappedPatchFieldBase.C.

Referenced by initRetrieveField().

Here is the caller graph for this function:

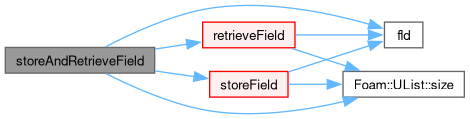

◆ storeAndRetrieveField()

template<class Type>

template<class T>

bool storeAndRetrieveField	(	const word &	fieldName,
		const label	myComm,
		const labelListList &	subMap,
		const label	constructSize,
		const labelListList &	constructMap,
		const labelListList &	address,
		const scalarListList &	weights,
		Field< T > &	fld ) const

protected

Helper : storeField and retrieveField and interpolate. Leaves fld.

unchanged (and returns false) if new values cannot be retrieved. Returns true otherwise.

Definition at line 244 of file mappedPatchFieldBase.C.

References fld(), forAll, mapper_, patchField_, retrieveField(), UList< T >::size(), storeField(), and Foam::Zero.

Referenced by distribute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initRetrieveField() [2/2]

template<class Type>

template<class T>

void initRetrieveField	(	const word &	fieldName,
		const Field< T > &	fld ) const

protected

Initialise field to retrieve (e.g. when value read from dictionary).

Definition at line 960 of file mappedPatchFieldBase.C.

References fld(), initRetrieveField(), mapper_, mappedPatchBase::NEARESTPATCHFACE, and patchField_.

Here is the call graph for this function:

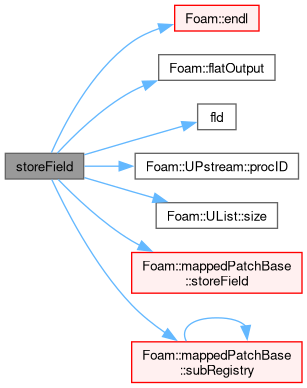

◆ storeField()

template<class Type>

template<class T>

void storeField	(	const objectRegistry &	obr,
		const word &	region,
		const word &	patch,
		const label	myComm,
		const labelListList &	procToMap,
		const word &	fieldName,
		const Field< T > &	fld ) const

protected

Store elements of field onto (sub) registry.

Definition at line 46 of file mappedPatchFieldBase.C.

References Foam::endl(), Foam::flatOutput(), fld(), forAll, mapper_, Foam::Pout, UPstream::procID(), UList< T >::size(), mappedPatchBase::storeField(), and mappedPatchBase::subRegistry().

Referenced by distribute(), and storeAndRetrieveField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ retrieveField()

template<class Type>

template<class T>

bool retrieveField	(	const bool	allowUnset,
		const objectRegistry &	obr,
		const word &	region,
		const word &	patch,
		const label	myComm,
		const labelListList &	procToMap,
		const word &	fieldName,
		Field< T > &	fld ) const

protected

Construct field from registered elements.

Returns: true if successful

Definition at line 97 of file mappedPatchFieldBase.C.

References fld(), forAll, mapper_, UPstream::procID(), UList< T >::size(), and mappedPatchBase::subRegistry().

Referenced by distribute(), and storeAndRetrieveField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sampleField() [1/3]

template<class Type>

template<class T>

const GeometricField< T, fvPatchField, volMesh > & sampleField ( const word & fieldName ) const

Field to sample. Either on my or nbr mesh.

References os(), and p.

Referenced by mappedField(), mappedInternalField(), sampleField(), and mappedFixedInternalValueFvPatchField< Type >::updateCoeffs().

Here is the call graph for this function:

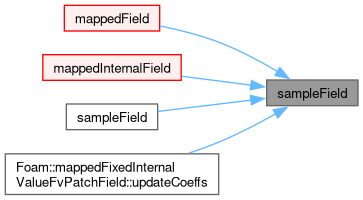

Here is the caller graph for this function:

◆ sampleField() [2/3]

template<class Type>

const Foam::GeometricField< Type, Foam::fvPatchField, Foam::volMesh > & sampleField ( ) const

Field to sample. Either on my or nbr mesh.

Definition at line 508 of file mappedPatchFieldBase.C.

References fieldName_, and sampleField().

Here is the call graph for this function:

◆ mappedField()

template<class Type>

Foam::tmp< Foam::Field< Type > > mappedField ( ) const

virtual

Map sampleField onto *this patch.

Definition at line 606 of file mappedPatchFieldBase.C.

References Foam::abort(), average_, polyMesh::boundaryMesh(), distribute(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, fieldName_, polyBoundaryMesh::findPatchID(), fld(), forAll, Foam::gWeightedAverage(), UPstream::incrMsgType(), interpolationScheme_, Foam::mag(), mapper_, VectorSpace< Form, Cmpt, Ncmpts >::max, UPstream::msgType(), primitiveMesh::nCells(), mappedPatchBase::NEARESTCELL, mappedPatchBase::NEARESTFACE, mappedPatchBase::NEARESTPATCHFACE, mappedPatchBase::NEARESTPATCHFACEAMI, interpolation< Type >::New(), Foam::New(), primitiveMesh::nFaces(), Foam::nl, patchField_, Foam::refCast(), mapDistribute::reverseDistribute(), sampleField(), samples(), setAverage_, List< T >::setSize(), and Foam::Zero.

Referenced by mappedFieldFvPatchField< Type >::updateCoeffs(), and mappedFixedValueFvPatchField< Type >::updateCoeffs().

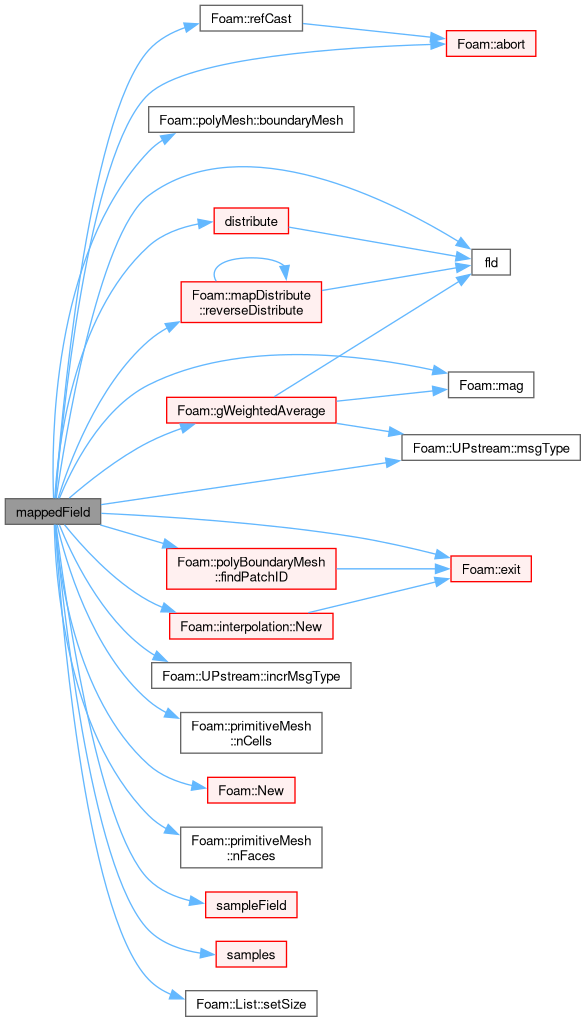

Here is the call graph for this function:

Here is the caller graph for this function:

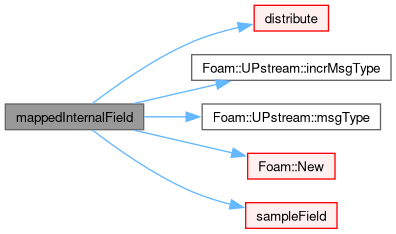

◆ mappedInternalField()

template<class Type>

Foam::tmp< Foam::Field< Type > > mappedInternalField ( ) const

virtual

Map internal of sampleField onto *this patch.

Definition at line 813 of file mappedPatchFieldBase.C.

References distribute(), fieldName_, UPstream::incrMsgType(), mapper_, UPstream::msgType(), Foam::New(), patchField_, and sampleField().

Referenced by mappedMixedFieldFvPatchField< Type >::updateCoeffs(), and mappedMixedFvPatchField< Type >::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

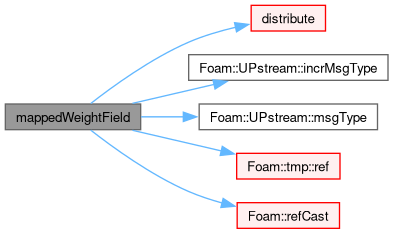

◆ mappedWeightField() [1/2]

template<class Type>

Foam::tmp< Foam::scalarField > mappedWeightField ( ) const

virtual

Map optional weightField onto *this patch. Default is deltaCoeffs.

Definition at line 847 of file mappedPatchFieldBase.C.

References distribute(), fieldName_, UPstream::incrMsgType(), mapper_, UPstream::msgType(), tmp< T >::New(), patchField_, and Foam::refCast().

Referenced by mappedMixedFieldFvPatchField< Type >::updateCoeffs(), and mappedMixedFvPatchField< Type >::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mappedWeightField() [2/2]

template<class Type>

void mappedWeightField	(	const word &	weightFieldName,
		tmp< scalarField > &	thisWeights,
		tmp< scalarField > &	nbrWeights ) const

virtual

Map optional weightField (given by name) onto *this patch.

Definition at line 882 of file mappedPatchFieldBase.C.

References distribute(), fieldName_, UPstream::incrMsgType(), mapper_, UPstream::msgType(), patchField_, tmp< T >::ref(), and Foam::refCast().

Here is the call graph for this function:

◆ write()

template<class Type>

void write ( Ostream & os ) const

virtual

Write.

Reimplemented in thermalBaffleFvPatchScalarField, turbulentTemperatureCoupledBaffleMixedFvPatchScalarField, turbulentTemperatureRadCoupledMixedFvPatchScalarField, mappedFieldFvPatchField< Type >, mappedFixedInternalValueFvPatchField< Type >, mappedFixedPushedInternalValueFvPatchField< Type >, mappedFixedValueFvPatchField< Type >, mappedMixedFieldFvPatchField< Type >, and mappedMixedFvPatchField< Type >.

Definition at line 987 of file mappedPatchFieldBase.C.

References average_, fieldName_, interpolationScheme_, mapper_, name, mappedPatchBase::NEARESTCELL, os(), patchField_, and setAverage_.

Referenced by turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::write(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::write(), mappedFieldFvPatchField< Type >::write(), mappedFixedValueFvPatchField< Type >::write(), mappedMixedFieldFvPatchField< Type >::write(), and mappedMixedFvPatchField< Type >::write().

Here is the call graph for this function:

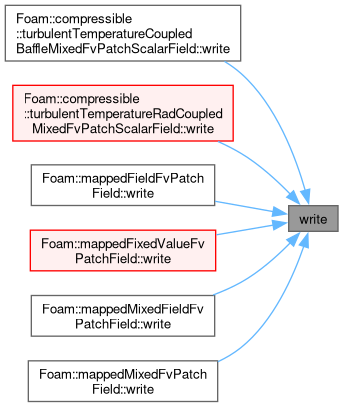

Here is the caller graph for this function:

◆ mapper()

template<class Type>

const Foam::mappedPatchBase & mapper	(	const fvPatch &	p,
		const DimensionedField< Type, volMesh > &	iF )

static

Check that patch is of correct type.

Definition at line 938 of file mappedPatchFieldBase.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::isA(), IOobject::name(), Foam::nl, IOobject::objectPath(), p, and Foam::refCast().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ distribute()

template<class Type>

template<class T>

void distribute	(	const word &	fieldName,
		Field< T > &	newValues ) const

Wrapper for mapDistribute::distribute that knows about dabase mapping.

Definition at line 516 of file mappedPatchFieldBase.C.

References mapDistributeBase::constructMap(), mapDistributeBase::constructSize(), fld(), mapper_, mappedPatchBase::NEARESTPATCHFACEAMI, patchField_, retrieveField(), AMIInterpolation::srcAddress(), AMIInterpolation::srcMap(), AMIInterpolation::srcWeights(), storeAndRetrieveField(), storeField(), mapDistributeBase::subMap(), AMIInterpolation::tgtAddress(), AMIInterpolation::tgtMap(), and AMIInterpolation::tgtWeights().

Referenced by mappedField(), mappedInternalField(), mappedWeightField(), and mappedWeightField().

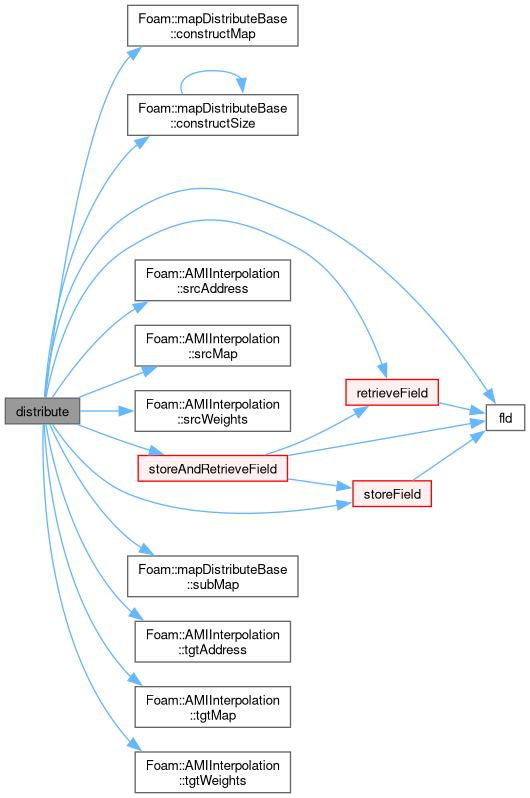

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sampleField() [3/3]

word interpolationScheme_

protected

Interpolation scheme to use for nearestcell mode.

Definition at line 144 of file mappedPatchFieldBase.H.

Referenced by mappedField(), mappedPatchFieldBase(), mappedPatchFieldBase(), mappedPatchFieldBase(), and write().

The documentation for this class was generated from the following files:

src/finiteVolume/fields/fvPatchFields/derived/mappedField/mappedPatchFieldBase.H
src/finiteVolume/fields/fvPatchFields/derived/mappedField/mappedPatchFieldBase.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ mappedPatchFieldBase() [1/6]

◆ mappedPatchFieldBase() [2/6]

◆ mappedPatchFieldBase() [3/6]

◆ mappedPatchFieldBase() [4/6]

◆ mappedPatchFieldBase() [5/6]

◆ mappedPatchFieldBase() [6/6]

◆ ~mappedPatchFieldBase()

Member Function Documentation

◆ initRetrieveField() [1/2]

◆ storeAndRetrieveField()

◆ initRetrieveField() [2/2]

◆ storeField()

◆ retrieveField()

◆ sampleField() [1/3]

◆ sampleField() [2/3]

◆ mappedField()

◆ mappedInternalField()

◆ mappedWeightField() [1/2]

◆ mappedWeightField() [2/2]

◆ write()

◆ mapper()

◆ distribute()

◆ sampleField() [3/3]

Member Data Documentation

◆ mapper_

◆ patchField_

◆ fieldName_

◆ setAverage_

◆ average_

◆ interpolationScheme_
