Determines a mapping between patch face centres and mesh cell or face centres and processors they're on. More...

#include <mappedPatchBase.H>

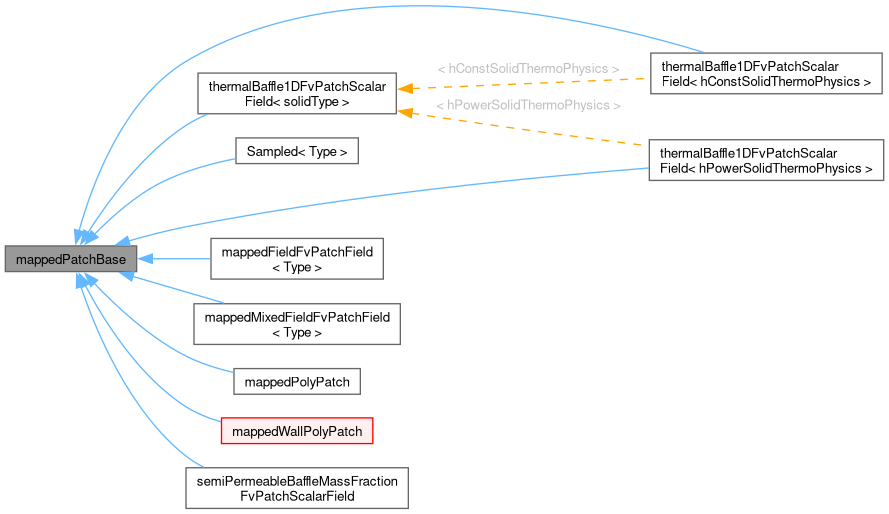

Inheritance diagram for mappedPatchBase:

[legend]

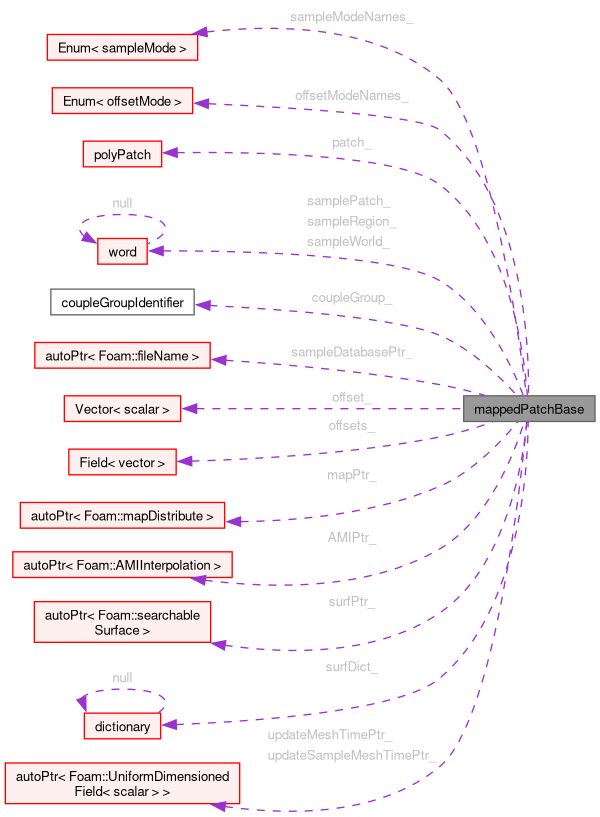

Collaboration diagram for mappedPatchBase:

[legend]

Classes
class	nearestEqOp
class	maxProcEqOp
class	nearestWorldEqOp

Public Types
enum	sampleMode { NEARESTCELL , NEARESTPATCHFACE , NEARESTPATCHFACEAMI , NEARESTPATCHPOINT , NEARESTFACE , NEARESTONLYCELL }
	Mesh items to sample. More...
enum	offsetMode { UNIFORM , NONUNIFORM , NORMAL }
	How to project face centres. More...
typedef Tuple2< pointIndexHit, Tuple2< scalar, label > >	nearInfo
	Helper class for finding nearest.
typedef Tuple2< nearInfo, label >	nearInfoWorld
	nearest + world

Public Member Functions

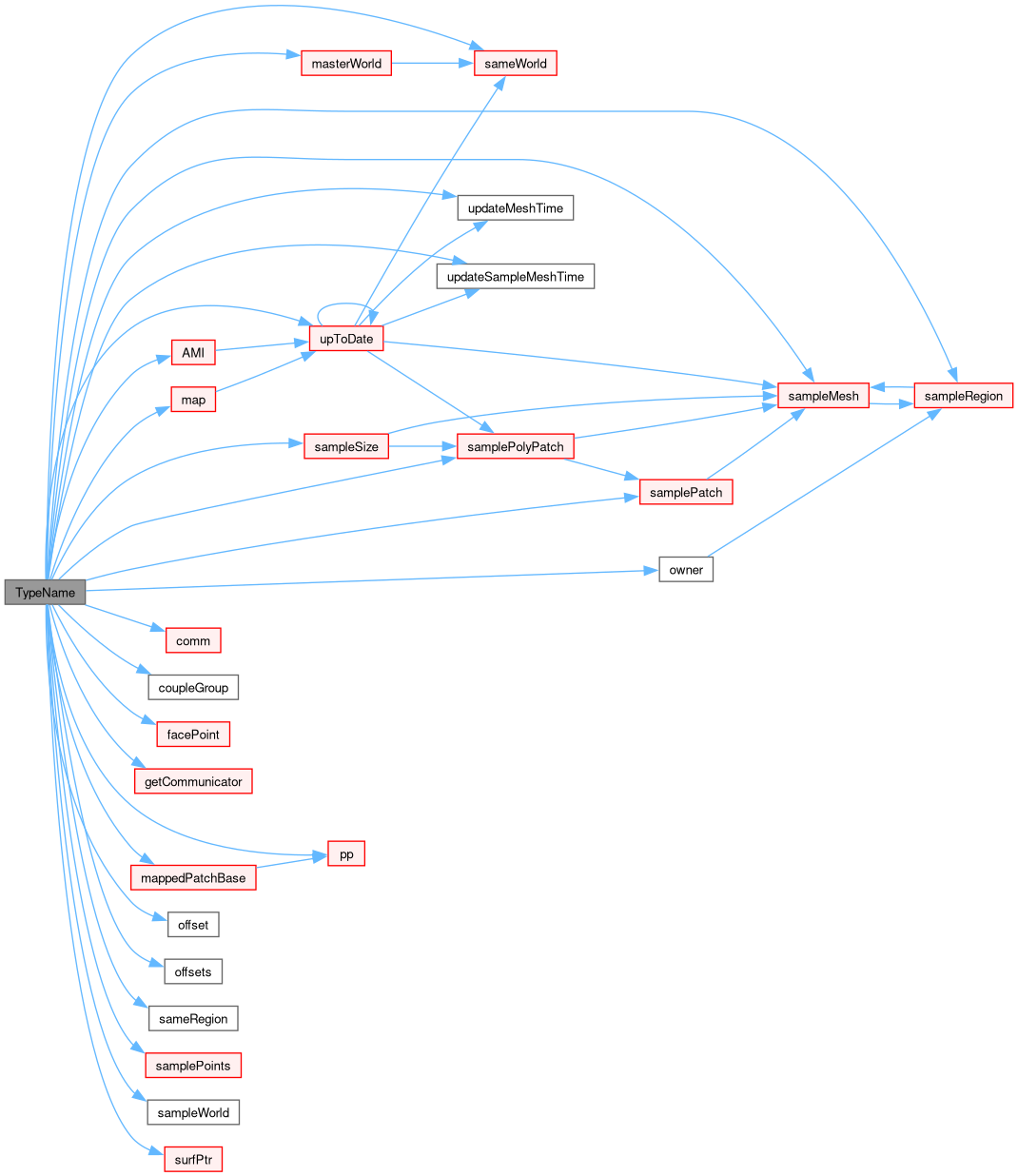

	TypeName ("mappedPatchBase")
	Runtime type information.

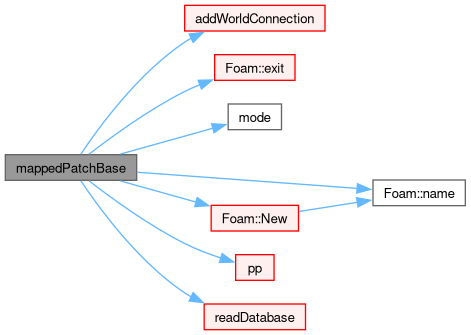

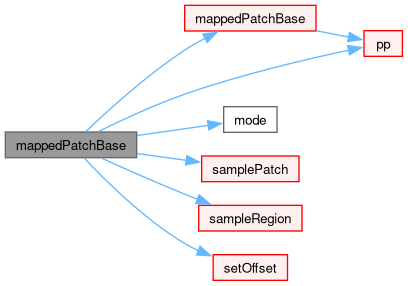

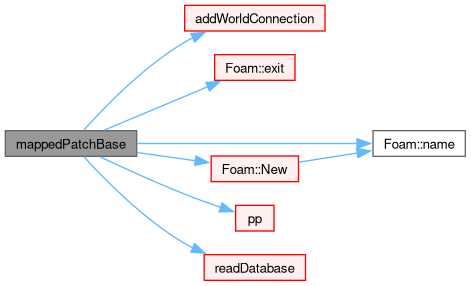

	mappedPatchBase (const polyPatch &)
	Construct from patch.

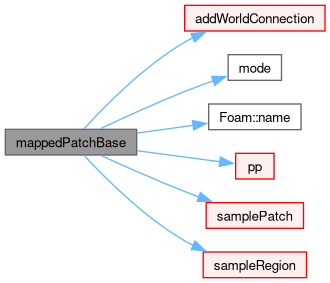

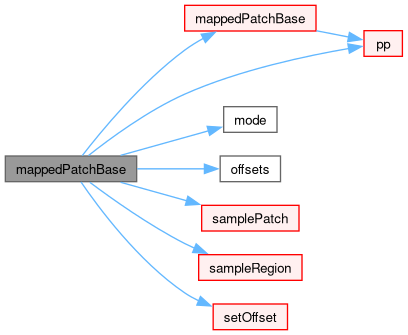

	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const vectorField &offsets)
	Construct with offsetMode=non-uniform.
	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const vector &uniformOffset)
	Construct from offsetMode=uniform.
	mappedPatchBase (const polyPatch &pp, const word &sampleRegion, const sampleMode sampleMode, const word &samplePatch, const scalar normalDistance)
	Construct from offsetMode=normal and distance.
	mappedPatchBase (const polyPatch &, const dictionary &)
	Construct from dictionary.
	mappedPatchBase (const polyPatch &, const sampleMode, const dictionary &)
	Construct from dictionary and (collocated) sample mode.
	mappedPatchBase (const polyPatch &, const mappedPatchBase &)
	Construct as copy, resetting patch.
	mappedPatchBase (const polyPatch &, const mappedPatchBase &, const labelUList &mapAddressing)
	Construct as copy, resetting patch, map original data.
virtual	~mappedPatchBase ()
	Destructor.

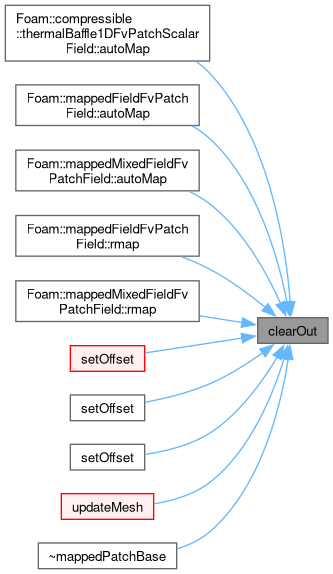

void	clearOut ()
void	setOffset (const scalar normalDist)
	Change to normal offset with given distance.
void	setOffset (const vector &uniformOffset)
	Change to uniform offset with value.
void	setOffset (const vectorField &offsets)
	Change to non-uniform offsets.

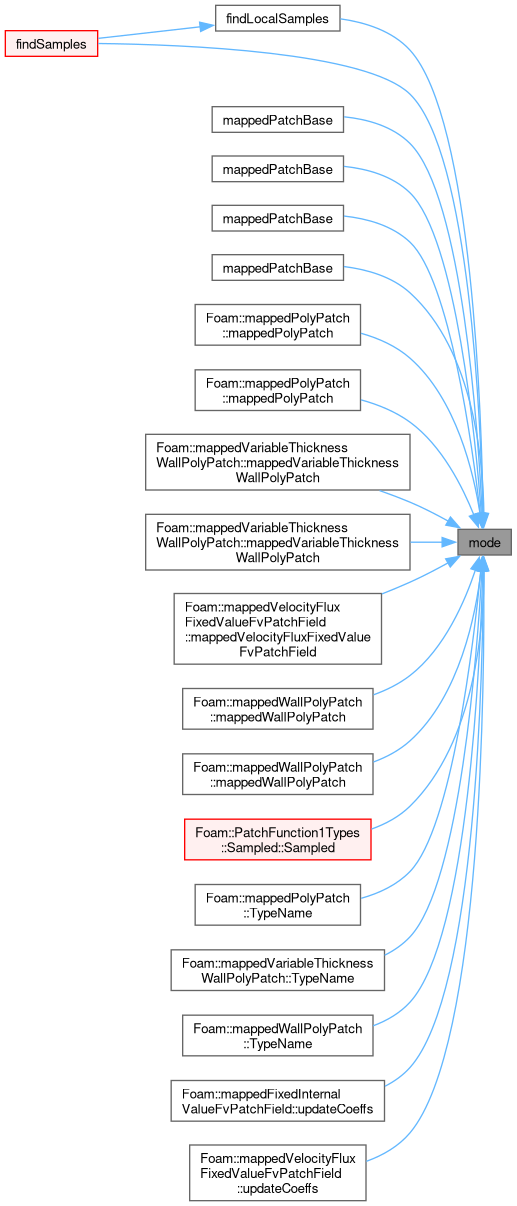

sampleMode	mode () const noexcept
	What to sample.
const word &	sampleWorld () const noexcept
	World to sample.

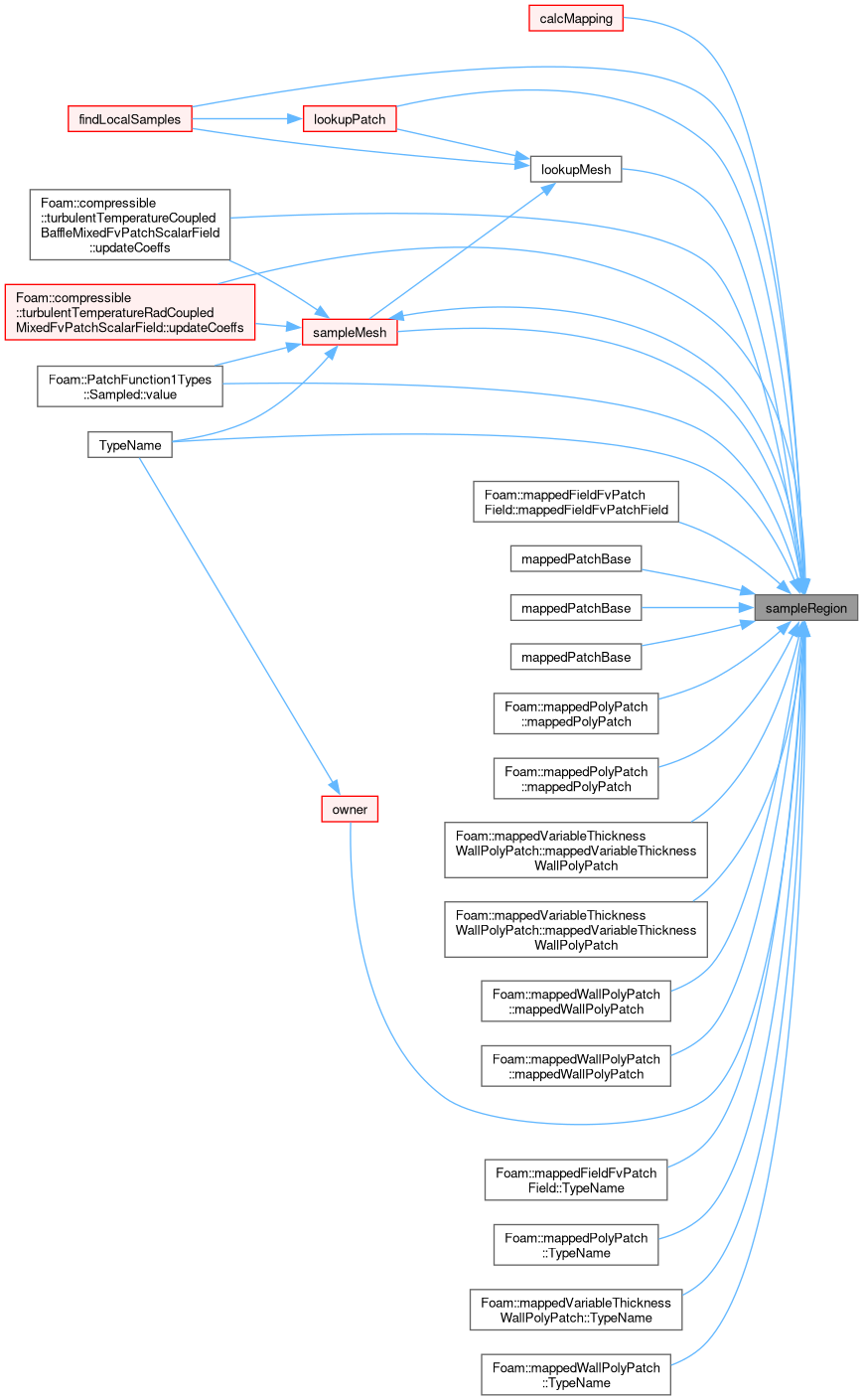

const word &	sampleRegion () const
	Region to sample.

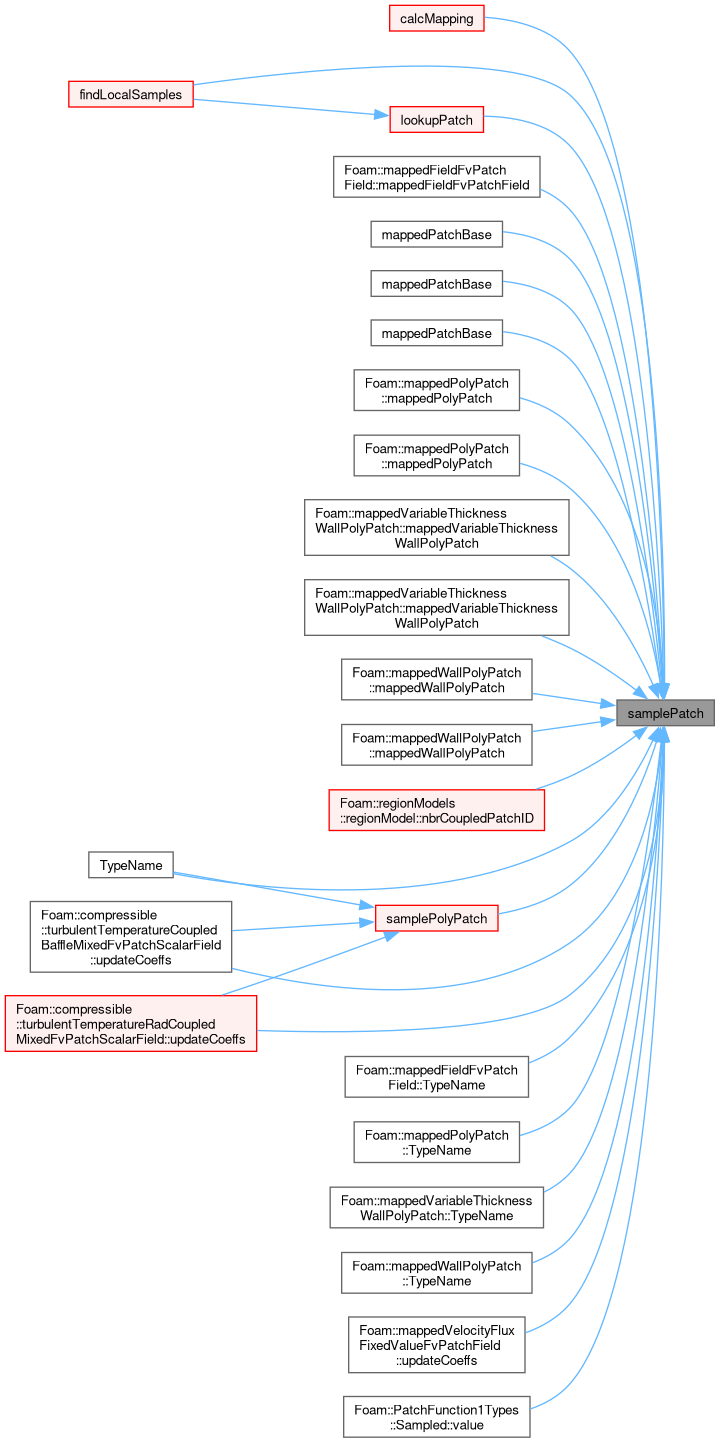

const word &	samplePatch () const
	Patch (only if NEARESTPATCHFACE).
const word &	coupleGroup () const
	PatchGroup (only if NEARESTPATCHFACE).
label	sampleSize () const
	Return size of mapped mesh/patch/boundary.

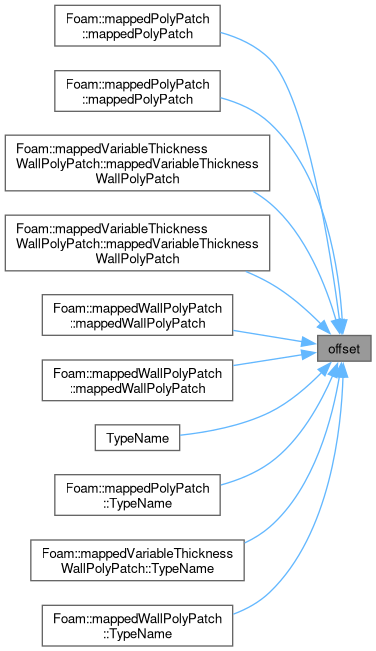

const vector &	offset () const noexcept
	Offset vector (from patch faces to destination mesh objects).
const vectorField &	offsets () const noexcept
	Offset vectors (from patch faces to destination mesh objects).

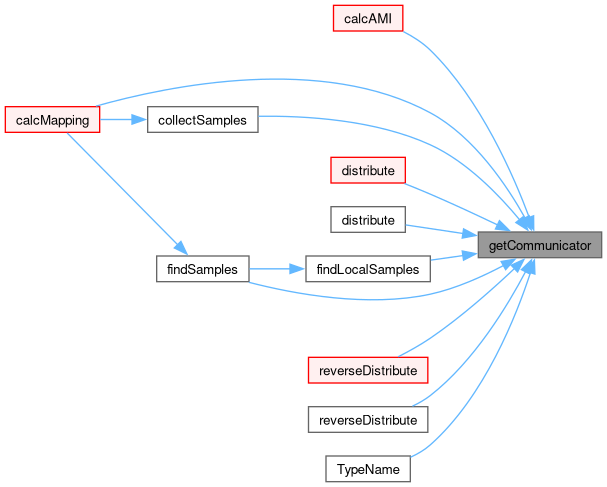

label	getCommunicator () const
	Get the communicator (worldComm or world-to-world).
label	comm () const
	Identical to getCommunicator().
bool	sameWorld () const
	Is sample world the local world?

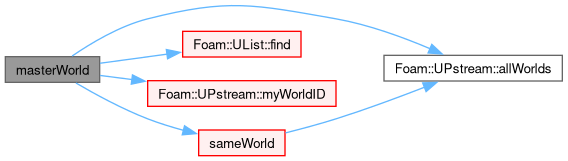

bool	masterWorld () const
	Is my world ordered before the sampleWorld?

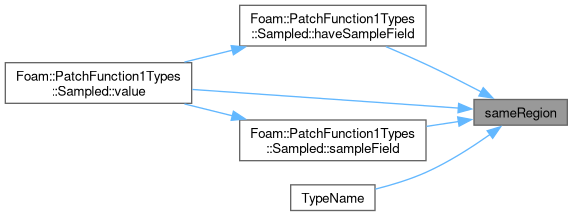

bool	sameRegion () const noexcept
	Cached sampleRegion != mesh.name().

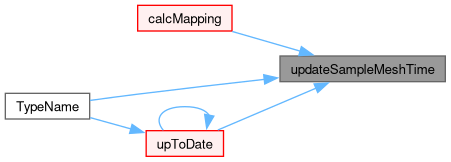

uniformDimensionedScalarField &	updateSampleMeshTime () const
	Local mesh update time.
uniformDimensionedScalarField &	updateMeshTime () const
	Sample mesh upate time.

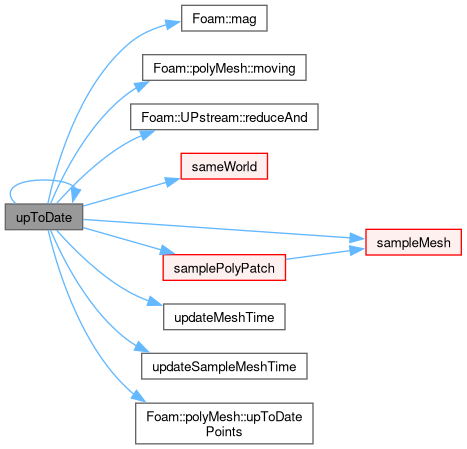

bool	upToDate () const
const mapDistribute &	map () const
	Return reference to the parallel distribution map.
const AMIPatchToPatchInterpolation &	AMI (const bool forceUpdate=false) const
	Return reference to the AMI interpolator.

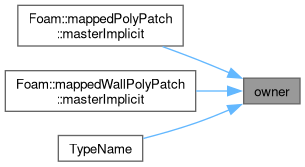

bool	owner () const
	Is it owner.
const autoPtr< Foam::searchableSurface > &	surfPtr () const
	Return a pointer to the AMI projection surface.

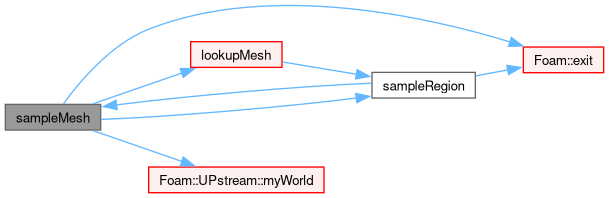

const polyMesh &	sampleMesh () const
	Get the region mesh.

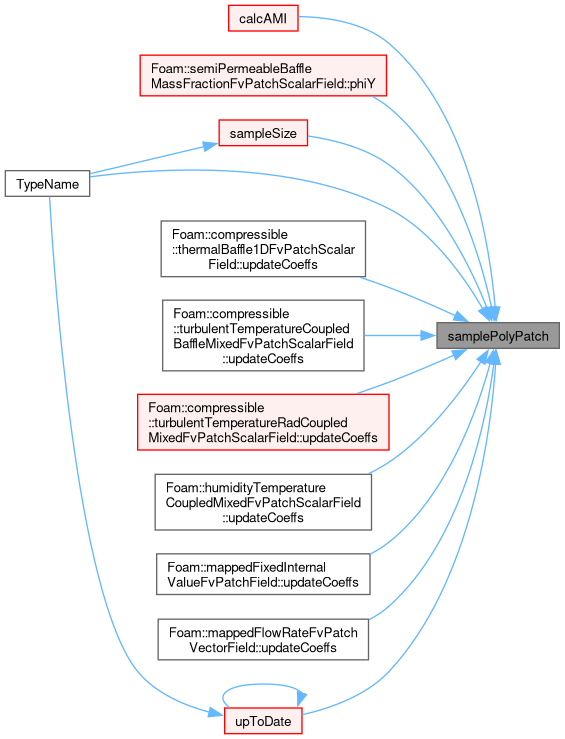

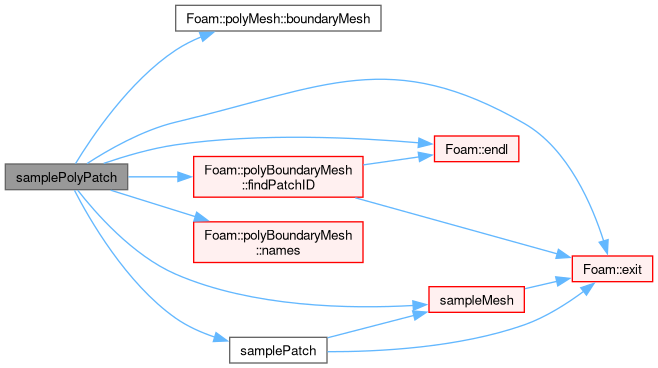

const polyPatch &	samplePolyPatch () const
	Get the patch on the region.

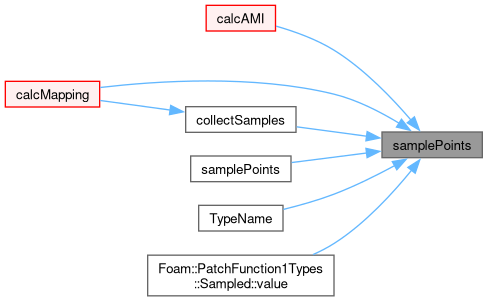

tmp< pointField >	samplePoints () const
	Get the sample points.
const fileName &	sampleDatabasePath () const
bool	sampleDatabase () const noexcept
virtual fileName	sendPath (const label proci) const
virtual fileName	receivePath (const label proci) const
template<class Type>

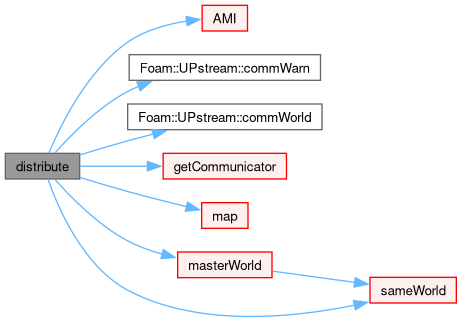

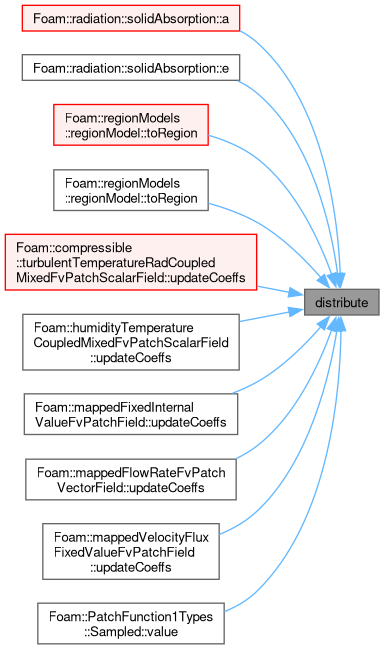

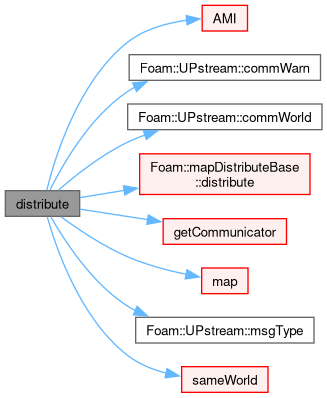

void	distribute (List< Type > &lst) const
	Wrapper around map/interpolate data distribution.
template<class Type, class CombineOp>
void	distribute (List< Type > &lst, const CombineOp &cop) const
	Wrapper around map/interpolate data distribution with operation.
template<class Type>

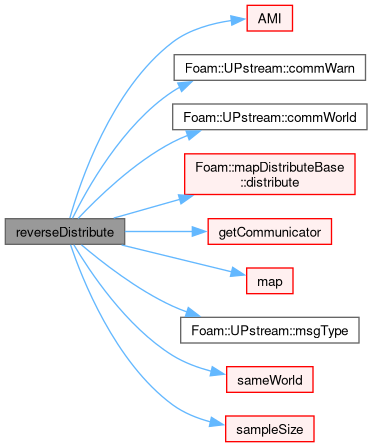

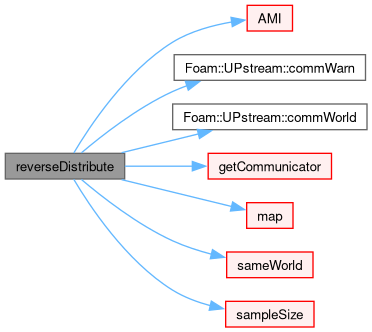

void	reverseDistribute (List< Type > &lst) const
	Wrapper around map/interpolate data distribution.
template<class Type, class CombineOp>
void	reverseDistribute (List< Type > &lst, const CombineOp &cop) const
	Wrapper around map/interpolate data distribution with operation.

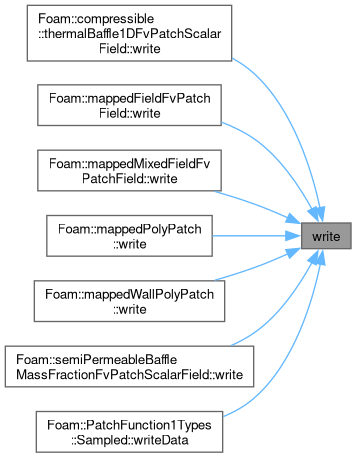

virtual void	write (Ostream &os) const
	Write as a dictionary.

Static Public Member Functions

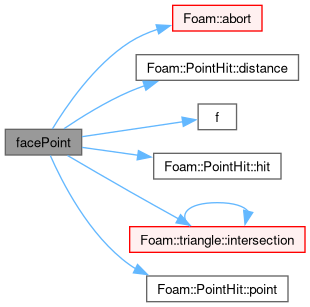

static pointIndexHit	facePoint (const polyMesh &, const label facei, const polyMesh::cellDecomposition)
	Get a point on the face given a face decomposition method:
static fileName	sendPath (const fileName &root, const label proci)
	Helper: return path to store data to be sent to processor i.
static fileName	receivePath (const fileName &root, const label proci)
	Helper: return path to store data to be received from processor i.

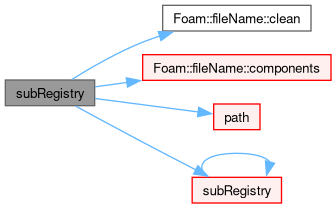

static FOAM_NO_DANGLING_REFERENCE const objectRegistry &	subRegistry (const objectRegistry &obr, const fileName &path)
	Lookup (sub)objectRegistry from '/' separated path (relative to objectRegistry). Creates non-existing intermediate ones.
template<class Type>

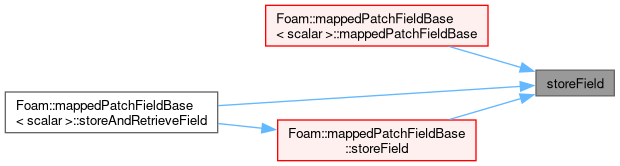

static void	storeField (objectRegistry &obr, const word &fieldName, const Field< Type > &values)
	Store an IOField on the objectRegistry relative to obr.

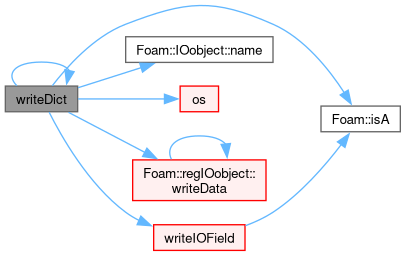

static void	writeDict (const objectRegistry &obr, dictionary &dict)
	Convert objectRegistry contents into dictionary.
static void	readDict (const dictionary &d, objectRegistry &obr)
	(recursively) construct and register IOFields from dictionary

Static Public Attributes
static const Enum< sampleMode >	sampleModeNames_
static const Enum< offsetMode >	offsetModeNames_

Protected Member Functions
virtual void	initGeometry (PstreamBuffers &)
	Initialise the calculation of the patch geometry.
virtual void	calcGeometry (PstreamBuffers &)
	Calculate the patch geometry.
virtual void	initMovePoints (PstreamBuffers &, const pointField &)
	Initialise the patches for moving points.
virtual void	movePoints (PstreamBuffers &, const pointField &)
	Correct patches after moving points.
virtual void	initUpdateMesh (PstreamBuffers &)
	Initialise the update of the patch topology.
virtual void	updateMesh (PstreamBuffers &)
	Update of the patch topology.
bool	addWorldConnection ()
	Add a world-world connection.

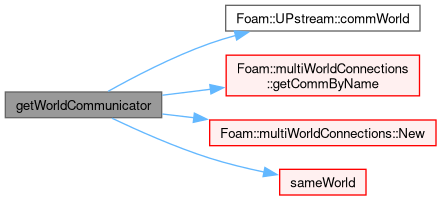

label	getWorldCommunicator () const
	Get the communicator for the world-world connection.

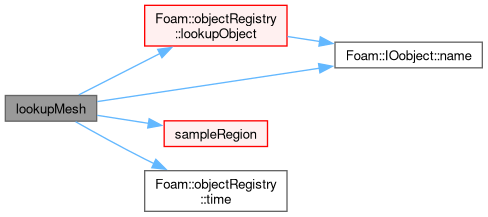

const polyMesh &	lookupMesh (const word &region) const
	Lookup mesh.

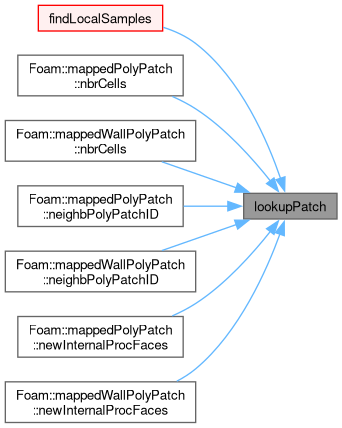

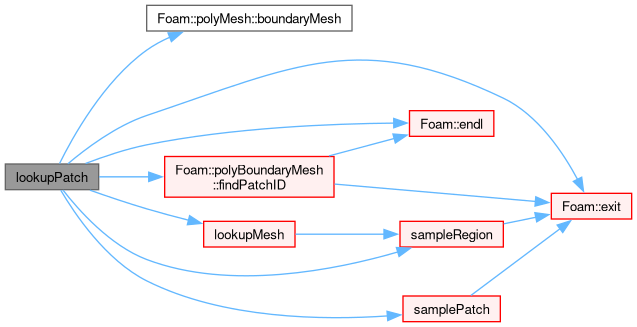

const polyPatch &	lookupPatch (const word &sampleRegion, const word &samplePatch) const
	Lookup patch.
tmp< pointField >	facePoints (const polyPatch &) const
	Get the points from face-centre-decomposition face centres and project them onto the face-diagonal-decomposition triangles.

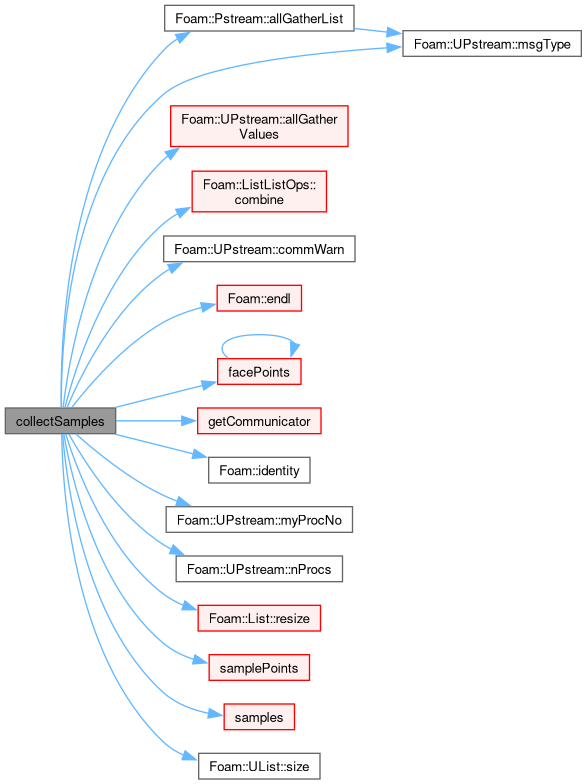

void	collectSamples (const label mySampleWorld, const pointField &facePoints, pointField &samples, labelList &patchFaceWorlds, labelList &patchFaceProcs, labelList &patchFaces, pointField &patchFc) const
	Collect single list of samples and originating processor+face + wanted world.

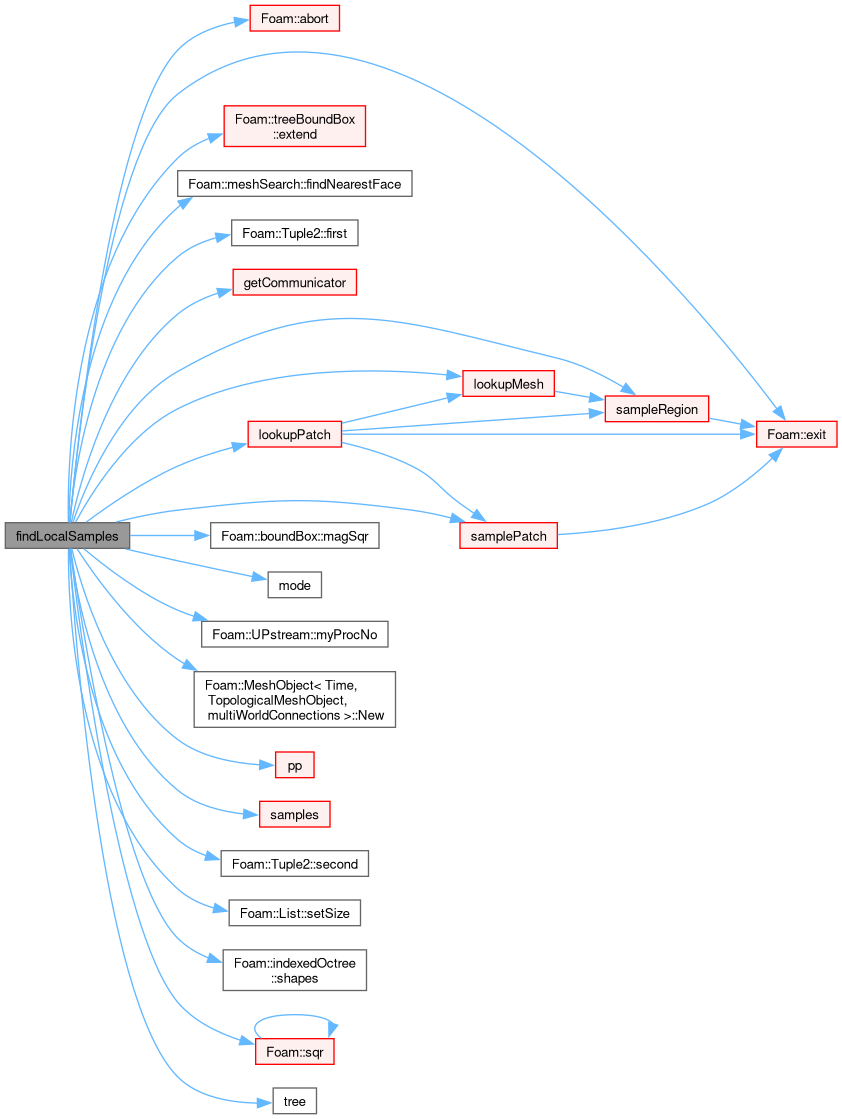

void	findLocalSamples (const sampleMode mode, const label sampleWorld, const word &sampleRegion, const word &samplePatch, const pointField &samplePoints, List< nearInfoWorld > &nearest) const
	Find (local) cells/faces containing samples.

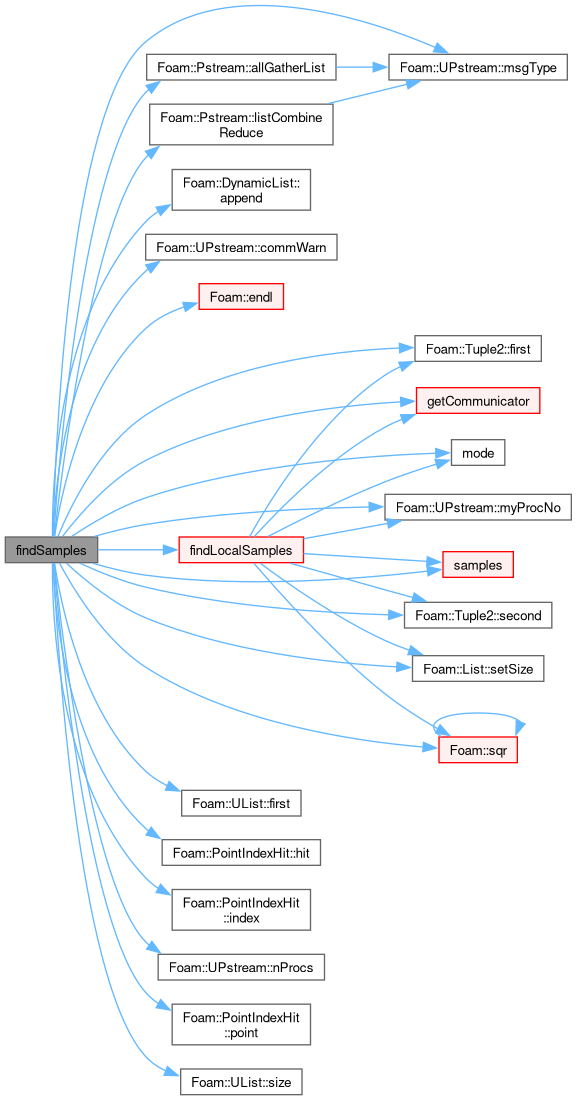

void	findSamples (const sampleMode mode, const label myWorldIndex, const pointField &, const labelList &wantedWorlds, const labelList &origProcs, labelList &sampleProcs, labelList &sampleIndices, pointField &sampleLocations) const
	Find (global) cells/faces containing samples.
tmp< pointField >	samplePoints (const pointField &) const
	Get the sample points given the face points.

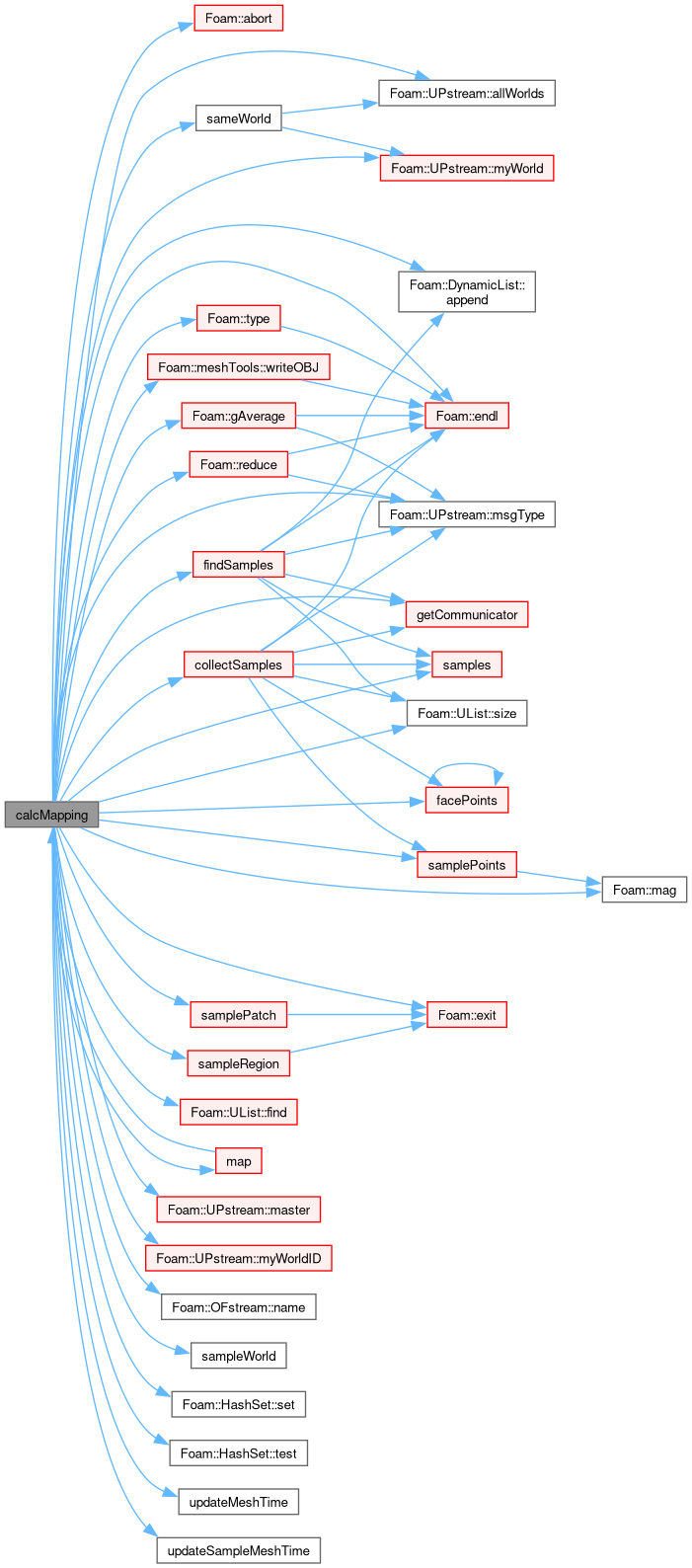

void	calcMapping () const
	Calculate mapping.

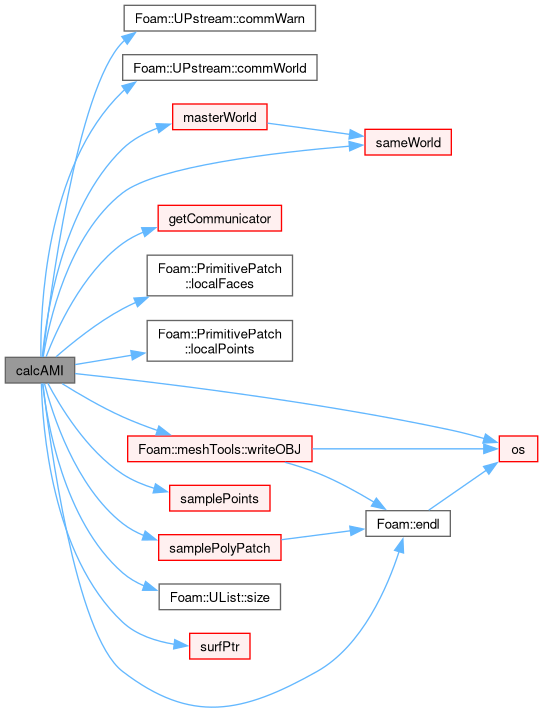

void	calcAMI () const
	Calculate AMI interpolator.

Static Protected Member Functions
static autoPtr< fileName >	readDatabase (const dictionary &dict)
	Read optional database name from dictionary.
static FOAM_NO_DANGLING_REFERENCE const objectRegistry &	subRegistry (const objectRegistry &obr, const wordList &names, const label index)
	Lookup (sub)objectRegistry by following names of sub registries. Creates non-existing intermediate ones.
template<class Type>
static bool	writeIOField (const regIOobject &obj, dictionary &dict)
	Attempt to detect an IOField<Type> and write to dictionary.
template<class Type>

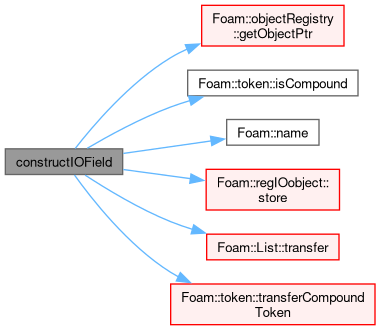

static bool	constructIOField (const word &name, token &tok, Istream &is, objectRegistry &obr)
	Attempt to read an IOField<Type> and store on objectRegistry.

Protected Attributes
const polyPatch &	patch_
	Patch to sample.
word	sampleWorld_
	World to sample.
word	sampleRegion_
	Region to sample.
const sampleMode	mode_
	What to sample.
word	samplePatch_
	Patch (if in sampleMode NEARESTPATCH*).
const coupleGroupIdentifier	coupleGroup_
	PatchGroup (if in sampleMode NEARESTPATCH*).
const autoPtr< fileName >	sampleDatabasePtr_
	Empty or location of database.
offsetMode	offsetMode_
	How to obtain samples.
vector	offset_
	Offset vector (uniform).
vectorField	offsets_
	Offset vector (nonuniform).
scalar	distance_
	Offset distance (normal).
label	communicator_
	Communicator.
bool	sameRegion_
	Same region.
autoPtr< mapDistribute >	mapPtr_
	Communication schedule:
const bool	AMIReverse_
	Flag to indicate that slave patch should be reversed for AMI.
autoPtr< AMIPatchToPatchInterpolation >	AMIPtr_
	Pointer to AMI interpolator.
autoPtr< searchableSurface >	surfPtr_
	Pointer to projection surface employed by AMI interpolator.
dictionary	surfDict_
	Dictionary storing projection surface description.
autoPtr< uniformDimensionedScalarField >	updateMeshTimePtr_
	Local mesh update time.
autoPtr< uniformDimensionedScalarField >	updateSampleMeshTimePtr_
	Sample mesh update time.

Detailed Description

Determines a mapping between patch face centres and mesh cell or face centres and processors they're on.

If constructed from dictionary:

    // Optional world to sample (default is all)
    //sampleWorld solidSim;

    // Optional explicit coupling (requires functionObject to synchronise
    // databases. Default is close coupling (bc to bc)
    //sampleDatabase true;

    // Region to sample (default is region0)
    sampleRegion region0;

    // What to sample:
    // - nearestCell         : sample cell containing point
    // - nearestOnlyCell     : nearest sample cell (even if not containing
    //                         point)
    // - nearestPatchFace    : nearest face on selected patch
    // - nearestPatchFaceAMI : nearest face on selected patch
                               - patches need not conform
                               - uses AMI interpolation
    // - nearestFace         : nearest boundary face on any patch
    // - nearestPatchPoint   : nearest patch point (for coupled points
    //                         this might be any of the points so you have
    //                         to guarantee the point data is synchronised
    //                         beforehand)
    sampleMode nearestCell;

    // If sampleMode is nearestPatchFace : patch to find faces of
    samplePatch movingWall;

    // If sampleMode is nearestPatchFace : specify patchgroup to find
    // samplePatch and sampleRegion (if not provided)
    coupleGroup baffleGroup;

    // How to supply offset (w.r.t. my patch face centres):
    // - uniform : single offset vector
    // - nonuniform : per-face offset vector
    // - normal : using supplied distance and face normal
    offsetMode uniform;

    // According to offsetMode (see above) supply one of
    // offset, offsets or distance
    offset  (1 0 0);

Note: if offsetMode is normal it uses outwards pointing normals. So supply a negative distance if sampling inside the domain.

Note: Storage is not optimal. It temporary collects all (patch)face centres on all processors to keep the addressing calculation simple.

Source files

Definition at line 110 of file mappedPatchBase.H.

Member Typedef Documentation

◆ nearInfo

typedef Tuple2<pointIndexHit, Tuple2<scalar, label> > nearInfo

Helper class for finding nearest.

Nearest:

point+local index
sqr(distance)
processor

Definition at line 152 of file mappedPatchBase.H.

◆ nearInfoWorld

typedef Tuple2<nearInfo, label> nearInfoWorld

nearest + world

Used to only look at entries from same world

Definition at line 200 of file mappedPatchBase.H.

Member Enumeration Documentation

◆ sampleMode

enum sampleMode

Mesh items to sample.

Enumerator
NEARESTCELL	nearest cell containing sample
NEARESTPATCHFACE	nearest face on selected patch
NEARESTPATCHFACEAMI	nearest patch face + AMI interpolation
NEARESTPATCHPOINT	nearest point on selected patch
NEARESTFACE	nearest face
NEARESTONLYCELL	nearest cell (even if not containing cell)

Definition at line 119 of file mappedPatchBase.H.

◆ offsetMode

enum offsetMode

How to project face centres.

Enumerator
UNIFORM	single offset vector
NONUNIFORM	per-face offset vector
NORMAL	use face normal + distance

Definition at line 132 of file mappedPatchBase.H.

Constructor & Destructor Documentation

◆ mappedPatchBase() [1/8]

mappedPatchBase ( const polyPatch & pp )

explicit

Construct from patch.

Definition at line 1221 of file mappedPatchBase.C.

References AMIPtr_, AMIReverse_, communicator_, coupleGroup_, distance_, mapPtr_, mesh, mode_, Foam::name(), NEARESTPATCHFACE, offset_, offsetMode_, offsets_, patch_, pp(), sameRegion_, sampleDatabasePtr_, samplePatch_, sampleRegion_, sampleWorld_, surfDict_, surfPtr_, UNIFORM, and Foam::Zero.

Here is the call graph for this function:

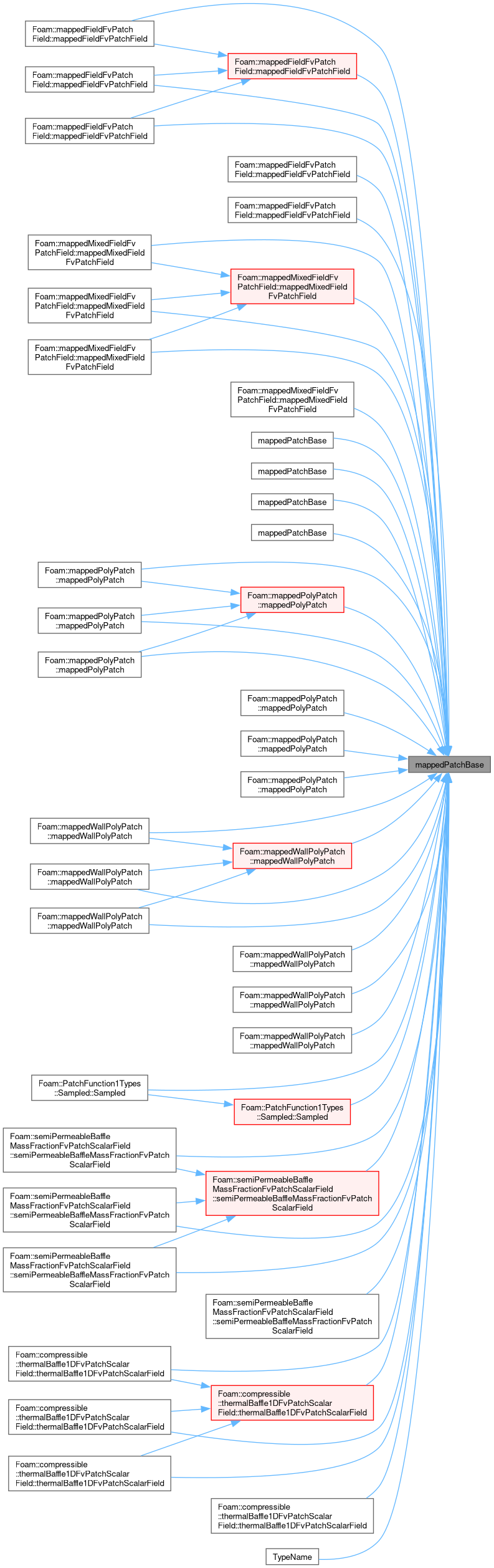

Here is the caller graph for this function:

◆ mappedPatchBase() [2/8]

mappedPatchBase	(	const polyPatch &	pp,
		const word &	sampleRegion,
		const sampleMode	sampleMode,
		const word &	samplePatch,
		const vectorField &	offsets )

Construct with offsetMode=non-uniform.

Definition at line 1246 of file mappedPatchBase.C.

References mappedPatchBase(), mode(), offsets(), pp(), samplePatch(), sampleRegion(), and setOffset().

Here is the call graph for this function:

◆ mappedPatchBase() [3/8]

mappedPatchBase	(	const polyPatch &	pp,
		const word &	sampleRegion,
		const sampleMode	sampleMode,
		const word &	samplePatch,
		const vector &	uniformOffset )

Construct from offsetMode=uniform.

Definition at line 1268 of file mappedPatchBase.C.

References mappedPatchBase(), mode(), pp(), samplePatch(), sampleRegion(), and setOffset().

Here is the call graph for this function:

◆ mappedPatchBase() [4/8]

mappedPatchBase	(	const polyPatch &	pp,
		const word &	sampleRegion,
		const sampleMode	sampleMode,
		const word &	samplePatch,
		const scalar	normalDistance )

Construct from offsetMode=normal and distance.

Definition at line 1290 of file mappedPatchBase.C.

References addWorldConnection(), AMIPtr_, AMIReverse_, communicator_, coupleGroup_, distance_, mapPtr_, mesh, mode(), mode_, Foam::name(), NORMAL, offset_, offsetMode_, offsets_, patch_, pp(), sameRegion_, sampleDatabasePtr_, samplePatch(), samplePatch_, sampleRegion(), sampleRegion_, sampleWorld_, surfDict_, surfPtr_, and Foam::Zero.

Here is the call graph for this function:

◆ mappedPatchBase() [5/8]

mappedPatchBase	(	const polyPatch &	pp,
		const dictionary &	dict )

Construct from dictionary.

Definition at line 1326 of file mappedPatchBase.C.

References addWorldConnection(), AMIPtr_, AMIReverse_, communicator_, coupleGroup_, dict, distance_, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, mapPtr_, mesh, mode_, Foam::name(), NEARESTPATCHFACE, NEARESTPATCHFACEAMI, Foam::New(), NONUNIFORM, NORMAL, offset_, offsetMode_, offsetModeNames_, offsets_, patch_, pp(), readDatabase(), sameRegion_, sampleDatabasePtr_, sampleModeNames_, samplePatch_, sampleRegion_, sampleWorld_, surfDict_, surfPtr_, UNIFORM, and Foam::Zero.

Here is the call graph for this function:

◆ mappedPatchBase() [6/8]

mappedPatchBase	(	const polyPatch &	pp,
		const sampleMode	mode,
		const dictionary &	dict )

Construct from dictionary and (collocated) sample mode.

(only for nearestPatchFace, nearestPatchFaceAMI, nearestPatchPoint) Assumes zero offset.

Definition at line 1428 of file mappedPatchBase.C.

References addWorldConnection(), AMIPtr_, AMIReverse_, communicator_, coupleGroup_, dict, distance_, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, mapPtr_, mesh, mode(), mode_, Foam::name(), NEARESTPATCHFACE, NEARESTPATCHFACEAMI, Foam::New(), offset_, offsetMode_, offsets_, patch_, pp(), readDatabase(), sameRegion_, sampleDatabasePtr_, sampleModeNames_, samplePatch_, sampleRegion_, sampleWorld_, surfDict_, surfPtr_, UNIFORM, and Foam::Zero.

Here is the call graph for this function:

◆ mappedPatchBase() [7/8]

mappedPatchBase	(	const polyPatch &	pp,
		const mappedPatchBase &	mpb )

Construct as copy, resetting patch.

Definition at line 1501 of file mappedPatchBase.C.

References AMIPtr_, AMIReverse_, communicator_, coupleGroup_, distance_, mappedPatchBase(), mapPtr_, mode_, offset_, offsetMode_, offsets_, patch_, pp(), sameRegion_, sampleDatabasePtr_, samplePatch_, sampleRegion_, sampleWorld_, surfDict_, and surfPtr_.

Here is the call graph for this function:

◆ mappedPatchBase() [8/8]

mappedPatchBase	(	const polyPatch &	pp,
		const mappedPatchBase &	mpb,
		const labelUList &	mapAddressing )

Construct as copy, resetting patch, map original data.

Definition at line 1533 of file mappedPatchBase.C.

References AMIPtr_, AMIReverse_, communicator_, coupleGroup_, distance_, mappedPatchBase(), mapPtr_, mode_, NONUNIFORM, offset_, offsetMode_, offsets_, patch_, pp(), sameRegion_, sampleDatabasePtr_, samplePatch_, sampleRegion_, sampleWorld_, surfDict_, and surfPtr_.

Here is the call graph for this function:

◆ ~mappedPatchBase()

~mappedPatchBase ( )

virtual

Destructor.

Definition at line 1573 of file mappedPatchBase.C.

References clearOut().

Here is the call graph for this function:

Member Function Documentation

◆ initGeometry()

virtual void initGeometry ( PstreamBuffers & )

inlineprotectedvirtual

Initialise the calculation of the patch geometry.

Reimplemented in mappedPolyPatch, and mappedWallPolyPatch.

Definition at line 356 of file mappedPatchBase.H.

Referenced by mappedPolyPatch::initGeometry().

Here is the caller graph for this function:

◆ calcGeometry()

virtual void calcGeometry ( PstreamBuffers & )

inlineprotectedvirtual

Calculate the patch geometry.

Reimplemented in mappedPolyPatch, and mappedWallPolyPatch.

Definition at line 362 of file mappedPatchBase.H.

Referenced by mappedPolyPatch::calcGeometry(), and mappedWallPolyPatch::calcGeometry().

Here is the caller graph for this function:

◆ initMovePoints()

virtual void initMovePoints	(	PstreamBuffers &	,
		const pointField &	)

inlineprotectedvirtual

Initialise the patches for moving points.

Reimplemented in mappedPolyPatch, and mappedWallPolyPatch.

Definition at line 368 of file mappedPatchBase.H.

Referenced by mappedPolyPatch::initMovePoints(), and mappedWallPolyPatch::initMovePoints().

Here is the caller graph for this function:

◆ movePoints()

virtual void movePoints	(	PstreamBuffers &	,
		const pointField &	)

inlineprotectedvirtual

Correct patches after moving points.

Reimplemented in mappedPolyPatch, and mappedWallPolyPatch.

Definition at line 374 of file mappedPatchBase.H.

Referenced by mappedPolyPatch::movePoints(), and mappedWallPolyPatch::movePoints().

Here is the caller graph for this function:

◆ initUpdateMesh()

virtual void initUpdateMesh ( PstreamBuffers & )

inlineprotectedvirtual

Initialise the update of the patch topology.

Reimplemented in mappedPolyPatch, and mappedWallPolyPatch.

Definition at line 380 of file mappedPatchBase.H.

Referenced by mappedPolyPatch::initUpdateMesh(), and mappedWallPolyPatch::initUpdateMesh().

Here is the caller graph for this function:

◆ updateMesh()

void updateMesh ( PstreamBuffers & pBufs )

protectedvirtual

Update of the patch topology.

Reimplemented in mappedPolyPatch, and mappedWallPolyPatch.

Definition at line 82 of file mappedPatchBase.C.

References clearOut().

Referenced by mappedPolyPatch::updateMesh(), and mappedWallPolyPatch::updateMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addWorldConnection()

bool addWorldConnection ( )

protected

Add a world-world connection.

Definition at line 116 of file mappedPatchBase.C.

References multiWorldConnections::New(), patch_, runTime, sameWorld(), and sampleWorld_.

Referenced by mappedPatchBase(), mappedPatchBase(), and mappedPatchBase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getWorldCommunicator()

Foam::label getWorldCommunicator ( ) const

protected

Get the communicator for the world-world connection.

Definition at line 131 of file mappedPatchBase.C.

References UPstream::commWorld(), multiWorldConnections::getCommByName(), multiWorldConnections::New(), patch_, runTime, sameWorld(), and sampleWorld_.

Referenced by comm(), and getCommunicator().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lookupMesh()

const Foam::polyMesh & lookupMesh ( const word & region ) const

protected

Lookup mesh.

Definition at line 1620 of file mappedPatchBase.C.

References objectRegistry::lookupObject(), IOobject::name(), patch_, sampleRegion(), and objectRegistry::time().

Referenced by findLocalSamples(), lookupPatch(), and sampleMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lookupPatch()

const Foam::polyPatch & lookupPatch	(	const word &	sampleRegion,
		const word &	samplePatch ) const

protected

Lookup patch.

Definition at line 1635 of file mappedPatchBase.C.

References polyMesh::boundaryMesh(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, polyBoundaryMesh::findPatchID(), lookupMesh(), samplePatch(), sampleRegion(), and sampleRegion_.

Referenced by findLocalSamples(), mappedPolyPatch::nbrCells(), mappedWallPolyPatch::nbrCells(), mappedPolyPatch::neighbPolyPatchID(), mappedWallPolyPatch::neighbPolyPatchID(), mappedPolyPatch::newInternalProcFaces(), and mappedWallPolyPatch::newInternalProcFaces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ facePoints()

Foam::tmp< Foam::pointField > facePoints ( const polyPatch & pp ) const

protected

Get the points from face-centre-decomposition face centres and project them onto the face-diagonal-decomposition triangles.

Definition at line 144 of file mappedPatchBase.C.

References polyMesh::FACE_DIAG_TRIS, Foam::facePoint(), facePoints(), forAll, mesh, tmp< T >::New(), patch_, and pp().

Referenced by calcMapping(), collectSamples(), facePoints(), and samplePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collectSamples()

void collectSamples	(	const label	mySampleWorld,
		const pointField &	facePoints,
		pointField &	samples,
		labelList &	patchFaceWorlds,
		labelList &	patchFaceProcs,
		labelList &	patchFaces,
		pointField &	patchFc ) const

protected

Collect single list of samples and originating processor+face + wanted world.

Definition at line 172 of file mappedPatchBase.C.

References Pstream::allGatherList(), UPstream::allGatherValues(), Foam::ListListOps::combine(), UPstream::commWarn(), DebugInFunction, Foam::endl(), facePoints(), forAll, getCommunicator(), Foam::identity(), UPstream::msgType(), UPstream::myProcNo(), Foam::nl, UPstream::nProcs(), patch_, Foam::Perr, List< T >::resize(), samplePoints(), samples(), and UList< T >::size().

Referenced by calcMapping().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findLocalSamples()

void findLocalSamples	(	const sampleMode	mode,
		const label	sampleWorld,
		const word &	sampleRegion,
		const word &	samplePatch,
		const pointField &	samplePoints,
		List< nearInfoWorld > &	nearest ) const

protected

Find (local) cells/faces containing samples.

Note: face-diagonal decomposition

Definition at line 269 of file mappedPatchBase.C.

References Foam::abort(), DebugInFunction, e, Foam::exit(), treeBoundBox::extend(), Foam::FatalError, FatalErrorInFunction, meshSearch::findNearestFace(), Tuple2< T1, T2 >::first(), forAll, getCommunicator(), lookupMesh(), lookupPatch(), boundBox::magSqr(), mesh, mode(), UPstream::myProcNo(), NEARESTCELL, NEARESTFACE, NEARESTONLYCELL, NEARESTPATCHFACE, NEARESTPATCHFACEAMI, NEARESTPATCHPOINT, MeshObject< polyMesh, GeometricMeshObject, meshSearchMeshObject >::New(), Foam::nl, pp(), rndGen, sampleModeNames_, samplePatch(), sampleRegion(), samples(), Tuple2< T1, T2 >::second(), List< T >::setSize(), indexedOctree< Type >::shapes(), Foam::sqr(), and tree().

Referenced by findSamples().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findSamples()

void findSamples	(	const sampleMode	mode,
		const label	myWorldIndex,
		const pointField &	samples,
		const labelList &	wantedWorlds,
		const labelList &	origProcs,
		labelList &	sampleProcs,
		labelList &	sampleIndices,
		pointField &	sampleLocations ) const

protected

Find (global) cells/faces containing samples.

Definition at line 575 of file mappedPatchBase.C.

References Pstream::allGatherList(), DynamicList< T, SizeMin >::append(), UPstream::commWarn(), DebugInFunction, Foam::endl(), findLocalSamples(), Tuple2< T1, T2 >::first(), UList< T >::first(), forAll, getCommunicator(), PointIndexHit< PointType >::hit(), PointIndexHit< PointType >::index(), Pstream::listCombineReduce(), VectorSpace< Form, Cmpt, Ncmpts >::max, mode(), UPstream::msgType(), UPstream::myProcNo(), Foam::nl, UPstream::nProcs(), PointIndexHit< PointType >::point(), Foam::Pout, samplePatch_, sampleRegion_, samples(), Tuple2< T1, T2 >::second(), List< T >::setSize(), UList< T >::size(), and Foam::sqr().

Referenced by calcMapping().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ samplePoints() [1/2]

Foam::tmp< Foam::pointField > samplePoints ( const pointField & fc ) const

protected

Get the sample points given the face points.

Definition at line 1767 of file mappedPatchBase.C.

References distance_, fld(), Foam::mag(), n, tmp< T >::New(), NONUNIFORM, NORMAL, offset_, offsetMode_, offsets_, patch_, and UNIFORM.

Referenced by calcAMI(), calcMapping(), collectSamples(), samplePoints(), TypeName(), and Sampled< Type >::value().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcMapping()

void calcMapping ( ) const

protected

Calculate mapping.

Definition at line 721 of file mappedPatchBase.C.

References Foam::abort(), UPstream::allWorlds(), DynamicList< T, SizeMin >::append(), collectSamples(), DebugInFunction, Foam::endl(), Foam::exit(), facePoints(), Foam::FatalError, FatalErrorInFunction, UList< T >::find(), findSamples(), forAll, Foam::gAverage(), getCommunicator(), Foam::mag(), map(), mapPtr_, UPstream::master(), mode_, UPstream::msgType(), UPstream::myWorld(), UPstream::myWorldID(), OFstream::name(), NEARESTCELL, NEARESTONLYCELL, NEARESTPATCHFACE, Foam::nl, offsetMode_, offsetModeNames_, patch_, Foam::Pout, Foam::reduce(), sameWorld(), sampleModeNames_, samplePatch(), samplePoints(), sampleRegion(), samples(), sampleWorld(), sampleWorld_, HashSet< Key, Hash >::set(), UList< T >::size(), HashSet< Key, Hash >::test(), Foam::type(), updateMeshTime(), updateSampleMeshTime(), WarningInFunction, and Foam::meshTools::writeOBJ().

Referenced by map().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcAMI()

void calcAMI ( ) const

protected

Calculate AMI interpolator.

Definition at line 1093 of file mappedPatchBase.C.

References AMIPtr_, UPstream::commWarn(), UPstream::commWorld(), DebugInFunction, Foam::endl(), getCommunicator(), PrimitivePatch< FaceList, PointField >::localFaces(), PrimitivePatch< FaceList, PointField >::localPoints(), masterWorld(), Foam::nl, os(), patch_, sameWorld(), samplePoints(), samplePolyPatch(), sampleWorld_, UList< T >::size(), surfPtr(), and Foam::meshTools::writeOBJ().

Referenced by AMI().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readDatabase()

Foam::autoPtr< Foam::fileName > readDatabase ( const dictionary & dict )

staticprotected

Read optional database name from dictionary.

Definition at line 88 of file mappedPatchBase.C.

References dict, autoPtr< T >::New(), and fileName::null.

Referenced by mappedPatchBase(), and mappedPatchBase().

Here is the call graph for this function:

Here is the caller graph for this function:

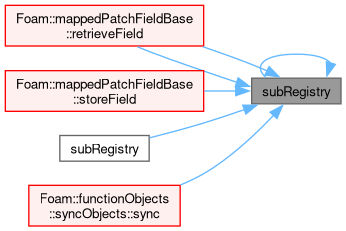

◆ subRegistry() [1/2]

const Foam::objectRegistry & subRegistry	(	const objectRegistry &	obr,
		const wordList &	names,
		const label	index )

staticprotected

Lookup (sub)objectRegistry by following names of sub registries. Creates non-existing intermediate ones.

Definition at line 1200 of file mappedPatchBase.C.

References names, subRegistry(), and objectRegistry::subRegistry().

Referenced by mappedPatchFieldBase< Type >::retrieveField(), mappedPatchFieldBase< scalar >::retrieveField(), mappedPatchFieldBase< Type >::storeField(), subRegistry(), subRegistry(), and syncObjects::sync().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeIOField()

template<class Type>

bool writeIOField	(	const regIOobject &	obj,
		dictionary &	dict )

staticprotected

Attempt to detect an IOField<Type> and write to dictionary.

Definition at line 269 of file mappedPatchBaseTemplates.C.

References dict, fld(), and Foam::isA().

Referenced by writeDict().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ constructIOField()

template<class Type>

bool constructIOField	(	const word &	name,
		token &	tok,
		Istream &	is,
		objectRegistry &	obr )

staticprotected

Attempt to read an IOField<Type> and store on objectRegistry.

Definition at line 297 of file mappedPatchBaseTemplates.C.

References objectRegistry::getObjectPtr(), token::isCompound(), Foam::name(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, IOobjectOption::REGISTER, regIOobject::store(), List< T >::transfer(), and token::transferCompoundToken().

Referenced by readDict().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "mappedPatchBase" )

Runtime type information.

References AMI(), comm(), coupleGroup(), facePoint(), getCommunicator(), map(), mappedPatchBase(), masterWorld(), Foam::noexcept, offset(), offsets(), owner(), pp(), sameRegion(), sameWorld(), sampleMesh(), samplePatch(), samplePoints(), samplePolyPatch(), sampleRegion(), sampleSize(), sampleWorld(), surfPtr(), updateMeshTime(), updateSampleMeshTime(), and upToDate().

Here is the call graph for this function:

◆ clearOut()

void clearOut ( )

Definition at line 1579 of file mappedPatchBase.C.

References AMIPtr_, and mapPtr_.

Referenced by thermalBaffle1DFvPatchScalarField< solidType >::autoMap(), mappedFieldFvPatchField< Type >::autoMap(), mappedMixedFieldFvPatchField< Type >::autoMap(), mappedFieldFvPatchField< Type >::rmap(), mappedMixedFieldFvPatchField< Type >::rmap(), setOffset(), setOffset(), setOffset(), updateMesh(), and ~mappedPatchBase().

Here is the caller graph for this function:

◆ setOffset() [1/3]

void setOffset ( const scalar normalDist )

Change to normal offset with given distance.

Definition at line 1590 of file mappedPatchBase.C.

References clearOut(), distance_, NORMAL, offset_, offsetMode_, offsets_, and Foam::Zero.

Referenced by mappedPatchBase(), and mappedPatchBase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setOffset() [2/3]

void setOffset ( const vector & uniformOffset )

Change to uniform offset with value.

Definition at line 1600 of file mappedPatchBase.C.

References clearOut(), distance_, offset_, offsetMode_, offsets_, UNIFORM, and Foam::Zero.

Here is the call graph for this function:

◆ setOffset() [3/3]

void setOffset ( const vectorField & offsets )

Change to non-uniform offsets.

Definition at line 1610 of file mappedPatchBase.C.

References clearOut(), distance_, NONUNIFORM, offset_, offsetMode_, offsets(), offsets_, and Foam::Zero.

Here is the call graph for this function:

◆ mode()

Foam::mappedPatchBase::sampleMode mode ( ) const

inlinenoexcept

What to sample.

Definition at line 23 of file mappedPatchBaseI.H.

References mode_, and Foam::noexcept.

Referenced by findLocalSamples(), findSamples(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVelocityFluxFixedValueFvPatchField::mappedVelocityFluxFixedValueFvPatchField(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), Sampled< Type >::Sampled(), mappedPolyPatch::TypeName(), mappedVariableThicknessWallPolyPatch::TypeName(), mappedWallPolyPatch::TypeName(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), and mappedVelocityFluxFixedValueFvPatchField::updateCoeffs().

Here is the caller graph for this function:

◆ sampleWorld()

const Foam::word & sampleWorld ( ) const

inlinenoexcept

World to sample.

Definition at line 29 of file mappedPatchBaseI.H.

References Foam::noexcept, and sampleWorld_.

Referenced by calcMapping(), and TypeName().

Here is the caller graph for this function:

◆ sampleRegion()

const Foam::word & sampleRegion ( ) const

inline

Region to sample.

Definition at line 35 of file mappedPatchBaseI.H.

References coupleGroup_, Foam::exit(), Foam::FatalError, FatalErrorInFunction, patch_, sampleMesh(), samplePatch_, and sampleRegion_.

Referenced by calcMapping(), findLocalSamples(), lookupMesh(), lookupPatch(), mappedFieldFvPatchField< Type >::mappedFieldFvPatchField(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), owner(), sampleMesh(), mappedFieldFvPatchField< Type >::TypeName(), TypeName(), mappedPolyPatch::TypeName(), mappedVariableThicknessWallPolyPatch::TypeName(), mappedWallPolyPatch::TypeName(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::updateCoeffs(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), and Sampled< Type >::value().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ samplePatch()

const Foam::word & samplePatch ( ) const

inline

Patch (only if NEARESTPATCHFACE).

Definition at line 61 of file mappedPatchBaseI.H.

References coupleGroup_, Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::nl, patch_, sampleMesh(), samplePatch_, and sampleRegion_.

Referenced by calcMapping(), findLocalSamples(), lookupPatch(), mappedFieldFvPatchField< Type >::mappedFieldFvPatchField(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), regionModel::nbrCoupledPatchID(), samplePolyPatch(), mappedFieldFvPatchField< Type >::TypeName(), TypeName(), mappedPolyPatch::TypeName(), mappedVariableThicknessWallPolyPatch::TypeName(), mappedWallPolyPatch::TypeName(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::updateCoeffs(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), mappedVelocityFluxFixedValueFvPatchField::updateCoeffs(), and Sampled< Type >::value().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ coupleGroup()

const Foam::word & coupleGroup ( ) const

inline

PatchGroup (only if NEARESTPATCHFACE).

Definition at line 87 of file mappedPatchBaseI.H.

References coupleGroup_.

Referenced by TypeName().

Here is the caller graph for this function:

◆ sampleSize()

Foam::label sampleSize ( ) const

inline

Return size of mapped mesh/patch/boundary.

Definition at line 93 of file mappedPatchBaseI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, mesh, mode_, NEARESTCELL, NEARESTFACE, NEARESTPATCHFACE, NEARESTPATCHFACEAMI, NEARESTPATCHPOINT, sampleMesh(), and samplePolyPatch().

Referenced by reverseDistribute(), reverseDistribute(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ offset()

const Foam::vector & offset ( ) const

inlinenoexcept

Offset vector (from patch faces to destination mesh objects).

Definition at line 128 of file mappedPatchBaseI.H.

References Foam::noexcept, and offset_.

Referenced by mappedPolyPatch::mappedPolyPatch(), mappedPolyPatch::mappedPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedVariableThicknessWallPolyPatch::mappedVariableThicknessWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), mappedWallPolyPatch::mappedWallPolyPatch(), TypeName(), mappedPolyPatch::TypeName(), mappedVariableThicknessWallPolyPatch::TypeName(), and mappedWallPolyPatch::TypeName().

Here is the caller graph for this function:

◆ offsets()

const Foam::vectorField & offsets ( ) const

inlinenoexcept

Offset vectors (from patch faces to destination mesh objects).

Definition at line 134 of file mappedPatchBaseI.H.

References Foam::noexcept, and offsets_.

Referenced by mappedPatchBase(), setOffset(), and TypeName().

Here is the caller graph for this function:

◆ getCommunicator()

Foam::label getCommunicator ( ) const

inline

Get the communicator (worldComm or world-to-world).

Definition at line 140 of file mappedPatchBaseI.H.

References communicator_, and getWorldCommunicator().

Referenced by calcAMI(), calcMapping(), collectSamples(), distribute(), distribute(), findLocalSamples(), findSamples(), reverseDistribute(), reverseDistribute(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ comm()

Foam::label comm ( ) const

inline

Identical to getCommunicator().

Definition at line 151 of file mappedPatchBaseI.H.

References communicator_, and getWorldCommunicator().

Referenced by TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sameWorld()

bool sameWorld ( ) const

inline

Is sample world the local world?

Definition at line 162 of file mappedPatchBaseI.H.

References UPstream::allWorlds(), UPstream::myWorld(), and sampleWorld_.

Referenced by addWorldConnection(), calcAMI(), calcMapping(), distribute(), distribute(), getWorldCommunicator(), masterWorld(), reverseDistribute(), reverseDistribute(), TypeName(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::updateCoeffs(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), and upToDate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ masterWorld()

bool masterWorld ( ) const

inline

Is my world ordered before the sampleWorld?

Definition at line 173 of file mappedPatchBaseI.H.

References UPstream::allWorlds(), UList< T >::find(), UPstream::myWorldID(), sameWorld(), and sampleWorld_.

Referenced by calcAMI(), distribute(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sameRegion()

bool sameRegion ( ) const

inlinenoexcept

Cached sampleRegion != mesh.name().

Definition at line 186 of file mappedPatchBaseI.H.

References Foam::noexcept, and sameRegion_.

Referenced by Sampled< Type >::haveSampleField(), Sampled< Type >::sampleField(), TypeName(), and Sampled< Type >::value().

Here is the caller graph for this function:

◆ updateSampleMeshTime()

Foam::uniformDimensionedScalarField & updateSampleMeshTime ( ) const

inline

Local mesh update time.

Definition at line 193 of file mappedPatchBaseI.H.

References mesh, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, patch_, and updateSampleMeshTimePtr_.

Referenced by calcMapping(), TypeName(), and upToDate().

Here is the caller graph for this function:

◆ updateMeshTime()

Foam::uniformDimensionedScalarField & updateMeshTime ( ) const

inline

Sample mesh upate time.

Definition at line 224 of file mappedPatchBaseI.H.

References mesh, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, patch_, and updateMeshTimePtr_.

Referenced by calcMapping(), TypeName(), and upToDate().

Here is the caller graph for this function:

◆ upToDate()

bool upToDate ( ) const

Definition at line 1688 of file mappedPatchBase.C.

References Foam::mag(), mesh, mode_, polyMesh::moving(), NEARESTPATCHFACE, NEARESTPATCHFACEAMI, NEARESTPATCHPOINT, patch_, points, UPstream::reduceAnd(), sameWorld(), sampleMesh(), samplePolyPatch(), updateMeshTime(), updateSampleMeshTime(), upToDate(), and polyMesh::upToDatePoints().

Referenced by AMI(), map(), TypeName(), and upToDate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ map()

const Foam::mapDistribute & map ( ) const

inline

Return reference to the parallel distribution map.

Definition at line 251 of file mappedPatchBaseI.H.

References AMIPtr_, calcMapping(), mapPtr_, and upToDate().

Referenced by calcMapping(), distribute(), distribute(), mappedPolyPatch::mapCollocatedFaces(), mappedWallPolyPatch::mapCollocatedFaces(), semiPermeableBaffleMassFractionFvPatchScalarField::phiY(), reverseDistribute(), reverseDistribute(), TypeName(), thermalBaffle1DFvPatchScalarField< solidType >::updateCoeffs(), and Sampled< Type >::value().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AMI()

const Foam::AMIPatchToPatchInterpolation & AMI ( const bool forceUpdate = false ) const

inline

Return reference to the AMI interpolator.

Definition at line 272 of file mappedPatchBaseI.H.

References AMIPtr_, calcAMI(), mapPtr_, and upToDate().

Referenced by distribute(), distribute(), reverseDistribute(), reverseDistribute(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ owner()

bool owner ( ) const

inline

Is it owner.

Definition at line 294 of file mappedPatchBaseI.H.

References patch_, and sampleRegion().

Referenced by mappedPolyPatch::masterImplicit(), mappedWallPolyPatch::masterImplicit(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ surfPtr()

const Foam::autoPtr< Foam::searchableSurface > & surfPtr ( ) const

Return a pointer to the AMI projection surface.

Definition at line 1061 of file mappedPatchBase.C.

References mesh, IOobjectOption::MUST_READ, searchableSurface::New(), IOobjectOption::NO_WRITE, patch_, surfDict_, and surfPtr_.

Referenced by calcAMI(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sampleMesh()

const Foam::polyMesh & sampleMesh ( ) const

Get the region mesh.

Definition at line 1656 of file mappedPatchBase.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, lookupMesh(), UPstream::myWorld(), sampleRegion(), and sampleWorld_.

Referenced by Sampled< Type >::haveSampleField(), Sampled< Type >::sampleField(), samplePatch(), samplePolyPatch(), sampleRegion(), sampleSize(), TypeName(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::updateCoeffs(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), humidityTemperatureCoupledMixedFvPatchScalarField::updateCoeffs(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), mappedFlowRateFvPatchVectorField::updateCoeffs(), mappedVelocityFluxFixedValueFvPatchField::updateCoeffs(), upToDate(), and Sampled< Type >::value().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ samplePolyPatch()

const Foam::polyPatch & samplePolyPatch ( ) const

Get the patch on the region.

Definition at line 1669 of file mappedPatchBase.C.

References polyMesh::boundaryMesh(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, polyBoundaryMesh::findPatchID(), polyBoundaryMesh::names(), sampleMesh(), samplePatch(), and sampleRegion_.

Referenced by calcAMI(), semiPermeableBaffleMassFractionFvPatchScalarField::phiY(), sampleSize(), TypeName(), thermalBaffle1DFvPatchScalarField< solidType >::updateCoeffs(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::updateCoeffs(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), humidityTemperatureCoupledMixedFvPatchScalarField::updateCoeffs(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), mappedFlowRateFvPatchVectorField::updateCoeffs(), and upToDate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ samplePoints() [2/2]

Foam::tmp< Foam::pointField > samplePoints ( ) const

Get the sample points.

Definition at line 1802 of file mappedPatchBase.C.

References facePoints(), patch_, and samplePoints().

Here is the call graph for this function:

◆ facePoint()

Foam::pointIndexHit facePoint	(	const polyMesh &	mesh,
		const label	facei,
		const polyMesh::cellDecomposition	decompMode )

static

Get a point on the face given a face decomposition method:

face-centre-tet : face centre. Returns index of face. face-planes : face centre. Returns index of face. face-diagonal : intersection of ray from cellcentre to facecentre with any of the triangles. Returns index (0..size-2) of triangle.

Definition at line 1808 of file mappedPatchBase.C.

References Foam::abort(), polyMesh::CELL_TETS, PointHit< PointType >::distance(), f(), polyMesh::FACE_CENTRE_TRIS, polyMesh::FACE_DIAG_TRIS, polyMesh::FACE_PLANES, Foam::FatalError, FatalErrorInFunction, intersection::HALF_RAY, PointHit< PointType >::hit(), triangle< Point, PointRef >::intersection(), mesh, p, and PointHit< PointType >::point().

Referenced by nearWallFields::calcAddressing(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sampleDatabasePath()

const fileName & sampleDatabasePath ( ) const

inline

Definition at line 770 of file mappedPatchBase.H.

References sampleDatabasePath(), and sampleDatabasePtr_.

Referenced by receivePath(), sampleDatabasePath(), and sendPath().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sampleDatabase()

bool sampleDatabase ( ) const

inlinenoexcept

Definition at line 775 of file mappedPatchBase.H.

References Foam::noexcept, and sampleDatabasePtr_.

◆ sendPath() [1/2]

Foam::fileName sendPath	(	const fileName &	root,
		const label	proci )

static

Helper: return path to store data to be sent to processor i.

Definition at line 1913 of file mappedPatchBase.C.

References Foam::name().

Referenced by sendPath(), and syncObjects::sync().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sendPath() [2/2]

Foam::fileName sendPath ( const label proci ) const

virtual

Definition at line 1924 of file mappedPatchBase.C.

References sampleDatabasePath(), and sendPath().

Here is the call graph for this function:

◆ receivePath() [1/2]

Foam::fileName receivePath	(	const fileName &	root,
		const label	proci )

static

Helper: return path to store data to be received from processor i.

Definition at line 1930 of file mappedPatchBase.C.

References Foam::name().

Referenced by receivePath(), and syncObjects::sync().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ receivePath() [2/2]

Foam::fileName receivePath ( const label proci ) const

virtual

Definition at line 1941 of file mappedPatchBase.C.

References receivePath(), and sampleDatabasePath().

Here is the call graph for this function:

◆ subRegistry() [2/2]

const Foam::objectRegistry & subRegistry	(	const objectRegistry &	obr,
		const fileName &	path )

static

Lookup (sub)objectRegistry from '/' separated path (relative to objectRegistry). Creates non-existing intermediate ones.

Definition at line 1889 of file mappedPatchBase.C.

References fileName::clean(), fileName::components(), names, path(), and subRegistry().

Here is the call graph for this function:

◆ storeField()

template<class Type>

void storeField	(	objectRegistry &	obr,
		const word &	fieldName,
		const Field< Type > &	values )

static

Store an IOField on the objectRegistry relative to obr.

Definition at line 340 of file mappedPatchBaseTemplates.C.

References objectRegistry::getObjectPtr(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, IOobjectOption::REGISTER, and regIOobject::store().

Referenced by mappedPatchFieldBase< scalar >::mappedPatchFieldBase(), mappedPatchFieldBase< scalar >::storeAndRetrieveField(), and mappedPatchFieldBase< Type >::storeField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeDict()

void writeDict	(	const objectRegistry &	obr,
		dictionary &	dict )

static

Convert objectRegistry contents into dictionary.

Definition at line 1947 of file mappedPatchBase.C.

References dict, forAllIters, Foam::isA(), IOobject::name(), os(), regIOobject::writeData(), writeDict(), and writeIOField().

Referenced by syncObjects::sync(), and writeDict().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readDict()

void readDict	(	const dictionary &	d,
		objectRegistry &	obr )

static

(recursively) construct and register IOFields from dictionary

Definition at line 1987 of file mappedPatchBase.C.

References constructIOField(), e, Foam::exit(), Foam::FatalError, FatalErrorInFunction, readDict(), and objectRegistry::subRegistry().

Referenced by readDict(), and syncObjects::sync().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ distribute() [1/2]

template<class Type>

void distribute ( List< Type > & lst ) const

Wrapper around map/interpolate data distribution.

Definition at line 23 of file mappedPatchBaseTemplates.C.

References AMI(), UPstream::commWarn(), UPstream::commWorld(), getCommunicator(), map(), masterWorld(), mode_, NEARESTPATCHFACEAMI, and sameWorld().

Referenced by solidAbsorption::a(), solidAbsorption::e(), regionModel::toRegion(), regionModel::toRegion(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), humidityTemperatureCoupledMixedFvPatchScalarField::updateCoeffs(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), mappedFlowRateFvPatchVectorField::updateCoeffs(), mappedVelocityFluxFixedValueFvPatchField::updateCoeffs(), and Sampled< Type >::value().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ distribute() [2/2]

template<class Type, class CombineOp>

void distribute	(	List< Type > &	lst,
		const CombineOp &	cop ) const

Wrapper around map/interpolate data distribution with operation.

Definition at line 101 of file mappedPatchBaseTemplates.C.

References AMI(), UPstream::commWarn(), UPstream::commWorld(), UPstream::defaultCommsType, mapDistributeBase::distribute(), getCommunicator(), map(), mode_, UPstream::msgType(), NEARESTPATCHFACEAMI, patch_, sameWorld(), and Foam::Zero.

Here is the call graph for this function:

◆ reverseDistribute() [1/2]

template<class Type>

void reverseDistribute ( List< Type > & lst ) const

Wrapper around map/interpolate data distribution.

Definition at line 164 of file mappedPatchBaseTemplates.C.

References AMI(), UPstream::commWarn(), UPstream::commWorld(), getCommunicator(), map(), mode_, NEARESTPATCHFACEAMI, patch_, sameWorld(), and sampleSize().

Referenced by regionModel::toPrimary(), and regionModel::toPrimary().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reverseDistribute() [2/2]

template<class Type, class CombineOp>

void reverseDistribute	(	List< Type > &	lst,
		const CombineOp &	cop ) const

Wrapper around map/interpolate data distribution with operation.

Definition at line 204 of file mappedPatchBaseTemplates.C.

References AMI(), UPstream::commWarn(), UPstream::commWorld(), UPstream::defaultCommsType, mapDistributeBase::distribute(), getCommunicator(), map(), mode_, UPstream::msgType(), NEARESTPATCHFACEAMI, patch_, sameWorld(), sampleSize(), and Foam::Zero.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write as a dictionary.

Reimplemented in thermalBaffle1DFvPatchScalarField< solidType >, thermalBaffle1DFvPatchScalarField< hConstSolidThermoPhysics >, thermalBaffle1DFvPatchScalarField< hPowerSolidThermoPhysics >, mappedFieldFvPatchField< Type >, mappedMixedFieldFvPatchField< Type >, mappedPolyPatch, mappedVariableThicknessWallPolyPatch, mappedWallPolyPatch, and semiPermeableBaffleMassFractionFvPatchScalarField.

Definition at line 2028 of file mappedPatchBase.C.

References AMIPtr_, coupleGroup_, distance_, mode_, Switch::name(), NEARESTPATCHFACE, NEARESTPATCHFACEAMI, NONUNIFORM, NORMAL, fileName::null, word::null, offset_, offsetMode_, offsetModeNames_, offsets_, os(), sampleDatabasePtr_, sampleModeNames_, samplePatch_, sampleRegion_, sampleWorld_, surfDict_, UNIFORM, and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Referenced by thermalBaffle1DFvPatchScalarField< solidType >::write(), mappedFieldFvPatchField< Type >::write(), mappedMixedFieldFvPatchField< Type >::write(), mappedPolyPatch::write(), mappedWallPolyPatch::write(), semiPermeableBaffleMassFractionFvPatchScalarField::write(), and Sampled< Type >::writeData().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ sampleModeNames_

const Foam::Enum< Foam::mappedPatchBase::sampleMode > sampleModeNames_

static

Definition at line 139 of file mappedPatchBase.H.

Referenced by calcMapping(), findLocalSamples(), mappedPatchBase(), mappedPatchBase(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), and write().

◆ offsetModeNames_

const Foam::Enum< Foam::mappedPatchBase::offsetMode > offsetModeNames_

static

Definition at line 141 of file mappedPatchBase.H.

Referenced by calcMapping(), mappedPatchBase(), sampledPatchInternalField::sampledPatchInternalField(), and write().

◆ patch_

const polyPatch& patch_

protected

◆ sampleWorld_

word sampleWorld_

mutableprotected

World to sample.

Definition at line 241 of file mappedPatchBase.H.

Referenced by addWorldConnection(), calcAMI(), calcMapping(), getWorldCommunicator(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), masterWorld(), sameWorld(), sampleMesh(), sampleWorld(), and write().

◆ sampleRegion_

word sampleRegion_

mutableprotected

◆ mode_

const sampleMode mode_

protected

What to sample.

Definition at line 251 of file mappedPatchBase.H.

Referenced by calcMapping(), distribute(), distribute(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mode(), reverseDistribute(), reverseDistribute(), sampleSize(), upToDate(), and write().

◆ samplePatch_

word samplePatch_

mutableprotected

Patch (if in sampleMode NEARESTPATCH*).

Definition at line 256 of file mappedPatchBase.H.

Referenced by findSamples(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPolyPatch::nbrCells(), mappedWallPolyPatch::nbrCells(), mappedPolyPatch::neighbPolyPatchID(), mappedWallPolyPatch::neighbPolyPatchID(), mappedPolyPatch::newInternalProcFaces(), mappedWallPolyPatch::newInternalProcFaces(), samplePatch(), sampleRegion(), and write().

◆ coupleGroup_

const coupleGroupIdentifier coupleGroup_

protected

PatchGroup (if in sampleMode NEARESTPATCH*).

Definition at line 261 of file mappedPatchBase.H.

Referenced by coupleGroup(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), samplePatch(), sampleRegion(), and write().

◆ sampleDatabasePtr_

const autoPtr<fileName> sampleDatabasePtr_

protected

Empty or location of database.

Definition at line 266 of file mappedPatchBase.H.

Referenced by mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), sampleDatabase(), sampleDatabasePath(), and write().

◆ offsetMode_

offsetMode offsetMode_

protected

How to obtain samples.

Definition at line 271 of file mappedPatchBase.H.

Referenced by calcMapping(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), samplePoints(), setOffset(), setOffset(), setOffset(), and write().

◆ offset_

vector offset_

protected

Offset vector (uniform).

Definition at line 276 of file mappedPatchBase.H.

Referenced by mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), offset(), samplePoints(), setOffset(), setOffset(), setOffset(), and write().

◆ offsets_

vectorField offsets_

protected

Offset vector (nonuniform).

Definition at line 281 of file mappedPatchBase.H.

Referenced by mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), offsets(), samplePoints(), setOffset(), setOffset(), setOffset(), and write().

◆ distance_

scalar distance_

protected

Offset distance (normal).

Definition at line 286 of file mappedPatchBase.H.

Referenced by mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), samplePoints(), setOffset(), setOffset(), setOffset(), and write().

◆ communicator_

label communicator_

protected

Communicator.

Definition at line 291 of file mappedPatchBase.H.

Referenced by comm(), getCommunicator(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), and mappedPatchBase().

◆ sameRegion_

bool sameRegion_

mutableprotected

Same region.

Definition at line 296 of file mappedPatchBase.H.

Referenced by mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), and sameRegion().

◆ mapPtr_

autoPtr<mapDistribute> mapPtr_

mutableprotected

Communication schedule:

Cells/faces to sample per processor
Patch faces to receive per processor
schedule

Definition at line 309 of file mappedPatchBase.H.

Referenced by AMI(), calcMapping(), clearOut(), map(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), and mappedPatchBase().

◆ AMIReverse_

const bool AMIReverse_

protected

Flag to indicate that slave patch should be reversed for AMI.

Definition at line 317 of file mappedPatchBase.H.

Referenced by mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), and mappedPatchBase().

◆ AMIPtr_

autoPtr<AMIPatchToPatchInterpolation> AMIPtr_

mutableprotected

Pointer to AMI interpolator.

Definition at line 322 of file mappedPatchBase.H.

Referenced by AMI(), calcAMI(), clearOut(), map(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), and write().

◆ surfPtr_

autoPtr<searchableSurface> surfPtr_

mutableprotected

Pointer to projection surface employed by AMI interpolator.

Definition at line 327 of file mappedPatchBase.H.

Referenced by mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), and surfPtr().

◆ surfDict_

dictionary surfDict_

protected

Dictionary storing projection surface description.

Definition at line 332 of file mappedPatchBase.H.

Referenced by mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), mappedPatchBase(), surfPtr(), and write().

◆ updateMeshTimePtr_

autoPtr<uniformDimensionedScalarField> updateMeshTimePtr_

mutableprotected

Local mesh update time.

Definition at line 340 of file mappedPatchBase.H.

Referenced by updateMeshTime().

◆ updateSampleMeshTimePtr_

autoPtr<uniformDimensionedScalarField> updateSampleMeshTimePtr_

mutableprotected

Sample mesh update time.

Definition at line 346 of file mappedPatchBase.H.

Referenced by updateSampleMeshTime().

The documentation for this class was generated from the following files:

src/meshTools/mappedPatches/mappedPolyPatch/mappedPatchBase.H
src/meshTools/mappedPatches/mappedPolyPatch/mappedPatchBase.C
src/meshTools/mappedPatches/mappedPolyPatch/mappedPatchBaseI.H
src/meshTools/mappedPatches/mappedPolyPatch/mappedPatchBaseTemplates.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ nearInfo

◆ nearInfoWorld

Member Enumeration Documentation

◆ sampleMode

◆ offsetMode

Constructor & Destructor Documentation

◆ mappedPatchBase() [1/8]

◆ mappedPatchBase() [2/8]

◆ mappedPatchBase() [3/8]

◆ mappedPatchBase() [4/8]

◆ mappedPatchBase() [5/8]

◆ mappedPatchBase() [6/8]

◆ mappedPatchBase() [7/8]

◆ mappedPatchBase() [8/8]

◆ ~mappedPatchBase()

Member Function Documentation

◆ initGeometry()

◆ calcGeometry()

◆ initMovePoints()

◆ movePoints()

◆ initUpdateMesh()

◆ updateMesh()

◆ addWorldConnection()

◆ getWorldCommunicator()

◆ lookupMesh()

◆ lookupPatch()

◆ facePoints()

◆ collectSamples()

◆ findLocalSamples()

◆ findSamples()

◆ samplePoints() [1/2]

◆ calcMapping()

◆ calcAMI()

◆ readDatabase()

◆ subRegistry() [1/2]

◆ writeIOField()

◆ constructIOField()

◆ TypeName()

◆ clearOut()

◆ setOffset() [1/3]

◆ setOffset() [2/3]

◆ setOffset() [3/3]

◆ mode()

◆ sampleWorld()

◆ sampleRegion()

◆ samplePatch()

◆ coupleGroup()

◆ sampleSize()

◆ offset()

◆ offsets()

◆ getCommunicator()

◆ comm()

◆ sameWorld()

◆ masterWorld()

◆ sameRegion()

◆ updateSampleMeshTime()

◆ updateMeshTime()

◆ upToDate()

◆ map()

◆ AMI()

◆ owner()

◆ surfPtr()

◆ sampleMesh()

◆ samplePolyPatch()

◆ samplePoints() [2/2]

◆ facePoint()

◆ sampleDatabasePath()

◆ sampleDatabase()

◆ sendPath() [1/2]

◆ sendPath() [2/2]
