Wedge front and back plane patch. More...
#include <wedgeFvPatch.H>
Public Member Functions | |
| TypeName (wedgePolyPatch::typeName_()) | |
| Runtime type information. | |
| wedgeFvPatch (const polyPatch &patch, const fvBoundaryMesh &bm) | |
| Construct from polyPatch. | |
| const tensor & | faceT () const noexcept |
| Return face transformation tensor. | |
| const tensor & | cellT () const noexcept |
| Return neighbour-cell transformation tensor. | |
| Public Member Functions inherited from fvPatch | |
| virtual void | makeWeights (scalarField &) const |
| Make patch weighting factors. | |
| virtual void | makeDeltaCoeffs (scalarField &) const |
| Correct patch deltaCoeffs. | |
| virtual void | makeNonOrthoDeltaCoeffs (scalarField &) const |
| Correct patch non-ortho deltaCoeffs. | |
| virtual void | makeNonOrthoCorrVectors (vectorField &) const |
| Correct patch non-ortho correction vectors. | |
| virtual void | initMovePoints () |
| Initialise the patches for moving points. | |
| virtual void | movePoints () |
| Correct patches after moving points. | |
| TypeName (polyPatch::typeName_()) | |
| Runtime type information. | |
| declareRunTimeSelectionTable (autoPtr, fvPatch, polyPatch,(const polyPatch &patch, const fvBoundaryMesh &bm),(patch, bm)) | |
| fvPatch (const polyPatch &, const fvBoundaryMesh &) | |
| Construct from polyPatch and fvBoundaryMesh. | |
| virtual | ~fvPatch () |
| Destructor. | |
| const polyPatch & | patch () const noexcept |
| Return the polyPatch. | |
| virtual const word & | name () const |
| Return name. | |
| label | index () const noexcept |
| The index of this patch in the boundary mesh. | |
| label | start () const noexcept |
| The patch start within the polyMesh face list. | |
| label | offset () const noexcept |
| The offset of this patch within the boundary face list. | |
| virtual label | size () const |
| Patch size is the number of faces, but can be overloaded. | |
| virtual bool | coupled () const |
| Return true if this patch is coupled. | |
| const fvBoundaryMesh & | boundaryMesh () const noexcept |
| Return boundaryMesh reference. | |
| template<class T> | |
| const List< T >::subList | patchSlice (const UList< T > &values) const |
| This patch slice from the complete list, which has size mesh::nFaces(), using the virtual patch size. | |
| template<class T> | |
| const List< T >::subList | boundarySlice (const UList< T > &values) const |
| This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the virtual patch size. | |
| virtual const labelUList & | faceCells () const |
| Return faceCells. | |
| const vectorField & | Cf () const |
| Return face centres. | |
| tmp< vectorField > | Cn () const |
| Return neighbour cell centres. | |
| const vectorField & | Sf () const |
| Return face area vectors, like the fvMesh::Sf() method. | |
| const scalarField & | magSf () const |
| Return face area magnitudes, like the fvMesh::magSf() method. | |
| tmp< vectorField > | unitSf () const |
| Return face unit normals, like the fvMesh::unitSf() method. Same as nf(). | |
| tmp< vectorField > | nf () const |
| Return face unit normals, like the fvMesh::unitSf() method Same as unitSf(). | |
| virtual tmp< vectorField > | delta () const |
| Return cell-centre to face-centre vector except for coupled patches for which the cell-centre to coupled-cell-centre vector is returned. | |
| const scalarField & | weights () const |
| Return patch weighting factors. | |
| const scalarField & | deltaCoeffs () const |
| Return the face - cell distance coefficient except for coupled patches for which the cell-centre to coupled-cell-centre distance coefficient is returned. | |
| template<class Type> | |
| void | patchInternalField (const UList< Type > &internalData, const labelUList &addressing, UList< Type > &pfld) const |
| Extract internal field next to patch using specified addressing. | |
| template<class Type> | |
| void | patchInternalField (const UList< Type > &internalData, UList< Type > &pfld) const |
| Extract internal field next to patch as patch field using faceCells() mapping. | |
| template<class Type> | |
| tmp< Field< Type > > | patchInternalField (const UList< Type > &internalData) const |
| Return given internal field next to patch as patch field using faceCells() mapping. | |
| template<class GeometricField, class AnyType = bool> | |
| const GeometricField::Patch & | patchField (const GeometricField &gf) const |
| Return the patch field of the GeometricField corresponding to this patch. | |
| template<class GeometricField, class AnyType = bool> | |
| const GeometricField::Patch & | lookupPatchField (const word &name) const |
| Lookup the named field from the local registry and return the patch field corresponding to this patch. | |
| template<class GeometricField> | |
| const GeometricField::Patch * | cfindPatchField (const word &name) const |
| Find the named field (if any) from the local registry and return the patch field corresponding to this patch. | |
| template<class Type> | |
| Foam::tmp< Foam::Field< Type > > | patchInternalField (const UList< Type > &internalData) const |
Additional Inherited Members | |
| Public Types inherited from fvPatch | |
| typedef fvBoundaryMesh | BoundaryMesh |
| The boundary type associated with the patch. | |
| Static Public Member Functions inherited from fvPatch | |
| static autoPtr< fvPatch > | New (const polyPatch &, const fvBoundaryMesh &) |
| Return a pointer to a new patch created on freestore from polyPatch. | |
| static const fvPatch & | lookupPatch (const polyPatch &p) |
| Lookup the polyPatch index on corresponding fvMesh. | |
| static bool | constraintType (const word &patchType) |
| Return true if the given type is a constraint type. | |
| static wordList | constraintTypes () |
| Return a list of all the constraint patch types. | |
| wedgeFvPatch | ( | const polyPatch & | patch, |
| const fvBoundaryMesh & | bm ) |
Construct from polyPatch.
Definition at line 37 of file wedgeFvPatch.C.

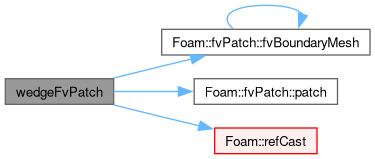

References fvPatch::fvBoundaryMesh, fvPatch::patch(), and Foam::refCast().
| TypeName | ( | wedgePolyPatch::typeName_() | ) |
Runtime type information.
References fvPatch::fvBoundaryMesh, and fvPatch::patch().
|
inlinenoexcept |
Return face transformation tensor.
Definition at line 79 of file wedgeFvPatch.H.
References Foam::noexcept.
|
inlinenoexcept |
Return neighbour-cell transformation tensor.
Definition at line 87 of file wedgeFvPatch.H.
References Foam::noexcept.
