Output inter-processor communications stream. More...
#include <OPstream.H>
Public Member Functions | |
| OPstream (const UPstream::commsTypes commsType, const int toProcNo, const int bufferSize=0, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY) | |
| Construct for given process index to send to. | |
| Public Member Functions inherited from Pstream | |
| ClassName ("Pstream") | |
| Declare name of the class and its debug switch. | |
| Pstream (const UPstream::commsTypes commsType) noexcept | |
| Construct for communication type with empty buffer. | |
| Pstream (const UPstream::commsTypes commsType, int bufferSize) | |
| Construct for communication type with given buffer size. | |
| template<class T> | |
| FOAM_DEPRECATED_FOR (2025-03, "broadcast() or broadcastList()") static void scatterList(UList< T > &values | |
| The inverse of gatherList, but when combined with gatherList it effectively acts like a partial broadcast... | |
| Public Member Functions inherited from UPstream | |
| ClassName ("UPstream") | |
| Declare name of the class and its debug switch. | |
| UPstream (const commsTypes commsType) noexcept | |
| Construct for given communication type. | |
| commsTypes | commsType () const noexcept |
| Get the communications type of the stream. | |
| commsTypes | commsType (const commsTypes ct) noexcept |
| Set the communications type of the stream. | |
| Public Member Functions inherited from UOPstream | |
| UOPstream (const UPstream::commsTypes commsType, const int toProcNo, DynamicList< char > &sendBuf, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, const bool sendAtDestruct=true, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY) | |
| Construct given process index to write to using the given attached send buffer, optional communication characteristics and IO format. | |
| UOPstream (const int toProcNo, PstreamBuffers &buffers) | |
| Construct given buffers. | |
| UOPstream (DynamicList< char > &sendBuf, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY) | |
| Construct for writing into a standalone buffer. Data transfer is handled externally by the caller. | |
| virtual | ~UOPstream () |
| Destructor, usually sends buffer on destruct. | |

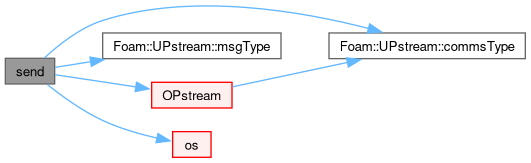

| bool | send () |
| Send buffer contents now and not in destructor [advanced usage]. Returns true on success. | |
| virtual bool | write (const token &tok) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const char c) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const char *str) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const word &str) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const std::string &str) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const int32_t val) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const int64_t val) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const uint32_t val) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const uint64_t val) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const float val) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const double val) override |
| Use all write methods from base class. | |
| virtual Ostream & | write (const char *data, std::streamsize count) override |
| Use all write methods from base class. | |
| Public Member Functions inherited from UOPstreamBase | |
| virtual | ~UOPstreamBase () |
| Destructor. | |
| virtual std::ios_base::fmtflags | flags () const override |
| Return current stream flags. Dummy for parallel stream, returns 0. | |
| virtual std::ios_base::fmtflags | flags (std::ios_base::fmtflags) override |
| Set stream flags, return old stream flags. Dummy for parallel stream, returns 0. | |
| virtual Ostream & | writeQuoted (const char *str, std::streamsize len, const bool quoted=true) override |
| Write character/string content, with/without surrounding quotes. | |
| virtual Ostream & | writeRaw (const char *data, std::streamsize count) override |
| Low-level raw binary output. | |
| virtual bool | beginRawWrite (std::streamsize count) override |
| Begin marker for low-level raw binary output. | |
| virtual bool | endRawWrite () override |
| End marker for low-level raw binary output. | |
| virtual void | indent () override |
| Add indentation characters. | |
| virtual void | flush () override |
| Flush stream. | |
| virtual void | endl () override |
| Add newline and flush stream. | |
| virtual char | fill () const override |
| Get the current padding character. | |
| virtual char | fill (const char) override |
| Set padding character for formatted field up to field width. | |
| virtual int | width () const override |
| Get width of output field. | |
| virtual int | width (const int) override |
| Set width of output field. | |
| virtual int | precision () const override |
| Get precision of output field. | |
| virtual int | precision (const int) override |
| Set precision of output field. | |
| virtual void | rewind () |
| Rewind the send buffer for overwriting. | |
| void | print (Ostream &os) const override |
| Print stream description to Ostream. | |
| virtual Ostream & | writeQuoted (const std::string &str, const bool quoted=true) |
| Inherit write methods from Ostream. | |
| Public Member Functions inherited from Ostream | |
| Ostream (const Ostream &)=default | |
| Copy construct. | |
| virtual | ~Ostream ()=default |
| Destructor. | |
| Ostream (IOstreamOption streamOpt=IOstreamOption()) | |
| Default construct (ASCII, uncompressed), construct with specified stream option. | |
| Ostream (IOstreamOption::streamFormat fmt, IOstreamOption::compressionType cmp=IOstreamOption::UNCOMPRESSED) | |
| Construct with format (uncompressed). | |
| virtual Ostream & | write (const keyType &kw) |
| Write keyType. | |
| unsigned short | indentSize () const noexcept |
| Return indent size (spaces per level). | |
| unsigned short | indentSize (unsigned short val) noexcept |
| Change indent size (spaces per level), return old value. | |
| unsigned short | indentLevel () const noexcept |
| Return the indent level. | |
| unsigned short | indentLevel (unsigned short val) noexcept |
| Change the indent level, return old value. | |
| void | incrIndent () noexcept |
| Increment the indent level. | |
| void | decrIndent () |
| Decrement the indent level. | |
| virtual Ostream & | writeKeyword (const keyType &kw) |
| Write the keyword followed by an appropriate indentation. | |
| virtual Ostream & | beginBlock (const keyType &kw) |
| Write begin block group with the given name. | |
| virtual Ostream & | beginBlock () |
| Write begin block group without a name. | |
| virtual Ostream & | endBlock () |
| Write end block group. | |
| virtual Ostream & | endEntry () |
| Write end entry (';') followed by newline. | |
| template<class T> | |
| Ostream & | writeEntry (const keyType &key, const T &value) |
| Write a keyword/value entry. | |
| template<class T> | |
| Ostream & | writeEntryIfDifferent (const word &key, const T &value1, const T &value2) |
| Write a keyword/value entry only when the two values differ. | |
| Ostream & | operator() () const |
| Return a non-const reference to const Ostream. | |
| unsigned short & | indentLevel () noexcept |
| Access to indent level. | |
| unsigned short & | indentSize () noexcept |
| Access to indent size. | |
| Public Member Functions inherited from IOstream | |
| IOstream (const IOstream &)=default | |
| Copy construct. | |
| virtual | ~IOstream ()=default |
| Destructor. | |
| IOstream (IOstreamOption streamOpt=IOstreamOption()) | |
| Default construct (ASCII, uncompressed), construct with specified stream option. | |
| IOstream (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp=IOstreamOption::UNCOMPRESSED) | |
| Construct with format, version (compression). | |
| virtual const fileName & | name () const |
| The name of the stream. | |
| fileName | relativeName () const |
| Return the name of the stream relative to the current case. | |
| virtual bool | check (const char *operation) const |
| Check IOstream status for given operation. | |
| bool | fatalCheck (const char *operation) const |
| Check IOstream status for given operation. | |
| bool | opened () const noexcept |
| True if stream has been opened. | |
| bool | closed () const noexcept |
| True if stream is closed. | |
| bool | good () const noexcept |
| True if next operation might succeed. | |
| bool | eof () const noexcept |
| True if end of input seen. | |
| bool | fail () const noexcept |
| True if next operation will fail. | |
| bool | bad () const noexcept |
| True if stream is corrupted. | |
| operator bool () const noexcept | |
| True if the stream has not failed. | |
| bool | operator! () const noexcept |
| True if the stream has failed. | |
| unsigned | labelByteSize () const noexcept |
| The sizeof (label) in bytes associated with the stream. | |
| unsigned | scalarByteSize () const noexcept |
| The sizeof (scalar) in bytes associated with the stream. | |
| void | setLabelByteSize (unsigned nbytes) noexcept |
| Set the sizeof (label) in bytes associated with the stream. | |
| void | setScalarByteSize (unsigned nbytes) noexcept |
| Set the sizeof (scalar) in bytes associated with the stream. | |
| template<class T, class = std::enable_if_t<std::is_integral_v<T>>> | |
| bool | checkLabelSize () const noexcept |
| Test if the label byte-size associated with the stream is the same as the given type. | |
| template<class T, class = std::enable_if_t<std::is_floating_point_v<T>>> | |
| bool | checkScalarSize () const noexcept |
| Test if the scalar byte-size associated with the stream is the same as the given type. | |
| bool | checkNativeSizes () const noexcept |
| Test if the label/scalar byte-size associated with the stream are the native label/scalar sizes. | |
| bool | fatalCheckNativeSizes (const char *operation) const |
| Assert that the label/scalar byte-size associated with the stream are the native label/scalar sizes. | |
| label | lineNumber () const noexcept |
| Const access to the current stream line number. | |
| label & | lineNumber () noexcept |
| Non-const access to the current stream line number. | |
| label | lineNumber (const label num) noexcept |
| Set the stream line number. | |
| void | setEof () noexcept |
| Set stream state as reached 'eof'. | |
| void | setFail () noexcept |
| Set stream state as 'failed'. | |
| void | setBad () noexcept |
| Set stream state to be 'bad'. | |
| std::ios_base::fmtflags | setf (std::ios_base::fmtflags f) |
| Set stream flag(s), return old stream flags. | |
| std::ios_base::fmtflags | setf (const std::ios_base::fmtflags f, const std::ios_base::fmtflags mask) |
| Set stream flag(s) with mask, return old stream flags. | |
| std::ios_base::fmtflags | unsetf (std::ios_base::fmtflags f) |
| Unset stream flags, return old stream flags. | |
| void | print (Ostream &os, const int streamState) const |
| Print information about the stream state bits. | |
| InfoProxy< IOstream > | info () const noexcept |
| Return info proxy, used to print IOstream information to a stream. | |
| Public Member Functions inherited from IOstreamOption | |
| constexpr | IOstreamOption (streamFormat fmt=streamFormat::ASCII, compressionType comp=compressionType::UNCOMPRESSED) noexcept |
| Default construct (ASCII, UNCOMPRESSED, currentVersion) or construct with format, compression. | |
| constexpr | IOstreamOption (streamFormat fmt, compressionType comp, versionNumber ver) noexcept |
| Construct from components (format, compression, version). | |
| constexpr | IOstreamOption (streamFormat fmt, versionNumber ver, compressionType comp=compressionType::UNCOMPRESSED) noexcept |
| Construct from components (format, version, compression). | |
| IOstreamOption (const IOstreamOption &opt, streamFormat fmt) noexcept | |
| Copy construct with change of format. | |
| streamFormat | format () const noexcept |
| Get the current stream format. | |
| streamFormat | format (const streamFormat fmt) noexcept |
| Set the stream format. | |
| streamFormat | format (const word &formatName) |
| Set the stream format from string value. | |
| compressionType | compression () const noexcept |
| Get the stream compression. | |
| compressionType | compression (const compressionType comp) noexcept |
| Set the stream compression. | |
| compressionType | compression (const word &compName) |
| Set the stream compression from string value. | |
| versionNumber | version () const noexcept |
| Get the stream version. | |
| versionNumber | version (const versionNumber ver) noexcept |
| Set the stream version. | |
| versionNumber | version (const token &tok) |
| Set the stream version from token. | |
Static Public Member Functions | |
| template<class Type> | |
| static void | send (const Type &value, const UPstream::commsTypes commsType, const int toProcNo, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY) |
Serialize a value and send (buffered/blocking or standard mode). Uses operator<< for serialization. | |
| template<class Type> | |
| static void | send (const Type &value, const int toProcNo, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY) |
Serialize a value and send (standard mode). Uses operator<< for serialization. | |
| Static Public Member Functions inherited from Pstream | |
| template<class Type> | |
| static void | broadcast (Type &value, const int communicator=UPstream::worldComm) |
| Broadcast content (contiguous or non-contiguous) to all communicator ranks. Does nothing in non-parallel. | |
| template<class Type, unsigned N> | |
| static void | broadcast (FixedList< Type, N > &list, const int communicator=UPstream::worldComm) |
| Broadcast fixed-list content (contiguous or non-contiguous) to all communicator ranks. Does nothing in non-parallel. | |
| template<class Type, class... Args> | |
| static void | broadcasts (const int communicator, Type &value, Args &&... values) |
| Broadcast multiple items to all communicator ranks. Does nothing in non-parallel. | |
| template<class ListType> | |
| static void | broadcastList (ListType &list, const int communicator=UPstream::worldComm) |
| Broadcast list content (contiguous or non-contiguous) to all communicator ranks. Does nothing in non-parallel. | |
| template<class T, class BinaryOp, bool InplaceMode> | |
| static void | gather_algorithm (const UPstream::commsStructList &comms, T &value, BinaryOp bop, const int tag, const int communicator) |
| Implementation: gather (reduce) single element data onto UPstream::masterNo(). | |
| template<class T, class BinaryOp, bool InplaceMode> | |
| static bool | gather_topo_algorithm (T &value, BinaryOp bop, const int tag, const int communicator) |
| Implementation: gather (reduce) single element data onto UPstream::masterNo() using a topo algorithm. | |
| template<class T, class BinaryOp, bool InplaceMode = false> | |
| static void | gather (T &value, BinaryOp bop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Gather (reduce) data, applying bop to combine value from different processors. The basis for Foam::reduce(). | |
| template<class T> | |
| static List< T > | listGatherValues (const T &localValue, const int communicator=UPstream::worldComm, const int tag=UPstream::msgType()) |
| Gather individual values into list locations. | |
| template<class T> | |
| static T | listScatterValues (const UList< T > &allValues, const int communicator=UPstream::worldComm, const int tag=UPstream::msgType()) |
| Scatter individual values from list locations. | |
| template<class T, class CombineOp> | |
| static void | combineGather (T &value, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Forwards to Pstream::gather with an in-place cop. | |
| template<class T, class CombineOp> | |
| static void | combineReduce (T &value, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Reduce inplace (cf. MPI Allreduce) applying cop to inplace combine value from different processors. | |
| template<class T, class CombineOp> | |
| static void | combineAllGather (T &value, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
| Same as Pstream::combineReduce. | |
| template<class T, class BinaryOp, bool InplaceMode> | |
| static void | listGather_algorithm (const UPstream::commsStructList &comms, UList< T > &values, BinaryOp bop, const int tag, const int communicator) |
| Implementation: gather (reduce) list element data onto UPstream::masterNo(). | |
| template<class T, class BinaryOp, bool InplaceMode> | |
| static bool | listGather_topo_algorithm (UList< T > &values, BinaryOp bop, const int tag, const int communicator) |
| Implementation: gather (reduce) list element data onto UPstream::masterNo() using a topo algorithm. | |
| template<class T, class BinaryOp, bool InplaceMode = false> | |
| static void | listGather (UList< T > &values, BinaryOp bop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Gather (reduce) list elements, applying bop to each list element. | |
| template<class T, class CombineOp> | |
| static void | listCombineGather (UList< T > &values, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Forwards to Pstream::listGather with an in-place cop. | |
| template<class T, class BinaryOp, bool InplaceMode = false> | |
| static void | listReduce (UList< T > &values, BinaryOp bop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Reduce list elements (list must be equal size on all ranks), applying bop to each list element. | |
| template<class T, class CombineOp> | |
| static void | listCombineReduce (UList< T > &values, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Forwards to Pstream::listReduce with an in-place cop. | |
| template<class T, class CombineOp> | |
| static void | listCombineAllGather (UList< T > &values, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
| Same as Pstream::listCombineReduce. | |
| template<class Container, class BinaryOp, bool InplaceMode> | |
| static void | mapGather_algorithm (const UPstream::commsStructList &comms, Container &values, BinaryOp bop, const int tag, const int communicator) |
| Implementation: gather (reduce) Map/HashTable containers onto UPstream::masterNo(). | |
| template<class Container, class BinaryOp, bool InplaceMode> | |
| static bool | mapGather_topo_algorithm (Container &values, BinaryOp bop, const int tag, const int communicator) |
| Implementation: gather (reduce) Map/HashTable containers onto UPstream::masterNo() using a topo algorithm. | |
| template<class Container, class BinaryOp, bool InplaceMode = false> | |
| static void | mapGather (Container &values, BinaryOp bop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Gather (reduce) Map/HashTable containers, applying bop to combine entries from different processors. | |
| template<class Container, class CombineOp> | |
| static void | mapCombineGather (Container &values, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Forwards to Pstream::mapGather with an in-place cop. | |
| template<class Container, class BinaryOp, bool InplaceMode = false> | |
| static void | mapReduce (Container &values, BinaryOp bop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Reduce inplace (cf. MPI Allreduce) applying bop to combine map values from different processors. After completion all processors have the same data. | |
| template<class Container, class CombineOp> | |
| static void | mapCombineReduce (Container &values, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
Forwards to Pstream::mapReduce with an in-place cop. | |
| template<class Container, class CombineOp> | |
| static void | mapCombineAllGather (Container &values, CombineOp cop, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
| Same as Pstream::mapCombineReduce. | |
| template<class T> | |
| static void | gatherList_algorithm (const UPstream::commsStructList &comms, UList< T > &values, const int tag, const int communicator) |
| Implementation: gather data, keeping individual values separate. Output is only valid (consistent) on UPstream::masterNo(). | |
| template<class T> | |
| static bool | gatherList_topo_algorithm (UList< T > &values, const int tag, const int communicator) |
| Gather data, keeping individual values separate. | |
| template<class T> | |
| static void | scatterList_algorithm (const UPstream::commsStructList &comms, UList< T > &values, const int tag, const int communicator) |
| Implementation: inverse of gatherList_algorithm. | |
| template<class T> | |
| static void | gatherList (UList< T > &values, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
| Gather data, but keep individual values separate. | |
| template<class T> | |
| static void | allGatherList (UList< T > &values, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm) |
| Gather data, but keep individual values separate. Uses MPI_Allgather or manual communication. | |
| template<class Container> | |
| static void | exchangeSizes (const labelUList &sendProcs, const labelUList &recvProcs, const Container &sendBufs, labelList &sizes, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm) |
| Helper: exchange sizes of sendBufs for specified send/recv ranks. | |
| template<class Container> | |
| static void | exchangeSizes (const labelUList &neighProcs, const Container &sendBufs, labelList &sizes, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm) |
| Helper: exchange sizes of sendBufs for specified neighbour ranks. | |
| template<class Container> | |
| static void | exchangeSizes (const Container &sendBufs, labelList &recvSizes, const int comm=UPstream::worldComm) |
| Helper: exchange sizes of sendBufs. The sendBufs is the data per processor (in the communicator). | |
| template<class Container> | |
| static void | exchangeSizes (const Map< Container > &sendBufs, Map< label > &recvSizes, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm) |
| Exchange the non-zero sizes of sendBufs entries (sparse map) with other ranks in the communicator using non-blocking consensus exchange. | |
| template<class Container, class Type> | |
| static void | exchange (const UList< Container > &sendBufs, const labelUList &recvSizes, List< Container > &recvBufs, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm, const bool wait=true) |
| Helper: exchange contiguous data. Sends sendBufs, receives into recvBufs using predetermined receive sizing. | |
| template<class Container, class Type> | |
| static void | exchange (const Map< Container > &sendBufs, const Map< label > &recvSizes, Map< Container > &recvBufs, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm, const bool wait=true) |
| Exchange contiguous data. Sends sendBufs, receives into recvBufs. | |
| template<class Container, class Type> | |
| static void | exchange (const UList< Container > &sendBufs, List< Container > &recvBufs, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm, const bool wait=true) |
| Exchange contiguous data. Sends sendBufs, receives into recvBufs. Determines sizes to receive. | |
| template<class Container, class Type> | |
| static void | exchange (const Map< Container > &sendBufs, Map< Container > &recvBufs, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm, const bool wait=true) |
| Exchange contiguous data. Sends sendBufs, receives into recvBufs. Determines sizes to receive. | |
| template<class Container, class Type> | |
| static void | exchangeConsensus (const UList< Container > &sendBufs, List< Container > &recvBufs, const int tag, const int comm, const bool wait=true) |
| Exchange contiguous data using non-blocking consensus (NBX) Sends sendData, receives into recvData. | |
| template<class Container, class Type> | |
| static void | exchangeConsensus (const Map< Container > &sendBufs, Map< Container > &recvBufs, const int tag, const int comm, const bool wait=true) |
| Exchange contiguous data using non-blocking consensus (NBX) Sends sendData, receives into recvData. | |
| template<class Container, class Type> | |
| static Map< Container > | exchangeConsensus (const Map< Container > &sendBufs, const int tag, const int comm, const bool wait=true) |
| Exchange contiguous data using non-blocking consensus (NBX) Sends sendData returns receive information. | |
| template<class T> | |
| static void | scatter (T &value, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm) |
| template<class T> | |
| static void | combineScatter (T &value, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm) |
| template<class T> | |
| static void | listCombineScatter (List< T > &value, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm) |
| template<class Container> | |
| static void | mapCombineScatter (Container &values, const int tag=UPstream::msgType(), const int comm=UPstream::worldComm) |
| template<class Type> | |
| static bool | broadcast (Type *buffer, std::streamsize count, const int communicator, const int root=UPstream::masterNo()) |
| Broadcast buffer content to all processes in communicator. | |
| template<class Type, unsigned N> | |
| static bool | broadcast (FixedList< Type, N > &list, const int communicator, const int root=UPstream::masterNo()) |
| Broadcast buffer content to all processes in communicator. | |
| Static Public Member Functions inherited from UPstream | |
| static bool | usingTopoControl (UPstream::topoControls ctrl) noexcept |
| Test for selection of given topology-aware routine. | |
| static constexpr int | commGlobal () noexcept |
| Communicator for all ranks, irrespective of any local worlds. | |
| static constexpr int | commSelf () noexcept |
| Communicator within the current rank only. | |
| static int | commConstWorld () noexcept |
| Communicator for all ranks (respecting any local worlds). | |
| static label | commWorld () noexcept |
| Communicator for all ranks (respecting any local worlds). | |
| static label | commWorld (const label communicator) noexcept |
| Set world communicator. Negative values are a no-op. | |
| static label | commWarn (const label communicator) noexcept |
| Alter communicator debugging setting. Warns for use of any communicator differing from specified. Negative values disable. | |
| static label | nComms () noexcept |
| Number of currently defined communicators. | |
| static void | printCommTree (int communicator, bool linear=false) |
| Debugging: print the communication tree. | |
| static int | commInterNode () noexcept |
| Communicator between nodes/hosts (respects any local worlds). | |
| static int | commLocalNode () noexcept |
| Communicator within the node/host (respects any local worlds). | |
| static bool | hasNodeCommunicators () noexcept |
| Both inter-node and local-node communicators have been created. | |
| static bool | usingNodeComms (const int communicator) |
| True if node topology-aware routines have been enabled, it is running in parallel, the starting point is the world-communicator and it is not an odd corner case (ie, all processes on one node, all processes on different nodes). | |
| static label | newCommunicator (const label parent, const labelRange &subRanks, const bool withComponents=true) |
| Create new communicator with sub-ranks on the parent communicator. | |
| static label | newCommunicator (const label parent, const labelUList &subRanks, const bool withComponents=true) |
| Create new communicator with sub-ranks on the parent communicator. | |
| static label | dupCommunicator (const label parent) |
| Duplicate the parent communicator. | |
| static label | splitCommunicator (const label parent, const int colour, const bool two_step=true) |
| Allocate a new communicator by splitting the parent communicator on the given colour. | |
| static void | freeCommunicator (const label communicator, const bool withComponents=true) |
| Free a previously allocated communicator. | |
| static int | baseProcNo (label comm, int procID) |
| Return physical processor number (i.e. processor number in worldComm) given communicator and processor. | |
| static label | procNo (const label comm, const int baseProcID) |
| Return processor number in communicator (given physical processor number) (= reverse of baseProcNo). | |
| static label | procNo (const label comm, const label currentComm, const int currentProcID) |
| Return processor number in communicator (given processor number and communicator). | |
| static void | addValidParOptions (HashTable< string > &validParOptions) |
| Add the valid option this type of communications library adds/requires on the command line. | |
| static bool | init (int &argc, char **&argv, const bool needsThread) |
| Initialisation function called from main. | |
| static bool | initNull () |
| Special purpose initialisation function. | |
| static void | barrier (const int communicator, UPstream::Request *req=nullptr) |
| Impose a synchronisation barrier (optionally non-blocking). | |
| static void | send_done (const int toProcNo, const int communicator, const int tag=UPstream::msgType()+1970) |
| Impose a point-to-point synchronisation barrier by sending a zero-byte "done" message to given rank. | |
| static int | wait_done (const int fromProcNo, const int communicator, const int tag=UPstream::msgType()+1970) |
| Impose a point-to-point synchronisation barrier by receiving a zero-byte "done" message from given rank. | |
| static std::pair< int, int64_t > | probeMessage (const UPstream::commsTypes commsType, const int fromProcNo, const int tag=UPstream::msgType(), const int communicator=worldComm) |
| Probe for an incoming message. | |
| static void | printNodeCommsControl (Ostream &os) |
| Report the node-communication settings. | |
| static void | printTopoControl (Ostream &os) |
| Report the topology routines settings. | |
| static label | nRequests () noexcept |
| Number of outstanding requests (on the internal list of requests). | |
| static void | resetRequests (const label n) |
| Truncate outstanding requests to given length, which is expected to be in the range [0 to nRequests()]. | |
| static void | addRequest (UPstream::Request &req) |
| Transfer the (wrapped) MPI request to the internal global list and invalidate the parameter (ignores null requests). | |
| static void | cancelRequest (const label i) |
| Non-blocking comms: cancel and free outstanding request. Corresponds to MPI_Cancel() + MPI_Request_free(). | |
| static void | cancelRequest (UPstream::Request &req) |
| Non-blocking comms: cancel and free outstanding request. Corresponds to MPI_Cancel() + MPI_Request_free(). | |
| static void | cancelRequests (UList< UPstream::Request > &requests) |
| Non-blocking comms: cancel and free outstanding requests. Corresponds to MPI_Cancel() + MPI_Request_free(). | |
| static void | removeRequests (label pos, label len=-1) |
| Non-blocking comms: cancel/free outstanding requests (from position onwards) and remove from internal list of requests. Corresponds to MPI_Cancel() + MPI_Request_free(). | |
| static void | freeRequest (UPstream::Request &req) |
| Non-blocking comms: free outstanding request. Corresponds to MPI_Request_free(). | |
| static void | freeRequests (UList< UPstream::Request > &requests) |
| Non-blocking comms: free outstanding requests. Corresponds to MPI_Request_free(). | |
| static void | waitRequests (label pos, label len=-1) |
| Wait until all requests (from position onwards) have finished. Corresponds to MPI_Waitall(). | |
| static void | waitRequests (UList< UPstream::Request > &requests) |
| Wait until all requests have finished. Corresponds to MPI_Waitall(). | |
| static bool | waitAnyRequest (label pos, label len=-1) |
| Wait until any request (from position onwards) has finished. Corresponds to MPI_Waitany(). | |
| static bool | waitSomeRequests (label pos, label len=-1, DynamicList< int > *indices=nullptr) |
| Wait until some requests (from position onwards) have finished. Corresponds to MPI_Waitsome(). | |
| static bool | waitSomeRequests (UList< UPstream::Request > &requests, DynamicList< int > *indices=nullptr) |
| Wait until some requests have finished. Corresponds to MPI_Waitsome(). | |
| static int | waitAnyRequest (UList< UPstream::Request > &requests) |
| Wait until any request has finished and return its index. Corresponds to MPI_Waitany(). | |
| static void | waitRequest (const label i) |
| Wait until request i has finished. Corresponds to MPI_Wait(). | |
| static void | waitRequest (UPstream::Request &req) |
| Wait until specified request has finished. Corresponds to MPI_Wait(). | |
| static bool | activeRequest (const label i) |
Is request i active (!= MPI_REQUEST_NULL)? | |
| static bool | activeRequest (const UPstream::Request &req) |
| Is request active (!= MPI_REQUEST_NULL)? | |
| static bool | finishedRequest (const label i) |
| Non-blocking comms: has request i finished? Corresponds to MPI_Test(). | |
| static bool | finishedRequest (UPstream::Request &req) |
| Non-blocking comms: has request finished? Corresponds to MPI_Test(). | |
| static bool | finishedRequests (label pos, label len=-1) |
| Non-blocking comms: have all requests (from position onwards) finished? Corresponds to MPI_Testall(). | |
| static bool | finishedRequests (UList< UPstream::Request > &requests) |
| Non-blocking comms: have all requests finished? Corresponds to MPI_Testall(). | |
| static bool | finishedRequestPair (label &req0, label &req1) |
| Non-blocking comms: have both requests finished? Corresponds to pair of MPI_Test(). | |
| static void | waitRequestPair (label &req0, label &req1) |
| Non-blocking comms: wait for both requests to finish. Corresponds to pair of MPI_Wait(). | |
| static bool | parRun (const bool on) noexcept |
| Set as parallel run on/off. | |
| static bool & | parRun () noexcept |
| Test if this a parallel run. | |
| static bool | haveThreads () noexcept |
| Have support for threads. | |
| static constexpr int | masterNo () noexcept |
| Relative rank for the master process - is always 0. | |
| static label | nProcs (const label communicator=worldComm) |
| Number of ranks in parallel run (for given communicator). It is 1 for serial run. | |
| static int | myProcNo (const label communicator=worldComm) |
| Rank of this process in the communicator (starting from masterNo()). Negative if the process is not a rank in the communicator. | |
| static bool | master (const label communicator=worldComm) |
| True if process corresponds to the master rank in the communicator. | |
| static bool | is_rank (const label communicator=worldComm) |
| True if process corresponds to any rank (master or sub-rank) in the given communicator. | |
| static bool | is_subrank (const label communicator=worldComm) |
| True if process corresponds to a sub-rank in the given communicator. | |
| static bool | is_parallel (const label communicator=worldComm) |
| True if parallel algorithm or exchange is required. | |
| static int | numNodes () noexcept |
| The number of shared/host nodes in the (const) world communicator. | |
| static label | parent (int communicator) |
| The parent communicator. | |
| static List< int > & | procID (int communicator) |
| The list of ranks within a given communicator. | |
| static bool | sameProcs (int communicator1, int communicator2) |
| Test for communicator equality. | |
| template<typename T1, typename = std::void_t <std::enable_if_t<std::is_integral_v<T1>>>> | |
| static bool | sameProcs (int communicator, const UList< T1 > &procs) |
| Test equality of communicator procs with the given list of ranks. Includes a guard for the communicator index. | |
| template<typename T1, typename T2, typename = std::void_t < std::enable_if_t<std::is_integral_v<T1>>, std::enable_if_t<std::is_integral_v<T2>> >> | |
| static bool | sameProcs (const UList< T1 > &procs1, const UList< T2 > &procs2) |
| Test the equality of two lists of ranks. | |
| static const wordList & | allWorlds () noexcept |
| All worlds. | |
| static const labelList & | worldIDs () noexcept |
| The indices into allWorlds for all processes. | |
| static label | myWorldID () |
| My worldID. | |
| static const word & | myWorld () |
| My world. | |
| static rangeType | allProcs (const label communicator=worldComm) |
| Range of process indices for all processes. | |
| static rangeType | subProcs (const label communicator=worldComm) |
| Range of process indices for sub-processes. | |
| static const List< int > & | interNode_offsets () |
| Processor offsets corresponding to the inter-node communicator. | |
| static const rangeType & | localNode_parentProcs () |
| The range (start/size) of the commLocalNode ranks in terms of the (const) world communicator processors. | |
| static const commsStructList & | linearCommunication (int communicator) |
| Linear communication schedule (special case) for given communicator. | |
| static const commsStructList & | treeCommunication (int communicator) |
| Tree communication schedule (standard case) for given communicator. | |
| static const commsStructList & | whichCommunication (const int communicator, bool linear=false) |
Communication schedule for all-to-master (proc 0) as linear/tree/none with switching based on UPstream::nProcsSimpleSum, the is_parallel() state and the optional linear parameter. | |
| static int & | msgType () noexcept |
| Message tag of standard messages. | |
| static int | msgType (int val) noexcept |
| Set the message tag for standard messages. | |
| static int | incrMsgType (int val=1) noexcept |
| Increment the message tag for standard messages. | |
| static void | shutdown (int errNo=0) |
| Shutdown (finalize) MPI as required. | |
| static void | abort (int errNo=1) |
| Call MPI_Abort with no other checks or cleanup. | |
| static void | exit (int errNo=1) |
| Shutdown (finalize) MPI as required and exit program with errNo. | |
| static void | allToAll (const UList< int32_t > &sendData, UList< int32_t > &recvData, const int communicator=UPstream::worldComm) |
Exchange int32_t data with all ranks in communicator. | |
| static void | allToAllConsensus (const UList< int32_t > &sendData, UList< int32_t > &recvData, const int tag, const int communicator=UPstream::worldComm) |
Exchange non-zero int32_t data between ranks [NBX]. | |
| static void | allToAllConsensus (const Map< int32_t > &sendData, Map< int32_t > &recvData, const int tag, const int communicator=UPstream::worldComm) |
Exchange int32_t data between ranks [NBX]. | |
| static Map< int32_t > | allToAllConsensus (const Map< int32_t > &sendData, const int tag, const int communicator=UPstream::worldComm) |
Exchange int32_t data between ranks [NBX]. | |
| static void | allToAll (const UList< int64_t > &sendData, UList< int64_t > &recvData, const int communicator=UPstream::worldComm) |
Exchange int64_t data with all ranks in communicator. | |
| static void | allToAllConsensus (const UList< int64_t > &sendData, UList< int64_t > &recvData, const int tag, const int communicator=UPstream::worldComm) |
Exchange non-zero int64_t data between ranks [NBX]. | |
| static void | allToAllConsensus (const Map< int64_t > &sendData, Map< int64_t > &recvData, const int tag, const int communicator=UPstream::worldComm) |
Exchange int64_t data between ranks [NBX]. | |
| static Map< int64_t > | allToAllConsensus (const Map< int64_t > &sendData, const int tag, const int communicator=UPstream::worldComm) |
Exchange int64_t data between ranks [NBX]. | |
| template<class Type> | |
| static void | mpiGather (const Type *sendData, Type *recvData, int count, const int communicator=UPstream::worldComm) |
| Receive identically-sized (contiguous) data from all ranks. | |
| template<class Type> | |
| static void | mpiScatter (const Type *sendData, Type *recvData, int count, const int communicator=UPstream::worldComm) |
| Send identically-sized (contiguous) data to all ranks. | |
| template<class Type> | |
| static void | mpiAllGather (Type *allData, int count, const int communicator=UPstream::worldComm) |
| Gather/scatter identically-sized data. | |
| template<class Type> | |
| static void | mpiGatherv (const Type *sendData, int sendCount, Type *recvData, const UList< int > &recvCounts, const UList< int > &recvOffsets, const int communicator=UPstream::worldComm) |
| Receive variable length data from all ranks. | |
| template<class Type> | |
| static void | mpiScatterv (const Type *sendData, const UList< int > &sendCounts, const UList< int > &sendOffsets, Type *recvData, int recvCount, const int communicator=UPstream::worldComm) |
| Send variable length data to all ranks. | |
| template<class T> | |
| static List< T > | allGatherValues (const T &localValue, const int communicator=UPstream::worldComm) |
| Allgather individual values into list locations. | |
| template<class T> | |
| static List< T > | listGatherValues (const T &localValue, const int communicator=UPstream::worldComm) |
| Gather individual values into list locations. | |
| template<class T> | |
| static T | listScatterValues (const UList< T > &allValues, const int communicator=UPstream::worldComm) |
| Scatter individual values from list locations. | |
| template<class Type> | |
| static bool | broadcast (Type *buffer, std::streamsize count, const int communicator, const int root=UPstream::masterNo()) |
| Broadcast buffer contents (contiguous types) to all ranks (default: from rank=0). The sizes must match on all processes. | |
| template<class Type, unsigned N> | |
| static bool | broadcast (FixedList< Type, N > &list, const int communicator, const int root=UPstream::masterNo()) |
| Broadcast fixed-list content (contiguous types) to all ranks (default: from rank=0). The sizes must match on all processes. | |
| template<class T> | |
| static void | mpiReduce (T values[], int count, const UPstream::opCodes opCodeId, const int communicator) |
| MPI_Reduce (blocking) for known operators. | |
| template<UPstream::opCodes opCode, class T> | |
| static void | mpiReduce (T values[], int count, const int communicator) |
| MPI_Reduce (blocking) for known operators. | |
| template<class T> | |
| static void | mpiAllReduce (T values[], int count, const UPstream::opCodes opCodeId, const int communicator) |
| MPI_Allreduce (blocking) for known operators. | |
| template<UPstream::opCodes opCode, class T> | |
| static void | mpiAllReduce (T values[], int count, const int communicator) |
| MPI_Allreduce (blocking) for known operators. | |
| template<class T> | |
| static void | mpiAllReduce (T values[], int count, const UPstream::opCodes opCodeId, const int communicator, UPstream::Request &req) |
| MPI_Iallreduce (non-blocking) for known operators. | |
| template<UPstream::opCodes opCode, class T> | |
| static void | mpiAllReduce (T values[], int count, const int communicator, UPstream::Request &req) |
| MPI_Iallreduce (non-blocking) for known operators. | |
| template<Foam::UPstream::opCodes opCode, class T> | |
| static void | mpiScan (T values[], int count, const int communicator, const bool exclusive=false) |
| Inclusive/exclusive scan (in-place). | |
| template<Foam::UPstream::opCodes opCode, class T> | |
| static T | mpiScan (const T &localValue, const int communicator, const bool exclusive=false) |
| Inclusive/exclusive scan returning the result. In exclusive mode, the degenerate value on rank=0 has no meaning but is treated like non-exclusive mode (ie, original values). | |
| template<class T> | |
| static void | mpiScan_min (T values[], int count, const int communicator, const bool exclusive=false) |
Inclusive/exclusive min scan (in-place). | |
| template<class T> | |
| static void | mpiExscan_min (T values[], int count, const int communicator) |
Exclusive min scan (in-place). | |
| template<class T> | |
| static T | mpiScan_min (const T &value, const int communicator, const bool exclusive=false) |
Inclusive/exclusive min scan returning result. | |
| template<class T> | |
| static T | mpiExscan_min (const T &value, const int communicator) |
Exclusive min scan returning result. | |
| template<class T> | |
| static void | mpiScan_max (T values[], int count, const int communicator, const bool exclusive=false) |
Inclusive/exclusive max scan (in-place). | |
| template<class T> | |
| static void | mpiExscan_max (T values[], int count, const int communicator) |
Exclusive max scan (in-place). | |
| template<class T> | |
| static T | mpiScan_max (const T &value, const int communicator, const bool exclusive=false) |
Inclusive/exclusive max scan returning result. | |
| template<class T> | |
| static T | mpiExscan_max (const T &value, const int communicator) |
Exclusive max scan returning result. | |
| template<class T> | |
| static void | mpiScan_sum (T values[], int count, const int communicator, const bool exclusive=false) |
Inclusive/exclusive sum scan (in-place). | |
| template<class T> | |
| static void | mpiExscan_sum (T values[], int count, const int communicator) |
Exclusive sum scan (in-place). | |
| template<class T> | |
| static T | mpiScan_sum (const T &value, const int communicator, const bool exclusive=false) |
Inclusive/exclusive sum scan returning result. | |
| template<class T> | |
| static T | mpiExscan_sum (const T &value, const int communicator) |
Exclusive sum scan returning result. | |
| static void | reduceAnd (bool &value, const int communicator=worldComm) |
| Logical (and) reduction (MPI_AllReduce). | |
| static void | reduceOr (bool &value, const int communicator=worldComm) |
| Logical (or) reduction (MPI_AllReduce). | |
| static int | find_first (bool condition, int communicator) |
Locate the first rank for which the condition is true, or -1 if no ranks satisfy the condition. | |
| static int | find_last (bool condition, int communicator) |
Locate the last rank for which the condition is true, or -1 if no ranks satisfy the condition. | |
| static label | allocateCommunicator (const label parent, const labelRange &subRanks, const bool withComponents=true) |
| static label | allocateCommunicator (const label parent, const labelUList &subRanks, const bool withComponents=true) |
| static label | commInterHost () noexcept |
| Communicator between nodes (respects any local worlds). | |
| static label | commIntraHost () noexcept |
| Communicator within the node (respects any local worlds). | |
| static void | waitRequests () |
| Wait for all requests to finish. | |
| template<class Type> | |
| static void | gather (const Type *send, int count, Type *recv, const UList< int > &counts, const UList< int > &offsets, const int comm=UPstream::worldComm) |
| template<class Type> | |
| static void | scatter (const Type *send, const UList< int > &counts, const UList< int > &offsets, Type *recv, int count, const int comm=UPstream::worldComm) |
| Static Public Member Functions inherited from UOPstream | |
| template<class Type> | |
| static bool | write (const UPstream::commsTypes commsType, const int toProcNo, const Type *buffer, std::streamsize count, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, UPstream::Request *req=nullptr, const UPstream::sendModes sendMode=UPstream::sendModes::normal) |
| Write buffer contents (contiguous types only) to given processor. | |
| template<class Type> | |
| static bool | write (UPstream::Request &req, const int toProcNo, const Type *buffer, std::streamsize count, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, const UPstream::sendModes sendMode=UPstream::sendModes::normal) |
| Write buffer contents (contiguous types only) to given processor. | |
| template<class Type> | |
| static bool | write (const UPstream::commsTypes commsType, const int toProcNo, const UList< Type > &buffer, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, UPstream::Request *req=nullptr, const UPstream::sendModes sendMode=UPstream::sendModes::normal) |
| Send UList contiguous contents to given processor. | |
| template<class Type> | |
| static bool | write (const UPstream::commsTypes commsType, const int toProcNo, const SubList< Type > buffer, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, UPstream::Request *req=nullptr, const UPstream::sendModes sendMode=UPstream::sendModes::normal) |
| Send SubList contiguous contents to given processor. | |
| template<class Type> | |
| static bool | write (UPstream::Request &req, const int toProcNo, const UList< Type > &buffer, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, const UPstream::sendModes sendMode=UPstream::sendModes::normal) |
| Send UList contiguous contents (non-blocking) to given processor. | |
| template<class Type> | |
| static bool | write (UPstream::Request &req, const int toProcNo, const SubList< Type > buffer, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, const UPstream::sendModes sendMode=UPstream::sendModes::normal) |
| Send SubList contiguous contents (non-blocking) to given processor. | |
| Static Public Member Functions inherited from IOstream | |
| static unsigned int | defaultPrecision () noexcept |
| Return the default precision. | |
| static unsigned int | defaultPrecision (unsigned int prec) noexcept |
| Reset the default precision. | |
| static unsigned int | minPrecision (unsigned int prec) noexcept |
| Set the minimum default precision. | |
| Static Public Member Functions inherited from IOstreamOption | |
| static floatFormat | floatFormatEnum (const word &fmtName, const floatFormat deflt=floatFormat::general) |
| Lookup floatFormat enum corresponding to the string (general | fixed | scientific). | |
| static floatFormat | floatFormatEnum (const word &key, const dictionary &dict, const floatFormat deflt=floatFormat::general) |
| getOrDefault floatFormat from dictionary, warn only on bad enumeration. | |
| static streamFormat | formatEnum (const word &fmtName, const streamFormat deflt=streamFormat::ASCII) |
| Lookup streamFormat enum corresponding to the string (ascii | binary). | |
| static streamFormat | formatEnum (const word &key, const dictionary &dict, const streamFormat deflt=streamFormat::ASCII) |
| getOrDefault streamFormat from dictionary, warn only on bad enumeration. | |
| static compressionType | compressionEnum (const word &compName, const compressionType deflt=compressionType::UNCOMPRESSED) |
| The compression enum corresponding to the string. | |
| static compressionType | compressionEnum (const word &key, const dictionary &dict, const compressionType deflt=compressionType::UNCOMPRESSED) |
| getOrDefault compressionType from dictionary, warn only on bad enumeration. | |
Additional Inherited Members | |
| Public Types inherited from UPstream | |
| enum class | commsTypes : char { buffered , scheduled , nonBlocking , blocking = buffered } |
| Communications types. More... | |
| enum class | sendModes : char { normal , sync } |
| Different MPI-send modes (ignored for commsTypes::buffered). More... | |
| enum class | dataTypes : char { Basic_begin , type_byte = Basic_begin , type_int16 , type_int32 , type_int64 , type_uint16 , type_uint32 , type_uint64 , type_float , type_double , type_long_double , Basic_end , User_begin = Basic_end , type_3float = User_begin , type_3double , type_6float , type_6double , type_9float , type_9double , invalid , User_end = invalid , DataTypes_end = invalid } |
| Mapping of some fundamental and aggregate types to MPI data types. More... | |
| enum class | opCodes : char { Basic_begin , op_min = Basic_begin , op_max , op_sum , op_prod , op_bool_and , op_bool_or , op_bool_xor , op_bit_and , op_bit_or , op_bit_xor , Basic_end , Extra_begin = Basic_end , op_replace = Extra_begin , op_no_op , invalid , Extra_end = invalid , OpCodes_end = invalid } |
| Mapping of some MPI op codes. More... | |
| enum class | topoControls : int { broadcast = 1 , reduce = 2 , gather = 4 , combine = 16 , mapGather = 32 , gatherList = 64 } |
| Some bit masks corresponding to topology controls. More... | |
| typedef IntRange< int > | rangeType |
| Int ranges are used for MPI ranks (processes). | |
| Public Types inherited from IOstream | |
| enum | streamAccess : char { CLOSED = 0 , OPENED } |
| Enumeration for stream open/closed state. More... | |
| Public Types inherited from IOstreamOption | |
| enum | streamFormat : char { ASCII = 0 , BINARY , COHERENT , UNKNOWN_FORMAT } |
| Data format (ascii | binary | coherent). More... | |
| enum | compressionType : char { UNCOMPRESSED = 0 , COMPRESSED } |
| Compression treatment (UNCOMPRESSED | COMPRESSED). More... | |
| enum | appendType : char { NO_APPEND = 0 , APPEND_APP , APPEND_ATE , NON_APPEND = NO_APPEND , APPEND = APPEND_APP } |
| File appending (NO_APPEND | APPEND_APP | APPEND_ATE). More... | |
| enum | atomicType : char { NON_ATOMIC = 0 , ATOMIC } |
| Atomic operations (output). More... | |
| enum class | floatFormat : unsigned { general = unsigned(0) , fixed = unsigned(std::ios_base::fixed) , scientific = unsigned(std::ios_base::scientific) } |
| Float formats (eg, time directory name formats). More... | |
| Public Attributes inherited from Pstream | |
| const int | tag = UPstream::msgType() |
| Static Public Attributes inherited from UPstream | |
| static const Enum< commsTypes > | commsTypeNames |
| Enumerated names for the communication types. | |
| static int | nodeCommsControl_ |
| Use of host/node topology-aware routines. | |
| static int | nodeCommsMin_ |
| Minimum number of nodes before topology-aware routines are enabled. | |
| static int | topologyControl_ |
| Selection of topology-aware routines as a bitmask combination of the topoControls enumerations. | |
| static bool | floatTransfer |
| Should compact transfer be used in which floats replace doubles reducing the bandwidth requirement at the expense of some loss in accuracy. | |
| static int | nProcsSimpleSum |
| Number of processors to change from linear to tree communication. | |
| static int | nProcsNonblockingExchange |
| Number of processors to change to nonBlocking consensual exchange (NBX). Ignored for zero or negative values. | |
| static int | nPollProcInterfaces |
| Number of polling cycles in processor updates. | |
| static commsTypes | defaultCommsType |
| Default commsType. | |
| static int | maxCommsSize |
| Optional maximum message size (bytes). | |
| static int | tuning_NBX_ |
| Tuning parameters for non-blocking exchange (NBX). | |
| static const int | mpiBufferSize |
| MPI buffer-size (bytes). | |
| static label | worldComm |
| Communicator for all ranks. May differ from commGlobal() if local worlds are in use. | |
| static label | warnComm |
| Debugging: warn for use of any communicator differing from warnComm. | |
| Static Public Attributes inherited from IOstream | |
| static unsigned int | precision_ |
| Default precision. | |
| Static Public Attributes inherited from IOstreamOption | |
| static const Enum< floatFormat > | floatFormatNames |
| Names for float formats (general, fixed, scientific). | |
| static const Enum< streamFormat > | formatNames |
| Stream format names (ascii, binary). | |
| static const versionNumber | currentVersion |
| The current version number (2.0). | |
| Protected Member Functions inherited from UOPstreamBase | |
| UOPstreamBase (const UPstream::commsTypes commsType, const int toProcNo, DynamicList< char > &sendBuf, const int tag=UPstream::msgType(), const int communicator=UPstream::worldComm, const bool sendAtDestruct=true, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY) | |
| Construct given process index to write to using the given attached send buffer, optional communication characteristics and IO format. | |
| UOPstreamBase (const int toProcNo, PstreamBuffers &buffers) | |
| Construct given buffers. | |
| UOPstreamBase (DynamicList< char > &sendBuf, IOstreamOption::streamFormat fmt) | |
| Construct for externally obtained buffers. | |
| Protected Member Functions inherited from IOstream | |
| void | setOpened () noexcept |
| Set stream opened. | |
| void | setClosed () noexcept |
| Set stream closed. | |
| void | setState (std::ios_base::iostate state) noexcept |
| Set stream state. | |
| void | setGood () noexcept |
| Set stream state to be good. | |
| Static Protected Member Functions inherited from UPstream | |
| static bool | mpi_broadcast (void *buf, std::streamsize count, const UPstream::dataTypes dataTypeId, const int communicator, const int root=0) |
| Broadcast buffer contents to all ranks (default: from rank=0). The sizes must match on all processes. | |
| static void | mpi_reduce (void *values, int count, const UPstream::dataTypes dataTypeId, const UPstream::opCodes opCodeId, const int communicator, UPstream::Request *req=nullptr) |
In-place reduction of values with result on rank 0. | |
| static void | mpi_allreduce (void *values, int count, const UPstream::dataTypes dataTypeId, const UPstream::opCodes opCodeId, const int communicator, UPstream::Request *req=nullptr) |
In-place reduction of values with same result on all ranks. | |
| static void | mpi_scan_reduce (void *values, int count, const UPstream::dataTypes dataTypeId, const UPstream::opCodes opCodeId, const int communicator, const bool exclusive) |
In-place scan/exscan reduction of values. | |
| static bool | mpi_send (const UPstream::commsTypes commsType, const void *buf, std::streamsize count, const UPstream::dataTypes dataTypeId, const int toProcNo, const int tag, const int communicator, UPstream::Request *req=nullptr, const UPstream::sendModes sendMode=UPstream::sendModes::normal) |
| Send buffer contents of specified data type to given processor. | |
| static std::streamsize | mpi_receive (const UPstream::commsTypes commsType, void *buf, std::streamsize count, const UPstream::dataTypes dataTypeId, const int fromProcNo, const int tag, const int communicator, UPstream::Request *req=nullptr) |
| Receive buffer contents of specified data type from given processor. | |
| static void | mpi_gather (const void *sendData, void *recvData, int count, const UPstream::dataTypes dataTypeId, const int communicator, UPstream::Request *req=nullptr) |
| Receive identically-sized (contiguous) data from all ranks, placing the result on rank 0. | |
| static void | mpi_scatter (const void *sendData, void *recvData, int count, const UPstream::dataTypes dataTypeId, const int communicator, UPstream::Request *req=nullptr) |
| Send identically-sized (contiguous) data from rank 0 to all other ranks. | |
| static void | mpi_allgather (void *allData, int count, const UPstream::dataTypes dataTypeId, const int communicator, UPstream::Request *req=nullptr) |
| Gather/scatter identically-sized data. | |
| static void | mpi_gatherv (const void *sendData, int sendCount, void *recvData, const UList< int > &recvCounts, const UList< int > &recvOffsets, const UPstream::dataTypes dataTypeId, const int communicator) |
| Receive variable length data from all ranks, placing the result on rank 0. (caution: known to scale poorly). | |
| static void | mpi_scatterv (const void *sendData, const UList< int > &sendCounts, const UList< int > &sendOffsets, void *recvData, int recvCount, const UPstream::dataTypes dataTypeId, const int communicator) |
| Send variable length data from rank 0 to all ranks. (caution: known to scale poorly). | |
| Protected Attributes inherited from Pstream | |
| DynamicList< char > | transferBuf_ |
| Allocated transfer buffer (can be used for send or receive). | |
| Protected Attributes inherited from UOPstreamBase | |
| const int | toProcNo_ |
| Destination rank for the data. | |
| const int | tag_ |
| Message tag for communication. | |
| const int | comm_ |
| The communicator index. | |
| bool | sendAtDestruct_ |
| Call bufferIPCsend on termination (in the destructor). | |
| DynamicList< char > & | sendBuf_ |
| Reference to the send buffer data. | |
| Protected Attributes inherited from Ostream | |
| unsigned short | indentSize_ = 4 |
| Number of spaces per indent level. | |
| unsigned short | indentLevel_ = 0 |
| Current indent level. | |
| Protected Attributes inherited from IOstream | |
| std::ios_base::iostate | ioState_ |
| Mirror of internal stream io state. | |
| streamAccess | openClosed_ |
| The stream open/closed state. | |
| unsigned char | sizeofLabel_ |
| The sizeof (label), possibly read from the header. | |
| unsigned char | sizeofScalar_ |
| The sizeof (scalar), possibly read from the header. | |
| label | lineNumber_ |
| The file line. | |
| Static Protected Attributes inherited from Ostream | |
| static constexpr const unsigned short | entryIndentation_ = 16 |
| Indentation of the entry from the start of the keyword. | |
| Static Protected Attributes inherited from IOstream | |
| static fileName | staticName_ |
| Name for any generic stream - normally treat as readonly. | |
Output inter-processor communications stream.
Definition at line 49 of file OPstream.H.
| OPstream | ( | const UPstream::commsTypes | commsType, |
| const int | toProcNo, | ||
| const int | bufferSize = 0, | ||
| const int | tag = UPstream::msgType(), | ||
| const int | communicator = UPstream::worldComm, | ||
| IOstreamOption::streamFormat | fmt = IOstreamOption::BINARY ) |
Construct for given process index to send to.
| bufferSize | optional buffer size |
Definition at line 58 of file OPstreams.C.
References UPstream::commsType(), Pstream::Pstream(), Pstream::tag, Pstream::transferBuf_, and UOPstream::UOPstream().
Referenced by send().
|
inlinestatic |
Serialize a value and send (buffered/blocking or standard mode). Uses operator<< for serialization.
| commsType | buffered or scheduled only! |
Definition at line 79 of file OPstream.H.
References IOstreamOption::BINARY, UPstream::commsType(), UPstream::msgType(), OPstream(), os(), Pstream::tag, and UPstream::worldComm.
|
inlinestatic |
Serialize a value and send (standard mode). Uses operator<< for serialization.
Definition at line 99 of file OPstream.H.
References IOstreamOption::BINARY, UPstream::msgType(), UPstream::scheduled, UOPstream::send(), Pstream::tag, and UPstream::worldComm.
1.16.1
