Takes a set of patches to start MeshWave from. More...

#include <patchDataWave.H>

Inheritance diagram for patchDataWave< TransferType, TrackingData >:

Collaboration diagram for patchDataWave< TransferType, TrackingData >:

Public Member Functions
	patchDataWave (const polyMesh &mesh, const labelHashSet &patchIDs, const UPtrList< Field< Type > > &initialPatchValuePtrs, const bool correctWalls=true, TrackingData &td=dummyTrackData_)
	Construct from mesh, information on patches to initialize and flag.
virtual	~patchDataWave ()
	Destructor.

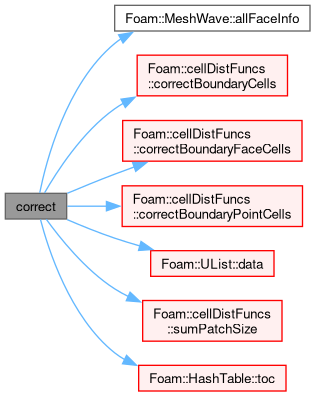

virtual void	correct ()
	Correct for mesh geom/topo changes.
const scalarField &	distance () const
scalarField &	distance ()
	Non const access so we can 'transfer' contents for efficiency.

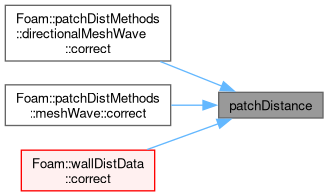

const FieldField< Field, scalar > &	patchDistance () const
FieldField< Field, scalar > &	patchDistance ()
const Field< Type > &	cellData () const
Field< Type > &	cellData ()

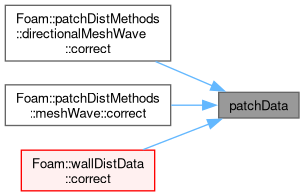

const FieldField< Field, Type > &	patchData () const
FieldField< Field, Type > &	patchData ()
label	nUnset () const
Public Member Functions inherited from cellDistFuncs
	ClassName ("cellDistFuncs")
	cellDistFuncs (const polyMesh &mesh)
	Construct from mesh.
const polyMesh &	mesh () const
	Access mesh.
labelHashSet	getPatchIDs (const UList< wordRe > &patchNames) const
	Return the set of patch IDs corresponding to the given names.
template<class Type>
labelHashSet	getPatchIDs () const
	Get patchIDs of/derived off certain type (e.g. 'processorPolyPatch').
template<class PatchType>
scalar	smallestDist (const point &p, const PatchType &patch, const labelUList &wallFaces, label &patchFacei) const
	Calculate smallest true distance (and patch face index).
template<class PatchType>
void	getPointNeighbours (const PatchType &, const label patchFacei, DynamicList< label > &) const
	Get faces sharing point with face on patch.
label	maxPatchSize (const labelHashSet &patchIDs) const
	Size of largest patch (out of supplied subset of patches).
label	sumPatchSize (const labelHashSet &patchIDs) const
	Sum of patch sizes (out of supplied subset of patches).
void	correctBoundaryFaceCells (const labelHashSet &patchIDs, scalarField &wallDistCorrected, Map< label > &nearestFace) const
	Correct all cells connected to boundary (via face). Sets values in.
void	correctBoundaryPointCells (const labelHashSet &patchIDs, scalarField &wallDistCorrected, Map< label > &nearestFace) const
	Correct all cells connected to wall (via point). Sets values in.
void	correctBoundaryCells (const labelList &patchIDs, const bool doPointCells, scalarField &wallDistCorrected, Map< label > &nearestFace) const
	Correct all cells connected to any of the patches in patchIDs. Sets.
template<class Type>
Foam::labelHashSet	getPatchIDs () const
template<class PatchType>
Foam::scalar	smallestDist (const point &p, const PatchType &patch, const labelUList &wallFaces, label &minFacei) const

Additional Inherited Members
Static Public Attributes inherited from cellDistFuncs
static bool	useCombinedWallPatch = true
	Use combined-wall-patches wall distance v.s. v2406 per-patch distance. Default is true.

Detailed Description

template<class TransferType, class TrackingData = int>
class Foam::patchDataWave< TransferType, TrackingData >

Takes a set of patches to start MeshWave from.

Holds after construction distance at cells and distance at patches (like patchWave), but also additional transported data. It is used, for example, in the y+ calculation.

See also: The patchWave class.

Source files

Definition at line 62 of file patchDataWave.H.

Constructor & Destructor Documentation

◆ patchDataWave()

template<class TransferType, class TrackingData>

patchDataWave	(	const polyMesh &	mesh,
		const labelHashSet &	patchIDs,
		const UPtrList< Field< Type > > &	initialPatchValuePtrs,
		const bool	correctWalls = true,
		TrackingData &	td = dummyTrackData_ )
