This boundary condition provides an enthalpy condition for wall heat transfer. More...

#include <wallHeatTransferFvPatchScalarField.H>

Inheritance diagram for wallHeatTransferFvPatchScalarField:

Collaboration diagram for wallHeatTransferFvPatchScalarField:

Public Member Functions
	TypeName ("wallHeatTransfer")
	Runtime type information.
	wallHeatTransferFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	wallHeatTransferFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	wallHeatTransferFvPatchScalarField (const wallHeatTransferFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given wallHeatTransferFvPatchScalarField.
	wallHeatTransferFvPatchScalarField (const wallHeatTransferFvPatchScalarField &)
	Construct as copy.
	wallHeatTransferFvPatchScalarField (const wallHeatTransferFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
const scalarField &	Tinf () const
	Return Tinf.
scalarField &	Tinf ()
	Return reference to Tinf to allow adjustment.
const scalarField &	alphaWall () const
	Return alphaWall.
scalarField &	alphaWall ()
	Return reference to alphaWall to allow adjustment.
virtual void	autoMap (const fvPatchFieldMapper &)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const fvPatchScalarField &, const labelList &)
	Reverse map the given fvPatchField onto this fvPatchField.
virtual void	updateCoeffs ()
	Update the coefficients associated with the patch field.
virtual void	write (Ostream &) const
	Write.

Detailed Description

This boundary condition provides an enthalpy condition for wall heat transfer.

Usage

Property	Description	Required	Default value
`Tinf`	wall temperature	yes
`alphaWall`	thermal diffusivity	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            wallHeatTransfer;
        Tinf            uniform 500;
        alphaWall       uniform 1;
    }

Source files

Definition at line 82 of file wallHeatTransferFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ wallHeatTransferFvPatchScalarField() [1/5]

wallHeatTransferFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 28 of file wallHeatTransferFvPatchScalarField.C.

References p, and Foam::Zero.

Referenced by rmap(), TypeName(), wallHeatTransferFvPatchScalarField(), wallHeatTransferFvPatchScalarField(), and wallHeatTransferFvPatchScalarField().

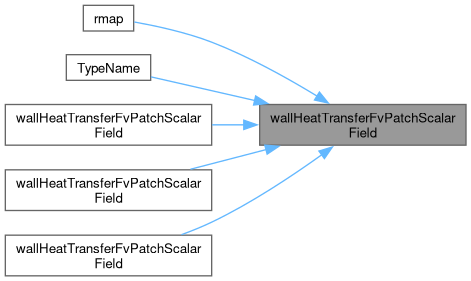

Here is the caller graph for this function:

◆ wallHeatTransferFvPatchScalarField() [2/5]

wallHeatTransferFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 58 of file wallHeatTransferFvPatchScalarField.C.

References dict, p, and Foam::Zero.

◆ wallHeatTransferFvPatchScalarField() [3/5]

wallHeatTransferFvPatchScalarField	(	const wallHeatTransferFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given wallHeatTransferFvPatchScalarField.

onto a new patch

Definition at line 44 of file wallHeatTransferFvPatchScalarField.C.

References p, and wallHeatTransferFvPatchScalarField().

Here is the call graph for this function:

◆ wallHeatTransferFvPatchScalarField() [4/5]

wallHeatTransferFvPatchScalarField ( const wallHeatTransferFvPatchScalarField & tppsf )

Construct as copy.

Definition at line 80 of file wallHeatTransferFvPatchScalarField.C.

References wallHeatTransferFvPatchScalarField().

Here is the call graph for this function:

◆ wallHeatTransferFvPatchScalarField() [5/5]

wallHeatTransferFvPatchScalarField	(	const wallHeatTransferFvPatchScalarField &	tppsf,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 91 of file wallHeatTransferFvPatchScalarField.C.

References wallHeatTransferFvPatchScalarField().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "wallHeatTransfer" )

Runtime type information.

References wallHeatTransferFvPatchScalarField().

Here is the call graph for this function:

◆ clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 161 of file wallHeatTransferFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 169 of file wallHeatTransferFvPatchScalarField.H.

References fvPatchField< Type >::Clone().

Here is the call graph for this function:

◆ Tinf() [1/2]

const scalarField & Tinf ( ) const

inline

Return Tinf.

Definition at line 185 of file wallHeatTransferFvPatchScalarField.H.

◆ Tinf() [2/2]

scalarField & Tinf ( )

inline

Return reference to Tinf to allow adjustment.

Definition at line 193 of file wallHeatTransferFvPatchScalarField.H.

◆ alphaWall() [1/2]

const scalarField & alphaWall ( ) const

inline

Return alphaWall.

Definition at line 201 of file wallHeatTransferFvPatchScalarField.H.

◆ alphaWall() [2/2]

scalarField & alphaWall ( )

inline

Return reference to alphaWall to allow adjustment.

Definition at line 209 of file wallHeatTransferFvPatchScalarField.H.

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & m )

virtual

Map (and resize as needed) from self given a mapping object.

Definition at line 105 of file wallHeatTransferFvPatchScalarField.C.

References Field< scalar >::autoMap().

Here is the call graph for this function:

◆ rmap()

void rmap	(	const fvPatchScalarField &	ptf,
		const labelList &	addr )

virtual

Reverse map the given fvPatchField onto this fvPatchField.

Definition at line 116 of file wallHeatTransferFvPatchScalarField.C.

References Foam::refCast(), and wallHeatTransferFvPatchScalarField().

Here is the call graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Update the coefficients associated with the patch field.

Definition at line 132 of file wallHeatTransferFvPatchScalarField.C.

References IOobject::groupName(), ThermalDiffusivity< BasicTurbulenceModel >::kappaEff(), and turbulenceModel::propertiesName.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 162 of file wallHeatTransferFvPatchScalarField.C.

References os(), fvPatchField< Type >::write(), and fvPatchField< Type >::writeValueEntry().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/thermoTools/derivedFvPatchFields/wallHeatTransfer/wallHeatTransferFvPatchScalarField.H
src/thermoTools/derivedFvPatchFields/wallHeatTransfer/wallHeatTransferFvPatchScalarField.C
