A collection of functions for writing ensight file content. More...

Namespaces
namespace	Detail
	Implementation details and output backends that would not normally be called directly by a user.

Classes
class	writerCaching
	State information for writers with collated times. More...

Typedefs
typedef DynamicList< float >	floatBufferType
	The list type used for component-wise buffering.

Functions
template<class Type>
bool	writeAreaField (ensightOutput::floatBufferType &scratch, ensightFile &os, const GeometricField< Type, faPatchField, areaMesh > &fld, const ensightFaMesh &ensMesh)
	Write finite-area field component-wise.
template<class Type>
bool	writeAreaField (ensightFile &os, const GeometricField< Type, faPatchField, areaMesh > &fld, const ensightFaMesh &ensMesh)
	Write finite-area field component-wise.
template<class Type>
bool	writeVolField (ensightOutput::floatBufferType &scratch, ensightFile &os, const GeometricField< Type, fvPatchField, volMesh > &vf, const ensightMesh &ensMesh)
	Write volume field component-wise.
template<class Type>
bool	writeVolField (ensightFile &os, const GeometricField< Type, fvPatchField, volMesh > &vf, const ensightMesh &ensMesh)
	Write volume field component-wise.
template<class Type>
bool	writeVolField (ensightOutput::floatBufferType &scratch, ensightFile &os, const GeometricField< Type, fvPatchField, volMesh > &vf, const ensightMesh &ensMesh, const bool nodeValues)
	Write volume field component-wise, optionally forcing interpolation.
template<class Type>
bool	writeVolField (ensightFile &os, const GeometricField< Type, fvPatchField, volMesh > &vf, const ensightMesh &ensMesh, const bool nodeValues)
	Write volume field component-wise, optionally forcing interpolation.
template<class Type>
bool	writePointField (ensightOutput::floatBufferType &scratch, ensightFile &os, const GeometricField< Type, pointPatchField, pointMesh > &pf, const ensightMesh &ensMesh)
	Write point field component-wise.
template<class Type>
bool	writePointField (ensightFile &os, const GeometricField< Type, pointPatchField, pointMesh > &pf, const ensightMesh &ensMesh)
	Write point field component-wise.
void	writeFaceList (ensightGeoFile &os, const UList< face > &faces, const label pointOffset=0)
	Write list of faces.
void	writeFaceList (ensightGeoFile &os, const UIndirectList< face > &faces, const label pointOffset=0)
	Write list of faces (indirect addressing).
void	writeFaceList (ensightGeoFile &os, const CompactListList< label > &faces, const label pointOffset=0)
	Write list of faces (stored in compact form).
void	writeCellShapes (ensightGeoFile &os, const UList< cellShape > &shapes, const label pointOffset=0)
	Write cell connectivity via cell shapes.
void	writePolysPoints (ensightGeoFile &os, const cellUList &meshCells, const labelUList &addr, const faceUList &meshFaces, const labelUList &faceOwner)
	Write the point ids per poly element.
void	writePolysPoints (ensightGeoFile &os, const polyMesh &mesh, const labelUList &addr, const labelList &pointMap)
	Write the point ids per poly element, with point renumbering.

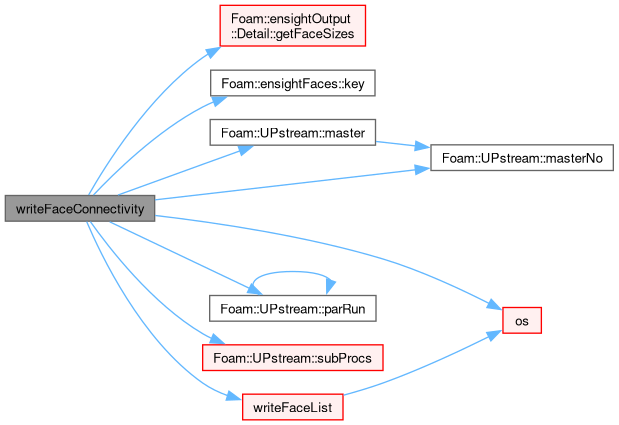

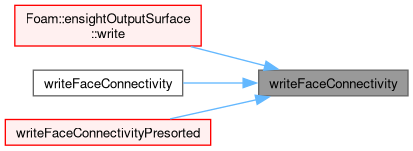

void	writeFaceConnectivity (ensightGeoFile &os, const ensightFaces::elemType etype, const label nTotal, const UIndirectList< face > &faces, bool parallel)
	Write the regular face connectivity for specified type and and specified faces.
void	writeFaceConnectivity (ensightGeoFile &os, const ensightFaces::elemType etype, const label nTotal, const faceUList &faces, bool parallel)
	Write the regular face connectivity for specified type.

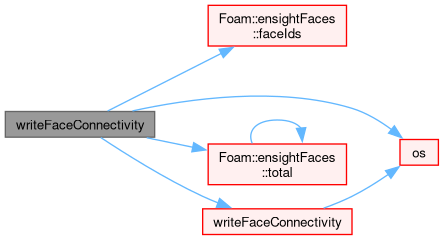

void	writeFaceConnectivity (ensightGeoFile &os, const ensightFaces &part, const faceUList &faces, bool parallel)
	Write the face connectivity for the part.

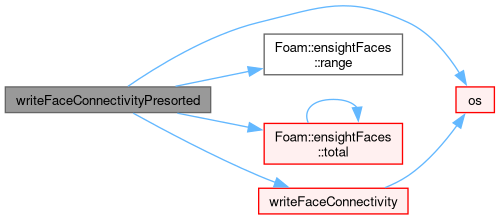

void	writeFaceConnectivityPresorted (ensightGeoFile &os, const ensightFaces &part, const faceUList &faces, bool parallel)
	Write the presorted face connectivity for the part.
template<class Type>
bool	writeField (ensightOutput::floatBufferType &scratch, ensightFile &os, const Field< Type > &fld, const ensightCells &part, bool parallel)
	Write a field of cell values as an indirect list, using the cell ids from ensightCells.
template<class Type>
bool	writeField (ensightOutput::floatBufferType &scratch, ensightFile &os, const Field< Type > &fld, const ensightFaces &part, bool parallel)
	Write a field of faces values as an indirect list, using the face ids from ensightFaces.
template<class Type>
bool	writeField (ensightFile &os, const Field< Type > &fld, const ensightCells &part, bool parallel)
	Write a field of cell values as an indirect list, using the cell ids from ensightCells.
template<class Type>
bool	writeField (ensightFile &os, const Field< Type > &fld, const ensightFaces &part, bool parallel)
	Write a field of faces values as an indirect list, using the face ids from ensightFaces.
bool	writeCloudPositions (ensightFile &os, DynamicList< floatVector > &positions, const globalIndex &procAddr)
	Write cloud positions.
bool	writeCloudPositions (ensightFile &os, DynamicList< floatVector > &positions)
	Write cloud positions.
bool	writeCloudPositions (ensightFile &os, const fvMesh &mesh, const word &cloudName, bool exists)
	Write cloud positions.
template<class Type>
bool	writeCloudField (ensightFile &os, const UList< Type > &field, const globalIndex &procAddr)
	Write cloud field, returning true if the field is non-empty.
template<class Type>
bool	writeCloudField (ensightFile &os, const UList< Type > &field)
	Write cloud field, returning true if the field is non-empty.
template<class Type>
bool	readWriteCloudField (ensightFile &os, const IOobject &fieldObject, bool existsAny)
	Read cloud field from IOobject (if exists == true) and write, always returning true.

Variables
int	debug
	Static debugging option.
int	maxChunk_
	Upper limit on number of items for bundled off-processor field transfers. The component-wise transfer uses float (4 bytes).

Detailed Description

A collection of functions for writing ensight file content.

Source files

Typedef Documentation

◆ floatBufferType

typedef DynamicList<float> floatBufferType

The list type used for component-wise buffering.

Always has value_type = float (what ensight uses internally)

Definition at line 55 of file ensightOutputFwd.H.

Function Documentation

◆ writeAreaField() [1/2]

template<class Type>

bool writeAreaField	(	ensightOutput::floatBufferType &	scratch,
		ensightFile &	os,
		const GeometricField< Type, faPatchField, areaMesh > &	fld,
		const ensightFaMesh &	ensMesh )

Write finite-area field component-wise.

Parameters

scratch	Component scratch buffer
os	Output file (must be valid on master)
fld	The field content to be written
ensMesh	The addressing into the field

References fld(), and os().

Referenced by writeAreaField(), and Foam::writeAreaField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeAreaField() [2/2]

template<class Type>

bool writeAreaField	(	ensightFile &	os,
		const GeometricField< Type, faPatchField, areaMesh > &	fld,
		const ensightFaMesh &	ensMesh )

Write finite-area field component-wise.

Parameters

os	Output file (must be valid on master)
fld	The field content to be written
ensMesh	The addressing into the field

Definition at line 74 of file ensightOutputAreaField.H.

References fld(), os(), and writeAreaField().

Here is the call graph for this function:

◆ writeVolField() [1/4]

template<class Type>

bool writeVolField	(	ensightOutput::floatBufferType &	scratch,
		ensightFile &	os,
		const GeometricField< Type, fvPatchField, volMesh > &	vf,
		const ensightMesh &	ensMesh )

Write volume field component-wise.

Parameters

scratch	Component scratch buffer
os	Output file (must be valid on master)
vf	The field content to be written
ensMesh	The addressing (element-wise) into the field

References os().

Referenced by writeVolField(), writeVolField(), and Foam::writeVolField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeVolField() [2/4]

template<class Type>

bool writeVolField	(	ensightFile &	os,
		const GeometricField< Type, fvPatchField, volMesh > &	vf,
		const ensightMesh &	ensMesh )

Write volume field component-wise.

Parameters

os	Output file (must be valid on master)
vf	The field content to be written
ensMesh	The addressing (element-wise) into the field

Definition at line 74 of file ensightOutputVolField.H.

References os(), and writeVolField().

Here is the call graph for this function:

◆ writeVolField() [3/4]

template<class Type>

bool writeVolField	(	ensightOutput::floatBufferType &	scratch,
		ensightFile &	os,
		const GeometricField< Type, fvPatchField, volMesh > &	vf,
		const ensightMesh &	ensMesh,
		const bool	nodeValues )

Write volume field component-wise, optionally forcing interpolation.

Parameters

scratch	Component scratch buffer
os	Output file (must be valid on master)
vf	The field content to be written
ensMesh	The addressing (element-wise) into the field
nodeValues	Interpolate values to points

References os().

Here is the call graph for this function:

◆ writeVolField() [4/4]

template<class Type>

bool writeVolField	(	ensightFile &	os,
		const GeometricField< Type, fvPatchField, volMesh > &	vf,
		const ensightMesh &	ensMesh,
		const bool	nodeValues )

Write volume field component-wise, optionally forcing interpolation.

Parameters

os	Output file (must be valid on master)
vf	The field content to be written
ensMesh	The addressing (element-wise) into the field
nodeValues	Interpolate values to points

Definition at line 116 of file ensightOutputVolField.H.

References os(), and writeVolField().

Here is the call graph for this function:

◆ writePointField() [1/2]

template<class Type>

bool writePointField	(	ensightOutput::floatBufferType &	scratch,
		ensightFile &	os,
		const GeometricField< Type, pointPatchField, pointMesh > &	pf,
		const ensightMesh &	ensMesh )

Write point field component-wise.

Parameters

scratch	Component scratch buffer
os	Output file (must be valid on master)
pf	The field content to be written
ensMesh	The addressing (element-wise) into the field

References os().

Referenced by writePointField(), and Foam::writePointField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writePointField() [2/2]

template<class Type>

bool writePointField	(	ensightFile &	os,
		const GeometricField< Type, pointPatchField, pointMesh > &	pf,
		const ensightMesh &	ensMesh )

Write point field component-wise.

Parameters

os	Output file (must be valid on master)
pf	The field content to be written
ensMesh	The addressing (element-wise) into the field

Definition at line 161 of file ensightOutputVolField.H.

References os(), and writePointField().

Here is the call graph for this function:

◆ writeFaceList() [1/3]

void writeFaceList	(	ensightGeoFile &	os,
		const UList< face > &	faces,
		const label	pointOffset = 0 )

Write list of faces.

Parameters

pointOffset Additional point offset for each face

Definition at line 175 of file ensightOutput.C.

References os(), and Foam::ensightOutput::Detail::writeLabelListList().

Referenced by writeFaceConnectivity(), and writeFaceConnectivity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFaceList() [2/3]

void writeFaceList	(	ensightGeoFile &	os,
		const UIndirectList< face > &	faces,
		const label	pointOffset = 0 )

Write list of faces (indirect addressing).

Parameters

pointOffset Additional point offset for each face

Definition at line 186 of file ensightOutput.C.

References os(), and Foam::ensightOutput::Detail::writeLabelListList().

Here is the call graph for this function:

◆ writeFaceList() [3/3]

void writeFaceList	(	ensightGeoFile &	os,
		const CompactListList< label > &	faces,
		const label	pointOffset = 0 )

Write list of faces (stored in compact form).

Parameters

pointOffset Additional point offset for each face

Definition at line 197 of file ensightOutput.C.

References os(), and Foam::ensightOutput::Detail::writeLabelListList().

Here is the call graph for this function:

◆ writeCellShapes()

void writeCellShapes	(	ensightGeoFile &	os,
		const UList< cellShape > &	shapes,
		const label	pointOffset = 0 )

Write cell connectivity via cell shapes.

Parameters

pointOffset Additional point offset

Definition at line 208 of file ensightOutput.C.

References os(), and Foam::ensightOutput::Detail::writeLabelListList().

Referenced by ensightCells::writeBox().

Here is the call graph for this function:

Here is the caller graph for this function:

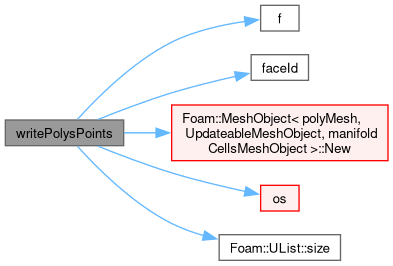

◆ writePolysPoints() [1/2]

void writePolysPoints	(	ensightGeoFile &	os,
		const cellUList &	meshCells,
		const labelUList &	addr,
		const faceUList &	meshFaces,
		const labelUList &	faceOwner )

Write the point ids per poly element.

Points have been already renumbered

Parameters

addr	Cell ids to write

Definition at line 341 of file ensightOutput.C.

References cellId, f(), faceId(), os(), and UList< T >::size().

Here is the call graph for this function:

◆ writePolysPoints() [2/2]

void writePolysPoints	(	ensightGeoFile &	os,
		const polyMesh &	mesh,
		const labelUList &	addr,
		const labelList &	pointMap )

Write the point ids per poly element, with point renumbering.

const cellList& meshCells = mesh.cells();

Parameters

addr	Cell ids to write
pointMap	Point map to use

Definition at line 295 of file ensightOutput.C.

References cellId, f(), faceId(), mesh, MeshObject< polyMesh, UpdateableMeshObject, manifoldCellsMeshObject >::New(), os(), and UList< T >::size().

Here is the call graph for this function:

◆ writeFaceConnectivity() [1/3]

void writeFaceConnectivity	(	ensightGeoFile &	os,
		const ensightFaces::elemType	etype,
		const label	nTotal,
		const UIndirectList< face > &	faces,
		bool	parallel )

Write the regular face connectivity for specified type and and specified faces.

Parameters

parallel Prefer collective write?

Definition at line 474 of file ensightOutput.C.

References Foam::ensightOutput::Detail::getFaceSizes(), ensightFaces::key(), UPstream::master(), UPstream::masterNo(), ensightFaces::NSIDED, os(), UPstream::parRun(), UPstream::scheduled, UPstream::subProcs(), and writeFaceList().

Referenced by ensightOutputSurface::write(), writeFaceConnectivity(), and writeFaceConnectivityPresorted().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFaceConnectivity() [2/3]

void writeFaceConnectivity	(	ensightGeoFile &	os,
		const ensightFaces::elemType	etype,
		const label	nTotal,
		const faceUList &	faces,
		bool	parallel )

Write the regular face connectivity for specified type.

Parameters

parallel Prefer collective write?

Definition at line 383 of file ensightOutput.C.

References Foam::ensightOutput::Detail::getFaceSizes(), ensightFaces::key(), UPstream::master(), UPstream::masterNo(), ensightFaces::NSIDED, os(), UPstream::parRun(), UPstream::scheduled, UPstream::subProcs(), and writeFaceList().

Here is the call graph for this function:

◆ writeFaceConnectivity() [3/3]

void writeFaceConnectivity	(	ensightGeoFile &	os,
		const ensightFaces &	part,
		const faceUList &	faces,
		bool	parallel )

Write the face connectivity for the part.

Parameters

parallel Prefer collective write?

Definition at line 567 of file ensightOutput.C.

References ensightFaces::faceIds(), ensightFaces::nTypes, os(), ensightFaces::total(), and writeFaceConnectivity().

Here is the call graph for this function:

◆ writeFaceConnectivityPresorted()

void writeFaceConnectivityPresorted	(	ensightGeoFile &	os,
		const ensightFaces &	part,
		const faceUList &	faces,
		bool	parallel )

Write the presorted face connectivity for the part.

This is a special case when the list of faces is already in ensight sorted order

Parameters

parallel Prefer collective write?

Definition at line 591 of file ensightOutput.C.

References ensightFaces::nTypes, os(), ensightFaces::range(), ensightFaces::total(), and writeFaceConnectivity().

Referenced by ensightFaces::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeField() [1/4]

template<class Type>

bool writeField	(	ensightOutput::floatBufferType &	scratch,
		ensightFile &	os,
		const Field< Type > &	fld,
		const ensightCells &	part,
		bool	parallel )

Write a field of cell values as an indirect list, using the cell ids from ensightCells.

Parameters

scratch	Component scratch buffer
os	Output file (must be valid on master)
fld	The field content to be written
part	The addressing (element-wise) into the field
parallel	Prefer collective write?

References fld(), and os().

Referenced by writeField(), and writeField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeField() [2/4]

template<class Type>

bool writeField	(	ensightOutput::floatBufferType &	scratch,
		ensightFile &	os,
		const Field< Type > &	fld,
		const ensightFaces &	part,
		bool	parallel )

Write a field of faces values as an indirect list, using the face ids from ensightFaces.

Parameters

scratch	Component scratch buffer
os	Output file (must be valid on master)
fld	The field content to be written
part	The addressing (element-wise) into the field
parallel	Prefer collective write?

References fld(), and os().

Here is the call graph for this function:

◆ writeField() [3/4]

template<class Type>

bool writeField	(	ensightFile &	os,
		const Field< Type > &	fld,
		const ensightCells &	part,
		bool	parallel )

Write a field of cell values as an indirect list, using the cell ids from ensightCells.

Parameters

os	Output file (must be valid on master)
fld	The field content to be written
part	The addressing (element-wise) into the field
parallel	Prefer collective write?

Definition at line 310 of file ensightOutput.H.

References fld(), os(), and writeField().

Here is the call graph for this function:

◆ writeField() [4/4]

template<class Type>

bool writeField	(	ensightFile &	os,
		const Field< Type > &	fld,
		const ensightFaces &	part,
		bool	parallel )

Write a field of faces values as an indirect list, using the face ids from ensightFaces.

Parameters

os	Output file (must be valid on master)
fld	The field content to be written
part	The addressing (element-wise) into the field
parallel	Prefer collective write?

Definition at line 335 of file ensightOutput.H.

References fld(), os(), and writeField().

Here is the call graph for this function:

◆ writeCloudPositions() [1/3]

bool writeCloudPositions	(	ensightFile &	os,
		DynamicList< floatVector > &	positions,
		const globalIndex &	procAddr )

Write cloud positions.

Parameters

os	Output file (must be valid on master)
positions	The positions (measured data) to write. Also used as intermediate buffer (on master)
procAddr	The global sizes of `positions` (must be valid on master) and consistent with `positions` dimensions

References os().

Here is the call graph for this function:

◆ writeCloudPositions() [2/3]

bool writeCloudPositions	(	ensightFile &	os,
		DynamicList< floatVector > &	positions )

Write cloud positions.

Parameters

os	Output file (must be valid on master)
positions	The positions (measured data) to write. Also used as intermediate buffer (on master)

References os().

Here is the call graph for this function:

◆ writeCloudPositions() [3/3]

bool writeCloudPositions	(	ensightFile &	os,
		const fvMesh &	mesh,
		const word &	cloudName,
		bool	exists )

Write cloud positions.

Parameters

os	Output file (must be valid on master)
mesh	The associated volume mesh
cloudName	The name of the cloud
exists	The processor-local existence

References cloudName(), Foam::exists(), mesh, and os().

Here is the call graph for this function:

◆ writeCloudField() [1/2]

template<class Type>

bool writeCloudField	(	ensightFile &	os,
		const UList< Type > &	field,
		const globalIndex &	procAddr )

Write cloud field, returning true if the field is non-empty.

Parameters

os	Output file (must be valid on master)
field	The cloud field
procAddr	The global sizes of `field` (must be valid on master) and consistent with `field` dimensions

References field(), and os().

Here is the call graph for this function:

◆ writeCloudField() [2/2]

template<class Type>

bool writeCloudField	(	ensightFile &	os,
		const UList< Type > &	field )

Write cloud field, returning true if the field is non-empty.

Parameters

os	Output file (must be valid on master)
field	The cloud field

References field(), and os().

Here is the call graph for this function:

◆ readWriteCloudField()

template<class Type>

bool readWriteCloudField	(	ensightFile &	os,
		const IOobject &	fieldObject,
		bool	existsAny )

Read cloud field from IOobject (if exists == true) and write, always returning true.

Parameters

os	Output file (must be valid on master)
fieldObject	The field object name/location for reading
existsAny	Exists anywhere? May still be missing on a local processor

References os().

Here is the call graph for this function:

Variable Documentation

◆ debug

int debug

extern

Static debugging option.

◆ maxChunk_

int maxChunk_

extern

Upper limit on number of items for bundled off-processor field transfers. The component-wise transfer uses float (4 bytes).

Eg, 5M for 50 ranks of 100k cells each

Namespaces

Classes

Typedefs

Functions

Variables

Detailed Description

Typedef Documentation

◆ floatBufferType

Function Documentation

◆ writeAreaField() [1/2]

◆ writeAreaField() [2/2]

◆ writeVolField() [1/4]

◆ writeVolField() [2/4]

◆ writeVolField() [3/4]

◆ writeVolField() [4/4]

◆ writePointField() [1/2]

◆ writePointField() [2/2]

◆ writeFaceList() [1/3]

◆ writeFaceList() [2/3]

◆ writeFaceList() [3/3]

◆ writeCellShapes()

◆ writePolysPoints() [1/2]

◆ writePolysPoints() [2/2]

◆ writeFaceConnectivity() [1/3]

◆ writeFaceConnectivity() [2/3]

◆ writeFaceConnectivity() [3/3]

◆ writeFaceConnectivityPresorted()

◆ writeField() [1/4]

◆ writeField() [2/4]

◆ writeField() [3/4]

◆ writeField() [4/4]

◆ writeCloudPositions() [1/3]

◆ writeCloudPositions() [2/3]

◆ writeCloudPositions() [3/3]

◆ writeCloudField() [1/2]

◆ writeCloudField() [2/2]

◆ readWriteCloudField()

Variable Documentation

◆ debug

◆ maxChunk_
