Calculation of interpolation stencils. More...

#include <cellCellStencil.H>

Inheritance diagram for cellCellStencil:

[legend]

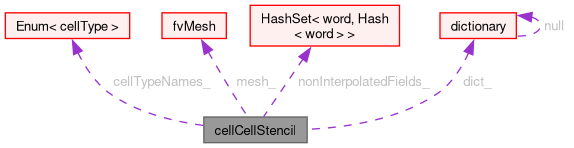

Collaboration diagram for cellCellStencil:

[legend]

Public Types
enum	patchCellType { OTHER = 0 , PATCH = 1 , OVERSET = 2 }
enum	cellType { CALCULATED = 0 , INTERPOLATED = 1 , HOLE = 2 , SPECIAL = 3 , POROUS = 4 }

Public Member Functions
	TypeName ("cellCellStencil")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, cellCellStencil, mesh,(const fvMesh &mesh, const dictionary &dict, const bool update),(mesh, dict, update))
	cellCellStencil (const fvMesh &)
	Construct from fvMesh.
virtual	~cellCellStencil ()
	Destructor.
virtual bool	update ()=0
	Update stencils. Return false if nothing changed.
virtual const labelUList &	cellTypes () const =0
	Return the cell type list.
virtual const labelUList &	interpolationCells () const =0
	Indices of interpolated cells.
virtual const mapDistribute &	cellInterpolationMap () const =0
	Return a communication schedule.
virtual const labelListList &	cellStencil () const =0
	Per interpolated cell the neighbour cells (in terms of slots as.
virtual const List< scalarList > &	cellInterpolationWeights () const =0
	Weights for cellStencil.
virtual const scalarList &	cellInterpolationWeight () const =0
	Per interpolated cell the interpolation factor. (0 = use.
virtual void	stencilWeights (const point &sample, const pointList &donorCcs, scalarList &weights) const =0
	Calculate weights for a single acceptor.
virtual const wordHashSet &	nonInterpolatedFields () const
	Return the names of any (stencil or mesh specific) fields that.
virtual wordHashSet &	nonInterpolatedFields ()
	Return non-const non-interpolating fields.
bool	localStencil (const labelUList &) const
	Helper: is stencil fully local.
const labelIOList &	zoneID () const
	Helper: get reference to registered zoneID. Loads volScalarField.
template<class T>
void	interpolate (const fvMesh &mesh, Field< T > &psi) const
	Explicit interpolation of acceptor cells from donor cells. Looks up cellCellStencil.
template<class GeoField>
void	interpolate (GeoField &psi) const
	Explicit interpolation of acceptor cells from donor cells with boundary condition handling.
template<class GeoField>
void	interpolate (const fvMesh &mesh, const wordHashSet &suppressed) const
	Explicit interpolation of all registered fields. No boundary conditions. Excludes selected fields (and their old-time fields).
void	walkFront (const globalIndex &globalCells, const scalar layerRelax, const labelListList &allStencil, labelList &allCellTypes, scalarField &allWeight, const scalarList &compactCellVol, const labelListList &compactStencil, const labelList &zoneID, const label holeLayers, const label useLayer) const
	Surround holes with layer(s) of interpolated cells.
void	setUpFront (const labelList &allCellTypes, bitSet &isFront) const
	Set up front using allCellTypes.
void	setUpFrontOnOversetPatch (const labelList &allCellTypes, bitSet &isFront) const
	Set up front on overset patches.
void	seedCell (const label cellI, const scalar wantedFraction, bitSet &isFront, scalarField &fraction) const
	Seed faces of cell with wantedFraction (if higher than current).
InfoProxy< cellCellStencil >	info () const noexcept
	Return info proxy, used to print stencil information to a stream.
template<class Type>
Foam::tmp< Foam::volScalarField >	createField (const fvMesh &mesh, const word &name, const UList< Type > &psi)

Static Public Member Functions
static autoPtr< cellCellStencil >	New (const fvMesh &, const dictionary &dict, const bool update=true)
	New function which constructs and returns pointer to a.
static const labelIOList &	zoneID (const fvMesh &)
	Helper: get reference to registered zoneID. Loads volScalarField.
static labelList	count (const label size, const labelUList &lst)
	Count occurrences (in parallel).
static void	globalCellCells (const globalIndex &gi, const polyMesh &mesh, const boolList &isValidDonor, const labelList &selectedCells, labelListList &cellCells, pointListList &cellCellCentres)
	Helper: create cell-cell addressing in global numbering.
template<class T>
static void	interpolate (Field< T > &psi, const fvMesh &mesh, const cellCellStencil &overlap, const List< scalarList > &wghts)
	Interpolation of acceptor cells from donor cells.
template<class GeoField, class SuppressBC>
static void	correctBoundaryConditions (GeoField &psi)
	Version of correctBoundaryConditions that excludes 'overset' bcs.

Protected Member Functions
void	suppressMotionFields ()
	Helper: populate nonInterpolatedFields_ with motion solver.

Static Protected Member Functions
template<class Type>
static tmp< volScalarField >	createField (const fvMesh &mesh, const word &name, const UList< Type > &)
	Helper: create volScalarField for postprocessing.
static word	baseName (const word &name)
	Helper: strip off trailing _0.

Protected Attributes
const fvMesh &	mesh_
	Reference to the mesh.
wordHashSet	nonInterpolatedFields_
	Set of fields that should not be interpolated.
const dictionary	dict_
	Dictionary of motion control parameters.

Static Protected Attributes
static const Enum< cellType >	cellTypeNames_
	Mode type names.

Detailed Description

Calculation of interpolation stencils.

Looks up zoneID labelIOList to give the zoning. Wrapped in MeshObject as cellCellStencilObject. Kept separate so meshes can implement more clever methods (e.g. solid body motion does not require full recalculation)

Source files

Definition at line 63 of file cellCellStencil.H.

Member Enumeration Documentation

◆ patchCellType

enum patchCellType

Enumerator
OTHER
PATCH
OVERSET

Definition at line 67 of file cellCellStencil.H.

◆ cellType

enum cellType

Enumerator
CALCULATED
INTERPOLATED
HOLE
SPECIAL
POROUS

Definition at line 74 of file cellCellStencil.H.

Constructor & Destructor Documentation

◆ cellCellStencil()

cellCellStencil ( const fvMesh & mesh )

Construct from fvMesh.

Definition at line 52 of file cellCellStencil.C.

References mesh, mesh_, and nonInterpolatedFields_.

◆ ~cellCellStencil()

~cellCellStencil ( )

virtual

Destructor.

Definition at line 89 of file cellCellStencil.C.

Member Function Documentation

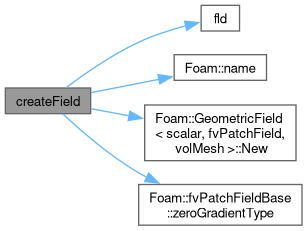

◆ createField() [1/2]

template<class Type>

tmp< volScalarField > createField	(	const fvMesh &	mesh,
		const word &	name,
		const UList< Type > &	)

staticprotected

Helper: create volScalarField for postprocessing.

References mesh, and Foam::name().

Referenced by trackingInverseDistance::update(), and walkFront().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ baseName()

Foam::word baseName ( const word & name )

staticprotected

Helper: strip off trailing _0.

Definition at line 95 of file cellCellStencil.C.

References baseName(), and Foam::name().

Referenced by baseName(), and interpolate().

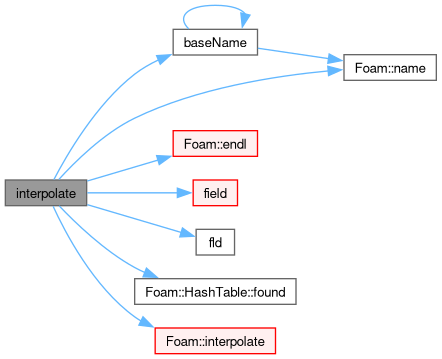

Here is the call graph for this function:

Here is the caller graph for this function:

◆ suppressMotionFields()

void suppressMotionFields ( )

protected

Helper: populate nonInterpolatedFields_ with motion solver.

fields

Definition at line 106 of file cellCellStencil.C.

References nonInterpolatedFields_.

Referenced by cellVolumeWeight::cellVolumeWeight(), and inverseDistance::inverseDistance().

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "cellCellStencil" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		cellCellStencil	,
		mesh	,
		(const fvMesh &mesh, const dictionary &dict, const bool update)	,
		(mesh, dict, update)	)

References dict, mesh, and update().

Here is the call graph for this function:

◆ New()

Foam::autoPtr< Foam::cellCellStencil > New	(	const fvMesh &	mesh,
		const dictionary &	dict,
		const bool	update = true )

static

New function which constructs and returns pointer to a.

cellCellStencil

Definition at line 59 of file cellCellStencil.C.

References DebugInFunction, dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, mesh, and update().

Here is the call graph for this function:

◆ update()

virtual bool update ( )

pure virtual

Update stencils. Return false if nothing changed.

Implemented in cellCellStencilObject, cellVolumeWeight, inverseDistance, and trackingInverseDistance.

Referenced by declareRunTimeSelectionTable(), and New().

Here is the caller graph for this function:

◆ cellTypes()

virtual const labelUList & cellTypes ( ) const

pure virtual

Return the cell type list.

Implemented in cellCellStencilObject, cellVolumeWeight, and inverseDistance.

◆ interpolationCells()

virtual const labelUList & interpolationCells ( ) const

pure virtual

Indices of interpolated cells.

Implemented in cellCellStencilObject, cellVolumeWeight, and inverseDistance.

◆ cellInterpolationMap()

virtual const mapDistribute & cellInterpolationMap ( ) const

pure virtual

Return a communication schedule.

Implemented in cellCellStencilObject, cellVolumeWeight, and inverseDistance.

◆ cellStencil()

virtual const labelListList & cellStencil ( ) const

pure virtual

Per interpolated cell the neighbour cells (in terms of slots as.

constructed by above cellInterpolationMap) to interpolate

Implemented in cellCellStencilObject, cellVolumeWeight, and inverseDistance.

◆ cellInterpolationWeights()

virtual const List< scalarList > & cellInterpolationWeights ( ) const

pure virtual

Weights for cellStencil.

Implemented in cellCellStencilObject, cellVolumeWeight, and inverseDistance.

◆ cellInterpolationWeight()

virtual const scalarList & cellInterpolationWeight ( ) const

pure virtual

Per interpolated cell the interpolation factor. (0 = use.

calculated, 1 = use interpolated)

Implemented in cellCellStencilObject, cellVolumeWeight, and inverseDistance.

◆ stencilWeights()

virtual void stencilWeights	(	const point &	sample,
		const pointList &	donorCcs,
		scalarList &	weights ) const

pure virtual

Calculate weights for a single acceptor.

Implemented in cellCellStencilObject, cellVolumeWeight, inverseDistance, and leastSquares.

◆ nonInterpolatedFields() [1/2]

const Foam::wordHashSet & nonInterpolatedFields ( ) const

virtual

Return the names of any (stencil or mesh specific) fields that.

should not be interpolated

Reimplemented in cellCellStencilObject.

Definition at line 197 of file cellCellStencil.C.

References nonInterpolatedFields_.

◆ nonInterpolatedFields() [2/2]

Foam::wordHashSet & nonInterpolatedFields ( )

virtual

Return non-const non-interpolating fields.

Definition at line 203 of file cellCellStencil.C.

References nonInterpolatedFields_.

◆ localStencil()

bool localStencil ( const labelUList & slots ) const

Helper: is stencil fully local.

Definition at line 209 of file cellCellStencil.C.

References forAll, and mesh_.

◆ zoneID() [1/2]

const Foam::labelIOList & zoneID ( const fvMesh & mesh )

static

Helper: get reference to registered zoneID. Loads volScalarField.

if not registered.

Definition at line 133 of file cellCellStencil.C.

References forAll, mesh, polyMesh::meshSubDir, IOobjectOption::MUST_READ, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, IOobjectOption::REGISTER, regIOobject::store(), and zoneID().

Referenced by inverseDistance::compactedRegionSplit(), cellVolumeWeight::findHoles(), inverseDistance::findHoles(), trackingInverseDistance::trackingInverseDistance(), inverseDistance::uncompactedRegionSplit(), cellVolumeWeight::update(), inverseDistance::update(), trackingInverseDistance::update(), walkFront(), and zoneID().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ zoneID() [2/2]

const labelIOList & zoneID ( ) const

inline

Helper: get reference to registered zoneID. Loads volScalarField.

if not registered.

Definition at line 280 of file cellCellStencil.H.

References mesh_, and zoneID().

Referenced by cellVolumeWeight::cellVolumeWeight(), inverseDistance::inverseDistance(), and zoneID().

Here is the call graph for this function:

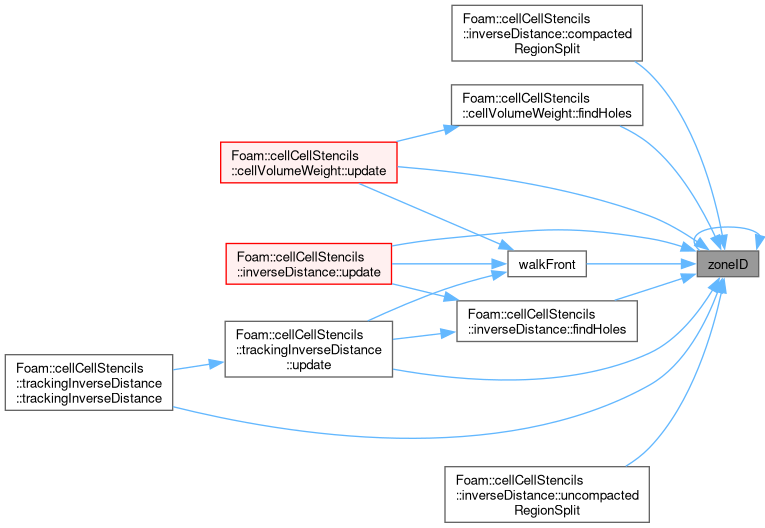

Here is the caller graph for this function:

◆ count()

Foam::labelList count	(	const label	size,
		const labelUList &	lst )

static

Count occurrences (in parallel).

Definition at line 181 of file cellCellStencil.C.

References count(), forAll, Pstream::listCombineGather(), and Foam::Zero.

Referenced by count(), Foam::operator<<(), cellVolumeWeight::update(), inverseDistance::update(), and walkFront().

Here is the call graph for this function:

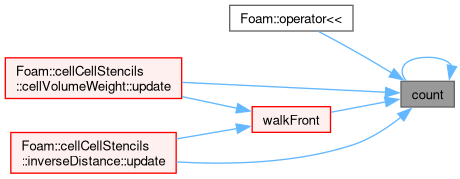

Here is the caller graph for this function:

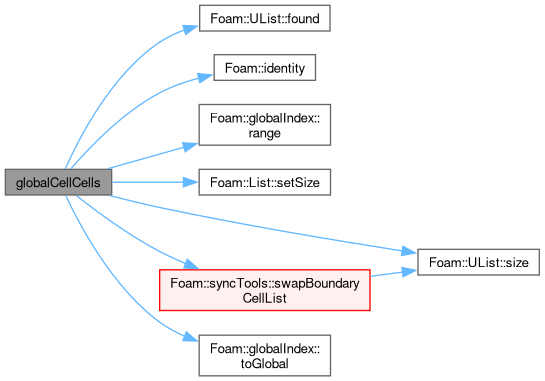

◆ globalCellCells()

void globalCellCells	(	const globalIndex &	gi,
		const polyMesh &	mesh,
		const boolList &	isValidDonor,
		const labelList &	selectedCells,
		labelListList &	cellCells,
		pointListList &	cellCellCentres )

static

Helper: create cell-cell addressing in global numbering.

Definition at line 222 of file cellCellStencil.C.

References cells, forAll, UList< T >::found(), Foam::identity(), mesh, globalIndex::range(), List< T >::setSize(), UList< T >::size(), syncTools::swapBoundaryCellList(), and globalIndex::toGlobal().

Referenced by inverseDistance::createStencil().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolate() [1/4]

template<class T>

void interpolate	(	Field< T > &	psi,
		const fvMesh &	mesh,
		const cellCellStencil &	overlap,
		const List< scalarList > &	wghts )

static

Interpolation of acceptor cells from donor cells.

Definition at line 26 of file cellCellStencilTemplates.C.

References Foam::exit(), f(), Foam::FatalError, FatalErrorInFunction, forAll, mesh, UPstream::msgType(), overlap, psi, s(), UList< T >::size(), and Foam::T().

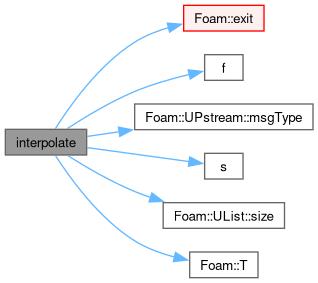

Here is the call graph for this function:

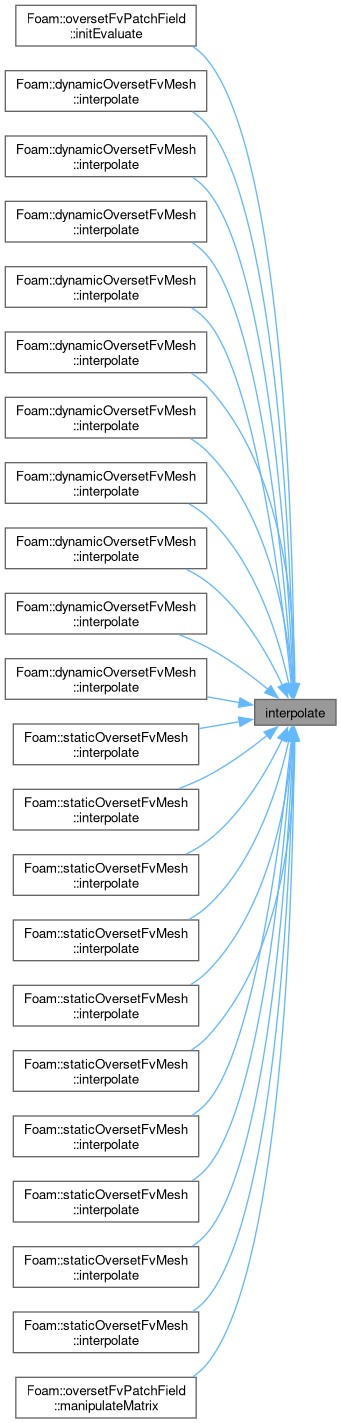

Here is the caller graph for this function:

◆ interpolate() [2/4]

template<class T>

void interpolate	(	const fvMesh &	mesh,
		Field< T > &	psi ) const

Explicit interpolation of acceptor cells from donor cells. Looks up cellCellStencil.

Definition at line 77 of file cellCellStencilTemplates.C.

References Foam::interpolate(), mesh, overlap, and psi.

Here is the call graph for this function:

◆ interpolate() [3/4]

template<class GeoField>

void interpolate ( GeoField & psi ) const

Explicit interpolation of acceptor cells from donor cells with boundary condition handling.

Definition at line 92 of file cellCellStencilTemplates.C.

References Foam::interpolate(), and psi.

Here is the call graph for this function:

◆ interpolate() [4/4]

template<class GeoField>

void interpolate	(	const fvMesh &	mesh,
		const wordHashSet &	suppressed ) const

Explicit interpolation of all registered fields. No boundary conditions. Excludes selected fields (and their old-time fields).

Definition at line 104 of file cellCellStencilTemplates.C.

References baseName(), Foam::endl(), field(), fld(), HashTable< T, Key, Hash >::found(), Foam::interpolate(), mesh, Foam::name(), overlap, and Foam::Pout.

Here is the call graph for this function:

◆ correctBoundaryConditions()

template<class GeoField, class SuppressBC>

void correctBoundaryConditions ( GeoField & psi )

static

Version of correctBoundaryConditions that excludes 'overset' bcs.

Definition at line 173 of file cellCellStencilTemplates.C.

References Foam::isA(), UPstream::nonBlocking, and psi.

Referenced by oversetFvMeshBase::writeObject().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ walkFront()

void walkFront	(	const globalIndex &	globalCells,
		const scalar	layerRelax,
		const labelListList &	allStencil,
		labelList &	allCellTypes,
		scalarField &	allWeight,
		const scalarList &	compactCellVol,
		const labelListList &	compactStencil,
		const labelList &	zoneID,
		const label	holeLayers,
		const label	useLayer ) const
