Volume-weighted interpolation stencil. More...

#include <cellVolumeWeightCellCellStencil.H>

Inheritance diagram for cellVolumeWeight:

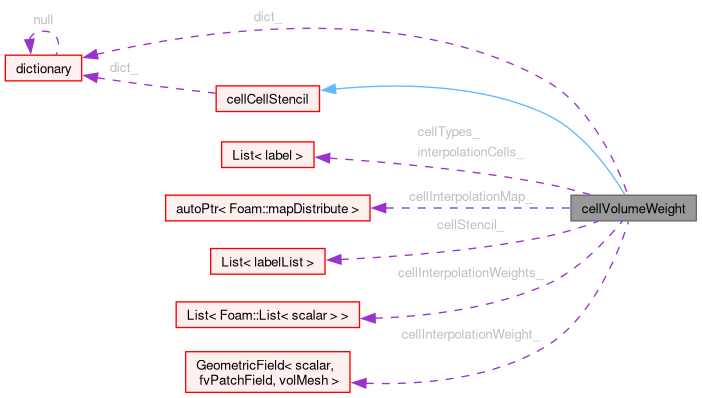

Collaboration diagram for cellVolumeWeight:

[legend]

Public Member Functions
	TypeName ("cellVolumeWeight")
	Runtime type information.
	cellVolumeWeight (const fvMesh &, const dictionary &, const bool doUpdate)
	Construct from fvMesh.
virtual	~cellVolumeWeight ()
	Destructor.
scalar	overlapTolerance () const
	Access to volume overlap tolerance.
virtual bool	update ()
	Update stencils. Return false if nothing changed.
virtual const labelUList &	cellTypes () const
	Return the cell type list.
virtual const labelUList &	interpolationCells () const
	Indices of interpolated cells.
virtual const mapDistribute &	cellInterpolationMap () const
	Return a communication schedule.
virtual const labelListList &	cellStencil () const
	Per interpolated cell the neighbour cells (in terms of slots as.
virtual const List< scalarList > &	cellInterpolationWeights () const
	Weights for cellStencil.
virtual const scalarList &	cellInterpolationWeight () const
	Per interpolated cell the interpolation factor. (0 = use.
virtual void	stencilWeights (const point &sample, const pointList &donorCcs, scalarList &weights) const
	Calculate inverse distance weights for a single acceptor. Revert.
Public Member Functions inherited from cellCellStencil
	TypeName ("cellCellStencil")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, cellCellStencil, mesh,(const fvMesh &mesh, const dictionary &dict, const bool update),(mesh, dict, update))
	cellCellStencil (const fvMesh &)
	Construct from fvMesh.
virtual	~cellCellStencil ()
	Destructor.
virtual const wordHashSet &	nonInterpolatedFields () const
	Return the names of any (stencil or mesh specific) fields that.
virtual wordHashSet &	nonInterpolatedFields ()
	Return non-const non-interpolating fields.
bool	localStencil (const labelUList &) const
	Helper: is stencil fully local.
const labelIOList &	zoneID () const
	Helper: get reference to registered zoneID. Loads volScalarField.
template<class T>
void	interpolate (const fvMesh &mesh, Field< T > &psi) const
	Explicit interpolation of acceptor cells from donor cells. Looks up cellCellStencil.
template<class GeoField>
void	interpolate (GeoField &psi) const
	Explicit interpolation of acceptor cells from donor cells with boundary condition handling.
template<class GeoField>
void	interpolate (const fvMesh &mesh, const wordHashSet &suppressed) const
	Explicit interpolation of all registered fields. No boundary conditions. Excludes selected fields (and their old-time fields).
void	walkFront (const globalIndex &globalCells, const scalar layerRelax, const labelListList &allStencil, labelList &allCellTypes, scalarField &allWeight, const scalarList &compactCellVol, const labelListList &compactStencil, const labelList &zoneID, const label holeLayers, const label useLayer) const
	Surround holes with layer(s) of interpolated cells.
void	setUpFront (const labelList &allCellTypes, bitSet &isFront) const
	Set up front using allCellTypes.
void	setUpFrontOnOversetPatch (const labelList &allCellTypes, bitSet &isFront) const
	Set up front on overset patches.
void	seedCell (const label cellI, const scalar wantedFraction, bitSet &isFront, scalarField &fraction) const
	Seed faces of cell with wantedFraction (if higher than current).
InfoProxy< cellCellStencil >	info () const noexcept
	Return info proxy, used to print stencil information to a stream.
template<class Type>
Foam::tmp< Foam::volScalarField >	createField (const fvMesh &mesh, const word &name, const UList< Type > &psi)

Protected Member Functions
void	findHoles (const globalIndex &globalCells, const fvMesh &mesh, const labelList &zoneID, const labelListList &stencil, labelList &cellTypes) const
	Find cells next to cells of type PATCH.
void	markPatchCells (const fvMesh &mesh, const labelList &cellMap, labelList &patchCellTypes) const
	according to additionalDocumentation/MEJ_oversetMesh.txt
void	combineCellTypes (const label subZoneID, const fvMesh &subMesh, const labelList &subCellMap, const label donorZoneID, const labelListList &toOtherCells, const List< scalarList > &weights, const labelList &otherCells, const labelList &interpolatedOtherPatchTypes, labelListList &allStencil, scalarListList &allWeights, labelList &allCellTypes, labelList &allDonorID) const
void	interpolatePatchTypes (const labelListList &addressing, const labelList &patchTypes, labelList &result) const
	interpolate (= combine) patch types
void	interpolatePatchTypes (const autoPtr< mapDistribute > &mapPtr, const labelListList &addressing, const labelList &patchTypes, labelList &result) const
	interpolate (= combine) patch types
Protected Member Functions inherited from cellCellStencil
void	suppressMotionFields ()
	Helper: populate nonInterpolatedFields_ with motion solver.

Protected Attributes
const dictionary	dict_
	Dictionary of motion control parameters.
scalar	overlapTolerance_
	Tolerance for volume overlap. Fraction of volume.
labelList	cellTypes_
	Per cell the cell type.
labelList	interpolationCells_
	Indices of interpolated cells.
autoPtr< mapDistribute >	cellInterpolationMap_
	Fetch interpolated cells.
labelListList	cellStencil_
	Interpolation stencil.
List< scalarList >	cellInterpolationWeights_
	Interpolation weights.
volScalarField	cellInterpolationWeight_
	Amount of interpolation.
const bool	allowInterpolatedDonors_
	Allow interpolared as donors.
Protected Attributes inherited from cellCellStencil
const fvMesh &	mesh_
	Reference to the mesh.
wordHashSet	nonInterpolatedFields_
	Set of fields that should not be interpolated.
const dictionary	dict_
	Dictionary of motion control parameters.

Static Protected Attributes
static scalar	defaultOverlapTolerance_ = 1e-6
	Default overlap tolerance. Fraction of volume.
Static Protected Attributes inherited from cellCellStencil
static const Enum< cellType >	cellTypeNames_
	Mode type names.

Additional Inherited Members
Public Types inherited from cellCellStencil
enum	patchCellType { OTHER = 0 , PATCH = 1 , OVERSET = 2 }
enum	cellType { CALCULATED = 0 , INTERPOLATED = 1 , HOLE = 2 , SPECIAL = 3 , POROUS = 4 }
Static Public Member Functions inherited from cellCellStencil
static autoPtr< cellCellStencil >	New (const fvMesh &, const dictionary &dict, const bool update=true)
	New function which constructs and returns pointer to a.
static const labelIOList &	zoneID (const fvMesh &)
	Helper: get reference to registered zoneID. Loads volScalarField.
static labelList	count (const label size, const labelUList &lst)
	Count occurrences (in parallel).
static void	globalCellCells (const globalIndex &gi, const polyMesh &mesh, const boolList &isValidDonor, const labelList &selectedCells, labelListList &cellCells, pointListList &cellCellCentres)
	Helper: create cell-cell addressing in global numbering.
template<class T>
static void	interpolate (Field< T > &psi, const fvMesh &mesh, const cellCellStencil &overlap, const List< scalarList > &wghts)
	Interpolation of acceptor cells from donor cells.
template<class GeoField, class SuppressBC>
static void	correctBoundaryConditions (GeoField &psi)
	Version of correctBoundaryConditions that excludes 'overset' bcs.
Static Protected Member Functions inherited from cellCellStencil
template<class Type>
static tmp< volScalarField >	createField (const fvMesh &mesh, const word &name, const UList< Type > &)
	Helper: create volScalarField for postprocessing.
static word	baseName (const word &name)
	Helper: strip off trailing _0.

Detailed Description

Volume-weighted interpolation stencil.

Source files

Definition at line 50 of file cellVolumeWeightCellCellStencil.H.

Constructor & Destructor Documentation

◆ cellVolumeWeight()

cellVolumeWeight	(	const fvMesh &	mesh,
		const dictionary &	dict,
		const bool	doUpdate )

Construct from fvMesh.

Definition at line 506 of file cellVolumeWeightCellCellStencil.C.

References allowInterpolatedDonors_, cellCellStencil::CALCULATED, cellInterpolationMap_, cellInterpolationWeight_, cellInterpolationWeights_, cellStencil_, cellTypes_, defaultOverlapTolerance_, dict, dict_, Foam::dimless, Foam::endl(), forAll, interpolationCells_, io, mesh, cellCellStencil::mesh_, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, overlapTolerance_, Foam::Pout, IOobjectOption::READ_IF_PRESENT, cellCellStencil::suppressMotionFields(), update(), Foam::Zero, and cellCellStencil::zoneID().

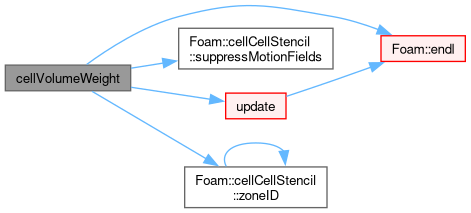

Here is the call graph for this function:

◆ ~cellVolumeWeight()

~cellVolumeWeight ( )

virtual

Destructor.

Definition at line 585 of file cellVolumeWeightCellCellStencil.C.

Member Function Documentation

◆ findHoles()

void findHoles	(	const globalIndex &	globalCells,
		const fvMesh &	mesh,
		const labelList &	zoneID,
		const labelListList &	stencil,
		labelList &	cellTypes ) const

protected

Find cells next to cells of type PATCH.

Definition at line 53 of file cellVolumeWeightCellCellStencil.C.

References cellTypes(), fvPatch::constraintType(), mapDistribute::distribute(), Foam::endl(), fvPatch::faceCells(), forAll, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, cellCellStencil::HOLE, Foam::Info, Foam::isA(), isBlockedFace(), Pstream::listReduce(), mesh, Foam::nl, regionSplit::nRegions(), pbm, Foam::returnReduceOr(), syncTools::swapBoundaryCellList(), Foam::Zero, and cellCellStencil::zoneID().

Referenced by update().

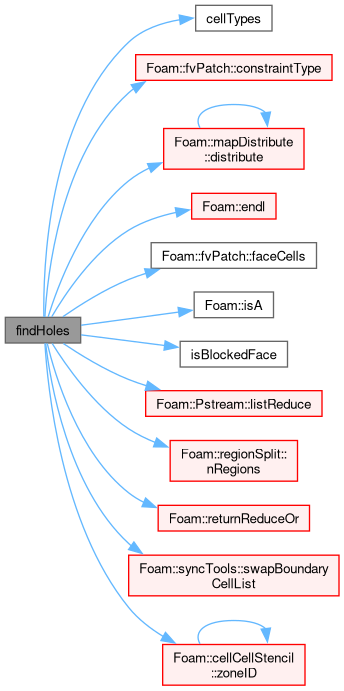

Here is the call graph for this function:

Here is the caller graph for this function:

◆ markPatchCells()

void markPatchCells	(	const fvMesh &	mesh,
		const labelList &	cellMap,
		labelList &	patchCellTypes ) const

protected

according to additionalDocumentation/MEJ_oversetMesh.txt

Definition at line 284 of file cellVolumeWeightCellCellStencil.C.

References fvPatch::constraintType(), fvPatch::faceCells(), forAll, Foam::isA(), mesh, cellCellStencil::OVERSET, cellCellStencil::PATCH, and pbm.

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ combineCellTypes()

void combineCellTypes	(	const label	subZoneID,
		const fvMesh &	subMesh,
		const labelList &	subCellMap,
		const label	donorZoneID,
		const labelListList &	toOtherCells,
		const List< scalarList > &	weights,
		const labelList &	otherCells,
		const labelList &	interpolatedOtherPatchTypes,
		labelListList &	allStencil,
		scalarListList &	allWeights,
		labelList &	allCellTypes,
		labelList &	allDonorID ) const

protected

Option 1:

scalar currentVol = sum(allWeights[cellI]); if (overlapVol[subCellI] > currentVol)

Option 3:

Definition at line 393 of file cellVolumeWeightCellCellStencil.C.

References forAll, cellCellStencil::HOLE, Foam::mag(), cellCellStencil::OTHER, cellCellStencil::OVERSET, and cellCellStencil::PATCH.

Referenced by update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolatePatchTypes() [1/2]

void interpolatePatchTypes	(	const labelListList &	addressing,
		const labelList &	patchTypes,
		labelList &	result ) const

protected

interpolate (= combine) patch types

Definition at line 324 of file cellVolumeWeightCellCellStencil.C.

References forAll, cellCellStencil::OTHER, cellCellStencil::OVERSET, cellCellStencil::PATCH, and patchTypes().

Referenced by interpolatePatchTypes(), and update().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolatePatchTypes() [2/2]

void interpolatePatchTypes	(	const autoPtr< mapDistribute > &	mapPtr,
		const labelListList &	addressing,
		const labelList &	patchTypes,
		labelList &	result ) const
